Product Overview
Description
Custom WP-Series Enclosure ABS ASA UL94HB UVProtect Pole Mount Sensor Housing GPS Track Lorawan IOT Gateway Outdoor Enclosure Ip67 Plastic Waterproof Box
Products Description

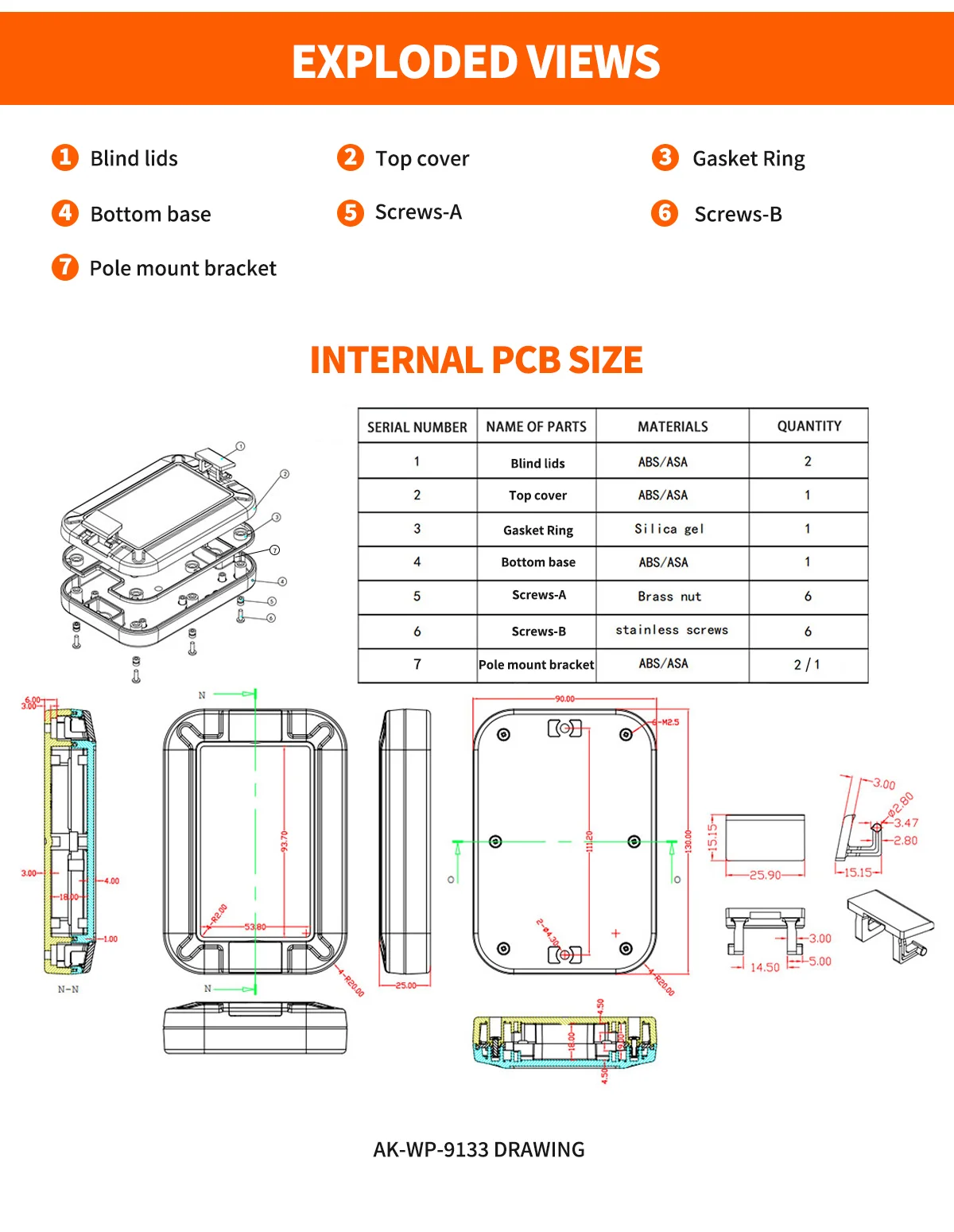

Name | UV-Protect Plastic ASA Waterproof Enclosure Box |
Type | AK-WP-9133、AK-WP-11154、AK-WP-13183、AK-WP-13185、AK-WP-15216 |
Brand Name | SZOMK |

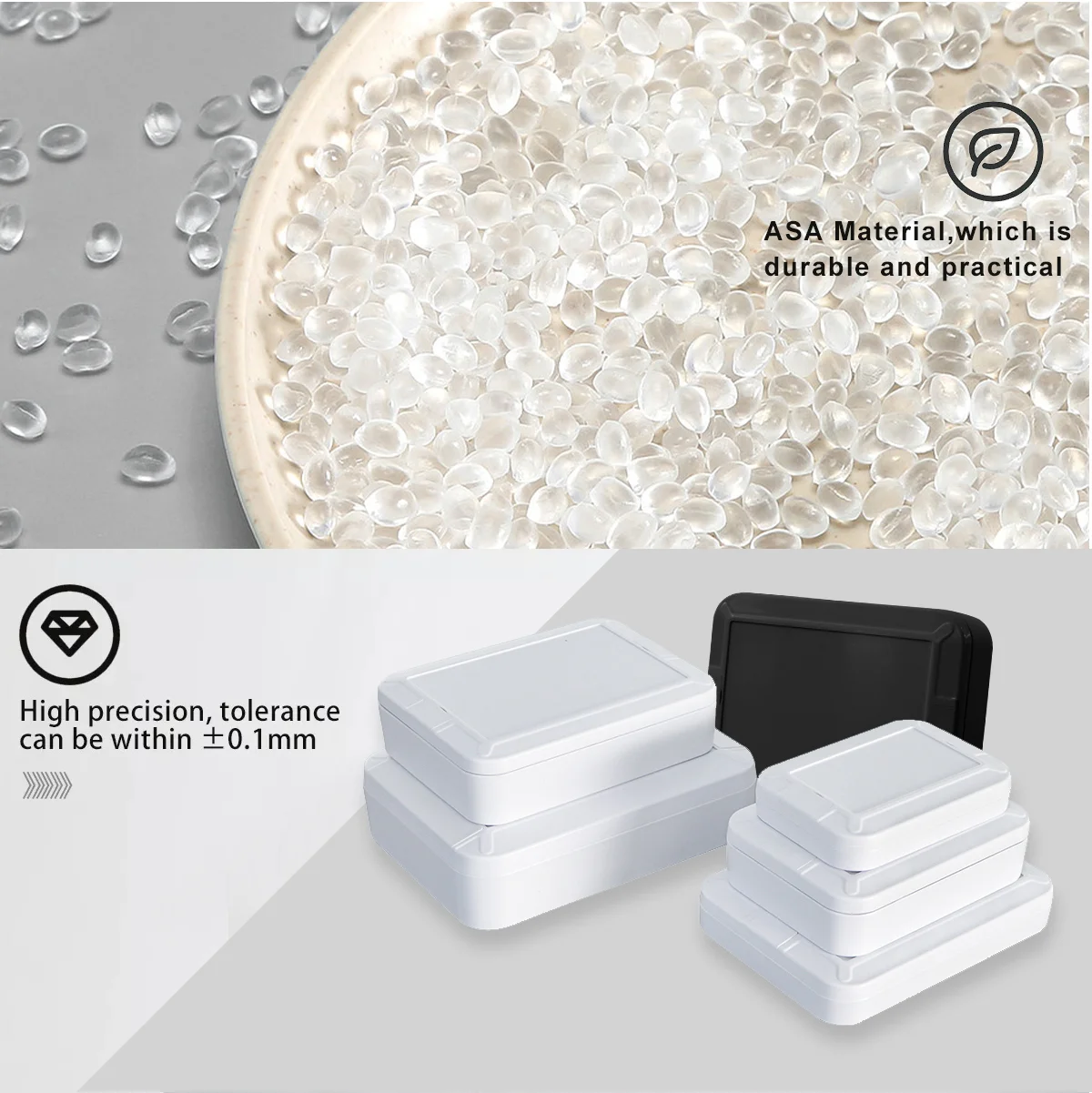

Material | ASA(and we have ABS in stock)ASA material is resistant to deterioration and discoloration from ultraviolet rays.Recommended for outdoors usage as acommunication device type equipment. |
Operating Temperature | -30° - max 80° |
Color | White gray |
IP Rating | IP67 |
Customized Service | Cutout,silkscreen Printing/ pad printing, laser engraving, UV printing, sticker, membrane keyboard, acrylic plate, oil painting, plastic electroplating, hot melt treatment,custom PC plate, plastic CNC, ultrasonic welding, RFI/EMI shielding coating, Change Material UL94-V0 , Flame Retardant ,High-temperature Retardant |
MOQ | 1 piece |
Certification | ROHS, REACH |

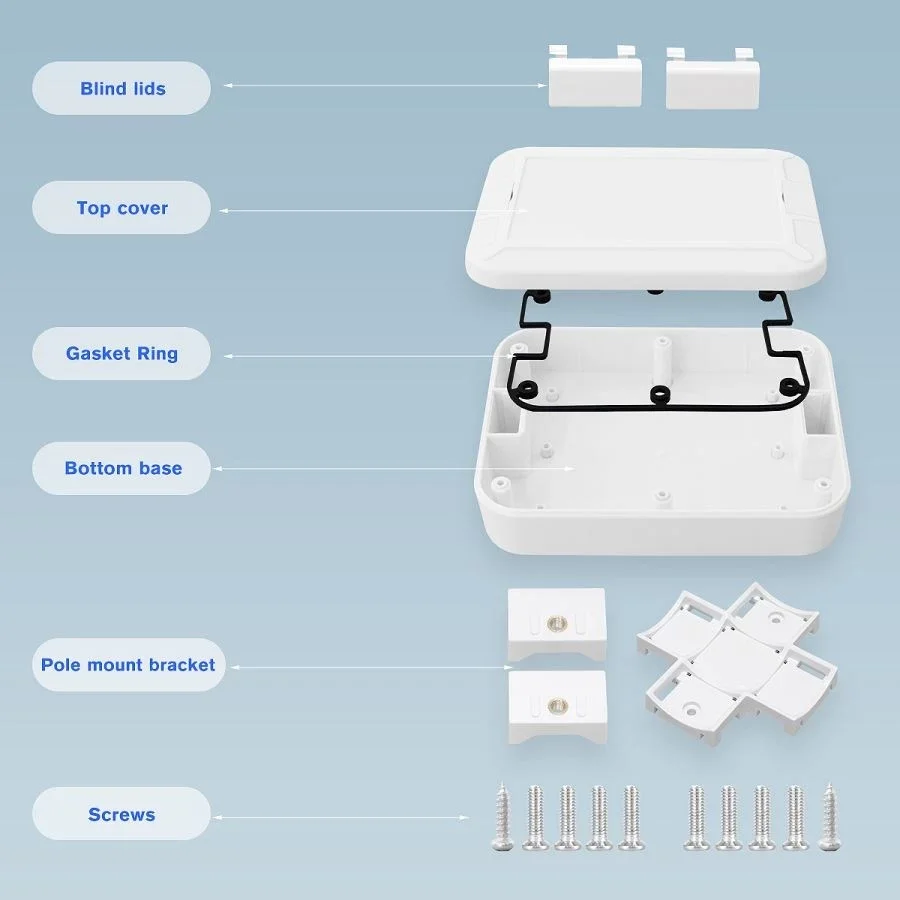

Assembly includes | Screw |

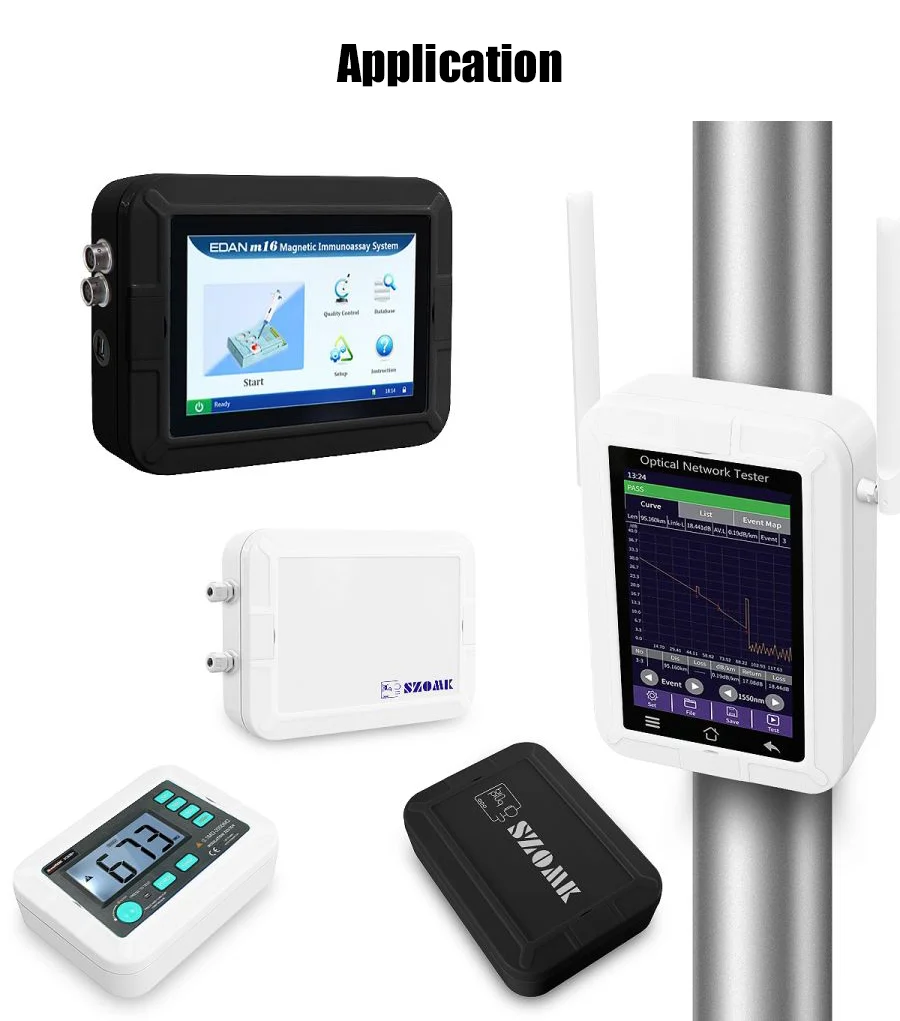

Application | IOT Sensor Data Logger for AgricultureGreenhouse multi sensor LeakLess Monitor - Industrial Pressure/Flow Data Logger Leak Guard - Home Water Leak Ditector Wireless tank level sensor Wireless Temperature/Humidity Transmitter Air Pressure Sensor Remote Surveillance Sensor Network Sensor for Agriculture Remote Sprinkler Control Unit Maritime GPS Tracking System Temperature sensor for environmental |
Usage | It is widely used in electronics, instrumentation, automation, communication, power supply unites, student projects, amplifiers,healthcare equipment, test and measurement equipment, industrial control, peripherals devices and interfaces, switch boxes.inquiry will surely get prompt response in 24 hours. |

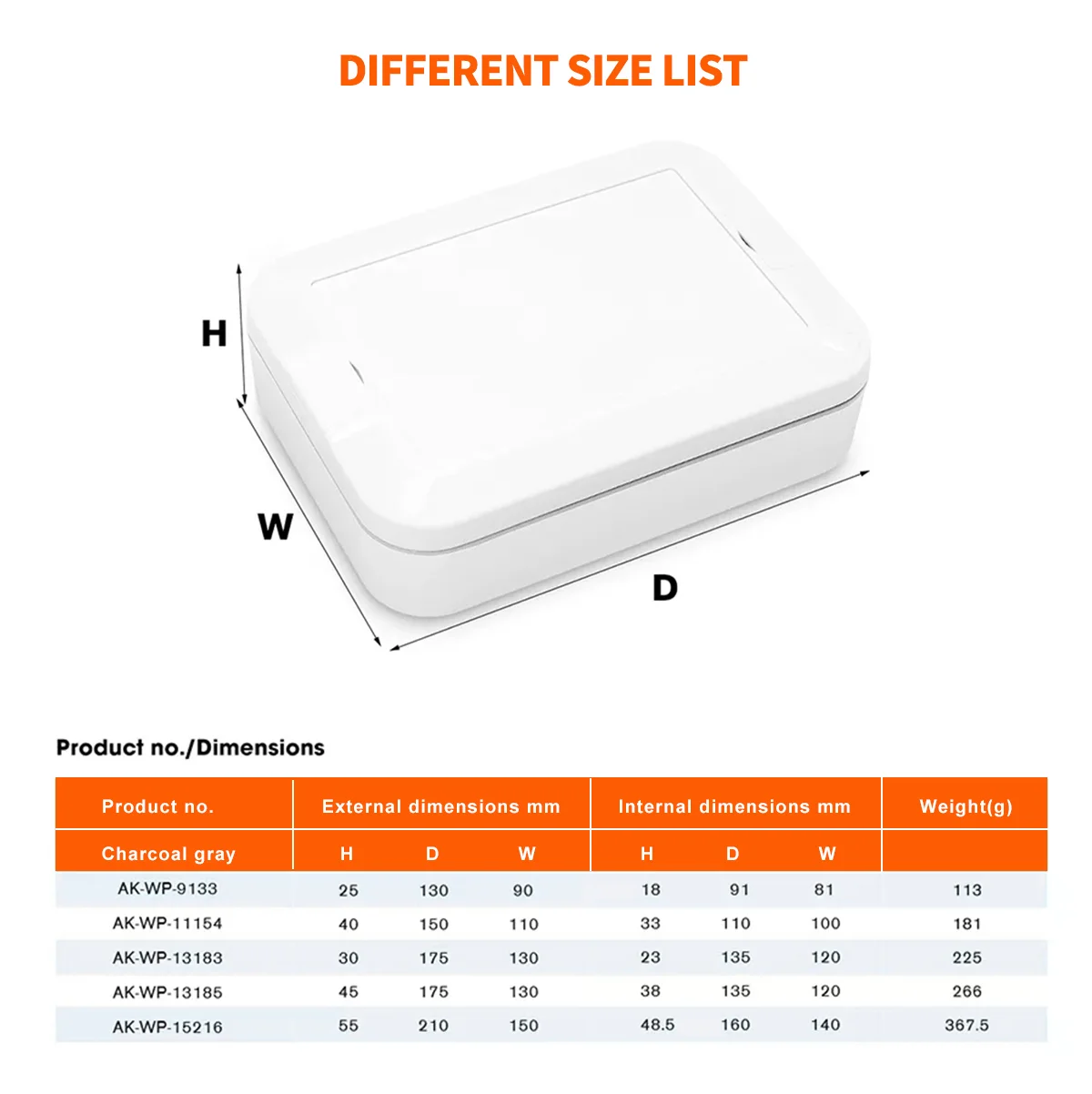

Product No. | External Size (L*W*H)mm | Internal Size (L*W*H)mm | Weight(g) | Material |
AK-WP-9133G | 130*90*25 | 91*81*18 | 113 | ASA |
AK-WP-11154G | 150*110*40 | 110*100*33 | 181 | ASA |
AK-WP-13183G | 175*130*30 | 135*120*23 | 225 | ASA |
AK-WP-13185G | 175*130*45 | 135*120*38 | 266 | ASA |
AK-WP-15216G | 210*150*55 | 160*140*48.5 | 367.5 | ASA |
Waterproof enclosures ensure internal electrical and electronic components are protected in any environment. Durability guaranteed, waterproof boxes and weatherproof enclosures are specifically designed to meet and exceed various NEMA and IP requirements, making them ideal for both indoor and outdoor applications. From smaller waterproof boxes for electronics, to large weatherproof electrical enclosures, we offer a variety of styles, sizes, and materials to choose from. With a watertight gasket,sealed enclosures are guaranteed to keep electronic and electrical equipment safe in wet conditions.
Our Advantages
1. Direct factory and leading manufacturer
2. OEM/ODM service are acceptable
3. Competitive price
4. Strictly control and reliable quality
5. Products can be made according to your requirment: such as drilling, painting, engraving, silk-screen printing and etc.
6. Your design is welcome, the cost of mould can be free with higher quantity
6. Your design is welcome, the cost of mould can be free with higher quantity
7. Timely pre-sale service and after-sales service
Company Profile
DIRECT TRANSACTIONS WITH FACTORIES
SZOMK has over 14 years of experience in quality injection molding.Buying products from the manufacturer can save you time and money. Thousands of product and mold combinations are available for you to choose to meet your exact needs. Our knowledge, experience, quality and speed are unparalleled, thus forming a convenient and stress-free partnership.
OUR INJECTION MOLDING FACTORY
We have a injection molding factory covering an area of more than 2,500 square meters in Dongguan City, with about 80 employees.We focus on the manufacture and design of precision molds, mass production of injection parts. Our industries include consumer goods, electronics, industrial parts, medical and pharmaceutical etc.
We have high-tech mold design capabilities and a full set of machining centers. We have advanced CNC machining centers, CNC wire cutting machines, milling machines, precision grinders, CNC electric discharge machines and 2&3 size measuring instruments.
We have 12 injection molding machines that can perform batch plastic injection after the mold is completed. No matter what your needs are, our large-scale, diversified array of options means that we’re ready to take on your next project, no matter how big or small.
Electric Discharge Machine
CNC Drilling Machine
Electric Discharge Machine
Two-color Injection Molding Machine
Vertical Injection Molding Machine
Injection molding workshop
OUR EXTRUDED MOLDING FACTORY
Our extrusion die factory is located in Foshan, the hinterland of the Pearl River Delta, which is known as the "City of Aluminum Industry" in China. It covers an area of 6000 square meters and has more than 200 employees. It is engaged in the design and production of professional aluminum extrusion molds.
The main products are lighting profiles, wall washer series, hardware furniture series, medical equipment series, motor housing series, general round tube rod series, assembly line bracket profile series, shower room series, etc.
MOLD DESIGN
And can design and manufacture molds and products required by customers according to customer requirements, drawings or samples provided; our company can perform various surface treatments such as electrophoresis, oxidation, spraying, etc., especially the effect of alkaline sand anodizing is quite good, giving high-end products The decoration market has created favorable conditions.
QUALITY ASSURANCE
Provide expert technical advice for your PCBs and electronic components on ranked #1 most popular in electronics & instrument enclosures，and discover how easy it is to specify the perfect enclosures for your electronics.
We achieve these objectives through the establishment, maintenance, and continual improvement of our ISO 9001:2015 certified. Weemploy a staff of over 80 employees, and our facility operates 24/7/365 to ensure you receive your injection molding orders on time.
Certifications
ISO9001
Trademark registration certificate
Mould patent certificate
TUV
ROHS
REACH
IP68 waterproof
ABS flame retardant material certificate
PC material fireproof certificate
Exhibition
FAQ
1. What kind of payment way could you accept ?
We have Paypal , T/T , and Western Union , Bank transfer , Alipay , and Escrow.
2. what kind of format is avaible for the drawing of cutout ?
We are Prefer CAD cutout drawing , if you not have CAD , PDF is also ok for us .
3. How much cost if the goods be cut differe length , cutout , and change color ?
The price will be depended on how long the box ,and what shape of the holes , and how many holes on one box , also your Qty Usually our MOQ is 30 pcs when you need customization.
4. We want to drill holes & silkscreen on this item. How much does it costs?
Please send our drawing of the printing & cut-out or tell us the quantity, shape and position of the holes so that we can quote
for you.
5. Can we just get 2-3 sample pieces of this item with cut-out?
Our MOQ for customizing this item is 20/ 50 pcs. We’ll quote cost for making customized samples and shipping cost & delivery day
for it. After you’ve got the sample and confirm it, we’ll go on processing the rest of the product.
6. What can we do?Apart from selling enclosures, we also provide customized service. Including making new mold for oem,
cut-out,change length of aluminum enclosure, change color of our boxes, silk screen printing, making sticker/ silica gel edges/
PVC label/acrylic plate，laser carve (engraving), sandblasting, product polishing, wire drawing.
7. Why does the shipping cost costs so much of some items in your store?
Please contact us for a reasonable shipping cost.
8. Could you give discount on the products if we buy more pieces?
Yes, we can.
9. Can you provide samples for free?
Not every item sample is for free. Customer should undertake the shipping cost.
10. How long is the delivery time?
It usually takes 12-15 days for the production.
11. What kinds of products does your company supply?We supply electronics plastic enclosure (standard/ non-standard enclosure,hand
held enclosure, desk-top enclosure, wall mounting enclosure, waterproof enclosure, din-rail enclosure, RFID reader
enclosure,Router enclosure, LED driver power supply enclosure), aluminum enclosure, iron box and terminal blocks.
12. For silkscreen colors in design, how to confirm the color?
We prefer receive the physical swatches by express delivery.
13. how to ship the boxes?
Can ship by DHL, Fedex, UPS, TNT, EMS. For sample pracel, can ship by China Post Aie Mail, ePacket, and Y-W special line.
14. what customization can do for box?
we can do anodized, anodized coloring, polishing, powder coating, brushing cutouts, customize length. If the exist mold can't use,
we can create mold.
15. what's the price for batch production?
It's according to the length, the quantity, and the complexity of customization.
16. Screws and box suite?
Yes, box package and end plate and screws.
We have Paypal , T/T , and Western Union , Bank transfer , Alipay , and Escrow.
2. what kind of format is avaible for the drawing of cutout ?
We are Prefer CAD cutout drawing , if you not have CAD , PDF is also ok for us .
3. How much cost if the goods be cut differe length , cutout , and change color ?
The price will be depended on how long the box ,and what shape of the holes , and how many holes on one box , also your Qty Usually our MOQ is 30 pcs when you need customization.
4. We want to drill holes & silkscreen on this item. How much does it costs?
Please send our drawing of the printing & cut-out or tell us the quantity, shape and position of the holes so that we can quote
for you.
5. Can we just get 2-3 sample pieces of this item with cut-out?
Our MOQ for customizing this item is 20/ 50 pcs. We’ll quote cost for making customized samples and shipping cost & delivery day
for it. After you’ve got the sample and confirm it, we’ll go on processing the rest of the product.
6. What can we do?Apart from selling enclosures, we also provide customized service. Including making new mold for oem,
cut-out,change length of aluminum enclosure, change color of our boxes, silk screen printing, making sticker/ silica gel edges/
PVC label/acrylic plate，laser carve (engraving), sandblasting, product polishing, wire drawing.
7. Why does the shipping cost costs so much of some items in your store?
Please contact us for a reasonable shipping cost.
8. Could you give discount on the products if we buy more pieces?
Yes, we can.
9. Can you provide samples for free?
Not every item sample is for free. Customer should undertake the shipping cost.
10. How long is the delivery time?
It usually takes 12-15 days for the production.
11. What kinds of products does your company supply?We supply electronics plastic enclosure (standard/ non-standard enclosure,hand
held enclosure, desk-top enclosure, wall mounting enclosure, waterproof enclosure, din-rail enclosure, RFID reader
enclosure,Router enclosure, LED driver power supply enclosure), aluminum enclosure, iron box and terminal blocks.
12. For silkscreen colors in design, how to confirm the color?
We prefer receive the physical swatches by express delivery.
13. how to ship the boxes?
Can ship by DHL, Fedex, UPS, TNT, EMS. For sample pracel, can ship by China Post Aie Mail, ePacket, and Y-W special line.
14. what customization can do for box?
we can do anodized, anodized coloring, polishing, powder coating, brushing cutouts, customize length. If the exist mold can't use,
we can create mold.
15. what's the price for batch production?
It's according to the length, the quantity, and the complexity of customization.
16. Screws and box suite?
Yes, box package and end plate and screws.
