High precision 3051TG pressure transmitter with HART industrial pressure gauge and water digital rotameter
- Category: >>>
- Supplier: Yiwu Hanstar Sci-Tech Co. Ltd.
Share on (1600709608121):
Product Overview
Description
Product Description
Product Name | Pressure sensor and pressure transmitter/pressure switch |
Product Code | ESP9538/ESP9036/ESPD9071 |
Main Material | SS304 / SS316 |
Contacts | gold or silver plated |
Measuring Medium | Liquid or gas, oil |
Accuracy Class | 0.2%/0.5% |
Protection Grade | IP65/IP67 |
Output Signal | 4-20mA+2PNP (1 pulse+1 PNP)+RS485 |
Display Parameters | instantaneous flow, cumulative flow |
Power Supply | 220VAC/24VDC |
Applicable Industries | Tap water supply, industrial wastewater, strong acid liquid industrial paper industry, domestic wastewater, environmental protection engineering |
Product performance description

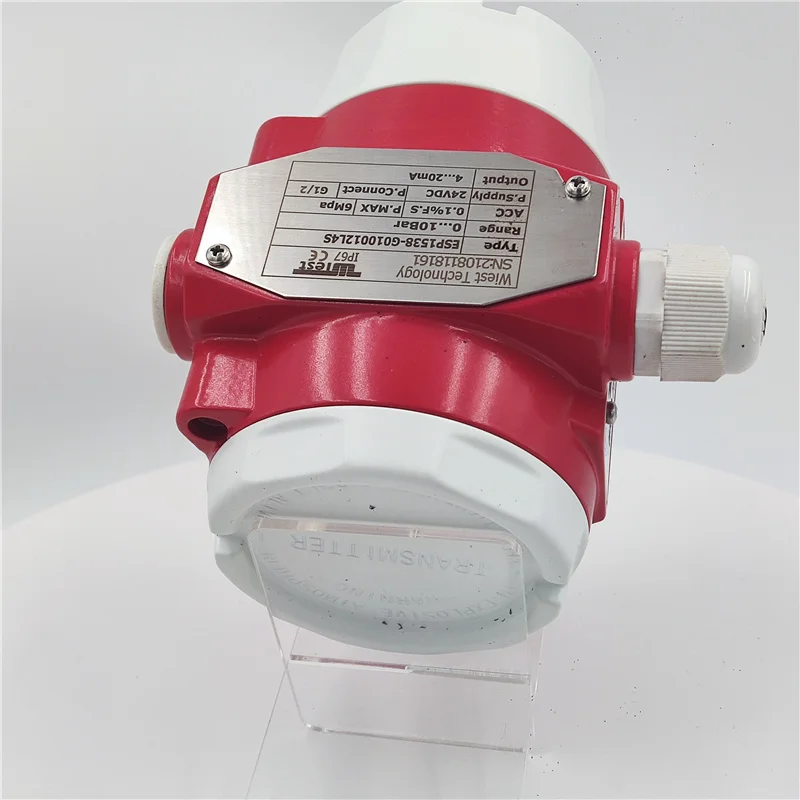

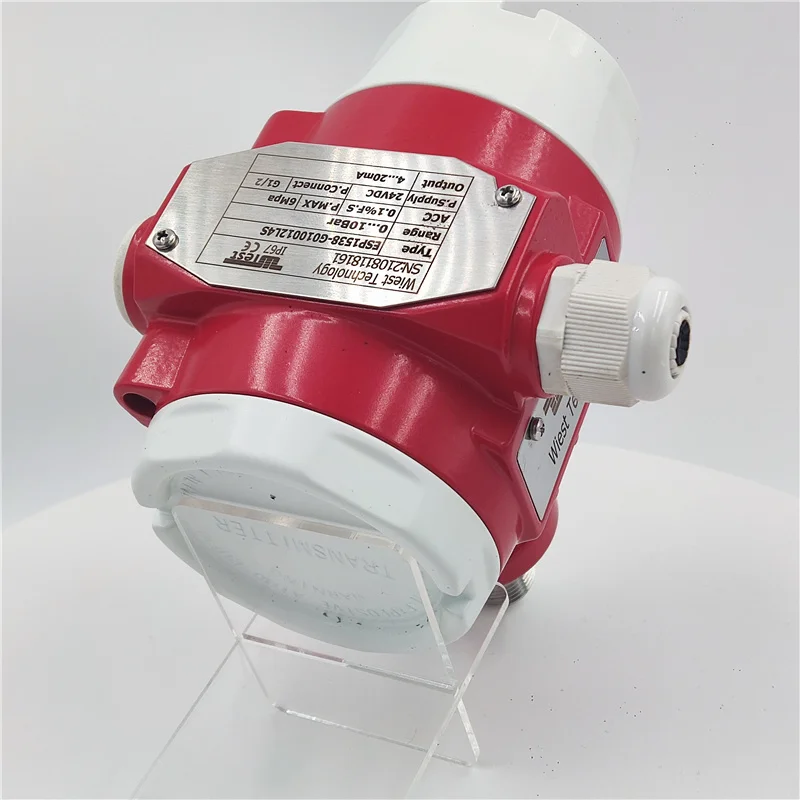

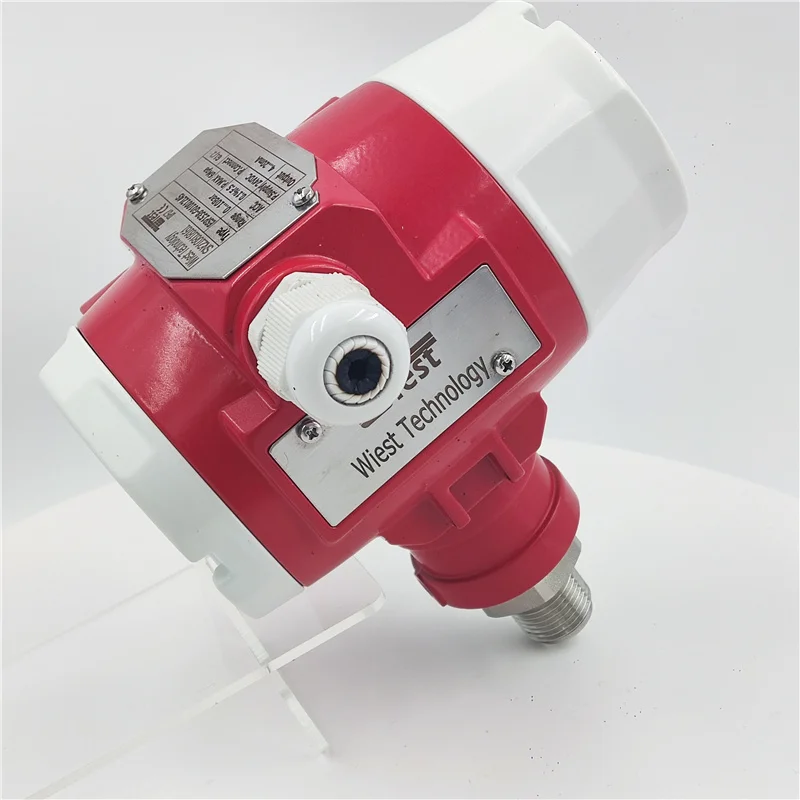

Industrial pressure transmitter
-Pressure range: gauge pressure 0-0.1bar, 0-600bar
-Various standards-Small temperature effect
-High precision and solid structure
-Overload pressure: 1.5 times of full scale
-Power supply: 12VDC-30VDC, 24VDC
-Output signal: 4-20mA, 1-5VDC (optional)
-Temperature influence: temperature compensation range: 0 ℃ - 70 ℃, - 25 ℃ - 85 ℃, medium temperature: - 40 ℃ - 125 ℃; Ambient temperature: - 30 ℃ - 85 ℃; Storage temperature: - 40 ℃ - 125 ℃
Product Name | Pressure sensor and pressure transmitter/pressure switch |
Product Code | ESP9538/ESP9036/ESPD9071 |
Main Material | SS304 / SS316 |
Contacts | gold or silver plated |
Measuring Medium | Liquid or gas |
Accuracy Class | 0.075%/0.1%/0.2%/ 0.5% |
Protection Grade | IP65 |
Output Signal | 4-20mA/ 4-20mA+HART |
Connection | Process connection can be selected |
Power Supply | 220VAC/24VDC |
Applicable Industries | Tap water supply, industrial wastewater, strong acid liquid industrial paper industry, domestic wastewater, environmental protection engineering |
Product performance description

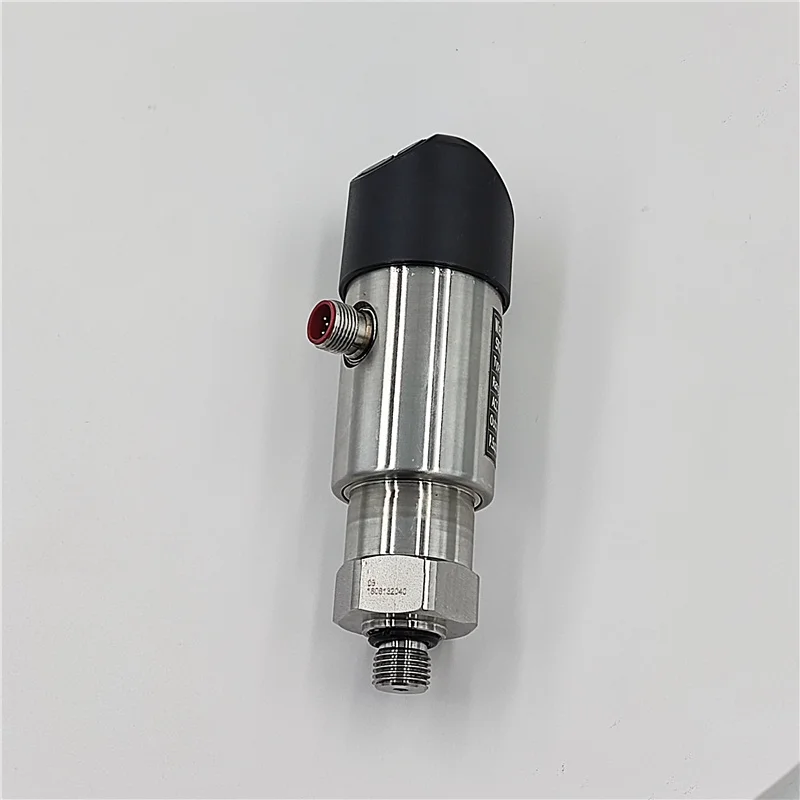

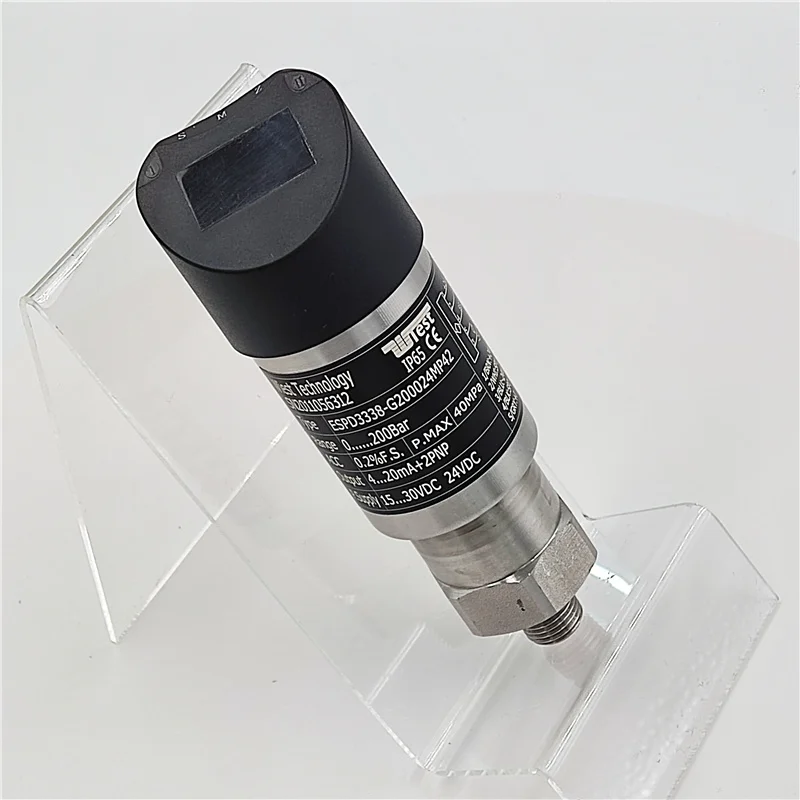

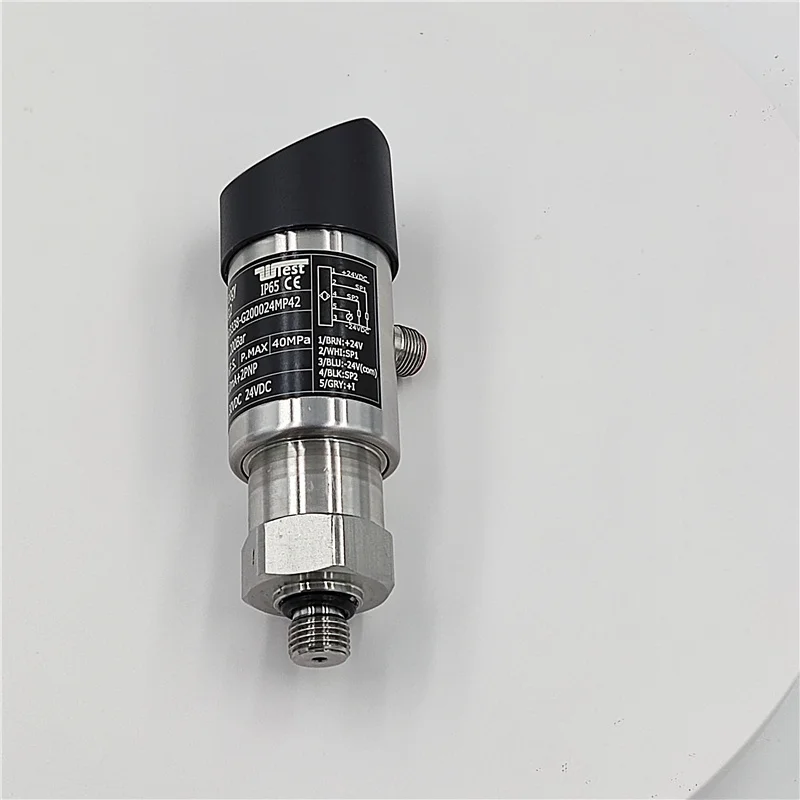

Digital display electronic pressure switch
-OLED Display
-The pressure value corresponding to the analog quantity can be set within the range
-The switching value can be set arbitrarily from zero point to full scale
-Stainless steel metal shell
-Key adjustment and on-site setting of various parameters, easy to operate
-Analog quantity+switching quantity output
-350 degree free rotation of meter head
-The pressure value corresponding to the analog quantity can be set within the range
-The switching value can be set arbitrarily from zero point to full scale
-Stainless steel metal shell
-Key adjustment and on-site setting of various parameters, easy to operate
-Analog quantity+switching quantity output
-350 degree free rotation of meter head
Product Paramenters
-Overload pressure: 1.5 times of full scale
-Accuracy: 0.1% F. S 0.2% F S 0.5% F.S
-Power supply: 12VDC-30VDC, 24VDC
-Signal output: 4-20mA, 0.5-4.5VDC, Modbus - RTU/RS485
-Customer self inspection function
- Switch type: PNP/NPN
-Medium temperature: - 40 ℃ - 125 ℃
-Ambient temperature: - 40 ℃ - 85 ℃
-Storage temperature: - 40 ℃ - 85 ℃
-Protection grade: IP67

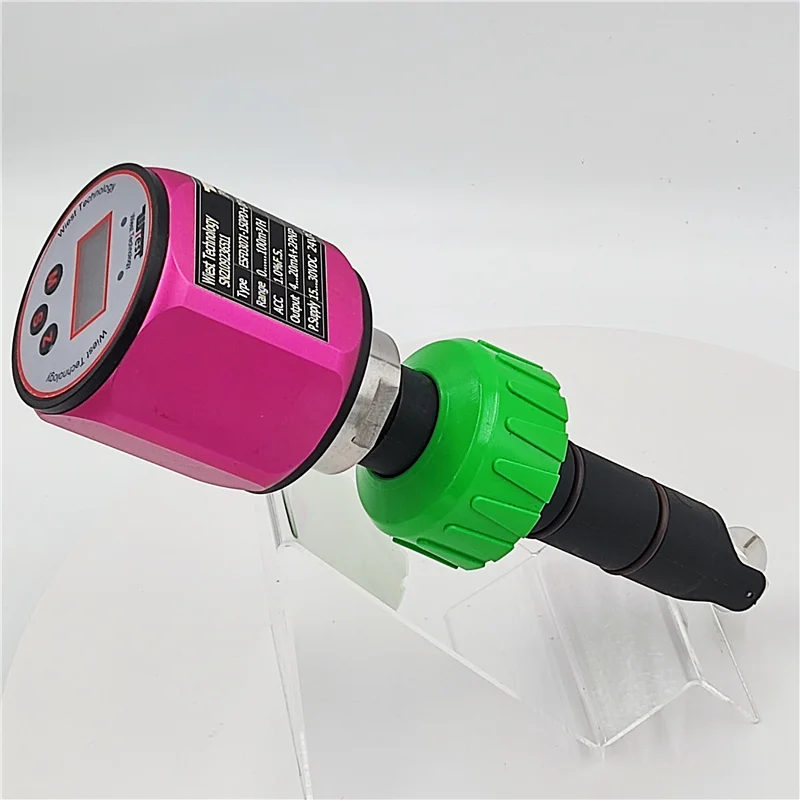

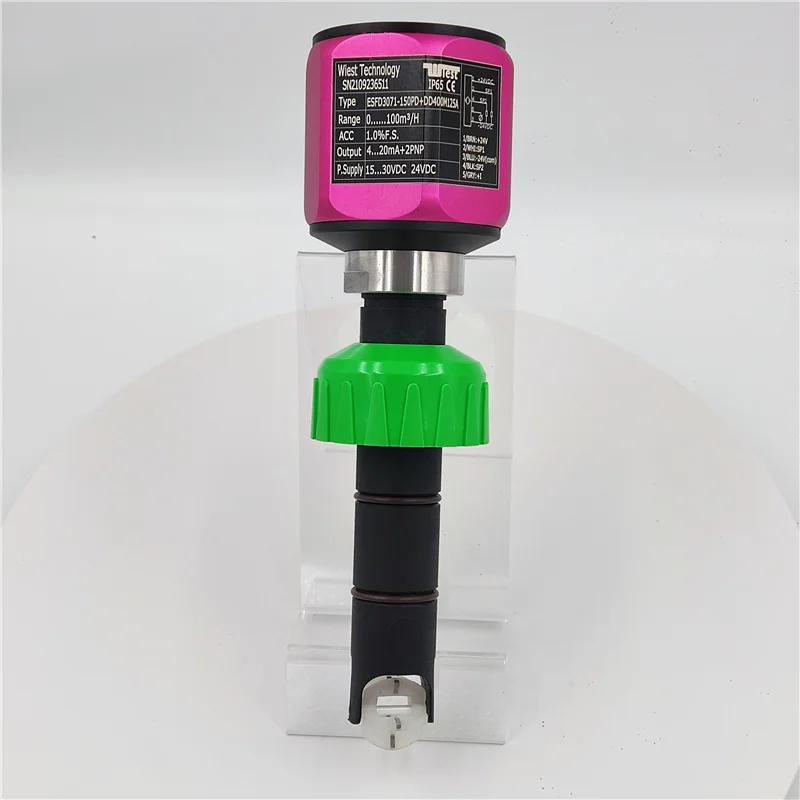

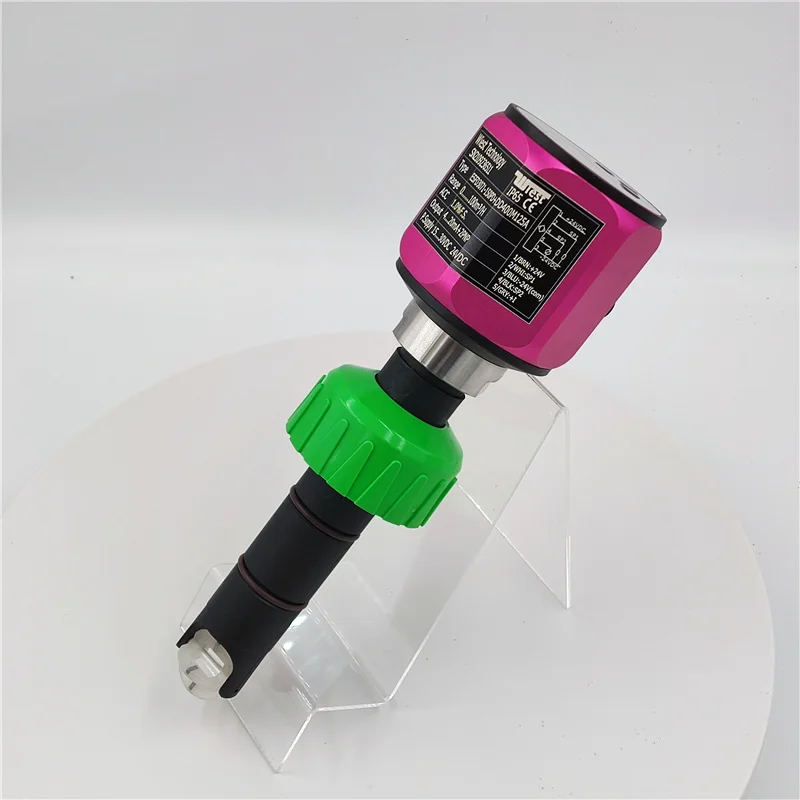

ESPD9071 Digital Electronic Pressure Transmitter and Switch
◆ Applicable pipe diameter: DN50.... DN600
◆ Range: 0... 6m/s
◆ Measuring medium: liquid
◆ Accuracy class: 1.5%
◆ Protection grade: IP65
◆ Main material: stainless steel/PP
◆ Output signal: 4-20mA+2PNP (1 channel pulse+1PNP)
◆ Integrated intelligent digital display, field adjustable
◆ Power supply: 24VDC
◆ Applicable industries: hydraulic lubrication system, environmental protection engineering, water treatment,
◆ Applicable pipe diameter: DN50.... DN600
◆ Range: 0... 6m/s
◆ Measuring medium: liquid
◆ Accuracy class: 1.5%
◆ Protection grade: IP65
◆ Main material: stainless steel/PP
◆ Output signal: 4-20mA+2PNP (1 channel pulse+1PNP)
◆ Integrated intelligent digital display, field adjustable
◆ Power supply: 24VDC
◆ Applicable industries: hydraulic lubrication system, environmental protection engineering, water treatment,
Product Name | Pressure sensor and pressure transmitter/pressure switch |
Product Code | ESP9538/ESP9036/ESPD9071 |
Main Material | SS304 / SS316 |
Contacts | gold or silver plated |
Measuring Medium | Process control, mechanical control, hydraulic pressure, lubrication, waterway, etc |
Accuracy Class | 0.5%/0.2% |
Protection Grade | IP65 |
Output Signal | 4-20mA/ 1-5VDC, PULSE |
Pressure measurement range | minimum 0-0.35bar, and0-700bar |
Power Supply | 12VDC-30VDC,24VDC |
Applicable Industries | Tap water supply, industrial wastewater, strong acid liquid industrial paper industry, hydraulic lubrication system, environmental protection engineering |
Product performance description

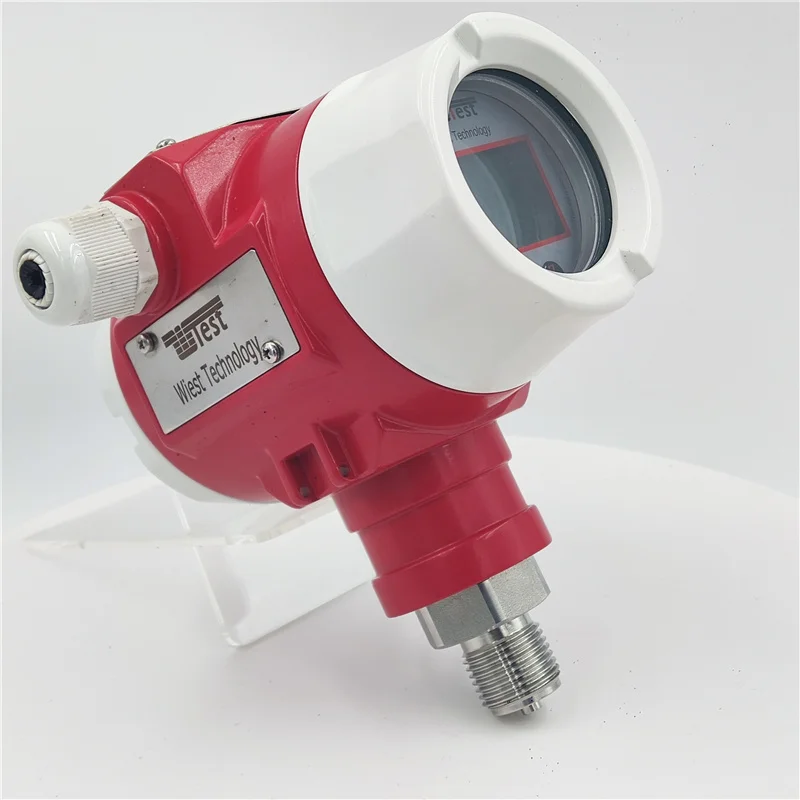

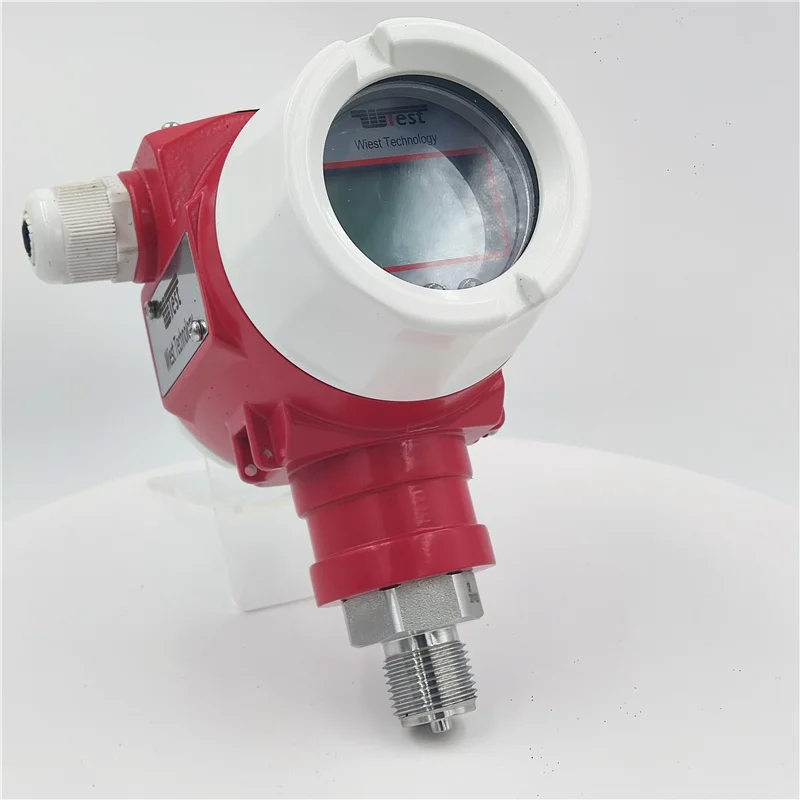

Pressure transmitter
◆ Range: 0...... 3.5 MPa or 0...... 60 MPa
◆ Measuring medium: liquid or gas◆ Accuracy grade: 0.075%/0.1%/0.2%/0.5%
◆ Protection grade: IP65
◆ Main material: stainless steel
◆ Output signal: 4-20mA/4-20mA+HART
◆ Process connection can be selected
◆ Applicable industries: tap water supply, industrial wastewater, strong acid liquid industrial paper industry, hydraulic lubrication system, environmental protection engineering
Selection Code
