Hot sale mirror surface 14 inch laptop display thick screen for notebook BOE NT140WHM N31 lcd module for laptop
- Category: >>>
- Supplier: Hangzhou Chuanbao Electronic Technology Co. Ltd.
Share on (1600709685116):
Product Overview
Description
Product Description
NT140WHM-N31 (product code: BOE0696) is a 14.0-inch LCD module product using a-Si TFT-LCD technology launched by BOE Technology Group Co., Ltd. (BOE, BOE), which is equipped with WLED backlight, including LED driver backlight driver, no touch. According to the Rev.A product specification released by BOE on November 3, 2015, the NT140WHM-N31 has a display resolution of 1366 (RGB) ×768 (WXGA), an aspect ratio of 16:9 (width:height), and pixels arranged in RGB vertical strips. It has a display area size of 309.399×173.952 (width × height) mm, an appearance size of 320.4×205.1 (width × height) ×3 (thickness) mm, a mirror finish (Haze 0%), a net weight of 275g (Max.) and a thin screen (PCBA straight, thickness ≤ 3.2mm). In terms of backlight, this product adopts 9S3P WLED light-emitting side-entry light source, which has a service life of 15K hours and includes LED driver. The NT140WHM-N31 uses an eDP (1 Lane) signal interface, a total of 30 pins, terminal connection, and a drive screen voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. It has an operating temperature of 0 ~ 50°C, a storage temperature of -20 ~ 60°C, and a vibration resistance of 1.5G (14.7 m/s²). Based on its white LED backlight, LED driver, terminal flip, surface mirror and other features, this model is recommended for notebook computers.
Specification
Item | Value |
Type | TFT |
Display Size | 14 inch |
Supplier Type | lcd panel |
Place of Origin | China |
Brand Name | BOE |
Resolution | 1366(RGB)×768 WXGA 112PPI |
Model Number | NT140WHM-N31 |
Display Size | 309.31 × 173.99 (H×V) mm |
Panel type | Liquid crystal glass, a-Si TFT-LCD |
Contrast Ratio | 600 : 1 (Typ.) |
Frequency | 60Hz |
Signal interface | 30 pins eDP (1 Lane) , RBR (1.62G/lane) , terminal |

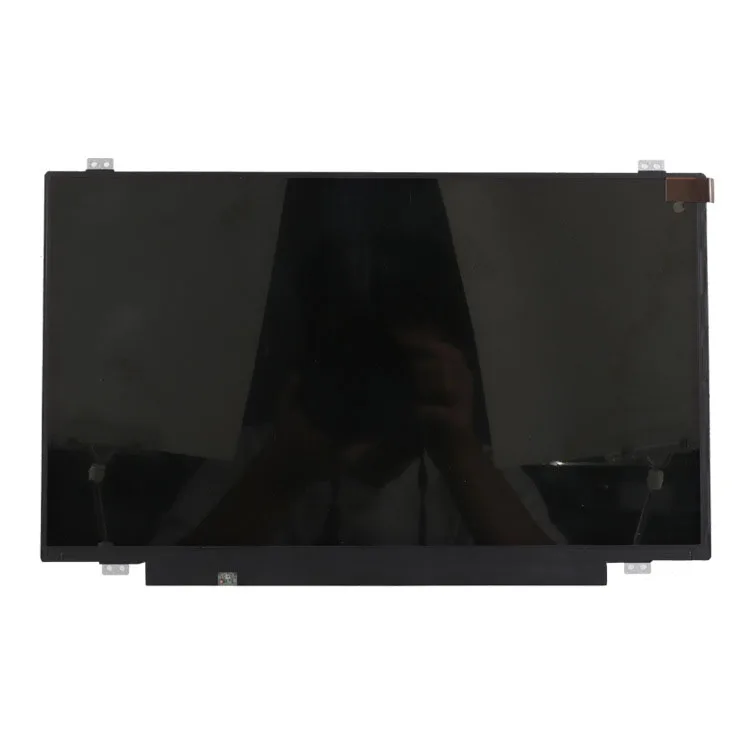

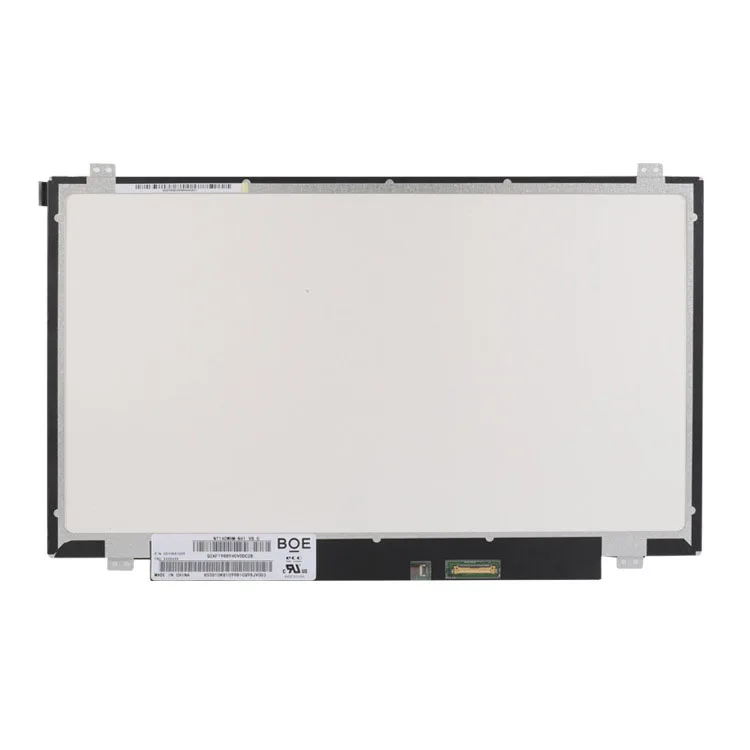

Product photos
Packing & Delivery
Standard export packing
Other Hot Sale Models
Application
Our products can be used in PC, TV, digital signage, industrial, medical, conference etc.
Company Profile
Hangzhou Chuanbao Electronic Technology Co., Ltd. mainly operates services: electronic products, computer software and hardware, LCD displays, household appliances, office supplies, intelligent equipment, communication equipment, monitoring equipment technology development, technical consultation, technical services and achievement transfer; Computer Network Engineering; Wholesale, retail: computer software and hardware; LCD display; Household appliances; office supplies; smart devices; communication equipment; monitoring equipment, etc. The registered capital of the company is RMB1,000,000, our company's office address is located in the largest city in Zhejiang Province, the paradise on earth Hangzhou, we have the best products and professional sales and technical team, the company is developing rapidly, we provide customers with the best products, good technical support, sound after-sales service!
FAQ
1.What Brand do you have?
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provide you with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
Re:We mainly provide BOE brand products. If customers have any needs, you can communicate with us. We will try our best to provide you with other electronic components and accessories with higher quality and lower price
2.What’s your products condition?
Re: Brand New,A grade,Original Package.
3.what’s your MOQ of your products?
Re: According different products,1pcs or 1 box .
4.What is the warranty period of the product?
Re:According to different products, our warranty time is 1 - 3 years.
