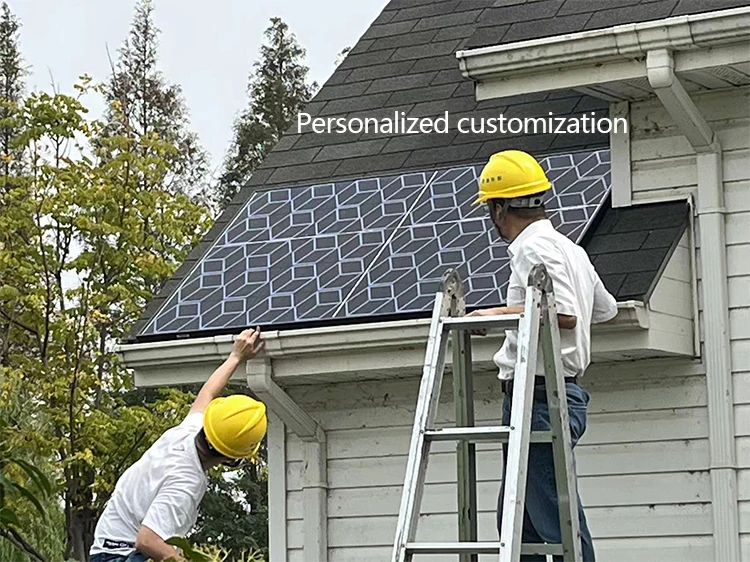

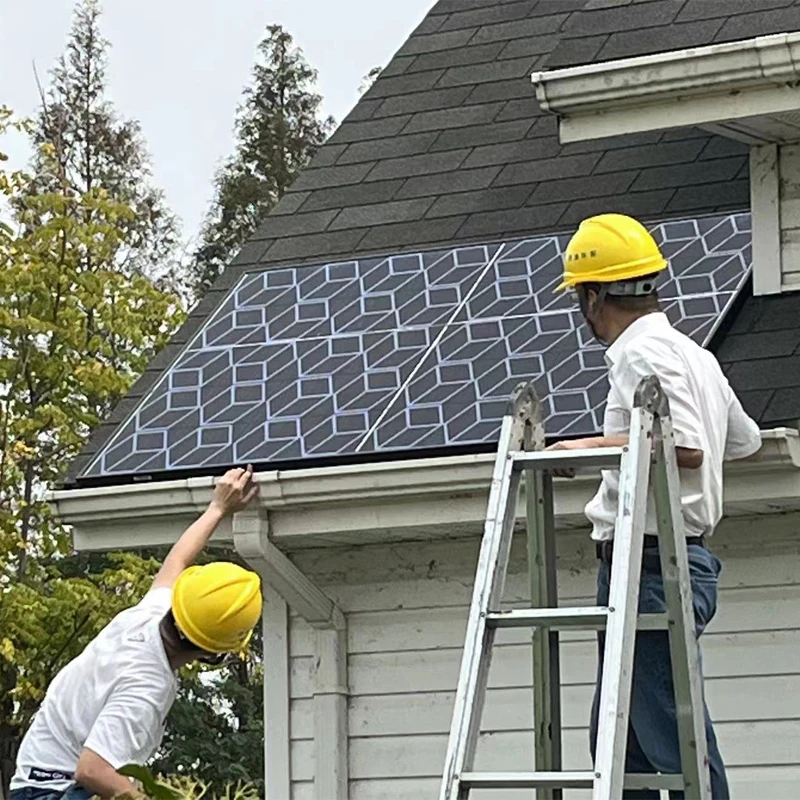

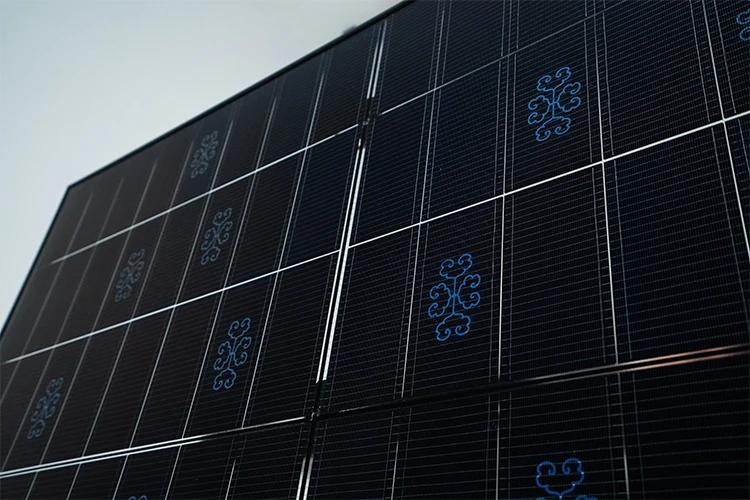

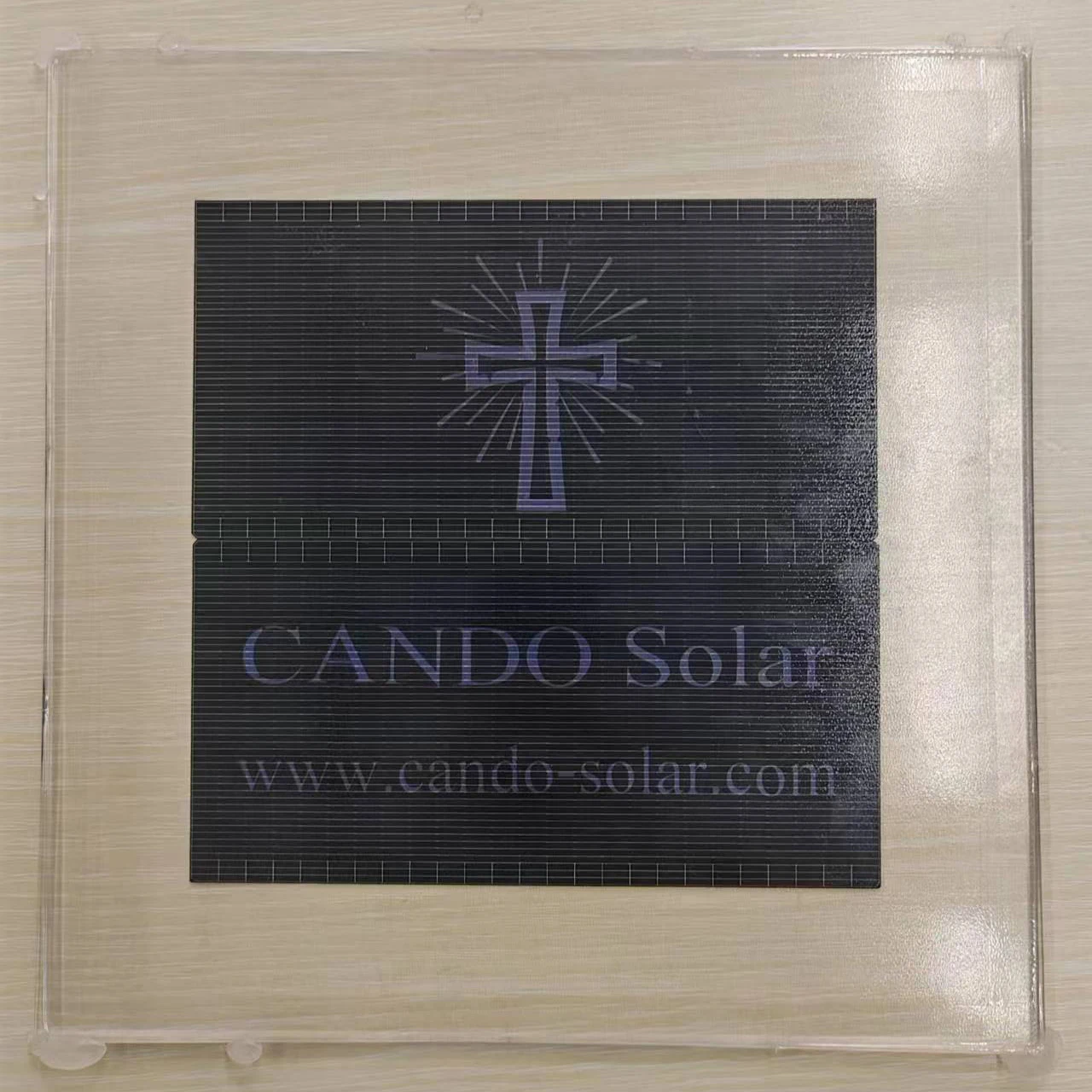

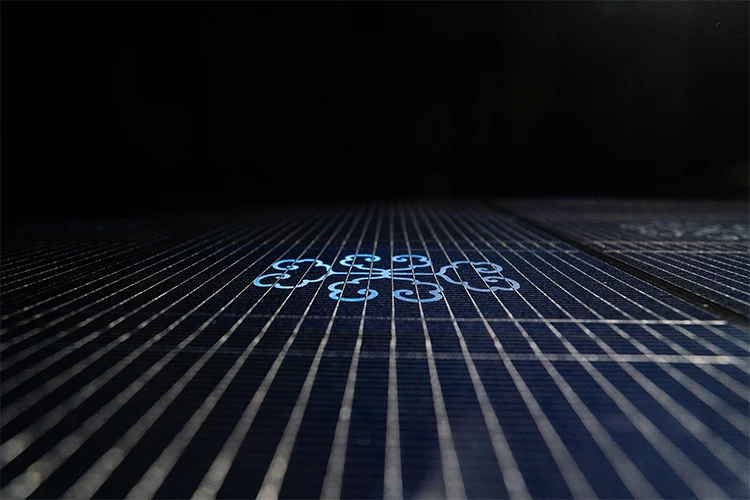

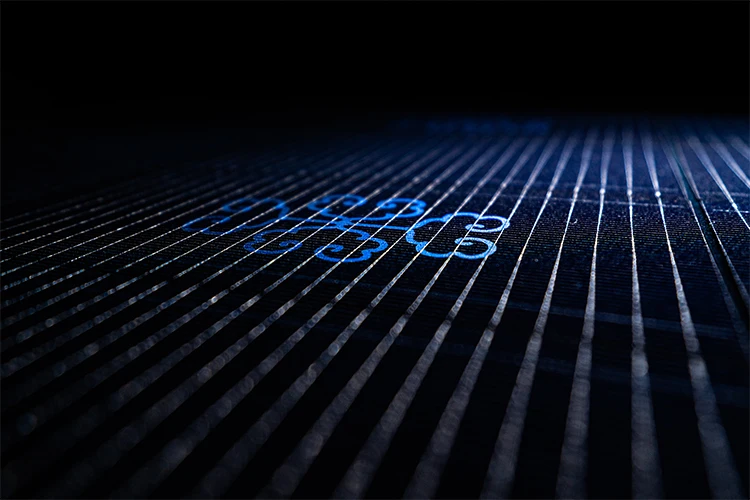

Personalized Customization DIY All Black 210HJT PV Module 24BB Mono HJT Solar Panel
- Category: >>>
- Supplier: Shanghai Sdo Energy Technology Co. Ltd.
Share on (1600709727191):
Product Overview
Description
Specification
Specifications | ||
Cell | Mono | |
Weight | 23.6kg | |

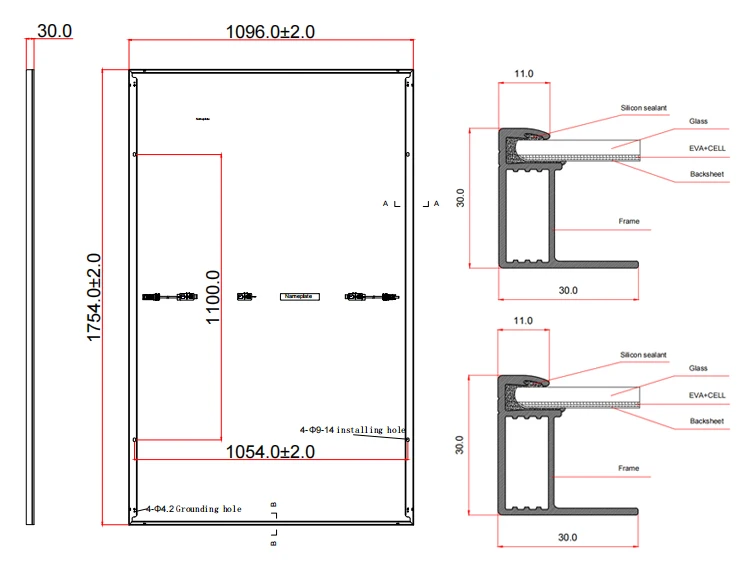

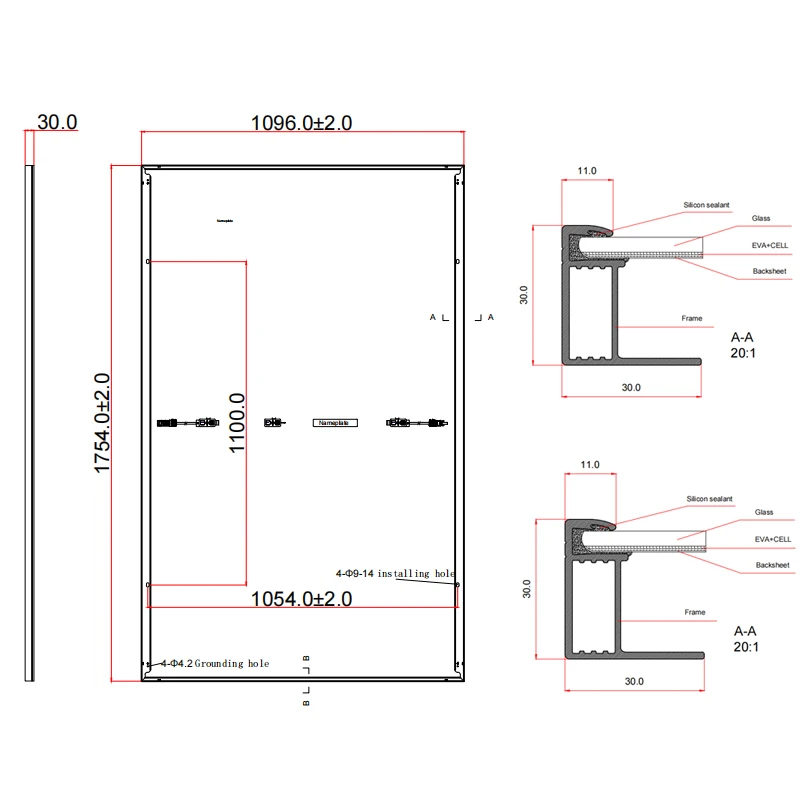

Dimensions | 1754±2mm*1096±2mm*30±1mm | |
Cables | 4.0mm² ,Length can be customized | |
No.of cells | 80 ( 5*16 ) | |
Junction Box | IP68, 3 diodes | |
Packaging Configuration | 36pcs/Pallet, 936pcs/40HC, 216pcs/GP | |
OPERATING CONDITIONS | ||
Maximum System Voltage | 1500V DC | |
Operating Temperature | -40℃~+85℃ | |
Mechanical load(pa) | 2400/5400 | |
Maximum Series Fuse Rating（A） | 30 | |
Temperature Coefficients of Pmp | -0.24%/℃ | |
Temperature Coefficients of Voc | -0.22%/℃ | |
Temperature Coefficients of lsc | +0.047%/℃ | |
NOCT(Nominal Operating Cell Temperature) | 43±2℃ | |
Products Description

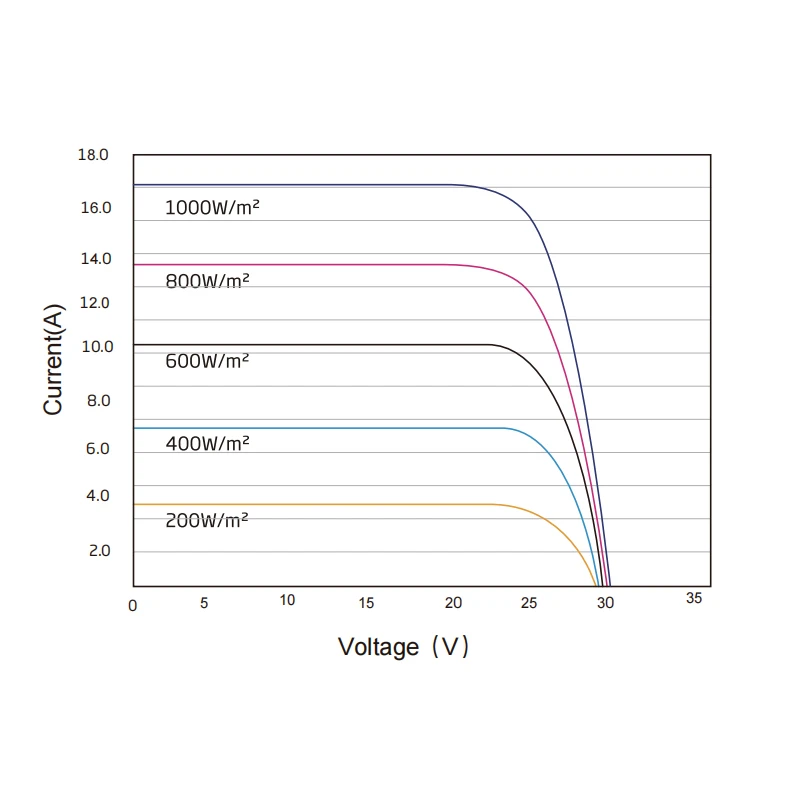

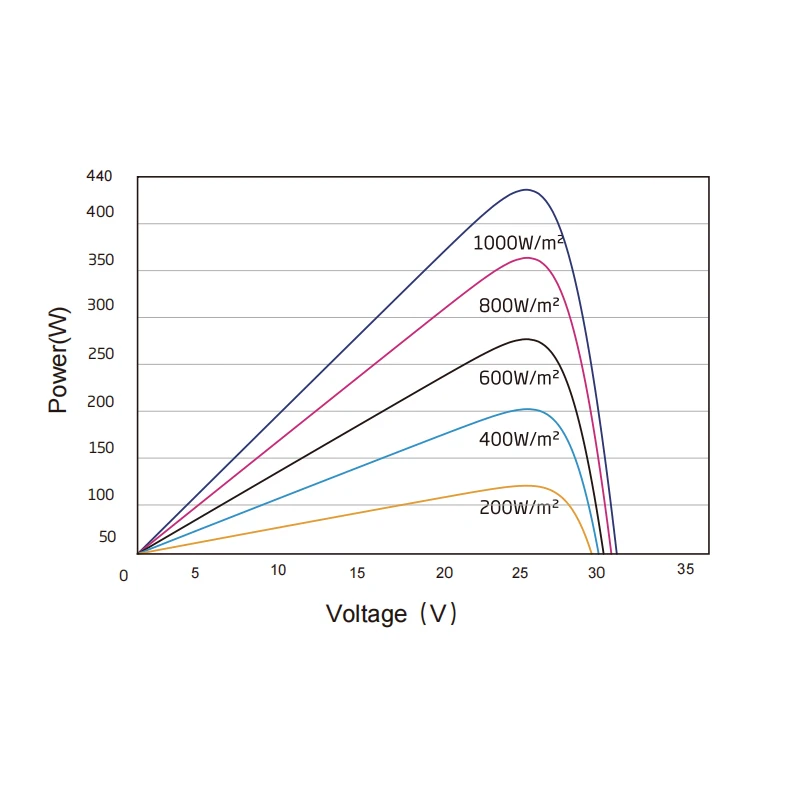

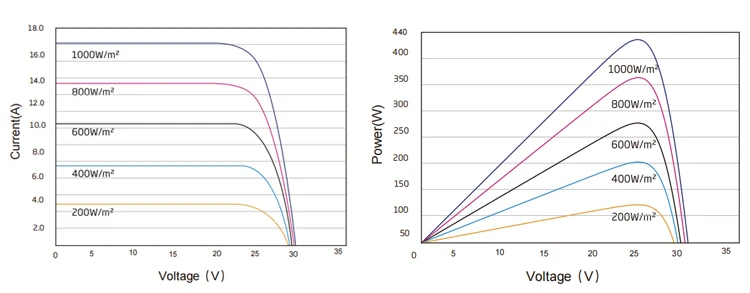

Electrical Parameters At STC | ||||||||||
Max. Power Output Pmax (W) | 405 | 410 | 415 | 420 | 425 | |||||
Max. Power Voltage Vmp (V) | 25.4 | 25.5 | 25.7 | 25.8 | 25.9 | |||||
Max. Power Current Imp (A) | 15.98 | 16.08 | 16.18 | 16.29 | 16.42 | |||||
Open Circuit Voltage Voc (V) | 29.7 | 29.8 | 29.9 | 30.1 | 30.2 | |||||
Short Circuit Current lsc (A) | 17.02 | 17.09 | 17.19 | 17.29 | 17.39 | |||||
Module Efficiency(%) | 21.1 | 21.3 | 21.6 | 21.8 | 22.1 | |||||
*STC (Standard Test Condition): Irradiance 1000W/m² , Cell Temperature 25°C, Air Mass 1.5 *Measurement Tolerance (±3.0%) | Irradiance 1000W/m², cell temperature 25℃, AM1.5G | |||||||||
Electrical data(NOCT) | ||||||||||
Max. Power Output Pmax (W) | 306 | 310 | 313 | 317 | 321 | |||||
Max. Power Voltage Vmp (V) | 23.8 | 23.9 | 24.1 | 24.2 | 24.3 | |||||
Max. Power Current Imp (A) | 12.86 | 12.94 | 13.04 | 13.12 | 13.20 | |||||
Open Circuit Voltage Voc (V) | 28.3 | 28.4 | 28.6 | 28.7 | 28.8 | |||||
Short Circuit Current lsc (A) | 13.74 | 13.8 | 13.88 | 13.96 | 14.02 | |||||
*NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s. | Irradiance 800W/m², ambient temperature 20℃, wind speed 1m/s, AM1.5G | |||||||||

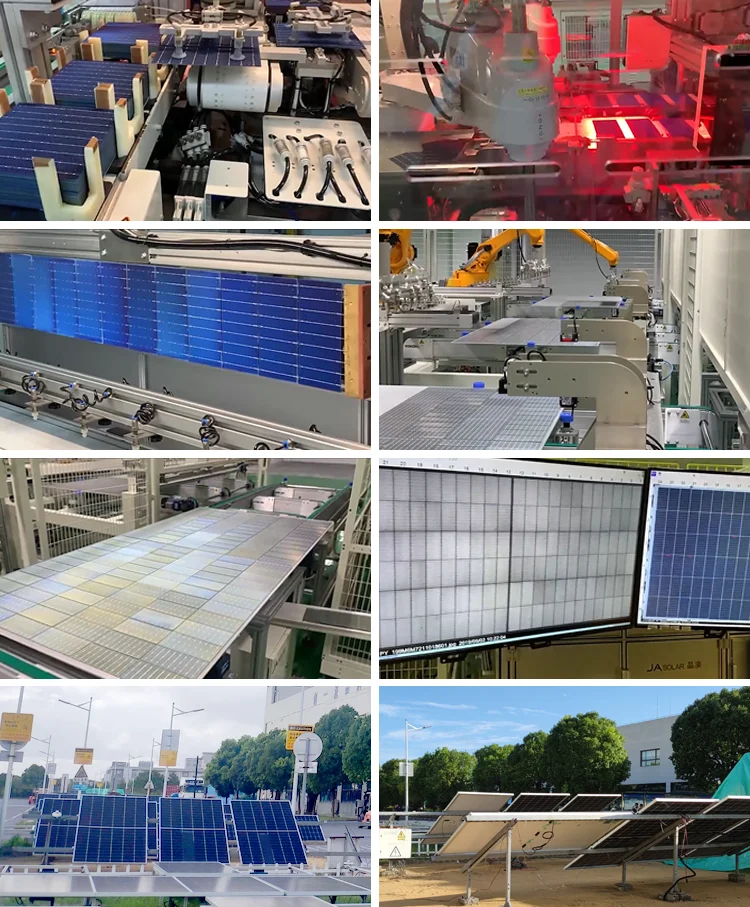

Our Factory

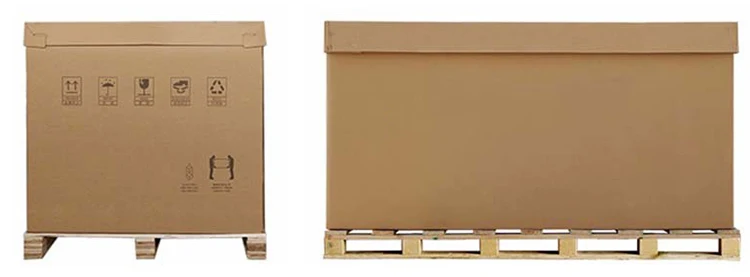

Packaging&Shipping
