high quality vent universal adapter for HVAC system
- Category: >>>
- Supplier: Sichuan Guigu Renju Technology Co. Ltd.
Share on (1600709729229):
Product Overview
Description
Three points depend on equipment, seven points rely on design and installation
Feature

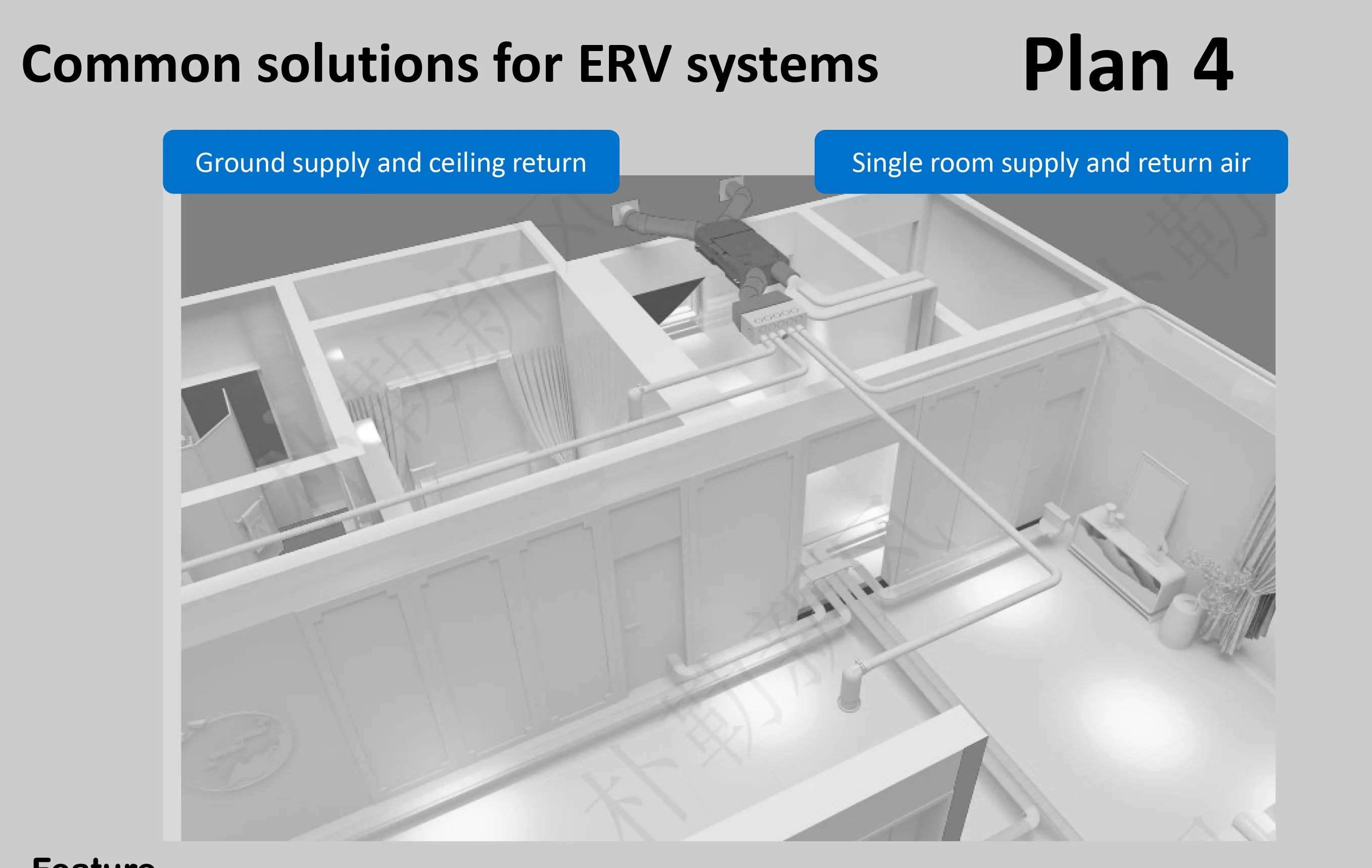

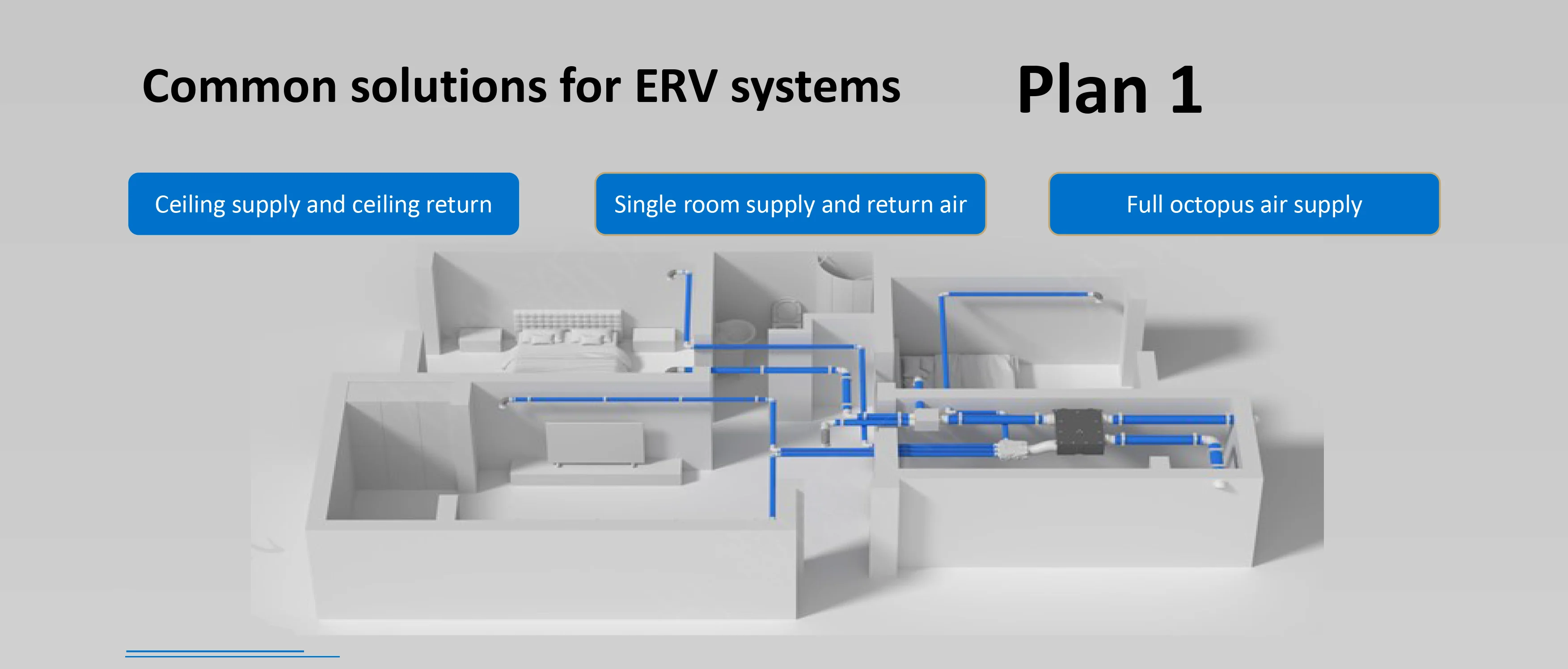

1. Both the air supply and return are installed in the octopus style, and the distributor distributes the air evenly, with low wind resistance and long-distance air supply.
2. At the corner, you can choose to install or not to install accessories according to the site conditions. The PE round pipe is heat-insulating and sound-proof, flexible and flexible, and the hidden danger of air leakage can be reduced by one pipe to the end;
3. Equipped with aperture air valve to avoid the problem of unbalanced air volume caused by different distances of air supply points.
2. At the corner, you can choose to install or not to install accessories according to the site conditions. The PE round pipe is heat-insulating and sound-proof, flexible and flexible, and the hidden danger of air leakage can be reduced by one pipe to the end;
3. Equipped with aperture air valve to avoid the problem of unbalanced air volume caused by different distances of air supply points.
Installation scene
1. Common house types such as flat floors and Loft,
2. Large-area multi-room residences.
3. Multi-box commercial buildings such as book bars, cinemas, gyms, restaurants, KTVs, etc.
*In addition to room type factors, it should also be combined with various factors such as residents' habits and population size. For specific design plans, please consult our team.
1. Common house types such as flat floors and Loft,
2. Large-area multi-room residences.
3. Multi-box commercial buildings such as book bars, cinemas, gyms, restaurants, KTVs, etc.
*In addition to room type factors, it should also be combined with various factors such as residents' habits and population size. For specific design plans, please consult our team.
Feature
1. The Pule fresh air shield pipe made of environmentally friendly PE material is used to transport healthy fresh air. Its unique shield structure reduces the pressure of the storey height and is more pressure-resistant; flexible bending, no fear of complex scenes; quick-plug connection, light and convenient without air leakage; The inner wall is smooth, low wind resistance, and contains antibacterial and antistatic ingredients. With the octopus-style tube design, the air supply is more uniform, healthier, and longer.
2. The return air adopts octopus-style multi-point return air, and air circulation can be formed in a single room, and the ventilation is more efficient.
2. The return air adopts octopus-style multi-point return air, and air circulation can be formed in a single room, and the ventilation is more efficient.
*In addition to room type factors, it should also be combined with various factors such as residents' habits and population size.For specific design plans, please consult our team.
PE-HD resh air ripple round tube
Health and environmental protection new material; Efficient air supply; Flexible, strong pressure resistance, quick plug connection, easy to install fast
PE-HD antibacterial fresh air flexible corrugated shield tube (light gray)
Environmental protection; The inner wall is smooth and the wind resistance is small; Plug-in connection; Long lifespan
Connector
A complete set of fittings for connection and pipe sizing provides a one-stop service for your customers.
Connector, reduce diameter
Soft joint, buckle and other HVAC accessories, to provide your customers with one-stop service, convenient and comfortable.

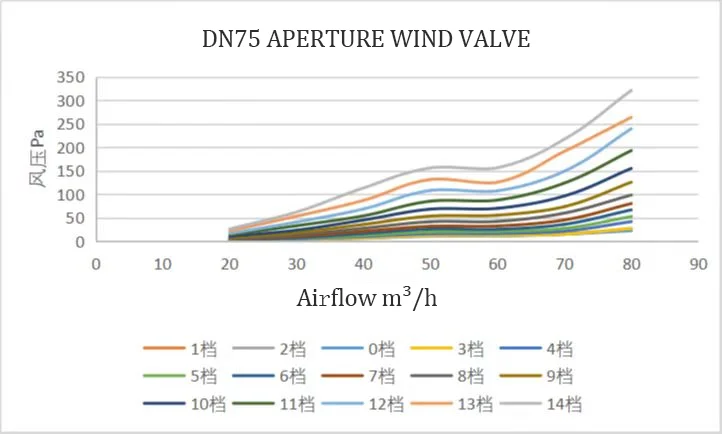

Aperture wind valve
Exclusive development of products, accurate adjustment of air volume, smooth and soft air volume, to create no wind and silent fresh air system.

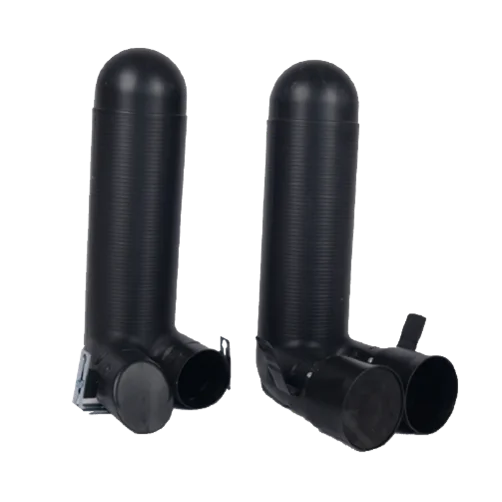

ABS distributor
New ABS material overall injection molding, high strength, long service life; NBR cotton lining can effectively prevent condensation and reduce noise, not easy to age; Set two access ports for easy cleaning and maintenance; Multi-tube adaptation, the use of 63/75/90 three different specifications of the branch pipe.
PE-HD resh air ripple round tube
Smooth air supply, mildew-proof, antibacterial, thermal insulation, noise reduction, flexible and strong
Specifications and models | Outside diameter (mm） | Inner diameter （mm) | |
DN75（50m） | 75 | 62 | |
DN90（40m） | 90 | 77 | |
DN110（40m） | 110 | 92 | |
DN63（50m） | 63 | 53 | |
DN75（50m） | 75 | 62 | |
DN90（40m） | 90 | 77 | |
DN110（40m） | 110 | 92 | |
DN160（2m） | 160 | 142 | |
DN75（50m） | 75 | 62 | |
DN90（40m） | 90 | 77 |
New bellows tube fixed
Flexible installation, light and hands-on, non-slip and firm, durable and universal, environmentally friendly and beautiful
Bellows hoisting bracket and tube fixed
The bellows hoisting bracket is made of PP material, stable and beautiful, fixing 1-5 rows of corrugated round pipes, easy to install, save time.
End silencer tube
Triple noise reduction protection for easy installation

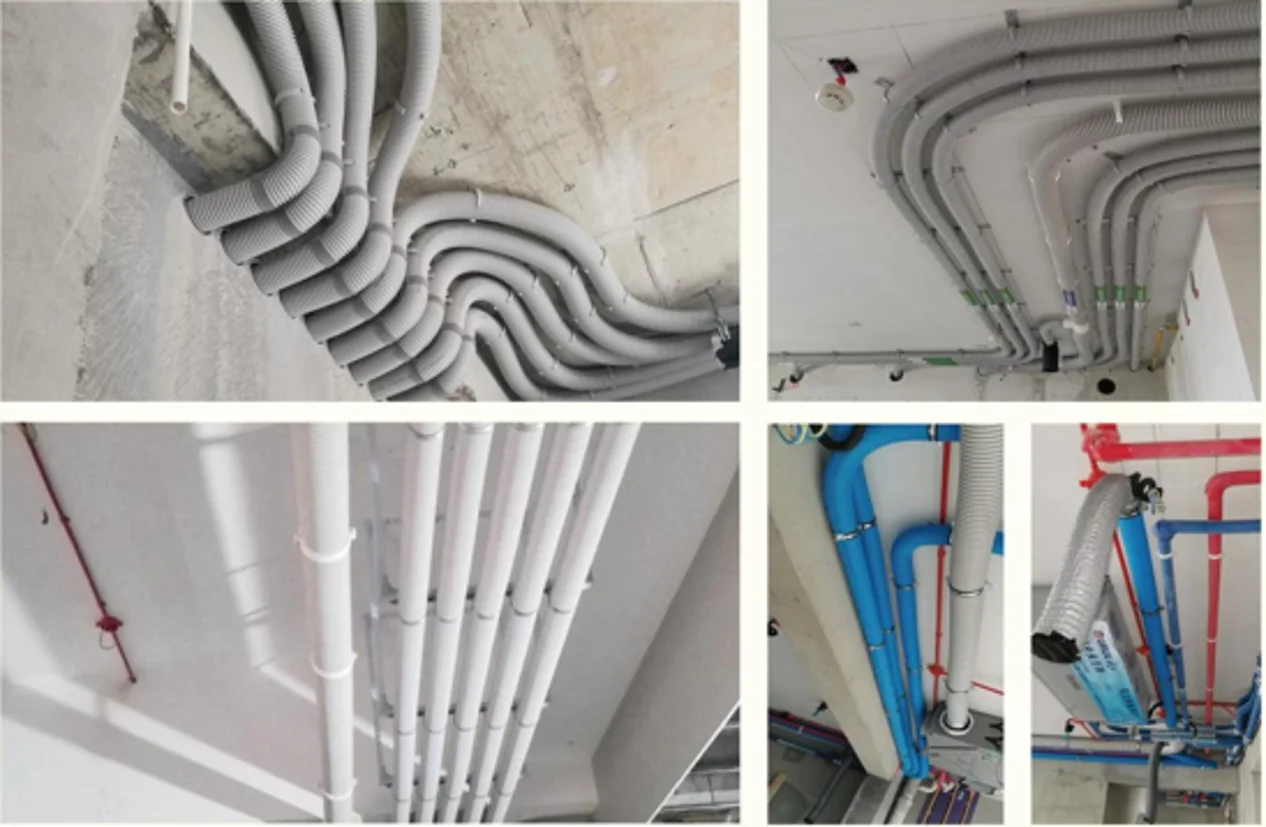

PE flexible corrugated round tube, complete accessories, a tube to the end of the flexible beam, multi-caliber / color selection,
a wide range of application scenariosResidence/villa/office/restaurant/bar.
Saudi customer design plan
Russian customer design plan
England customer design plan
PE pipe anti-mold test report
Antibacterial detection of PE tube
Quality inspection report
Wind speed and noise testing after installation
The installation of the fresh air system is very important, from the beginning of the choice of air volume, layout and installation of auxiliary materials, will determine the comfort of the entire system.
Wind speed and noise testing after installation
After the installation is complete, the wind speed and noise of each tuyere need to be tested and adjusted to achieve the best working state.
Other accessories - End adapters
One end is connected to the corrugated round pipe, and the other end is connected to the end of the indoor air outlet for
supplying air or exhaust air.
supplying air or exhaust air.
Other accessories - indoor air outlet
ABS ivory white send air ventΦ100；Φ125.
Adjustable metal round filter air outlet (with filter) PM125F/C.
For more size and model， please contact us
FAQ
Q1: How could I get a sample?
A:We do not provide free sample, if you are interested in our products please contact our customer
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
service, she can tell you the details of the sample.
Q2: Sample time?
A: Existing products: Within 15~35 days;
Q3: Whether you could make our brand on your products?
A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4: Whether you could make your products by our color?
A: Yes, The color of products can be customized if you can meet our MOQ.
Q5: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
