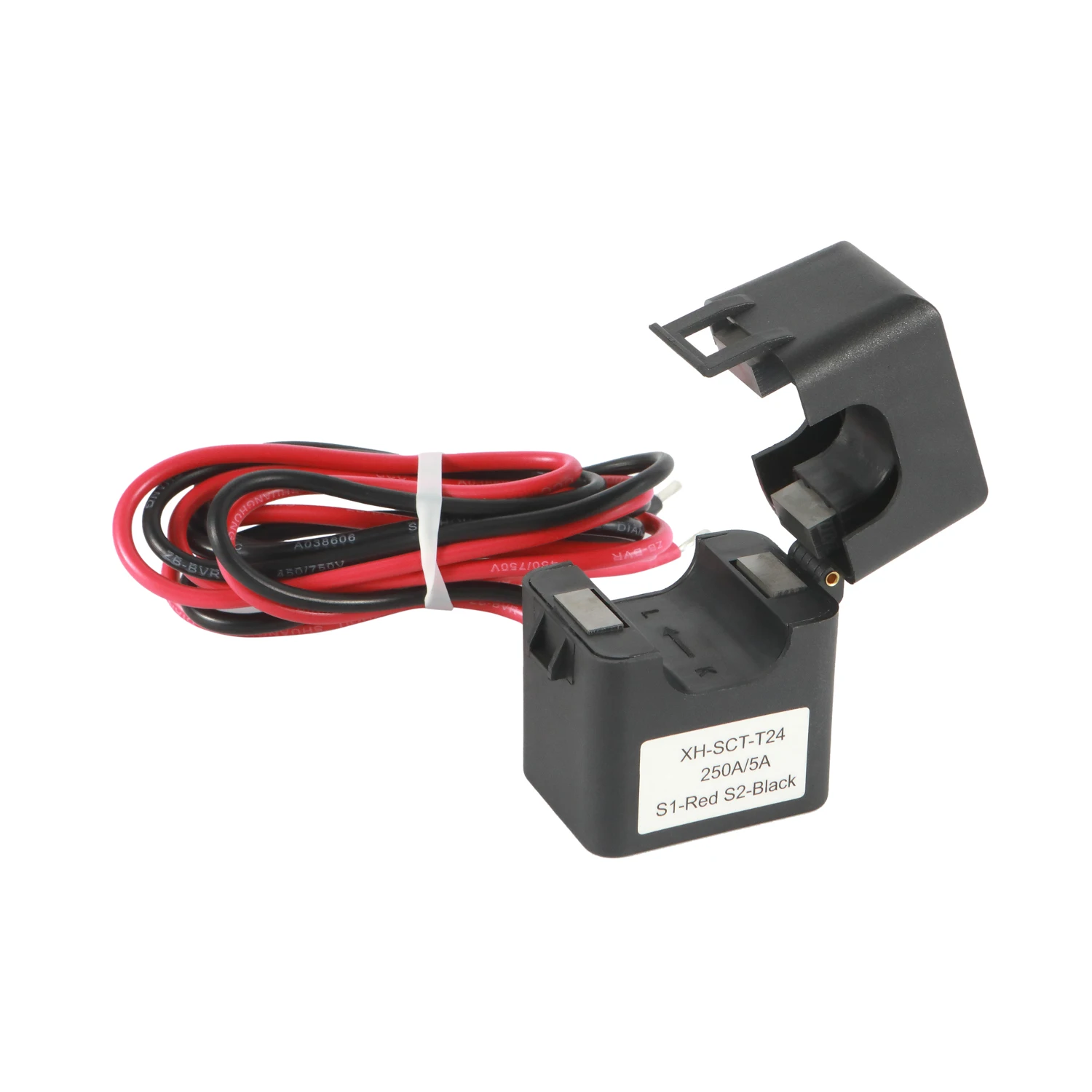

sct t24 24mm diameter 250a/5a split core current transformer

Product Overview

Description

Split core current transformer / Split core current sensor with high quality and CE UL certification

The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary

Features

Split core design;safer,easier installation,portable.

Specifications

Rated Current 250A loads.
Rated output: 5A
Accuracy:±1% from 5% to 120% of rated current
Phase Angle: less than 2 degrees at 50% of rated current
Insulation Voltage:600Vac
Maximum Primary Voltage:5000Vac(Insulated Conductor)
Operating Temperature:-15°Cto 60°C.
Frequency Range:50-400Hz
Leads:4Foot(105cm),UL 1015(24AWG)
UL&CE,ETL recognized. RoHS Compliant
Output and leads can be customized

Application

Measures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management,building automation systems.

Specification

Strong items

Certifications

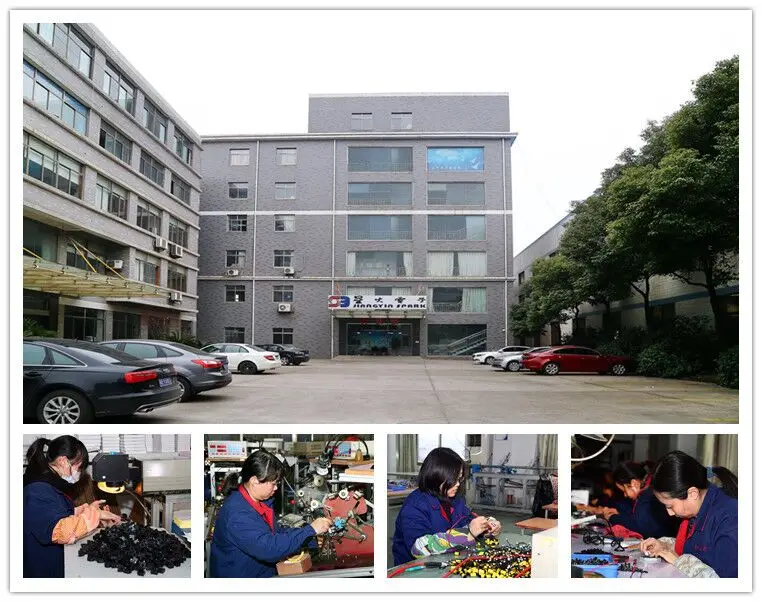

 Company infomation

Transportation

Contact detail

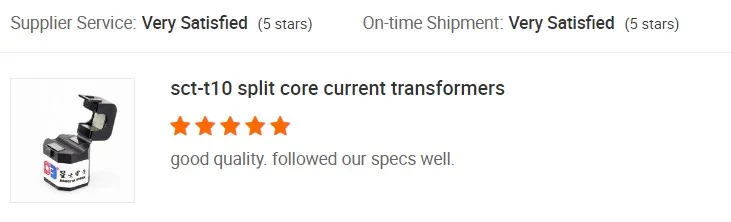

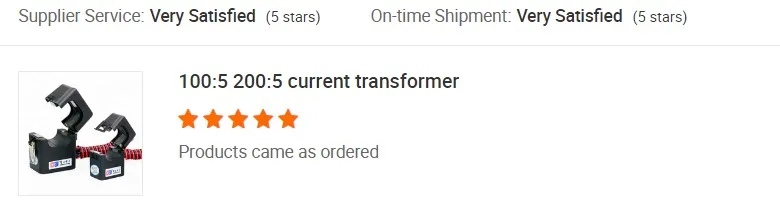

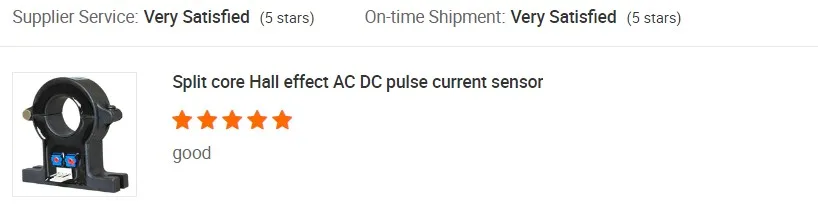

Customers comments
