Product Overview
Description
Product Description
USFULL Surge Arrester PV SPD Solar Surge Protector 40KA 600V 2P 3P DC Surge Protective Devices Lightning Protection & Earthing
| Specification | |||
| FLY1-40PV series Surge Protector Device | FLY1-40PV | ||
| PV DC-specification (IEC 66143-31) | |||
| Pole | 2P | 3P | |
| Electrical Parameter | |||
| Classified test | ll | ll | |
| Uoc max (V DC) | 500 | 900 | |
| Uc (V DC) | 500 | 1000 | |
| ln(8/20)us(kA) | 20 | 20 | |
| lmax(8/20)us(kA) | 40 | 40 | |
| Up (kV) | 2.0 | 3.8 | |
| Remote control and indication | |||
| lndication window | |||
| Plug-in Module | |||
| Remote signal contact | |||
| Remote signal contact | maximum working voltage(V) | 250 AC/30V DC | 250AC/30V DC |
| maximum working current (A) | 1A(250V/ AC) | 1A(250V/ AC) | |
| 1A(250V/AC) | |||
| 1A (30V DC) | 1A(30V/ AC) | 1A(30V/ AC) | |
| Wiring & installation | |||
| Wiring capacity(mm²) | Hard wire | 4~25 | 4~25 |
| Flexible wire | 4~16 | 4~16 | |
| Stripping length(mm) | 10 | 10 | |
| Terminal screw | M5 | M5 | |
| Torque(Nm) | Main ciruit | 3.5 | 3.5 |
| Remote signal contact | 0.25 | 0.25 | |
| Protection class | All profile | IP40 | IP40 |
| Connection port | IP20 | IP20 | |
| lnstallation environment | No obvious shock and vibration | ||
| Altitude (m) | ≤2000 | ≤2000 | |
| Working Temperature | −3.0~+70 | −3.0~+70 | |
| Relative Humidity | 30%~90% | 30%~90% | |
| Installation Method | lnstalled with H35-7.5/DIN35 steel mounting rail | ||
| Size(m)(WxHxL) | W | 0.36 | 0.54 |
| H | 0.62 | 0.62 | |
| L | 0.9 | 0.9 | |
| G.W/ctn | 11.5 | 11.5 | |

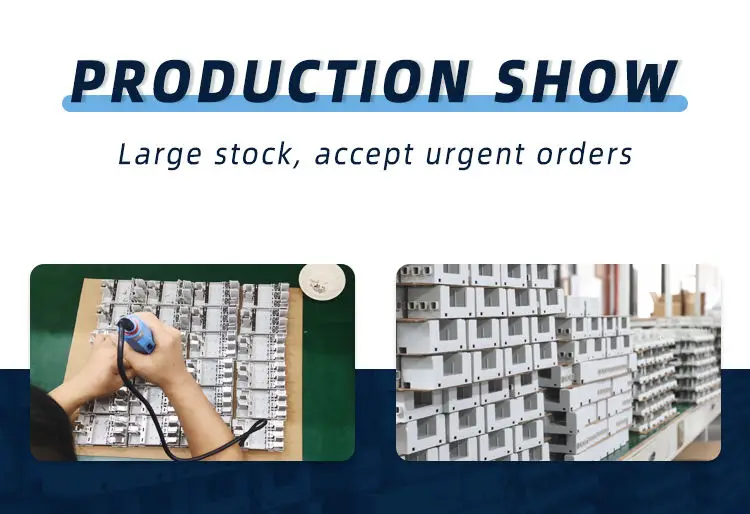

Production Flow

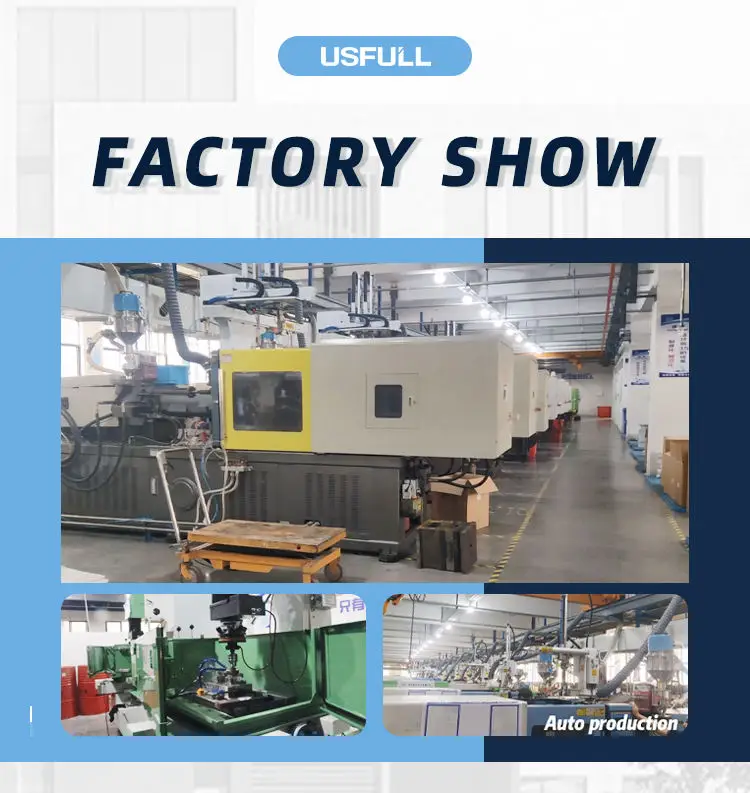

Company Information

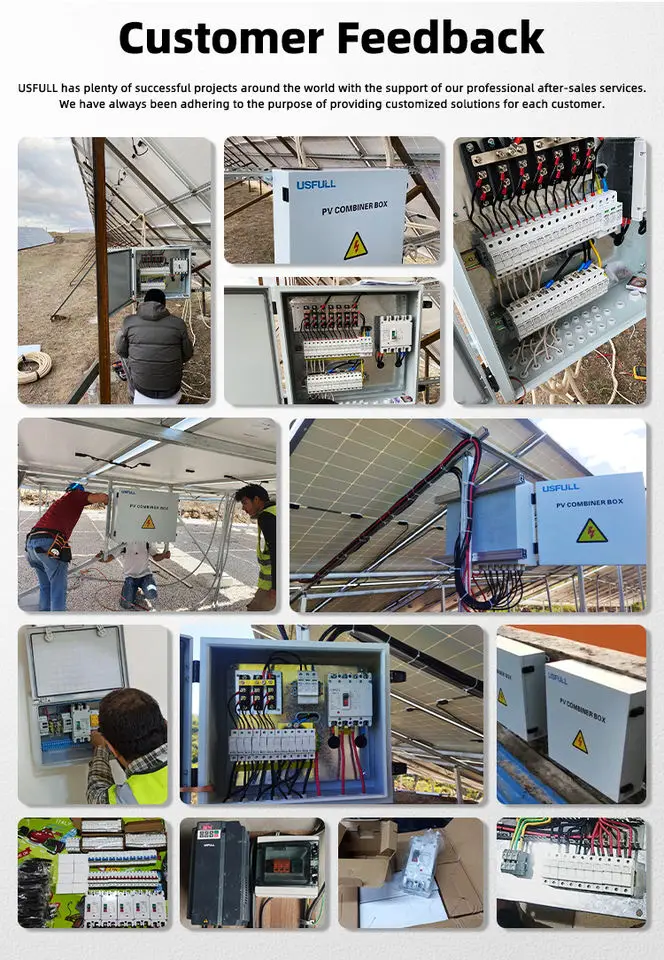

Buyer Feedback
FAQ
Q1: What is Surge Protector?
A1: Surge protector is an electronic device that provides lightning protection. Surge protector is also called Surge Protection Device, Surge Protective Device, Surge Arrester, Lightning Arrester, Lightning Protector, SPD, DPS, etc.
Q2: Which TYPE (CLASS) of surge protector can you offer?
A2: We can offer T1, T1+T2, T2 type AC SPD in single-phase or three-phase voltage. For DC SPD, we can provide T1, T1+T2, T2 type from 500VDC to 1500VDC.
Q3: How can I select the SPD to protect the system?
A3: In the main distribution box of the facility, we usually will use T1 and T1+T2 type SPD. In the secondary distribution box, we usually will use T1+T2 or T2 type. In the terminal of distribution box like residence, we usually will choose T2 SPD. Please contact us if you do not know which specification to choose from.
Q4: Can I know more about the DC surge protector?
A4: There are T1+T2, T1 and T2 DC SPD. T1+T2 type will be used in main distribution box for PV system. T2 DC SPD will be used in distribution box for personal solar system.
Q5: Are you factory or trading company?
A5: We are factory and can provide OEM and ODM with your authorization. We have R&D department and we've been manufacturing and exporting for more than two decades.
