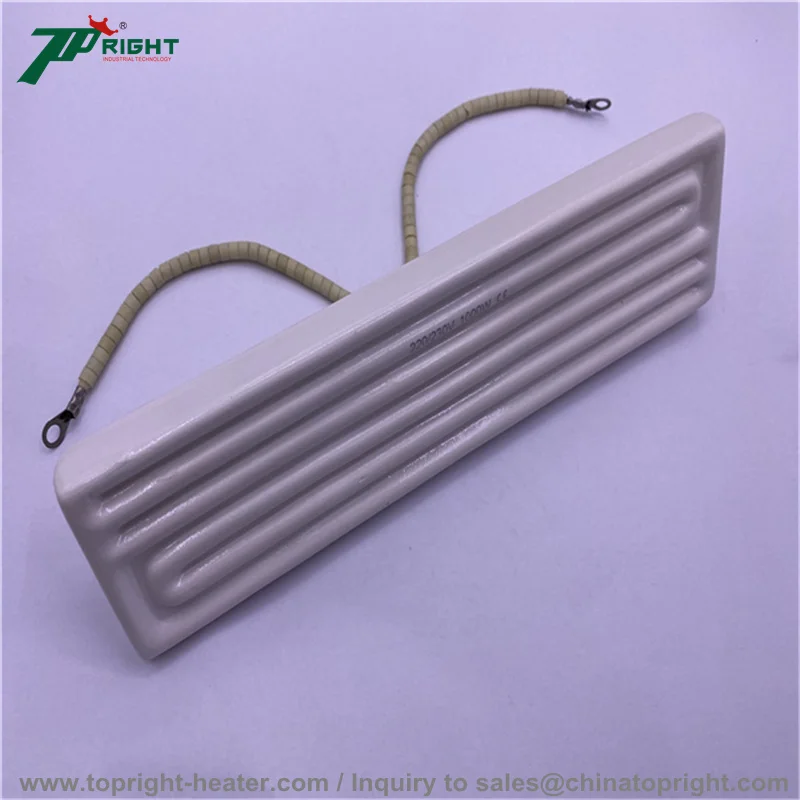

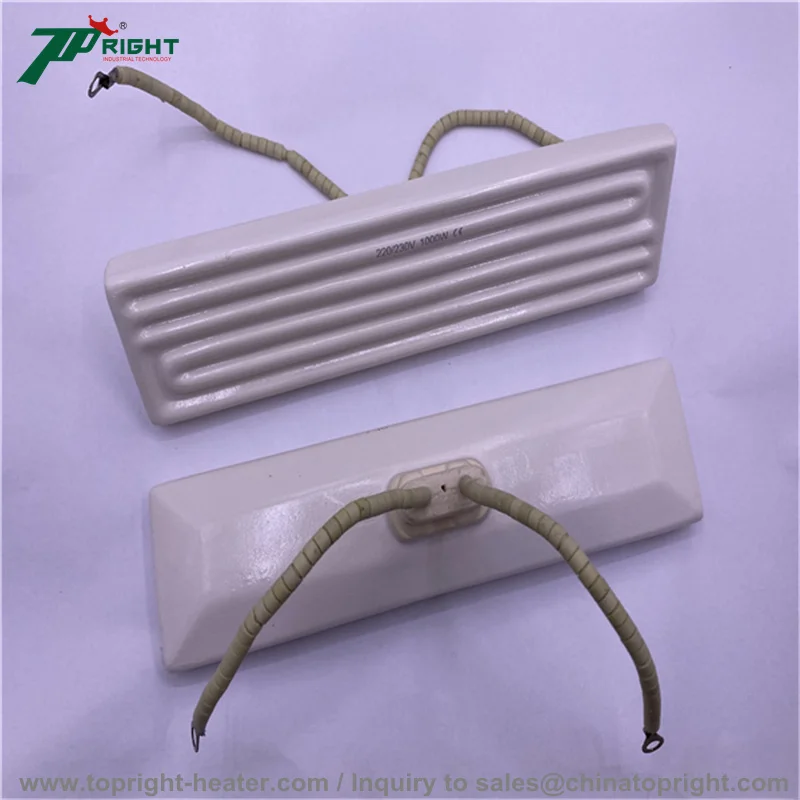

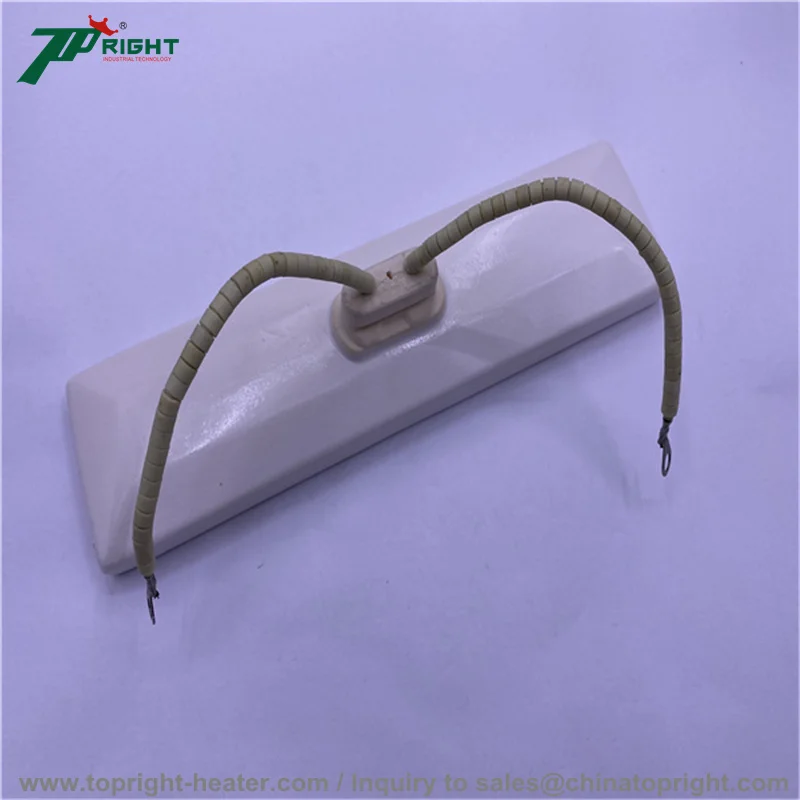

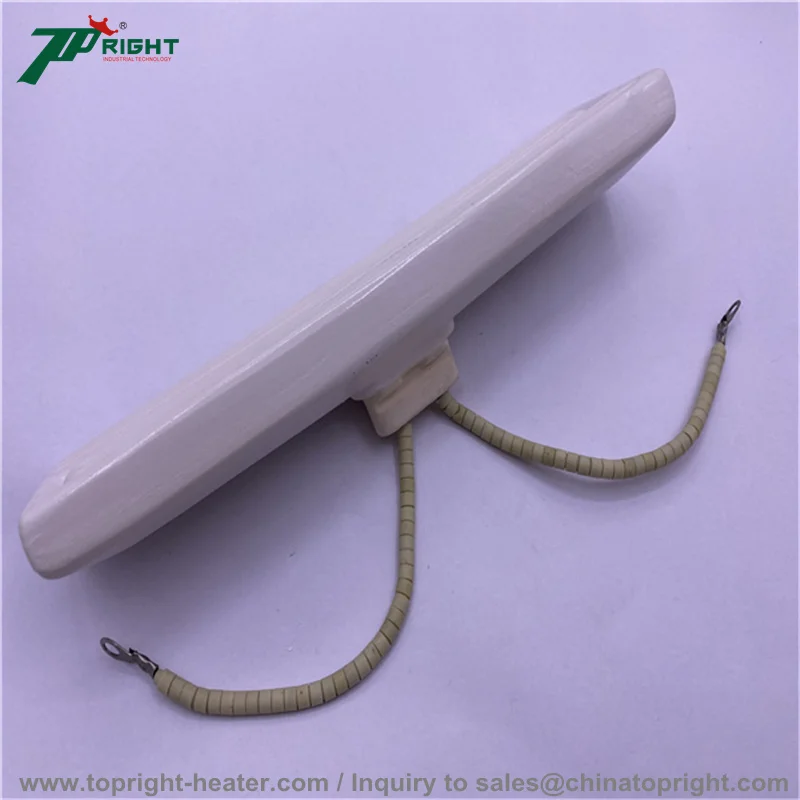

245*60mm 250v 1000w electric heater far infrared ir ceramic heating panel for thermoforming machine
- Category: >>>
- Supplier: Topright Industrial Technology Yancheng Co. Ltd.
Share on (1600710061883):
Product Overview
Description
Product Description
Topright Far infrared outdoor ceramic heater are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
Standard Ceremic heater to choose:
Mould No. | Product type | Size(mm) | Wattage (W) | |||
TRIR-24580A | Arc Type | 245*80 | 300W 400W 500W 650W 1000W | |||
TRIR-24560A | mini | 245*60 | 300W 400W 500W 650W 1000W | |||
TRIR-12260A | flat bottom | 122*60 | 200W 300W 400W 500W | |||
TRIR-6060A | 60*60 | 100W 200W 300W | ||||
TRIR-24580F | Flat Type | 245*80 | 300W 400W 500W 650W 1000W | |||
TRIR-24560F | 245*60 | 300W 400W 500W 650W 1000W | ||||
TRIR-122122F | mushroom | 122*122 | 300W 400W 500W 650W 1000W | |||
TRIR-12260F | cone-shape | 122*60 | 200W 300W 400W 500W | |||
TRIR-24580H | Hollow Type | 245*80 | 300W 400W 500W 650W 1000W | |||
TRIR-245X60H | 245*60 | 300W 400W 500W 650W 1000W | ||||
TRIR-122122H | 122*122 | 300W 400W 500W 650W 1000W | ||||
TRIR-12260H | 122*60 | 200W 300W 400W 500W | ||||
TRIR-6060H | 60*60 | 100W 200W 300W | ||||
Note: 1.Color: bright black, black, bright white, white, bright beige,yellow 2.With or W/O Thermocouple K or J 3.Packaging:1piece in one box (white or color),carton+wood pallet 4.The OEM and ODM order is available, custom for you | ||||||
Details Images
Application
Application
1.PET perform heating in stretch blow molding machines
2.Printing Ink drying in offset machines
3.Screen-printing curing on T-shirts and textiles
4.Powder coating curing
5.Rubber coated drying
6.Sterilizing/mirror coating drying in glass industries
7.Paint baking
8.Paper coating drying
9.All type of lamination
Preheating prior to embossing
2.Printing Ink drying in offset machines
3.Screen-printing curing on T-shirts and textiles
4.Powder coating curing
5.Rubber coated drying
6.Sterilizing/mirror coating drying in glass industries
7.Paint baking
8.Paper coating drying
9.All type of lamination
Preheating prior to embossing
Related Products
Certifications
Packing & Delivery
Every infrared ceramic heater has its own box to protect it. And we support the Box design.
Company Profile
Topright Technology Culture
Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of
industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years.
Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years.
Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very
beginning to the very end.
beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality,
stylish designs, competitive price and perfect service won us honorable customers.
stylish designs, competitive price and perfect service won us honorable customers.
