Product Overview

Description



Products Description




Standard device
Doypack bag (single sheet film with bottom fold)
One set easy puncher
One set hole punch with (6,8,10mm diameter hole mould)
With one set waste film rewinding
With ultrasonic and heating sealing bar for zipper

Optional Device
Double Cutting system
Double stand up and zipper device
Double unwinder with auto EPC and auto tension









3 sides seal bag
New Model
3 side seal bag
600HC+FD
Bag width range（Machine width direction）
:100-580mm
Bag length range（Machine length direction）
:50-420mm（seal two times）
Use of skip unit (6 times) enable to up max.2520mm bag length
Max. Number of shots:
:170 shots/min
Width of Bottom Sealing:
:5mm-80mm
Width of Vertical Sealing
:5mm-60mm





3 sides seal bag with zipper
3 Side seal with zipper bag
600HC+FD
Bag width range：
100-580mm
Bag length range（Machine length direction）
:50-420mm（seal two times）
Use of skip unit (6 times) enable to up max.2520mm bag length
Max. Number of shots:
:120 shots/min
Width of Bottom Sealing:
:5mm-80mm
Width of Vertical Sealing
:5mm-60mm





Doypack bag
single film insert stand up pouch
600HC+FD
Bag width range
:80-260mm（seal three times）
Bag length range
80-500mm
Gusset depth
:35-60mm
Gusset punching hole
:φ16mm
Max. Number of shots:
:120shot/min
Max. Film speed
:35m/min





Stand up bag
Third film insert stand up bag
600HC+FD
Bag width range（Machine width direction）
70mm-260mm(seal three times)
Bag length range（Machine length direction）
100-580mm
Max. Number of shots:
120shots
Third insert film width
:70-150mm
Gusset depth
:35-70mm
Gusset punching hole
:φ16mm


Sample Bag

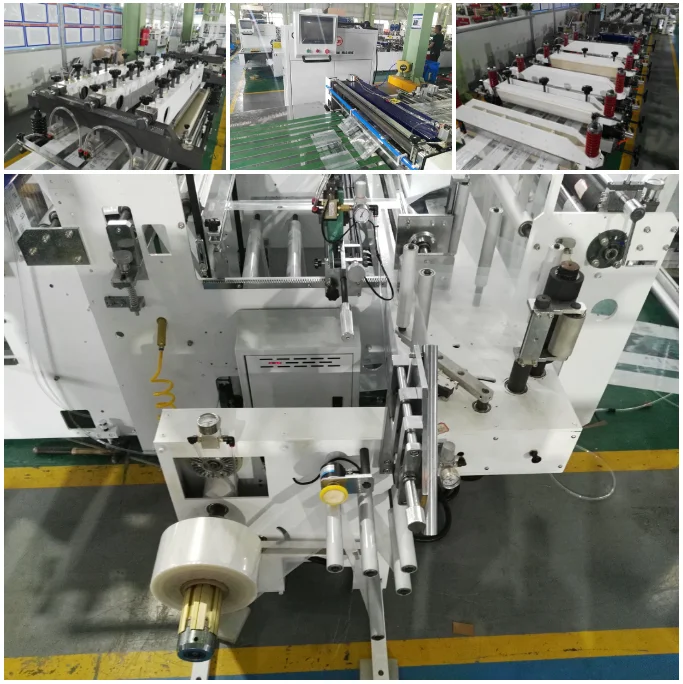

Details Images




Double unwinding without transverse deviation correction (with pneumatic feeding)
Triangle folding device for doypack bag
Third film insert Stand Up Pouch Diagram




Single film with insert device for bottom fold
Vertical sealing part (vertical sealing 4 groups, used for sealing three side sealing, standing bag bottom sealing, etc.)
Horizontal sealing part: (3 groups, cast iron type)




Main Part




Certificate




Packing




About Us






CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.






CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.




CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.


Exhibition




FAQ


1) Is your company a factory or a trading company?
We are a factory.

2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.

3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines

4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...

5) How many years of your factory?
Our company is established since 1999.

6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine

7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.

8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...

9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...

10) How many workers of your company?
More than 150 workers.
