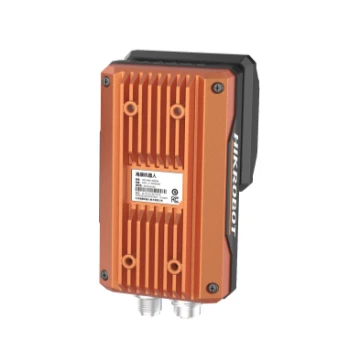

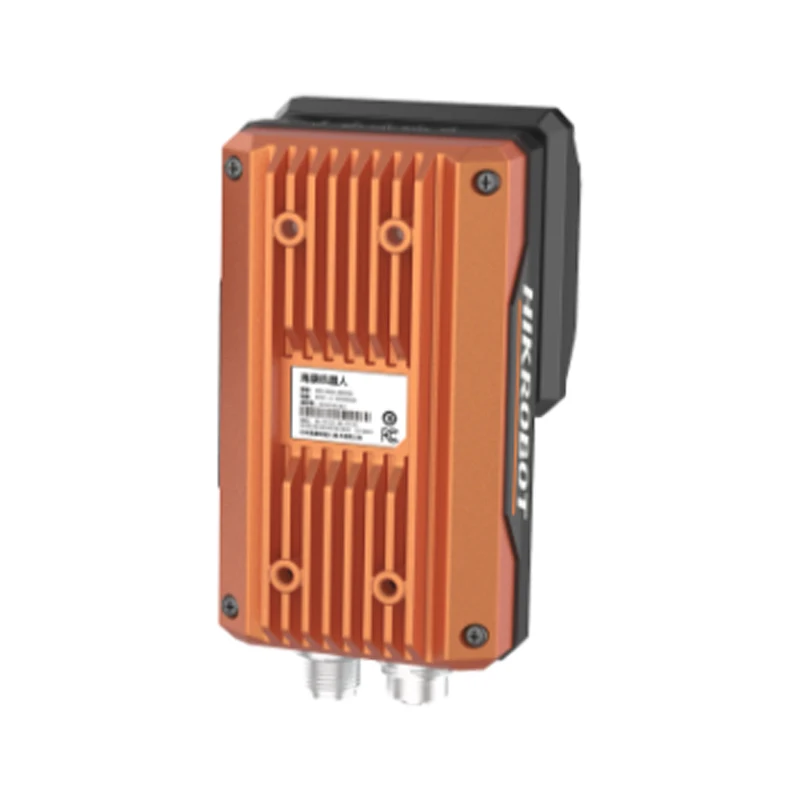

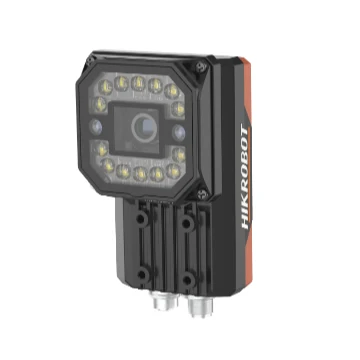

HIKROBOT MV SC7050PM 12S WBN 2368*1760 12mm Lens 40fps 5MP SC7000P Machine Vision Industrial AI Smart Camera
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600710121689):
Product Overview
Description
Product Features
1.Embedded deep learning AI algorithm for character recognition, object recognition, item sorting and other functions
2.Integrated full-featured vision algorithm for positioning, measurement, recognition, defects and other applications
3.Support mechanical focusing, one key setting, fast debugging and setting
4.Super large memory, stronger performance; ultra-high-speed large-capacity storage media, can be cyclic storage map
5.Support a variety of industrial communication modes, docking without worry
6.Rich status indicator, can grasp the status of the equipment in real time, convenient debugging and maintenance
7.IP67 protection, no fear of harsh industrial application environment
2.Integrated full-featured vision algorithm for positioning, measurement, recognition, defects and other applications
3.Support mechanical focusing, one key setting, fast debugging and setting
4.Super large memory, stronger performance; ultra-high-speed large-capacity storage media, can be cyclic storage map
5.Support a variety of industrial communication modes, docking without worry
6.Rich status indicator, can grasp the status of the equipment in real time, convenient debugging and maintenance
7.IP67 protection, no fear of harsh industrial application environment
Products Description
Specifications
Model | Model Number | MV-SC7050PM-12S-WBN |
Name | 12mm lens 5 megapixel black and white AI smart camera | |
Tools | Visual tools | Counting: speckle counting, edge counting, pattern counting Defect: Abnormality detection Presence or absence: circle presence or absence, straight line presence or absence, spot presence or absence, edge presence or absence, pattern presence or absence Positioning: calibration, positioning Logic: branch control, conditional judgment, logical judgment, combination judgment, character comparison, variable calculation Measurement: line angle, diameter measurement, brightness average, contrast measurement, width measurement, dotted line measurement, grayscale area, straight line angle, pitch measurement Recognition: character recognition, code recognition Deep learning: classification, target detection |
Solution capability | Support solution import/export, up to 32 solutions and 40 modules can be stored | |
Communication protocols | RS-232、TCP、UDP、FTP、PROFINET、Modbus、EtherNet/IP | |
Camera | Sensor type | CMOS, global shutter |
Image element size | 3.2 µm × 3.2 µm | |
Target surface size | 1/1.7” | |
Resolution | 2368 × 1760 | |
Maximum acquisition frame rate | 40 fps | |
Gain | 0~15 dB | |
Exposure time | 16 μs~1 sec | |
Pixel format | Mono 8 | |
Black and white/color | Mono | |
Platform | Memory | 8 GB |
Storage | 32 GB | |
Electrical Characteristics | Data interface | GigE |
Digital I/O | 12-pin M12 interface, supports 3 optically isolated inputs (Line 0/1/2), 3 optically isolated outputs (Line 3/4/5), 1 RS-232 | |
Power supply | 24 VDC | |
Typical power consumption | 7.5 W@24 VDC (without fill light activated) 46 W@24 VDC (fill light activated) | |
Structure | Lens interface | M12-Mount, Mechanical Focusing |
Focal length | 12mm | |
Lens hood | Transparent lens hood | |
Light source | Light source not included | |
Indicator light | Power indicator PWR, network indicator LNK/ACT, user indicator U1/U2 | |

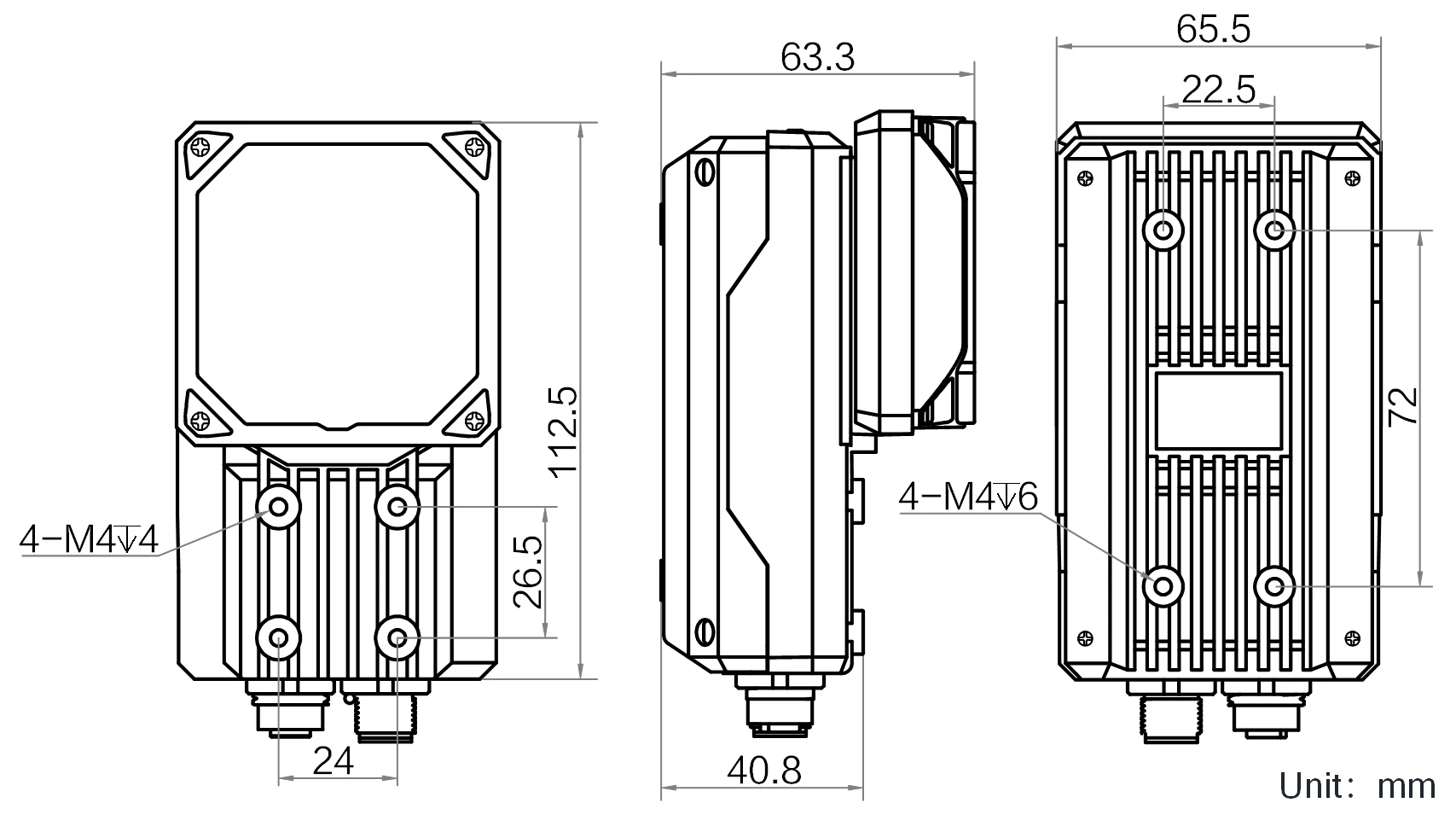

Dimensions | 112.5 mm × 65.5 mm × 63.3 mm | |
Weight | approx 450 g | |
IP protection level | IP67 (with lens and cable properly installed) | |
Temperature | working temperature 0~50℃, storage temperature -30~70℃ | |
Humidity | 20%~95%RH non-condensing | |
General Specifications | Software | SCMVS |
Certification | CE, FCC, KC |
