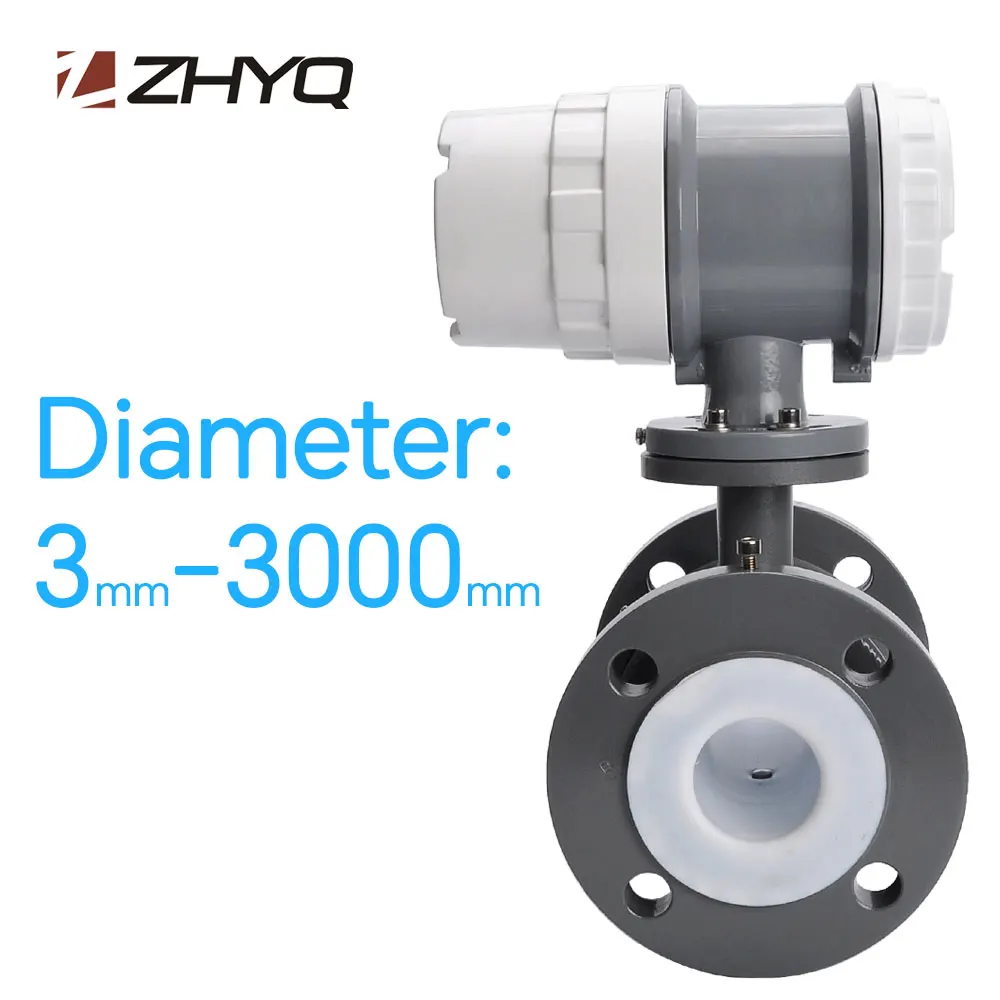

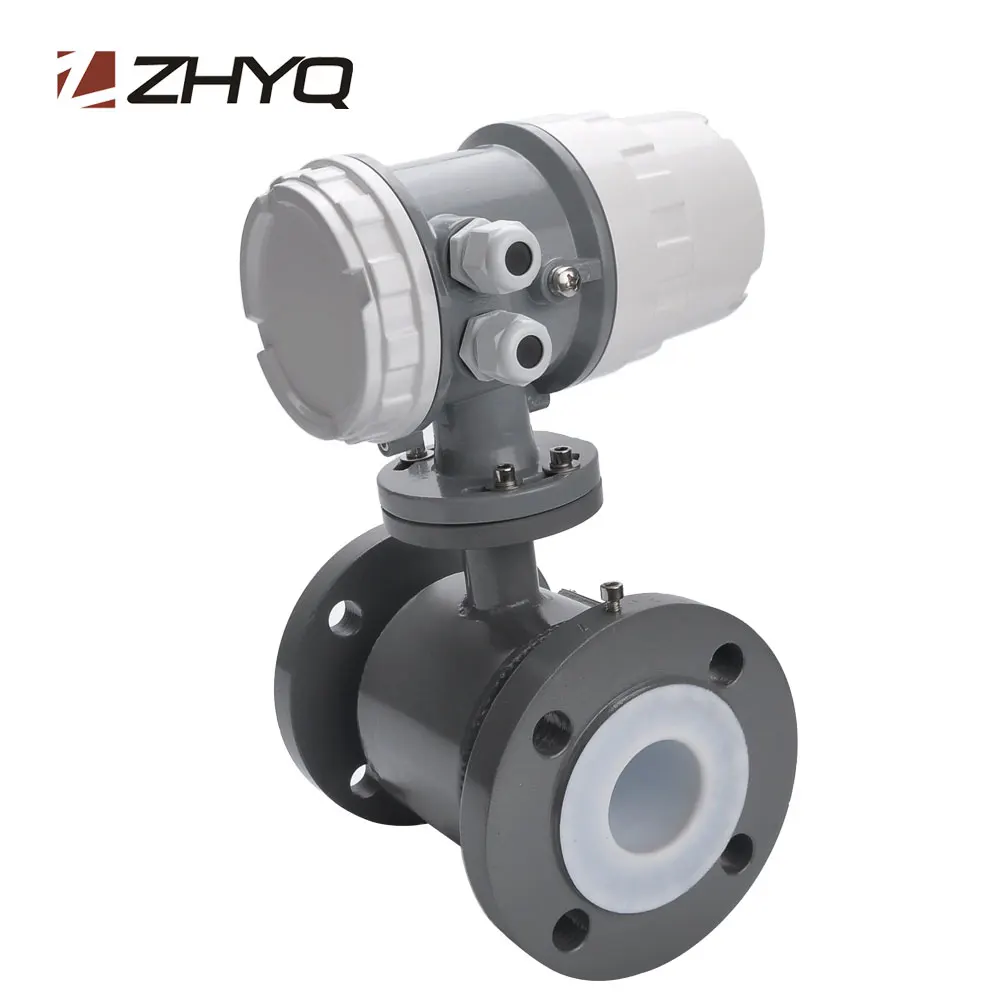

DN3 DN3000 industry Incorporate type electro magnetic flow meter for sale
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1600710239702):
Product Overview
Description
Product Paramenters
Name | Electromagnetic Flowmeter | ||||||
Model | PT124B-501 | ||||||
Nominal diameter | 3-3000mm | ||||||
Velocity range | 0-10m/s | ||||||
Accuracy | ±0.5%R, ±1%R ( < DN20) | ||||||
Medium conductivity | ≥5µS/cm, Actual conductivity≥30µS/cm | ||||||
Nominal pressure | 1.0MPa | 1.6MPa | 2.5MPa | 4.0MPa | |||
DN15-DN800 | DN15-DN800 | DN15-DN600 | DN15-DN50 | ||||
Environment temperature | Sensor | 0℃- +80℃ or -25℃- +120℃ or +70℃- +250℃ | |||||
Incorporate type | -10℃- +55℃ | ||||||
temperature | Incorporate type | +80℃ | |||||
CR chloroprene rubber liner (CR) | +80℃ | ||||||
Polytetrafluoroethylene lining (F4) | +120℃ | ||||||
Polite lining (F46) | +120℃ | ||||||
Teflon (PFA) | +180℃ | ||||||
Fluorosilicone rubber (FVMQ) | +250℃ | ||||||
Output signal | 4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max) | ||||||
Cable entry size | M20*1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector) | ||||||
Supply voltage | 110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10% | ||||||
Power dissipation | ≤15VA | ||||||
Digital communication | RS-485, support standard Mudbus protocol; GPRS | ||||||

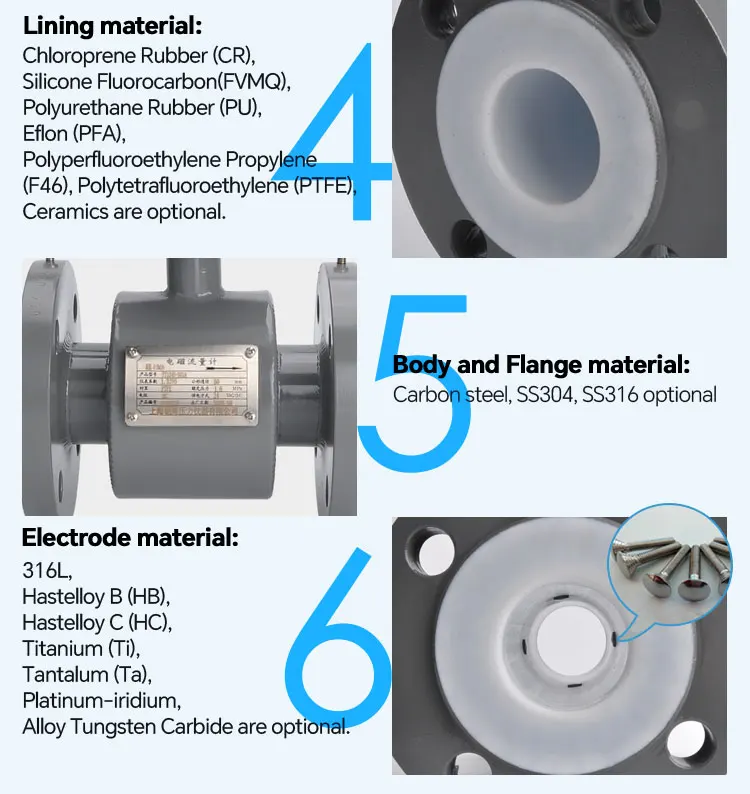

Signal / Ground electrode material | Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum | ||||||
Form of electric pole | Interpolating, extrapolating electrode need to customize | ||||||
Number of electrodes | Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration | ||||||
Flange standard | Conform to the international GB9119(customize according to customer’s demand) | ||||||
Flange material | Standard carbon steel and stainless steel are needed to be customized | ||||||
Stainless steel, and stainless steel that contains molybdenum, etc | |||||||
DN12-DN450 | Stainless steel 1 Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321) | ||||||
Housing material | Standard carbon steel and stainless steel are needed to be customized | ||||||
Separate body-type | IP68, IP65 | ||||||
Incorporate type | IP65 | ||||||
Interval/wire length (separate body-style) | 10m standard configuration connecting line, optional 15m, 20m, 25m, 30m | ||||||
Products Description

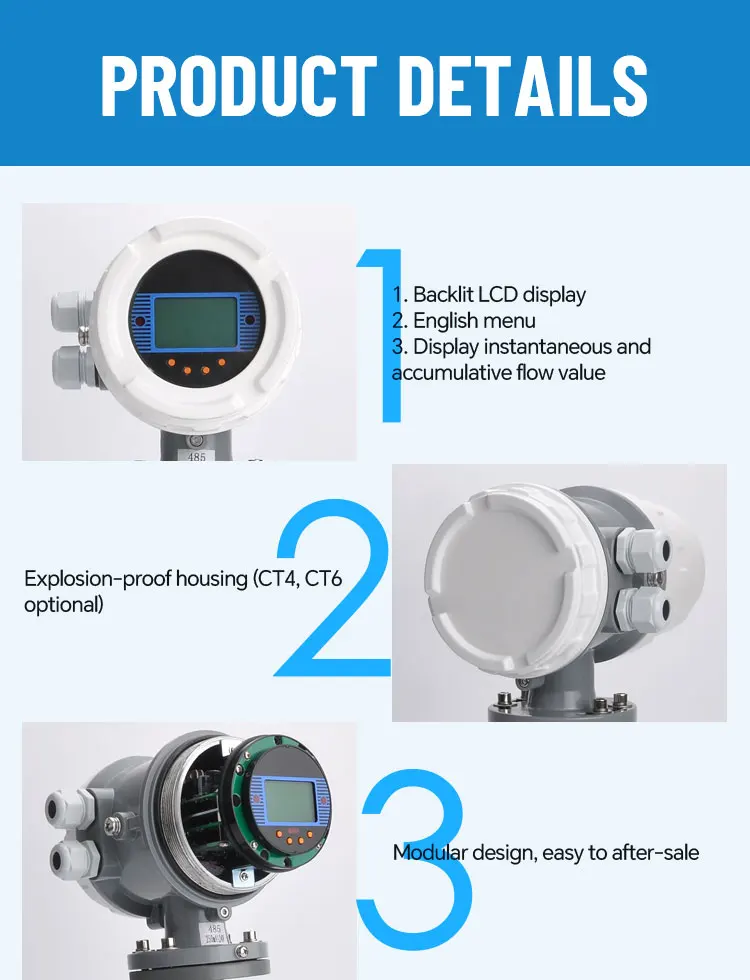

Details
Production Process

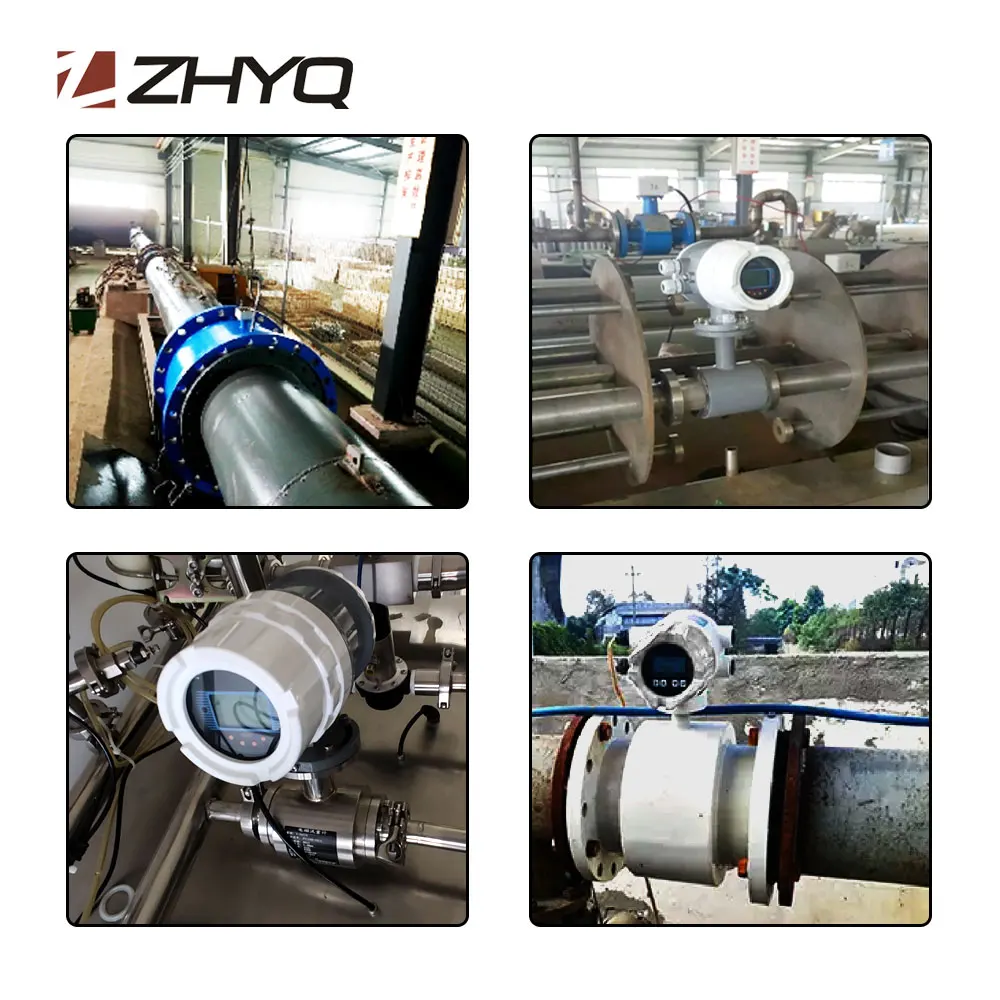

Applications
MORE
Applications for beverages, chemicals, pharmaceuticals, petroleum，wastewater, water, mining, mineral processing, power, pulp and paper.and chemical industries. Magnetic flowmeters are used in water treatment plants to measure treated and untreated sewage, process water, water and chemicals. Miningand mineral process industry applications include process water and process slurry flows and heavy media flows.
Company Profile
Founded in 1999, the company has a professional R&D team of senior experts in the field of optoelectronics and experienced engineers, focusing on the R&D, production and sales of concentration detection and online analysis instruments, and has successfully provided customized services for many domestic listed companies. And technical support. The company adopts advanced automatic production and testing equipment, imported electronic components and sapphire cores, and its own parts processing factory to ensure high product stability, high precision, and high cost performance. Comprehensive introduction of ISO9001 quality management system At the same time, the company provides a one-year free warranty commitment. During the warranty period, it will provide users with fast, timely and efficient free services.
Certifications
FAQ
Q1. What is your terms of packing?
A: Generally, ZHYQ brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms : EXW, FOB, CFR, CIF for your convenient; Payment terms: 100% T/T or credit card or paypal advance before shipment
Q3. How about your delivery time?
A: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q4. What's your MOQ?
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q6.How long your quotation valid?
A: Our quotation valid for 12 months.
Q7. Can you accept OEM brand?
A: Yes, we can accept the OEM brand without extra charge.
Q8. How long is your product warranty?
A: 7 days replacement and 12 months repair free of charge for quality problem.
Q9. How delivery the goods?
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight collect, just for your convenience.
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight collect, just for your convenience.
Q10. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
