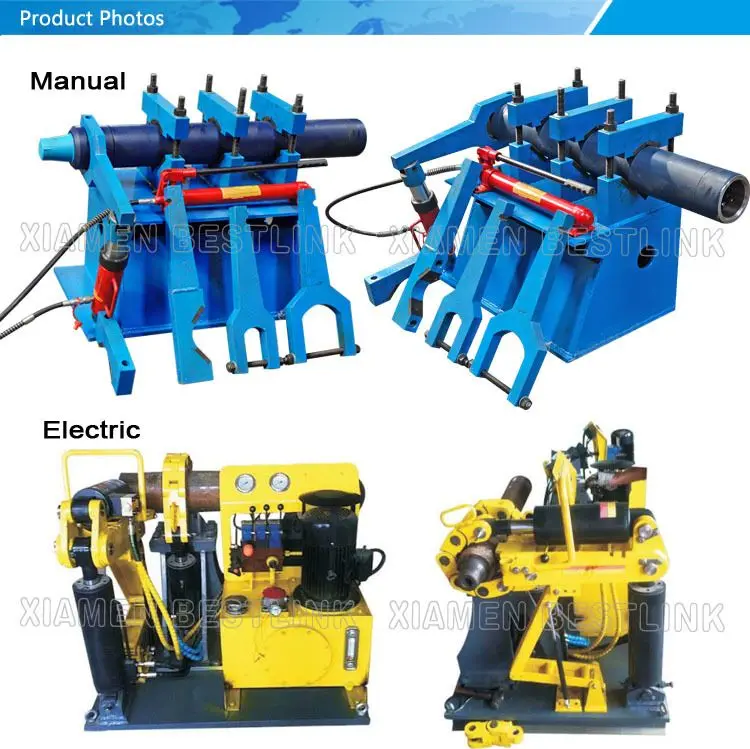

Sales Dismantling of Down the Hole Drilling Equipment DTH Breakout Bench
DTH Breakout Bench: The threaded connections of the driver chuck and top sub may become very tightly tensioned during drilling.It is convenient to break the hammer threads on the rig, but if the threads cannot be loosened or tend to get stuck, a DTH Hammer Assembling equipment is the solution.
This handy but powerful DTH Hammer Disassembling equipment / DTH Breakout Bench can easily be placed in a workshop or container and it breaks DTH hammers between 3.5''-8".
Specification / Technical Date
The DTH Hammer Breakout Bench is widely using in Mining, Quarrying.
Hammer size range: 3.5"- 8"
Bench size (length x width x height): 1060 x 930 x 1050 mm
Weight: 800 kg
Max make up torque: 50 ftlb
Max break out torque: 60 ftlb
Operation height: 750 mm
Hydraulic pressure range: 0-20 MPa
Characteristics / Advantages:
1. High effective torque
2. Completely mechanical
3. Easy usage
4. Safe and reliable
5. More precise positioning of hammer, avoiding damage to cylinder in vulnerable places.
6. Easy to disassemble hammers that are very tight due to high working pressures .
