Silicone Rubber Cable Extrusion Production Line Silicone Extruder Machine Neon Gel Silicone Wire And Ppr Pipe Plastic Extruders
- Category: >>>
- Supplier: Zhangjiagang City Benk Machinery Co. Ltd.
Share on (1600710280232):
Product Overview
Description
Products Description
Product Name | Silicone Rubber Cable Extrusion Production Line Silicone Extruder Machine Neon Gel Silicone Wire And Ppr Pipe Plastic Extruders | ||||||
Brand Name | BENK Machinery | ||||||
Plastic Processed | HDPE, HDPE/PP | ||||||
Screw Design | Twin-screw | ||||||
Voltage | customized | ||||||
Dimension(L*W*H) | 20*2.5*2.2M | ||||||
Product Design | Customized | ||||||

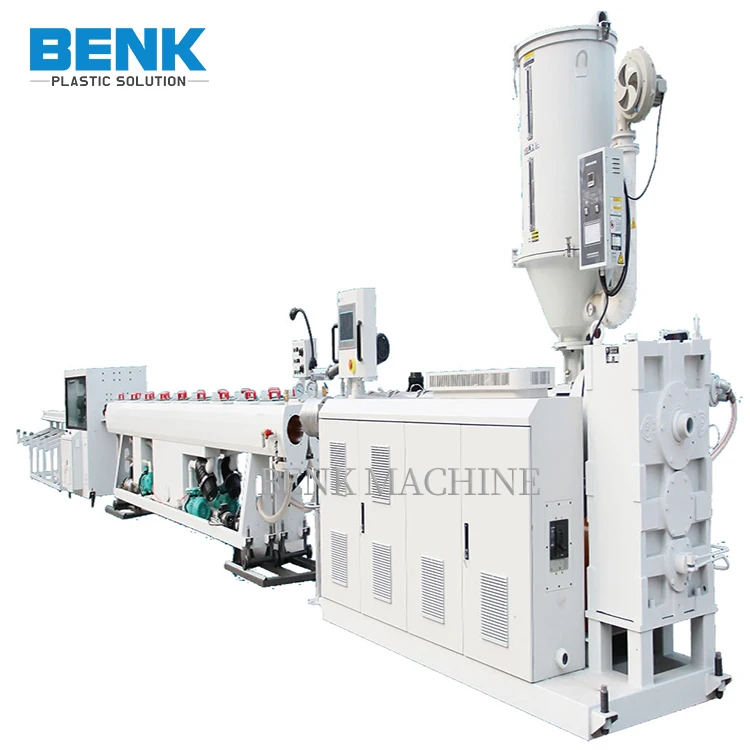

PVC Pipe Extrusion Line.
Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.
Product Paramenters | ||||||||
Production pipe diameter (mm) | 16-32 | 16-63 | 63-110 | 110-250 | ||||
mold | four out | double out | double out | single out | ||||
Output (KG/H) | 120-250 | 150-250 | 200-330 | 280-350 | ||||
Screw Diameter (MM) | 65/132 | 65/132 | 20/39 | 20/39 | ||||
Drive motor AC+VF | 37KW | 37KW | 55KW | 55KW | ||||
heater capacity | 18.5KW | 20KW | 40KW | 40KW | ||||
temperature control (point) | 5 | 5 | 5 | 7 | ||||
cooling system | Vacuum pump 4-7.5KW / water cooling system / stainless steel | |||||||
traction device | 2 claws | 4claws | ||||||
cutting unit | Chipless cutting | Planetary cutting | ||||||
stacking unit | cylinder system | |||||||

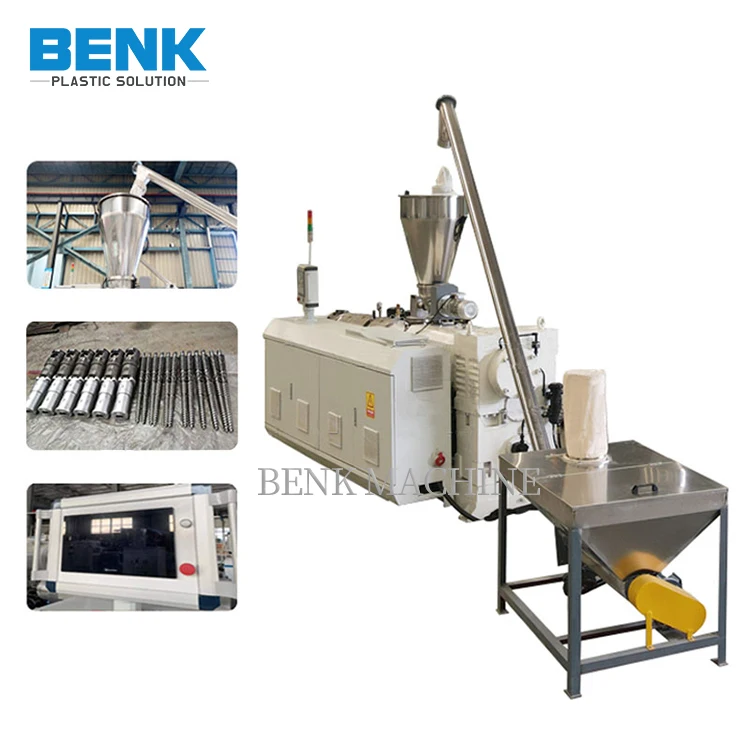

Twin Screw Extruder.
1.1 Siemens PLC
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox1.6 Advanced Vacuum System
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
1.2 Quality Screw and Barrel
1.3 Air Cooled Ceramic Heater
1.4 High Quality Gearbox and Distribution Box
1.5 Better Cooling of Gearbox1.6 Advanced Vacuum System
Both conical twin screw extruder and parallel twin screw extruder can be applied to produce PVC pipe. With latest technology, to
lower power and ensure capacity. According to different formula, we provide different screw design to ensure good plasticizing
effect and high capacity.
Recommend Products

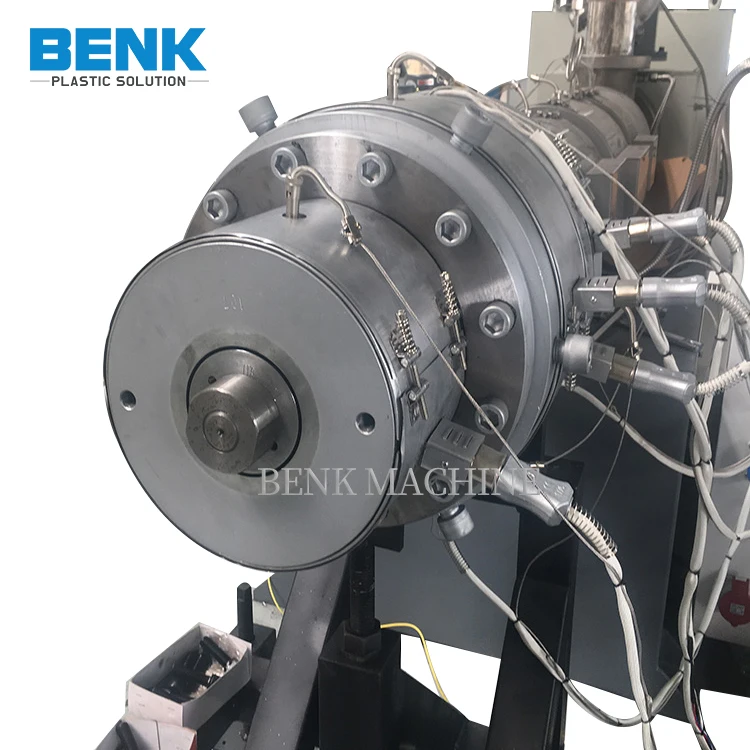

Extrusion Die Head.
2.1 Moving Device of Die Head
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or multi-layer pipe.
2.2 Die Head Rotary Device
2.3 CNC Processing
2.4 High Quality Material
Extrusion die head apply bracket structure, each material flow channel is placed evenly. Each channel is after heat treatment,
mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design, easy for changing pipe sizes, assembling, dismantle and maintenance. Can produce single layer or multi-layer pipe.

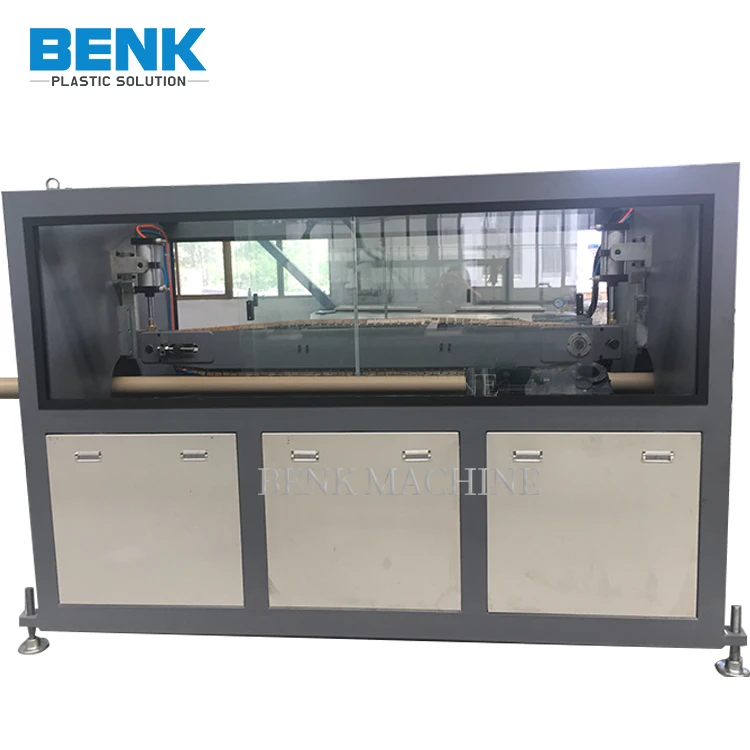

Haul-off
4.1 Pipe Clamping Device
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,
also avoid deformation of pipe during traction.
4.2 Water Tank Filter
4.3 Quality Spray Nozzle
4.4 Pipe Support Adjusting Device
4.5 Pipe Support Device
Haul off unit provides sufficient traction force to pull pipe stably. According to different pipe sizes and thickness, our company
will customize traction speed, number of claws, effective traction length. To ensure match pipe extrusion speed and forming speed,
also avoid deformation of pipe during traction.

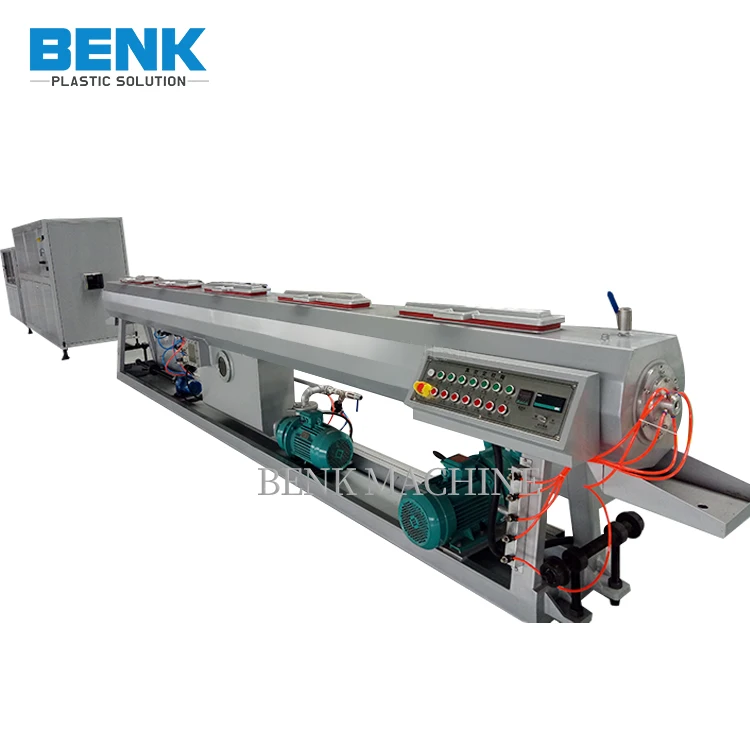

Vacuum Tank.
3.1 Strong Cooling for Calibrator
3.2 Better Support for Pipe
3.2 Pressure Relief Valve3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.
3.2 Better Support for Pipe
3.2 Pressure Relief Valve3.3 Double Loop Pipeline
3.4 Water, Gas Separator
3.5 Full Automatic Water Control
3.6 Centralized Drainage Device
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. We use double-chamber structure. First chamber is
in short length, to ensure very strong cooling and vacuum function. As calibrator is placed in the front of first chamber and pipe
shape is formed mainly by calibrator, this design can ensure quick and better forming and cooling of pipe.

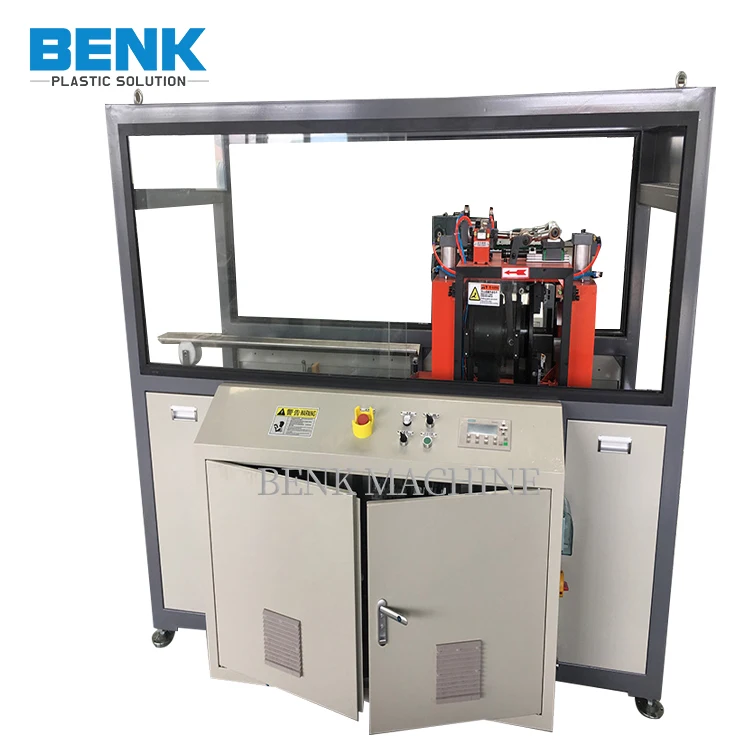

Cutter.
5.1 Aluminum Clamping Device
5.2 Advanced Hydraulic System
5.3 Dust Collection System
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut..
5.2 Advanced Hydraulic System
5.3 Dust Collection System
Cutter controlled by Siemens PLC with chamfering function, working together with haul off unit to have precise cutting. Customer
can set the length of pipe they want to cut..

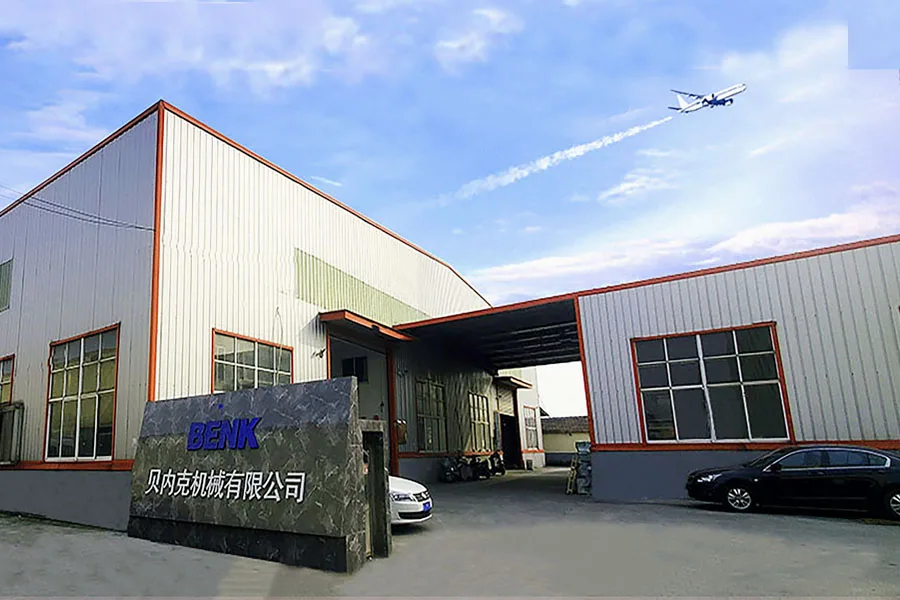

Company Profile
Products with all kinds extrusion machine of plastic pipe , PVC profile , PVC imitation marble , construction & furniture foam board , and can provide customized solutions for customers of plastic extrusion .
Washing mainly PE washing granulation , PE / PP film cleaning granulation . All kinds of production line is stable , competitive price , cost savings for the customer at the same time , in a stable and efficient performance to create value for customers , promote social resource conservation , sustainable development of ecological environmental protection .
Our Partner
Certifications
Packing&Deilvery
Why Choose Us
High Quality
When quality is concerned , we always ensure that we offer the best . Every machine and system that we offer is high - quality from the beginning of assembly up to the end product . Quality is assured.
The Team
To achieve and maintain our goals , we have a great interaction between the planners , marketing executives and engineers to achieve quality and performance targets within reason able time frames . The team is aware that mediocrity or perfection is the extrusion of an attitude.
Economical
The BENK Company want to grow with its customers . To achieve this goal , we provide the most competitive prices as we establish long - term cooperation.
Innovation
Any good machine is based on the most advanced technology . We base our innovation on technology . Our machines are built with the most recent technology in the market.
Customer Satisfaction
There is a constant customer orien tation as part of doing business . All the customers end up being sati-sfied.
FAQ
We have reference project in most countries and you are always welcome to come to visit our company , and see the machine running in our factory , we can pick you up from the station near our city .
2. Do you provide customized service ?
We can design the machines according your requirements , at the same time we will give you our professional suggestion , as you know , we have been in this industry for many years .
3. What ' s your guarantee or the warranty of the quality if we buy your machines ?
We offer you high quality machines with 1 year guarantee and supply life - long technical support .
4. Installation and stuff training available from you?
According your machines order , our engineers will guide machine installation and train your workers.
5.How can we visit your company and machines?
Our factory is in No. 10 East Chenghe Road,yangshe Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport!
