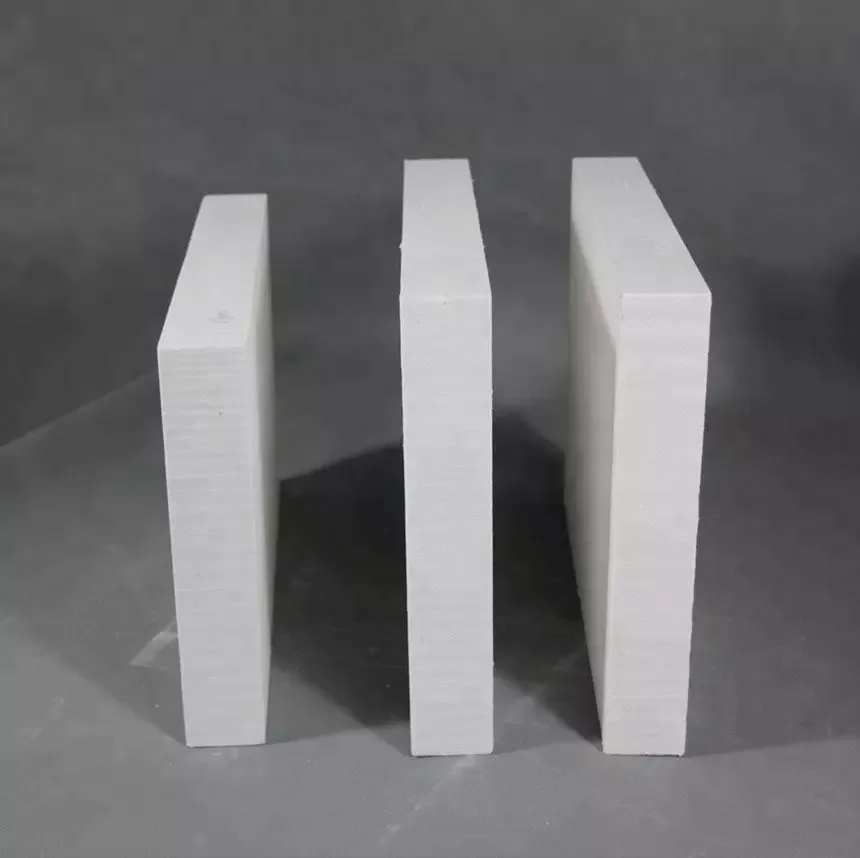

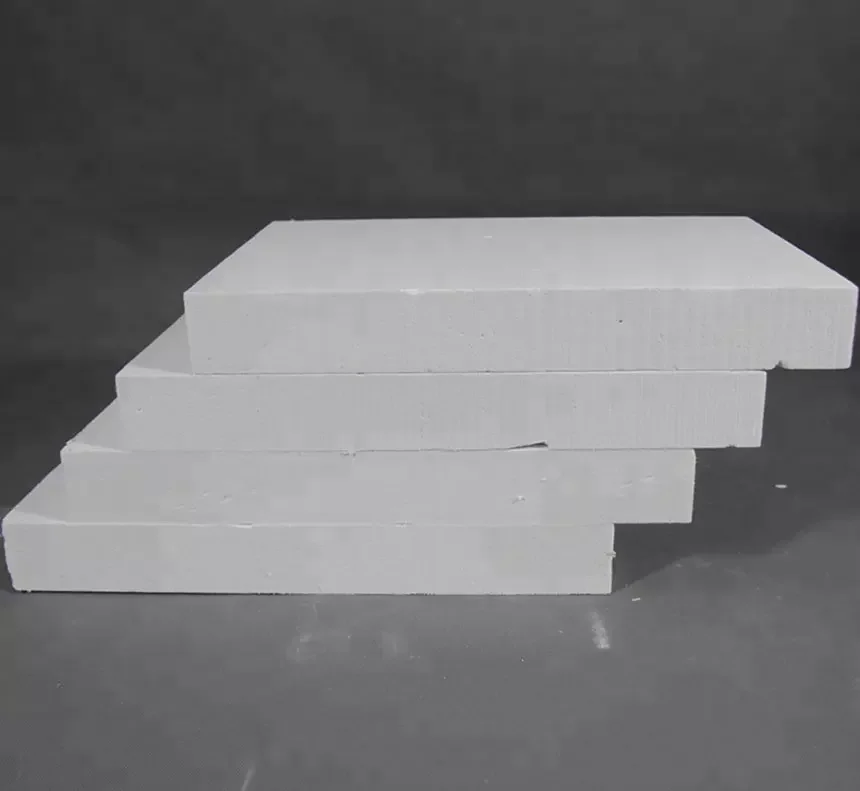

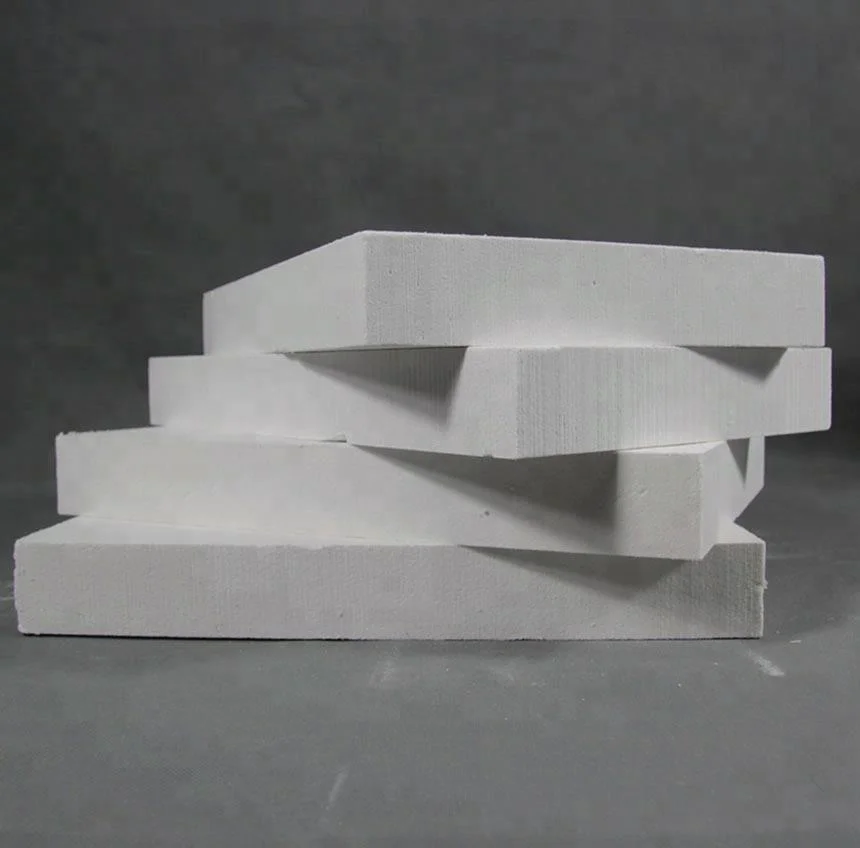

1260C Ceramic Fiber Board


Standard Size:1200*1000*20-100mm/1000*600*20-100mm
Other shapes and sizes can be made according to your requirements!
NOTE: Above working temperature is under the long-term oxidizing atmosphere,while special working enviroment needed,please make technical communication first.
Type | SYN-1260 | SYN-1900 | ||
Classification Temperature(℃) | 1260 | 1900 | ||
Working Temperature(℃) | 1000 | 1750 | ||
Color | Pure White | Pure White | ||
Density(kg/m3) | 250-400 | 700 | ||
Thermal Conductivity(w/mk) | 0.09400℃ | 0.09 | - | |
600℃ | 0.12 | - | ||
800℃ | 0.16 | 0.2 | ||
1000℃ | - | 0.3 | ||
1200℃ | - | 0.33 | ||
Chemical Comsosition(%) | Al2O3 | 43 | 87 | |
Al2O3+SiO2 | 98 | 99.5 | ||
BaO | <0.2 | <0.05 | ||
Fe2O3 | <1.2 | <0.1 | ||
Shrinkage(%) | 1100℃*24h-3 | 1750℃*24h+0.1~-0.4 | ||
Combustion Loss(%) | ≤5% | ≤4% | ||
Compressive Strength(MPa) | 0.3 | 0.8 | ||
1. Light weight,low thermal capacity and low thermal conductivity;
2. Good chemical stability and excellent anti-erosion;
3. Excellent thermal stability and good resistance to heat shock;
4. Excellent bending strength against high temperature and good temperature tolerance;
5. Excellent machinability;
6. Uniformed structure,and high anti-pulverization ability;
7. Easy to installed and used.



The company has obtained the "High-tech enterprise", "Private enterprise of technology", and other awards successively. Currently, it has eight new utility patents, and two other patents of invention and eight other new utility patents are in the process of application.


Henan Synthe Corporation was founded in January 2013, is engaged in the design, development, manufacture, and sales of high-temperature insulation, vacuum-formed ceramic fiber heaters, diffusion heaters, and high-quality thermal processing equipment, all custom designed to meet your thermal requirements. Temperature ranges from room temperature 20°C ( 68°F) to 1800°C ( 3272°F), for over ten years in the industry, SYNTHE have been a problem-solver working with our customers to resolve their thermal management problems.




1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
2.Shall you offer samples?
Yes, we can offer the client samples in stock.
3.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
4. What is the delivery time?
15-25 days after receiving the deposit
A: If we have the size you need in stock. we will send them 2-3 days, if you order crucible need to produce, the delivery time is about 10-25days.
5. What‘s your regular practice concerning terms of payment?
A: Payment terms :T/T 30%-50% deposit after order confirm ,the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
