PVC PU Conveyor Belt Watered Hot Press Splice Machine PVC Belt Vulcanizing Machine
- Category: >>>
- Supplier: Shenzhen Jiaheng Industrial Belting Co. Ltd.
Share on (1600710355693):
Product Overview
Description
Product Description

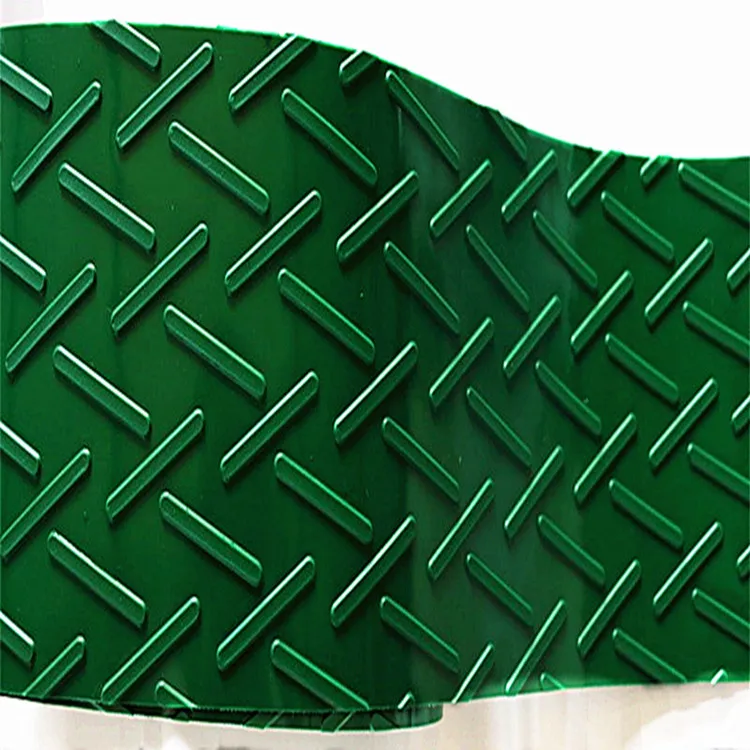

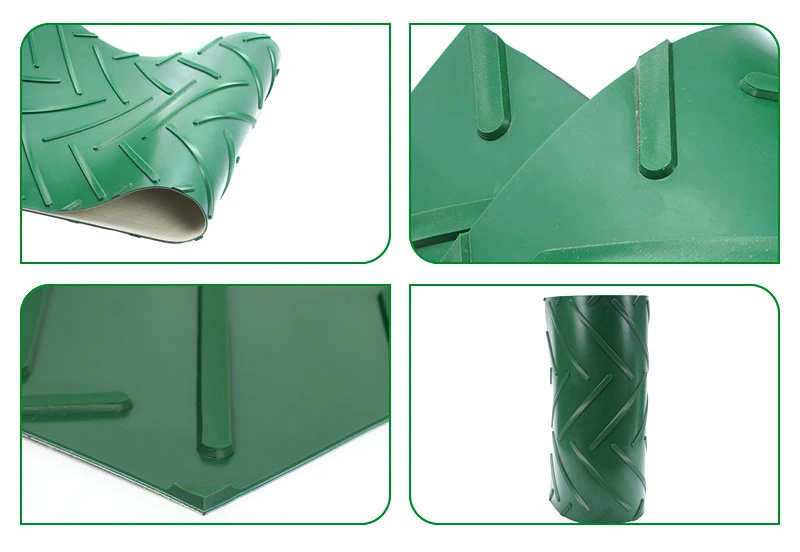

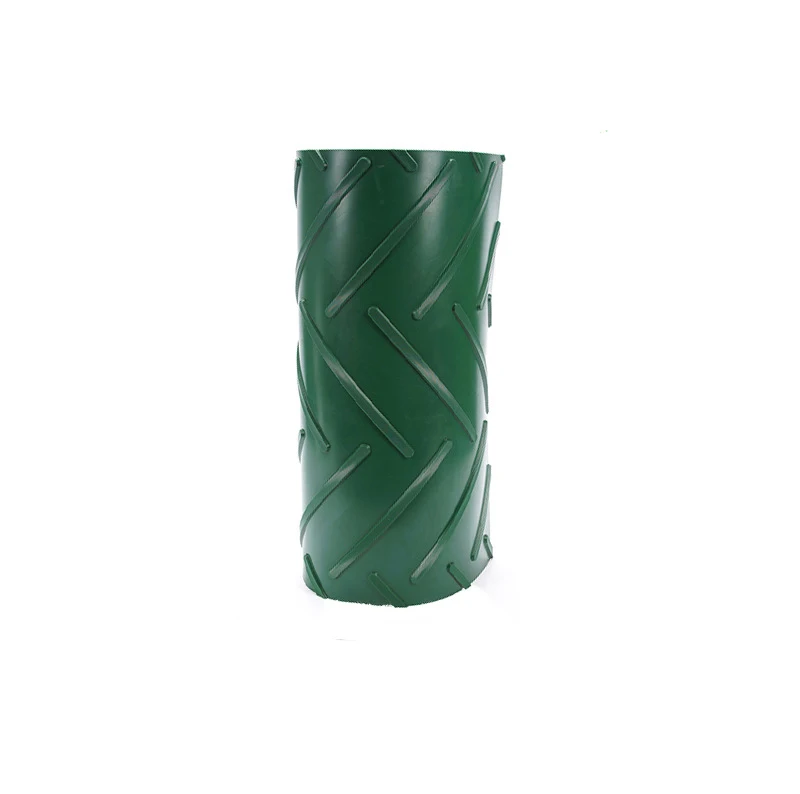

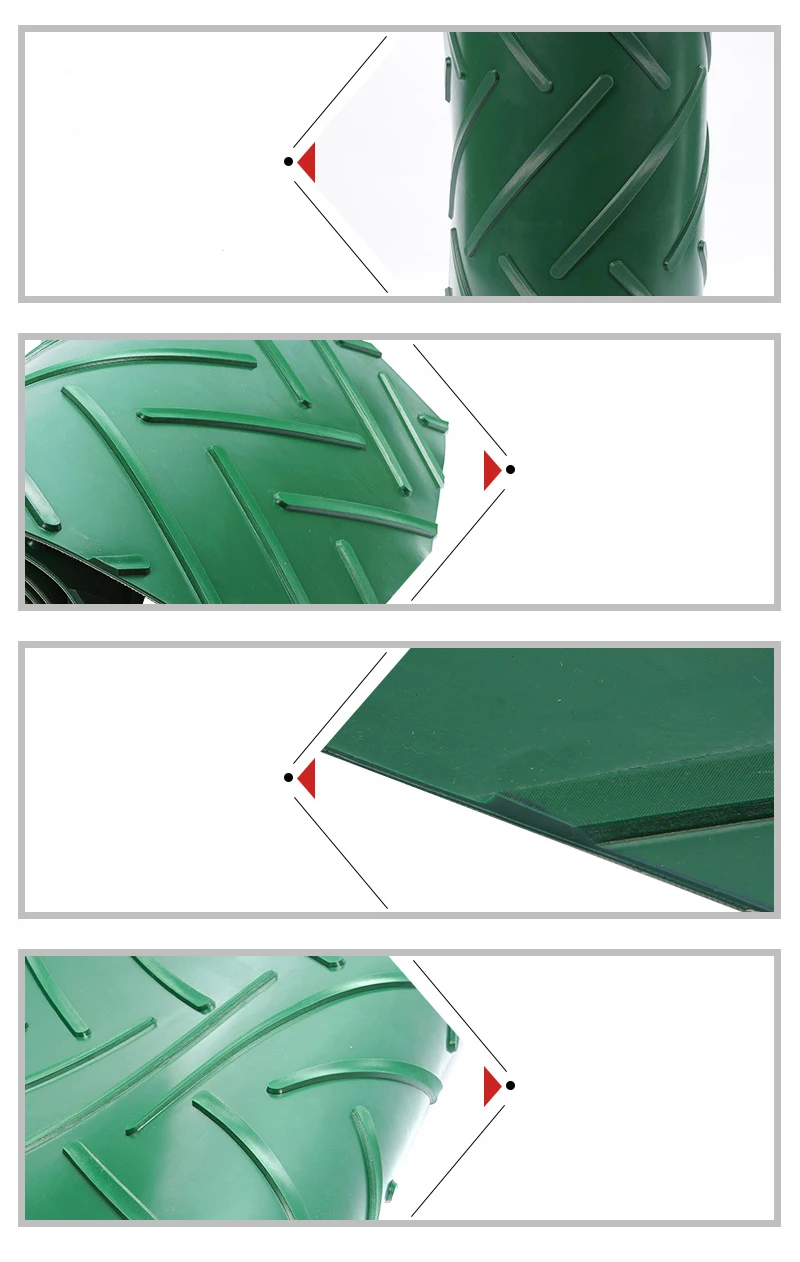

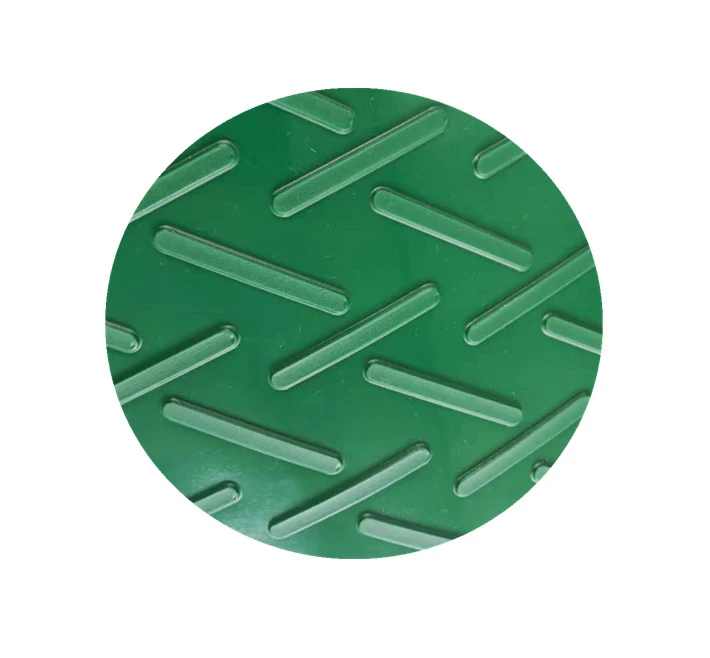

PVC PU Conveyor Belt Watered Hot Press Splice Machine PVC Belt Vulcanizing Machine
Standard PVC Conveyor Belts are main products of our compay. The belts with embossed top cover specially suited for inclined and declined conveyance, All of them is belts are impervious to impact,wear and abrasion resistant and known for its high tenacity and long life lasting.
Features
Belts with anti-static, flameretardant, low noise, high or low friction applied to logistics and airport, check-in, merge and take away, curve belts, x-ray scanning, super market check-out counters, warehouses, mail sorting systems, bulk, packaging, electronic production and other automatic produciton lines etc.
Application
Belts with various patterns for material such as artificial and synthetic marble plates and synthetic marble plates, ceramic tiles in stone and marble processing industries,wood processing industires, are used in marble manufacturing, man-made ceramic, stone conveying, polishing, grind and other process.
Product Paramenters
Model | MP31-67A |
Color | green |
Total thickness | 5.0mm |
Ply | 2 |
Weight | 2.1 KG/M2 |
Tension 1% Elongation | 8 N/mm |
Top coating hardness | 80 ShoreA |
Min.Pulley Diameter | 30mm |
Max Production width | 4000mm |
Working Temperature | -15/+80 |
Transportation Style | Slat, Roller, U type |
Lateral Stability | Yes |
Company Profile
Shenzhen Jiaheng Industrial Belting Co.,Ltd is a manufacturing enterprise which professionally produces conveyor belts,timing belt, flat transmission belts,V-belts in China. The coated cover of belts are PVC, Polyurethane, Rubber, PE, Hytrel Polyester, Silicone and etc. After several years of R&D, the upgraded new series products are more polish, the varieties are growing in all-sided. Widely used in the industries of food process, tobacco, logistics and airport, printing, electronics, fitness equipment, wood process, stone and marble process, etc.
Why Choose Us
Based on more than 20 years of experience in development, manufacture and applications know-how, our products are designed to meet specific end-user requirements for high performance and cost-efficiency. We are ready with link "Win-Win" to has better future with our new and old customers.
Installation Instructions
RECOMMENDATIONS FOR USING, INSTALLATION, STORAGE AND MAINTENANCE OF BELTS:
Storage
Recommendations:
- Belts are stored in their original packing until they are installed.
- Belts' protection from the low temperatures and the sunlight is necessary.
- If the storage conditions are very different from the working conditions, it is recommended to wait at least 12 hours under
normal operating temperature before installation.
Before installation
Before installation it is recommended to clean the conveyor.
Replacing the old belts allow the maintenance of the other conveyor components.
- Clean the shafts and the belt supports.
- Check the position of drums and shafts. If it is necessary align them.
- Install tension devices to the minimum position.
- Check the drive drum cover or replace it.
Installation
Install the belt on the conveyor. Please note: on the belt should not be any folds and creases.
Tension
Tighten the belt so that there is no slippage of the drive drum with a full load and before work start.
Maintenance
Properly selected belts are stable and resistant to the transported products.
Belts do not have any extraneous odors, do not start staining the products and do not affect the quality of the products.
Belts are easy to clean with water and neutral washing detergents.
To prevent belt's slipping it is necessary to clean the conveyor regularly.
Belt's slipping leads to its irreparable damage.
Storage
Recommendations:
- Belts are stored in their original packing until they are installed.
- Belts' protection from the low temperatures and the sunlight is necessary.
- If the storage conditions are very different from the working conditions, it is recommended to wait at least 12 hours under
normal operating temperature before installation.
Before installation
Before installation it is recommended to clean the conveyor.
Replacing the old belts allow the maintenance of the other conveyor components.
- Clean the shafts and the belt supports.
- Check the position of drums and shafts. If it is necessary align them.
- Install tension devices to the minimum position.
- Check the drive drum cover or replace it.
Installation
Install the belt on the conveyor. Please note: on the belt should not be any folds and creases.
Tension
Tighten the belt so that there is no slippage of the drive drum with a full load and before work start.
Maintenance
Properly selected belts are stable and resistant to the transported products.
Belts do not have any extraneous odors, do not start staining the products and do not affect the quality of the products.
Belts are easy to clean with water and neutral washing detergents.
To prevent belt's slipping it is necessary to clean the conveyor regularly.
Belt's slipping leads to its irreparable damage.
