Product Overview

Description



Product Description

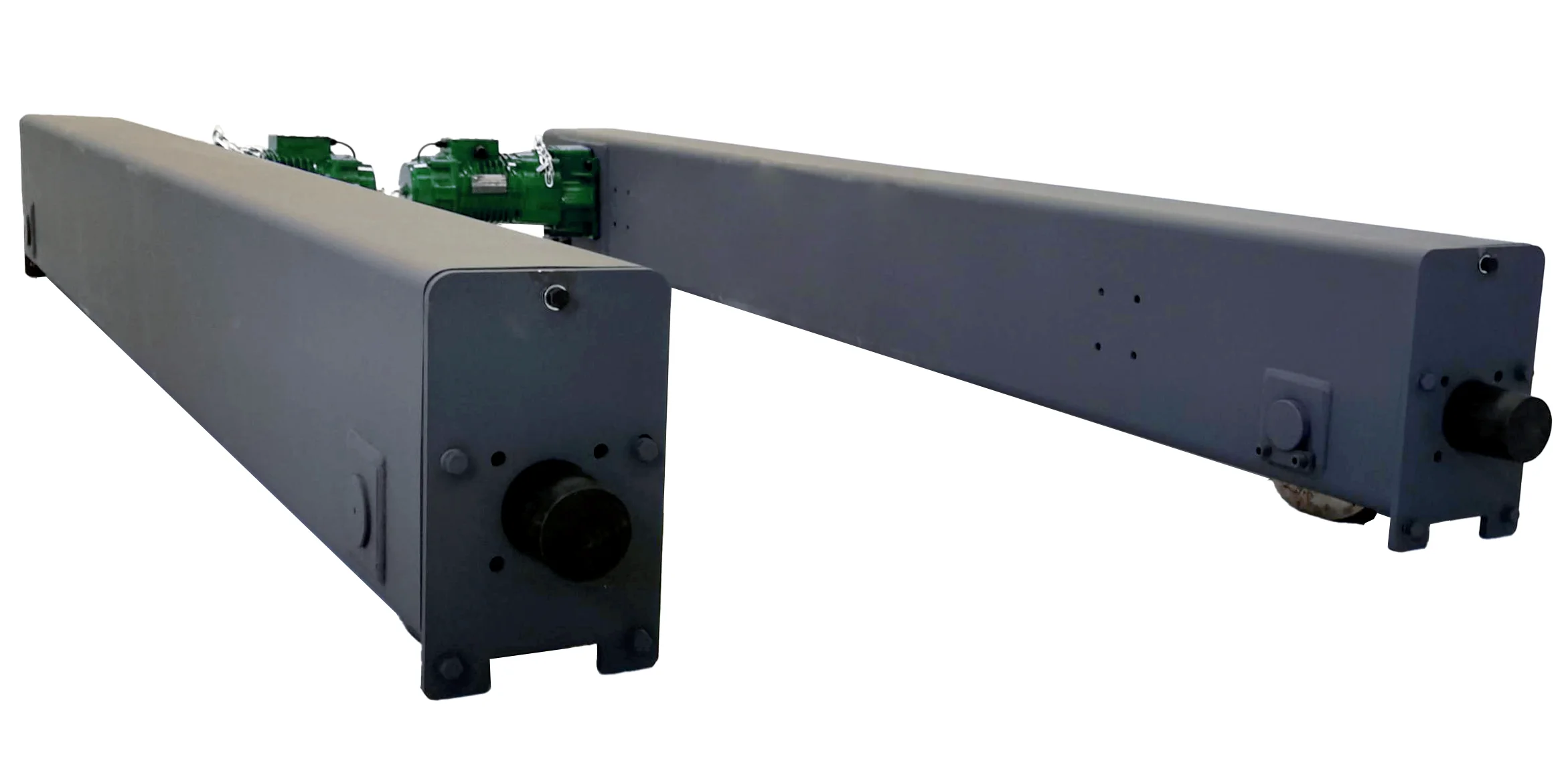

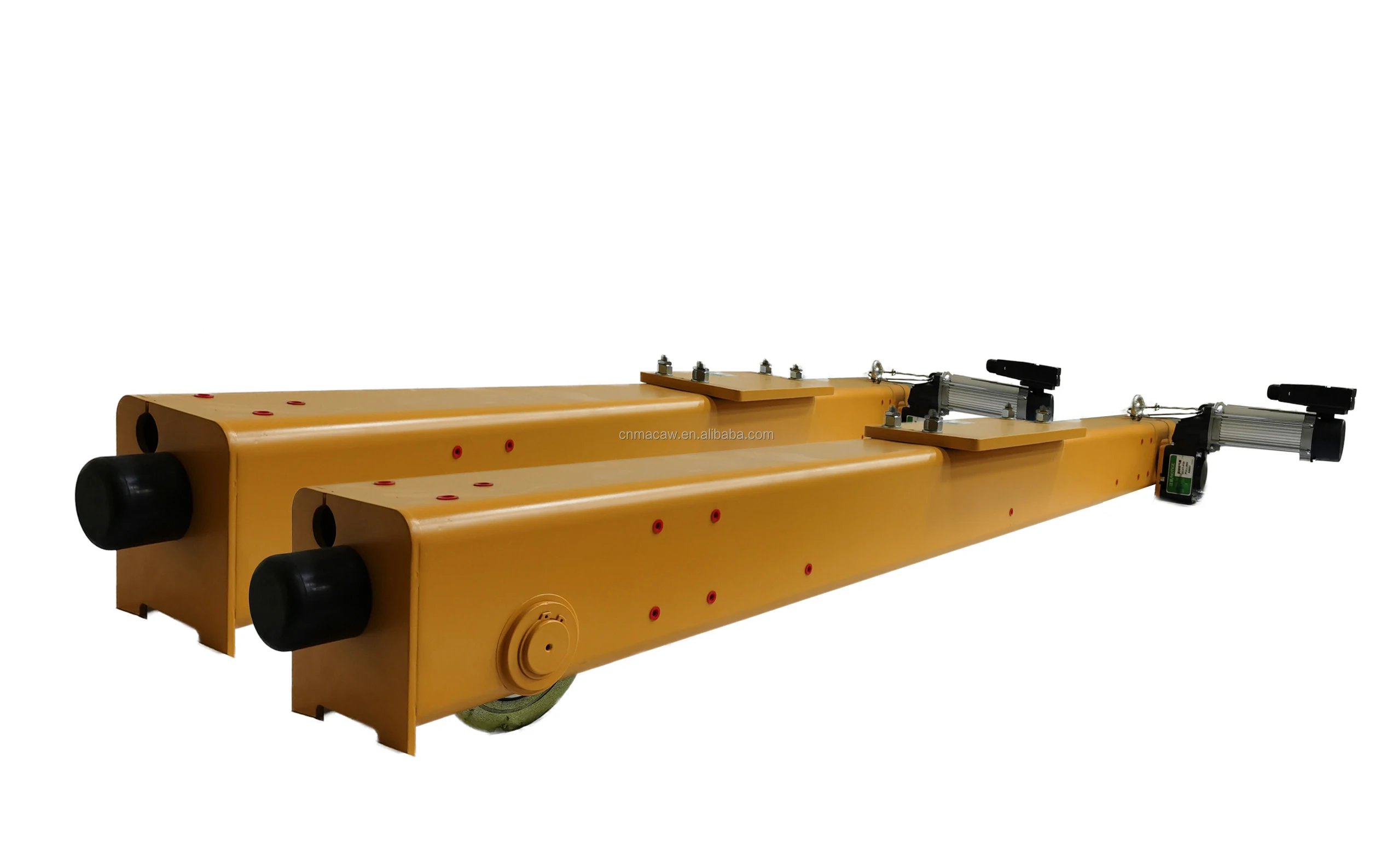

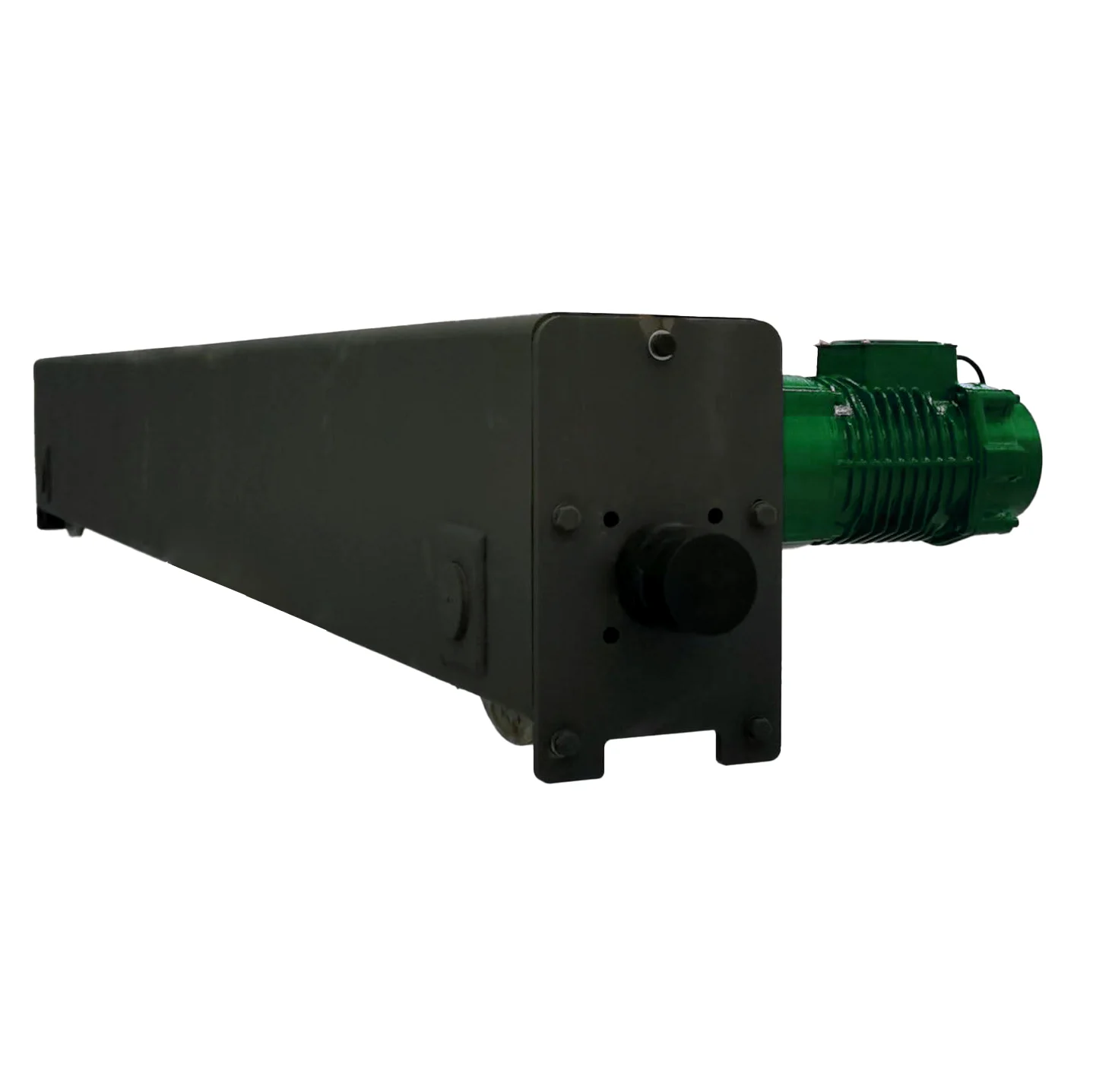

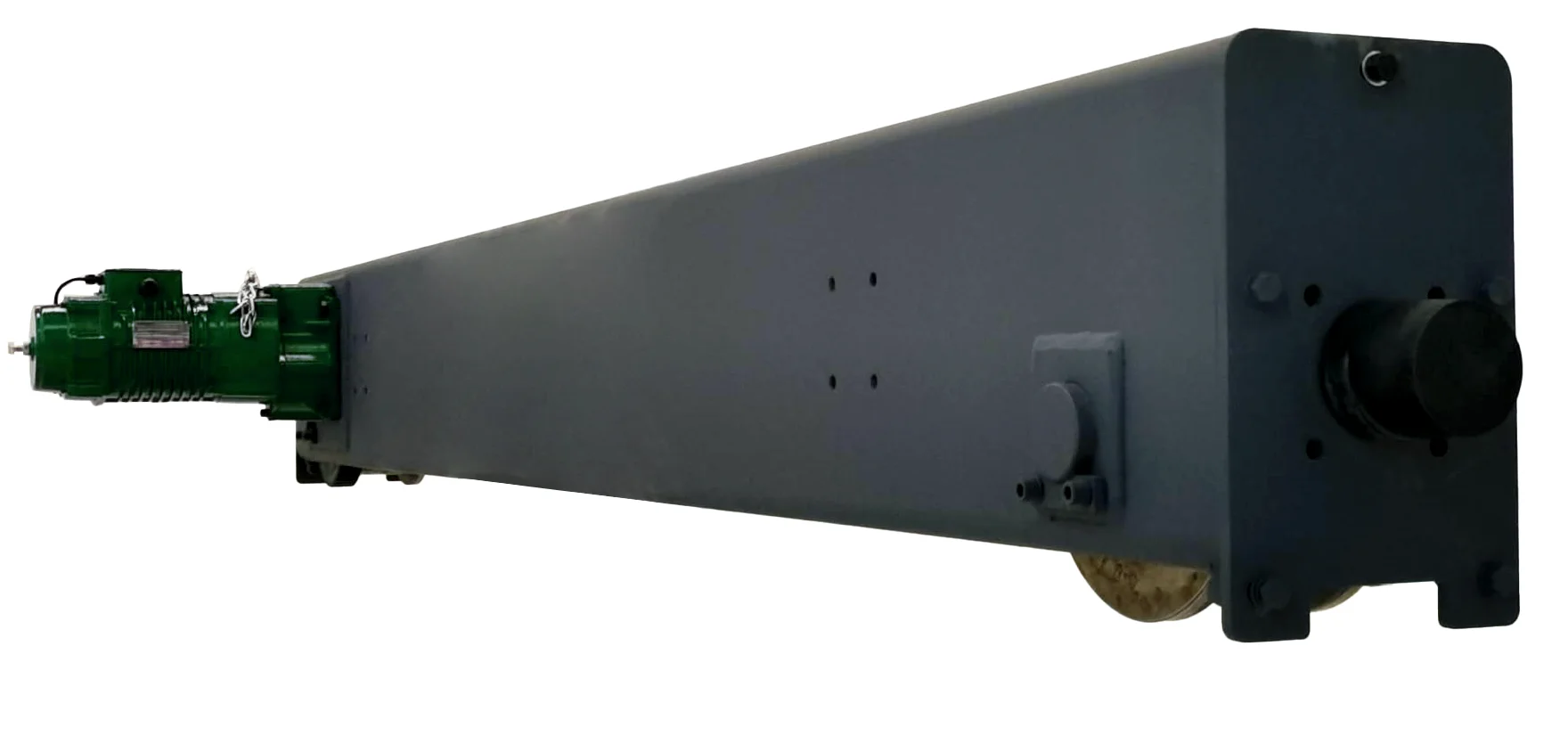

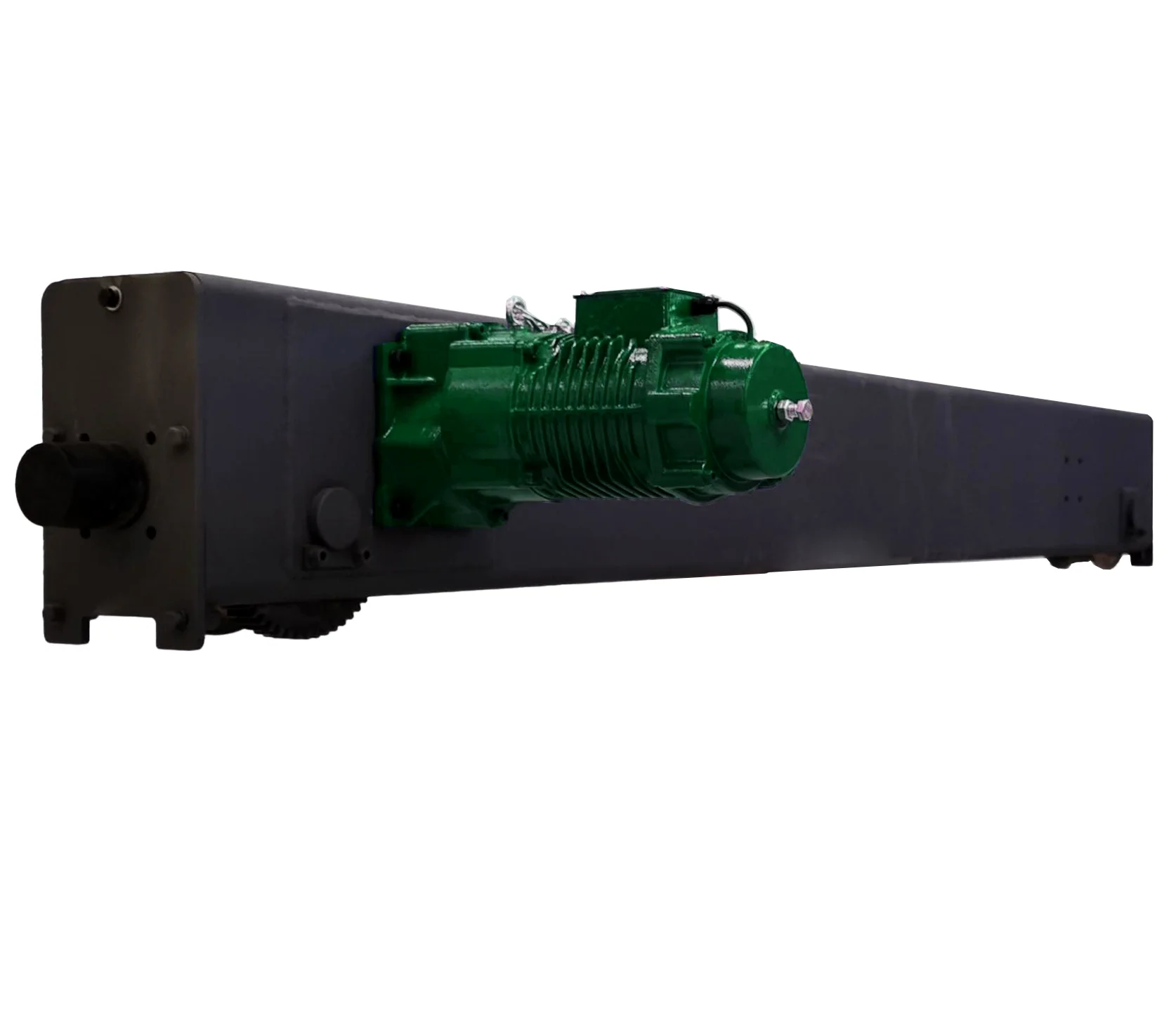

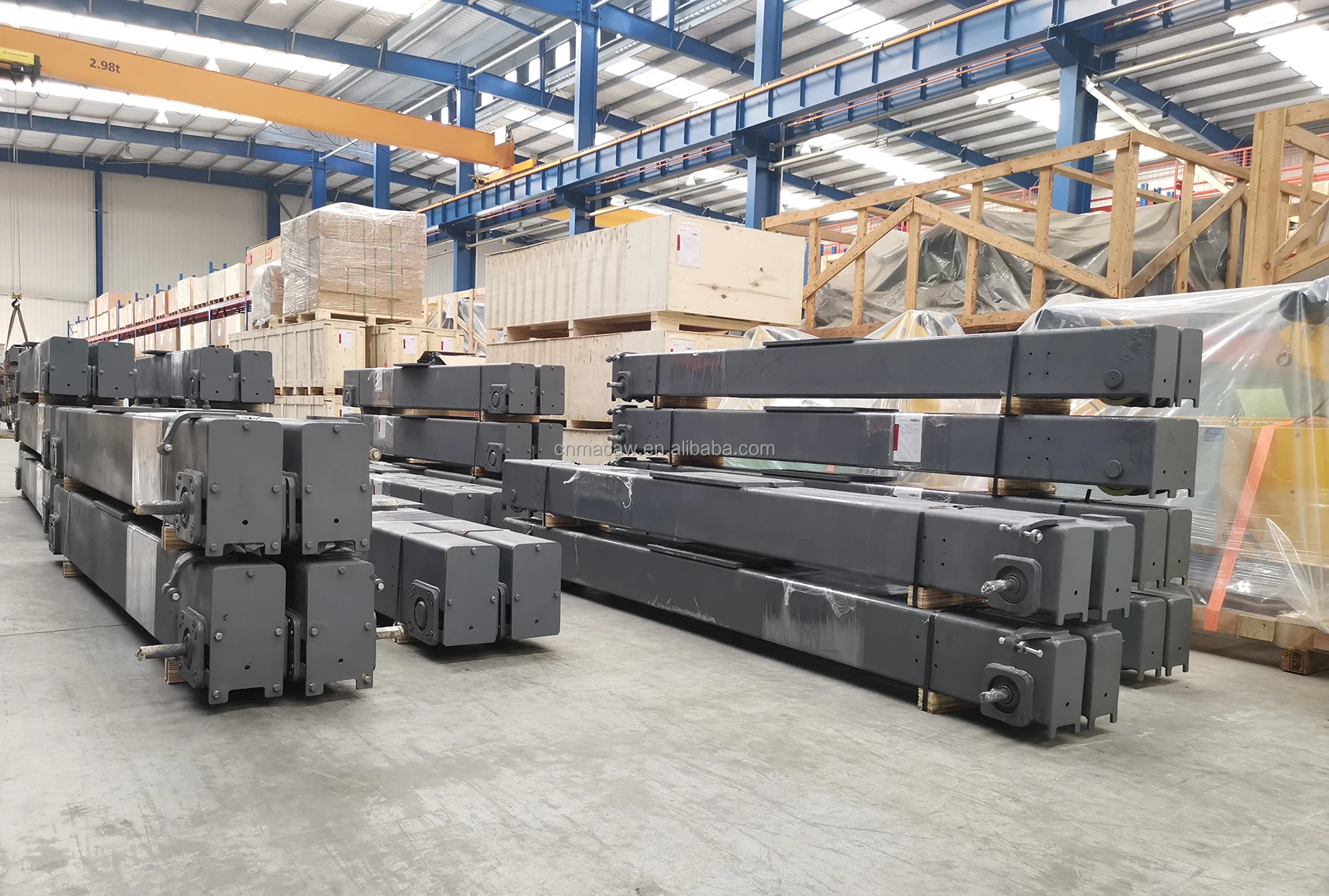

Our End Carriage are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures.

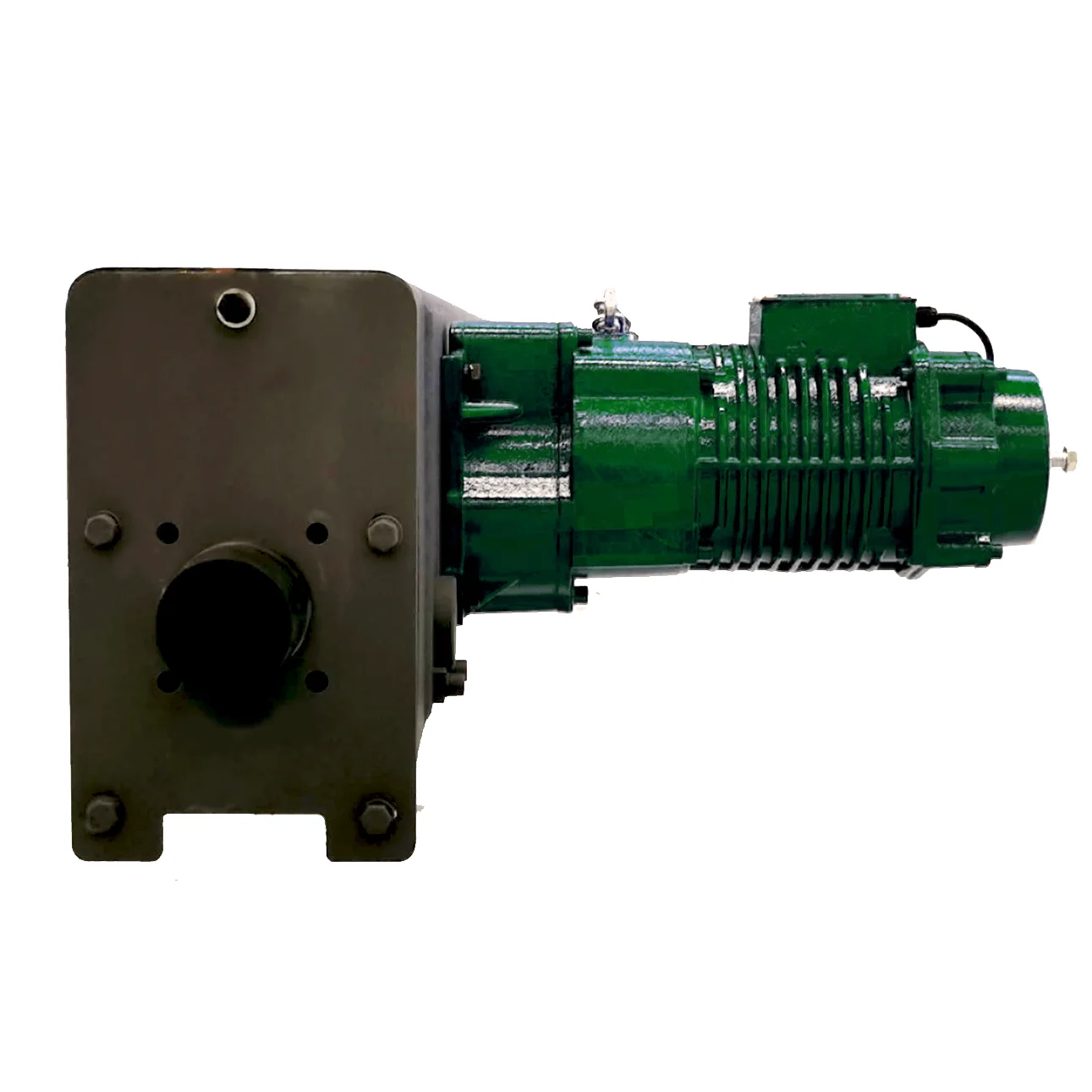

The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics – also for high loads. Their strengths in detail:
• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility
• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.


Recommend Products




Model Code Explanation


ET
S
20-
220
(1.1KW*2)
1
2
3
4
5


No.
Item Code
Description
Remarks
1
ET
End Carriage
(Traditional Model)
ET
2
S
Used for single girder crane
S: for single girder crane ;
D: for Double girder crane;
B:Bogie type End Carriage for DG crane
3
20-
Wheel dia.200mm
Wheel dia.:12-125mm;16-160mm;
20-200mm;5-250mm;32-315mm
4
220
Wheel base 2200mm
Wheel base: Item code  x 10
5
(1.1KW*2)
2 unit of 1.1 KW motor
Suggest driven motor power, and driven motor quantity


ET End Carriage


Single Girder Cranes
Capacity ≤16 tons (Customized Acceptable)
Span≤25 meters (Customized Acceptable)


NO.
Model
Wheel Dia.(mm)
Wheel Base(mm)
Driven motor
For max Span(m)
For max.Load
Wheel Groove (mm)
Steel Structure Spec.(mm)
1
ETS12-140
125
1400
0.4KW*2
9.5
3
60
150*150*8
2
ETS12-180
125
1800
0.4KW*2
12.5
3
60
200*150*8
3
ETS12-220
125
2200
0.4KW*2
15.5
3
60
200*150*8
4
ETS12-270
125
2700
0.4KW*2
19.5
3
60
250*150*8
5
ETS12-310
125
3100
0.4KW*2
22.5
3
60
250*150*8
6
ETS16-140
160
1400
0.4KW*2
9.5
5
65
150*150*8
7
ETS16-180
160
1800
0.4KW*2
12.5
5
65
200*150*8
8
ETS16-220
160
2200
0.4KW*2
15.5
5
65
200*150*8
9
ETS16-270
160
2700
0.75KW*2
19.5
5
65
250*150*8
10
ETS16-310
160
3100
0.75KW*2
22.5
5
80
250*150*8
11
ETS20-140
200
1400
0.75KW*2
9.5
10
80
300*200*8
12
ETS20-180
200
1800
1.1KW*2
12.5
10
80
300*200*8
13
ETS20-220
200
2200
1.1KW*2
15.5
10
80
300*200*8
14
ETS20-270
200
2700
1.1KW*2
19.5
10
80
300*200*8
15
ETS20-310
200
3100
1.1KW*2
22.5
10
80
300*200*8
16
ETS20-350
200
3500
1.1KW*2
24.5
10
80
300*200*8
17
ETS25-140
250
1400
1.1KW*2
9.5
16
80
300*200*8
18
ETS25-180
250
1800
1.1KW*2
12.5
16
80
300*200*8
19
ETS25-220
250
2200
1.1KW*2
15.5
16
80
300*200*8
20
ETS25-270
250
2700
1.5KW*2
19.5
10
80
300*200*8
21
ETS25-310
250
3100
1.5KW*2
22.5
10
80
350*200*8
22
ETS25-350
250
3500
1.5KW*2
24.5
10
80
350*200*8


Double Girder Cranes
Capacity ≤32 tons (Customized Acceptable)
Span≤25 meters (Customized Acceptable)


NO.
Model
Wheel Dia.(mm)
Wheel Base(mm)
Driven motor
For max Span(m)
For max.Load
Wheel Groove (mm)
Hoist track space(mm)
Steel Structure Spec.(mm)
1
ETD16-140
160
2400
0.4KW*2
14.5
5
65
1400
250*150*8
2
ETD16-270
160
2700
0.4KW*2
18.5
5
65
1400
250*150*8
3
ETD16-310
160
3100
0.4KW*2
22.5
3
65
1400
250*150*8
4
ETD20-240
200
2700
0.75KW*2
14.5
10
80
1400
300*200*8
5
ETD20-270
200
3100
0.75KW*2
18.5
10
80
1400
300*200*8
6
ETD20-310
200
1400
0.75KW*2
22.5
5
80
1400
300*200*8
7
ETD20-380
200
1800
0.75KW*2
26.5
3
80
1400
300*200*8
8
ETD25-270
250
2700
1.1KW*2
12.5
16
80
1400
350*200*8
9
ETD25-310
250
3100
1.1KW*2
21.5
12.5
80
1400
350*200*8
10
ETD25-380
250
1400
1.1KW*2
25.5
12.5
80
1400
350*200*8
11
ETB16-140
160
1800
0.75KW*2
12.5
10
65
1700
250*150*8
12
ETB16-160
160
2200
0.75KW*2
15.5
10
65
1700
250*150*8
13
ETB20-140
200
3100
1.1KW*2
22.5
20
80
1700
300*200*8
14
ETB20-160
200
3500
1.1KW*2
24.5
20
80
1700
300*200*8
15
ETB25-140
250
1800
1.5KW*2
22.5
32
80
1700
300*200*8
16
ETB25-160
250
2200
1.5KW*2
22.5
32
80
1700
300*200*8

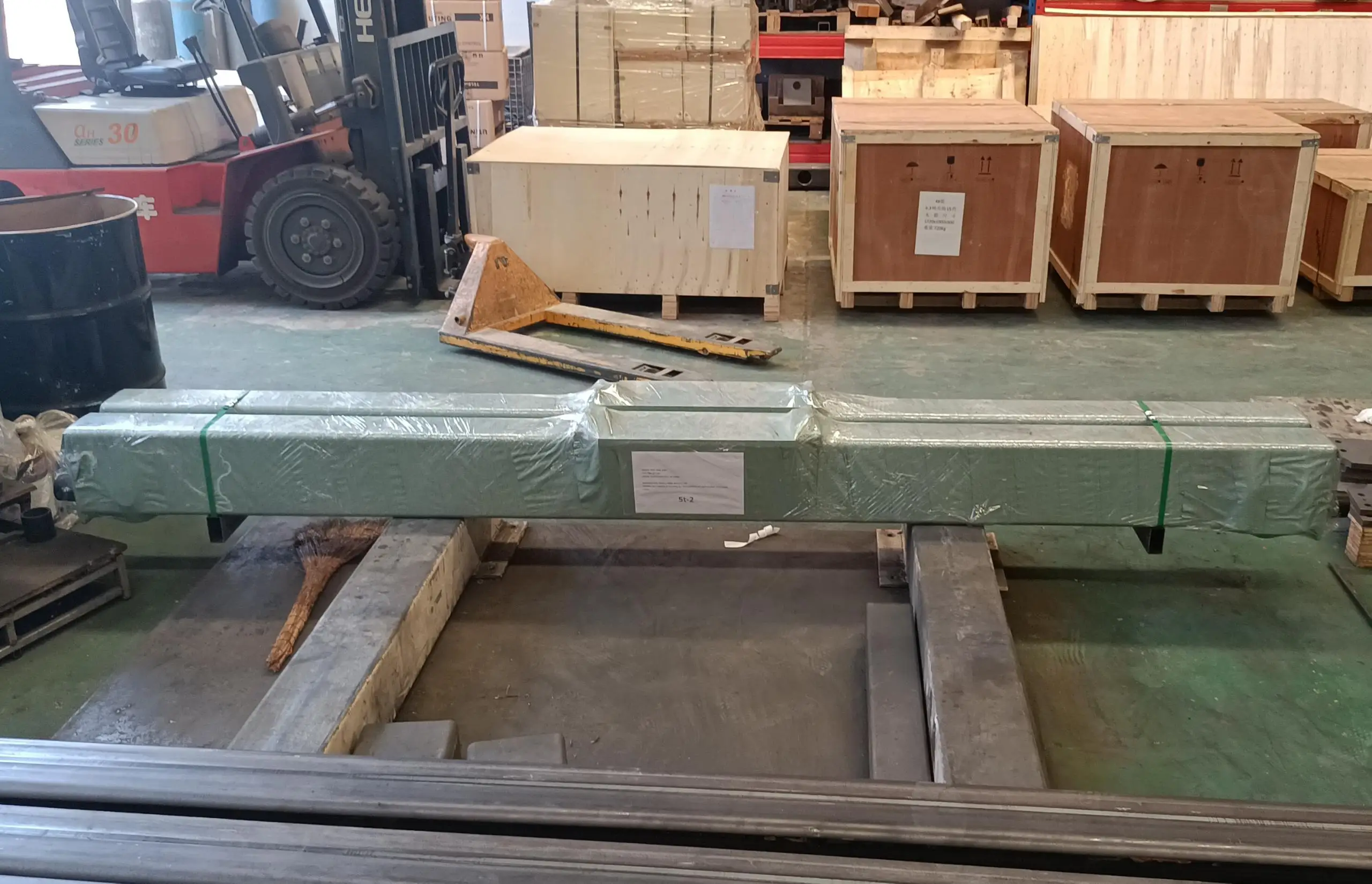

Packing & Delivery




FAQ:


1.What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
2.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, Eurocrane is able to provide you with complete competitive solutions for material handling based on your demands.
3. What services can you provide? We have a complete pre-sales & after-sales service system, including
consultation, repair, maintenance, modernization, training, inspection and etc. Our engineers are available overseas. 4.Which brand are the accessories and electronic components in your cranes? We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and Germany.
5. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
