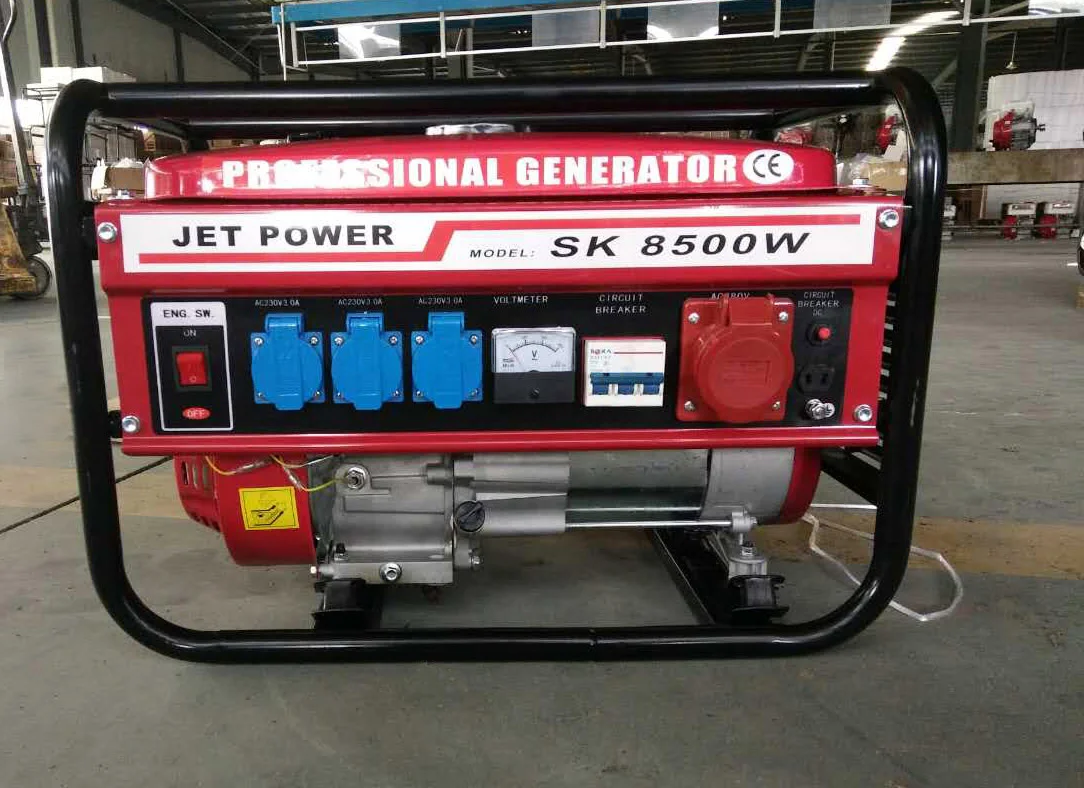

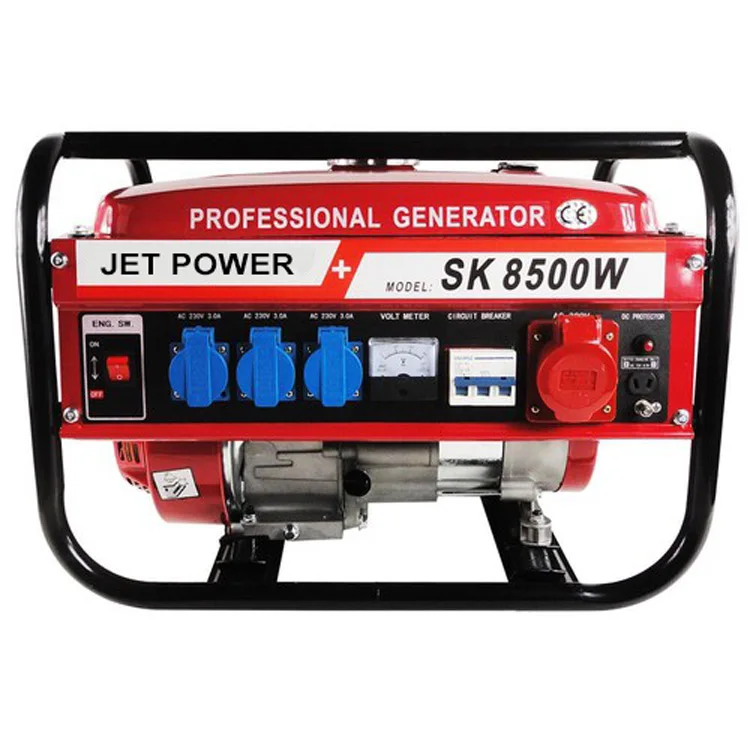

Мощности струи SK8500W модель 220V/380V 3-фазовый GX200 двигателя портативные бензиновые генераторы
- Category: Gasoline Generators >>>
- Supplier: Fuzhou,Jet,Electric,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
PRODUCT DESCRIPTION:
Gasoline Generator Set Powered by JET POWER Gasoline Engine
Power from 1800W to 8000W / 1.8KVA to 8.0KVA
Optional Output voltage(V): 110;120;220;230;240
Optional Frequency: 50Hz / 60Hz
FEATURE:
Neat and economical for classical design.
Advanced AVR offers over-voltage, overheated and overload protection for the generator.
Frame designed for better protection.
Oil alert system with automatic engine shut-off.
Original JET POWER Engine equipped.
Hydraulic-Magnetic circuit breaker.
Fuel tank enables Long-time for running.
Large muffler for quiet operation.
CE,EC-II,EPA,CARB,EMC approved
| Model | JET2500 | JET3500 | JET3800 | JET4500 | JET5500 | JET6500 | JET7500 | JET8500 |
| AC Frequency (Hz) | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| AC Output voltage(V) | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; | 120;220; 230;240; |
| Rated Power | 1800W | 2000W | 2500W | 2800W | 4500W | 5000W | 6000W | 7000W |
| Max. Power | 2000W | 2200W | 2800W | 3100W | 5000W | 5500W | 7000W | 8000W |
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| DC Output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
| Engine | GE210 | GE210 | GE210 | GE210 | GE420 | GE420 | GE460 | GE460 |
| Type | 4-stroke OHV; Air-cooled; Gasoline Engine | |||||||
Displacement (cc) | 212 | 212 | 212 | 212 | 420 | 420 | 439 | 439 |
| Starting System | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric | Recoil or Electric |
| Lubrication oil | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 |
Oil capacity (L) | 0.6L | 0.6L | 0.6L | 0.6L | 1.1 | 1.1 | 1.1 | 1.1 |
| Compression ratio | 8.5:1 | 8.5:1 | 8.5:1 | 8.5:1 | 8.0:1 | 8.0:1 | 8.0:1 | 8.0:1 |
Bore×Stroke (mm) | 70*54mm | 70*54mm | 70*54mm | 70*54mm | 90*66mm | 90*66mm | 92*66mm | 92*66mm |
Max.Output (hp/rpm) | 7.0/3600 | 7.0/3600 | 7.0/3600 | 7.0/3600 | 15/3600 | 15/3600 | 16/3600 | 16/3600 |
| Fuel Consumption (g/hp.h) | ≤360 | ≤360 | ≤360 | ≤360 | ≤390 | ≤390 | ≤390 | ≤390 |
| Ignition System | Non-contact transistorized ignition (T.C.I) | |||||||
| Spark Plug | F6TC | F6TC | F6TC | F6TC | F6TC | F6TC | F6TC | F6TC |
| Fuel Tank Capacity(l) | 15 | 15 | 15 | 15 | 25 | 25 | 25 | 25 |
| Continuous Work(h) | 12 | 11 | 11 | 11 | 10 | 10 | 10 | 6 |
| Noise Level LwA dB(A) | 67 | 67 | 67 | 67 | 74 | 74 | 74 | 74 |
| Dimension (LxWxH) mm | 610*440*440 | 610*440*440 | 610*440*440 | 610*440*440 | 697*525*562 | 697*525*562 | 713*541*569 | 713*541*569 |
Gross Weight (kg) | 38 | 40 | 42 | 43 | 79 | 81 | 83 | 86 |
| 20ft Container Qty | 245 | 245 | 245 | 245 | 135 | 135 | 135 | 135 |
| 40ft HQ Container Qty | 590 | 590 | 590 | 590 | 292 | 292 | 280 | 280 |
| * Optional electric start with battery, wheels kit | ||||||||
