Advance Marine Gearbox for Marine Reverse Transmission for ships
- Category: >>>
- Supplier: Sinooutput Plant (shanghai) Ltd.
Share on (1600710407404):
Product Overview
Description
Product Description

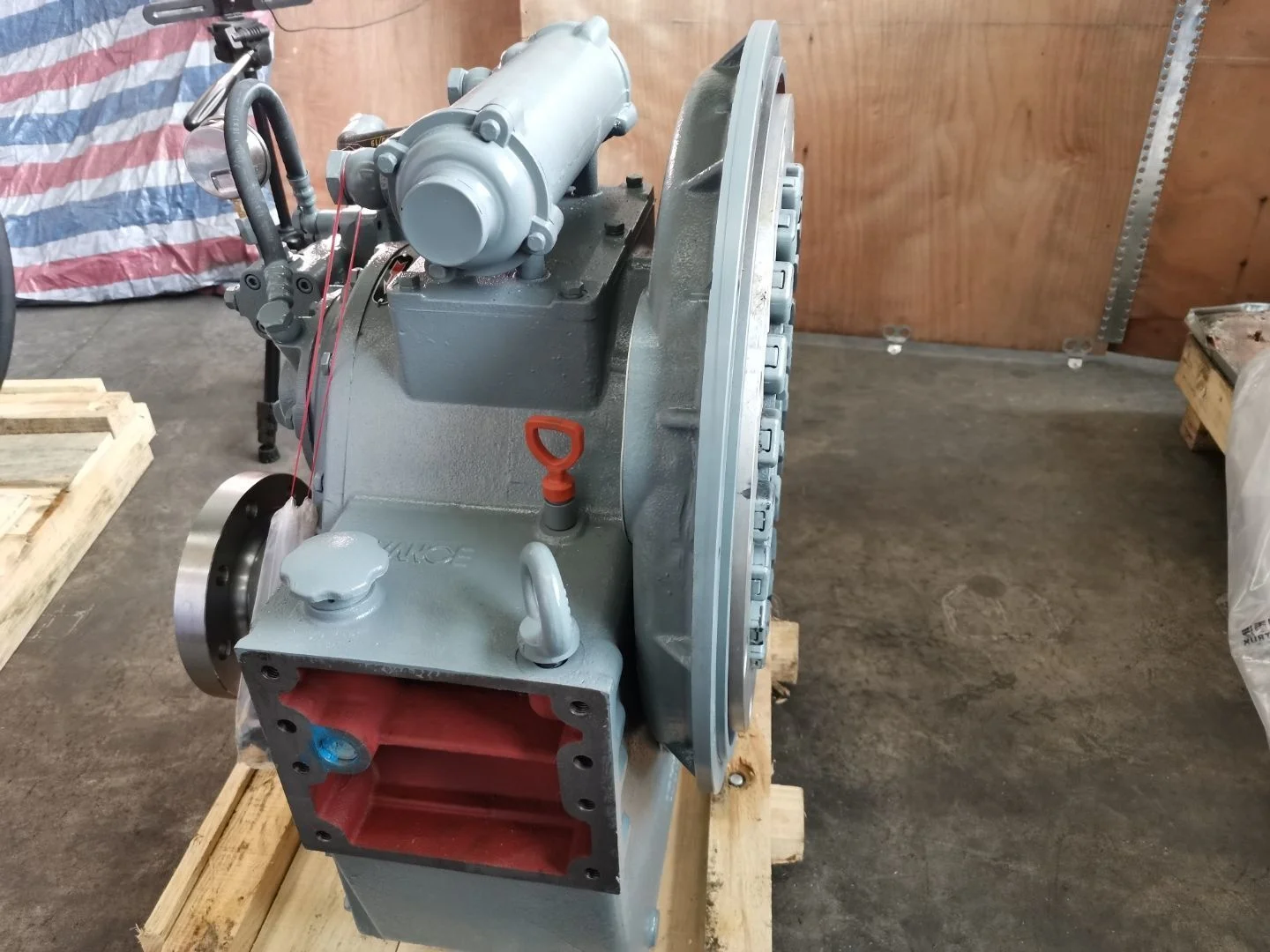

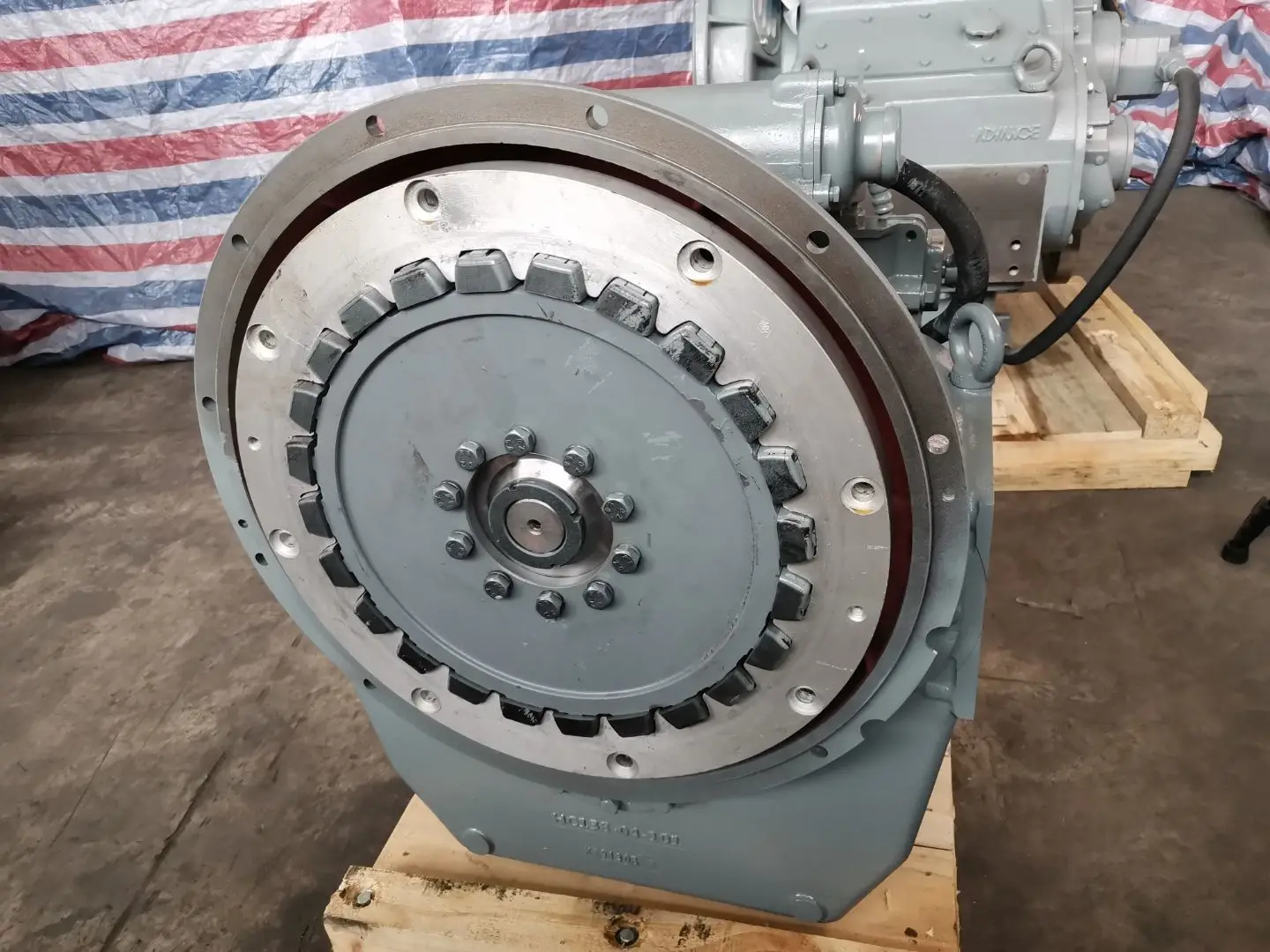

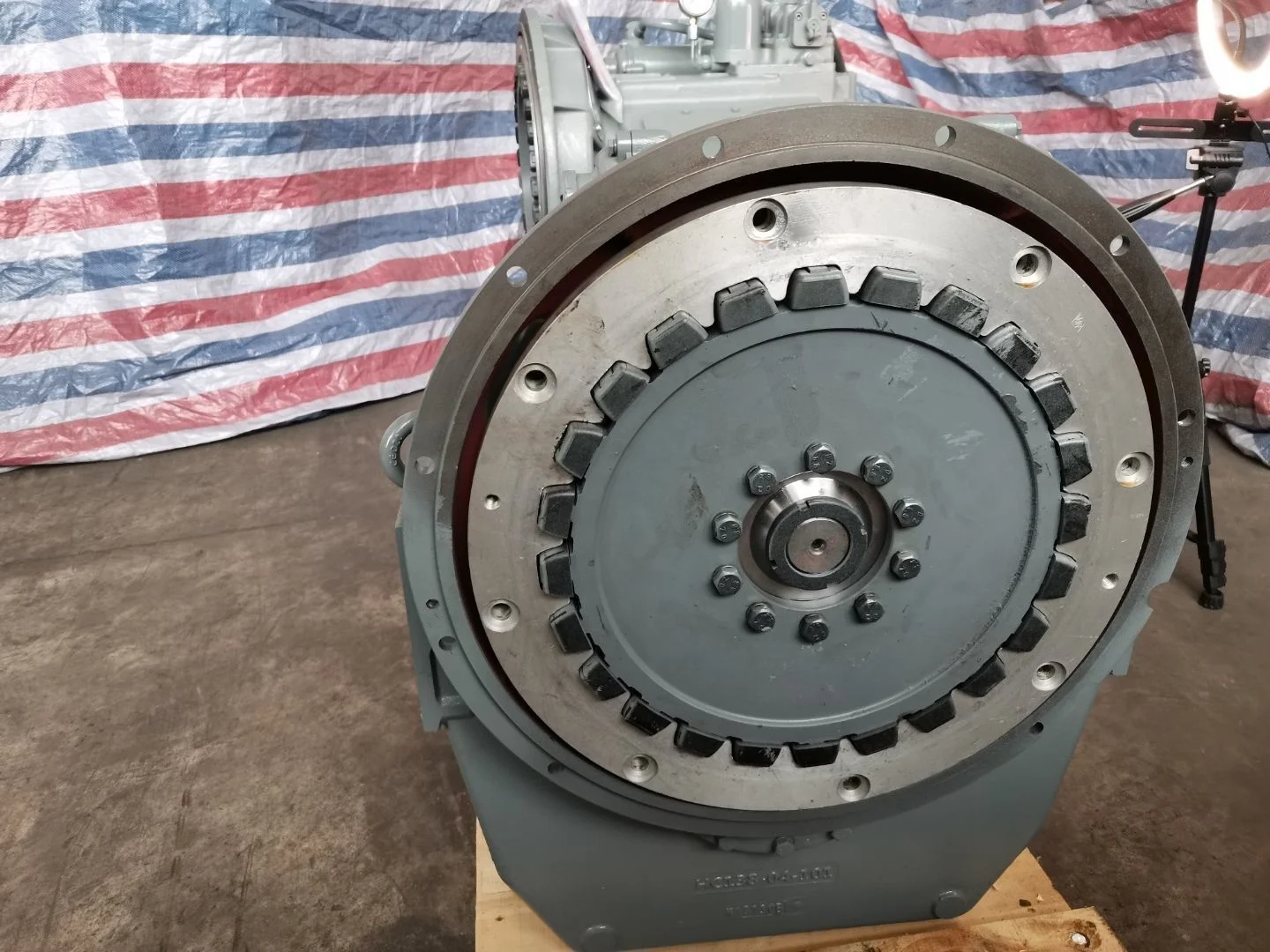

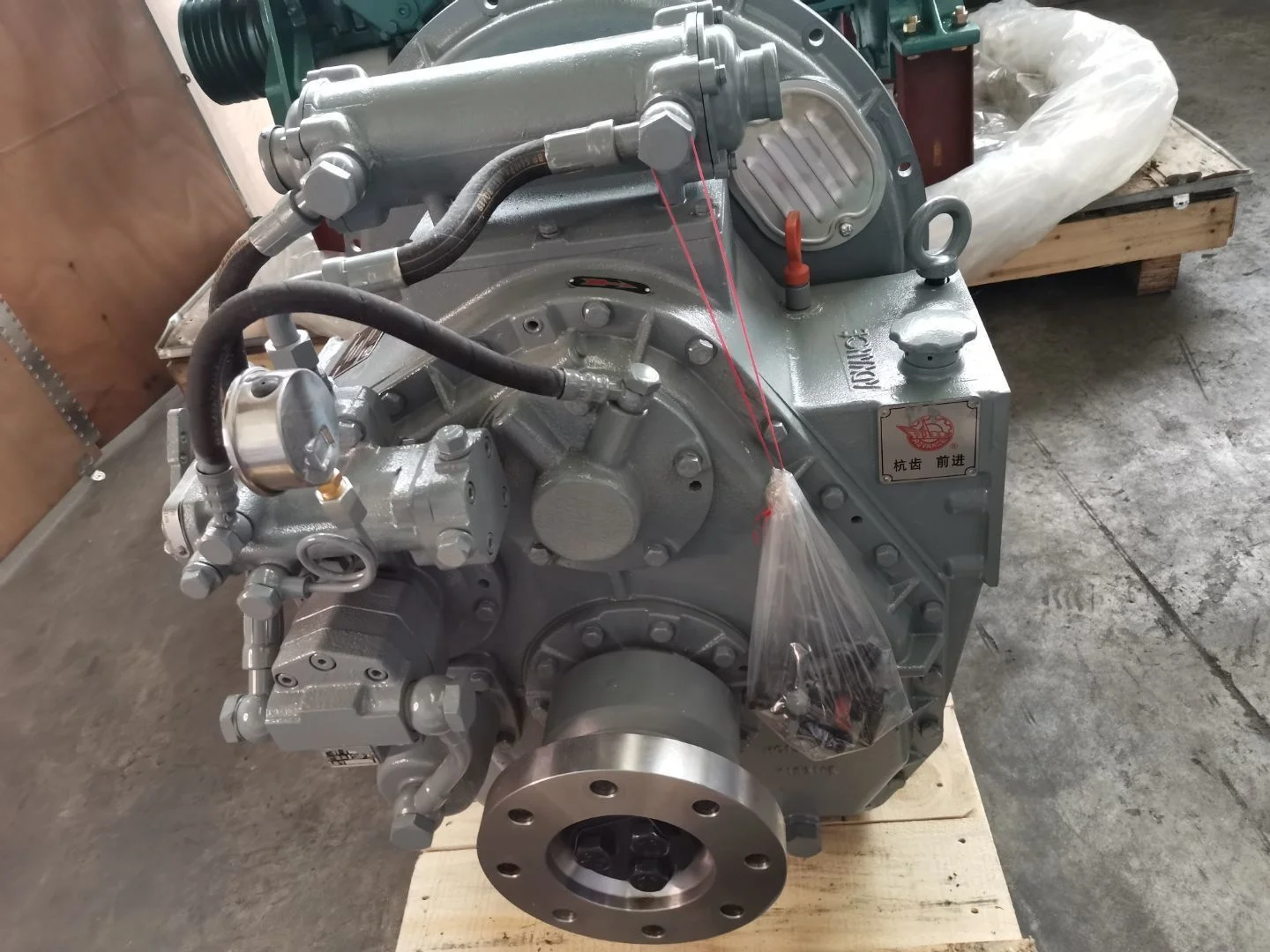

138 Series (HC138/ HCD138) Marine Gearbox
138 series (HC138/ HCD138) marine gearbox has the functions of deceleration, reverse, smooth clutch and bearing propeller thrust. This series of gearboxes are vertical and off-center one-stage transmission structure, with the characteristics of small size and light weight.
138 series (HC138/ HCD138) marine gearboxes are suitable for small and medium fishing boats, transport boats, tugboats, traffic boats, passenger ships and other ships.
138 series (HC138/ HCD138) marine gearboxes are suitable for small and medium fishing boats, transport boats, tugboats, traffic boats, passenger ships and other ships.
Specification
HC series marine gearboxes have a power range of 10kW to 3000kW and a speed ratio range of 1.5 to 24:1. The product specifications are complete and the market share is high. They are widely used in various heavy-duty ships such as transport vessels, fishing vessels, and work vessels. The company's product design and manufacturing capabilities are leading, reaching the international advanced level.
Model | Input speed | Reduction ratio | Transfer ability | Rated thrust | length x width x height | Net weight | Manipulation type | Link flywheel | Connection housing |
r/min | i | kW/r/min | kN | mm | kg | ||||
HC138 | 1000-2500 | 2 | 0.11 | 30 | 225 | 520 ×792 ×760 | 360 | Push-pull flexible shaft | 6135Ca |
2.52 | Electronic control | SAE14 11.5 | |||||||
3 | Air control | ||||||||
3.57 | |||||||||
4.05 | |||||||||
4.45 | |||||||||
HCD138 | 1000-2500 | 5.05 | 0.11 | 40 | 296 | 494 ×800 ×870 | 415 | Push-pull flexible shaft | 6135Ca |
5.63 | Electronic control | SAE14 11.5 | |||||||
6.06 | 0.099 | Air control | |||||||
6.47 | 0.093 |
Packing & Delivery
Company Profile
Sinooutput Group LTD. We are one of the support of World Expo. Supporters for the green power, also we are authorized by Shanghai marine field bureau for special supplier for the military boat, yacht etc. We are mainly focus on the marine field. Our headquarter set up in 1958 year, now we have our own shipyard and vessel repair workshop and six offices and more than 20 after sale service bureau in China.
Now our Group has more than 2000 colleagues from sales, design, quality control, test, package, dispatch, shipper, after sale service more than 29 departments. Up to now Our products export more than 150 countries all over the world, what we want to say to our customers: Let us together and go forward. We have 24*7h hotline for consult, inquiry and after sale. Every your calling or email will be kindly treated, the relevant colleagues will reply you within 2 hours. Time is gold both for you and for us, we cherish each time to connect with you.
Our value message is: Quality is our culture, we supply all the engines and gearboxes with three years quality warranty. Most our equipments are imported from Germany and Japan.
For some Europ and Asia country we have the special shipping line, that could help customers save more, and could make sure the cargos safety 100%.
Now our Group has more than 2000 colleagues from sales, design, quality control, test, package, dispatch, shipper, after sale service more than 29 departments. Up to now Our products export more than 150 countries all over the world, what we want to say to our customers: Let us together and go forward. We have 24*7h hotline for consult, inquiry and after sale. Every your calling or email will be kindly treated, the relevant colleagues will reply you within 2 hours. Time is gold both for you and for us, we cherish each time to connect with you.
Our value message is: Quality is our culture, we supply all the engines and gearboxes with three years quality warranty. Most our equipments are imported from Germany and Japan.
For some Europ and Asia country we have the special shipping line, that could help customers save more, and could make sure the cargos safety 100%.
Exhibition
Customer Photos
Recommend Products
FAQ
Q:who are we?
A:Sinooutput Group LTD. We are one of the support of 2010 World Expo. Supporters for the green power, also we are authorized by Shanghai marine field bureau for special supplier for the military boat, yacht etc. We are mainly focus on the marine field. Our headquarter set up in 1958 year, now we have our own shipyard and vessel repair workshop and six offices and more than 20 after sale service bureau in China.
Q:what can you buy from us?
A:For marine field, we could supply you: Deutz marine engines Cummins marine engines MAN marine engines Sinotruk marine engines Weichai marine engines Yuchai marine engines
Q: what services can we provide?
A: 6 engineers at your service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Sinooutput-24h online service.
6 engineers, 2000 colleagues from more than 29 departments of sales,design,quality control, test, package, dispatch, shipper,
after sale service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain. engineers at your service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Sinooutput-24h online service.
6 engineers, 2000 colleagues from more than 29 departments of sales,design,quality control, test, package, dispatch, shipper,
after sale service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Q: How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-15 days.
Q: How to solve the problems of products in the using process?
Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.
Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.
A:Sinooutput Group LTD. We are one of the support of 2010 World Expo. Supporters for the green power, also we are authorized by Shanghai marine field bureau for special supplier for the military boat, yacht etc. We are mainly focus on the marine field. Our headquarter set up in 1958 year, now we have our own shipyard and vessel repair workshop and six offices and more than 20 after sale service bureau in China.
Q:what can you buy from us?
A:For marine field, we could supply you: Deutz marine engines Cummins marine engines MAN marine engines Sinotruk marine engines Weichai marine engines Yuchai marine engines
Above marine engine series with power 20---2000KW@1500-3100rpm Marine gearboxes to match the above marine engines Stern shaft with tube, propeller(we have the design department, could help you to design if for free.), windlass, hydraulic winch, marine crane, steering gear etc. Are all available. Marine generator with power 15-2000KW, 500/3100rpm.
Q: why should you buy from us not from other suppliers?
A:we Sinooutput history can be tracked 66 years ago, and 26 years ago we set up 2 shipyards (only built oversea vessels such as fishing boats, oil tanker, cargo ship, chemical boats, LCL, barge etc.)and Shanghai office for exporting the marine equipments has more than 15 years history, the value message for us is to do long business and long customers, we export more than 120 countries,and had serviced more than 400 shipyards all over the world, for us the customers truth-worthy is more important, so we more care about the quality and make sure each exact equipments to each customers, to make sure what they revived is just what they need and could well suitable for their boats.
A:we Sinooutput history can be tracked 66 years ago, and 26 years ago we set up 2 shipyards (only built oversea vessels such as fishing boats, oil tanker, cargo ship, chemical boats, LCL, barge etc.)and Shanghai office for exporting the marine equipments has more than 15 years history, the value message for us is to do long business and long customers, we export more than 120 countries,and had serviced more than 400 shipyards all over the world, for us the customers truth-worthy is more important, so we more care about the quality and make sure each exact equipments to each customers, to make sure what they revived is just what they need and could well suitable for their boats.
Q: what services can we provide?
A: 6 engineers at your service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Sinooutput-24h online service.
6 engineers, 2000 colleagues from more than 29 departments of sales,design,quality control, test, package, dispatch, shipper,
after sale service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain. engineers at your service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Sinooutput-24h online service.
6 engineers, 2000 colleagues from more than 29 departments of sales,design,quality control, test, package, dispatch, shipper,
after sale service.
Trade assurance and full refund to protect your payment and shipment.
Once cooperate with us, you will get whole life free consultation for shipbuilding, repair and maintain.
Q: When can i get the price?
A: We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
A: We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
Q: How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-15 days.
Q: How to solve the problems of products in the using process?
A: We have a professional technical team, will be online to solve the use of the process encouraged various problems. If can't be solved online, technical staff will arranged timely home visits.
Q:When can I get the price?
A:We will reply you within 24 hours after we get your inquiry. Or you can directly call us if you are very urgent.
Q.Can we get samples for testing?
A: We can provide you with free samples, you only need to bear the freight. If your first purchase quantity meets our requirements, we can apply for you more favorable price.
Q.How long is the production time of the goods?
A: Our warehouse has sufficient regular sizes stocking, ready to delivery. And we have a lot of raw materials storage, customer specifications can be arranged in a timely manner production, delivery can be made within 7-10 days.
Q.How to do the problems of product in the printing process?
A:We have a professional technical team, will be online to solve the use of the process encountered various problems. lf it can not be resolved online, technical staff will arrange timely home visits.
A:We have a professional technical team, will be online to solve the use of the process encountered various problems. lf it can not be resolved online, technical staff will arrange timely home visits.
Q: What is the quality of your engine and spare parts?
A: We supply genuine diesel engine complete and engine spare parts. Quality one year warranty.
A: We supply genuine diesel engine complete and engine spare parts. Quality one year warranty.
Q: How do you control the products quality?
A: We have professional inspector to inspect the goods before shipping.
A: We have professional inspector to inspect the goods before shipping.
Q: How about the delivery time?
A: Fast delivery according to the order items.
A: Fast delivery according to the order items.
Q: Can you produce new products according to the samples?
A: Yes, we can produce new products according to customer's samples or technical drawings.We can develop the mould.
A: Yes, we can produce new products according to customer's samples or technical drawings.We can develop the mould.
Q: How about the after-sales service?
A: We will always provide the after-sales service support, even after the warranty period.
A: We will always provide the after-sales service support, even after the warranty period.
Q: What is your MOQ of this item?
A:1 Set
A:1 Set
Q: What is the lead time?
A: 7 working days after received the 30%T/T deposit
A: 7 working days after received the 30%T/T deposit
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others
A: Shanghai or others
Q: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
A: 30% TT as deposit,70% TT before Shipment.
Q: What is your company's available production capacity?
A: 50 Sets per month
A: 50 Sets per month
Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:12 Months or 1000 working hours
