Three phases voltage monitoring relay adjustable rated voltage 220 460V over&under voltage protector
- Category: >>>
- Supplier: Yueqing Junxiong Imp. & Exp. Co. Ltd.
Share on (1600710478388):
Product Overview
Description

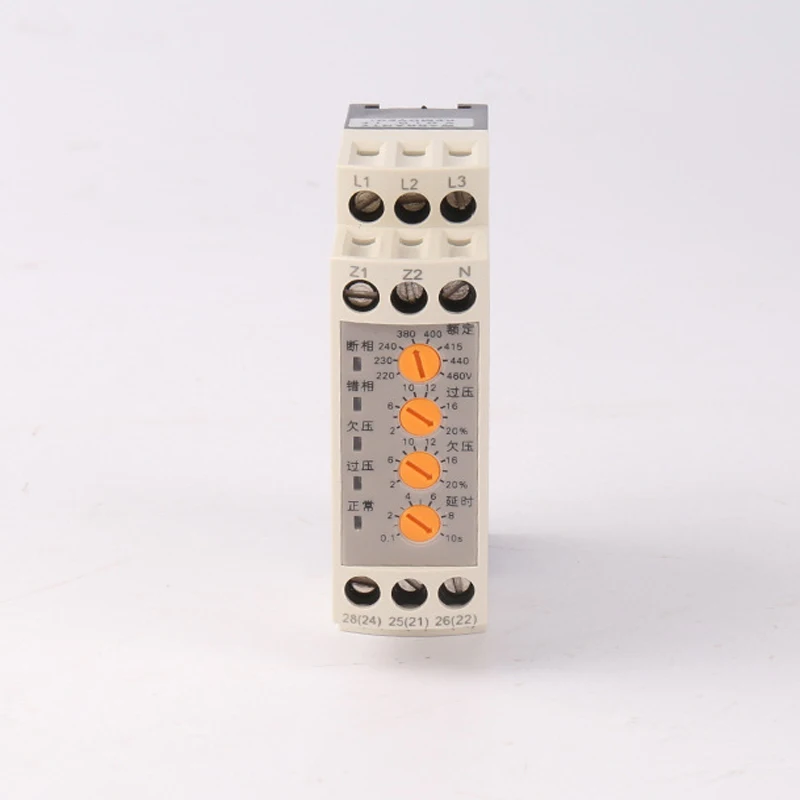

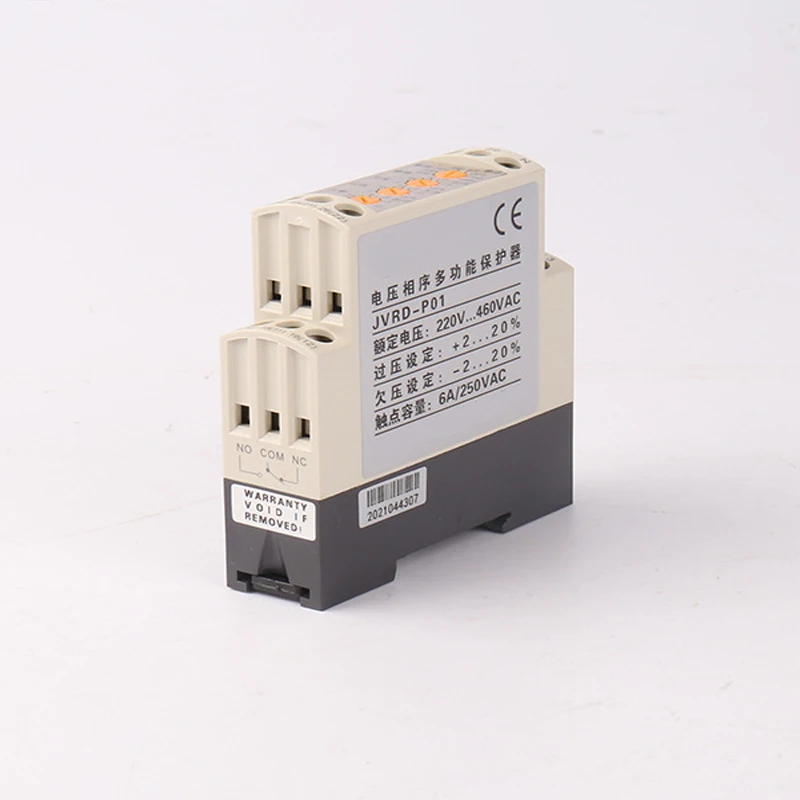

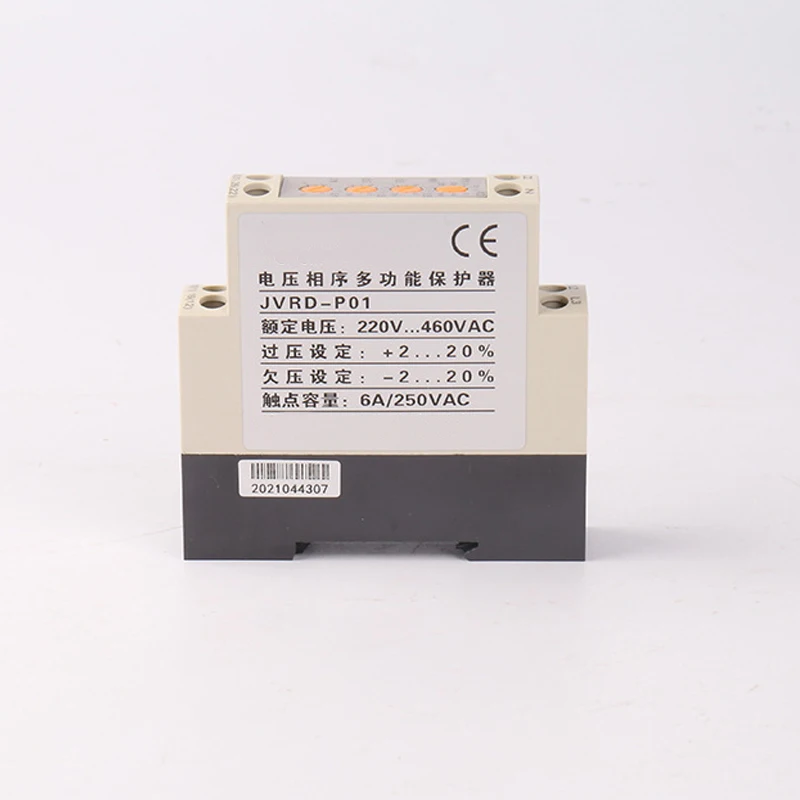

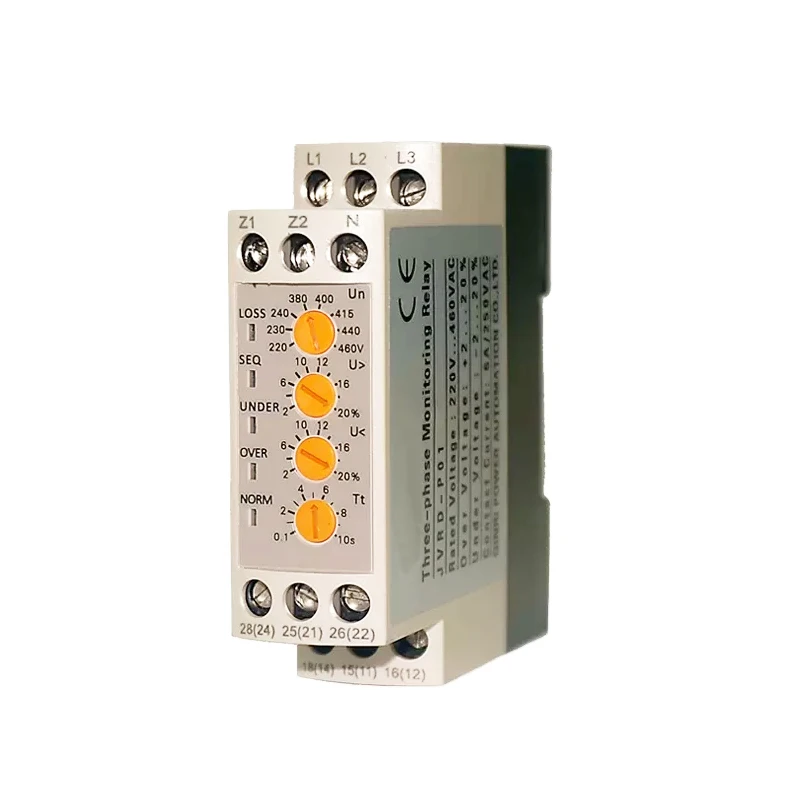

JVRD-P01 Three-phase Voltge Monitoring Relay
♦ Features
-- Compact modular size
-- Support 3-phase 3-wire or 3-phase 4-wire power supply.
-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance,neutral loss
-- Switchable 8 level rated voltage
-- Adjustable over- and undervoltage threshold
-- Adjustable trip time
-- Powered by the measuring circuit
-- 2 C/O contacts
-- 5 LEDs for status indication
♦ Protective Functions
-- Phase sequence
-- Phase loss
-- Overvoltage
-- Undervoltage
-- Phase unbalance
-- Neutral loss
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
♦ Features
-- Compact modular size
-- Support 3-phase 3-wire or 3-phase 4-wire power supply.
-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance,neutral loss
-- Switchable 8 level rated voltage
-- Adjustable over- and undervoltage threshold
-- Adjustable trip time
-- Powered by the measuring circuit
-- 2 C/O contacts
-- 5 LEDs for status indication
♦ Protective Functions
-- Phase sequence
-- Phase loss
-- Overvoltage
-- Undervoltage
-- Phase unbalance
-- Neutral loss
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
Type | JVRD-P01 |
Measuring circuit | L1,L2,L3 or L1,L2,L3,N |
Rated line voltage | 220-230-240-380-400 -415-440-460VAC,50/60Hz |
Voltgae setting range | ±2%~±20% adjustable |
delay setting range | 0.1~10s adjustable |
Indicators | phase sequence,phase loss,overvoltage, undervoltage and normal |
Output contacts | 2 C/O |
Contact capacity | 6A,250VAC |
Dimensions(H*W*D) | 79*23*79mm |
Mounting | DIN Rail |
