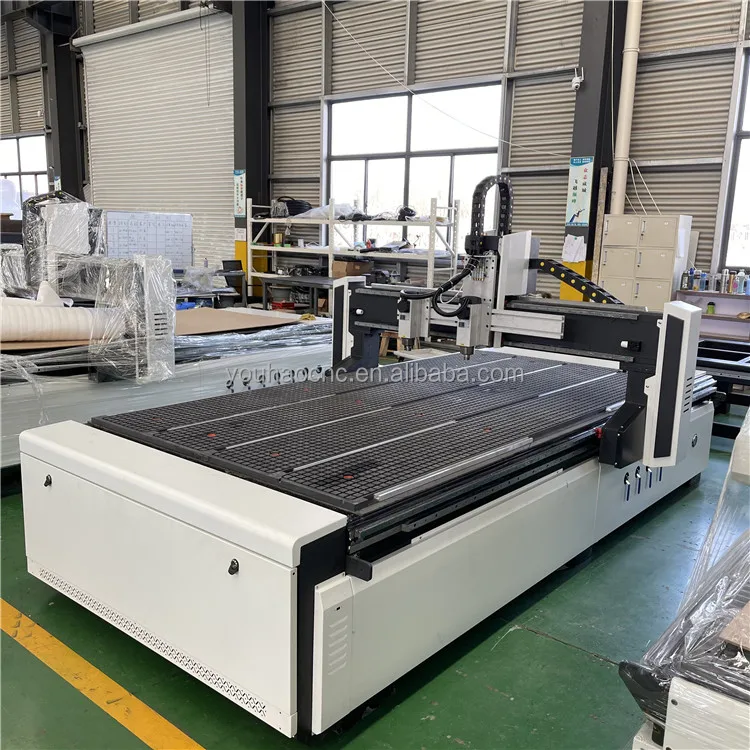

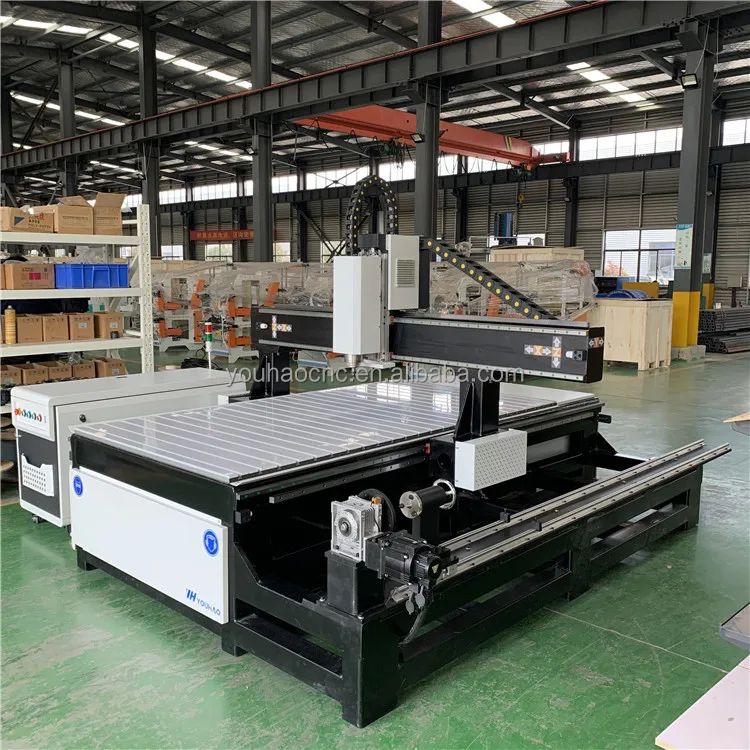

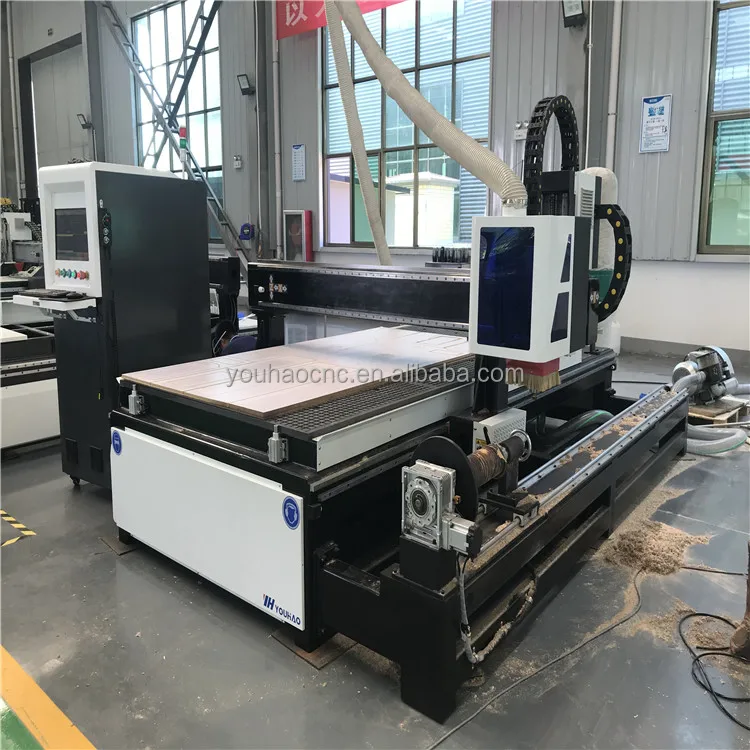

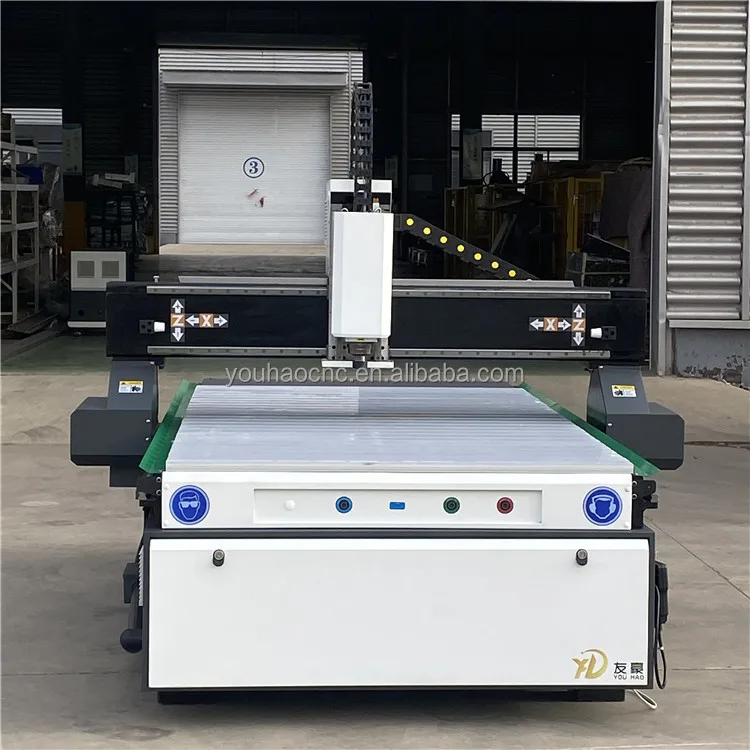

YOUHAO 5*10 wood working cnc router 1530 3 axis 4 axis 3d atc wood carving cnc router machine with rotary attachment
- Category: >>>
- Supplier: Shandong,Youhao,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
YOUHAO 5*10 wood working cnc router 1530 3 axis 4 axis 3d atc wood carving cnc router machine with rotary attachment
Features of YOUHAO 5*10 wood working cnc router 1530 3 axis 4 axis 3d atc wood carving cnc router machine with rotary attachment
1.Taiwan SYNTEC FC-60CA controller,powerful function,supporting ATC function,easy system updating and maintenance,long lifetime using for more than 10 years.
2.Good quality HQD 9.0kw ATC air cooling spindle,high rotating speed,24000rpm,cutting smooth surface of materials,German bearings inside,long lifetime using.
3.Taiwan Delta 11kw inverter,provide high power to spindle,ensure spindle continuously working for long time,easy maintenance,Delta agents all over the world can be easily for your maintenance.

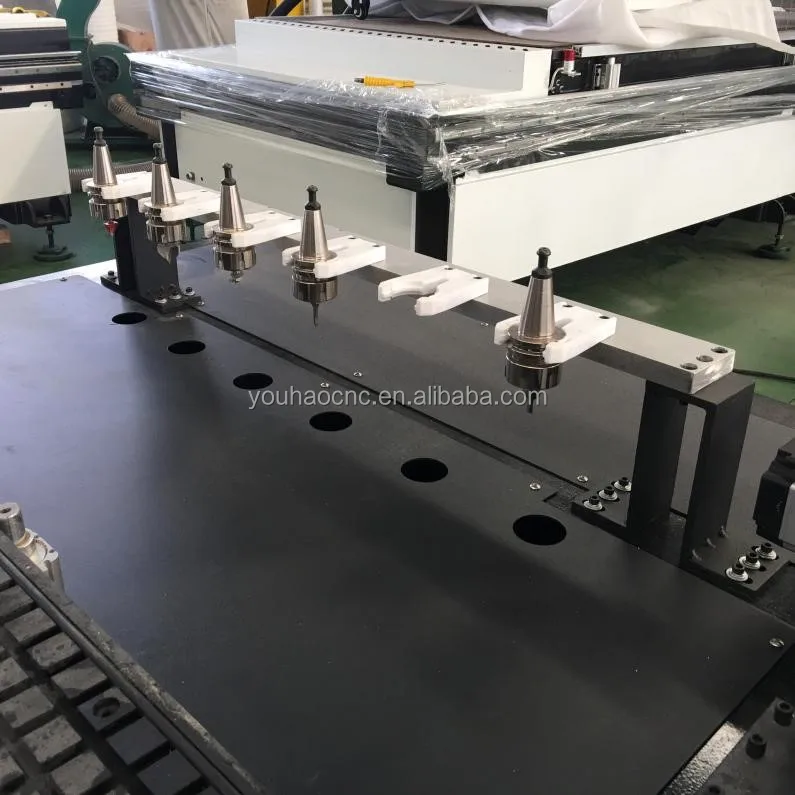

4.Linear tool magazine,with lock tool block,6 tools magazine,satisfy all customers' needs for more tools when working.
5.Taiwan Delta 750w AC servo motor and driver,stable quality,high torque output
Table Structure | Heavy duty welded square tube with aluminum T-slot vacuum table |
Working size | X/Y/Z＞1300*2500*200mm |
Travelling Speed | 80m/min |
Cutting Speed | ＞22m/min |
Accuracy | ±0.02mm |

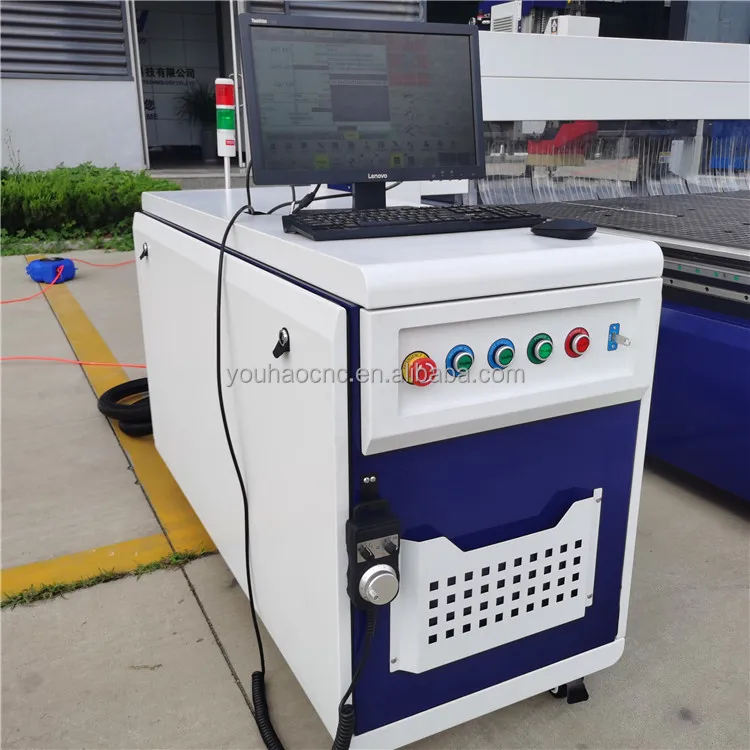

Controller | TAIWAN SYNTEC FC-60CA 4 axis controller, 19" LCD monitor with keyboard and mouse ,with MPG handwheel |
Spindle | Italy Olispeed 9.0kw/12HP ATC air-cooled spindle, ISO30-ER32, 24000rpm |
Tool magazine | Linear type, 6 tools magazine |
Inverter | Taiwan DELTA MS300-11.0kw inverter with brake resistance |
Servo and drive | Taiwan Delta 750W AC servo motor and servo driver |
Reducers | Japan Shimpo 5:1 planetary gearbox |
Rails | Taiwan HIWIN 25mm square rails and blocks |
Transmission | XINYUE 1.5M helical rack for XY axes, Taiwan TBI 2510 ball screw on Z axis |
Electrical components | Japan OMRON limit sensor, French Schneider AC contactor, Taiwan Delta power supply |
Cable | Shanghai JINGJIU CE certification high flexible shielded cable |
Lubrication | Auto lubrication pump |
Tool calibration sensor | Automatic tool sensor |
Pop up pins | Taiwan AIRTAG, 5 set; Taiwan AIRTAG pneumatic components and value |
Working voltage | 380V, 3PH, 50Hz (230V 3Ph 50Hz optional) |
Software compatible | Vertric/ALPHACAM/TYPE3/ARTCAM etc. |

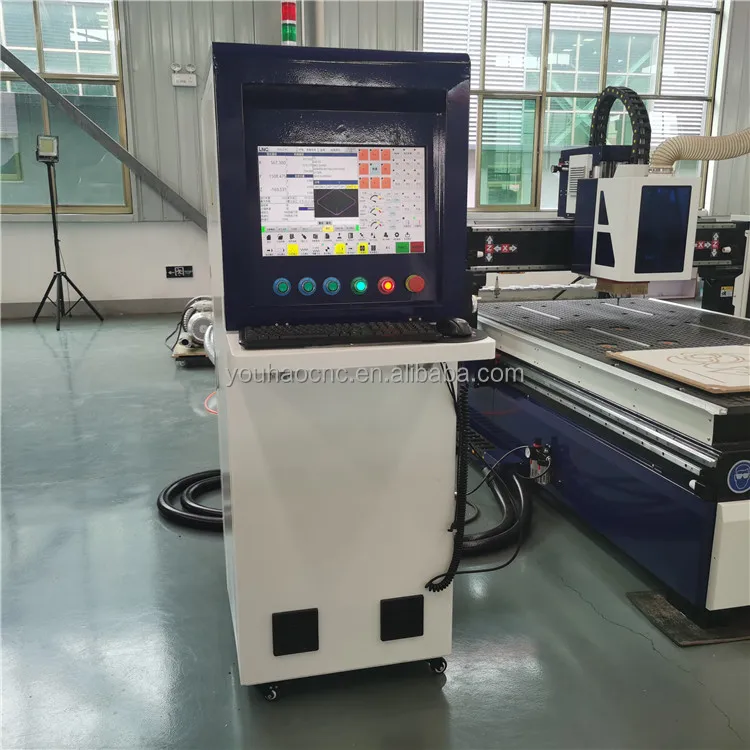

LNC MW2200 controller
1.Powerful function, supporting ATC function;
2. Easy system updating and maintenance;
3. Long life time using for more than 10 years.
3. Long life time using for more than 10 years.

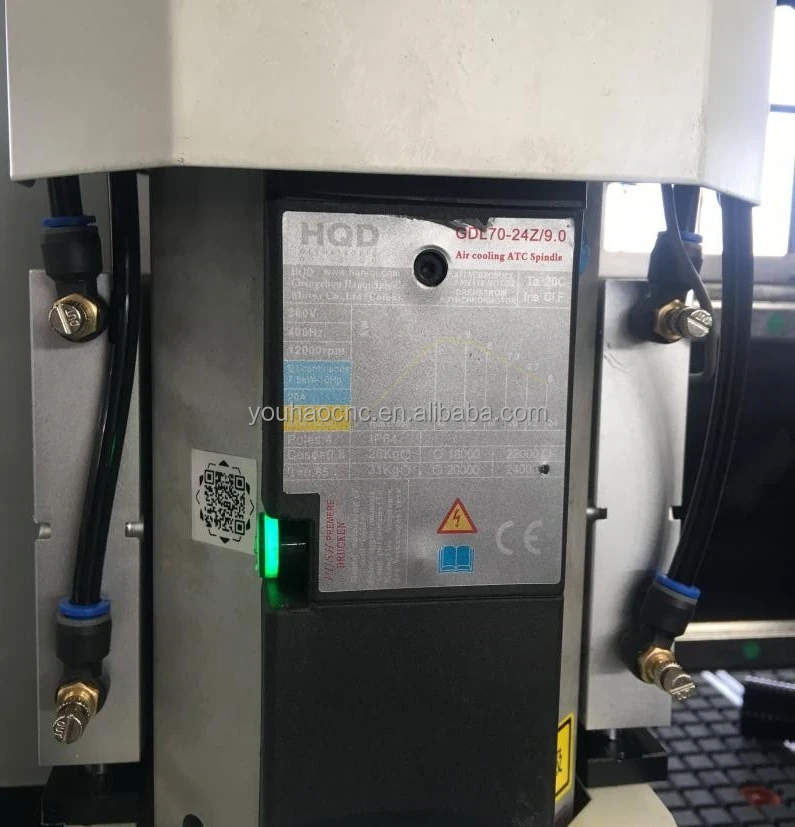

HQD 9kw ATC air-cooling spindle
2.ER32 nut ,can clamp 20mm diameter tool;
3.High torque output,can cut 18mm MDF one depth with high speed;
4.German bearings inside,long lifetime using.

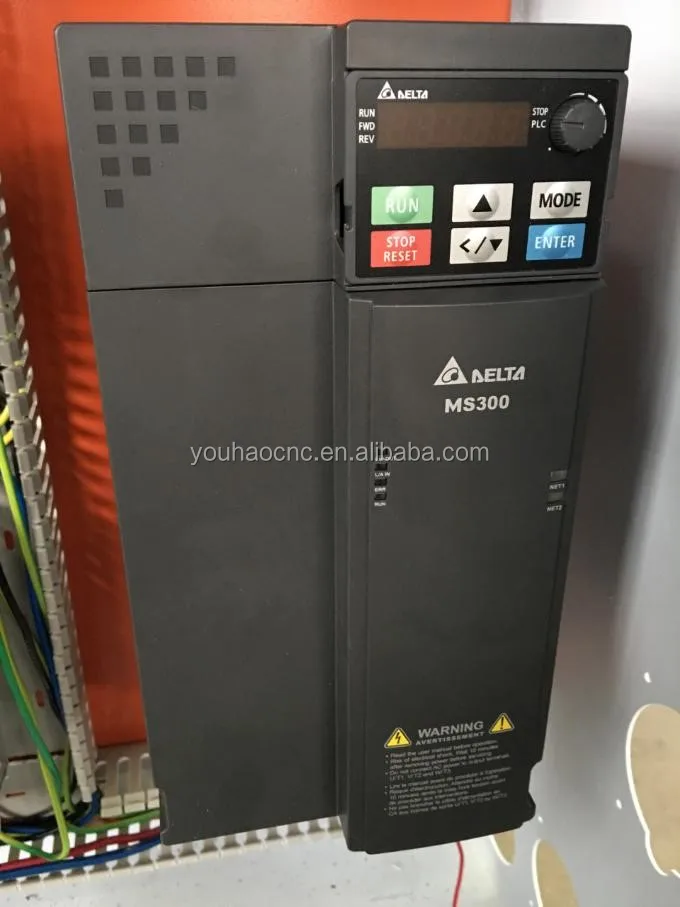

Taiwan Delta 11kw inverter
1.Provide high power to spindle, ensure spindle continuously working for long time;
2.Power consumption saving;
3.Stable quality, can use for over 10 years;
4. With braking unit, spindle can stop rotating very quickly in 3.5 seconds, so tool changing can be finished very fast;
5.Easy maintenance, Delta agents all over the world can be easily for your maintenance.
2.Power consumption saving;
3.Stable quality, can use for over 10 years;
4. With braking unit, spindle can stop rotating very quickly in 3.5 seconds, so tool changing can be finished very fast;
5.Easy maintenance, Delta agents all over the world can be easily for your maintenance.

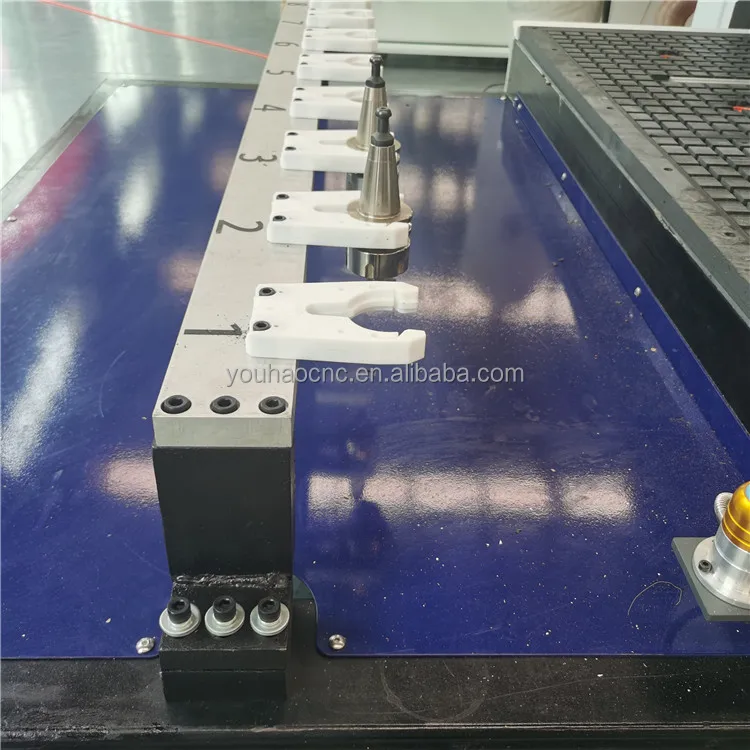

Lock tool block
Taiwan Delta 750w AC servo motor and driver
2.With Japan Shimpo reducers, almost no need maintenance, best quality ensure customer use machine for long time;

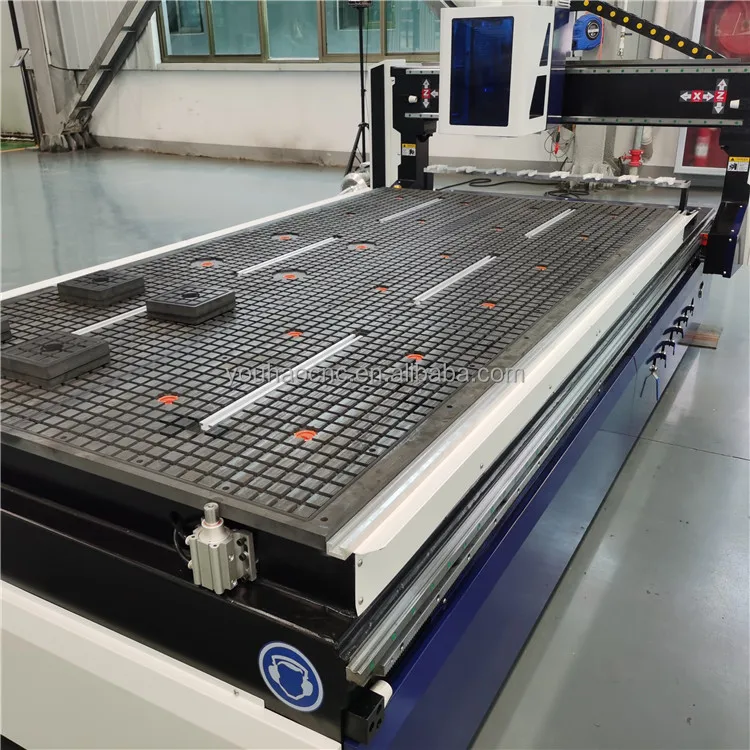

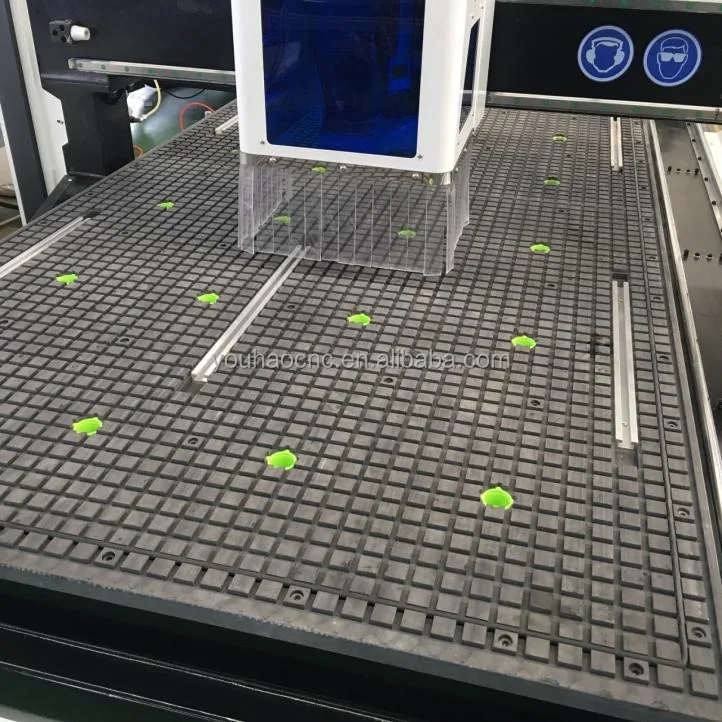

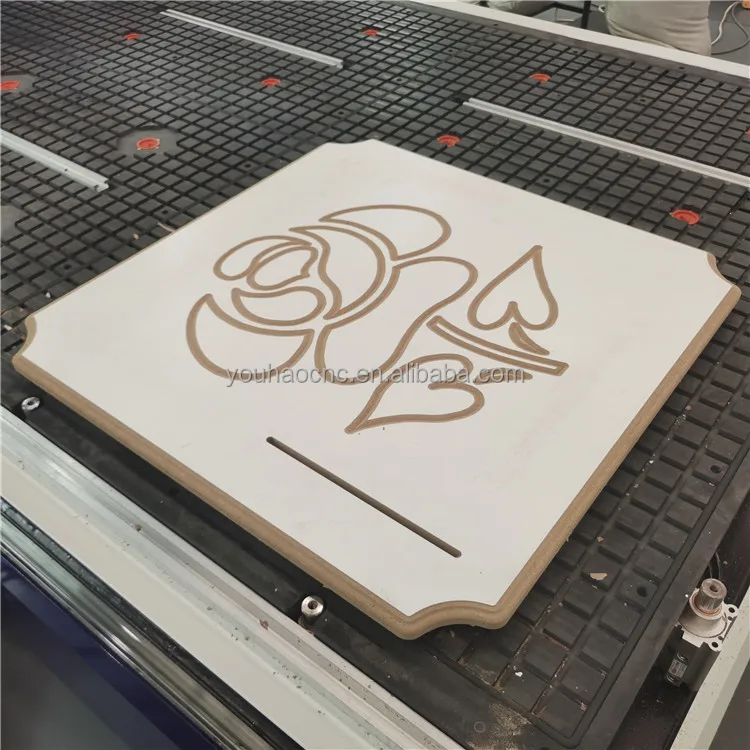

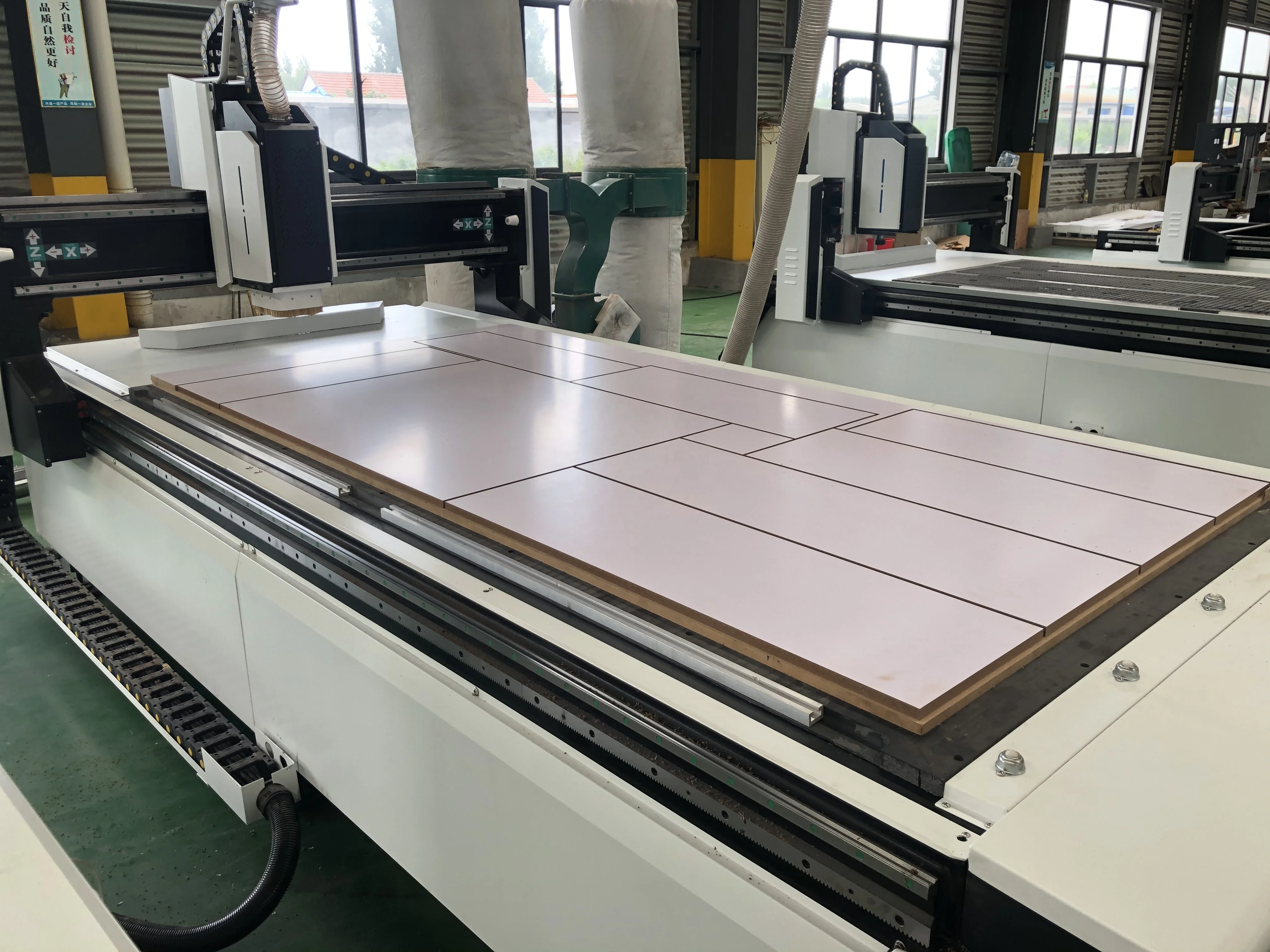

Intelligent T-slot vacuum table with more vacuum holes on it
1.High density PVC vacuum table with aluminum T-slot, ensure machine adsorb large size of materials easily, also can clamp small size, easy and fast operation;
2.Taiwan AIRTAG cylinders as pop up pins, make it easier to load materials on the same position. No need to set working coordinate every time.
2.Taiwan AIRTAG cylinders as pop up pins, make it easier to load materials on the same position. No need to set working coordinate every time.
Best quality auto grease lubrication
The rails and ball screw will be well lubricated automatically and grease will not flow everywhere! This is very convenient for customer to clean machine.

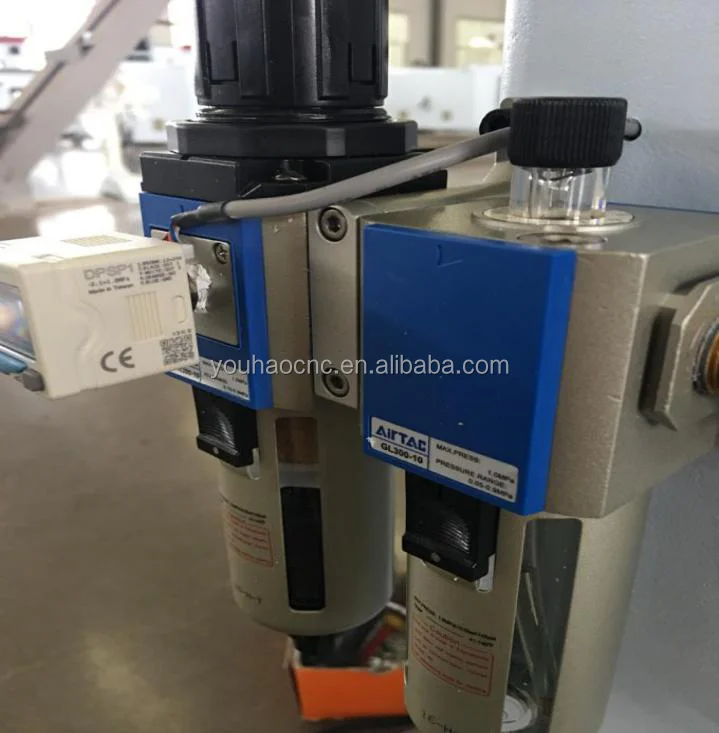

Taiwan AIRTAG pneumatic components and switch sensor, ensure machine has continuous air pressure, protect spindle safe when tool changing.

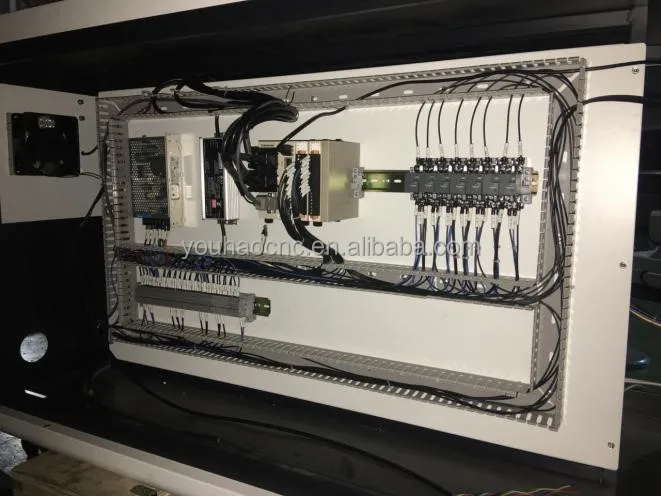

YOUHAO CNC always choose best quality electrical spare parts for its controlling, like French Schneider AC contactor, time relay and control switches;

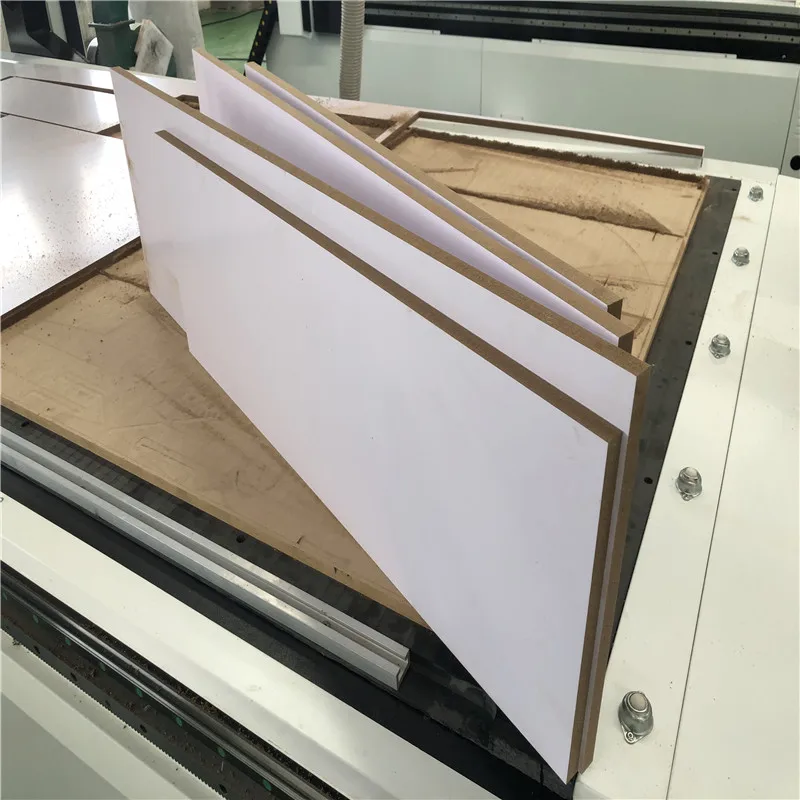

1. Woodworking industry
Doors; Cabinets; Tables; Chairs.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making,

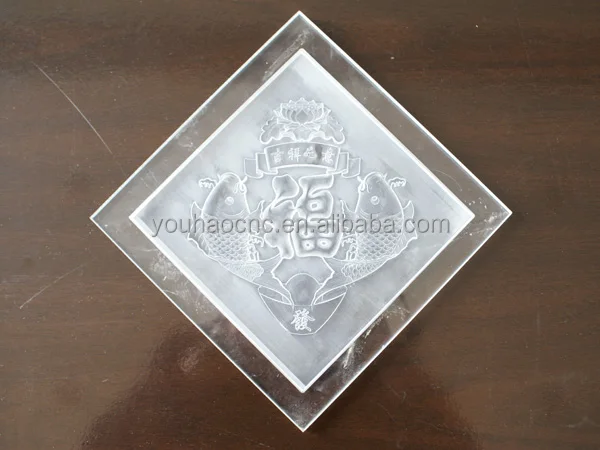

acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

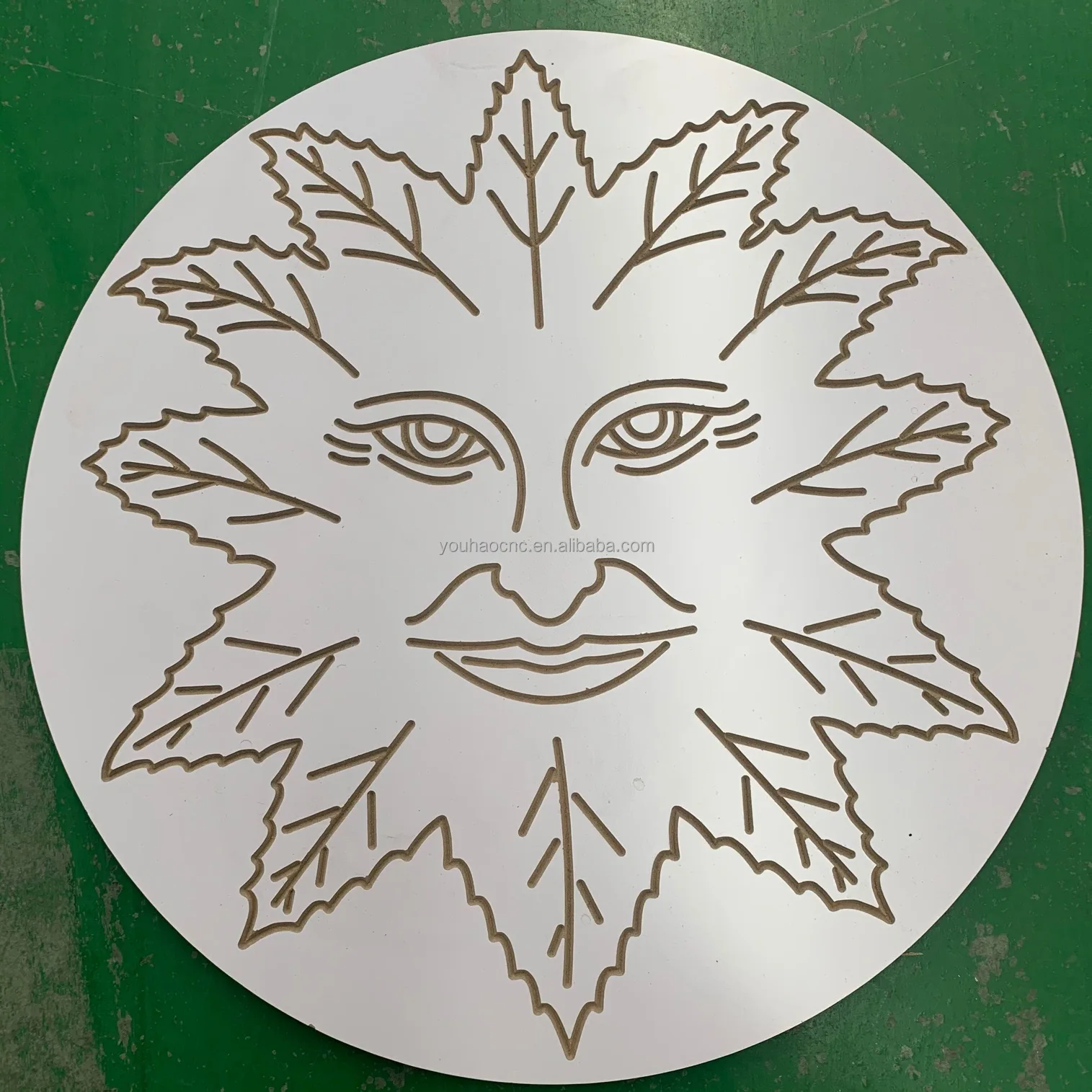

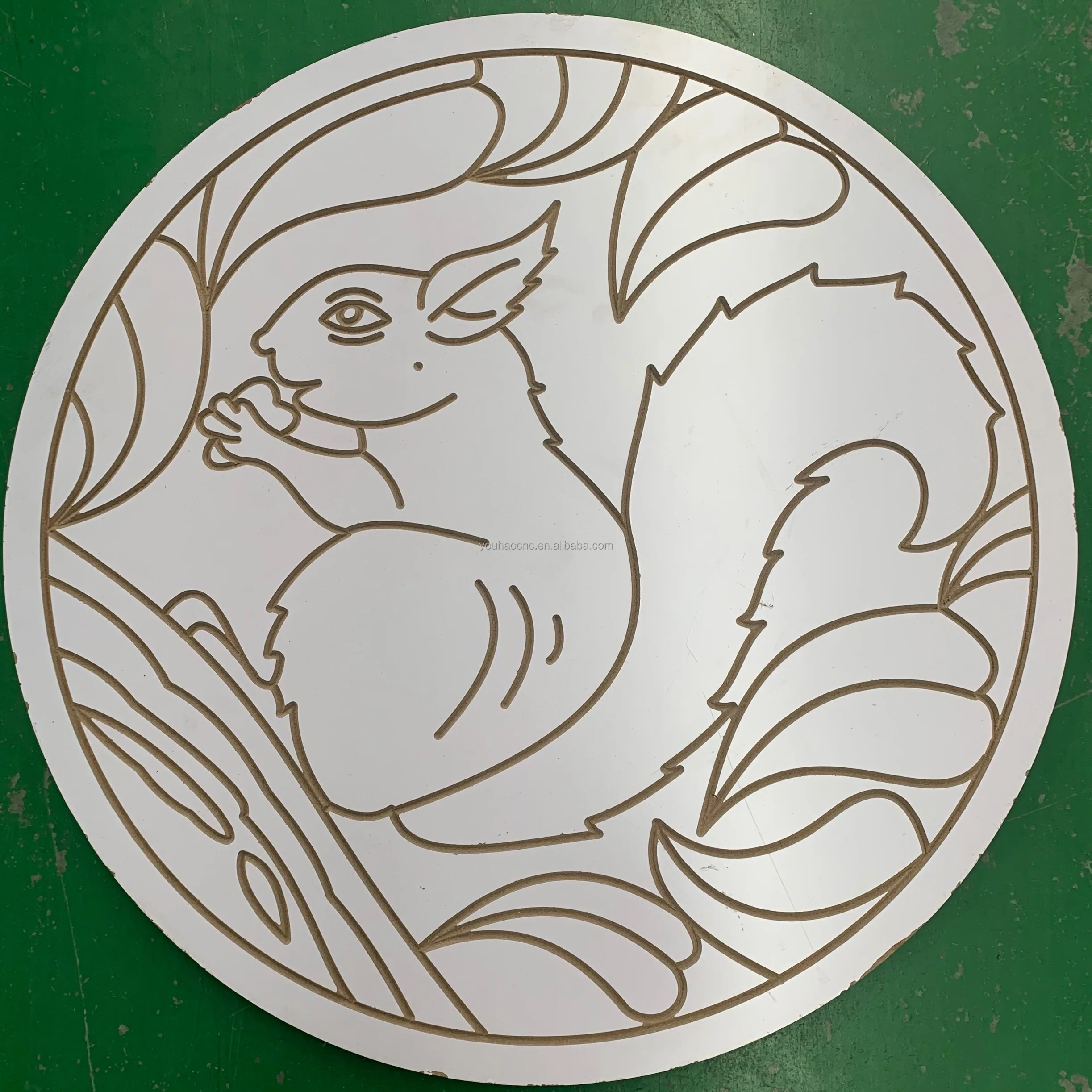

4. Artwork and Decoration

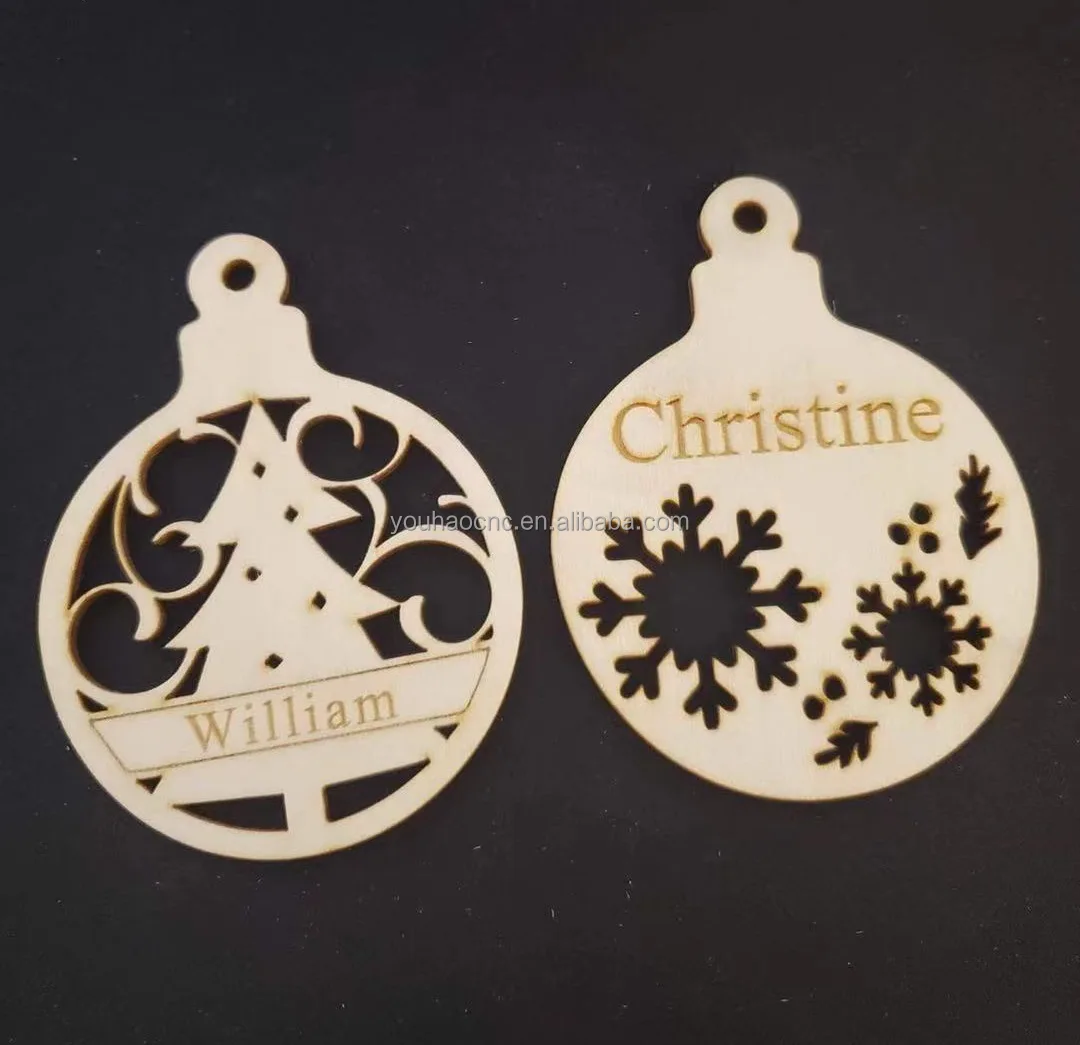

wood crafts; gift box; jewelry box
5. Others

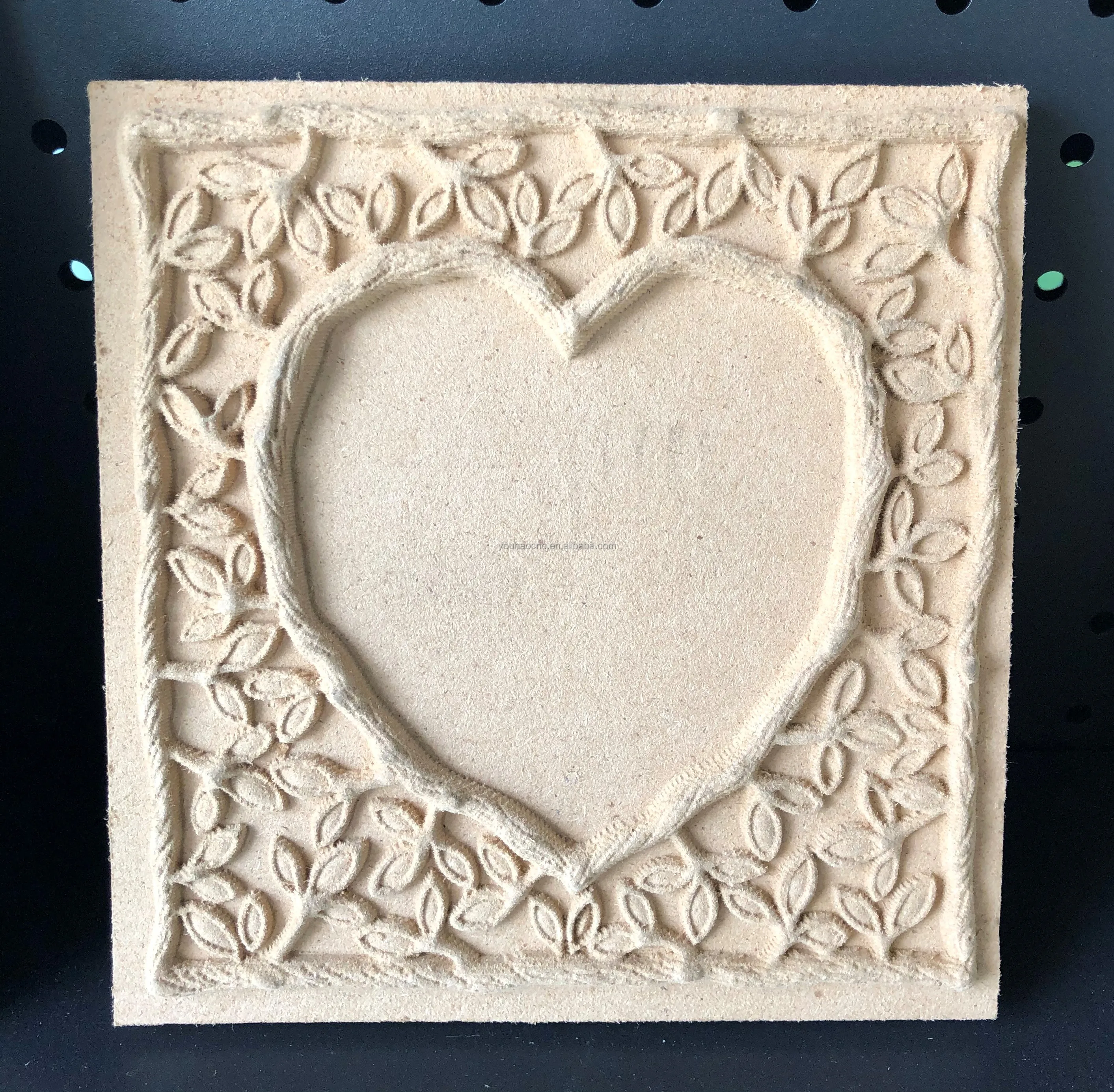

Relief sculpture and 3D engraving and Cylindrical object.
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
1 Two years warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.

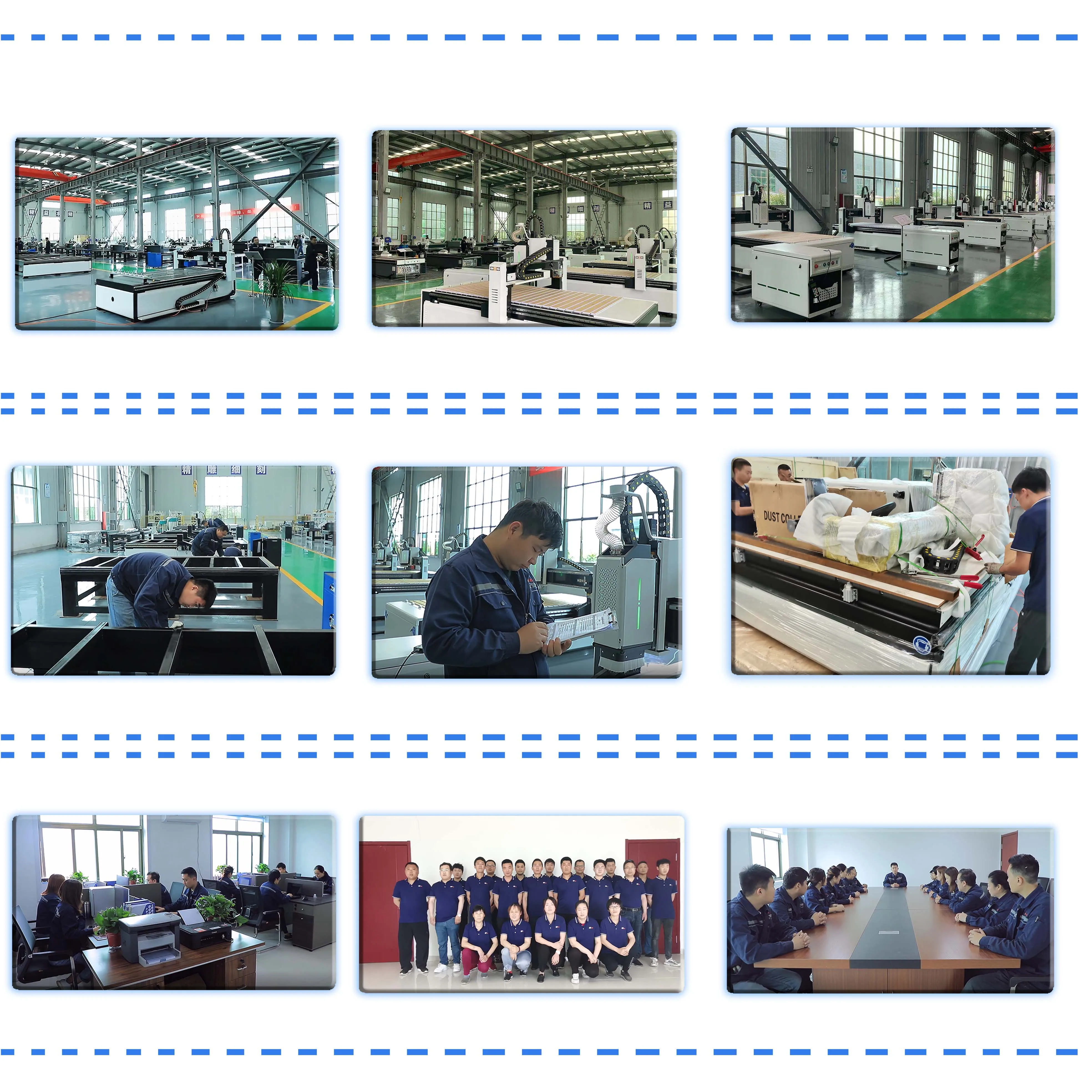

Shandong Youhao Energy Technology Co., Ltd located in Rizhao E&D zone, is one leader of CNC manufactures in wood-working machinery industry, which dedicates to the R&D, production and sales of CNC wood Router machine, CNC panel furniture nesting machine, CNC aluminum cutting machine and CNC fiber laser cutting machine for over than 10 years.
Quality is never outsourced, all our products from the economic models to the most complicated ones, we always choose the most famous brand and best quality spare parts, like Italy HSD spindle, Japan YASKAWA servo motor and Taiwan HIWIN rails etc. We are committed to making your business success by providing qualified cutting solutions and equipment, but with lower costs thus measurable savings.
In Youhao, we are not just a manufacturing company, we are business partners and friends. Our technical experience, quality products, strength in customer service, dedication to R&D, all of these are presented to our customers in the hope of helping them succeed.
Today and always, together as a team---This is the fundament of Youhao CNC. We will uphold this principle and do even better.
Looking forward to our cooperation.
