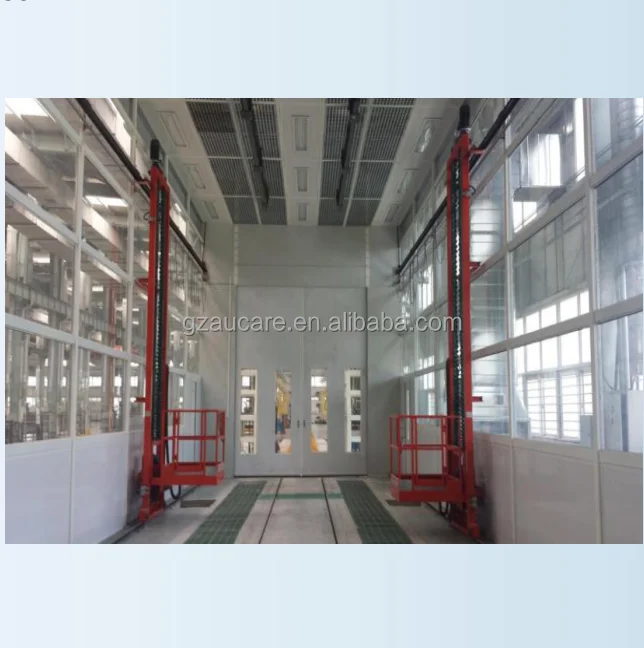

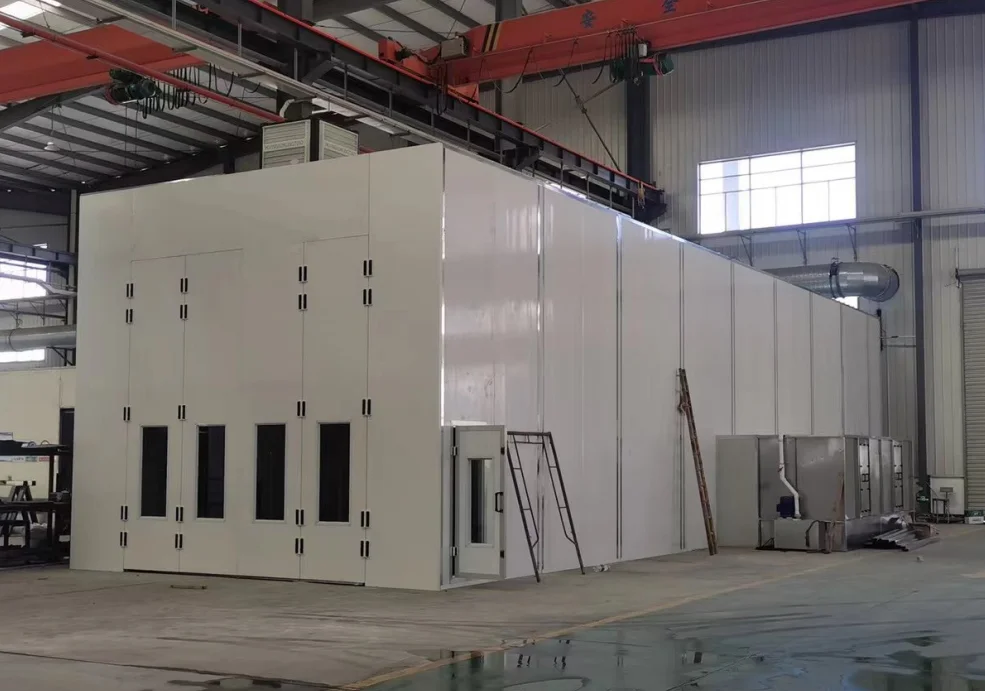

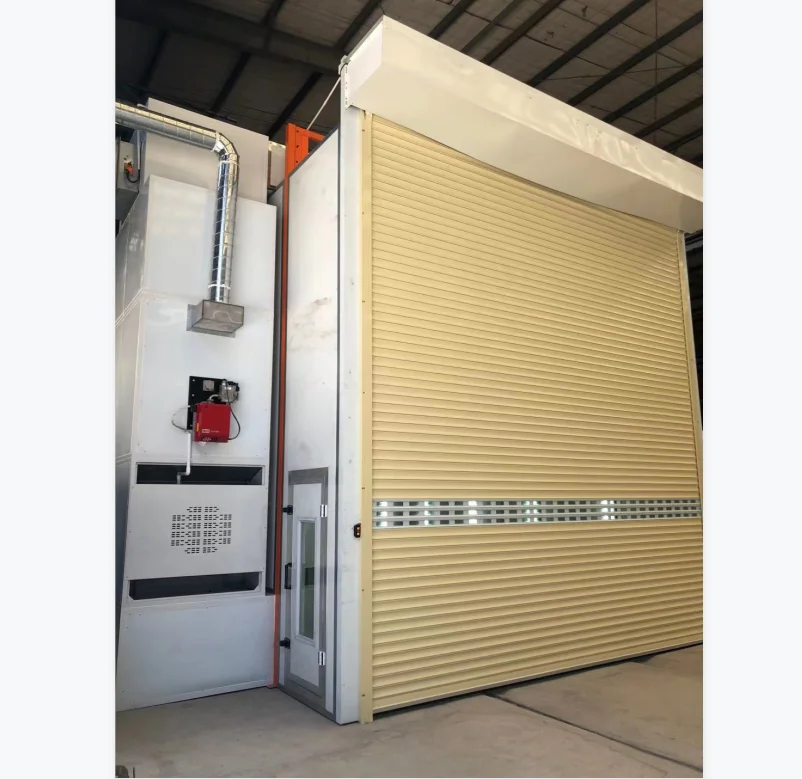

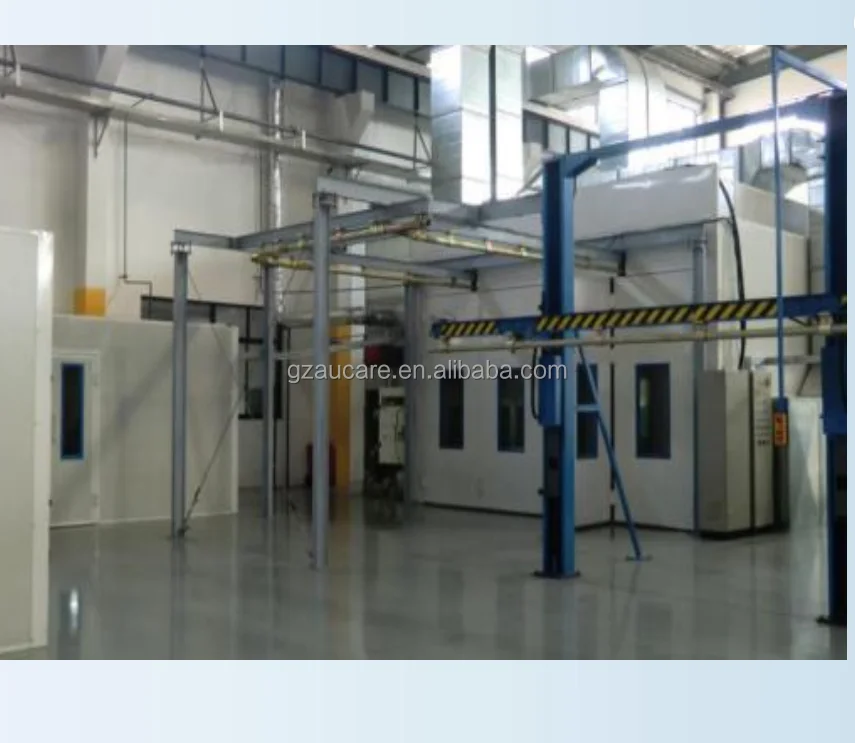

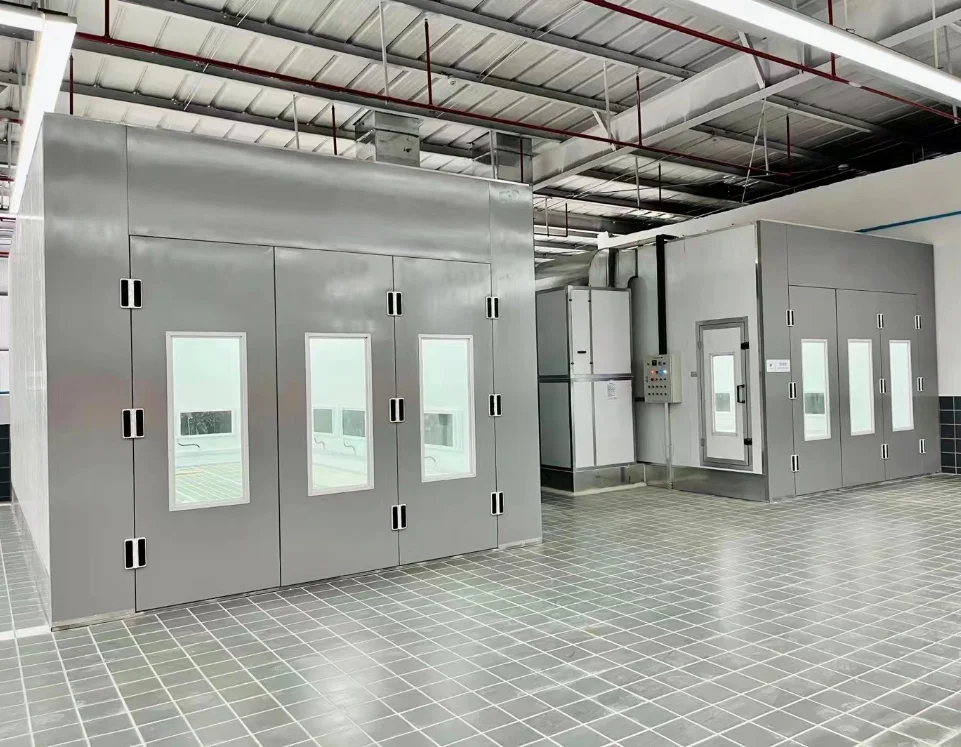

CE approved Italy diesel burner 75mm thickness rock wool panel automatic machine spray paint booth for BUS and trucks
- Category: >>>
- Supplier: Guangzhou Aucare Automobile Technology Co. Ltd.
Share on (1600710715331):
Product Overview
Description
Products Description
Details Images

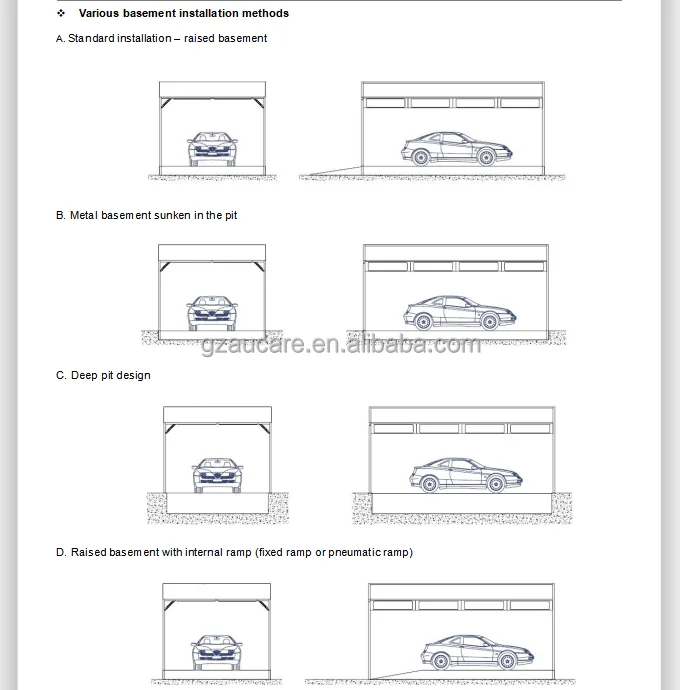

4 ways of basement installation
The air handling unit can be placed on the left/right/back of the booth
or at the top of the booth according to your specific requirements.
or at the top of the booth according to your specific requirements.
For other forms of paint mist extraction solution, please contact us directly. We will provide you with comprehensive technical
service and instructions.
service and instructions.

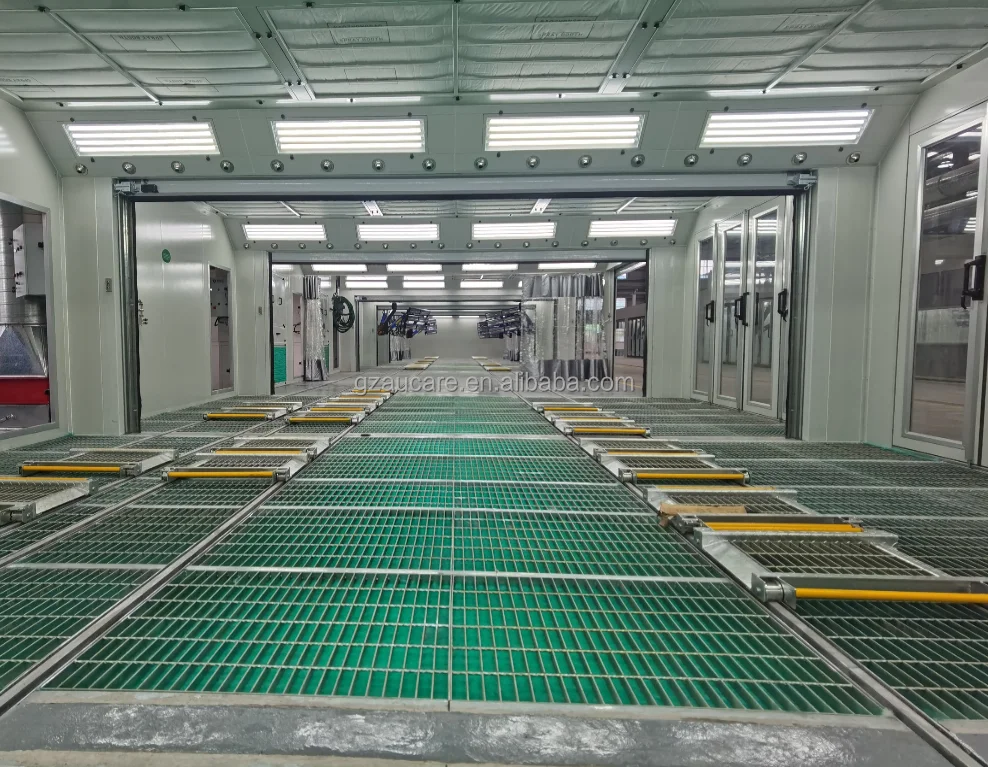

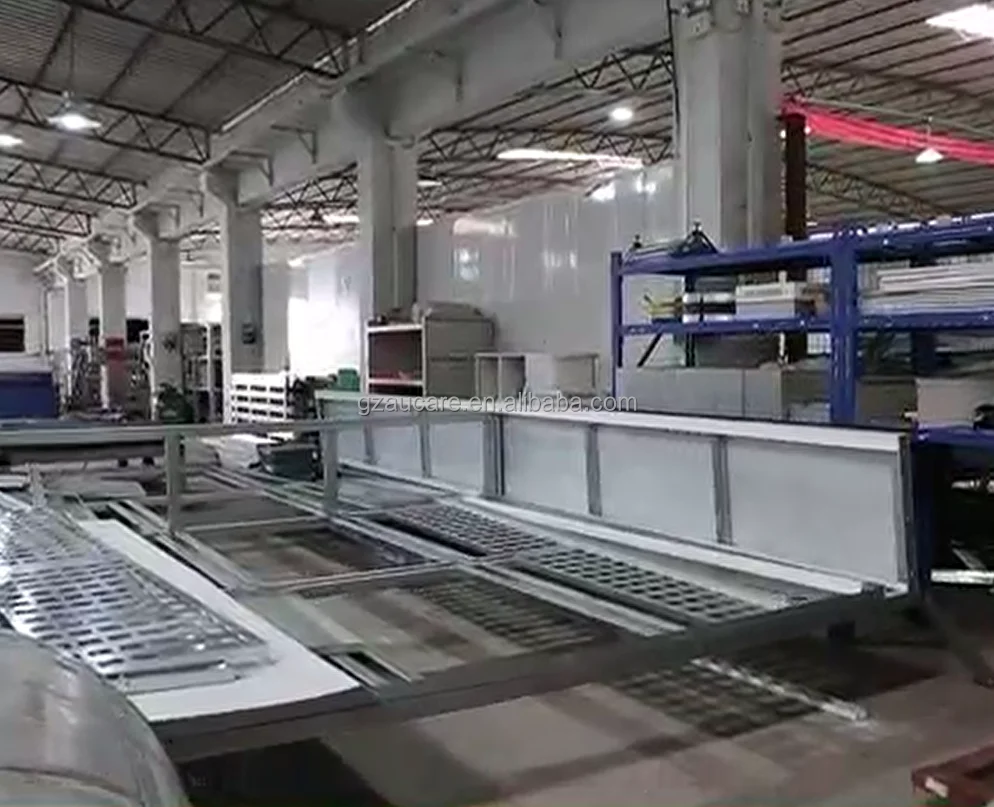

Basement Design
Dimensions: 7010x4105x300mm(LxWxH)
- Assembly structure
- 2 rows of grids and 3 rows of diamond plates, grids carrying capacity: 650kg/wheel, safe and reliable
- Fiber-glass paint arrestor filter (laid under the grids), G2 grade, paint holding capacity: 3.5KG/m2
- Assembly structure
- 2 rows of grids and 3 rows of diamond plates, grids carrying capacity: 650kg/wheel, safe and reliable
- Fiber-glass paint arrestor filter (laid under the grids), G2 grade, paint holding capacity: 3.5KG/m2
50mm Thickness Rockwool Wall panels
White powder coated dual-skin insulated panels filled with 80KG/m³ rock wool, total thickness: 50mm, substrate
thickness: 0.426mm
* Top panels：Single-layer galvanized steel plate bending forming
thickness: 0.426mm
* Top panels：Single-layer galvanized steel plate bending forming

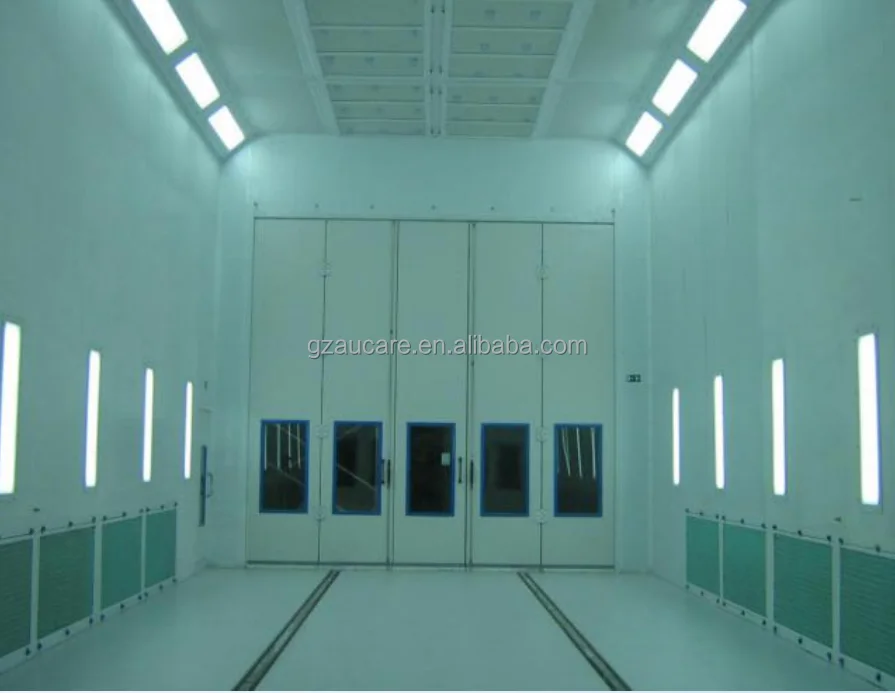

Main Door
3-wing entry doors with durable rubber for airtight seal
* 6mm white color steel plate
* With tempered observation window on all doors
* Heavy duty handles, latches and hinges for years of reliability
* 6mm white color steel plate
* With tempered observation window on all doors
* Heavy duty handles, latches and hinges for years of reliability
Lighting System
*Money saving energy efficient T-8 fixtures
* Sealed fixtures fitted with tempered glass
* IP54 protection grade, light fixtures fully meet EU standards
* 45 degree angled ceiling lights create virtually shadow-free environment
* Sealed fixtures fitted with tempered glass
* IP54 protection grade, light fixtures fully meet EU standards
* 45 degree angled ceiling lights create virtually shadow-free environment
Intake & Exhaust System
* Non-spark fan design perfectly conforms to EU requirements for fans.
* Motor and fan are completely separated, meeting the EU standards
* With cylinder-drive paint-bake conversion damper, more quickly and accurately.
* Direct-drive fans, virtually maintenance-free
* Motor and fan are completely separated, meeting the EU standards
* With cylinder-drive paint-bake conversion damper, more quickly and accurately.
* Direct-drive fans, virtually maintenance-free
Touch screen PLC Control Box
* User friendly interface featuring touch screen and switches, easy to operate.
* Control box conforms to IP55 protection grade;
* The electric components comply with CE requirements;
*Wire diameter, colors, and terminals comply with CE requirements;
* The electric components comply with CE requirements;
*Wire diameter, colors, and terminals comply with CE requirements;
Product packaging
- Cargo is loaded on metal frame to facilitate convenient loading and unloading by forklifts.
- 1x1.5T forklift & 2 people for loading and unloading.
- 1x1.5T forklift & 2 people for loading and unloading.
-One 20GP container for one set spray booth; One 40 HQ container can load 3-4sets spray booth.

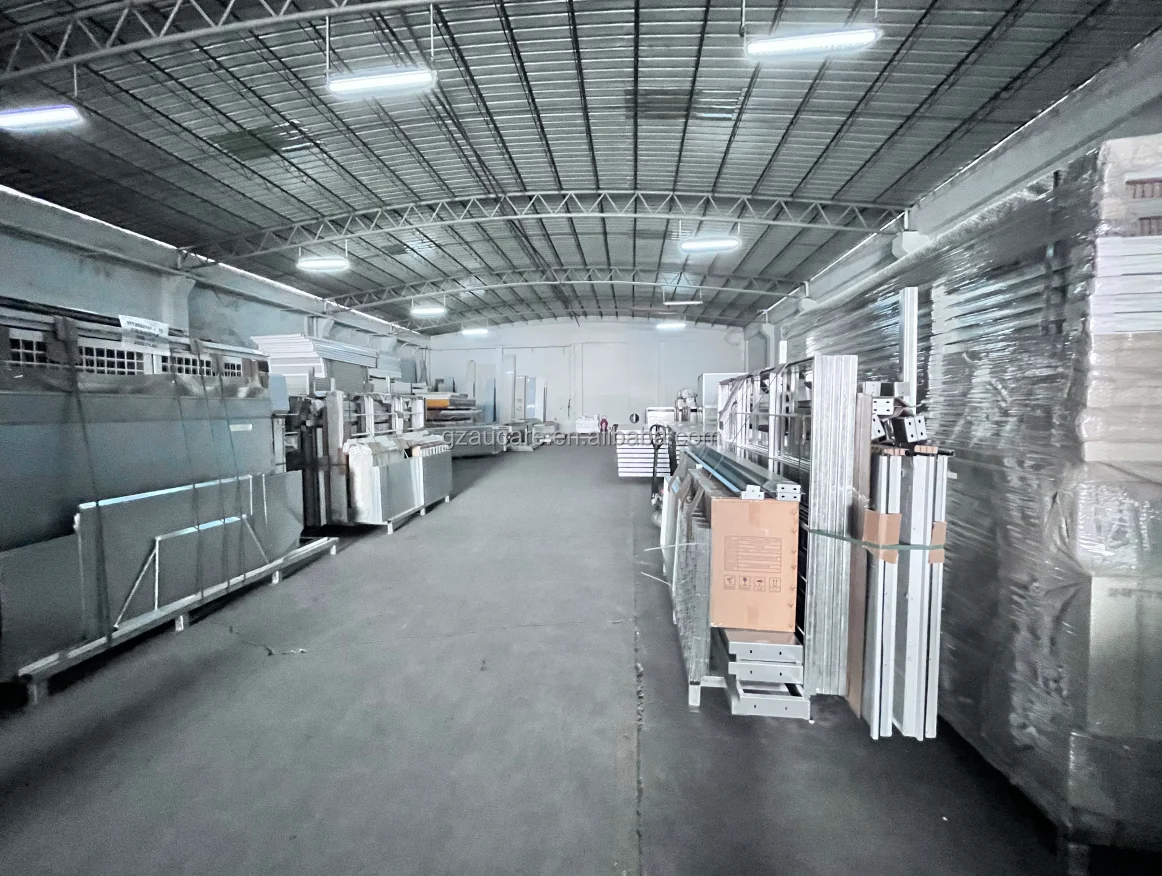

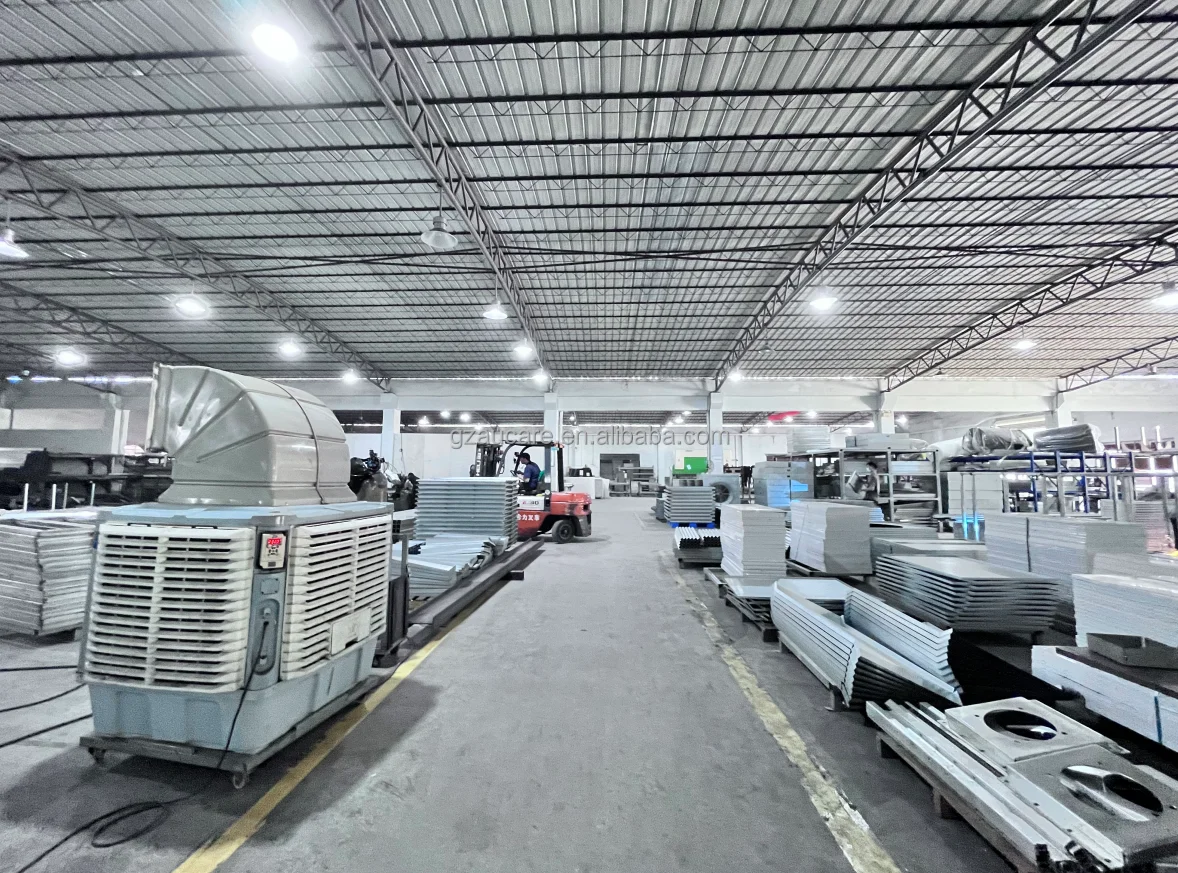

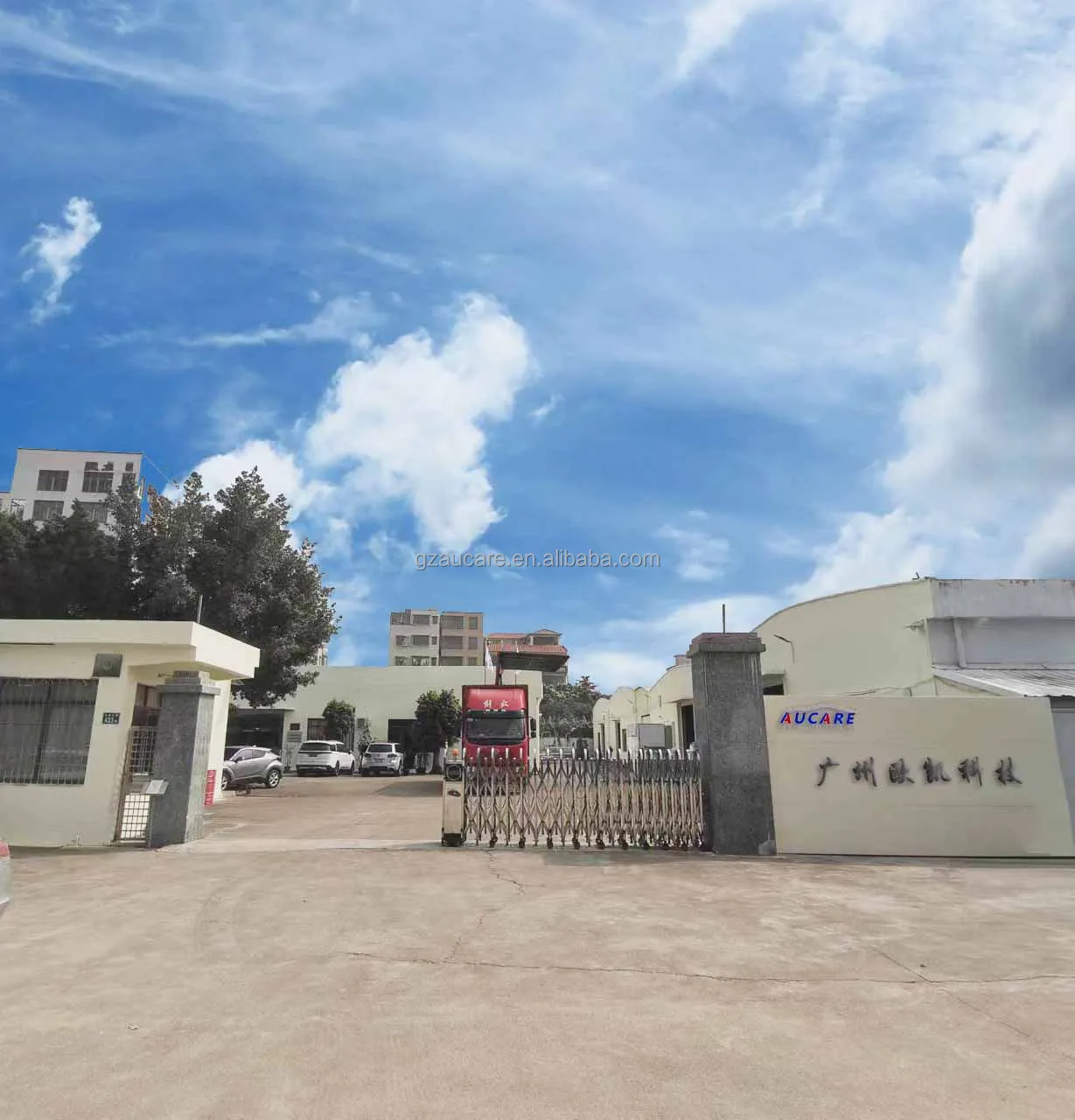

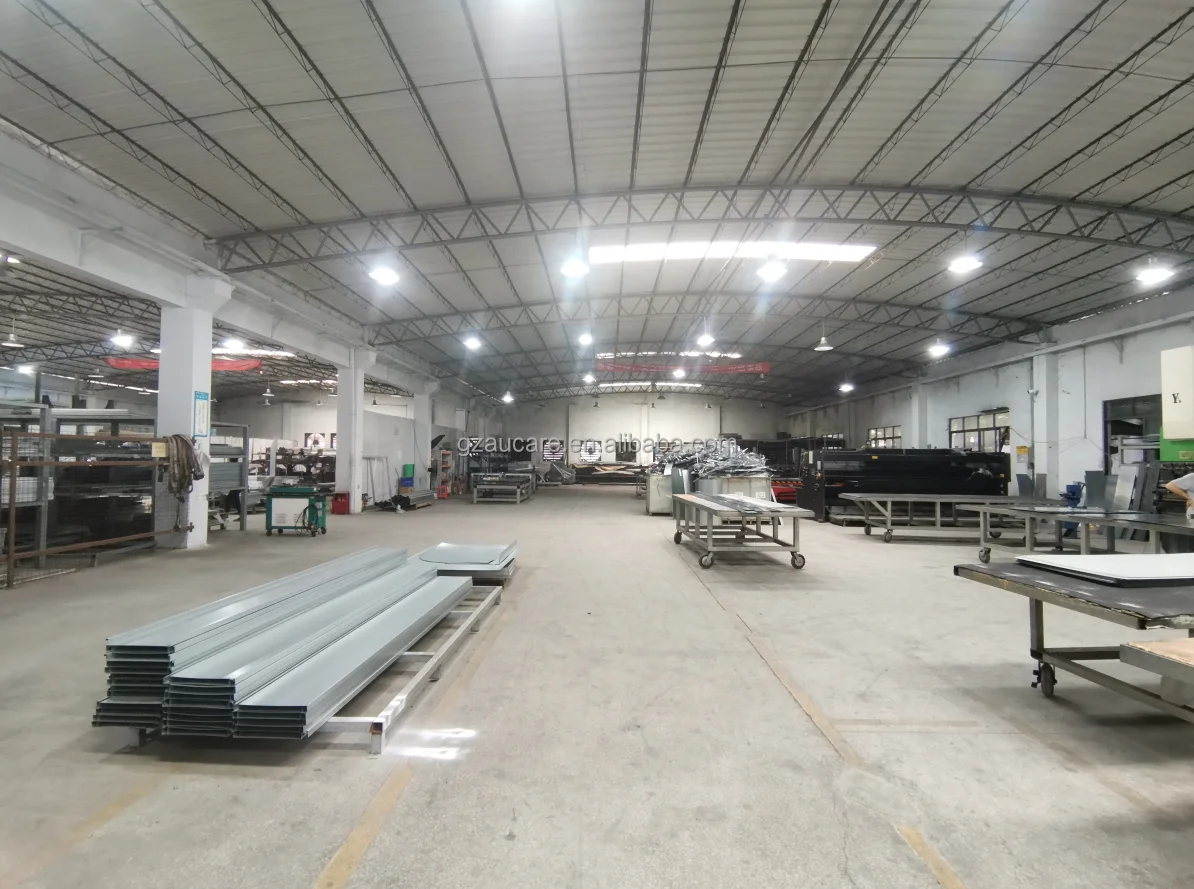

Company Profile
Guangzhou aucare automobile technology co.,ltd was established in 2007. It is a comprehensive enterprise integrating R&D, production, sales and export of automobile maintenance equipments for 15 years. It is located in Baiyun District, Guangzhou city. It produces spray paint booths, car lift, tire changer, wheel balancer,wheel alignment by itself and it also owns shares in several other auto repair equipment factories. At the same time, it is also the core agent of well-known brands of domestic automobile maintenance equipments.
Guangzhou aucare automotive technology Co., Ltd. has long been engaged in the wholesale export business of various types of vehicle maintenance equipments. It has decades of experience in support domestic vehicle workshops and 10 years of support and service experience in export bussiness. The main target countries are Europe, Middle east, North America, etc.
Adhere to the service tenet of "credibility first, customers first", and adhere to the business philosophy of market-oriented and continuous innovation. We firmly believe that the AUCARE brand will become a comprehensive brand of products, services and support in the automotive aftermarket.
Guangzhou aucare automotive technology Co., Ltd. has long been engaged in the wholesale export business of various types of vehicle maintenance equipments. It has decades of experience in support domestic vehicle workshops and 10 years of support and service experience in export bussiness. The main target countries are Europe, Middle east, North America, etc.
Adhere to the service tenet of "credibility first, customers first", and adhere to the business philosophy of market-oriented and continuous innovation. We firmly believe that the AUCARE brand will become a comprehensive brand of products, services and support in the automotive aftermarket.
Exhibition

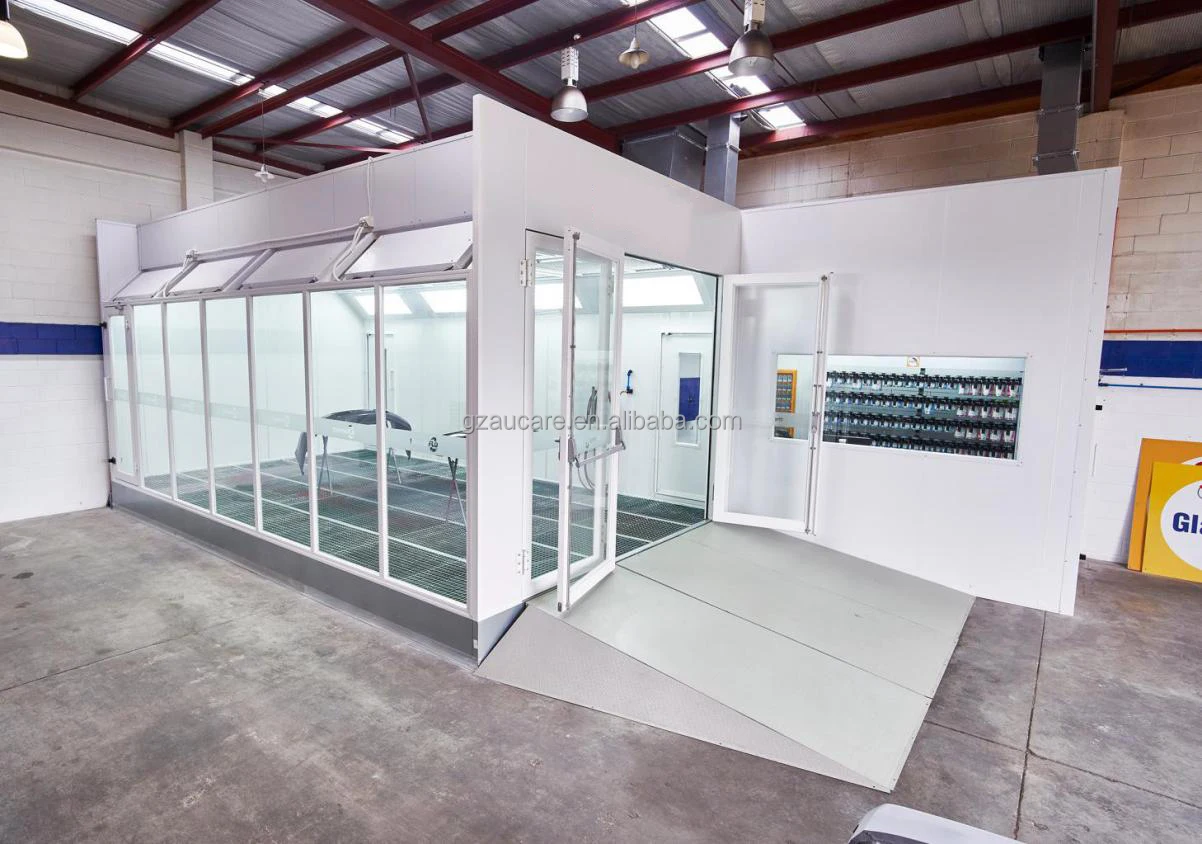

Customer cases
