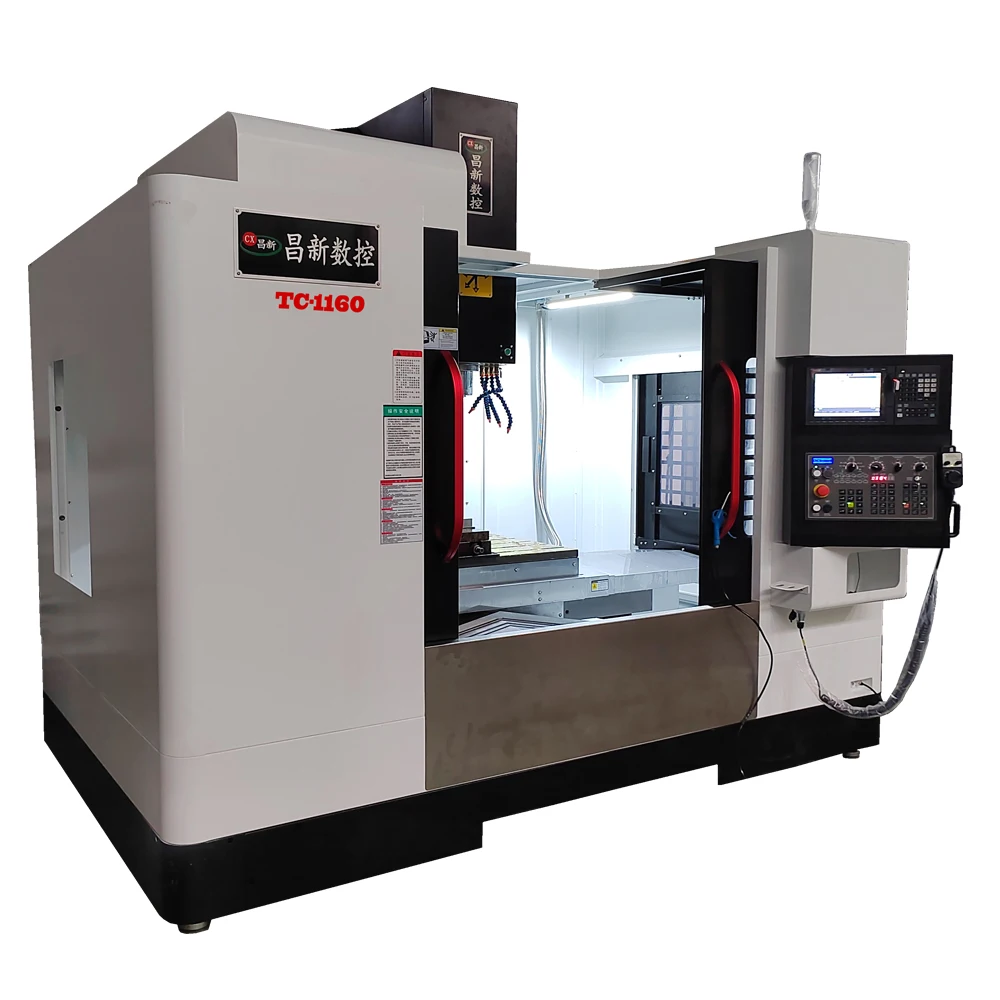

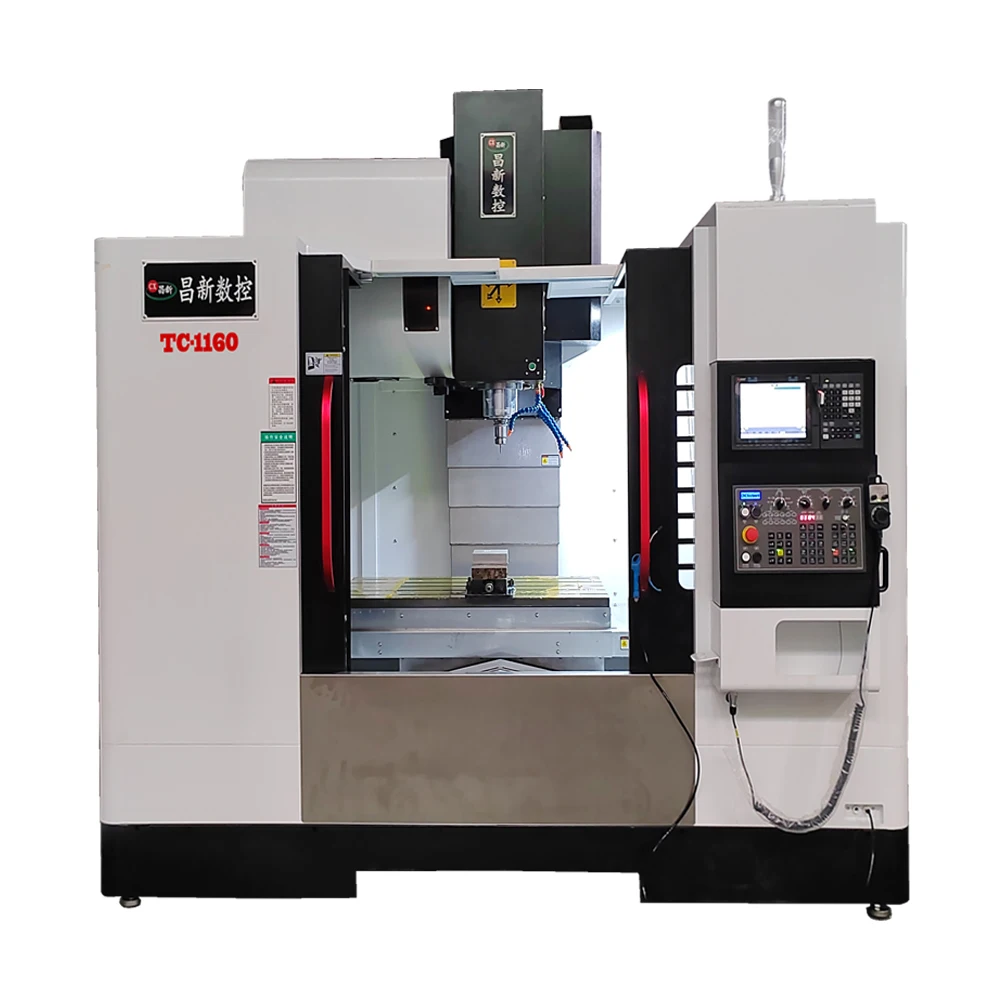

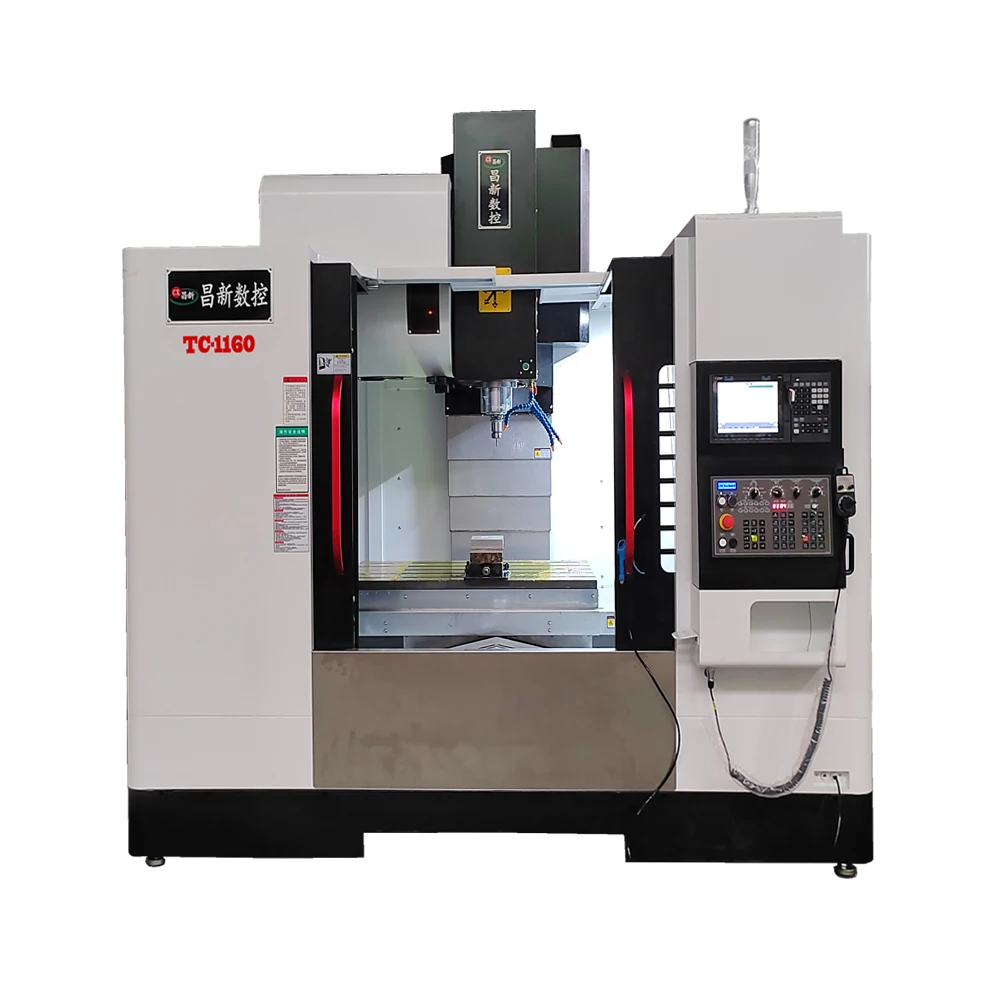

CNC machine center TC 1160 Siemens system CNC drilling tapping machine CNC vertical milling machine for metal
- Category: >>>
- Supplier: Dongguan Chansin Hardware Machinery Co. Ltd.
Share on (1600710870941):
Product Overview
Description

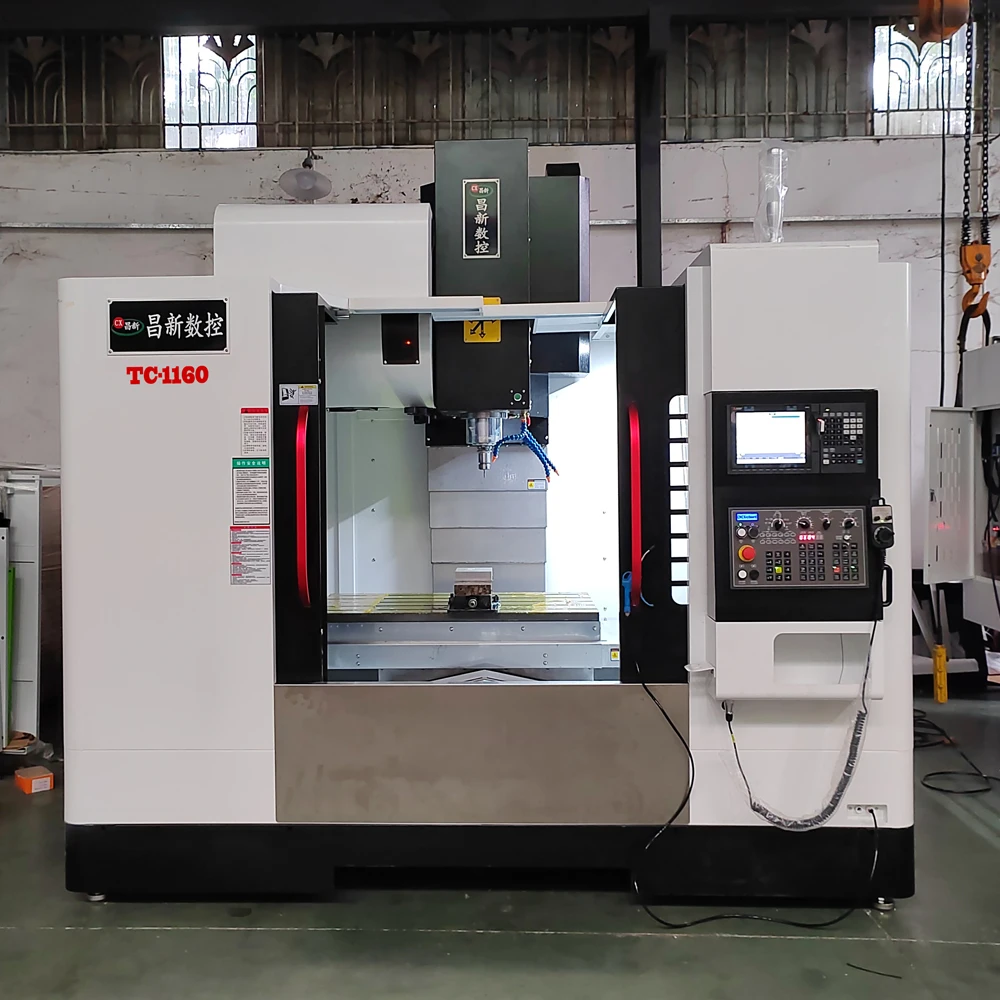

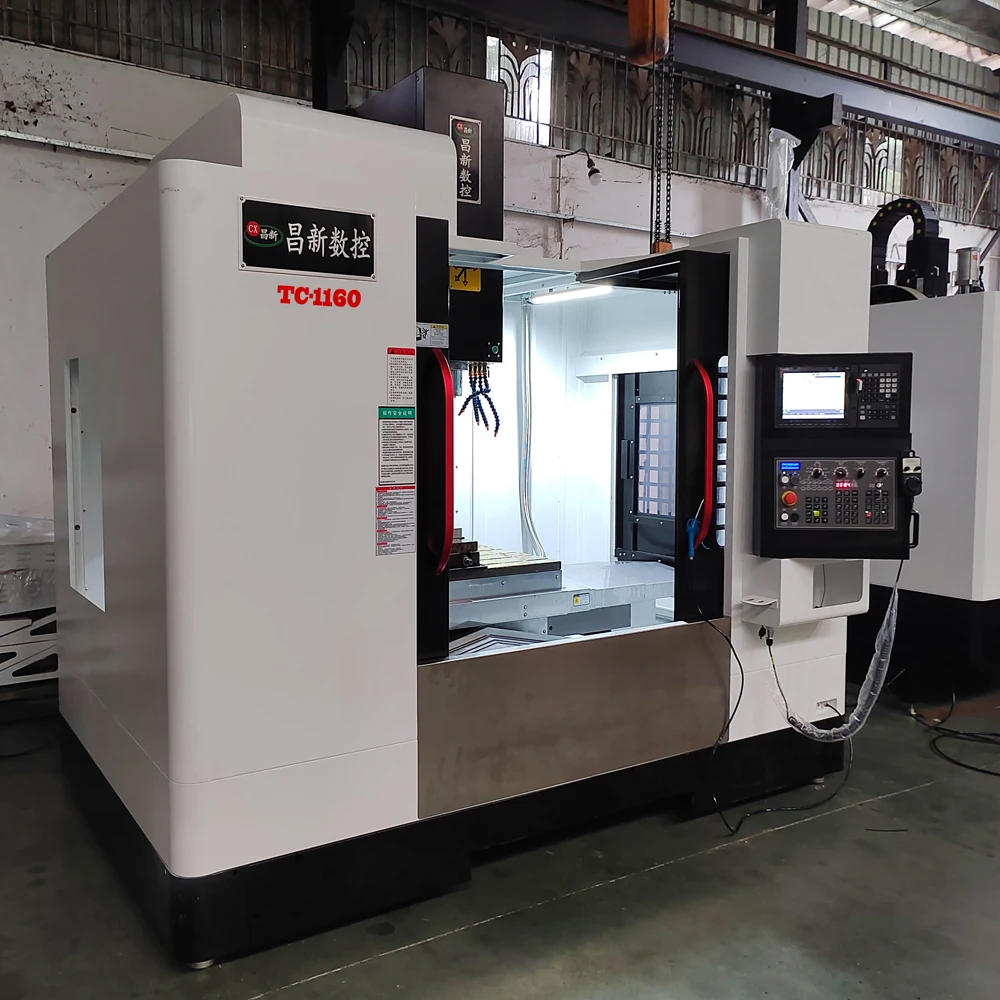

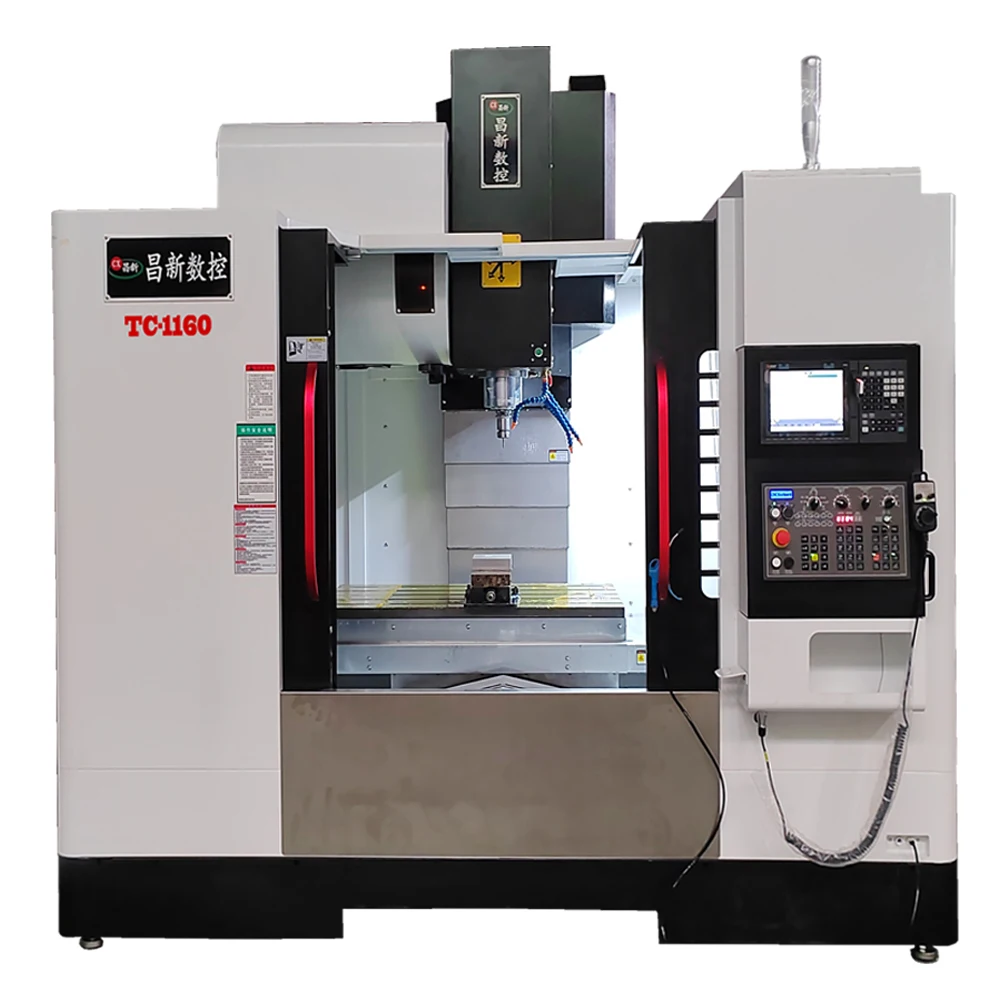

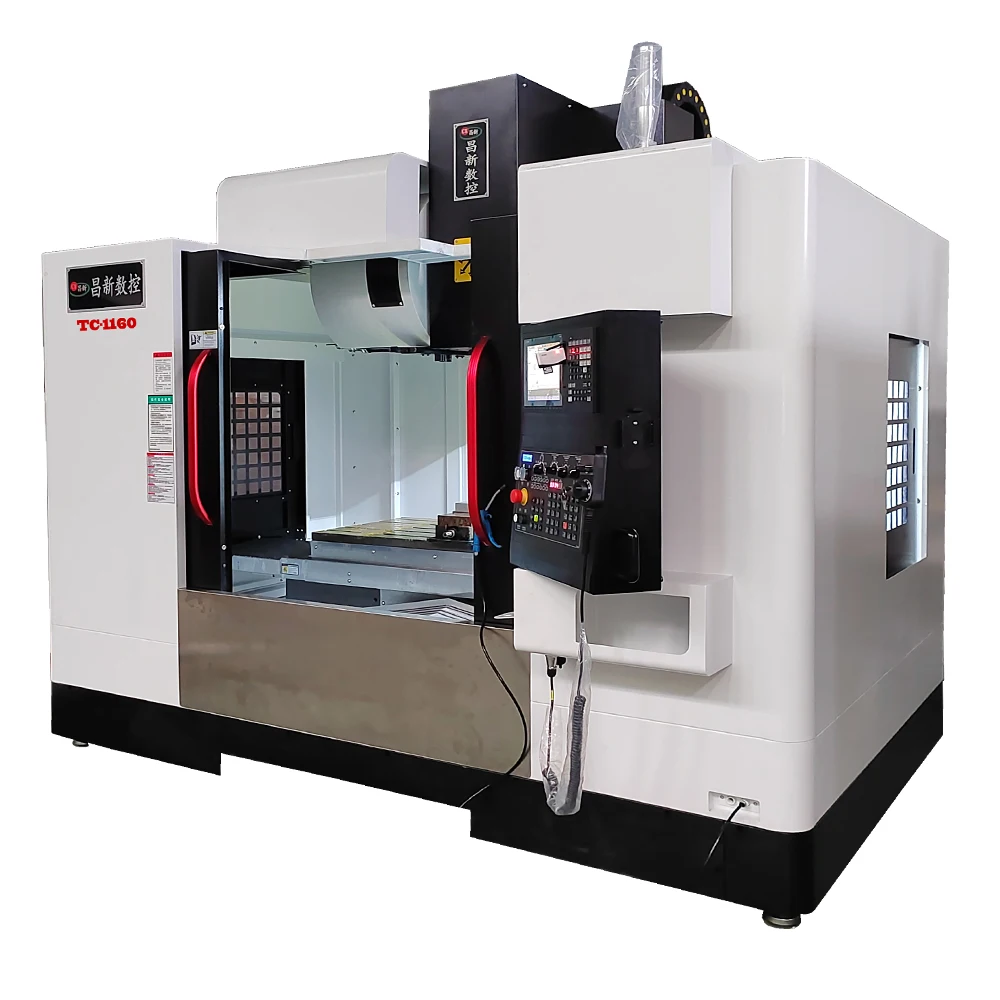

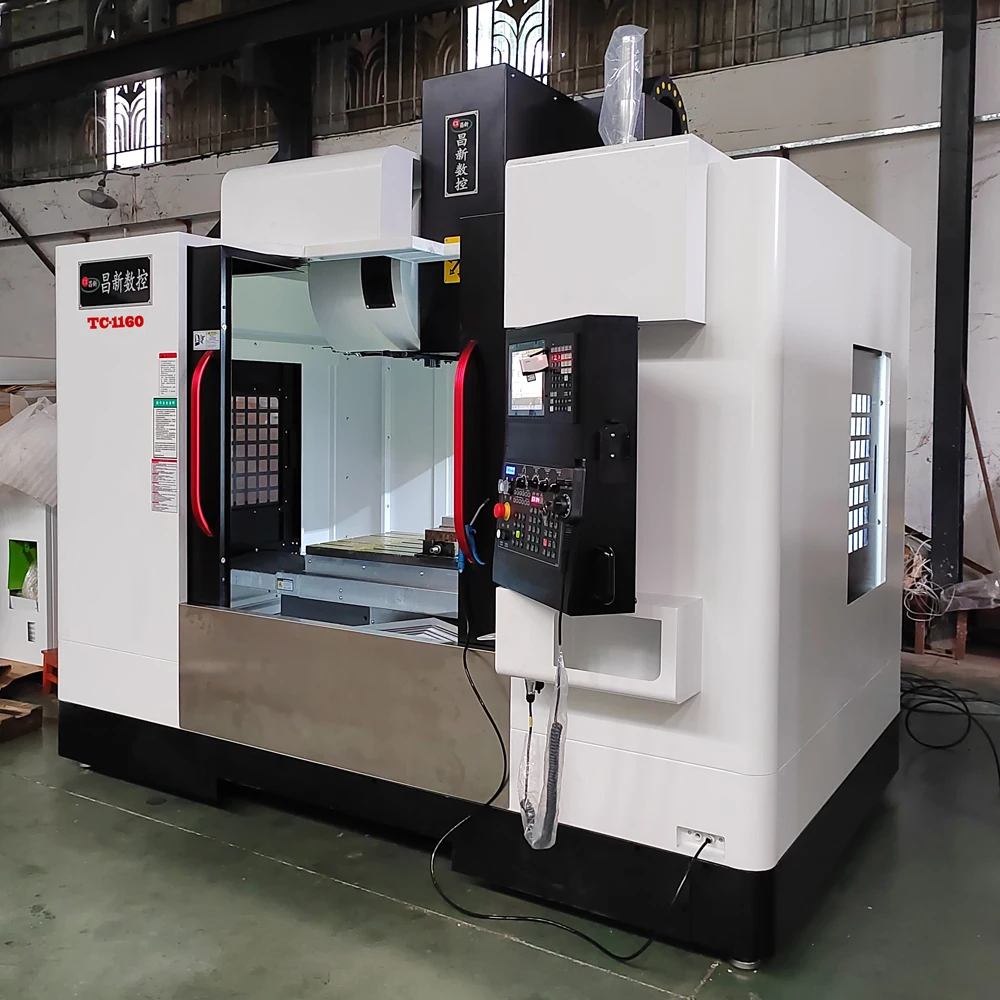

CNC Machine Center TC-1160
Product Description
| System | SIEMENS |
| X,Y,Z axis type | Roller Linear guideway |

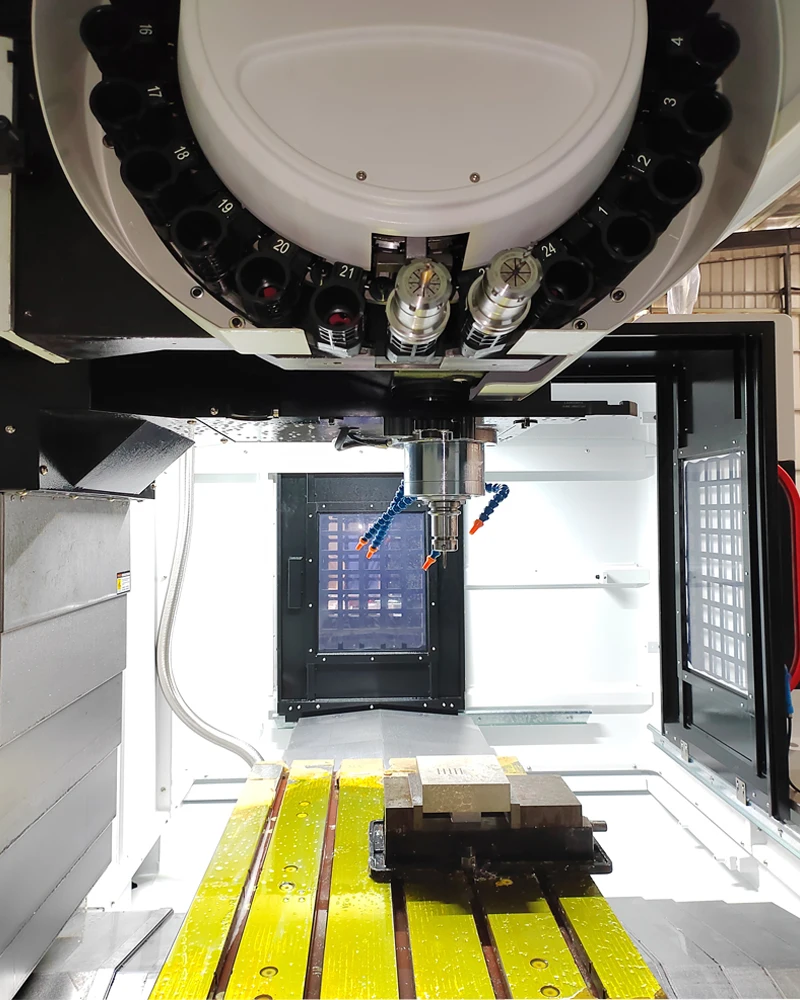

| Tool Magazine Capacity | BT40 tool magazine Tool Number:24 |

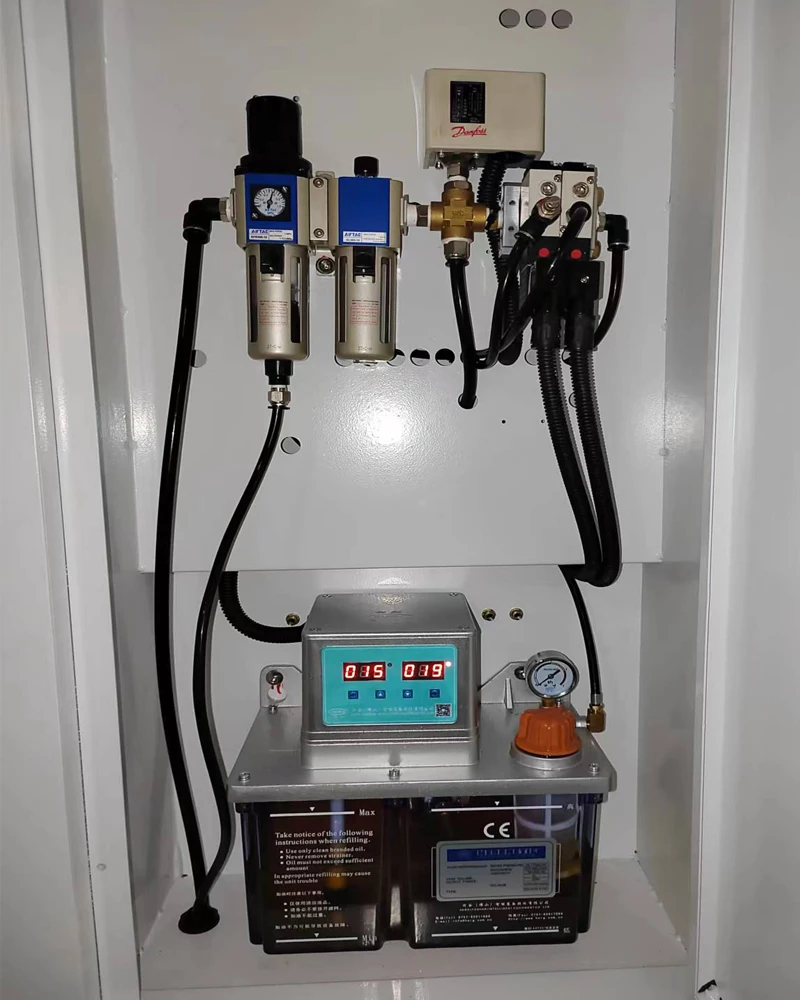

| Linear Guideway Lubrication System | Automatic |
| Machining tool Cooling System | water or oil Cooling |
| X/Y/Z-axis Travel | 1100mm/600mm/600mm |
| Distance from Spindle Nose to Table | 130mm-750mm |
| Distance Spindle Center to Column Guide Rail | 680mm |
| Working Table Size | 1300*600mm |
| Table Max Load | 1100kg |
| T Slot(number-size) | 5*18T*110mm |

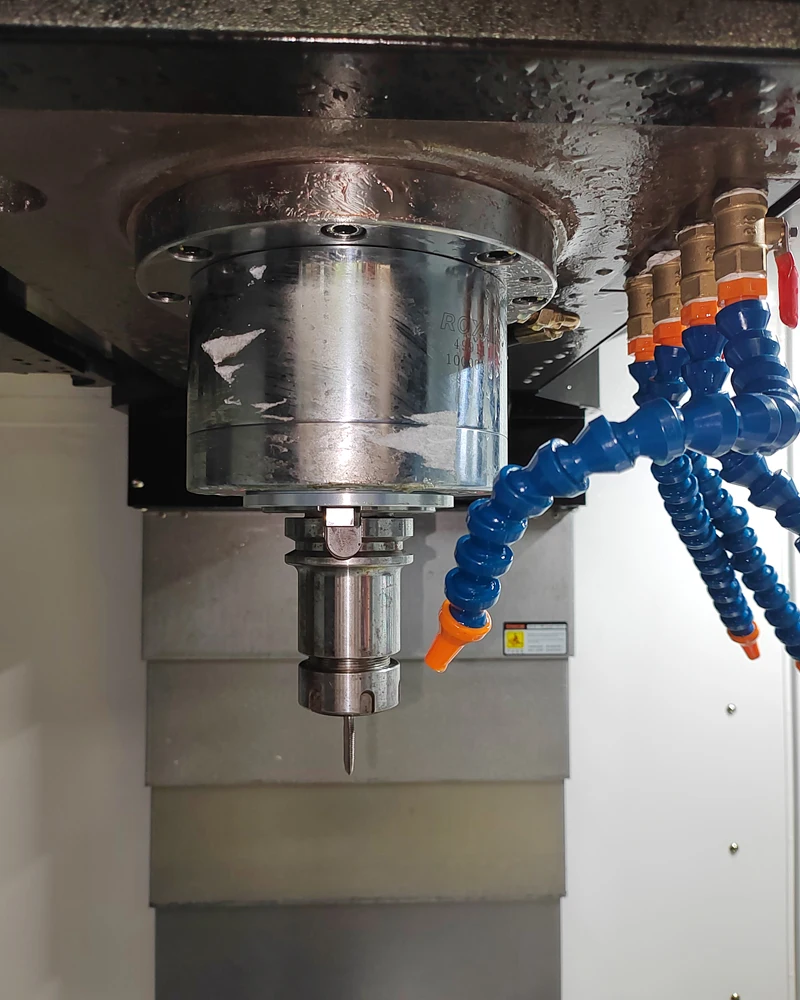

| Spindle Speed | 12000rpm |
| Spindle drive type | Servo direct drive |
| Main Spindle Motor Power | 11kw |
| X/Y/Z-axis Motor Power | 3.0kw/3.0kw/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000/48000/48000mm/min |
| Cutting Speed | 20000mm/min |
| Spinldle Taper | BT40 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Machine Size | 3300*3000*3050mm |
| Machine Weight | 7.2ton |
| Warranty | One Year |
| Main Component Brand: | |
| Machine body | Chansin Iron casting |
| Spindle | Taiwan Waylong/Royal /TD |
| Tool Magazine | Taiwan Okada/Sanjet/Deta |
| Bearing | NSK in Japan or FAG in Germany |
| Lead screw/Guide Rail | Hiwin/PMI in Taiwan |
| Spindle cooling | Oil automatic cooling |
Quality Control
Company information
Our Partners
Certifications
Packaging & Shipping
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Production time
A3: 20 days upon order confirmation
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine. If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. During the first year, if some parts need replacing, we will free provide. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 48 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
