Glass Bottle Carbonated Soda Beverage Wine Filling Machine Soft Energy Drink Making Bottling Line With Aluminum Lid
- Category: >>>
- Supplier: Shanghai Paixie Packing Machinery Co. Ltd.
Share on (1600710896497):
Product Overview
Description
Products Description

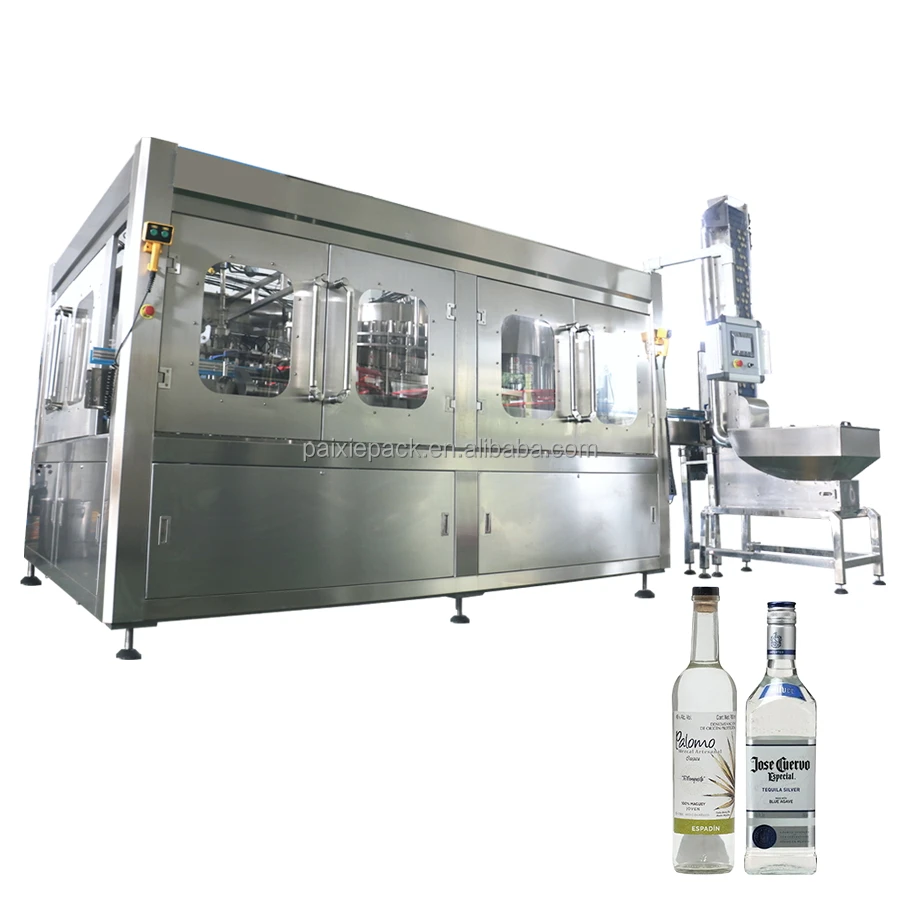

Glass Bottle Carbonated Soda Beverage Wine Filling Machine Soft Energy Drink Making Bottling Line With Aluminum Lid
●Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting
hanging clamping bottleneck way.
●Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the
whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
●Filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
●The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping
head.
hanging clamping bottleneck way.
●Adopting clamping bottleneck way to wash bottle mouth and avoiding touch screw mouth, adopting clamping bottleneck way in the
whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
●Filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
●The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping
head.
Applications
Parameter
Model | PX18-18-6 | PX24-24-8 | PX32-32-8 | ||
Productivity (500ml/H) | 3000-6000 | 6500-8500 | 8500-11000 | ||
Filling temperature (°C) | 5 | 5 | 5 | ||
Filling pressure (MPa) | 0.2-0.35 | 0.2-0.35 | 0.2-0.35 | ||
Power (Kw) | 5 | 6 | 8 | ||
Overall dimension (m) | 2450*1700*2300 | 3300*1900*2300 | 4400*2000*2300 | ||
Weight (kg) | 4000 | 5200 | 6100 | ||
Bottle Type | PET / PE / PP / Glass / Metal | ||||
Bottle Shape | Round / Square / Unique Shape | ||||
Details Images

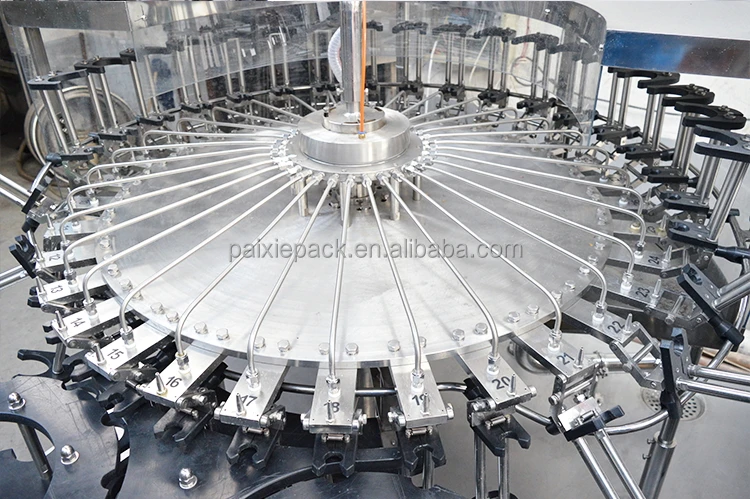

Washing station
1. Enhanced food safety: Stainless steel 304/316L for all components in contact with your beverage
2. Optimum uptime: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4. Hygiene improvement through volume control and contactless filling
2. Optimum uptime: 30 % reduction in changeover and maintenance downtime
3. Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
4. Hygiene improvement through volume control and contactless filling

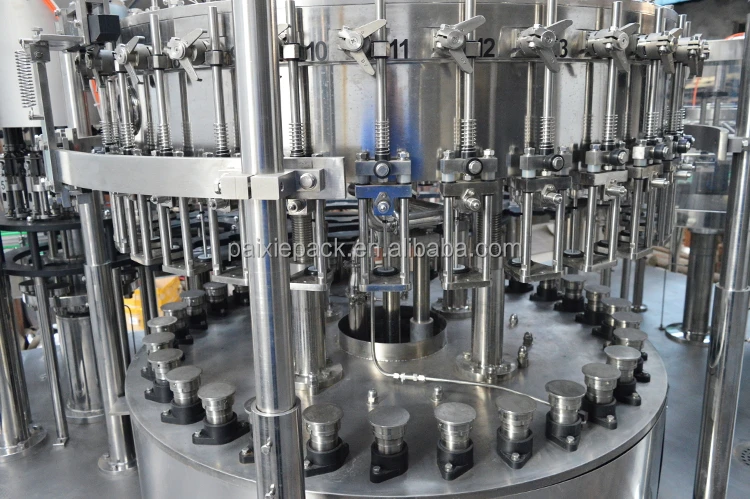

Filling station
1. 304/316 Stainless steel high precision filling nozzle
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
5. Efficient spray nozzle rinse thoroughly and save water for flushing
2. Filling volume adjustable in fine rank, same liquid level after filling
3. All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4. 304/316 stainless steel filling pump
5. Efficient spray nozzle rinse thoroughly and save water for flushing

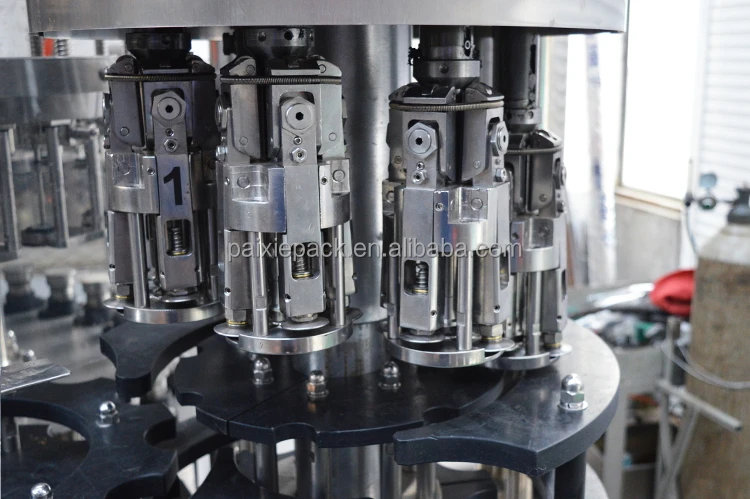

Capping station
1.All parts in contact with liquid are made of high-quality stainless steel materials or food-grade engineering plastics, which
meet the national food hygiene standards.
2.The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle
conveyor chain is not required to change the bottle shape.
meet the national food hygiene standards.
2.The bottle bottom support plate of the bottle output wheel adopts a spiral descending method, and the height of the bottle
conveyor chain is not required to change the bottle shape.
Company Profile
PAIXIE filling line is widely used in the following industries:* Beverage Filling Machine Line (such as water, juice, beer,
liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, Sealing ,vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
liquor, vodka, wine etc.)
* Food Filling Machine Line (such as honey, sauce, oil, chocolate, Sealing ,vinegar etc. )
* Chemical and Pharmaceutical Filling Machine Line (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
* Cosmetics Filling Machine Line (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
