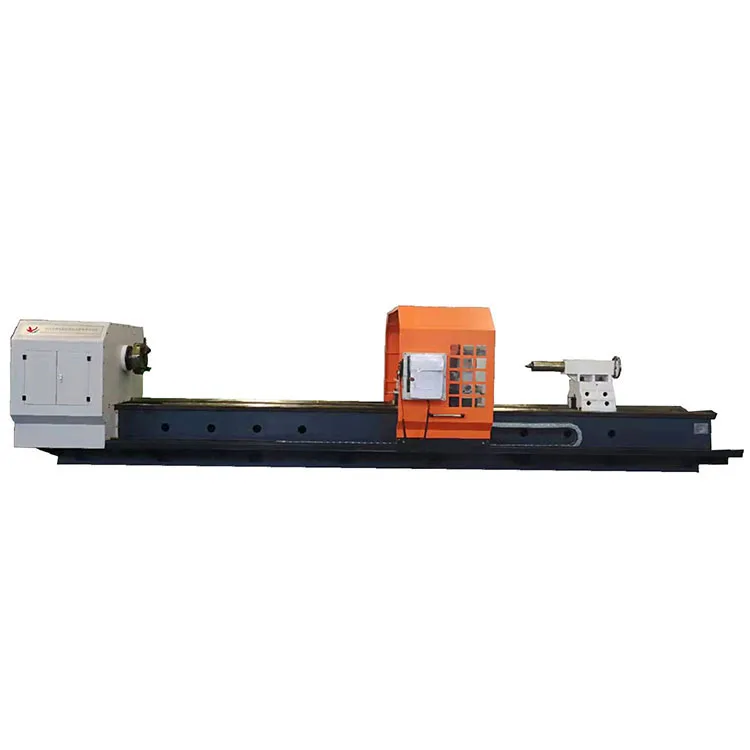

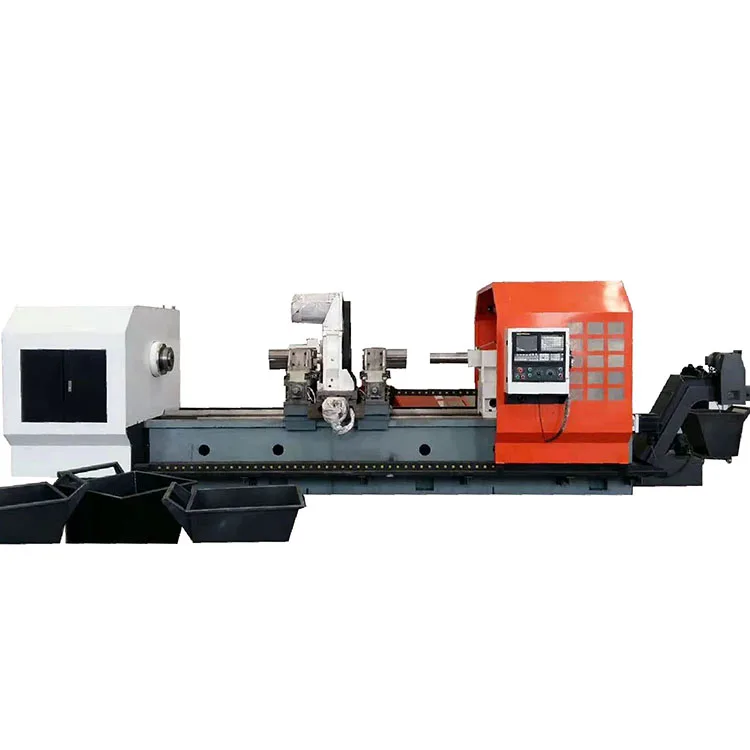

Petroleum pump rotor special numerical control internal and external cyclone milling machine
Petroleum pump rotor special numerical control internal and external cyclone milling machine
Petroleum pump rotor special numerical control internal and external cyclone milling machine
Petroleum pump rotor special numerical control internal and external cyclone milling machine
Petroleum pump rotor special numerical control internal and external cyclone milling machine
Petroleum pump rotor special numerical control internal and external cyclone milling machine

Petroleum pump rotor special numerical control internal and external cyclone milling machine

Share on (1600710909229):


Price:$69,280.00 - $69,500.00

Quantity:


Product Overview

Description



Products Description




Item
NXK220-3000
XK300-3000
XK300×3000-E-I
Max machining length
500mm
750mm
1750mm
Spindle RPM
0-1500 rpm
0-1200 rpm
0-1200 rpm
Chuck size
200mm(8")
250mm(10")
250mm(10")
(can be optional)
(can be optional)
(can be optional)
Indexing accuracy
0.01°
0.01°
0.01°
Positioning accuracy
0.015mm
0.015mm
0.015mm
Repeated accuracy
0.01mm
0.01mm
0.01mm
Whirling head power
4-3KW(110W2)
4-4KW(150W2)
Whirling speed
1000-2000rpm
500-1000rpm
Helical angle range
±10°
±15°
Total power
15kw
16kw
16kw
Machine weight
2600kg
3000kg
3200kg
Machine size
2300x1700x2000
2700x1800x2000
3200x1800x2000
NXK220-3000
NXK250-3000
NXK300-3000
NXK350-3000
1250mm
1750mm
2700mm
3700mm
0-800 rpm
0-800 rpm
0-800 rpm
0-800 rpm
320mm(12")
320mm(12")
320mm(12")
320mm(12")
(can be optional)
(can be optional)
(can be optional)
(can be optional)
o.o1°
0.01°
0.01°
0.01°
0.015mm
0.015mm
0.015mm
0.015mm
0.01mm
0.01mm
0.01mm
0.01mm
4-5.5KW(175W2)
4-7.5KW(245W2)
400-700rpm
300-500rpm
±15°
±20°
20kw
22kw
25kw
26kw
3800kg
4400kg
5000kg
5000kg
3700x2000x2200
4400x2000x2200
5200x2000x2200
5200x2000x2200
Remarks:The machine will be customzied as per customers' requirements

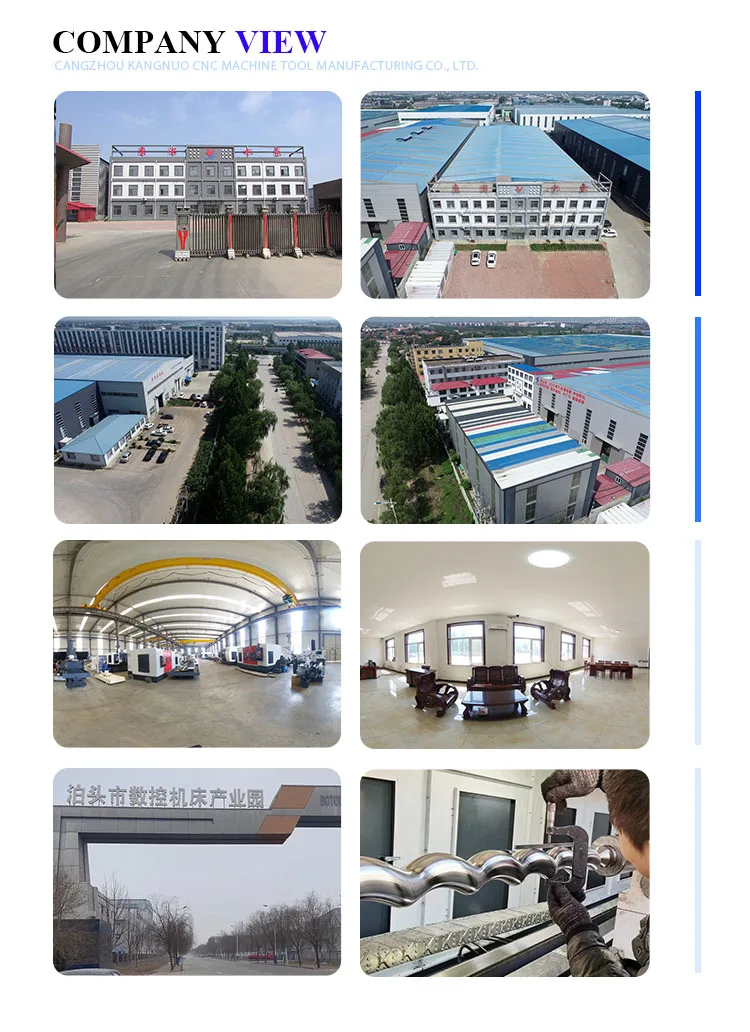

Company Profile

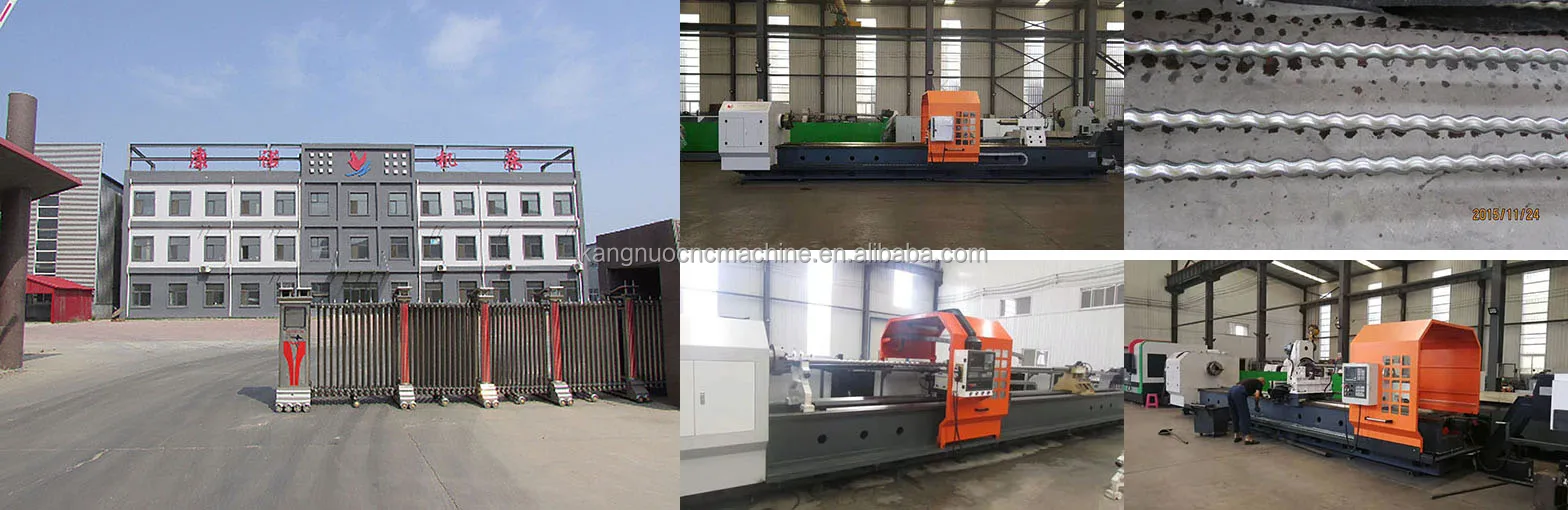

Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd.
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province,The company set r & D, design, production, sales, service in one, has a high-quality staff. The company's main products are: CNCscrew milling machine, vacuum pump screw special CNC spiral rotor milling machine, CNC screw turning and milling compound machinetool, CNC gantry grinder, CNC worm grinder, Special cnc spiral screw compressor rotor milling machine, CNC internal thread millingmachine CNC spiral rotor grinder, CNC whirlwind milling machine, cnc milling machine, various types of semi-finishing convexcontour shape of the camshaft, and can realize automatic clamping, cutting all. in addition our company also producesmulti-station CNC machine tool, mainly used in the pump body, valve body and machining of class multistep, a clamping, Cancomplete a number of end face, flange, drilling and other processes of processing. High processing efficiency, can effectively
save production costs, improve processing efficiency. Kangnuo machine stable performance, high technology content, and a number of well-known enterprises to maintain long-termcooperation. We can also make various special machine tools according to user requirements, welcome foreign customers to negotiatecooperation.




1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine,Turning Milling Machines .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
