5MP 8 channel Cctv Camera System Nvr Human Detection Night Vision Hd Cctv Camera Security Video Kit
- Category: >>>
- Supplier: Shenzhen Techage Technology Corp. Ltd
Share on (1600711006993):
Product Overview
Description
Product Description
Features:
1. Our New 5MP POE Camera System.
8CH Set: 8CH POE NVR + 8 Cameras / 8CH POE NVR + 6 Cameras / 8CH POE NVR + 4 Cameras / 8CH POE NVR + 4 Cameras for Optional
No HDD / 1TB / 2TB / 3TB / 4TB/ 6TB / 8TB HDD for Optional.
1. Our New 5MP POE Camera System.
8 Channel NVR Design, Support To Connect Up To 8pcs Cameras, You Can Buy Techage POE IP Cameras To Expand Your CCTV System.
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.
3. Newest AI Cameras Support Face Detection.
4. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
5. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
Package Including:
1 x H.265 8CH POE NVR
6 x 5MP POE IP Cameras
6 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x User Manual
2 x Warning Sticker (gift)
6 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
NO HDD / 1TB/ 2TB/ 3TB HDD for Optional
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.
3. Newest AI Cameras Support Face Detection.
4. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
5. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
Package Including:
1 x H.265 8CH POE NVR
6 x 5MP POE IP Cameras
6 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x User Manual
2 x Warning Sticker (gift)
6 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
NO HDD / 1TB/ 2TB/ 3TB HDD for Optional
8CH Set: 8CH POE NVR + 8 Cameras / 8CH POE NVR + 6 Cameras / 8CH POE NVR + 4 Cameras / 8CH POE NVR + 4 Cameras for Optional
No HDD / 1TB / 2TB / 3TB / 4TB/ 6TB / 8TB HDD for Optional.

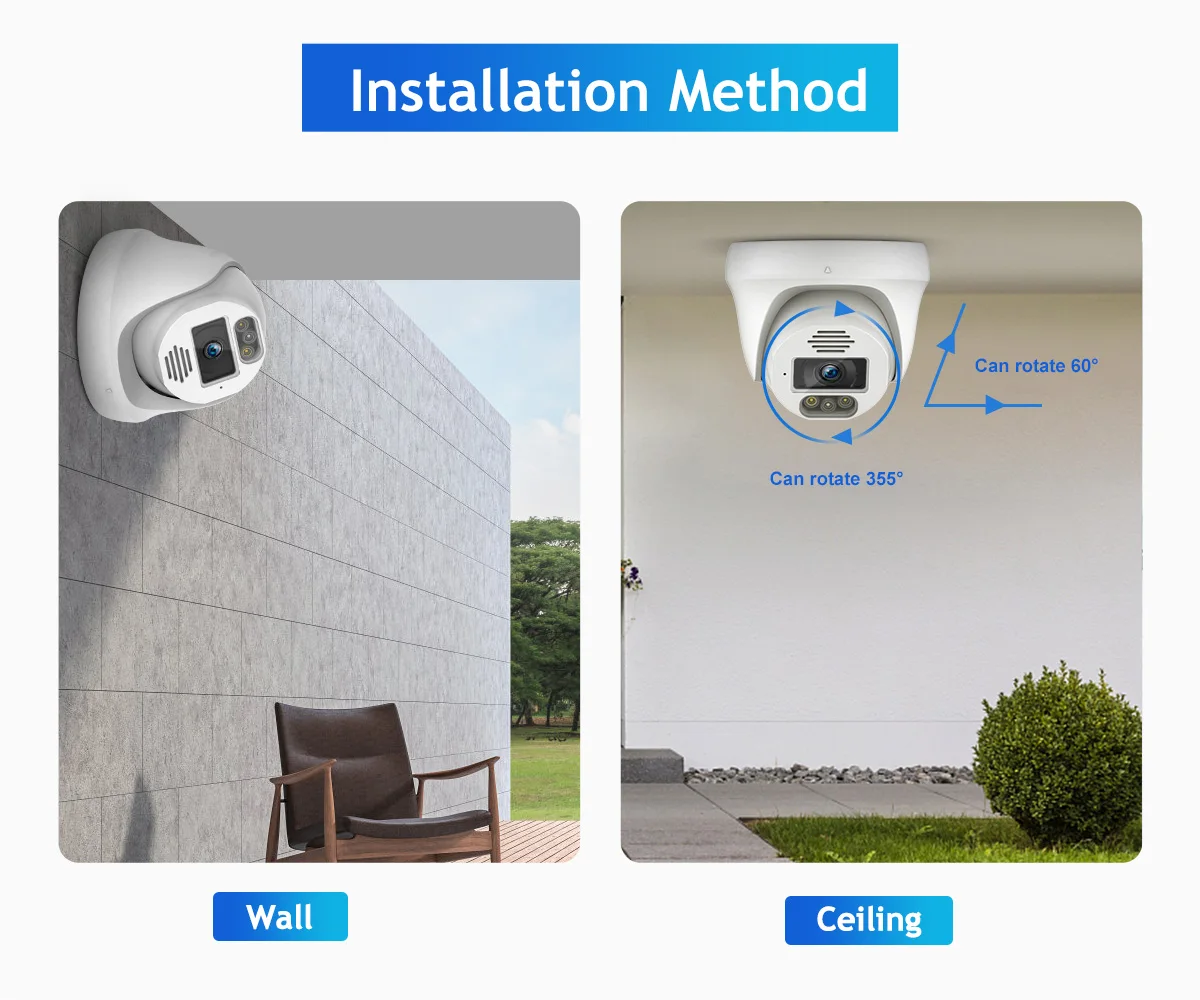

Two Install Methods
Support 5MP HD Display
Show Higher-Quality Images, With Better Experience.
AI Humen Detection & Email Alert & Alarm Sound
When motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
When motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Camera Built in Microphone And Speaker Support Two-Way Audio
This home security camera system lets you listen in and talk back through the built in speaker and microphone that work directly through your iPhone or Android Mic. Enjoy the convenient communication when you're resting or busying.
This home security camera system lets you listen in and talk back through the built in speaker and microphone that work directly through your iPhone or Android Mic. Enjoy the convenient communication when you're resting or busying.
Smart IR-Cut Full Color Night Vision
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark;
Night activating Color once detecting movement.
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark;
Night activating Color once detecting movement.
IP66 Weatherproof Security Camera
Our Camera All Can Suit For Both Outdoor And Indoor Usage.
Our Camera All Can Suit For Both Outdoor And Indoor Usage.

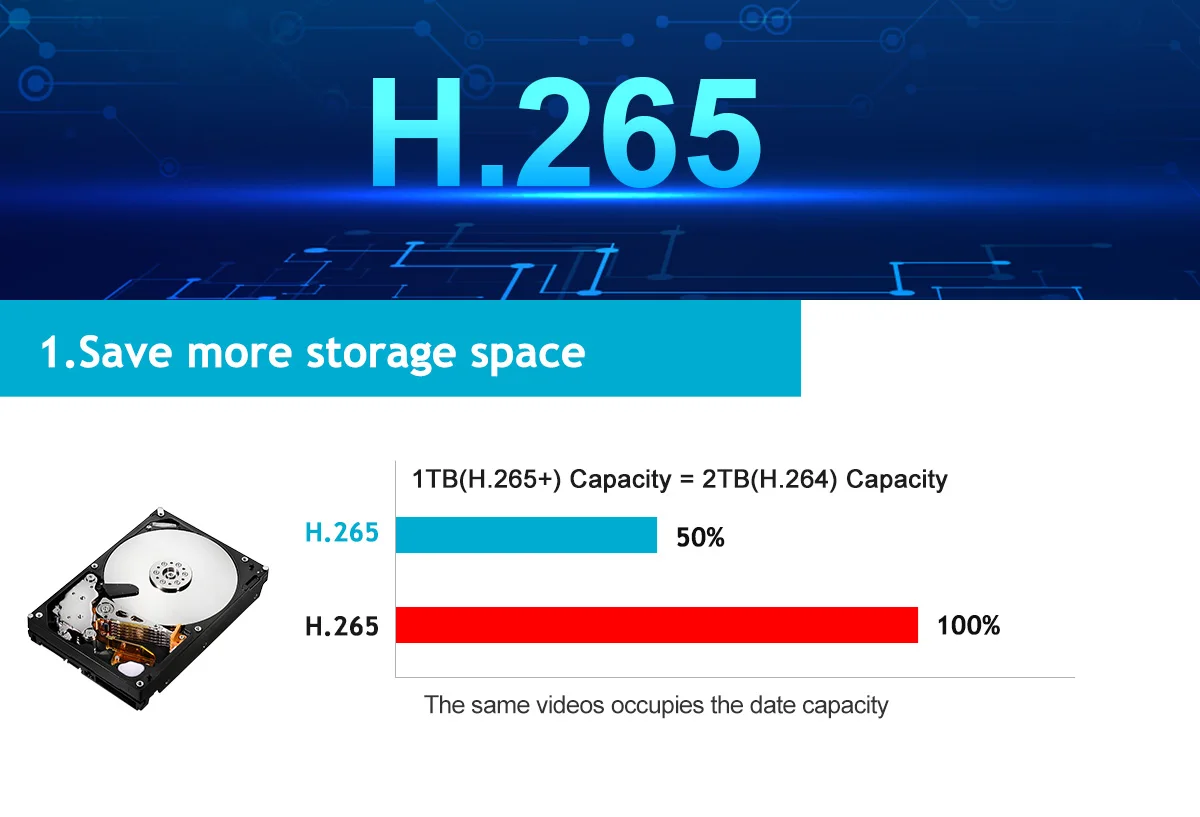

Save Your HDD Storage Space And Reduce Your Purchase Cost
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.

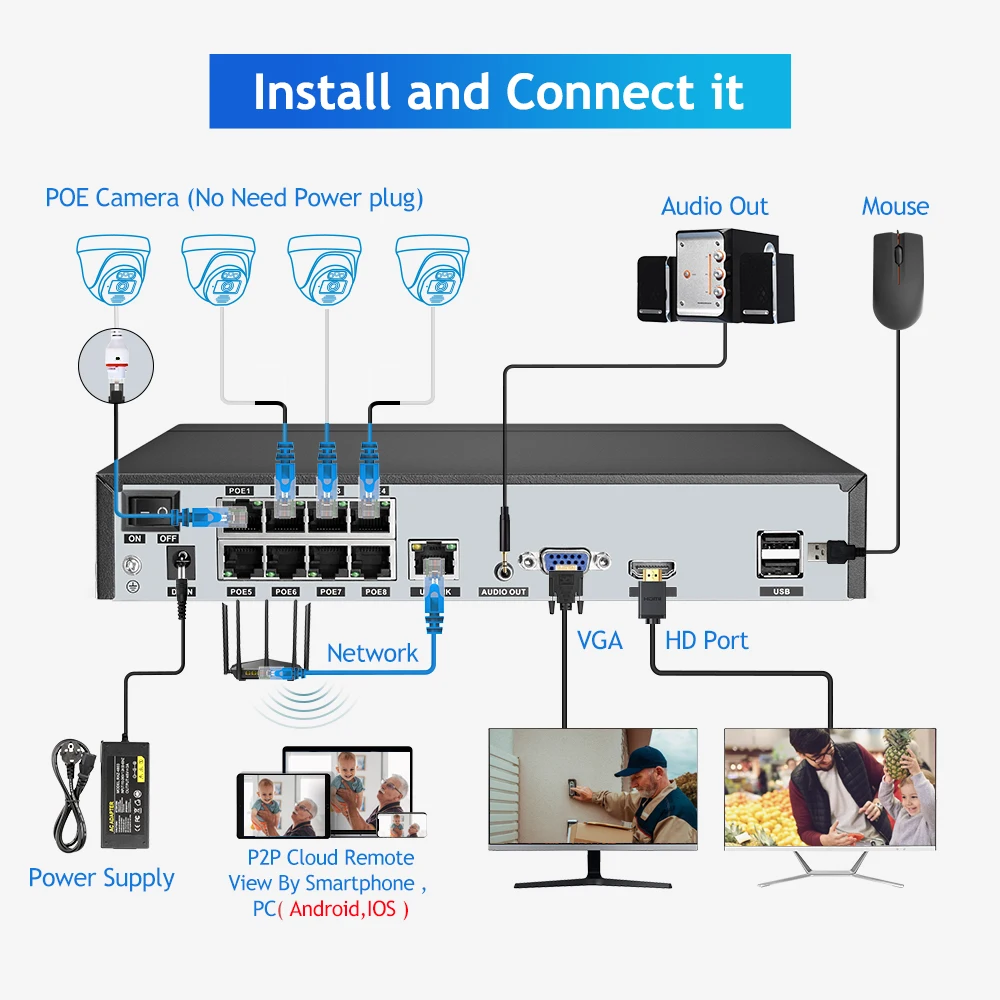

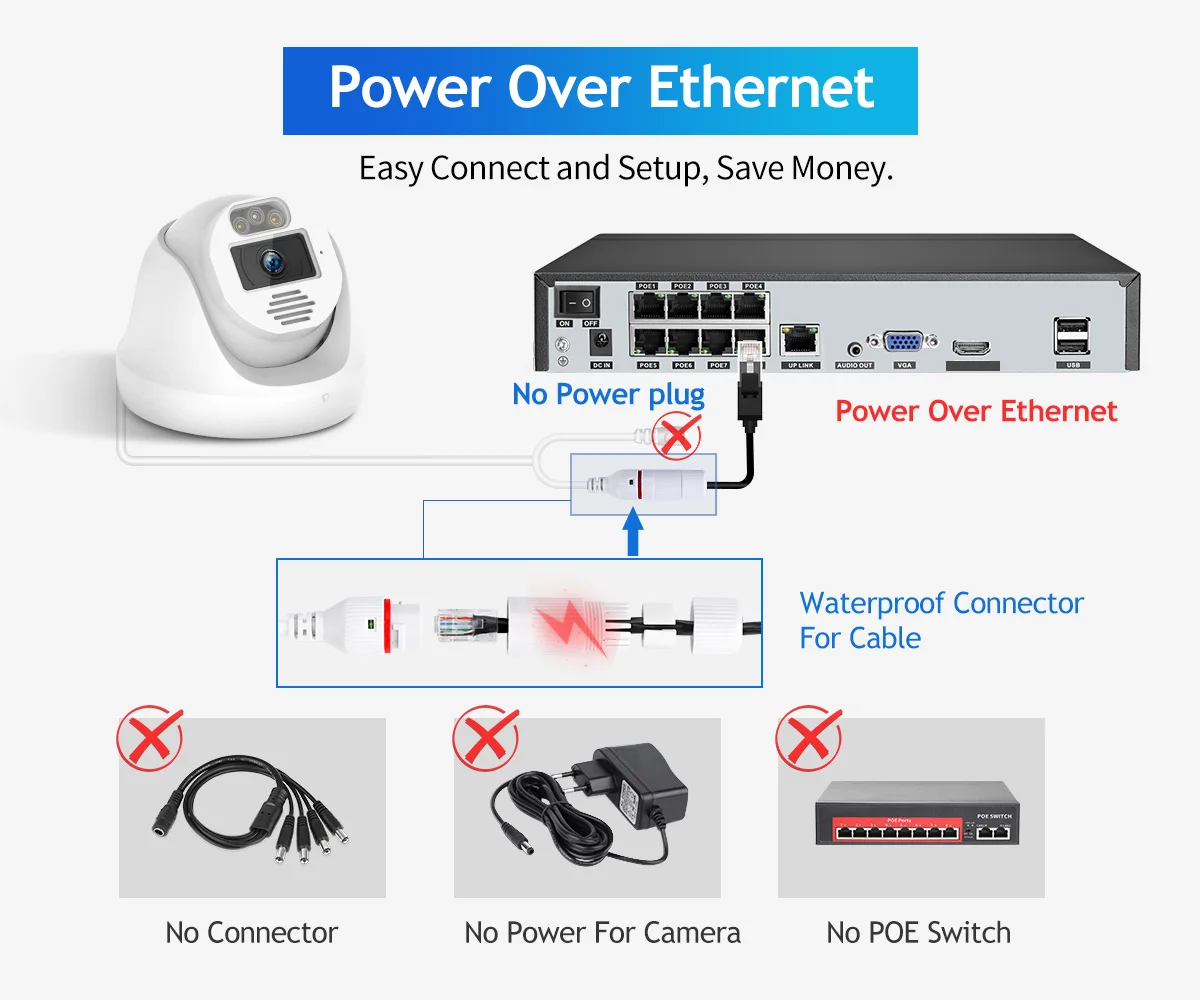

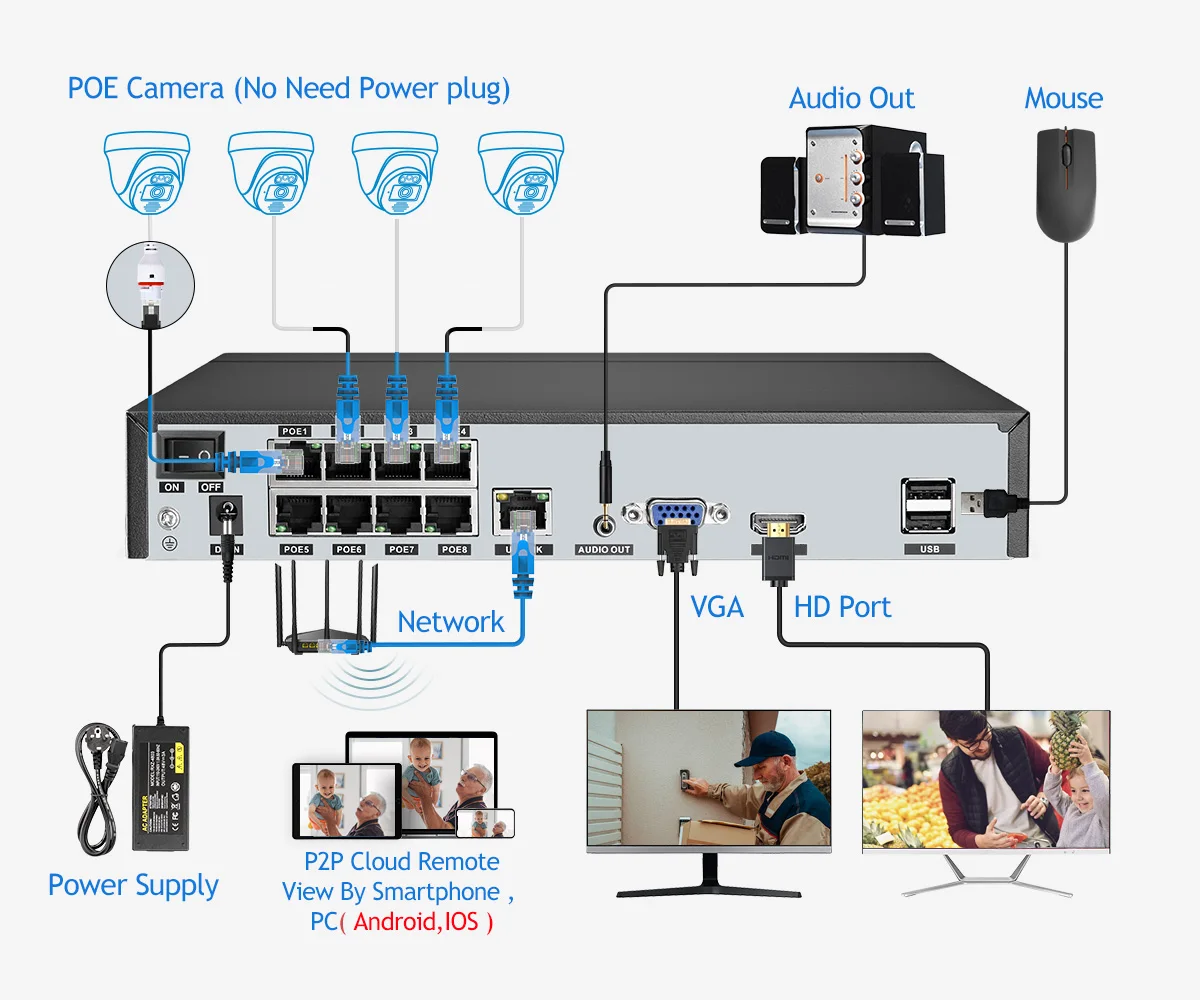

POE Advantage, Why Choose POE ?
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch

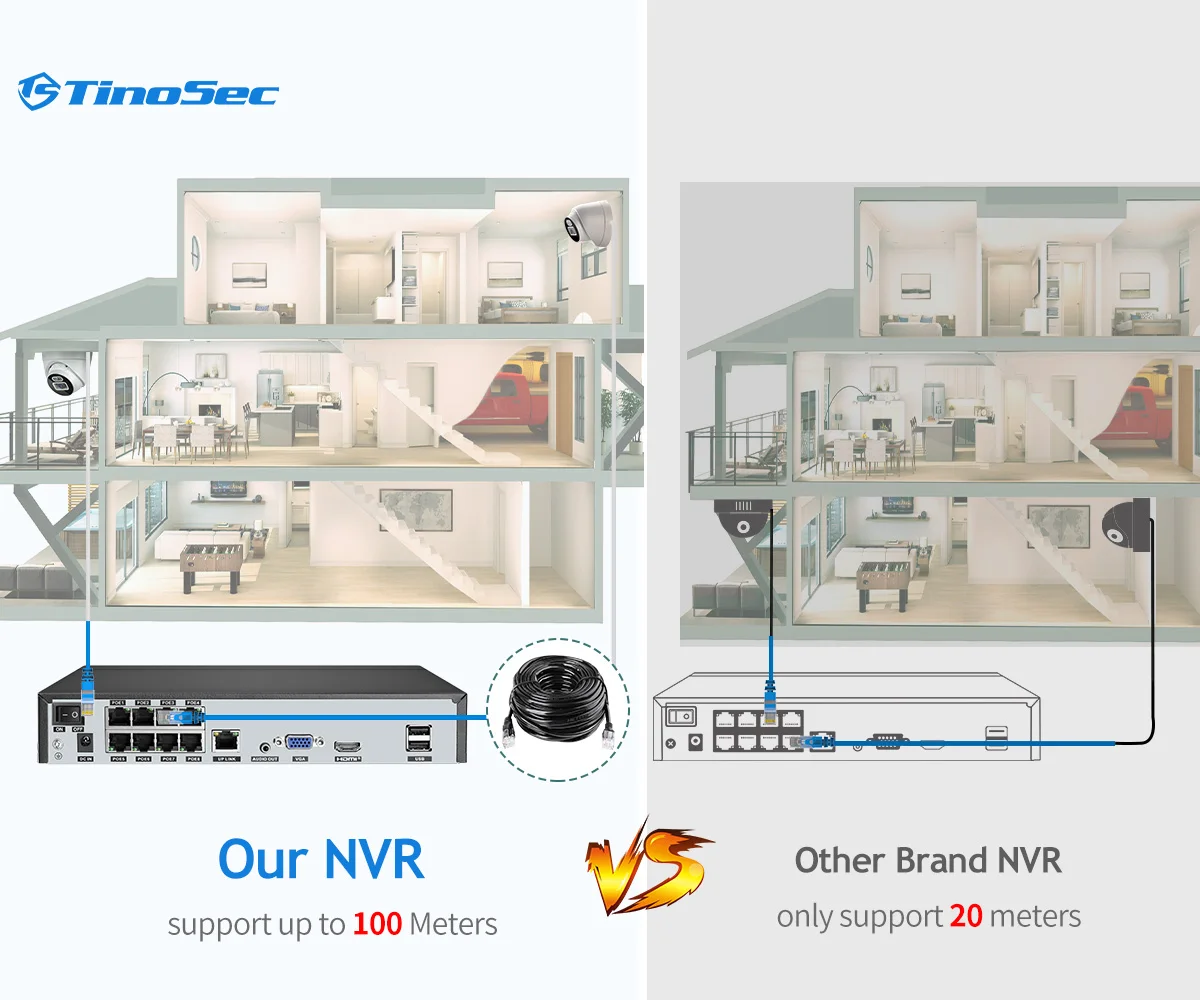

Max Support 100 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.
Which Greatly Increases Home Installation Convenience.

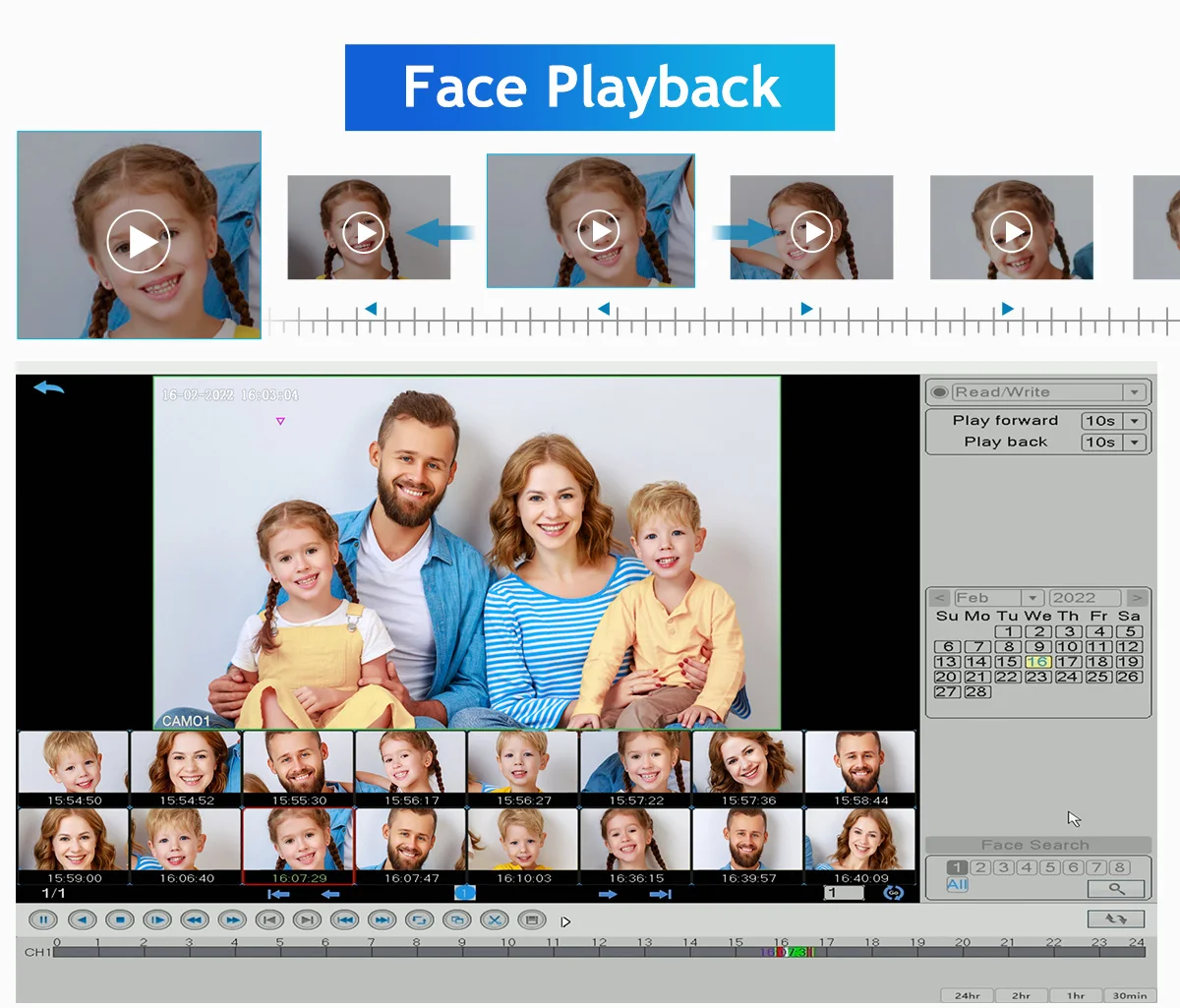

Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.

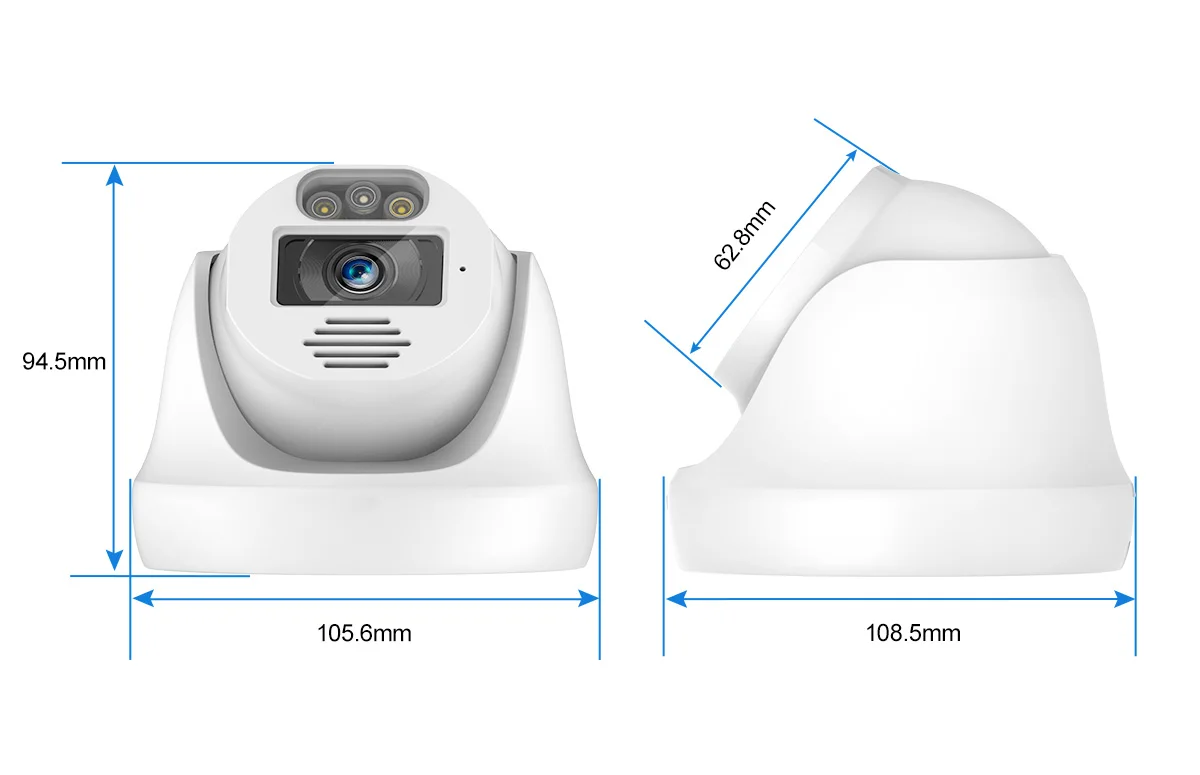

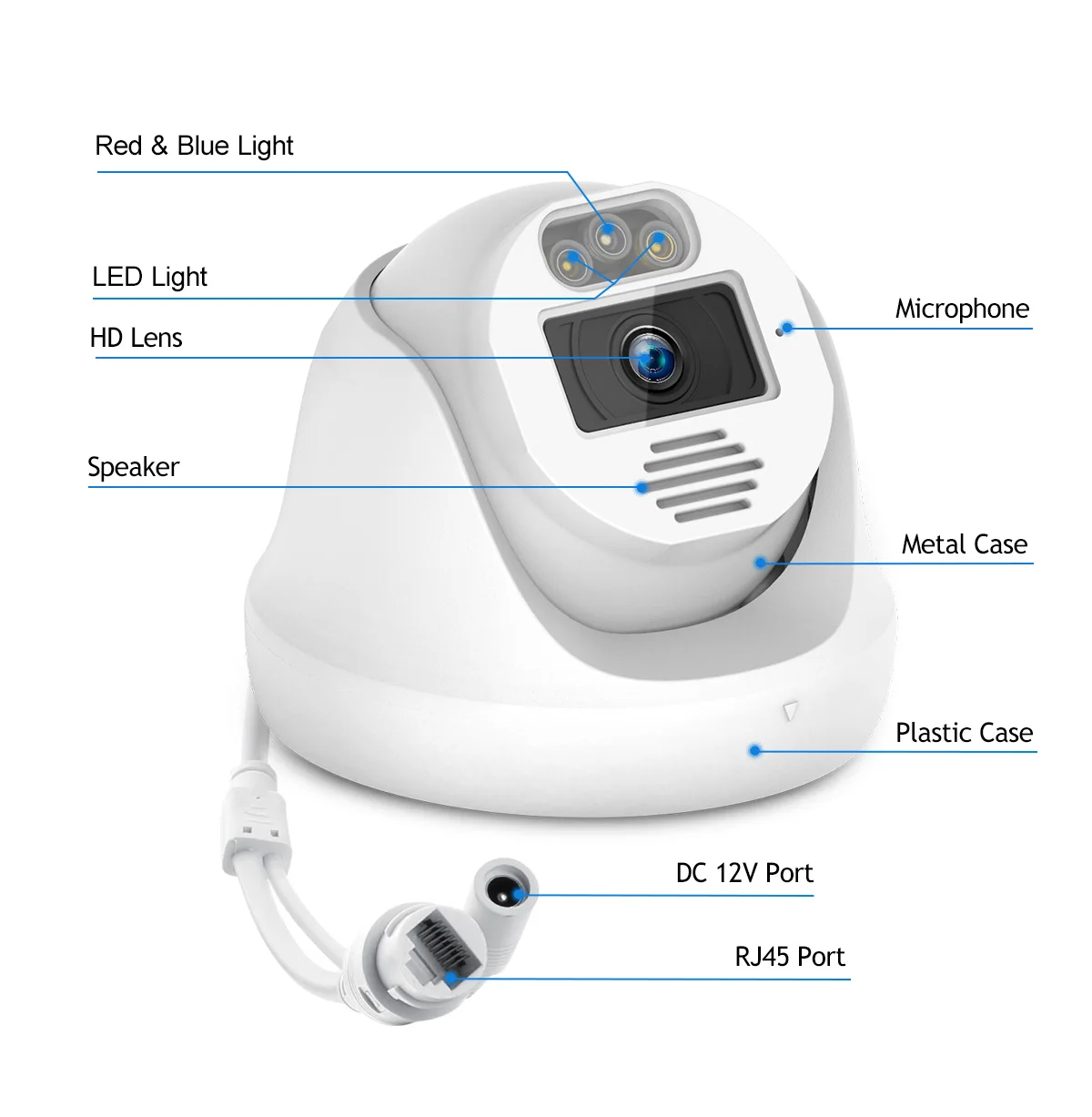

Details Images
Specification
Model | Model Type: | POE Camera |
Model No. | XM-DM27SP-AI-50G | |
System | System structure | Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog |
Video | Sensor | 8 million black light CMOS sensor SC8239; colour 0.0001Lux@F1.2 , black and white 0.0001Lux@F1.2 |
Video processing | H.265AI encoding, double stream,AVI format; | |
Image output | main stream: 8M 3840*2160@15fps；5M 2880*1616@25fps；4M 2560*1440@25fps；3MP 2304*1296@25fps；2MP 1920*1080@25fps；Substream: 800*448@25fps | |
Shutter | 1/50(1/60)to 1/10000 of a second | |
Noise reduction | 2 d / 3 d noise reduction | |
Wide dynamic | Digital-wide dynamic | |
Lens | 3.6mm hd lens | |
Night vision | IR-CUT，Infrared night vision, color filter automatically switch | |
light distance | Infrared 15m ，white light 10m(2 infrared light,2 white light) | |
Audio | Audio processing | G.711A，two way audio |
Audio interface | -33dB high sensitive mic, 8 Ω 1W horn | |
Network | Network interface | One RJ45 Ethernet port,10/100M auto-sensing |
Alarm | Human detection, Motion detection, Smart AI alarm, Face detection | |
Red and blue alarm warning light | ||
APP push, voice alarm, video recording, capture pictures | ||
Video | Video mode | Timing video, event video |
Playback mode | Event playback, time playback | |
Other | Reliability | Comprehensive lightning protection，7*24 hours 65℃ high temperature test is stable and reliable |
ONVIF | support | |
Cell phone monitoring | Mobile phone monitoring (iOS, Android) | |
power | POE/12V | |
Material | Metal Housing | |
Work environment | Temperature | -20℃ to +55℃ |
Humidity | 30% to 80% RH |
System | Main processor | Hi3536E |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*4K（Access bandwidth 72Mbps） |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Localpayback(real-time+ Un real-time) | 4K（1*real-time）/5M（1+1）/4M（2+1）/ 3M（3+1）/1080P（5+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 0/1（3.5MM audio output） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 12V/2A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
