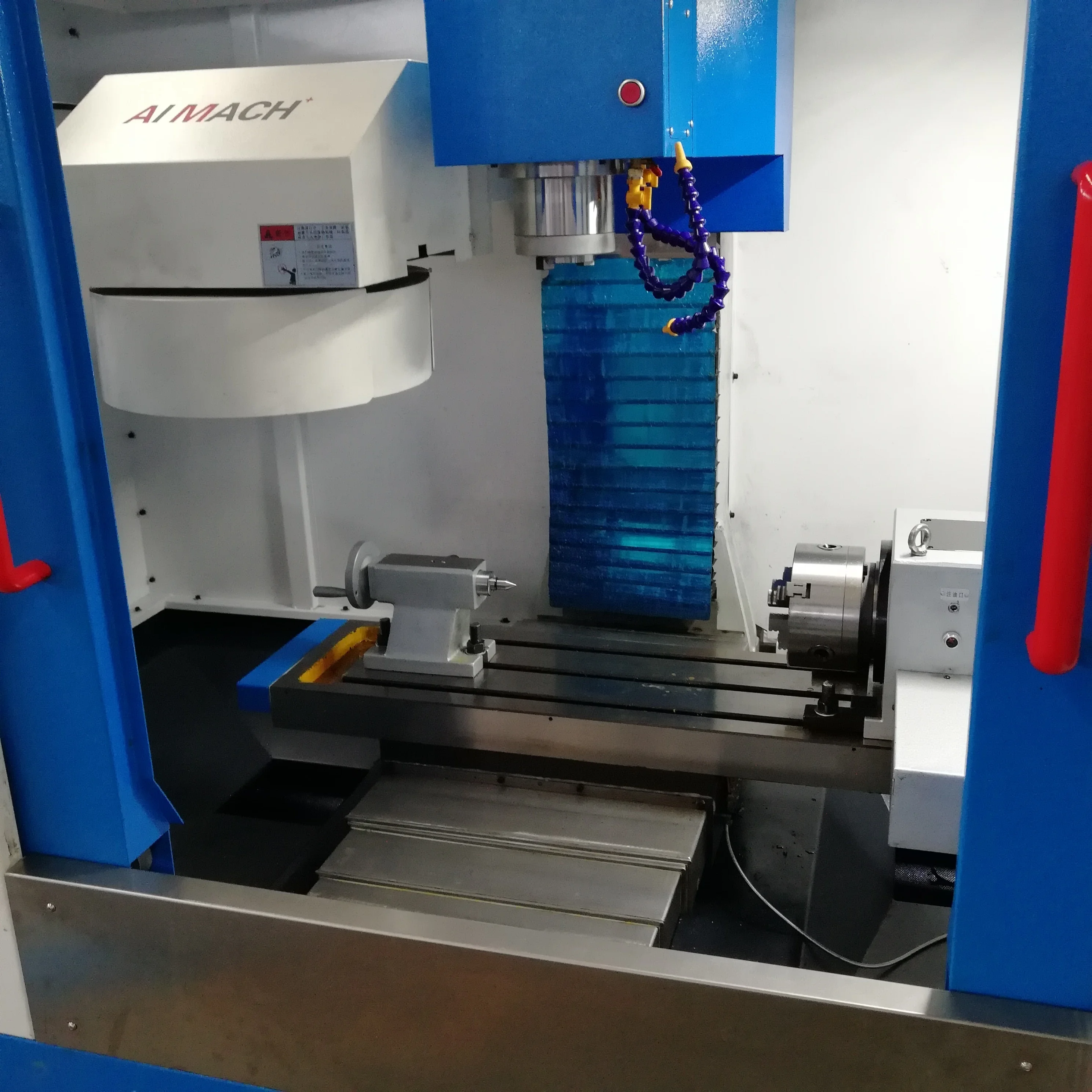

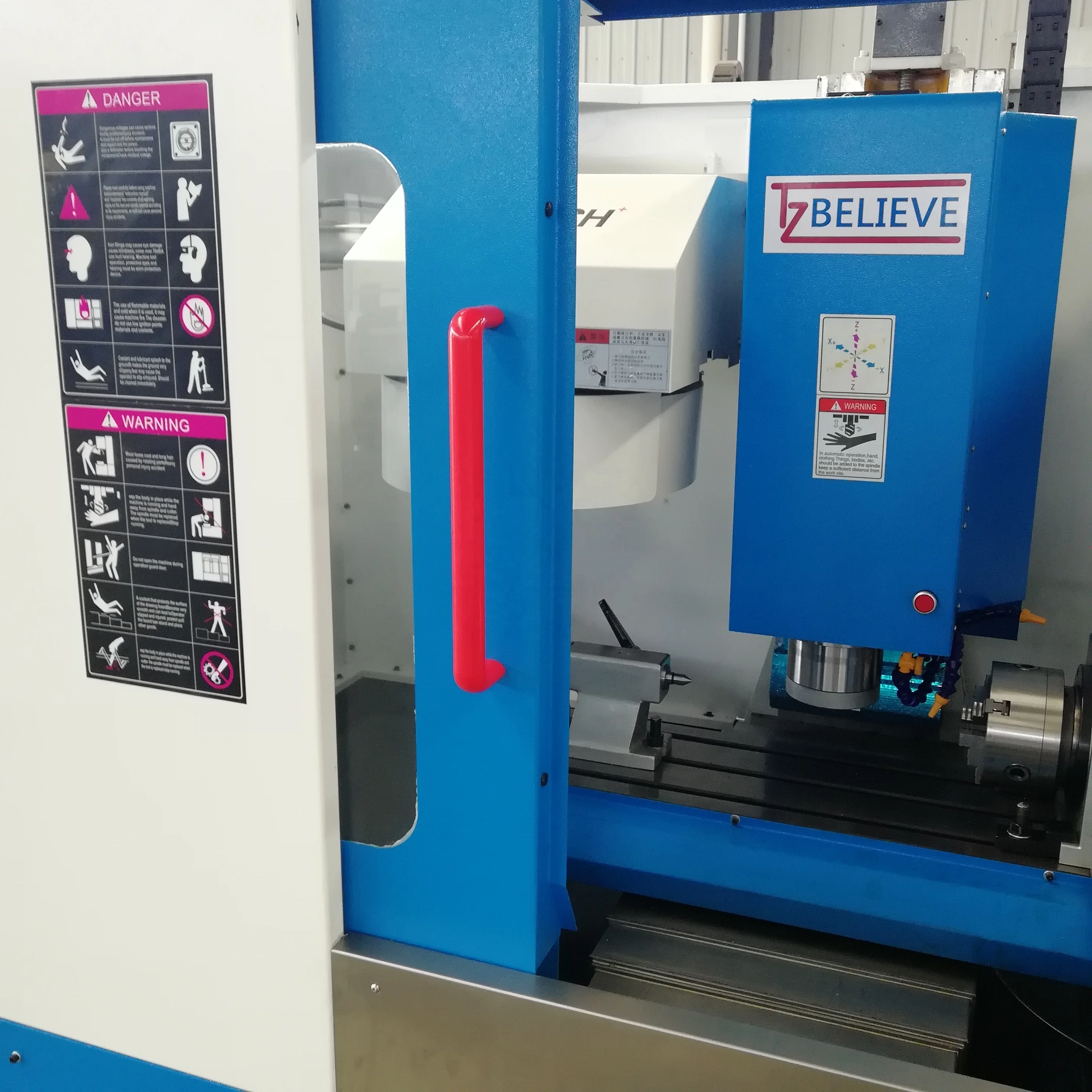

HOT sell milling cnc 4 axis machine ZX7130 cnc milling machine
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600711040967):
Product Overview
Description
1. 3.7KW servo Spindle
2. Taiwan HIWIN Ballscrew
3. GSK980MDI CNC system
4. Air power change tools

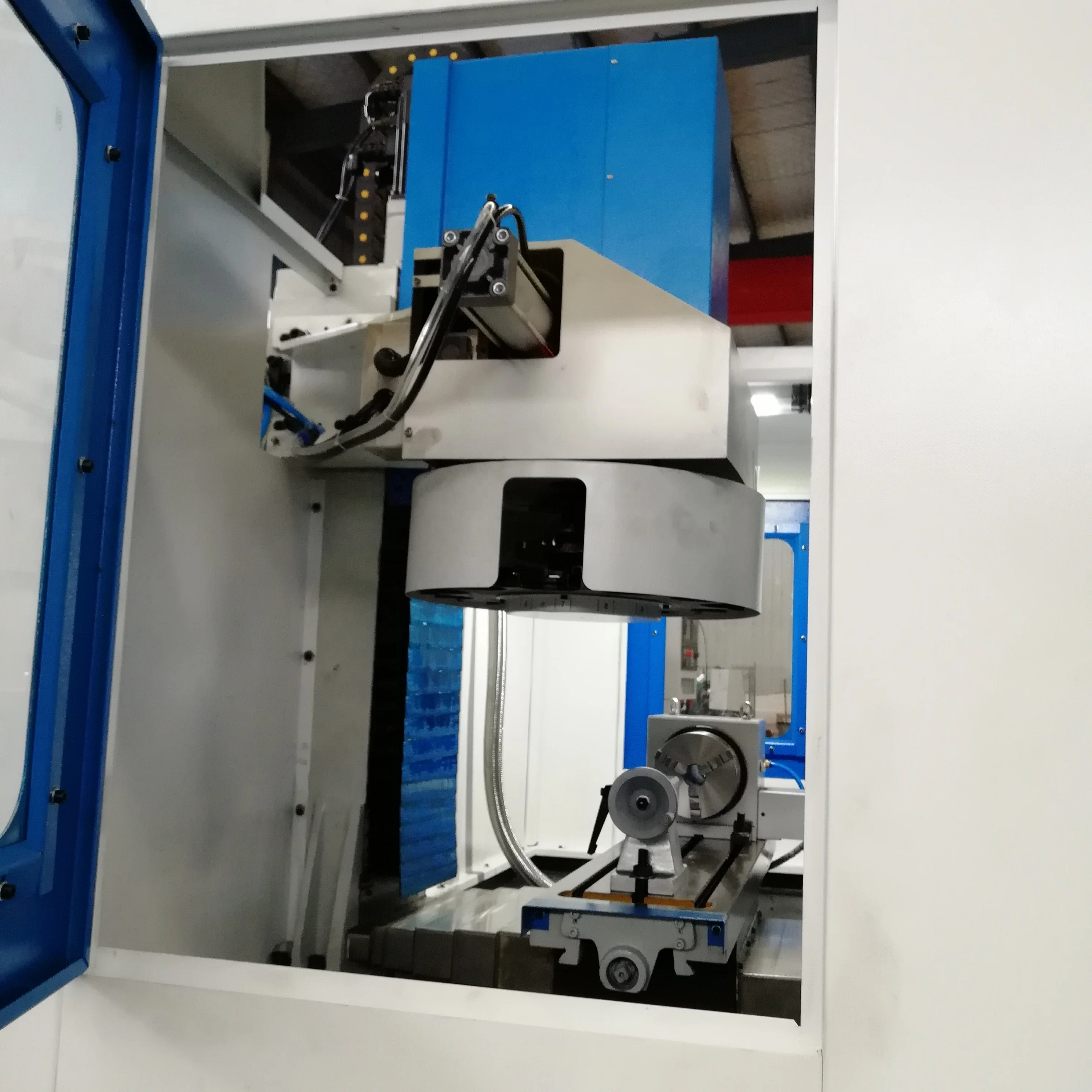

5. 12T tool changer magazine
6. Full cover

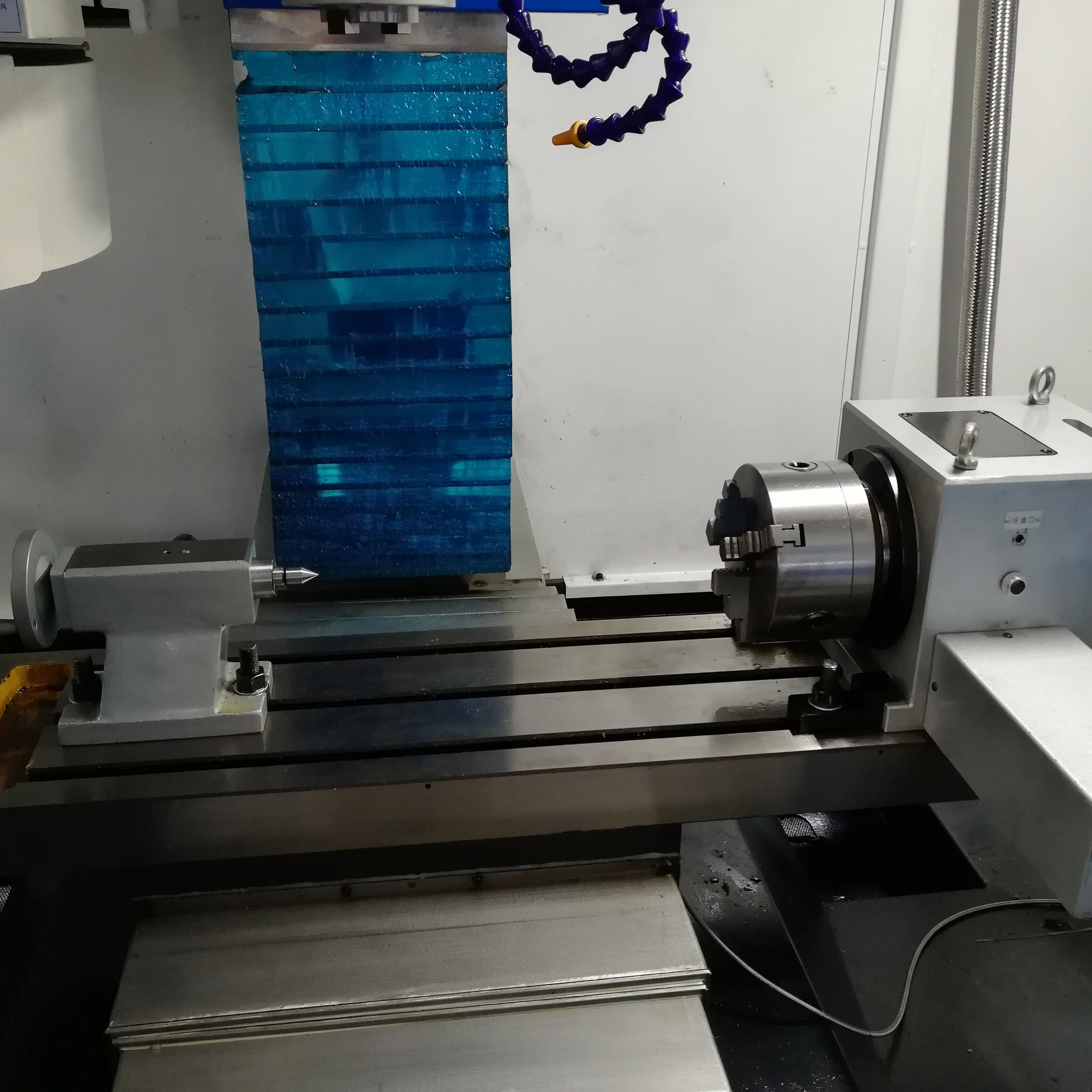

7. Come with 4th cnc dividing head 125mm
Specification | Unit | ZX7130-4TH |
Table size | mm | 1200x260 |
T-slots (No./width/pitch) | mm | 3x18x60 |
Longitudinal travel | mm | 700 |
Cross travel | mm | 340 |
Vertical travel | mm | 460 |
Distance between spindle and table surface | mm | 50-510 |
Table rapid feed speed(X) | mm/min | 8000 |
Table rapid feed speed(Y) | mm/min | 8000 |
Rapid feed speed(Z) | mm/min | 6000 |
Spindle hole taper | --- | BT40 |
Magazine capacity |
| 12 |
Magazine type |
| Hat type |
Max.tool diameter | mm | 80 |
Max.tool length | mm | 300 |
Max.tool weight | kg | 7 |
Main motor power | KW | 3.7 |
Spindle speed range | rpm | 20-6000 |
Positioning accuracy (300mm) | mm | ±0.008 |
Repeatability accuracy (300mm) | mm | ±0.005 |
Torque of X/Y/Z axis AC servo motor | N.m | 6/6/8 |
Packing size | mm | 2600x2050X2200 |
Net weight | kg | 1900 |
Standard accessories list:
1 Cutting cooling system
2 Automatic lubrication system
3 Air group device
4 Working lights
5 Electric manual
6 User manual
7 Special customized electromagnetic working table
8 12T ATC
9.125mm 4th axis
