New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe
New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe

New Factory supply no aging by heat plastic virgin PTFE extruded sleeving /tube fluoroplastic clear pipe

Share on (1600711114889):


Price:

Quantity:


Product Overview

Description







Products Description




Product Paramenters


TECHNIQUE INDEX FOR CERAMIC ROLLER
Characteristics
 Item
VA95
VA96
VA97
VA98/VA98T
VA99/VA99T
Physical Properties
Bulk Density (g/cm3)
2.3-2.5
2.5-2.7
2.7-2.8
2.7-2.9
2.8-3.0
Normal Temp.Bending Strength(Mpa)
45-55
50-60
50-55
60-70
70-80
Water Absorption(%)
8.0-10.0
6.0-9.0
5.0-8.0
4.0-7.0
3.0-6.0
Thermal Shock Resistance
Good
Good
Good
Very Good
Excellent
Thermal Expansion Conductivity (×10-6 X K-1 0-1000℃)
5.6
6.0
6.0
6.2
6.7
Max. Working temperature(℃)
1200
1300
1350
1350
1400
Intenerate Temp.Under Loading(℃)(0.2Mpa)
1520
1560
1580
1590
1610
Refractoriness℃
1700
1750
1800
1830
1850
Composition
AL2O3+ZrO2(%)
74-78
75-80
76-81
77-83
78-85
To directly replace roller, Dont need lower the temperature
Notice:
1.The above data are verfied from testing samples in the lab.,for reference only in practical use.
2.The max. working temp. of the roller is depend on specification and size,distance of bearing point,cental distance,load and
loading breadth in the kiln.
3.The max.working temp. is commendatory in the lab..The practical working temp. is lower 40-60℃ that the max.working temp..
4. VA95/VA96 is for pre-heating zone, cooling zone and wall tile kiln.
    VA98T/VA99T is for fast cooling zone and Transition zone.
    VA97/VA98 is for firing zone replace after lowering kiln temperature.
    VA99 is for firing zone replace without lowering kiln temperature.

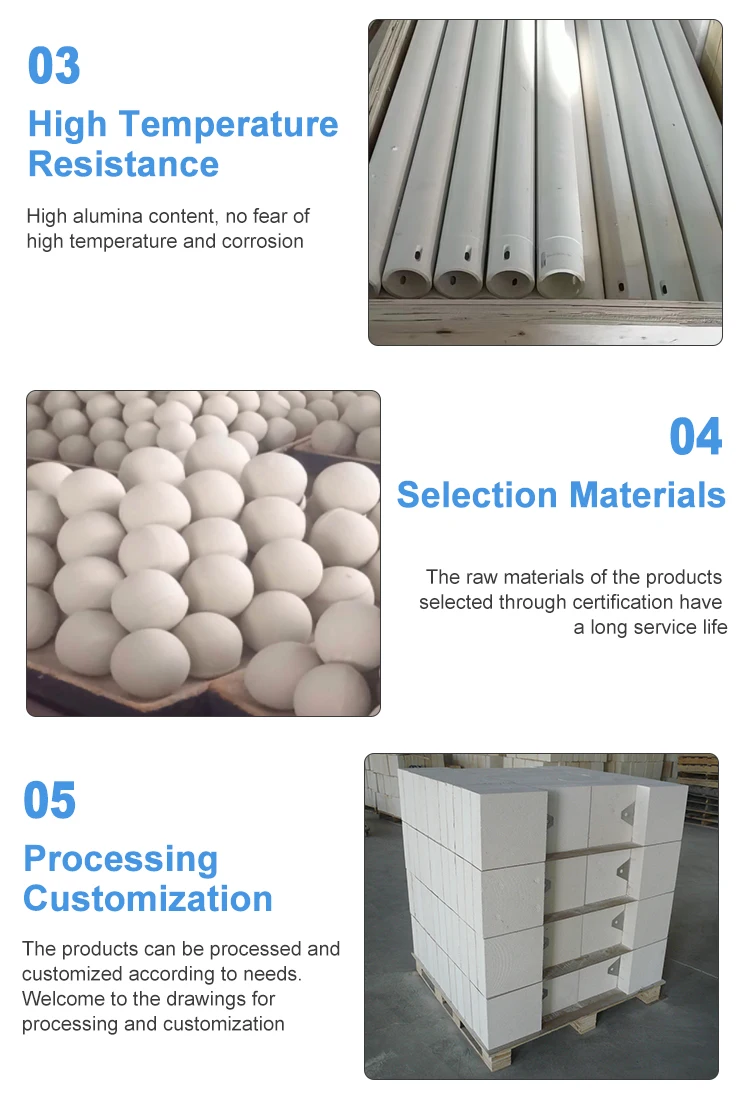

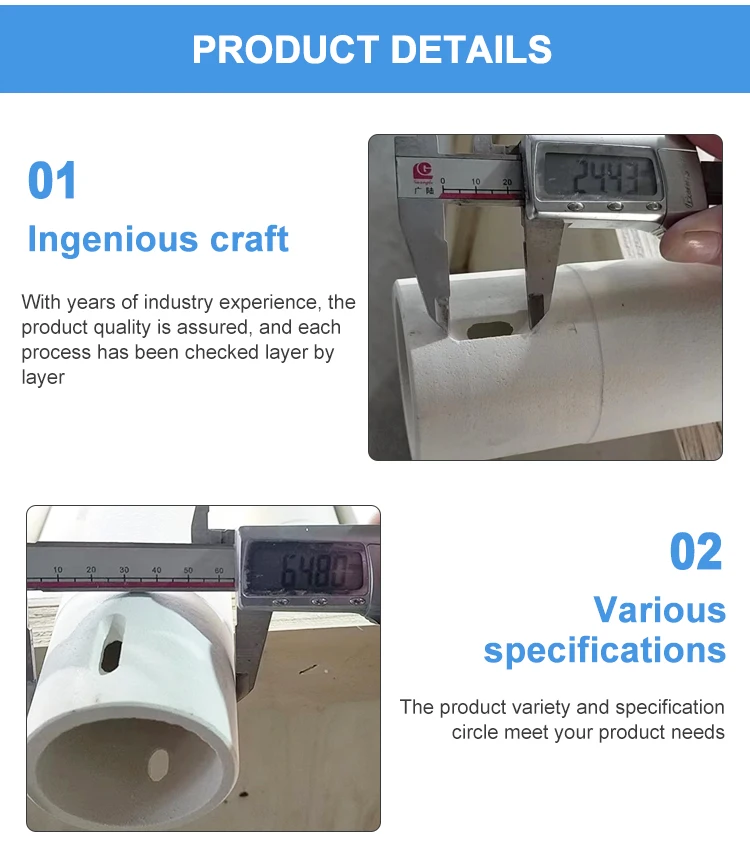

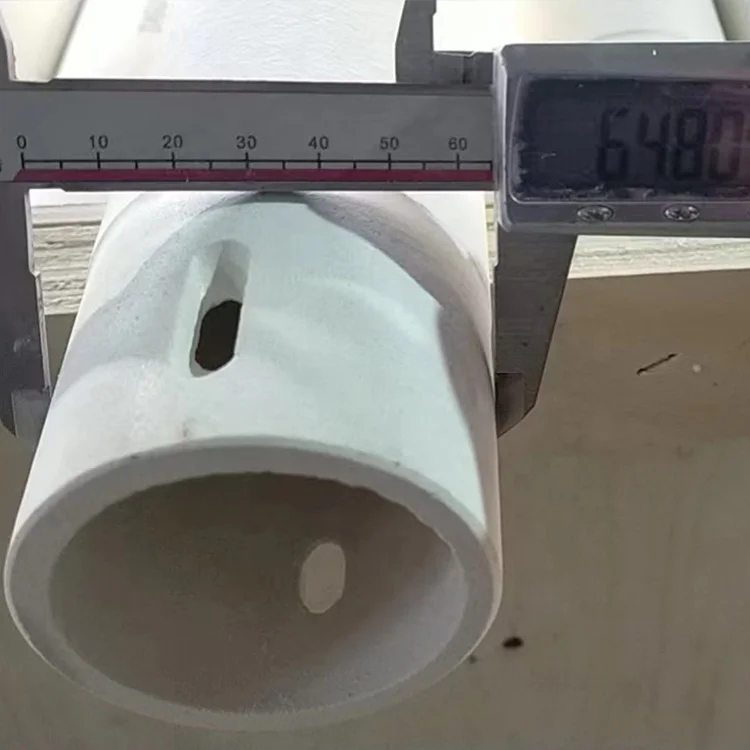

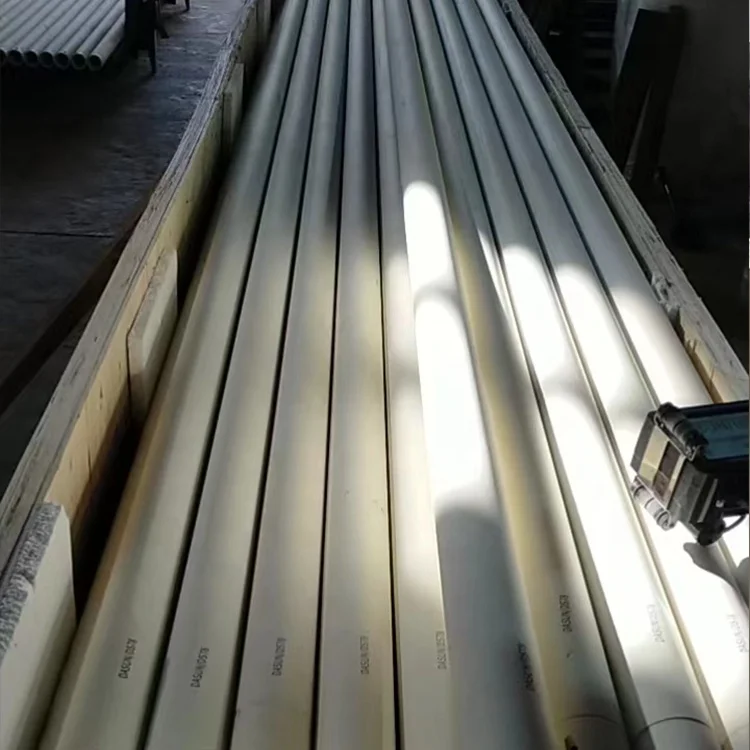

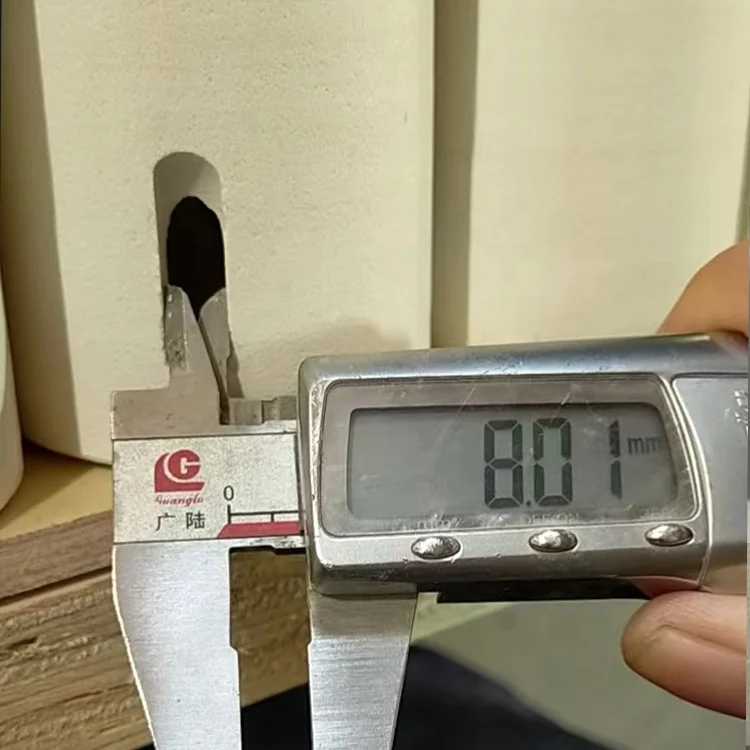

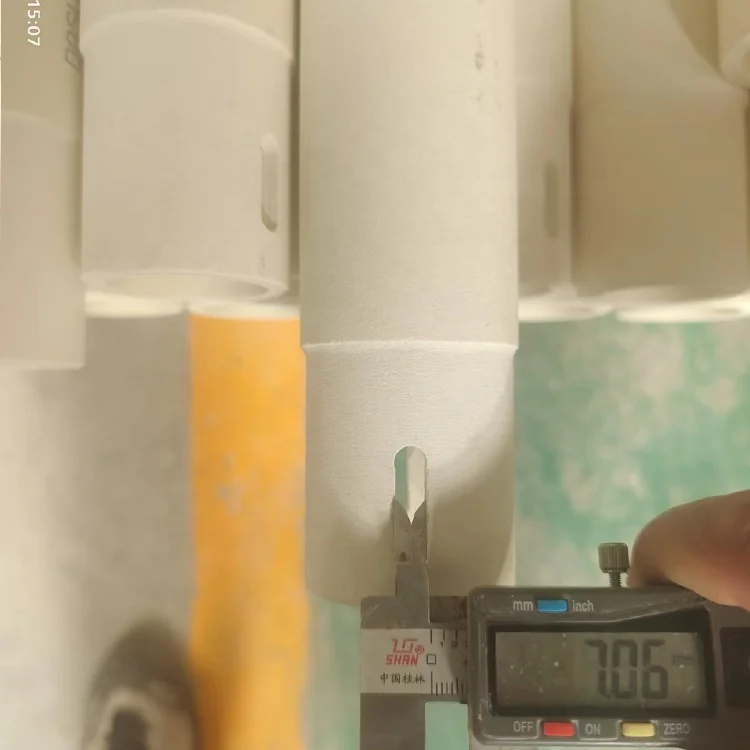

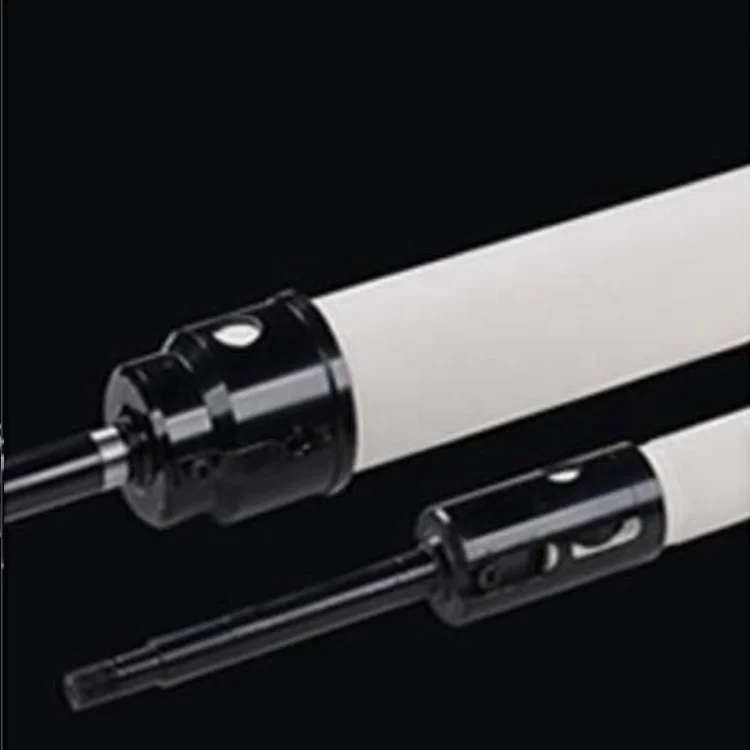

Details Images






Recommend Products

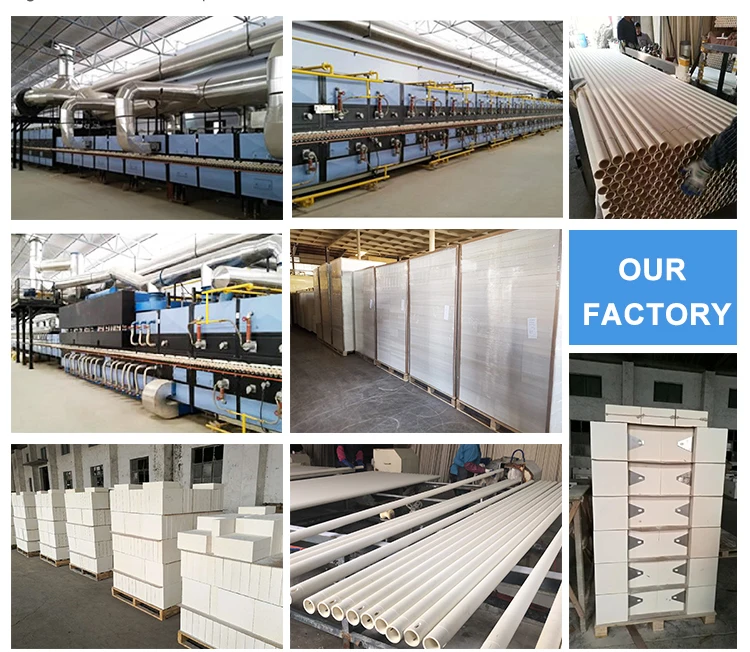

Company Profile
