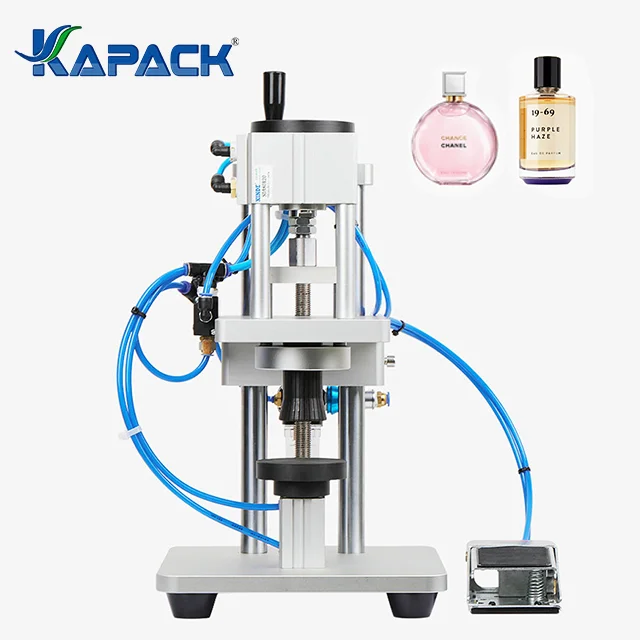

KAPACK Pneumatic Aluminum Bottle Crimping Machine Perfume Bottle Capping Machine
- Category: >>>
- Supplier: Ka Packing Tech Co. Ltd.
Share on (1600711219044):
Product Overview
Description
Why Choose Us
1.15+ years factory
2. Professional R&D Team
3.customization service
4.100% QC inspection before shipment
6.Certificate By CE & SGS
7.No third party, from the factory and the buyer to sell one to one
8.Good after-sales experience, provide videos of installation, online support and engineer overseas services.
9. At least one year warranty.
2. Professional R&D Team
3.customization service
4.100% QC inspection before shipment
6.Certificate By CE & SGS
7.No third party, from the factory and the buyer to sell one to one
8.Good after-sales experience, provide videos of installation, online support and engineer overseas services.
9. At least one year warranty.
Product Description
Introduction
Perfume capping machine, also known as glass bottle perfume capping machine or perfume capping machine, is a special capping machine specially designed for perfume bottle caps It is generally customized with different sizes of locking devices according to the perfume bottle and bayonet nozzle bottle caps provided by customers. The perfume capping machine is a clamping closing machine, which is suitable for closing the spray bottle cap. The cap is closed with a collet and fastened to the flange of the

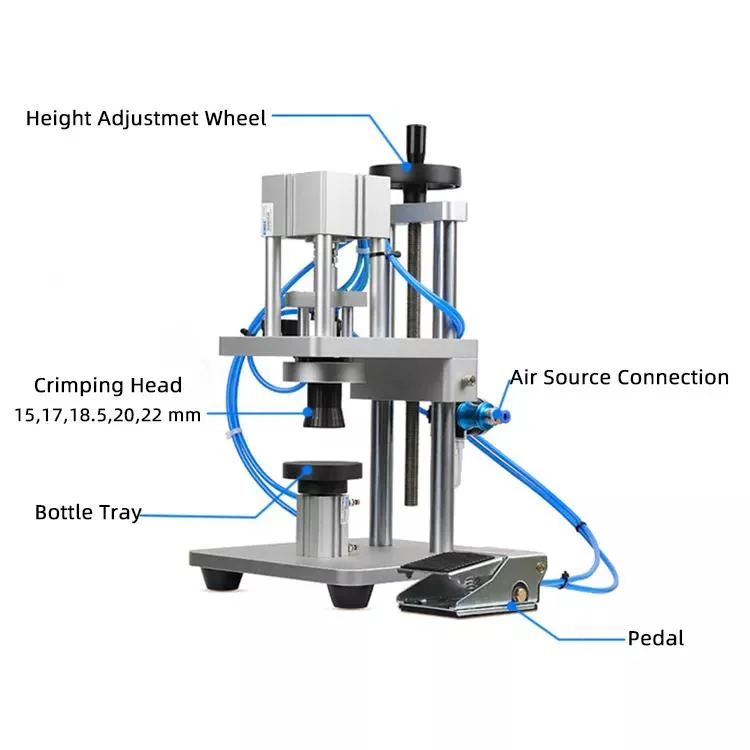

bottle cap. The whole machine is composed of machine body, table, clamping device and pneumatic control system.
bottle cap. The whole machine is composed of machine body, table, clamping device and pneumatic control system.

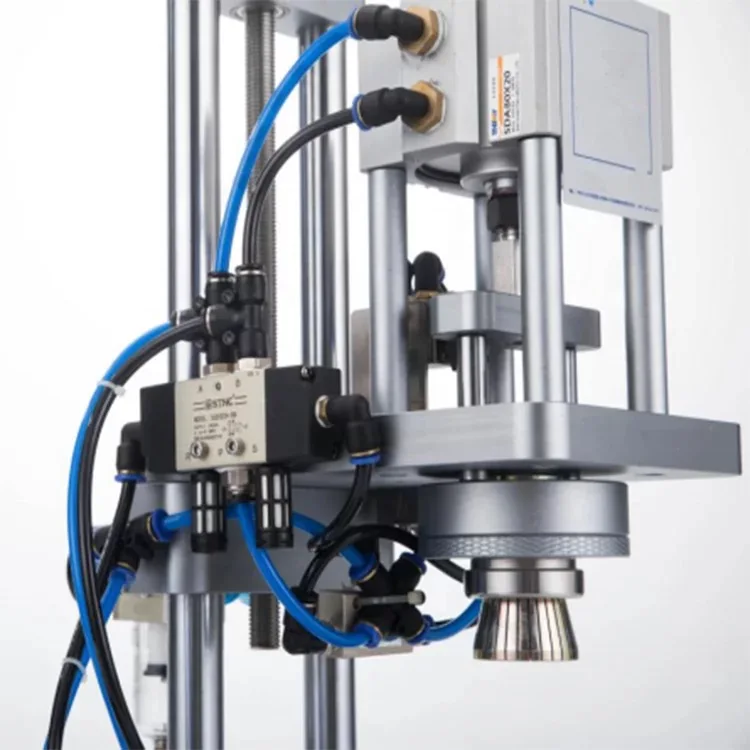

Way of working

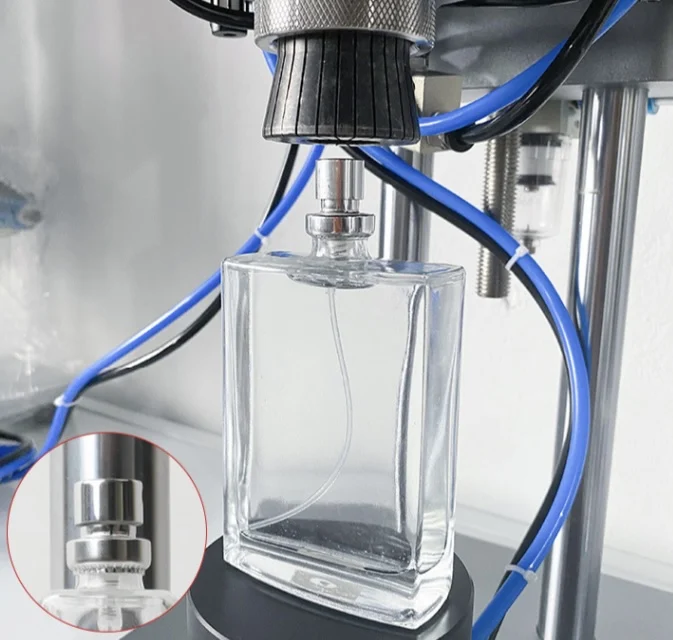

The working principle of the mouth rolling machine is to open the hand valve and connect with the air source. Put the glass bottle with the nozzle in the binding mouth, step down the pneumatic switch, use the rising table to make the material bottle stand straight, and at the same time, the cylinder tightens the binding mouth downward. After tightening the binding mouth, the cylinder automatically returns to the original starting point to complete a binding mouth cycle.
Features
◆ beautiful appearance and compact structure;
◆ uniform closing and good sealing performance;
◆ uniform closing and good sealing performance;
◆ the bottle cap shall be positioned accurately without wear on the surface;
◆ fully pneumatically driven, especially in the operating environment, explosion-proof is required to ensure high safety in the cosmetics industry;
◆ the crimping machine of this model is applicable to cosmetics, drugs, perfume, and various bottle caps; ◆ this model machine is semi-automatic and can be customized for different sizes;
◆ the capping head force is adjustable, so as to greatly reduce the damage to the product;
◆ easy to understand operation, accurate positioning, uniform closing and good sealing;
◆ working speed: 20-40 times / min (related to the speed of workers);
◆ the machine is especially suitable for the gripping mouth of perfume aluminum cover. There are many models to choose from, and the replacement is convenient and fast.
◆ fully pneumatically driven, especially in the operating environment, explosion-proof is required to ensure high safety in the cosmetics industry;
◆ the crimping machine of this model is applicable to cosmetics, drugs, perfume, and various bottle caps; ◆ this model machine is semi-automatic and can be customized for different sizes;
◆ the capping head force is adjustable, so as to greatly reduce the damage to the product;
◆ easy to understand operation, accurate positioning, uniform closing and good sealing;
◆ working speed: 20-40 times / min (related to the speed of workers);
◆ the machine is especially suitable for the gripping mouth of perfume aluminum cover. There are many models to choose from, and the replacement is convenient and fast.
Application

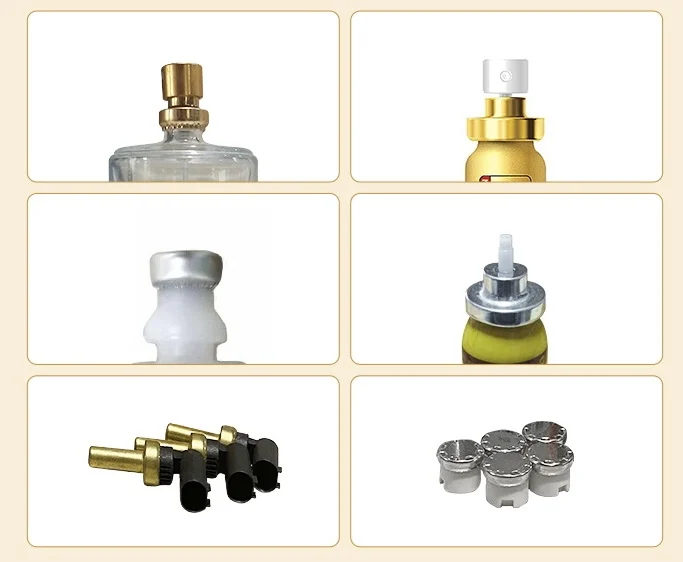

This Pneumatic Crimping Machine is applied to perfume, chemical , automotive refrigerant, electronic component, etc.It's driven by air pressure which is more suitable for explosion-proof space.
Specification
Attention:
1.All prices and parameters shown below are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email/ WhatsApp/Wechat etc. then our sales manager can contact you quickly.
1.All prices and parameters shown below are automatically generated by the system, if you want to know the exact information, please click "Contact Supplier" to send mail to us.
2. Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3.When sending us an inquiry or message, please tell us your Email/ WhatsApp/Wechat etc. then our sales manager can contact you quickly.
Scope of application | Perfume, oral liquid, vial, penicillin and other glass bottle mouth lock | ||||||
Gate diameter | 13/15/17/18/18.5/20/22 mm | ||||||
Bottle highly | 30-200mm (adjustable) | ||||||
Air pressure | 0.4-0.6 Mpa | ||||||
Production capacity | About 1000 bottles/hour | ||||||
Overall dimensions | 250*270*490MM | ||||||
Operating mode | Operating mode | ||||||
Total weight | About 25 kg | ||||||
Details Images

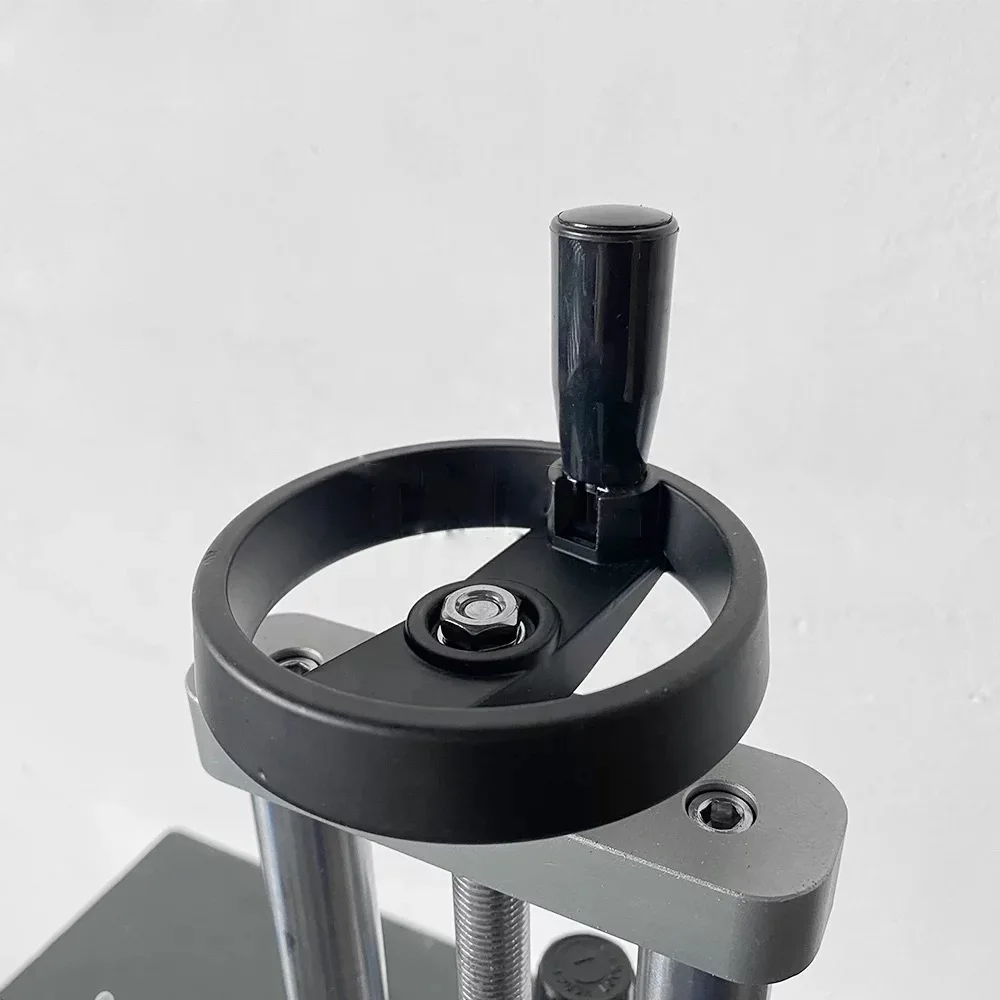

Height adjustment
Foot switch
Titanium steel tie orally
Pneumatic fittings
Oxidation treatment

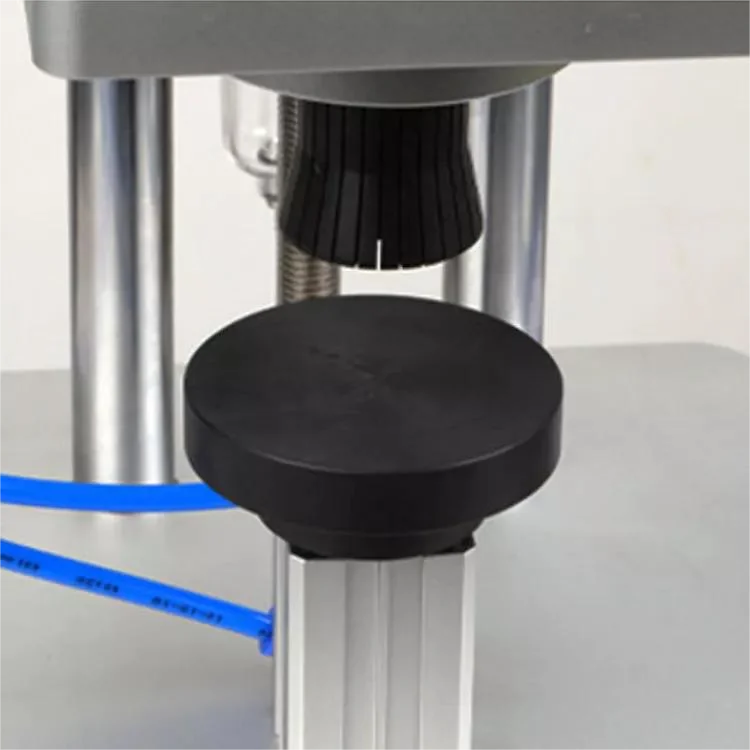

Bottle tray
If You Want To Know More About The Machine Details,
Please Send An Inquiry To Get It
Packing & Delivery
1.After the machine finished, we will use professional machine clean oil to polish the machine.
2.Then we will use soft film and professional strong export wooden to package the machine.
3.Finally, the machine will be shipped to sea port and air port by our logistics department.
We supply a wide range of series.
2.Then we will use soft film and professional strong export wooden to package the machine.
3.Finally, the machine will be shipped to sea port and air port by our logistics department.
We supply a wide range of series.

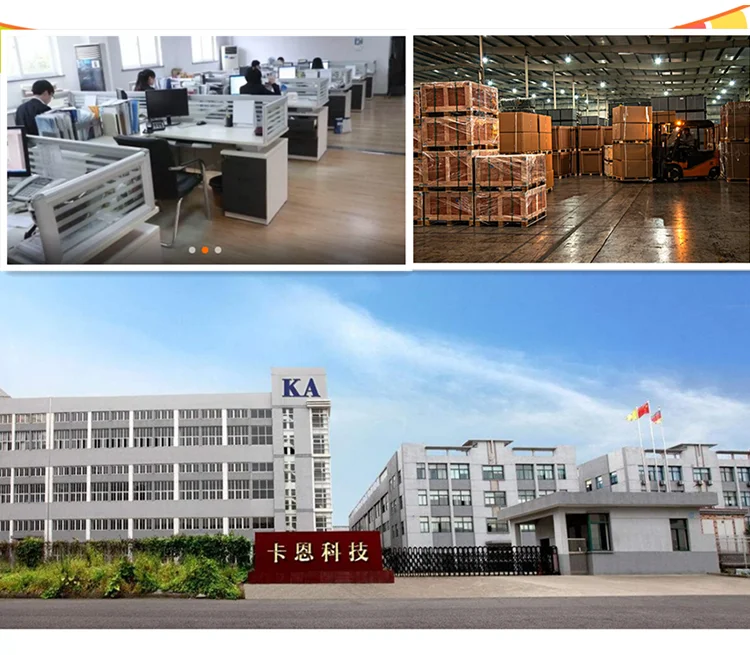

Company Profile
FAQ
1.Are you a factory or trading company?
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
Our factory is located in Wuhan, Hubei and we equipped with SGS factory inspection report. We warmly welcome you to visit our factory if you have a travel plan.
2.How can i know your machine is suitable for my products?
If possible, you can send us sample and we will test on our machine. So we will shot videos and pictures for you. We can also show you online by video chatting.
3.How can i trust you for the first-time business?
You can check out our full range of business licence and certificates. And we suggest using Alibaba Trade Assurance Service for all transactions to protect your money and interest.
4.How to choose the right machine?
We will recommend the most suitable machine and solutions for you based on the product pictures, dimensions and other specifications you provided. We also will use similar product to shoot test videos for your confirmation.
5.How can i make sure about the machine quality if i order on you?
We offer 24 months warranty from shipment date. During one year we can provide parts for free due to quality problem, but human error is not included. From the second year, parts only collect cost price.
6.What should I do if I’m not able to operate the machine when we receive it?
Operation manual and videos we sent will guides you the installation and commissioning. Besides, we have professional after-sale group to customer 's site to solve any problems.we also provide 7*24 hours online technical support.
7.What about the delivery time?
In stock machine: 2-3days
Usually 2-60 Working days(depend on products).
