Laptop Tablet PC Use 13.3 inch LCM FHD 1920x1080 OCA Bonding Capacitive Touch TFT LCD Display Module
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (1600711230604):
Product Overview
Description
Focus On High Brightness Outdoor Optical Bonding Solution/Custom Design
HCT Electronics, under the brand name of Maxen, has 14 years of experience with colorful TFT LCD displays and touch screens. We are more than a manufacturer company, we are also a one-stop service provider including, R&D, bonding, and trading with superior customization capabilities. Our production field covers around 7,000 square meters, including 5,000 square meters of 1000-level dust-free workshop with ISO9001 certification.
We have been working with costumers worldwide from various industries such as Industrial Automation, Transportation, Casino, Hand-held Device, Smart Home Tech, Access Control and Security, etc.

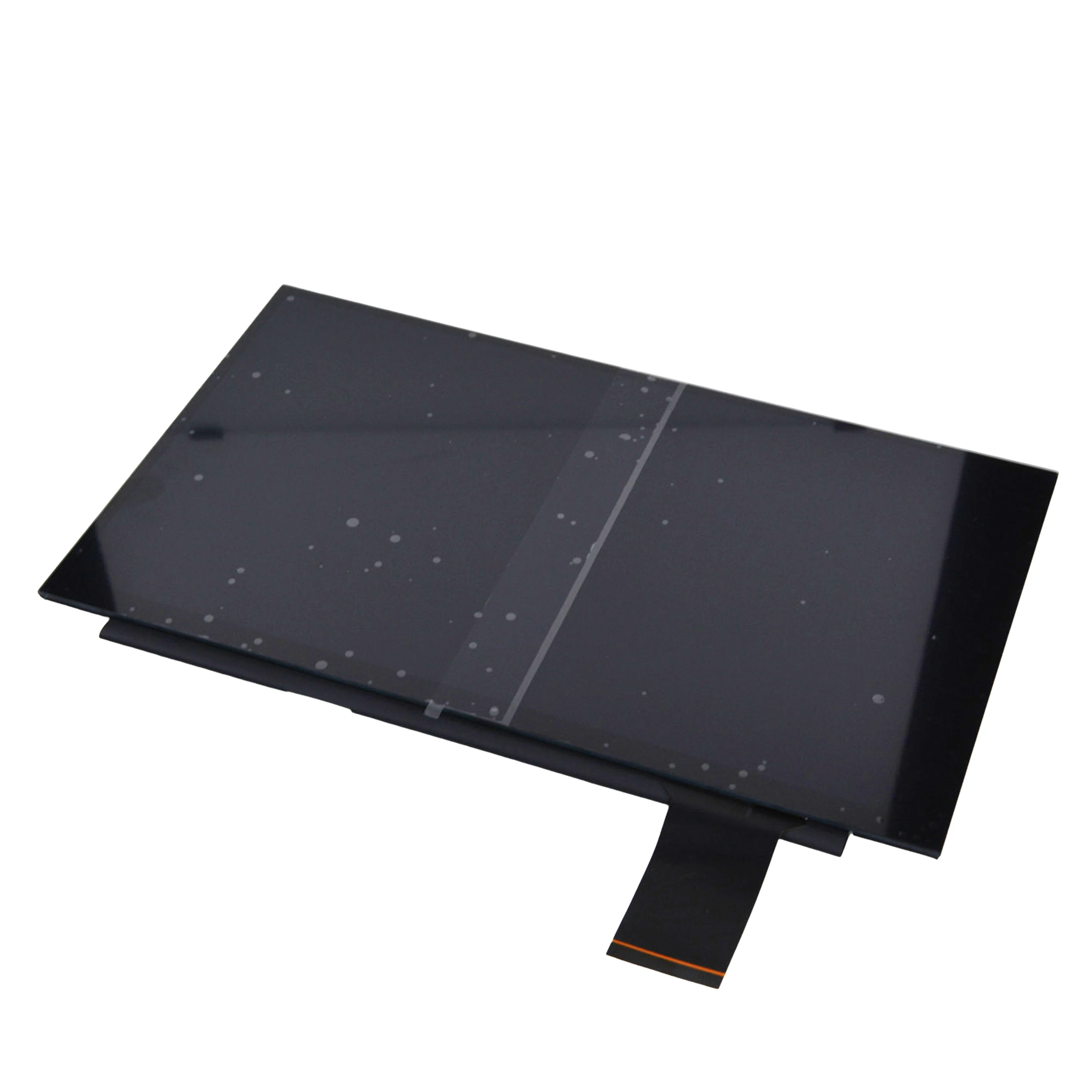

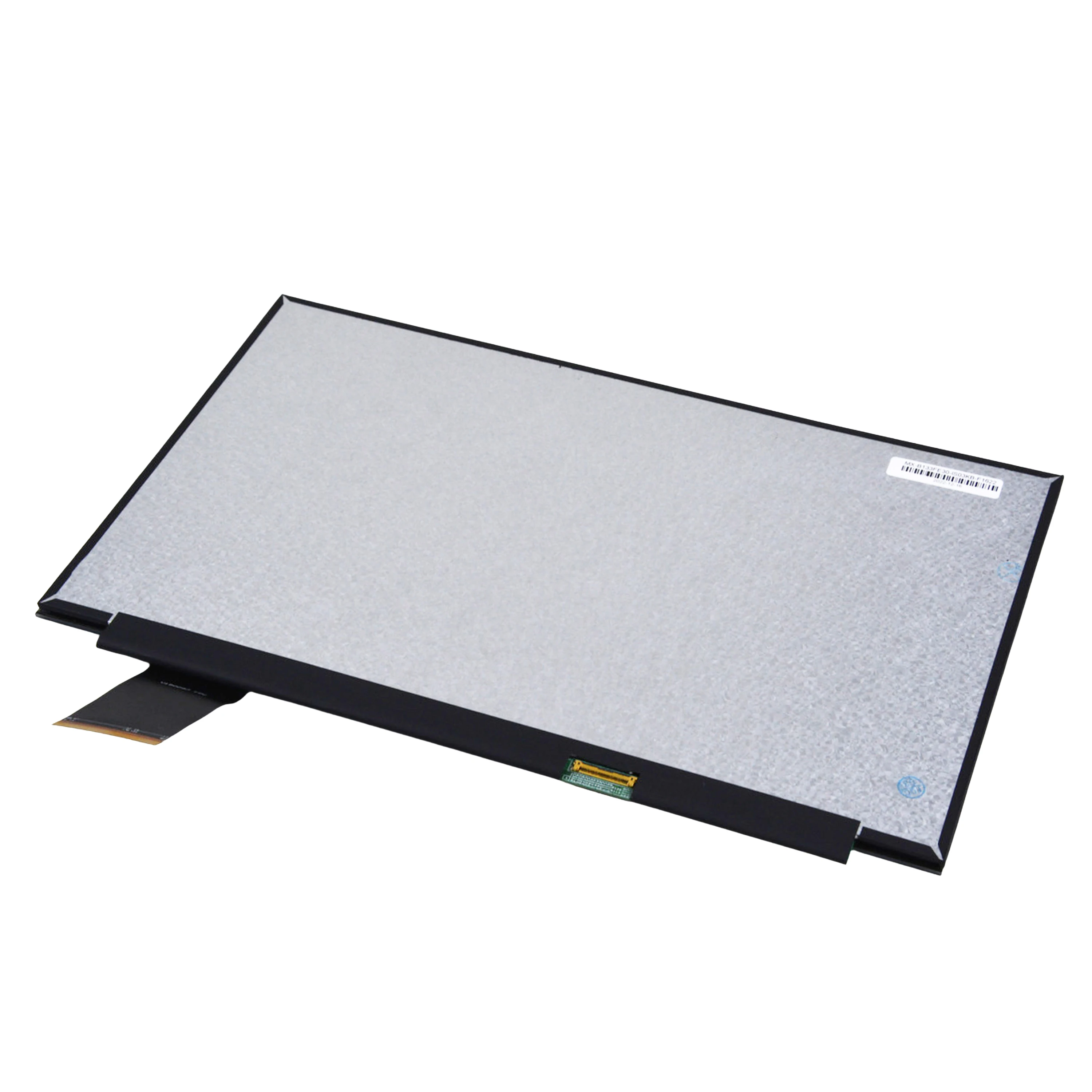

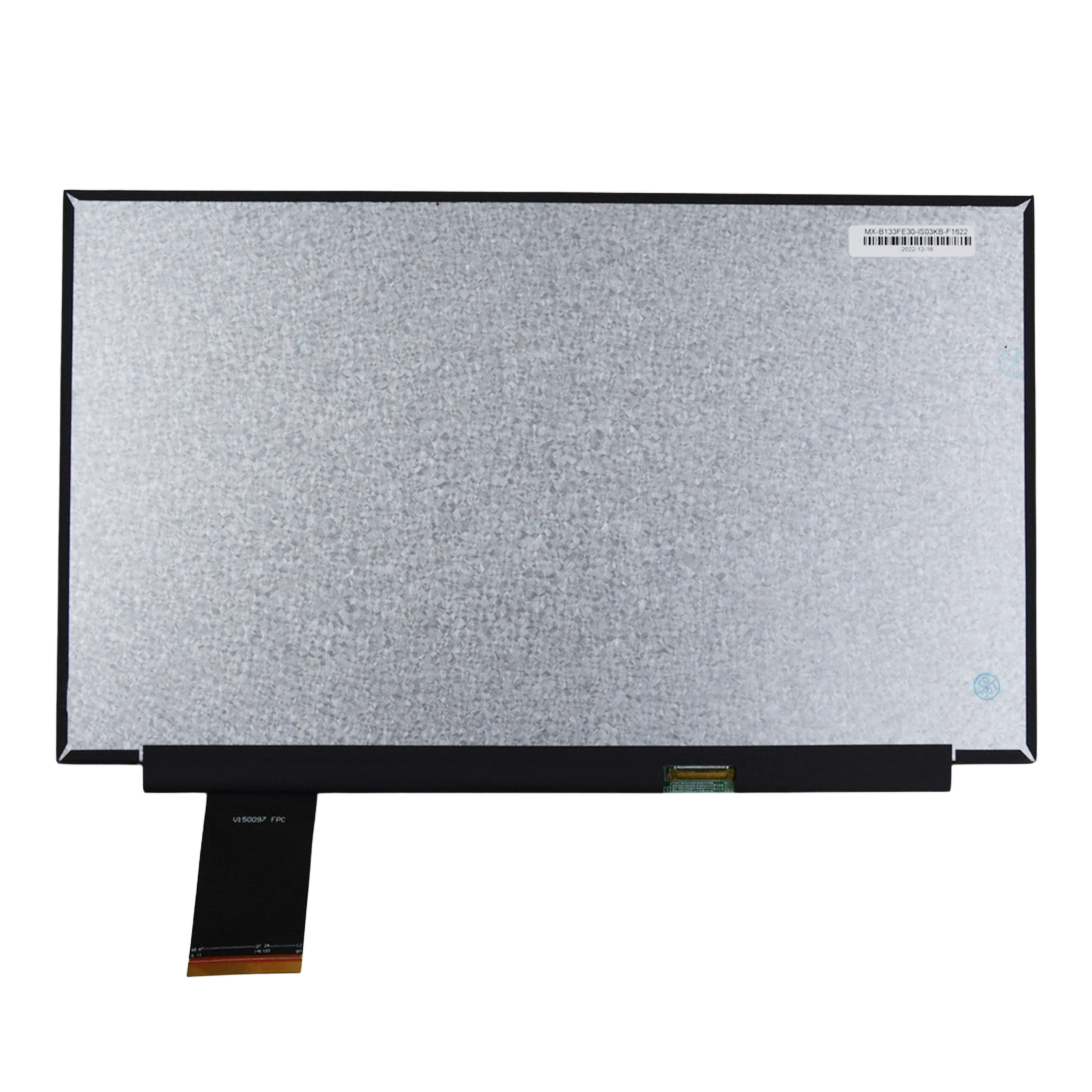

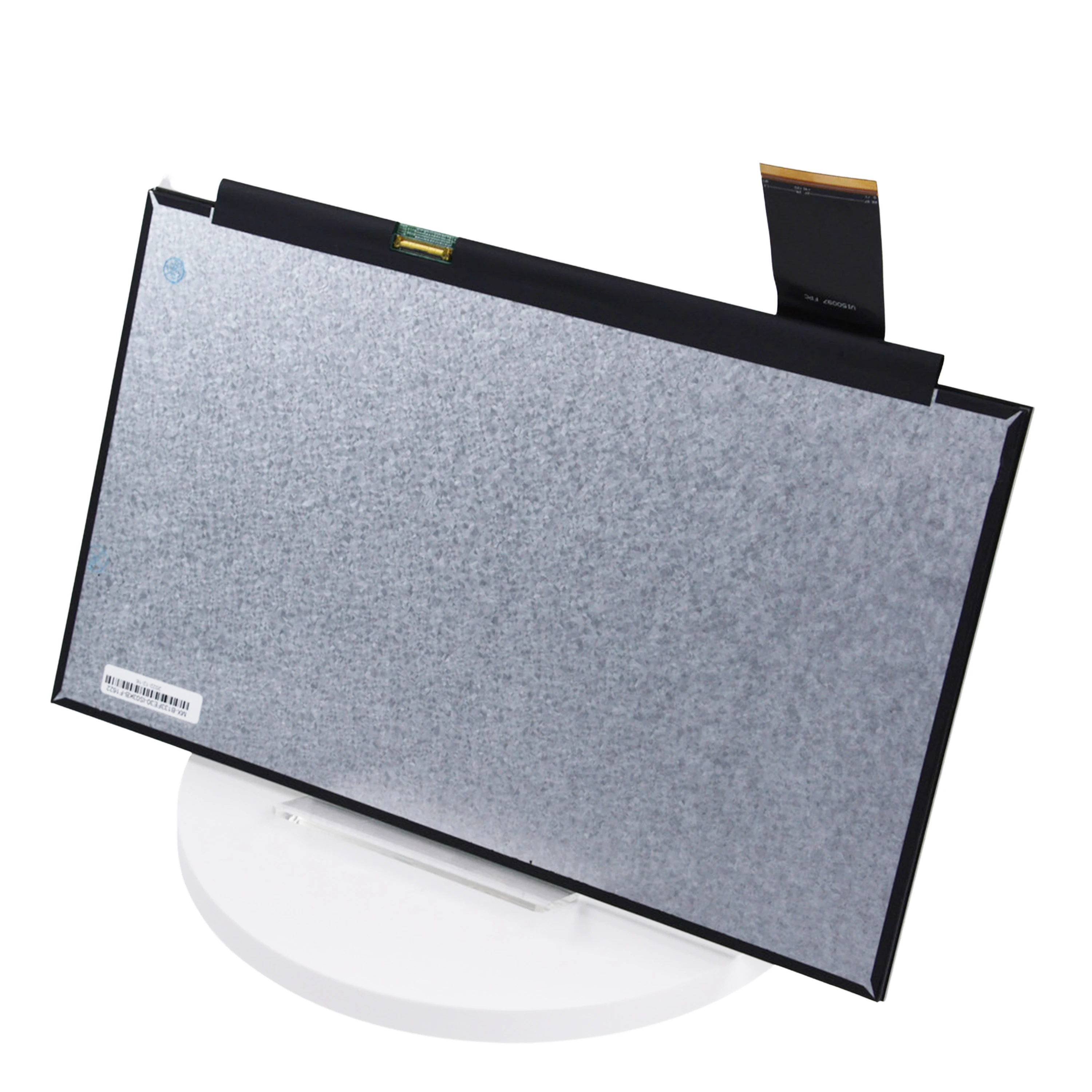

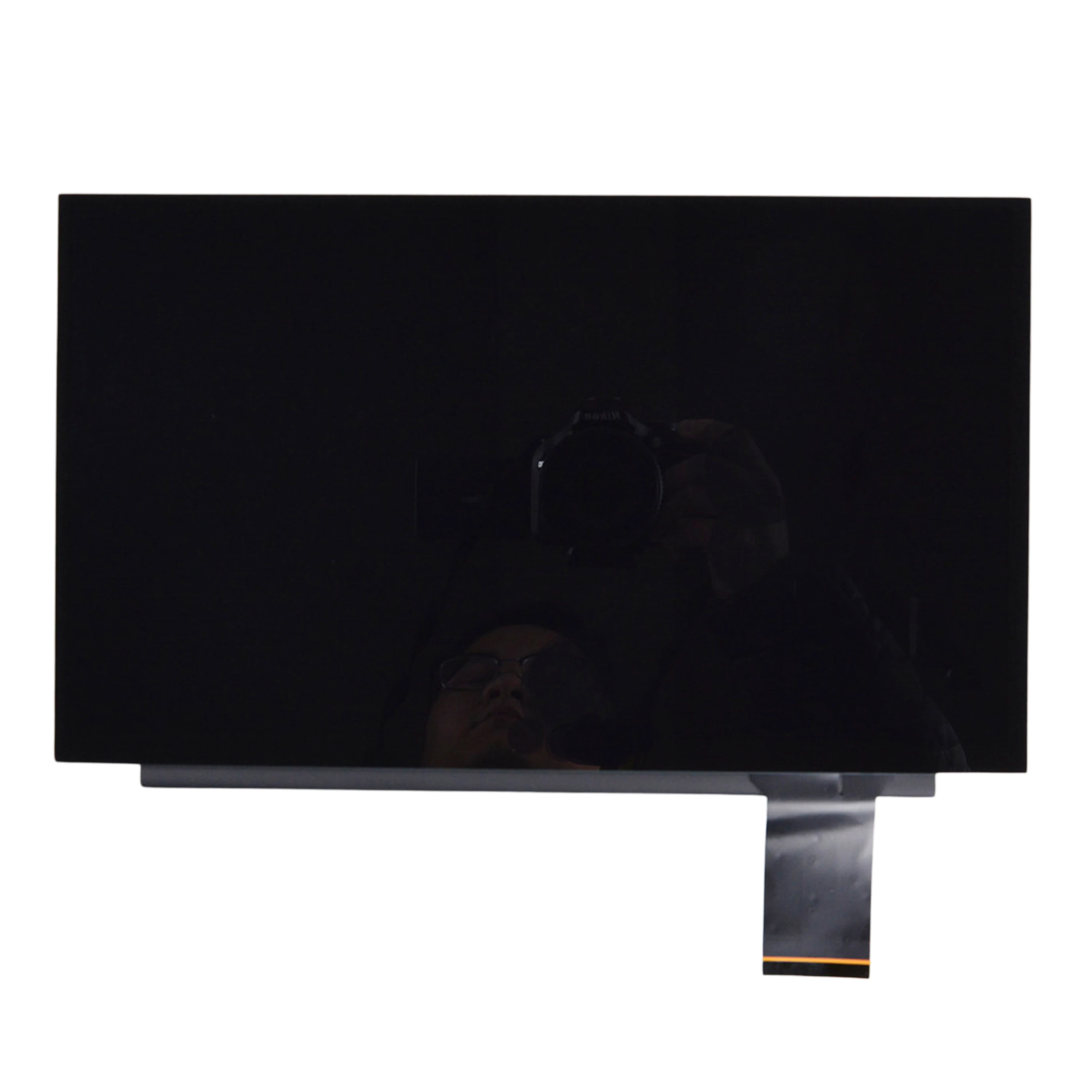

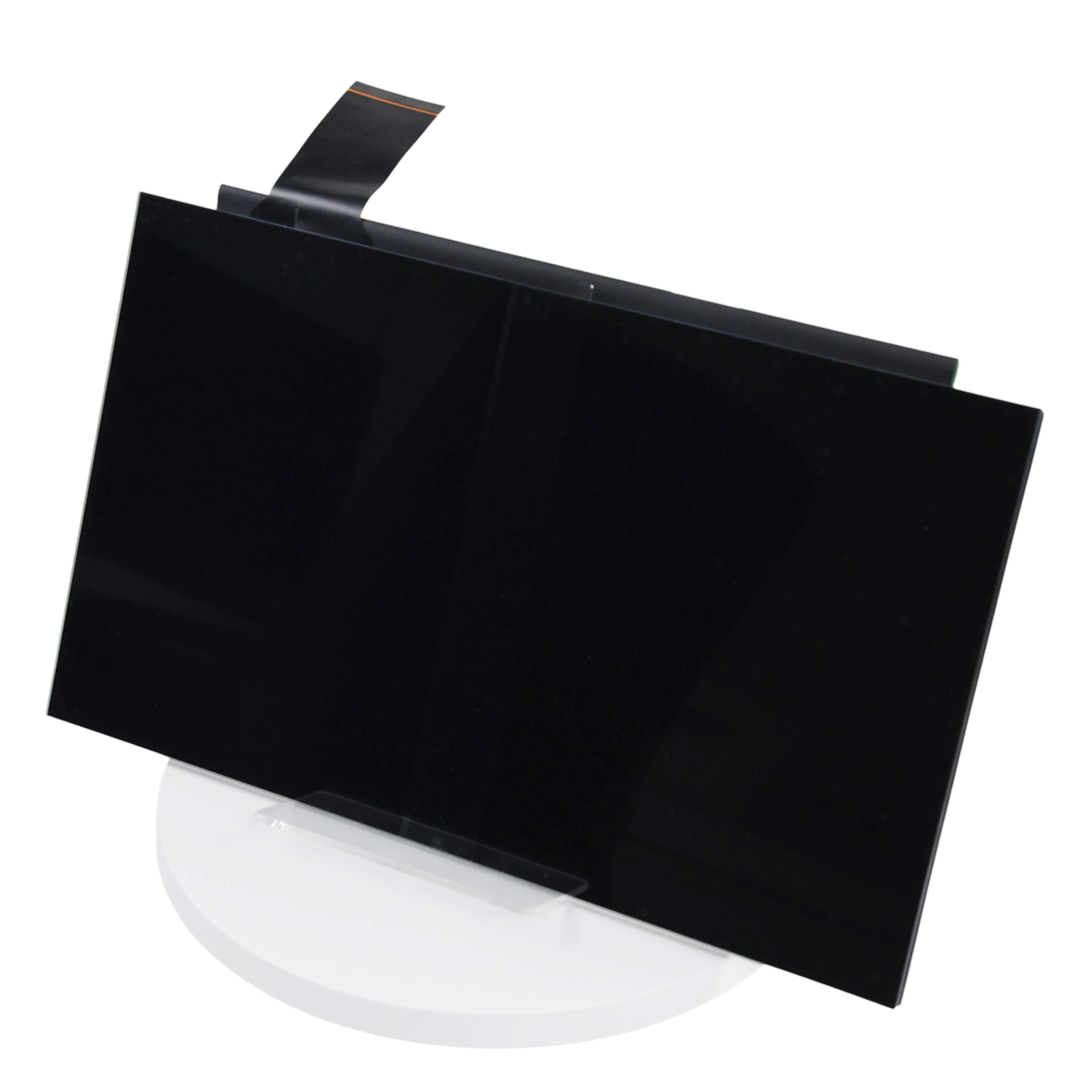

13.3 inch 1920x1080 TFT LCD Touch Display
MX-B133FE30-IS03KB-F1622
MX-B133FE30-IS03KB-F1622 is a color active matrix TFT LCD module with resolutions 1920 horizontal by 1080 vertical pixel arrays. Each pixel is divided into RED, GREEN, and BLUE dots which are arranged in vertical stripe and this panel can display 262K colors.
With the optical bonding solution a 13.3 inch capacitive touch panel is well mounted with the LCD that supports multi-point touch. This bonding technique allows the display to show the perfect elegant taste of your application and higher transparency.
ITEM | STANDARD VALUES |
LCD Size | 13.3 inch |
Resolution | 1920x1080 |
TFT Type | IPS |
Interface Type | eDP |
Touch Controller | ILI2511 |
Touch Interface | I2C & USB |
LCD Pin Number | 30pin |

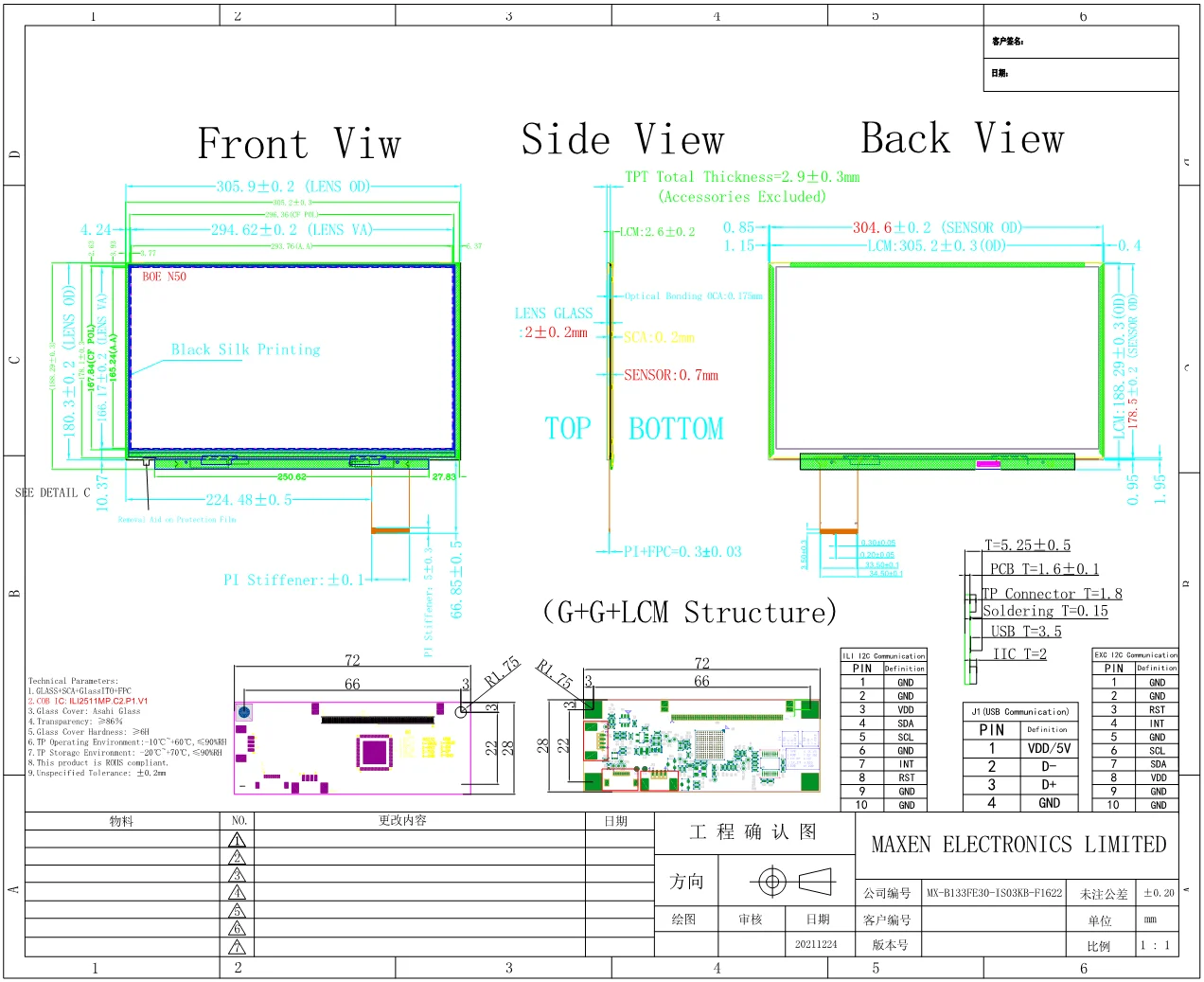

Outline Dimension | 305.9(W)x180.3(H)x5.5(D)mm |
Active Area | 293.76(W) × 165.24(H) mm |
Current for LED Backlight | 80mA |
Voltage for LED Backlight | 28V |
Brightness | 350 Nits |
Bonding Method | Optical Bonding |
Touch panel- glass cutting
Touch panel- etching
Touch panel- printing circuit
Touch panel- printing circuit
Touch panel- Bubble removing & UV curing
Touch panel- quality control
LCM-backlight
LCM- backlight
LCM- Assembling
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.
> 2.4" to 32" TFT LCD Module;> Bar type LCD screen up to 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
> For the LCD display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q4. What's the delivery time?
A4: > For samples order, 2-3weeks;> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, the amount will be returned at the mass order stage.
In regular cooperation, samples are free. Sellers keep the right for any change.
