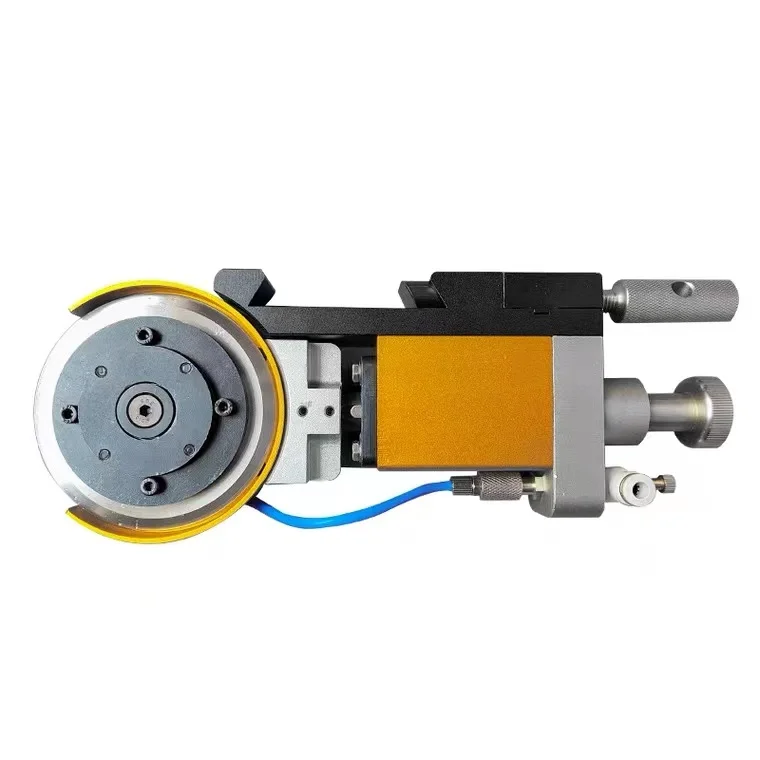

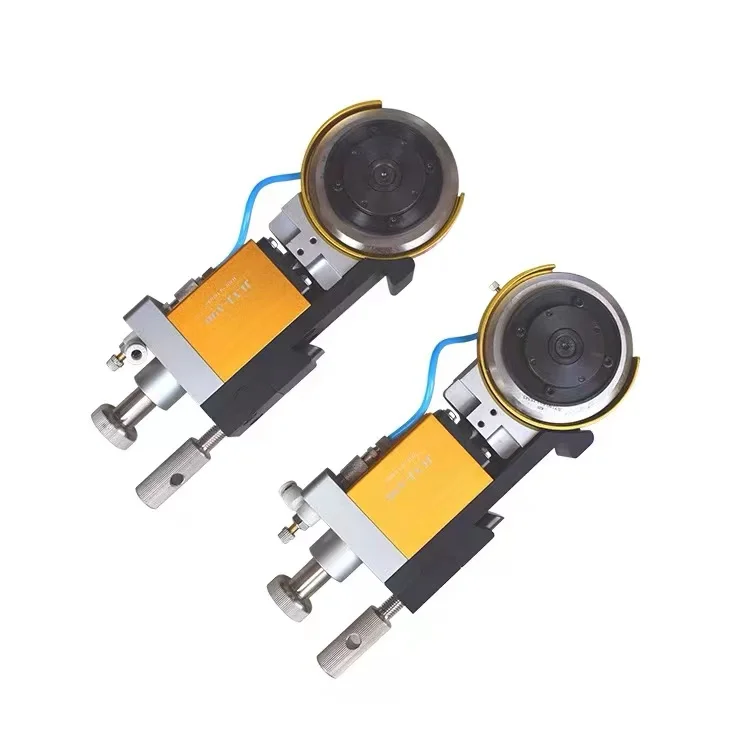

Pneumatic Knife Holder For Slitter Machine Price/score Cut Knife Holders Crush Cut Knife Holder (1600711243585)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Products Description

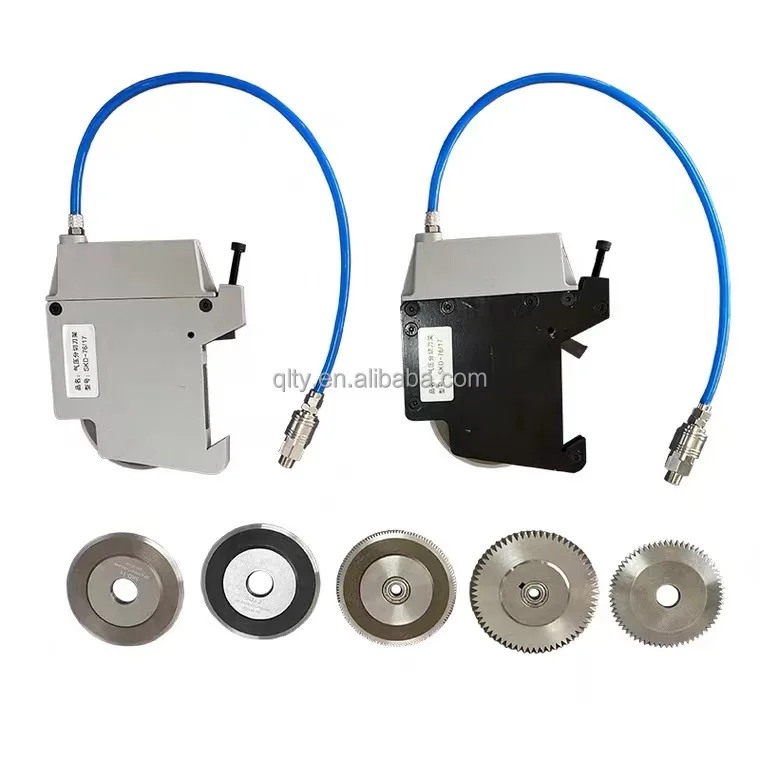

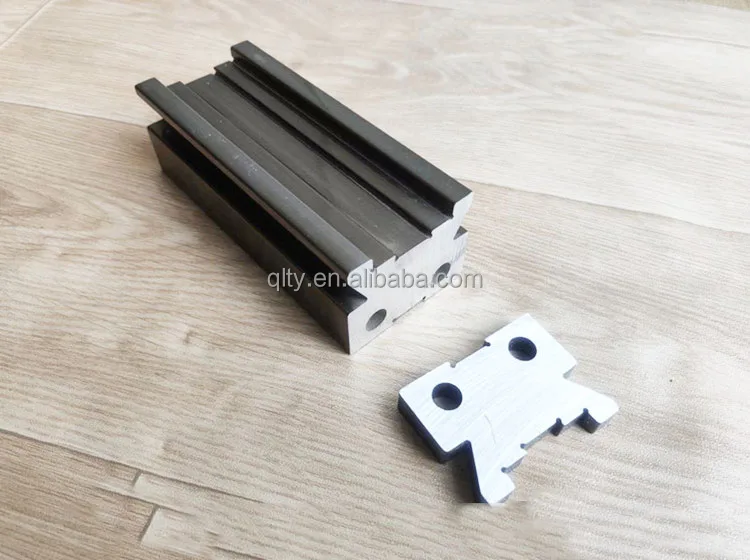

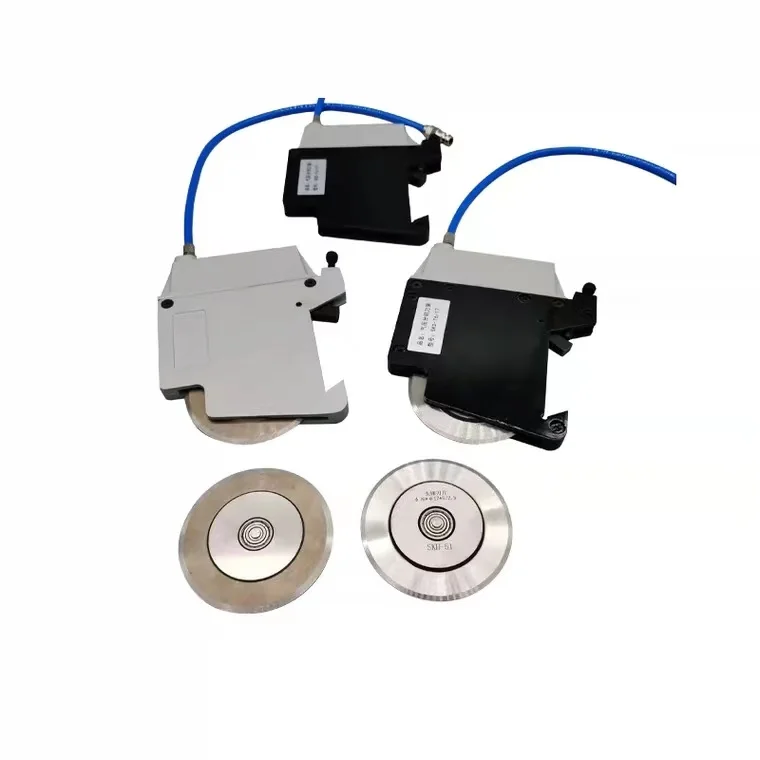

one of the most versatile and flexible crush knife-holder for crush slitting.provide stable down force to perform various material slitting job. It can replace score blade/zig zag blade/ k dash blade/wave blade for different slitting application. blade holder is using screw method to fix on guide-bar which is compatible. Because of its versatility, widely used in light rubber, paper, cloth, plastic film...etc.




Product Paramenters


Model
QLTY-76/17
Minimum slitting width
10mm
Maximum air pressure
6kgf/㎡
Slitting speed
100m/min



Pneumatic Blade Holders for Cutting Machine
1. Material: D2,HSS,9Crsi..
2. Hardness:HRC48-68
3. High precision surface,burr-free
4. More than 10 years professional manufacture experience
5. Strict quality management system
6. Small orders accepted.
7. OEM and ODM
8. Standard: ISO / CE / SGS / SASO

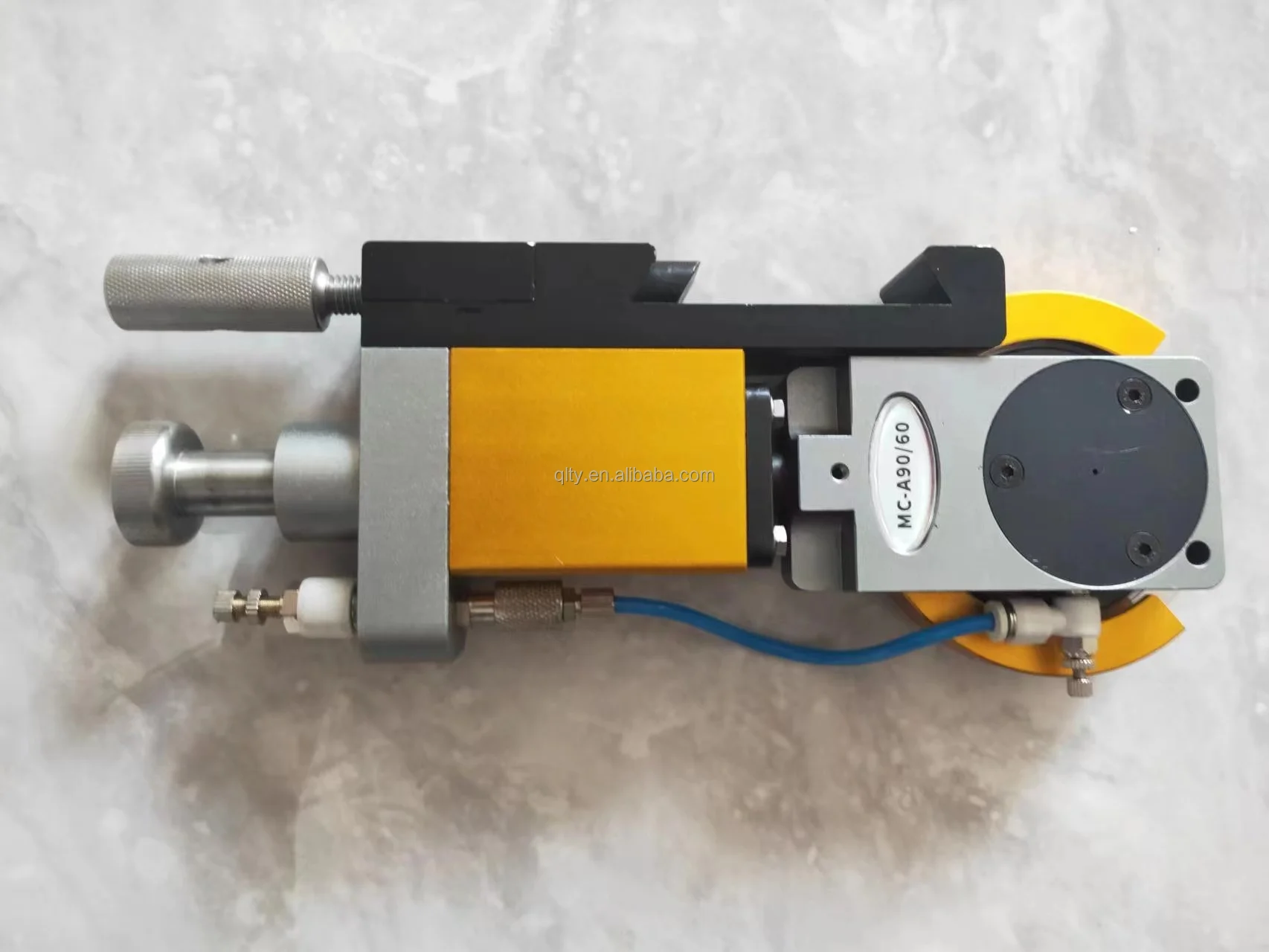

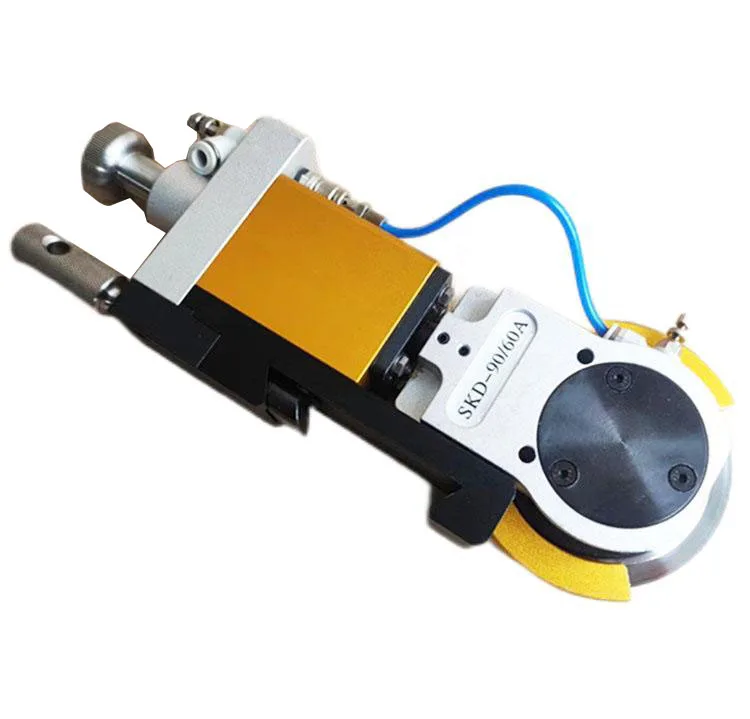

              QLTY-90/60

Maximum lower knife stroke: 28 mm
Min slitting width:60 mm
Pressure: 4-6 kgf/
Maximum applicable slitting speed:1200 m/min
Maximum slitting paper thickness: 500 g/
Maximum thickness of slitting film: 1.5 mm
Connector 1/8”
Maximum slitting paper thickness 1000/

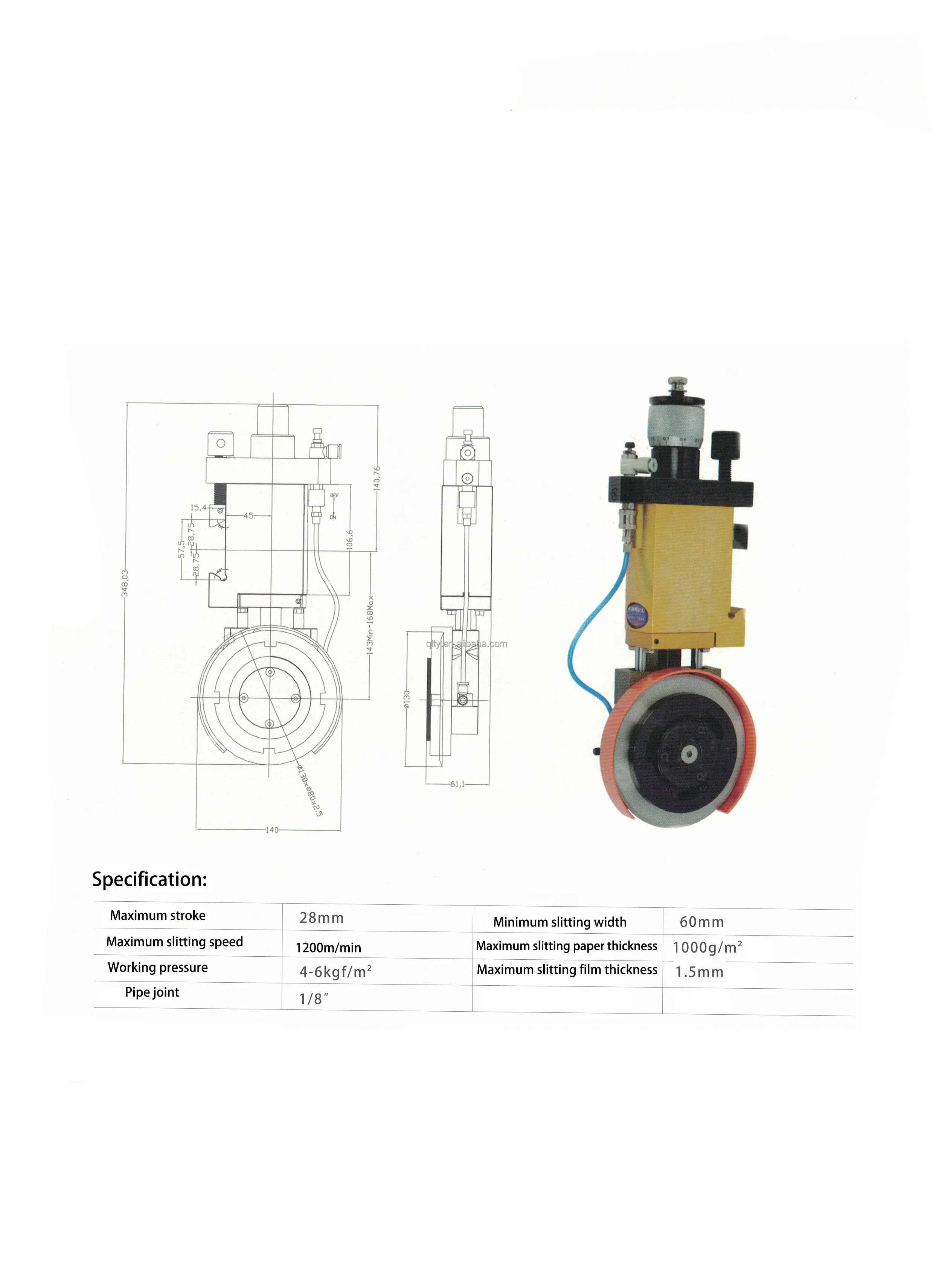

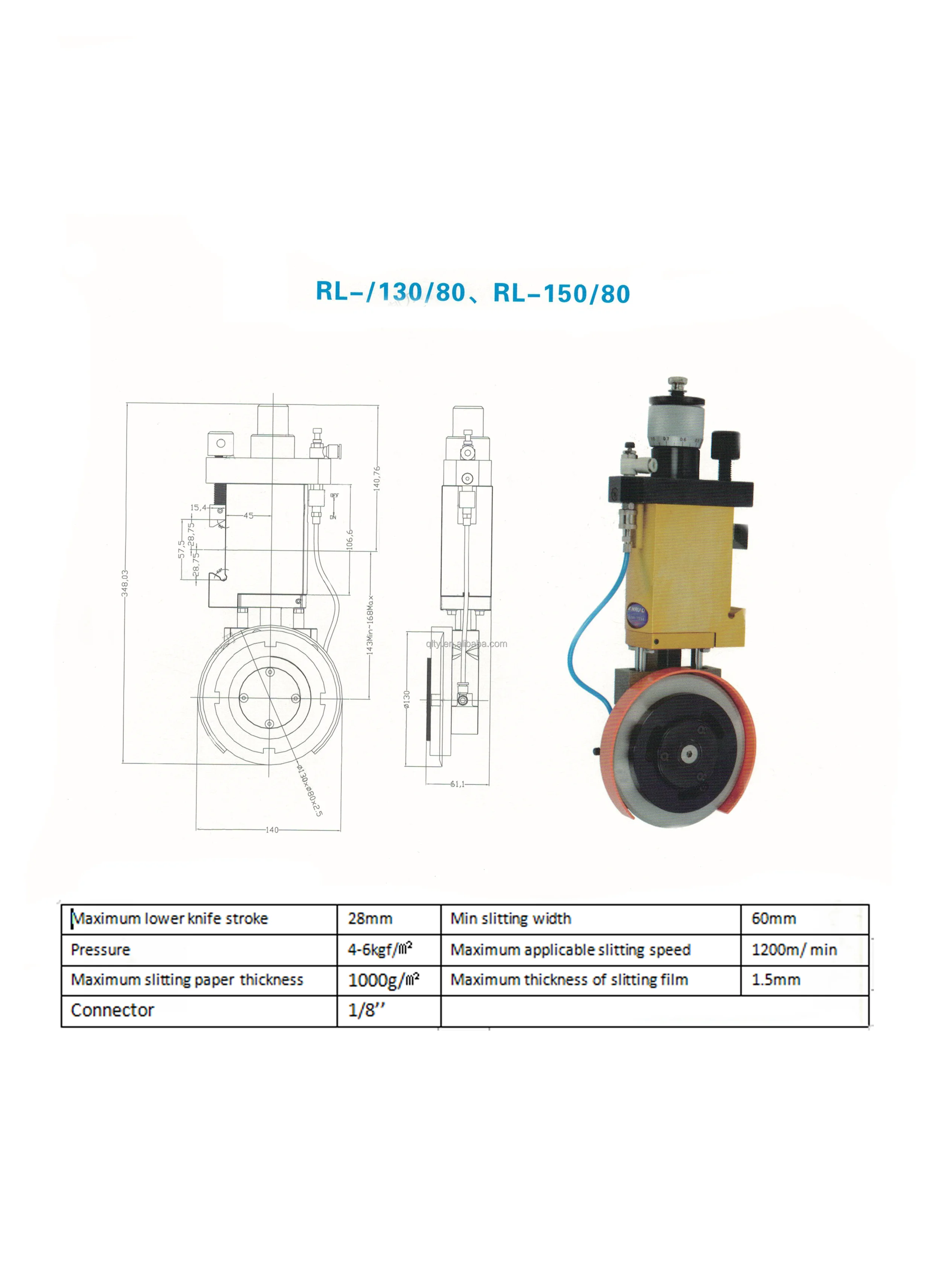

QLTY-130/80 (QLTY-150/80)



Maximum lower knife stroke: 28 mm
Min slitting width:60 mm
Pressure: 4-6 kgf/ ㎡
Maximum applicable slitting speed:1200 m/min
Maximum slitting paper thickness: 1000 g/ ㎡
Maximum thickness of slitting film: 1.5 mm
Connector 1/8”
Maximum slitting paper thickness 1000/㎡








                   QLTY-180/80



Maximum lower knife stroke: 28 mm
Min slitting width:60 mm
Pressure: 4-6 kgf/ ㎡
Maximum applicable slitting speed:1200 m/min
Maximum slitting paper thickness: 1200 g/ ㎡
Maximum thickness of slitting film: 1.5 mm
Connector 1/8”
Maximum slitting paper thickness 1000/㎡

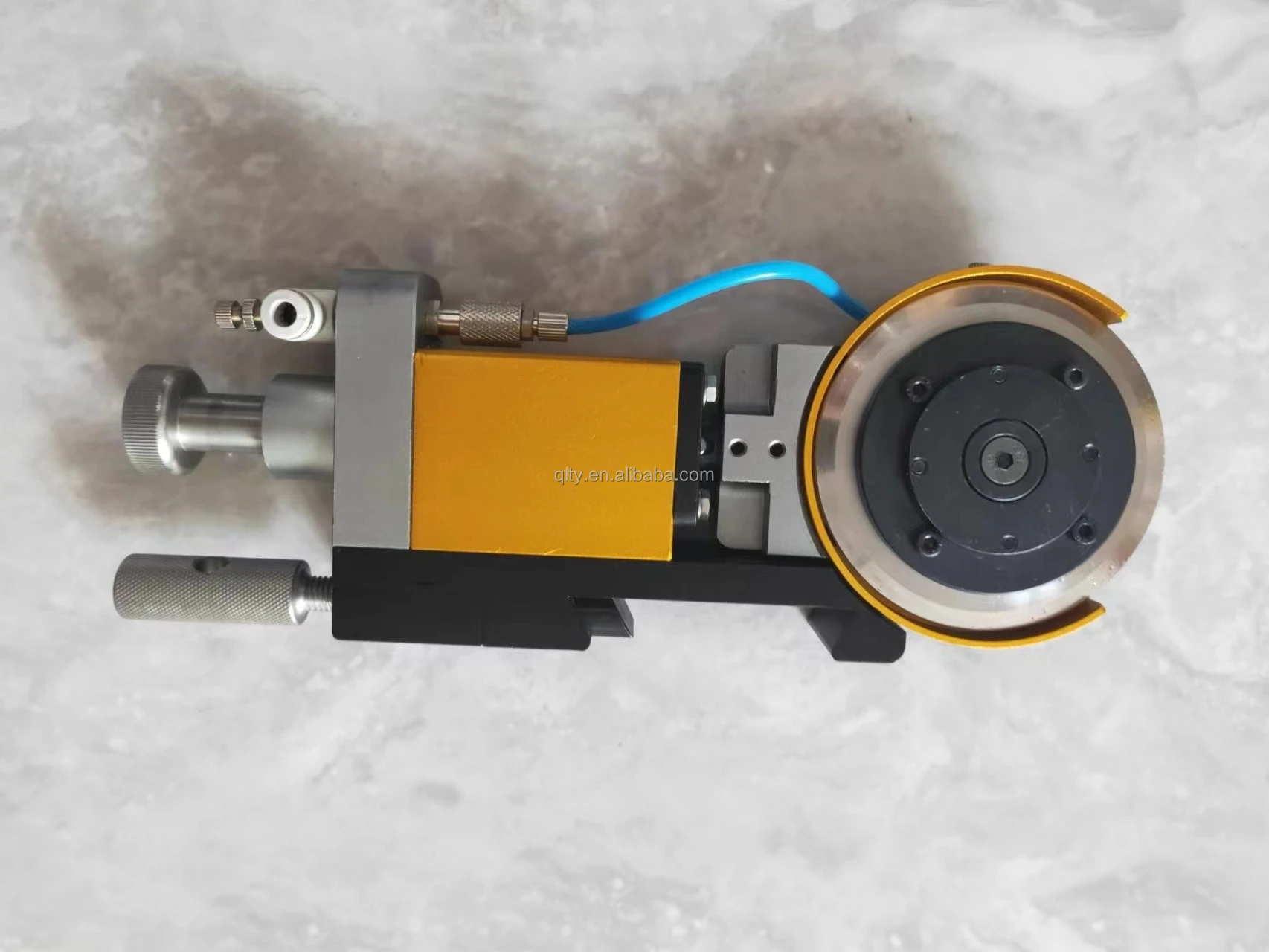

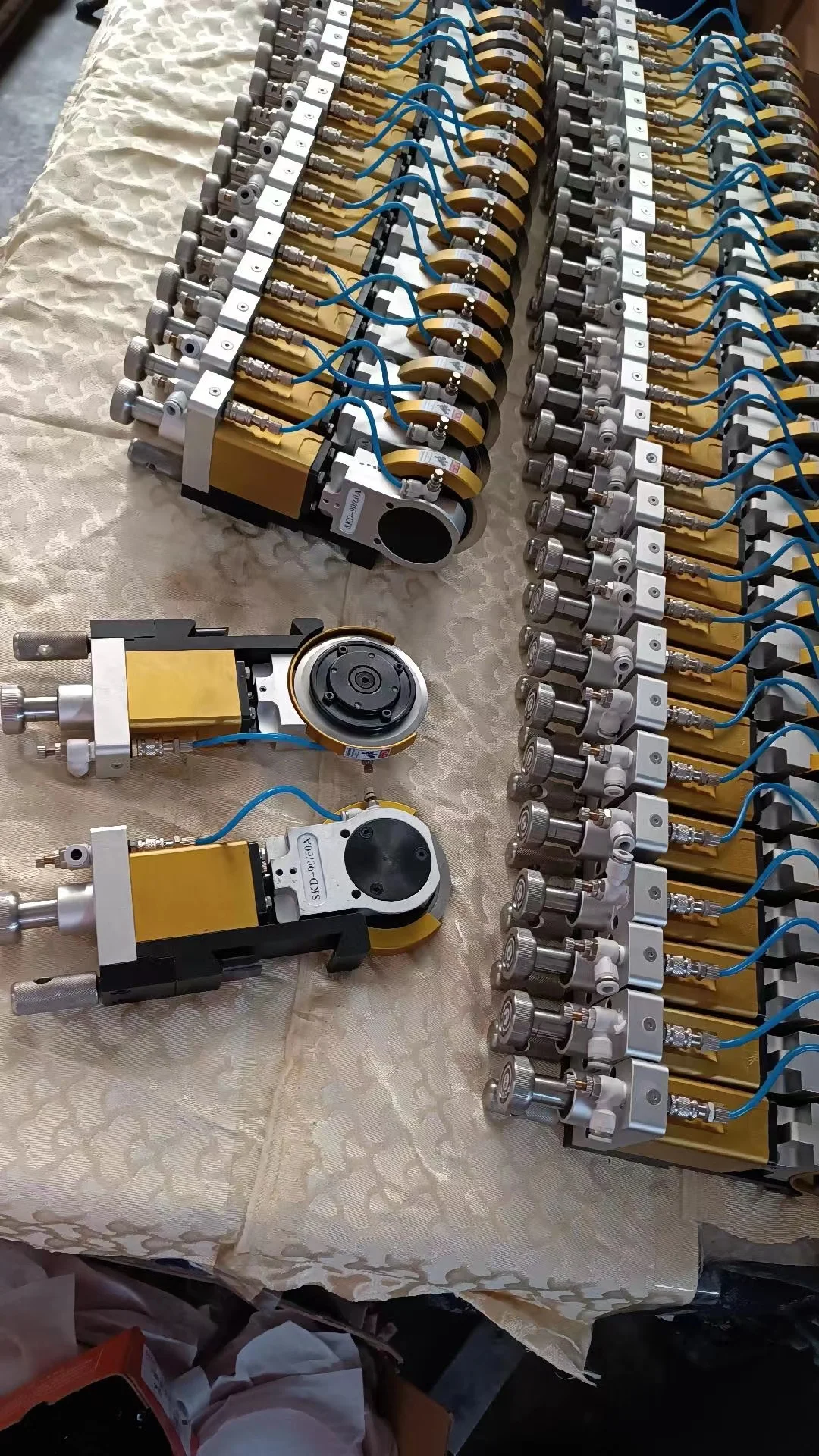

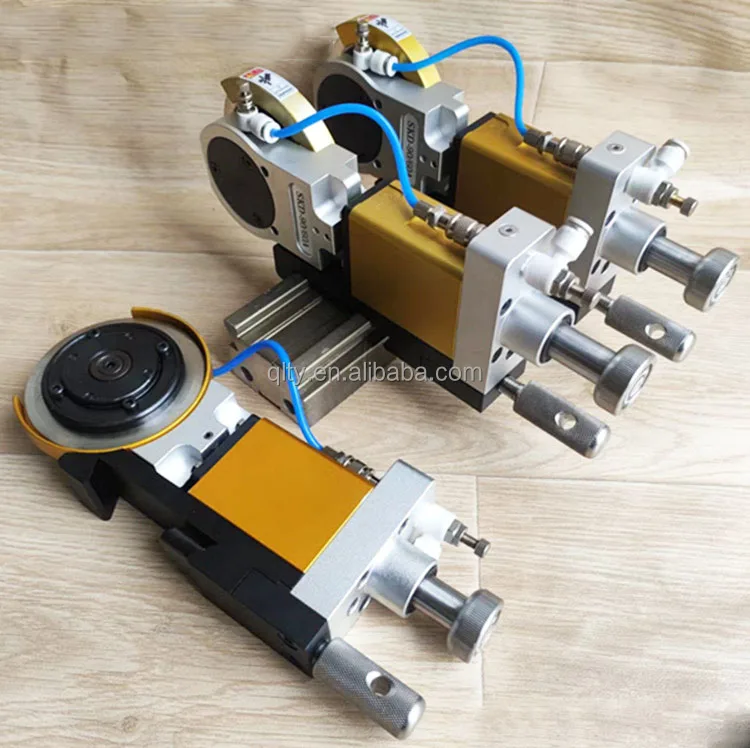

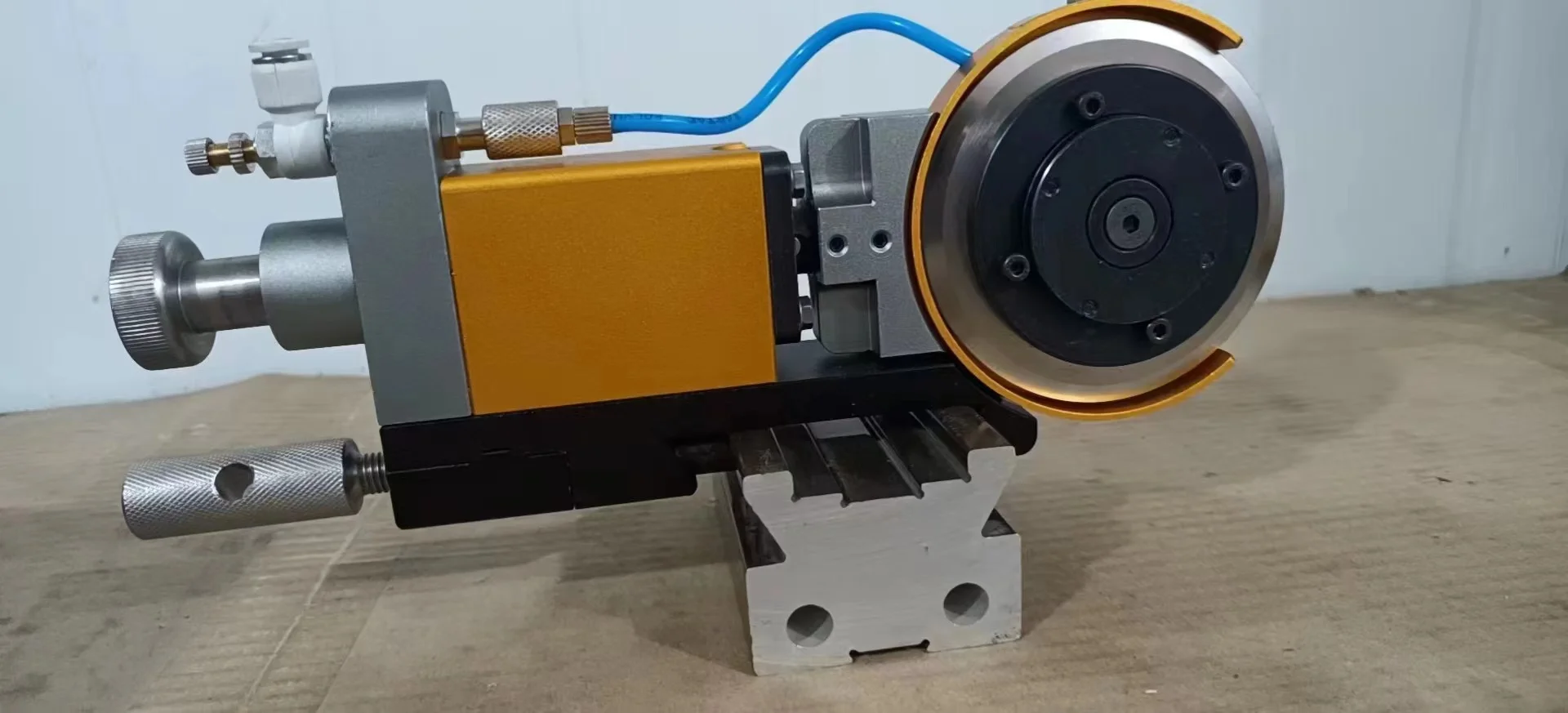

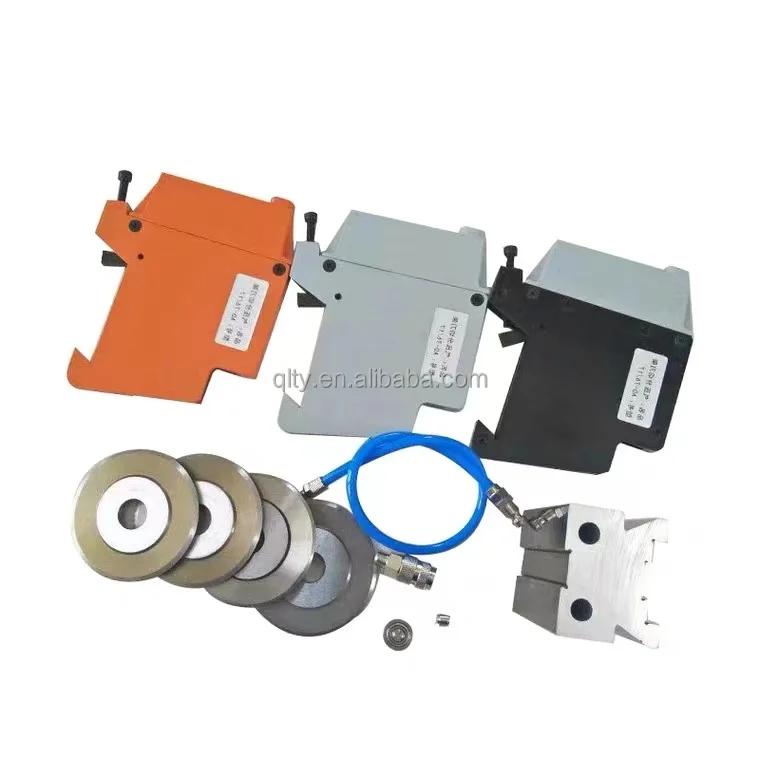

Details Images

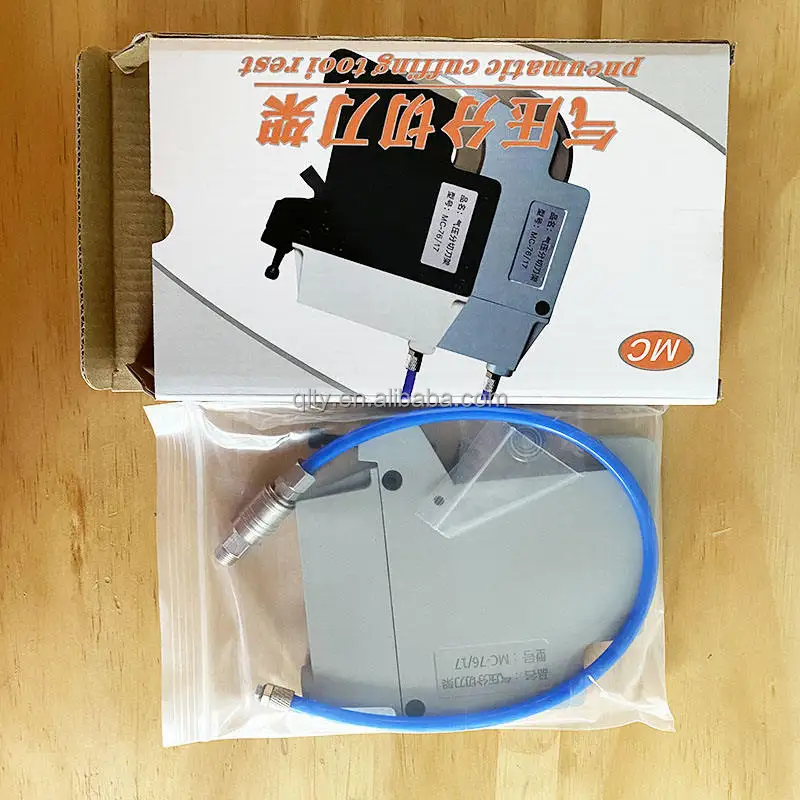

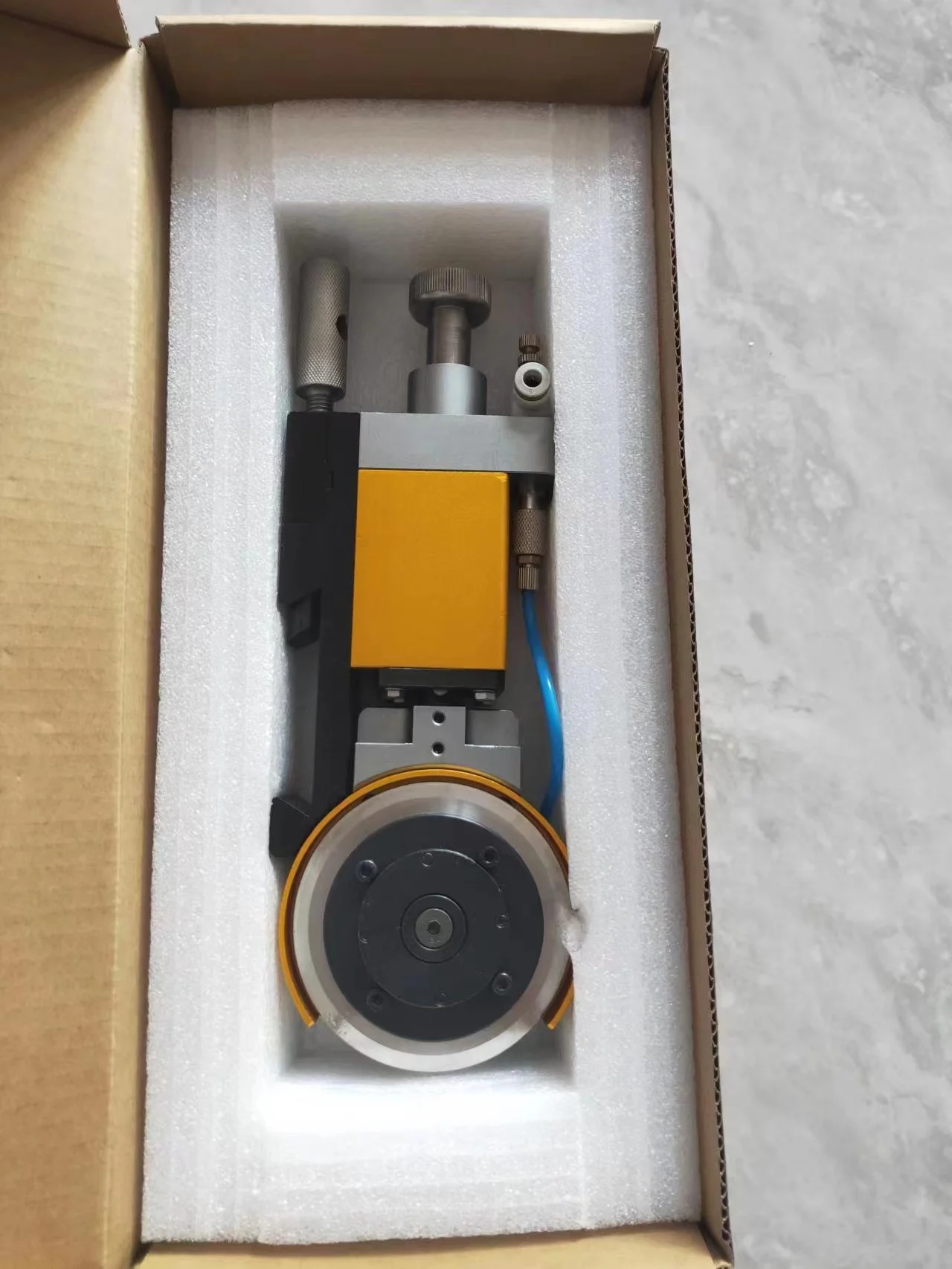

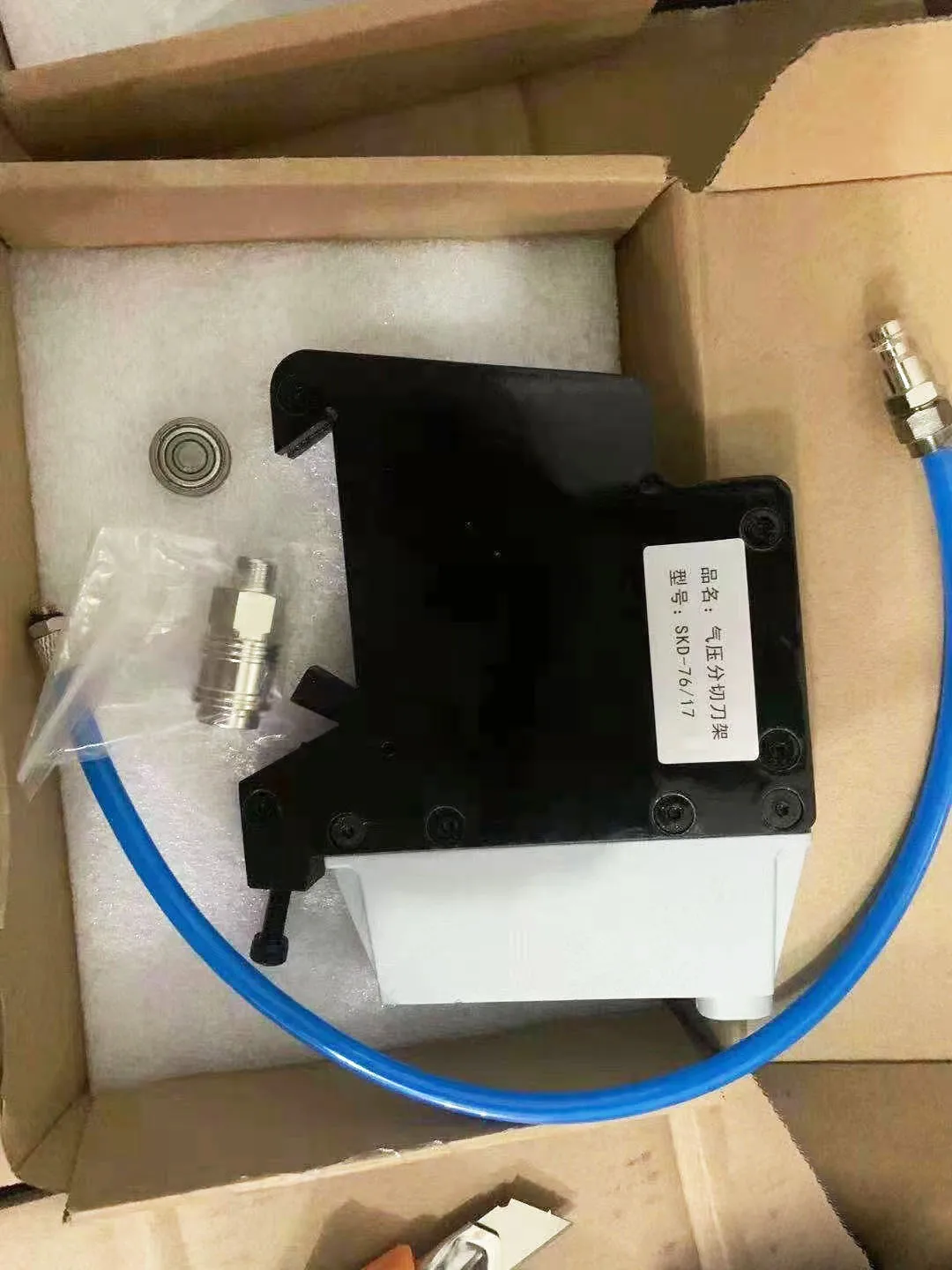

Product packaging

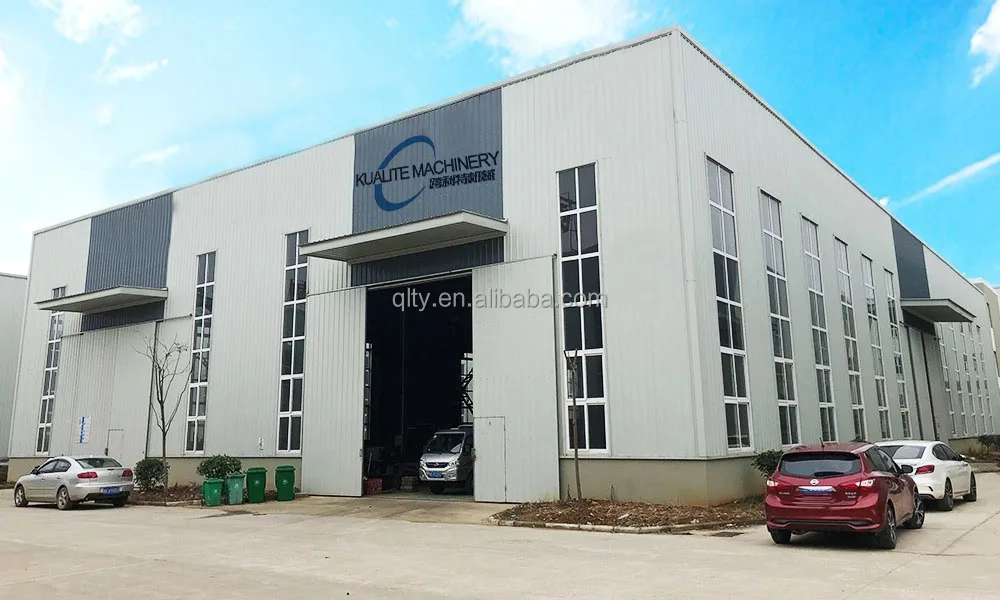

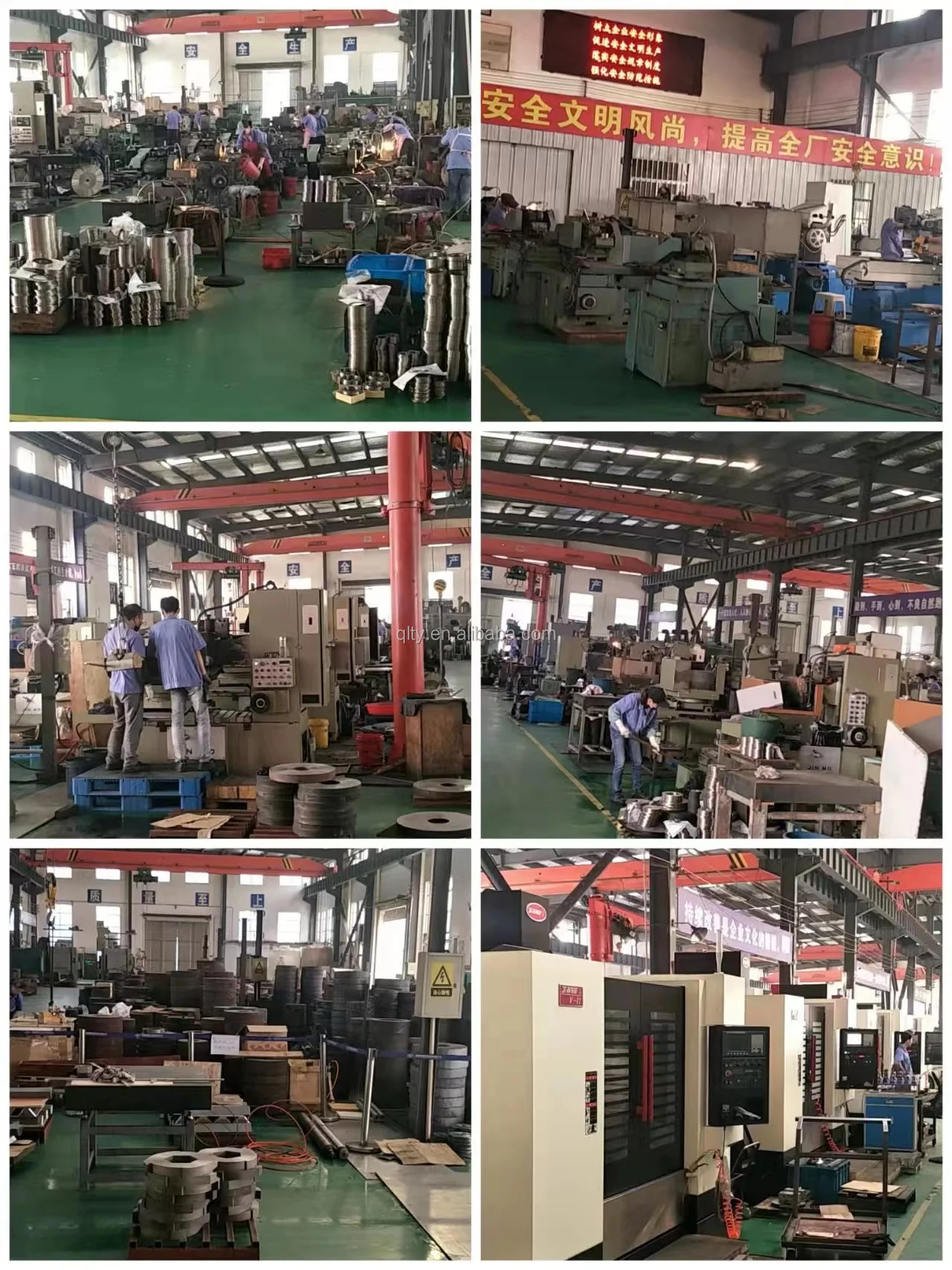

Company Profile






Recommend Products






FAQ


Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for many years.

Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to the quantity you order.

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample

Q: What is your terms of payment ?
A: Payment below 1000USD, 100% in advance. Payment up to 1000USD, 50% T/T in advance, balance before shipment.
