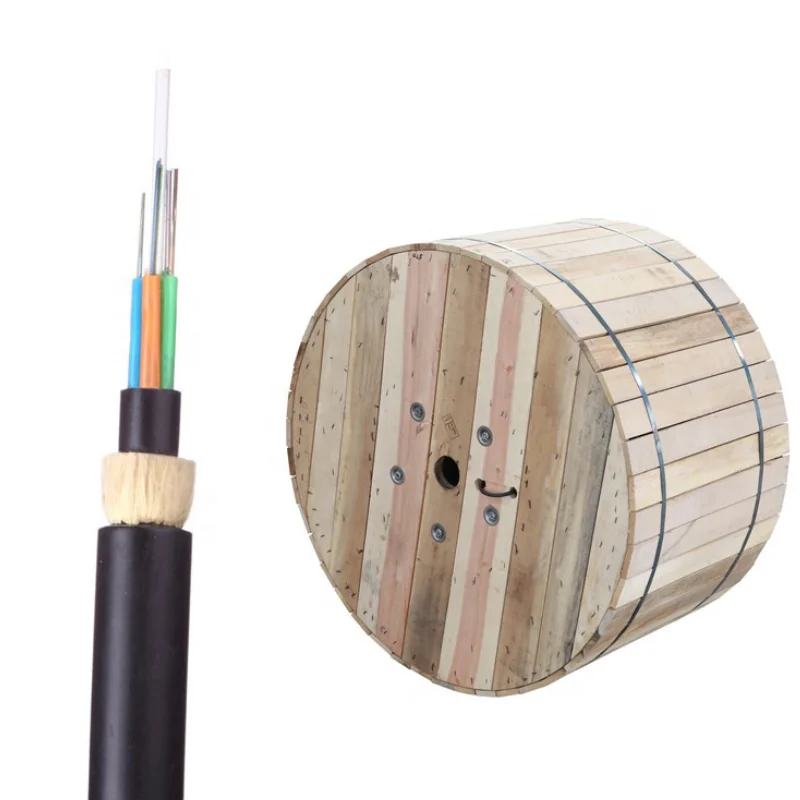

Guangzhou Jiqian Outdoor Double Jacket 48 96 Core ADSS Fiber Optic G652D Cable 100m 150m Span
- Category: >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1600711367108):
Product Overview
Description
Product Description
Fiber Parameter
Item | Unit | Specification | |||
Fiber Type | G.652D | ||||
Mode field diameter | 1310nm | μm | 9.2±0.4 | ||
1550nm | μm | 10.4±0.8 | |||
Cladding diameter | μm | 125.0±1 | |||
Cladding non-circularity | % | ≤1.0 | |||
Core/cladding concentricity error | μm | ≤0.5 | |||
Coating diameter | μm | 245±5 | |||
Coating non-Circularity | % | ≤6.0 | |||
Coating/cladding concentricity error | μm | ≤12.0 | |||
Cable cut-off wavelength | nm | ≤1260 | |||
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 | ||
1550nm | dB/km | ≤0.22 | |||
Proof stress level | kpsi | ≥100 | |||
Cable Performance

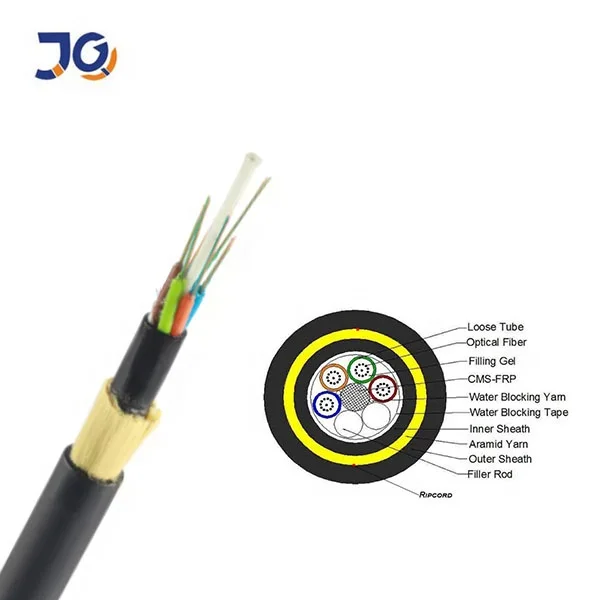

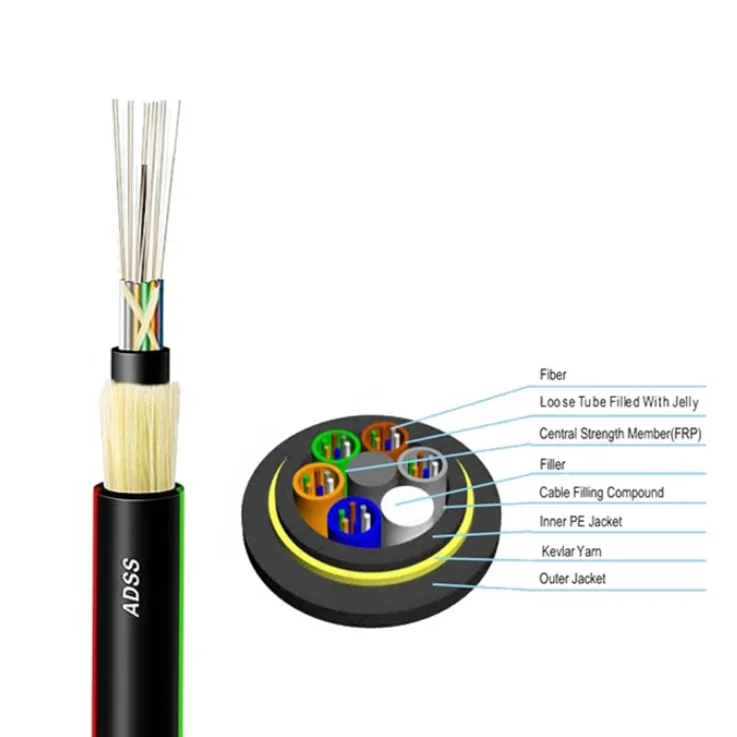

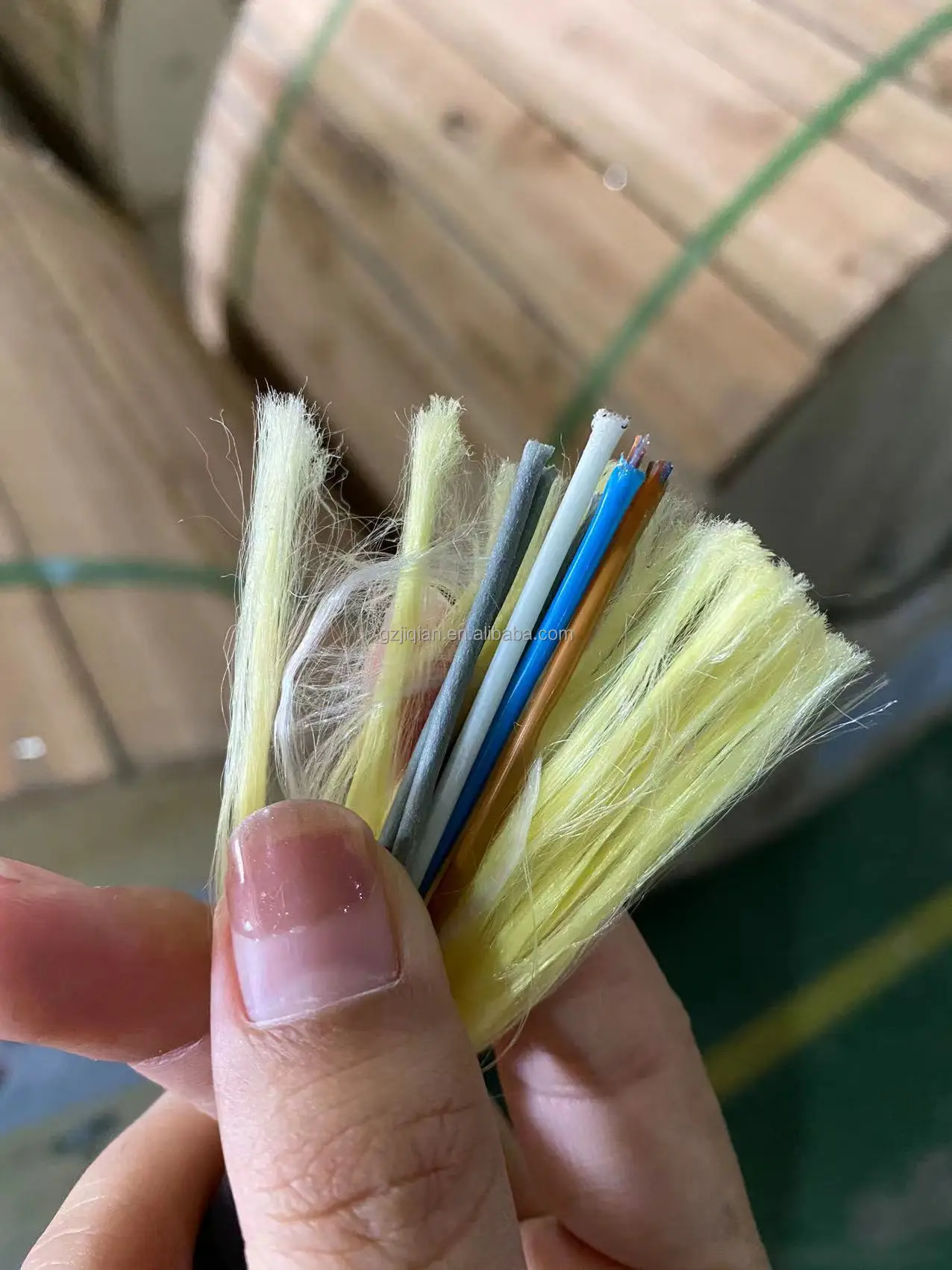

Cable structure | Item | ADSS-48B1 span 150m |
Center to strengthen core FRP | 2.0mm | |
Loose tube (filling gel) | 2.1±0.1mm | |
Outsheath thickness PE | 1.8mm | |
Cable diameter | 12.6±0.3mm | |
cable weight | 138kg/km | |
Loose tube(pcs) | 4 | |
Each tube contains fibers | 12 cores | |
Loose tube color | Blue、Orange、Green、Brown | |
Optical fiber color | Blue、Orange、Green、Brown、Gray、Natural、Red、Black，Yellow、Purple、Pink、Aqua |

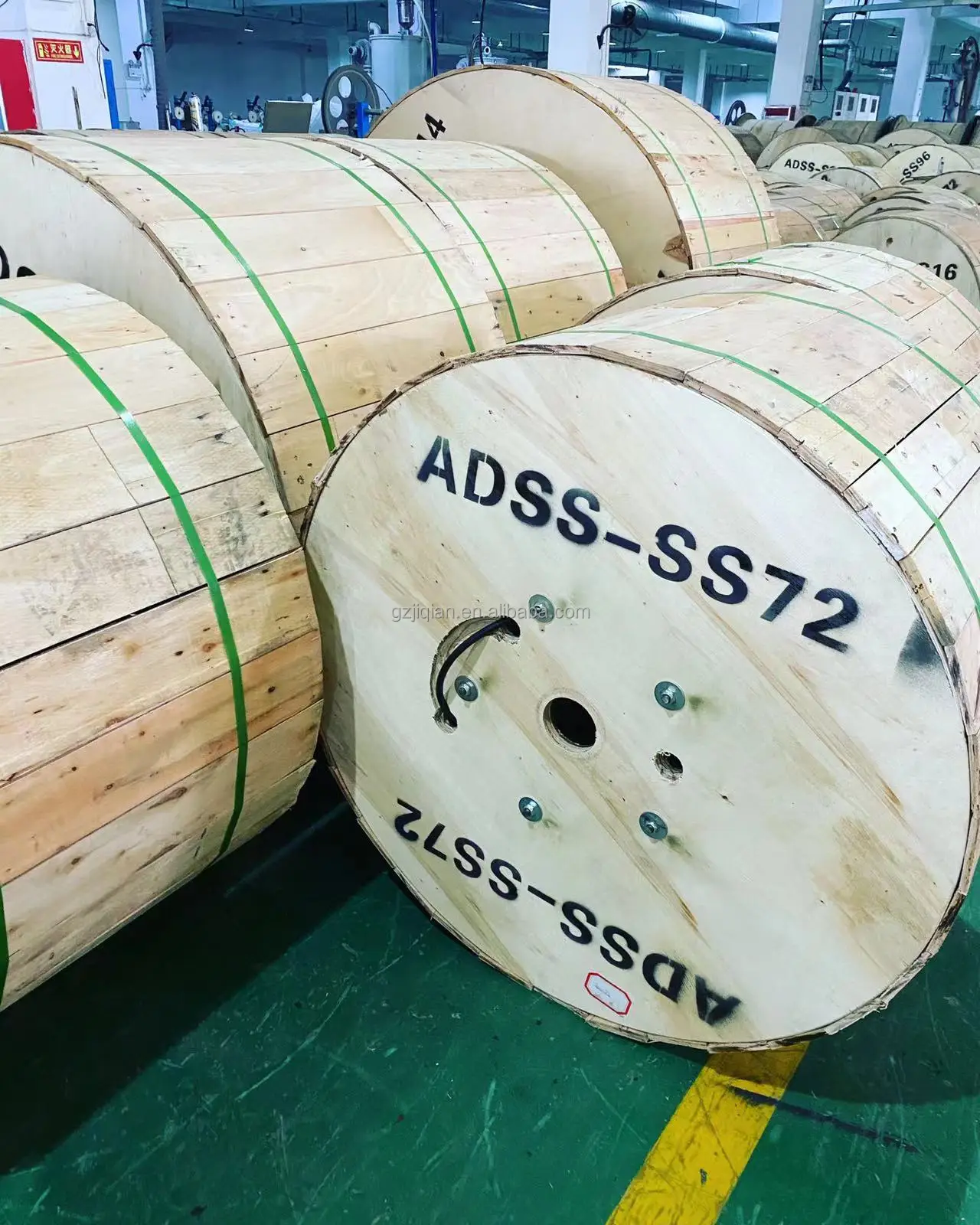

Packing & Delivery
Lead time
Order quantity(km) | 1-100 | Above 100 |
Earliest time(day) | 7 days | Negotiable |

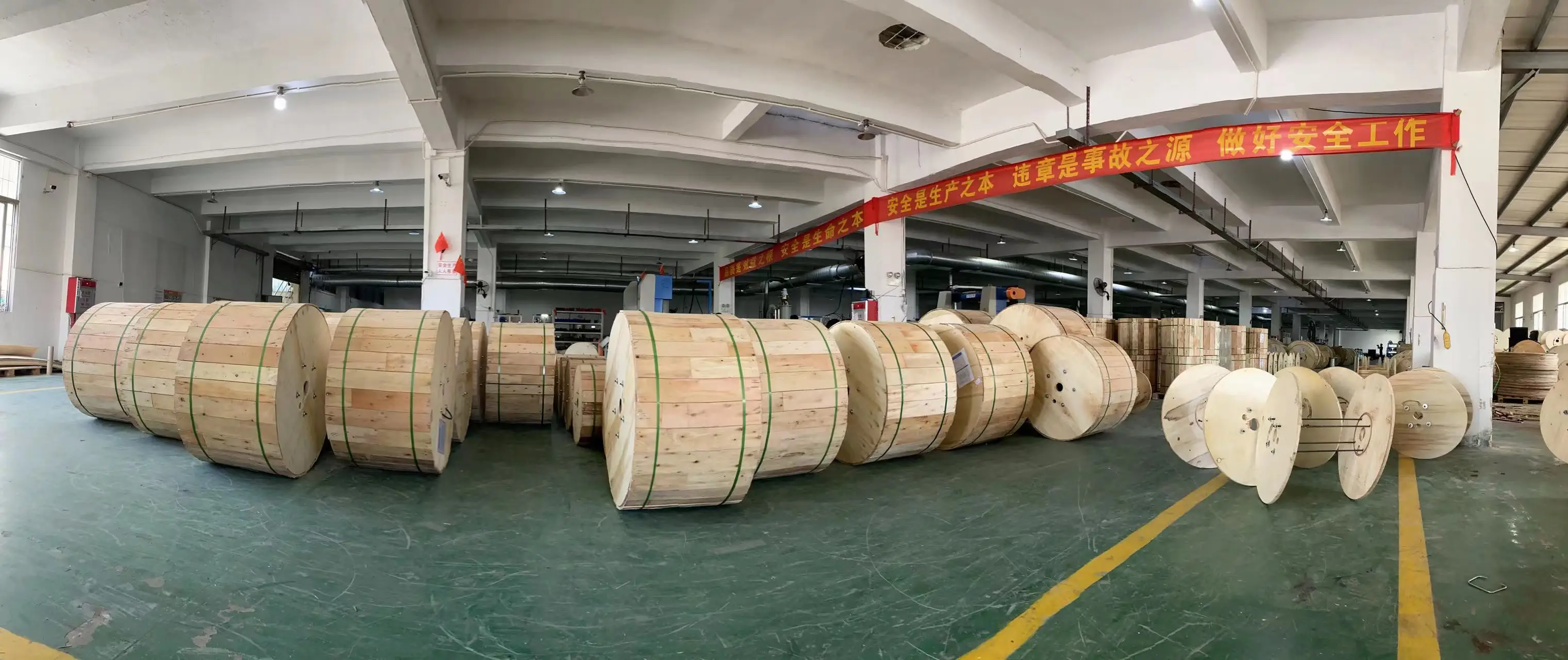

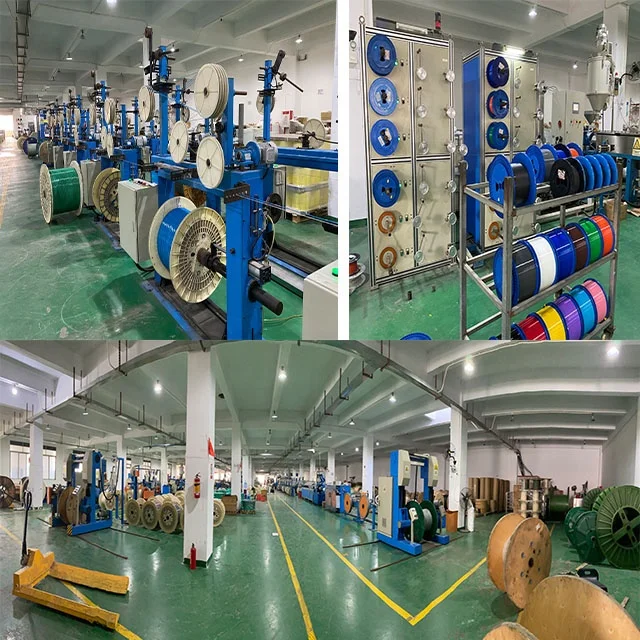

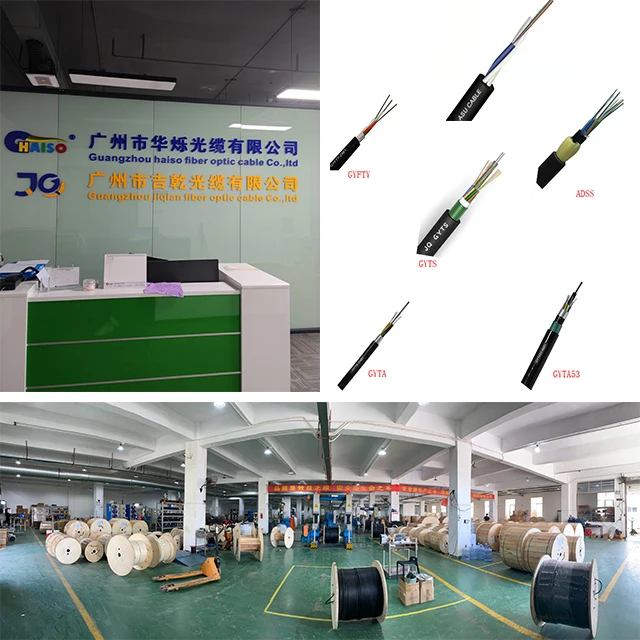

Company Profile
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Certifications
FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.
2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight
4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your warranty period?
25-30 years for outdoor fiber optic cable
6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE
7.What is your delivery time?
Usually 5-7 working days
8.What is your payment way?
T/T, L/C, Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
Yes. We are the real manufacturer with 10years history.
2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight
4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5.What is your warranty period?
25-30 years for outdoor fiber optic cable
6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE
7.What is your delivery time?
Usually 5-7 working days
8.What is your payment way?
T/T, L/C, Western Union
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
