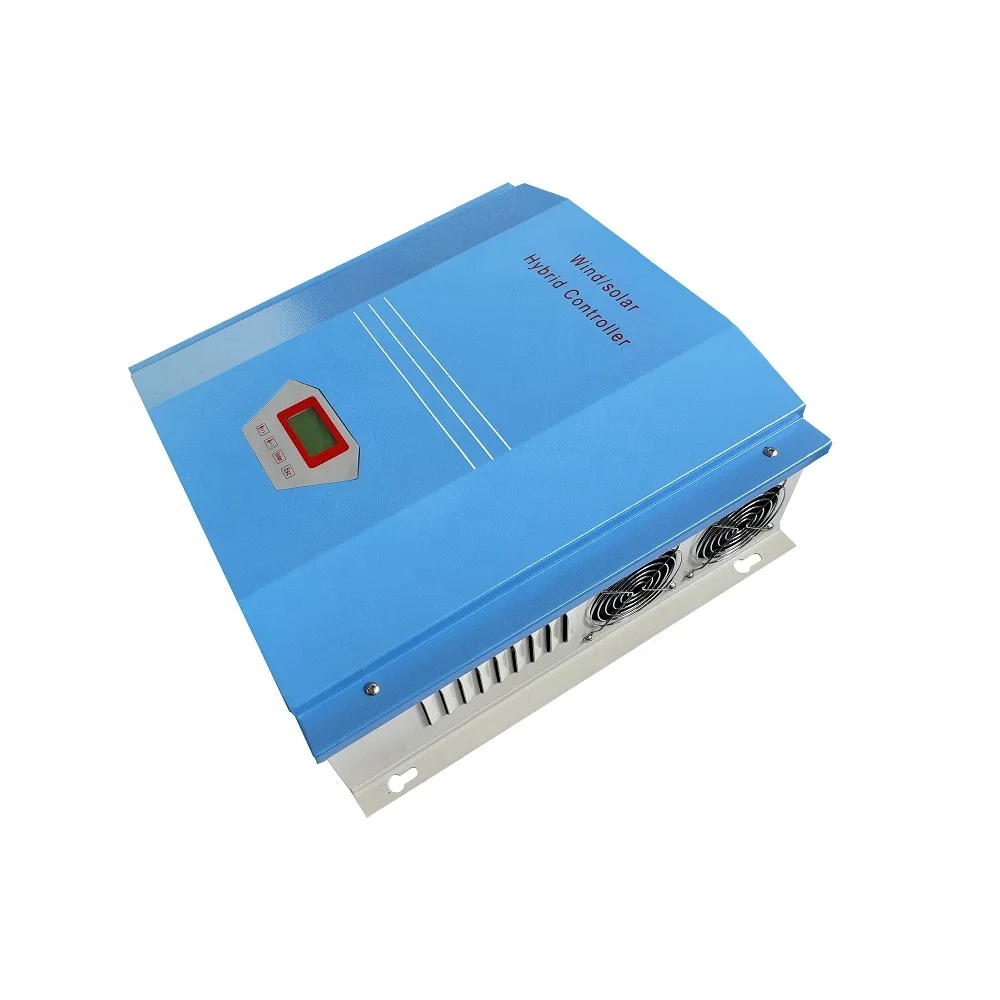

20KW 220V Wind Solar Hybrid Controller 240V 380V 384V with LCD Screen for 20000W Wind Turbine and Wind Generator Use with CE
- Category: >>>
- Supplier: Wuxi Feng Teng New Energy Technology Development Co. Ltd.
Share on (1600711547411):
Product Overview
Description
REAL POWER 26KW Wind Solar Controller with Dump Load
EXW Price is USD1650 / Pc

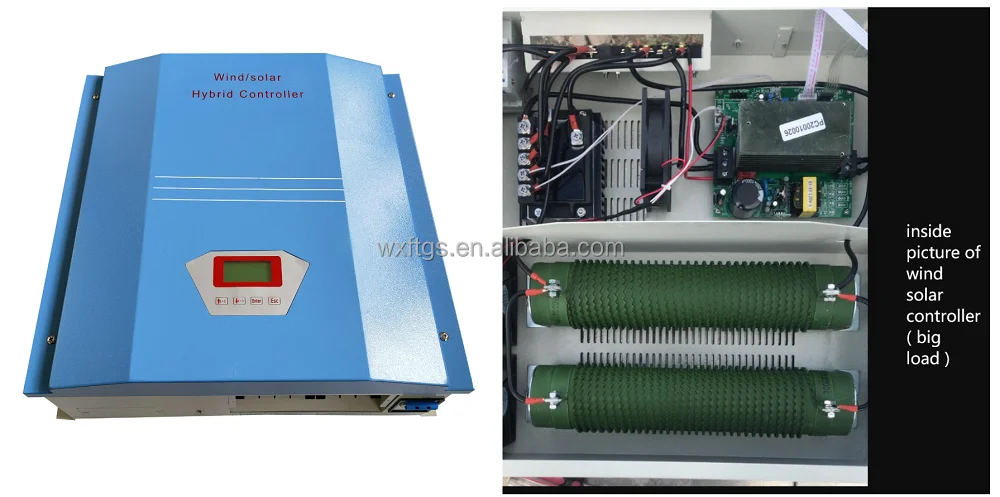

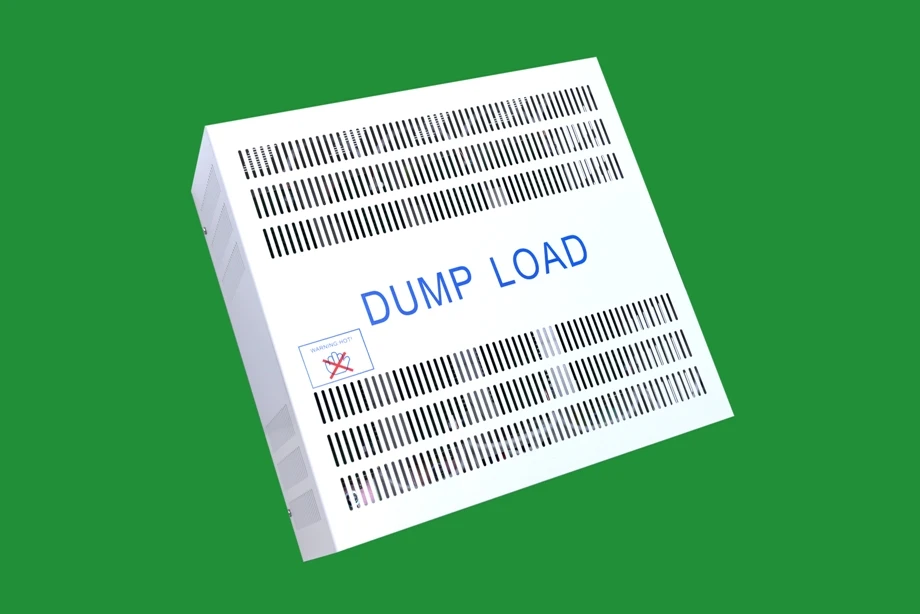

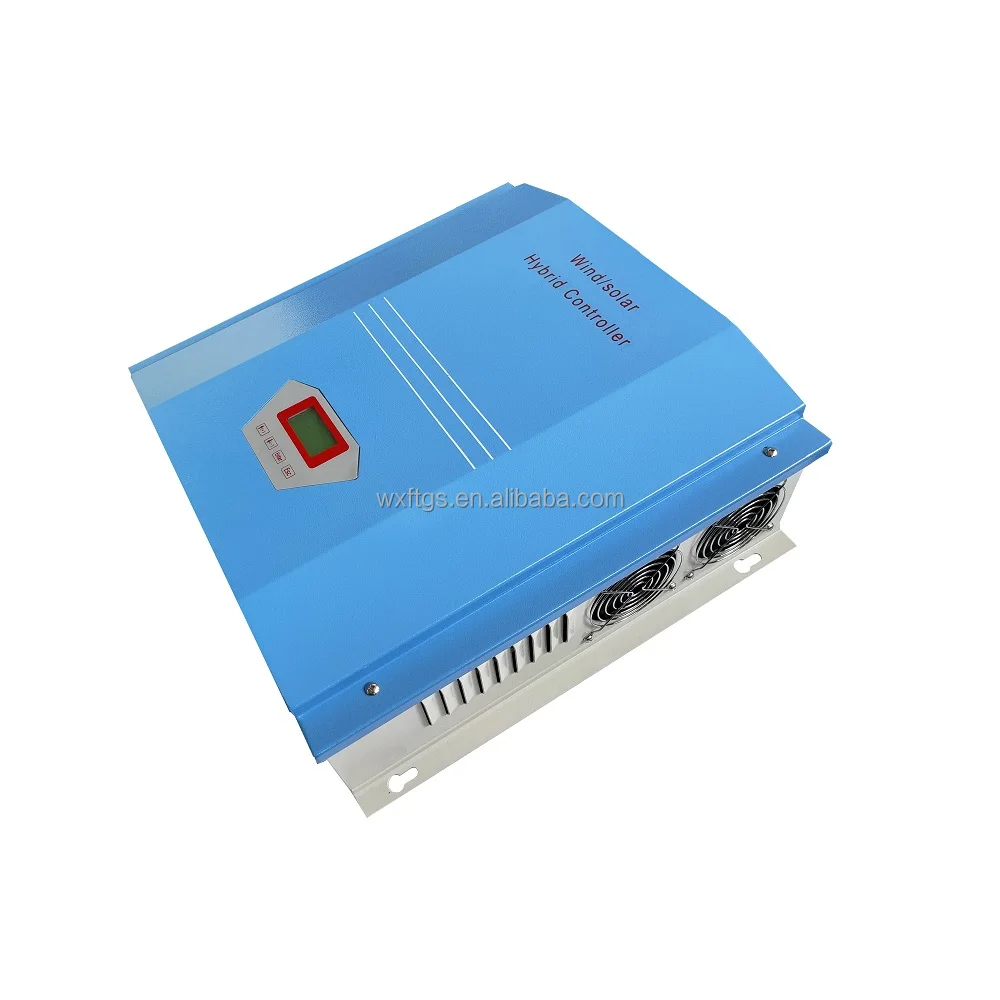

Picture of Wind solar hybrid controller with Dump Load
(notice: real dump load surface may differ from above picture due to batches)
Order List:
1 x Wind Solar Controller
1 x Dump Load
2. Parameters
220V
Model | WWS200-220 |
General specs |
|
Rated Battery Voltage | 220V |
Rated Wind Turbine Input Power | 20kW |
Maximum Wind Turbine Input Power | 30kW |
Wind turbine brake current | 91A |
Rated solar Input Power | 6kW |
Charge Shutoff Voltage | 266V |

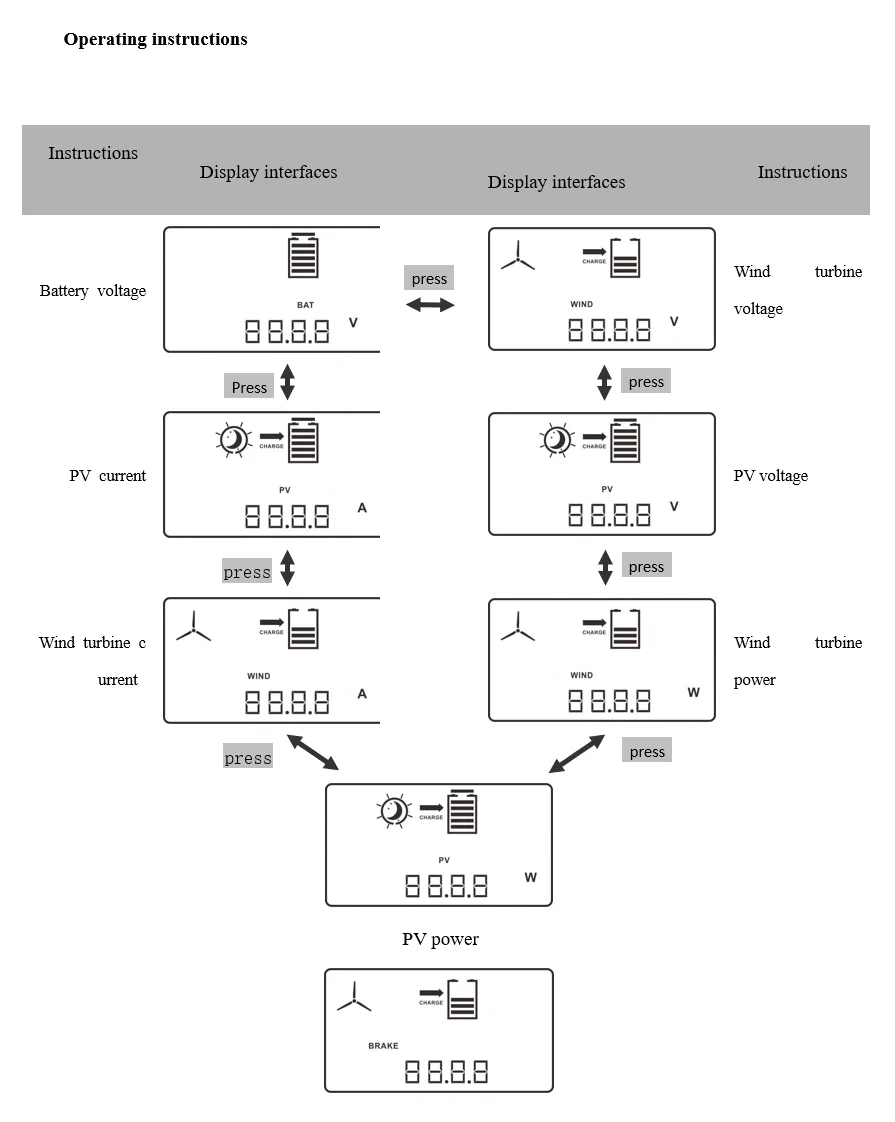

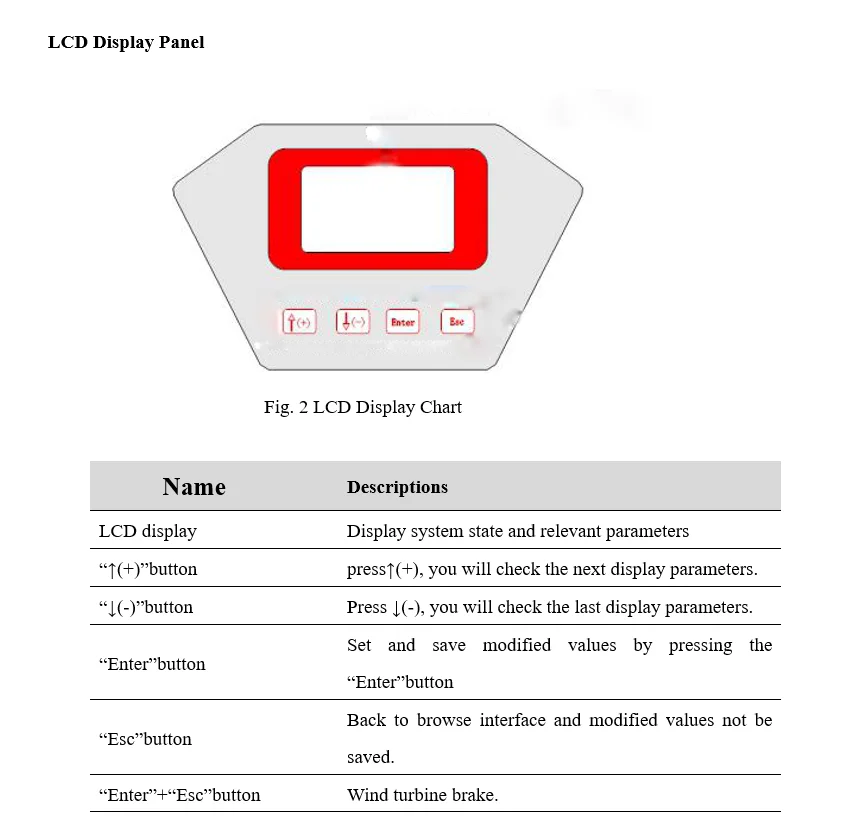

Display mode | LCD |
Cool mode | Fan |
Protections |
|
Reverse battery protection | anti-reverse-connection protection device in the inside of controller. |
Open circuit protection | The controller will not be demaged if the battary in open circuit. |
Solar anti-charge protection | Battery do not charge PV board in reverse. |
Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. |
Manual brake | wind generator stop turning or slowing turning |
Lightning protection | Lightning protection in inside of the controller. |
Protection grade | IP20(Indoor) |
Altitude | The controller will not be demaged if the battary in open circuit. |
Dimensions (L x W x H) | Controller:440×300×170mm,Dumpload box:520×430×600mm |
Net Weight | Controller:7.5 kg; dumpload box:52 kg |
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |
240V
Model | WWS200-240 |
General specs |
|
Rated Battery Voltage | 240V |
Rated Wind Turbine Input Power | 20kW |
Maximum Wind Turbine Input Power | 30kW |
Wind turbine brake current | 84A |
Rated solar Input Power | 6kW |
Charge Shutoff Voltage | 290V |
Stand by power loss | ≤65mA |
Display mode | LCD |
Cool mode | Fan |
Protections |
|
Reverse battery protection | anti-reverse-connection protection device in the inside of controller. |
Open circuit protection | The controller will not be demaged if the battary in open circuit. |
Solar anti-charge protection | Battery don’t charge PV board in reverse. |
Solar anti-reverse protection | The controller will not be damaged when the PV is reverse-connection. |
Manual brake | wind generator stop turning or slowing turning |
Lightning protection | Lightning protection in inside of the controller. |
Protection grade | IP20(Indoor) |
System parameters | -20~+55℃/35~85%RH(No Condensation) |
Altitude | The controller will not be demaged if the battary in open circuit. |
Dimensions (L x W x H) | Controller:440×300×170mm,Dumpload box:520×430×600mm |
Net Weight | Controller:7.5 kg; dumpload box:52 kg |
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |
384V
Product Model | 200-384-N00 |
Rated Battery Voltage | 384V |
Rated Wind Turbine Input Power | 20kW |
Maximum Wind Turbine Input Power | 30kW |
Rated Solar Input Power | 6kW |
Display Mode | LCD |
Quiescent Current | ≤20mA |
Ambient Temperature & Humidity | -20~+55℃/35~85%RH(Without Condensation) |
Temperature Compensation Function (Optional) | -4mV/℃/2V ,–35℃--+80℃ ,Precision:±1℃ |
Dimension(L×W×H) | Controller Box: 440×300×170mm ; Dumpload Box: 680×420×675mm |
Net Weight | Controller Box:9kg ; Dumpload Box: 30kg |
In order to serve our customers better. Our company can adjust parameters configuration according to customer’s requirement. | |
Friendly reminder: If you need a controller that is suitable
for both lead-acid batteries and lithium batteries, you can purchase an RS232 or RS485 from me, and you can modify the controller data through the computer.(USD20 for this function)

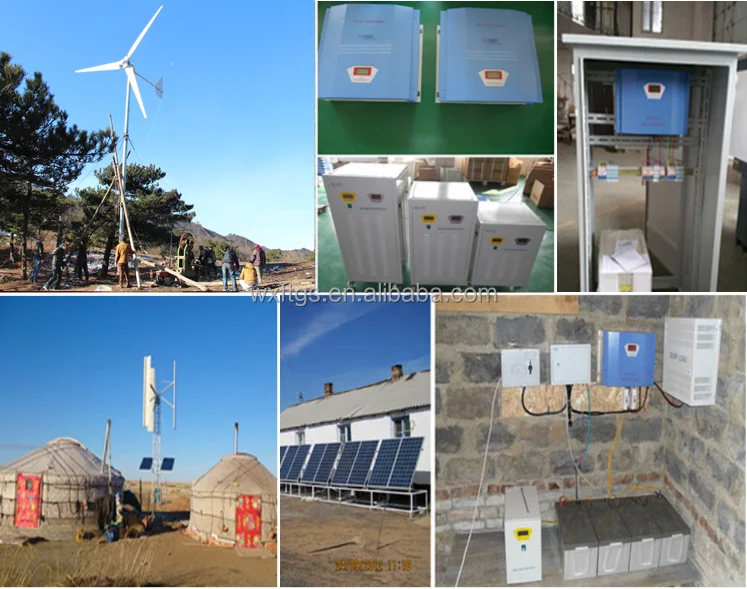

Applications
1.Independent wind power plant
2.Independent household wind power generation system
3.Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
Features

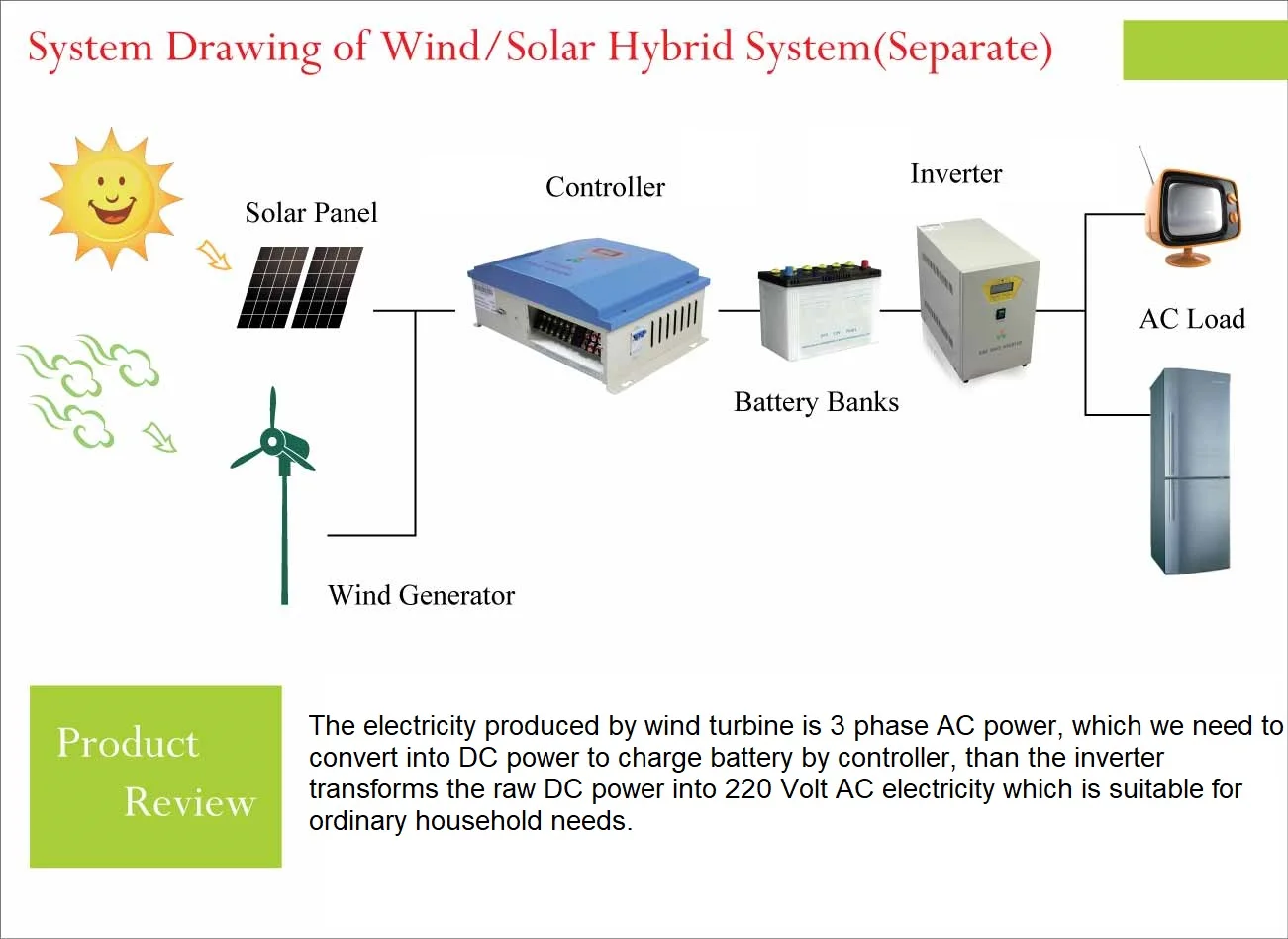

1.Can be applied to wind&solar hybrid off-grid system
2.Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.
3. RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth connection) additional fees is needed.
1.Independent wind power plant
2.Independent household wind power generation system
3.Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
Features
1.Can be applied to wind&solar hybrid off-grid system
2.Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.
3. RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth connection) additional fees is needed.
