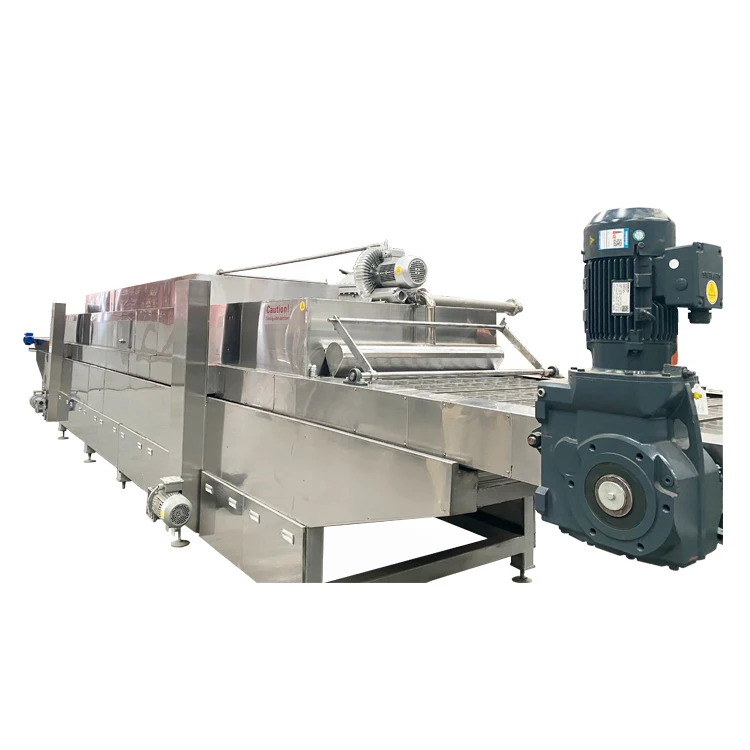

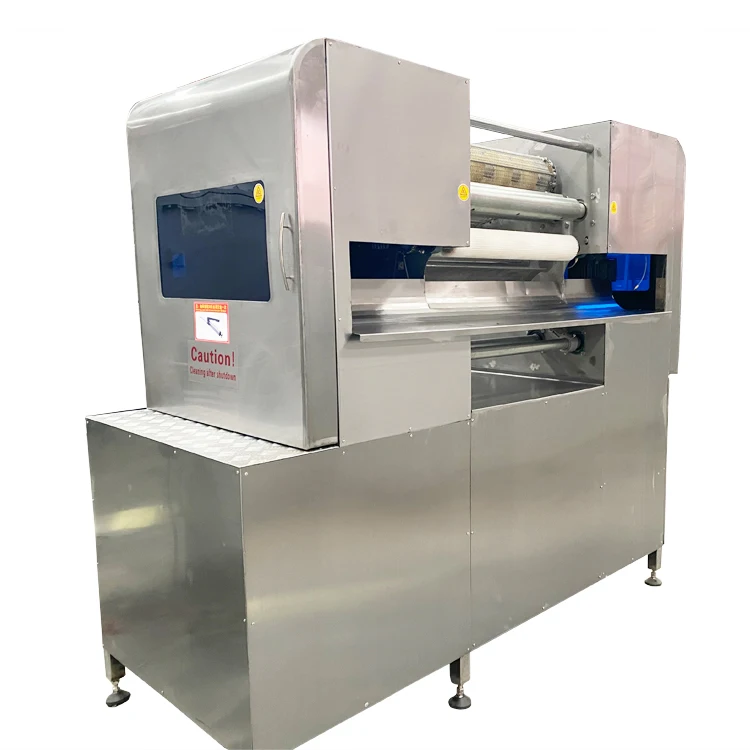

instant noodle machine fresh scale automatic cup noodles dried noodle making machine
- Category: >>>
- Supplier: Zhengzhou Kingdoo Machinery Co. Ltd.
Share on (1600712025773):
Product Overview
Description
hot selling automatic instant commercial noodle making machine
Product Introduction
Product Introduction
Our instant noodle machine is full automatic, noodle cake drop into fryer noodle box automatically .the machine
can make square or cup instant noodle cake, noodle cake weight usually from 35g to 100g , we have many
different models of instant noodle machine, capacity is 10000 pics , 20000 pics , 30000 pics , 40000 pics ,
60000 pics ,80000 pics , 120000 pics , 160000 pics , 200000 pics , 230000 pics , 280000 pics per 8 hours .
We can also send engineers to customer’s place for installing noodle machine, and teach
Customer how to operate and maintain noodle machine.
Super Advantages
we all use good quality parts to make fried instant noodle making machine .
For example , we buy carbon steel, pipe,iron steel, U- steel, stainless steel from china government big company
like Taiyuan steel group company.
We use HAERBIN bearing, WANAN motor, GUOMAO speed reducer which are all chinese top class brand .
We also can use famous international brand parts if customer has special requirements. Like ABB or Siemens
motors, NSK bearing. About electric part, we use Emerson converter,PLC Mitsubishi, touch screen Wenview.
Our fried instant noodle making machine is full automatic that need less labor . The noodle cake cutting ,folding
and enter into noodle box are all automatic which from small to big size noodle machine.
For example our smallest fried instant noodle making machine capacity is 20,000 bags 8 hours .Only need 3-4 worker
to operate this noodle line. flour mixer part need one labor . Rolling machine need one . Cutting and dividing machine
need 2 person.
The most important thing that need customer pay attention is oil consumption. Our noodle machine oil consumption
is about 18%-19%.
We will try our best to give our customer good quality instant noodle machine and best price!!!

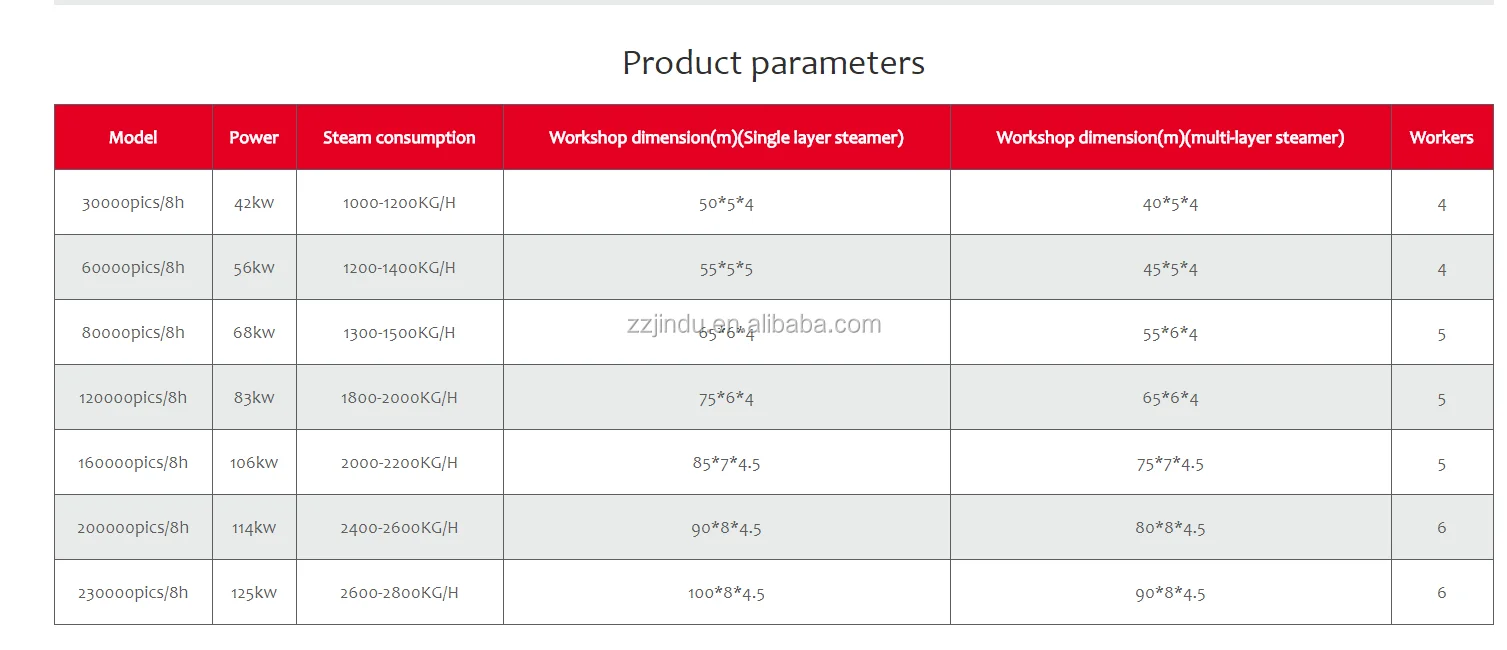

The parameters of fried instant noodle machine
The following auxiliary machinery of the fried instant noodle line

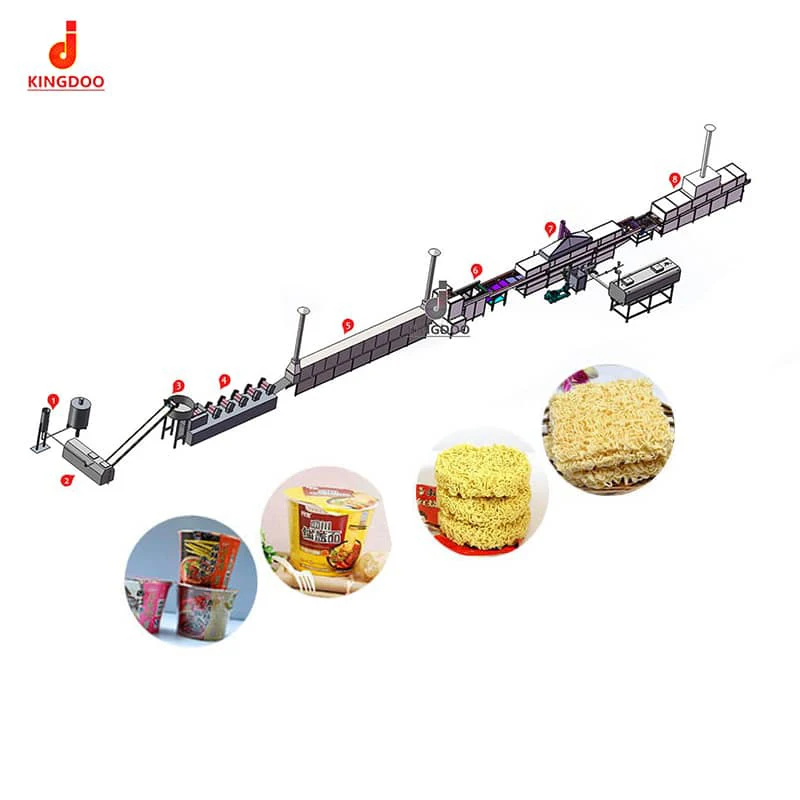

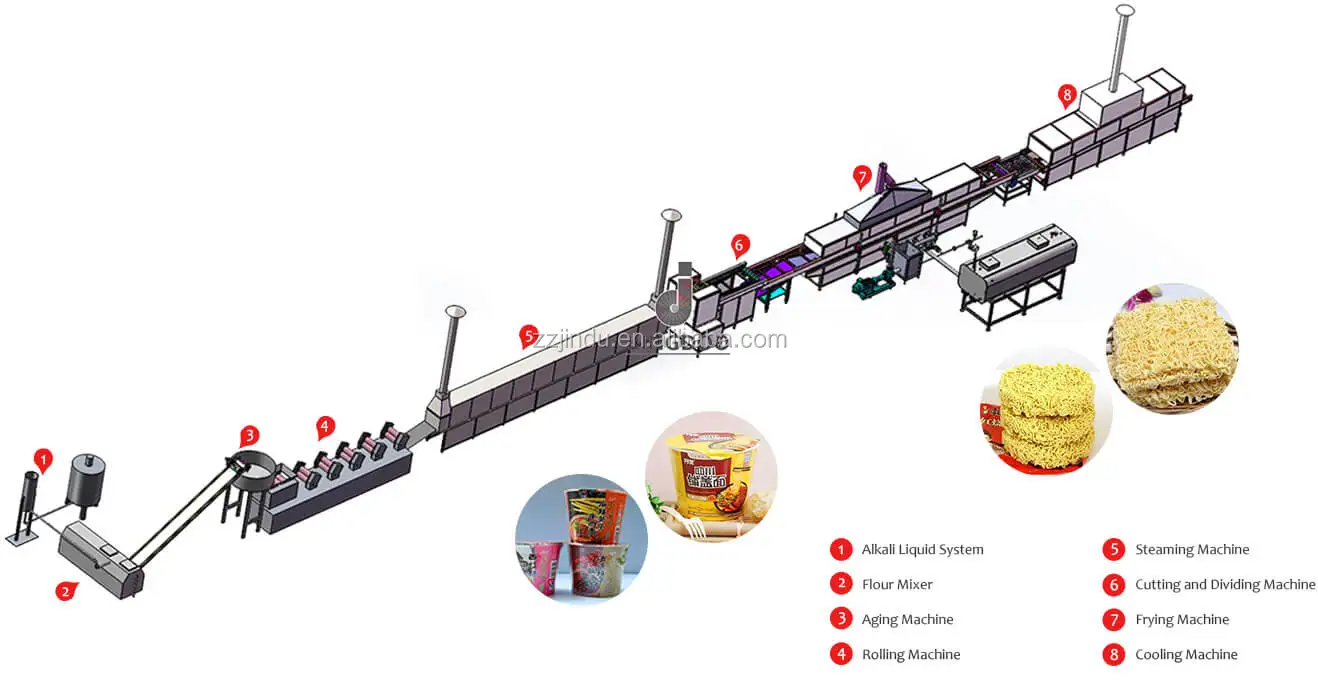

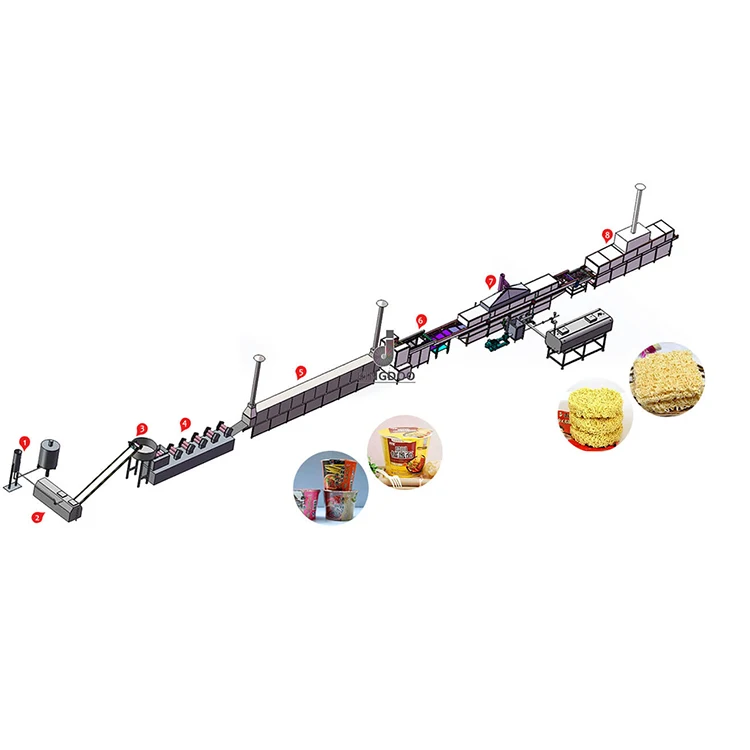

Process flow:
Salt water mixer and measurement-----mixing-----dough aging------pressing-----steaming----cutting and dividing------frying or drying
------cooling------convey-----packing(in bags and bowl)
| ITEM | PRODUCT PHOTO | PRODUCT NAME | PRODUCT DESPRICTION |

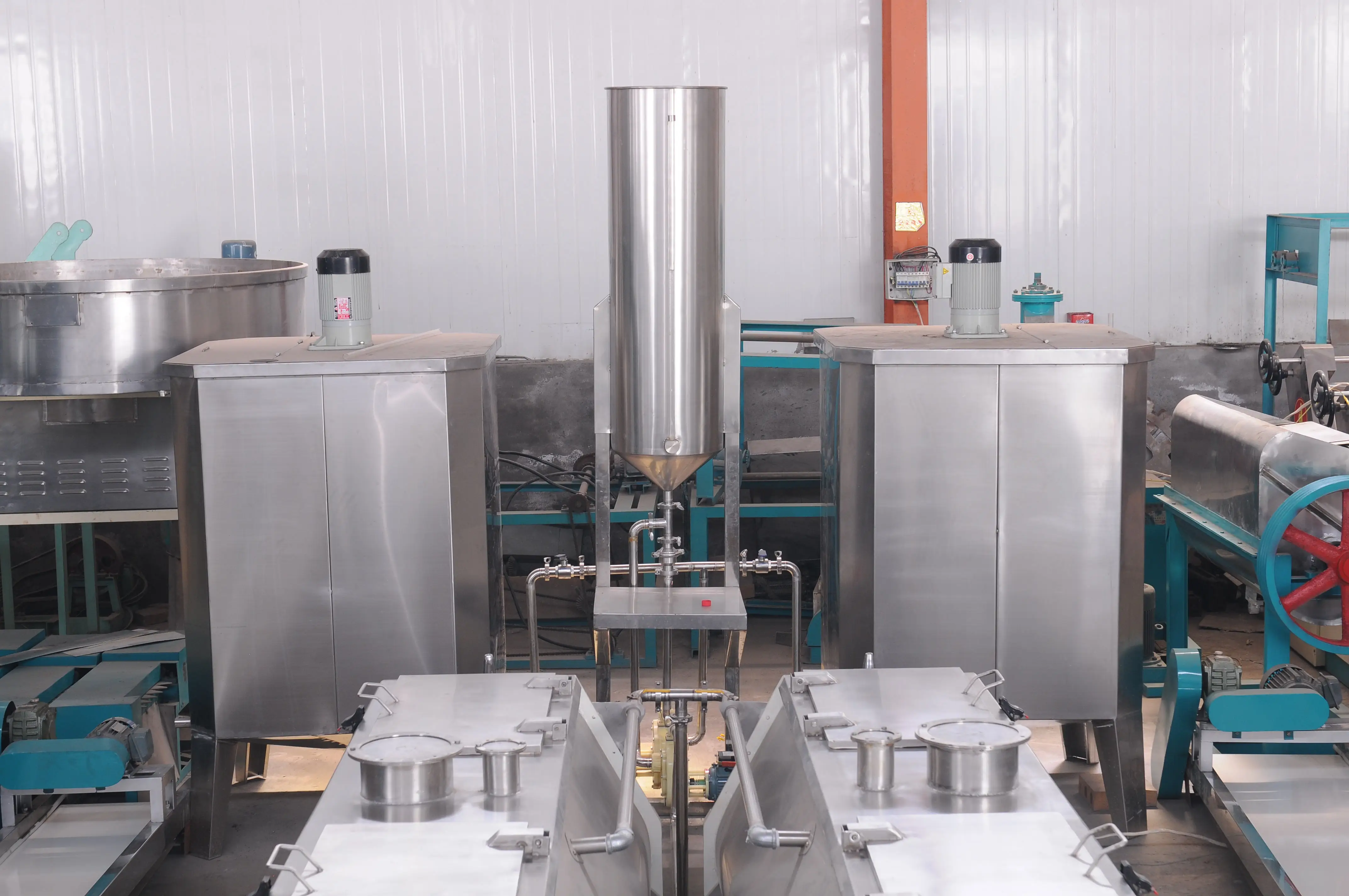

| 1 |  | Alkali Liquid System | Water mixed with additive such as salt, alkali. body,shaft,mixing device stainless steel304,water measuring automatically |

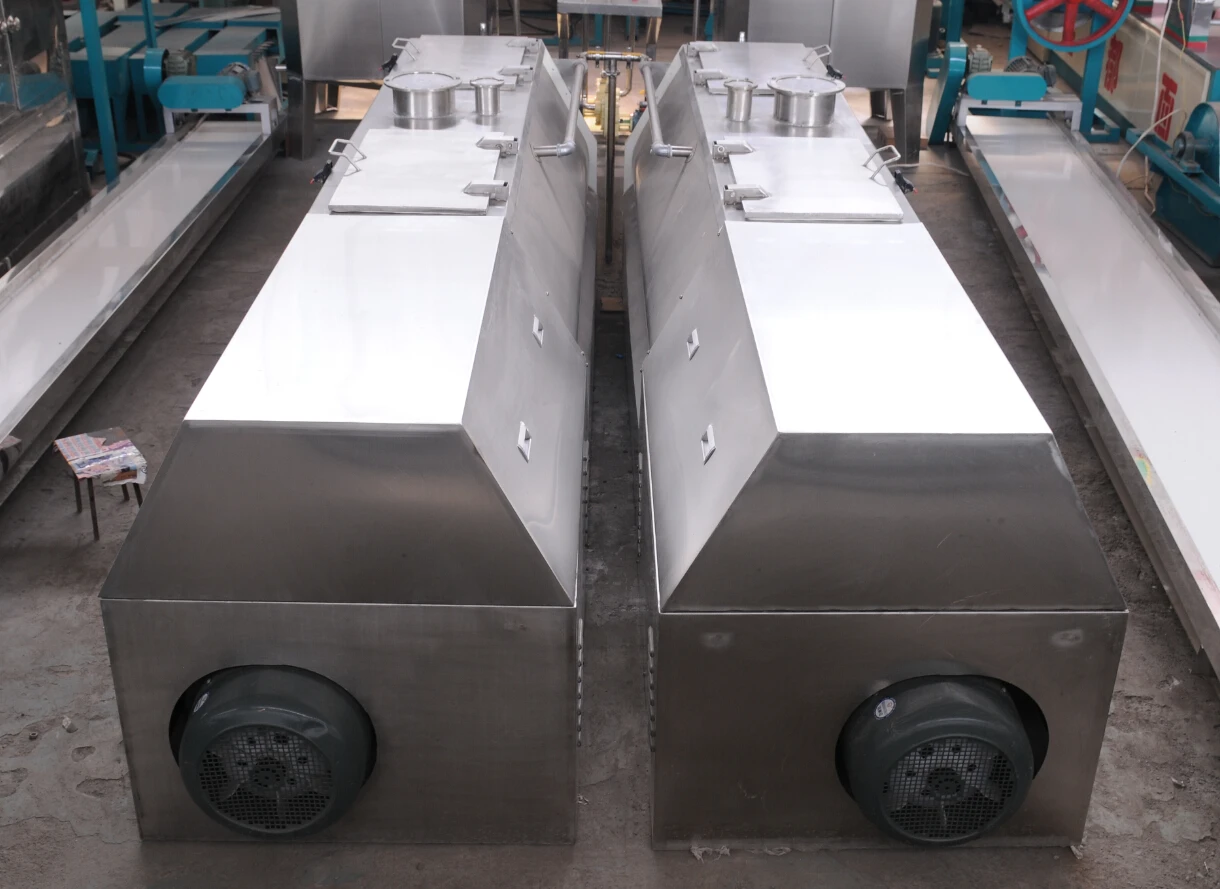

| 2 |  | Flour Mixer | Flour and water combined and mixed full.mixing tank made of stainless steel 304.mixing shaft,water injection pipe,safety head,cover made of stainless steel. supporter,driving shaft,driving fitting,fastener made of carbon steel |

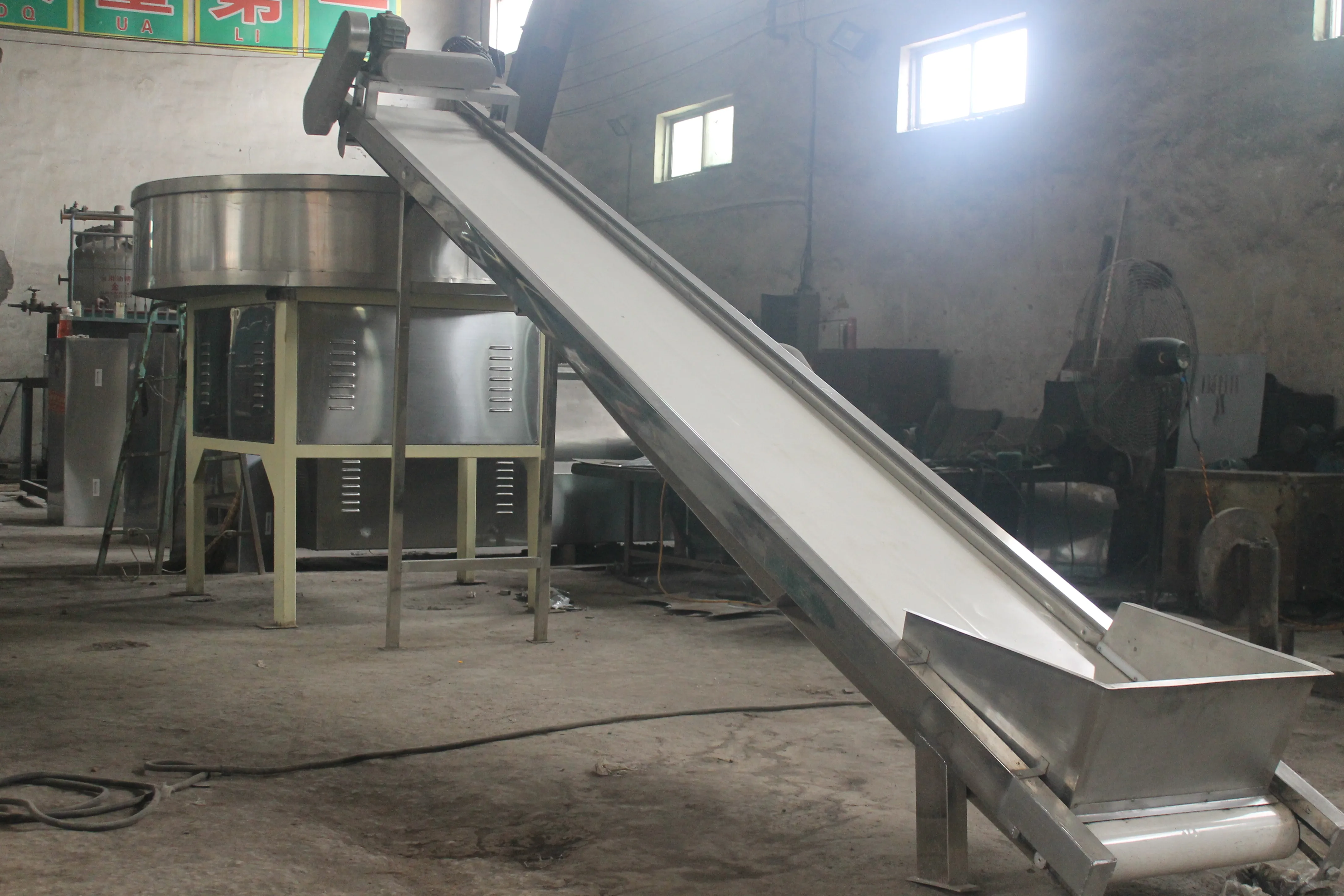

| 3 |  | Aging Machine | Dough aging, improve the elasticity of the flour. tray,rod made of stainless steel 304, driving fitting,supporter made of carbon steel |

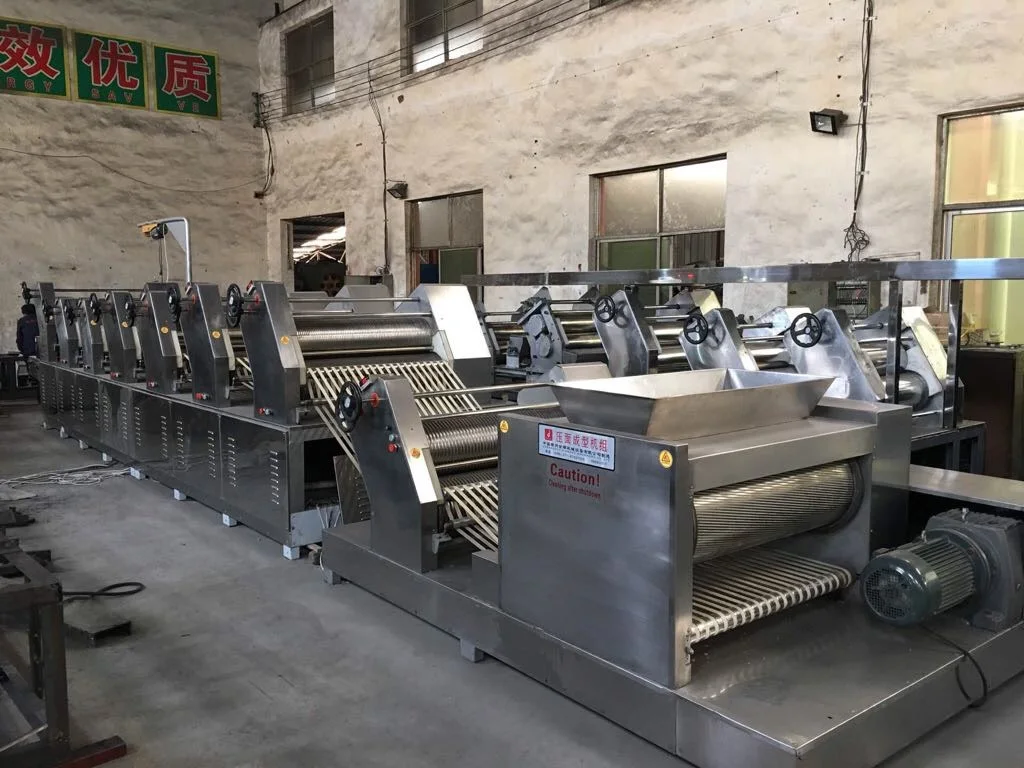

| 4 |  | Rolling Machine | feeder,roller protective plate,guard board on two sides made of stainless steel,roller side,supporter,driving fitting made of carbon steel, scrapper: copper ,guard board for roller:nylon . noodle press roller: solid alloy ,dough sheet conveying belt: food grade |

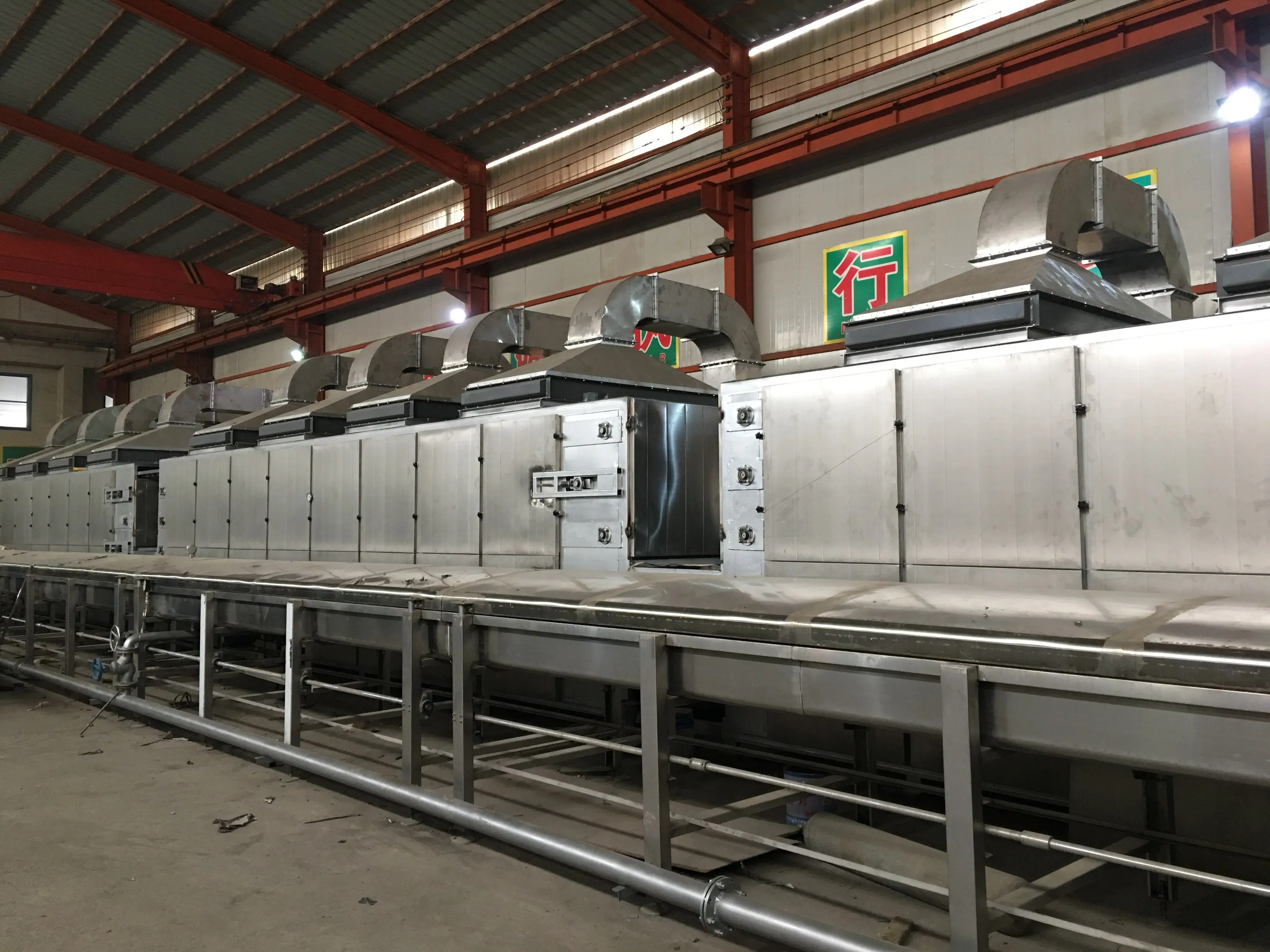

| 5 |  | Steaming Machine | To make slitted and waved noodle mushy and shaped.steaming groove,cover,spray pipe,conveying chain,net belt,orbit,exhaust pipe,exhaust cover, net belt washing tank made of stainless steel304,supporter:made of stainless steel |

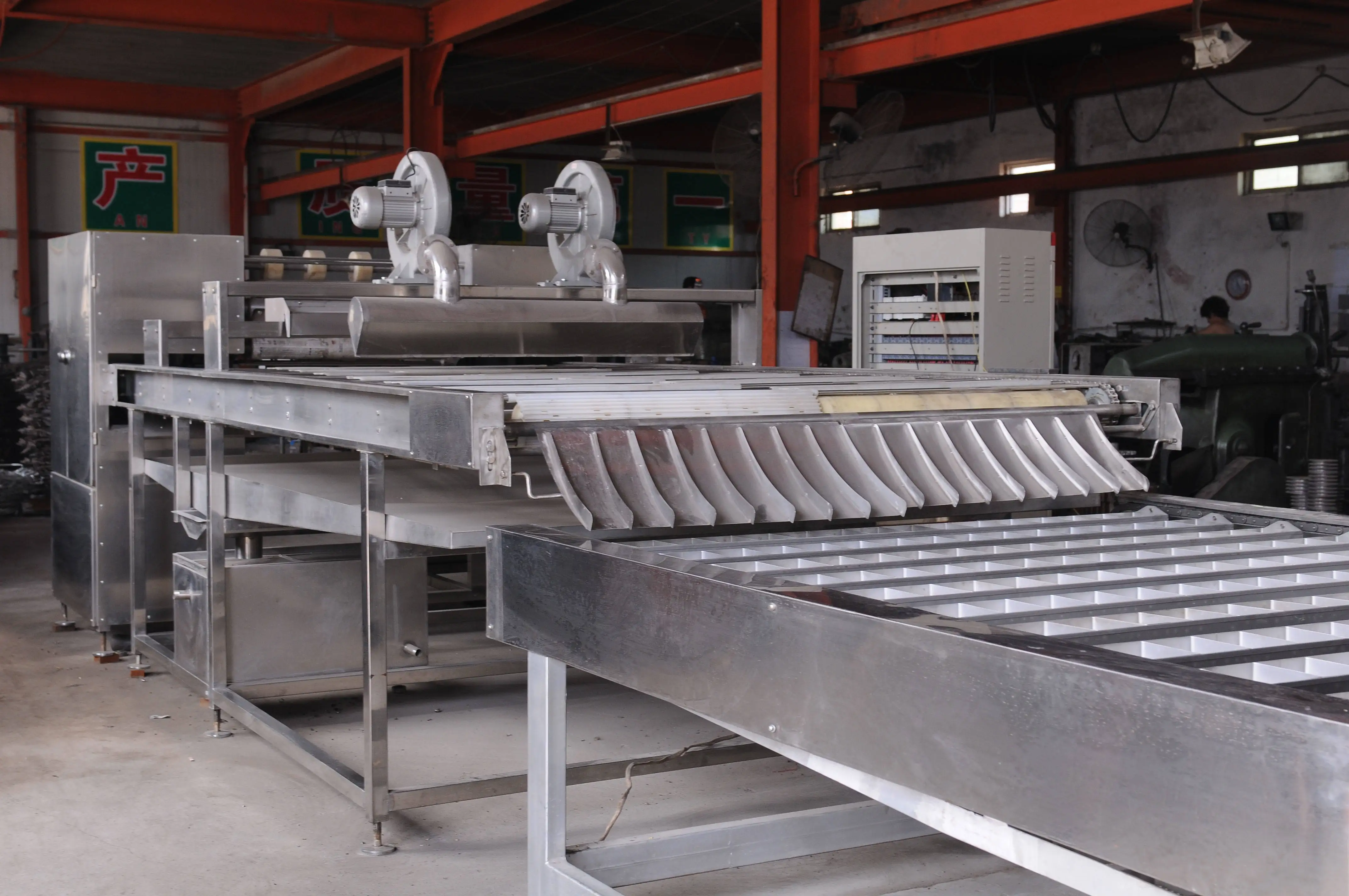

| 6 |  | Cutting and Dividing Machine | Cutting, folding, dividing, forming the dough pieces and entering boxes, it can form square or circular dough pieces from different molds,made of stainless steel,dividing plate:silica gel,include centralized oil supply device |

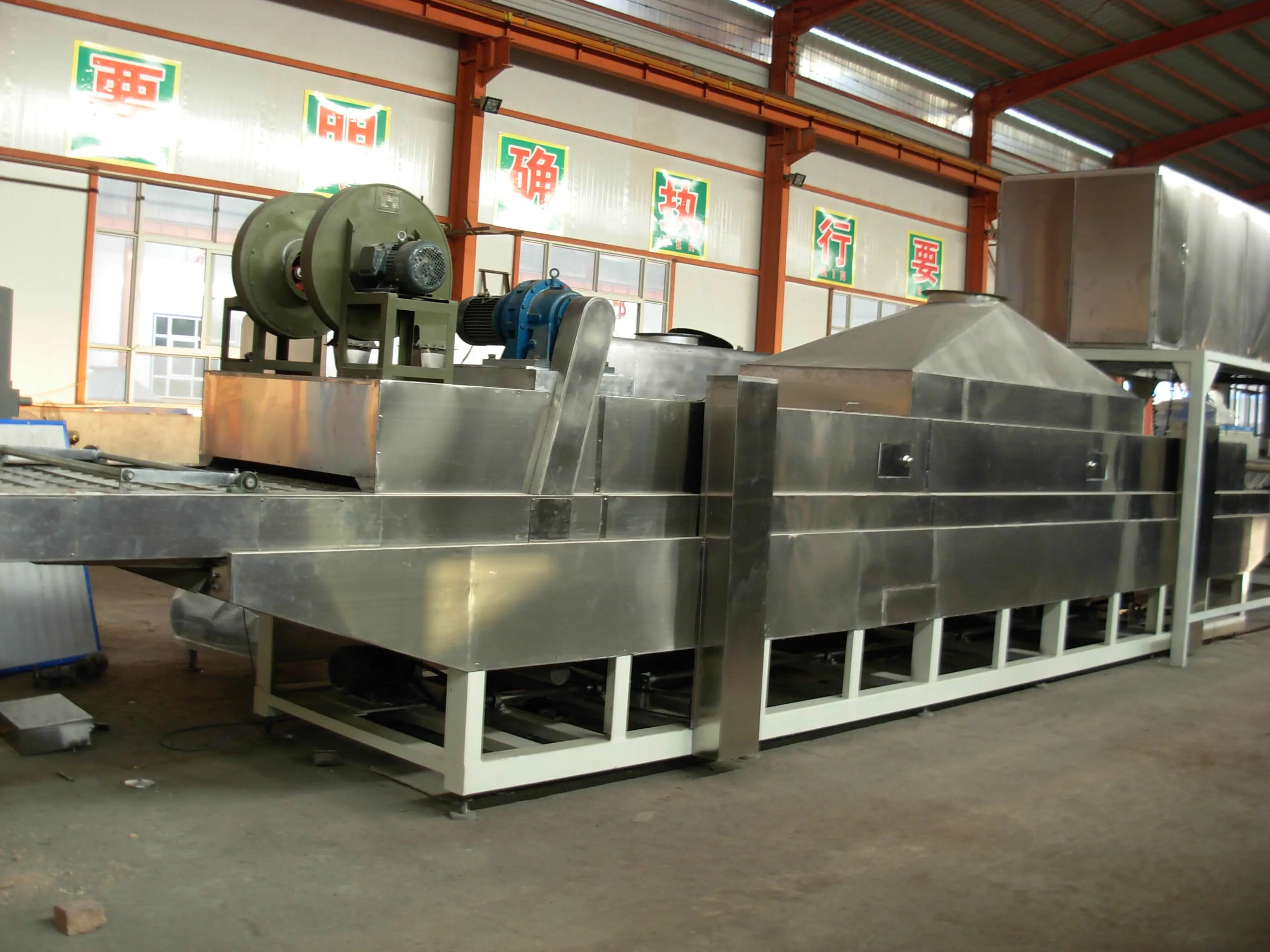

| 7 |  | Frying Machine | Dehydrated by frying, fixing the shape of dough pieces, making dough crispy to taste good. heating system,temp control automatically,oil pot up and down by manual and automatically .oil pot:carbon steel,the cover of oil pot:stainless steel,chain and orbit :carbon steel |
| 8 |  | Cooling Machine | Lower the temperature of dough pieces to meet the demand of packing. conveying net belt made of stainless steel 304,conveying chain: made of carbon steel,outer guard plate made of stainless steel |
| 9 |
Good feedback from our customers !
our advantage
![9]B4UDCO3_}LGZ[S}B8LLI0](http://sc01.alicdn.com/kf/HTB1doRvKXOWBuNjy0Fi760FxVXaq/200685739/HTB1doRvKXOWBuNjy0Fi760FxVXaq.png)
Company Introduction

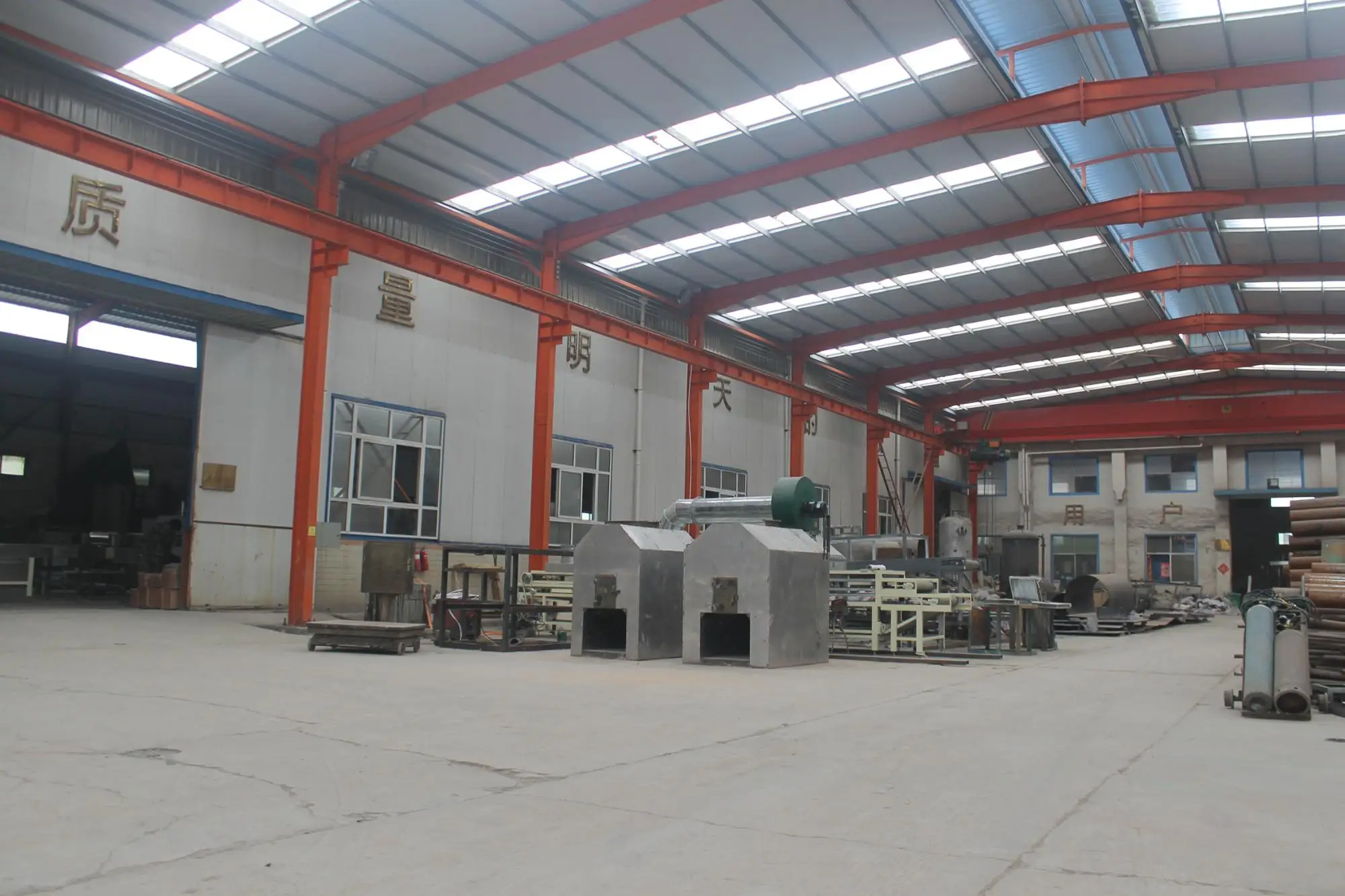

Zhengzhou Kingdoo Machinery Co. Ltd is the professional food machinery manifacture.My factory has more than 180 persons,
covering 12thousand meteres squares.CE and ISO certification are provided by the Kingdoo factory.
The factory has the instant noodle making machine, stick noodle making machine and hand noodle making machine. The factory
has patent in making the noodle making machines.

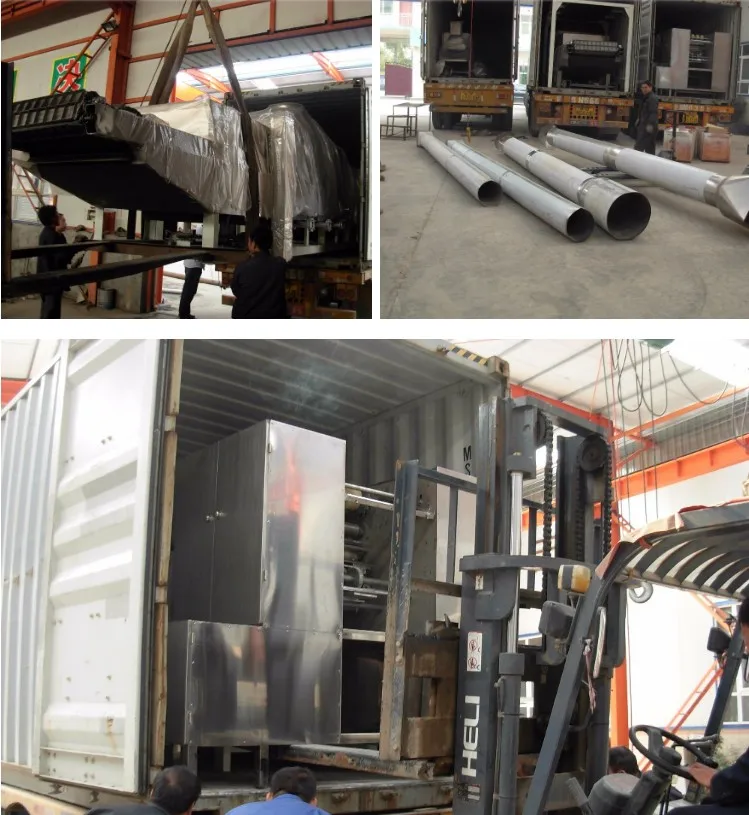

Packing and Delivery
Customer Visit
Our Main Certificate
Service
Why Choose Us?
We will reply your inquiry in 7*24 hours.
Experienced staffs will answer all your questions in fluent and professional English.
Customized design is available.
Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order. And we help to arrange cars, hotels, and the translators for every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
One or more engineers will be dispatched to the installation site to help install.
We also provide necessary training about machine operation and daily maintenance to local workers.
Q...What is your patment term ?
----Usually it would be 30% deposit payment, 70% balance before delivery. T/T, L/C and other way.
