Ftth Fiber Optic Power Meter Ftth Fiber Optical Laser Source Power Meter Connector Cable Tester Optic Power Meter
- Category: >>>
- Supplier: Optical Trust (Xuzhou) Electronic Technology Co. Ltd.
Share on (1600712038239):
Product Overview
Description
Features
Features
1. Both linear mW and nonlinear index dBm
2. Automatic shutdown
3. Backlight switch
4. User calibration
5. Wavelength memory function
6. The function of stable laser source is optional
7. Three types of red light
8. Red light power optional
9. Optional interface of FC,SC and ST
10.USB charging
Specification
OPM | ||||
Wavelength Range | 800nm~1700nm | 800nm~1700nm | ||
Connector | FC/SC/ST | FC/SC/ST | ||
Detector Type | InGaAs | FC/SC/ST | ||
Power Measurement Range | -70dBm~+6dBm | -50dBm~+26dBm | ||
Uncertainty | ±5% | |||
Calibration Wavelength | 850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm | |||
Display Resolution | Linear display:0.1%,Logarithmic display:0.01dBm | |||

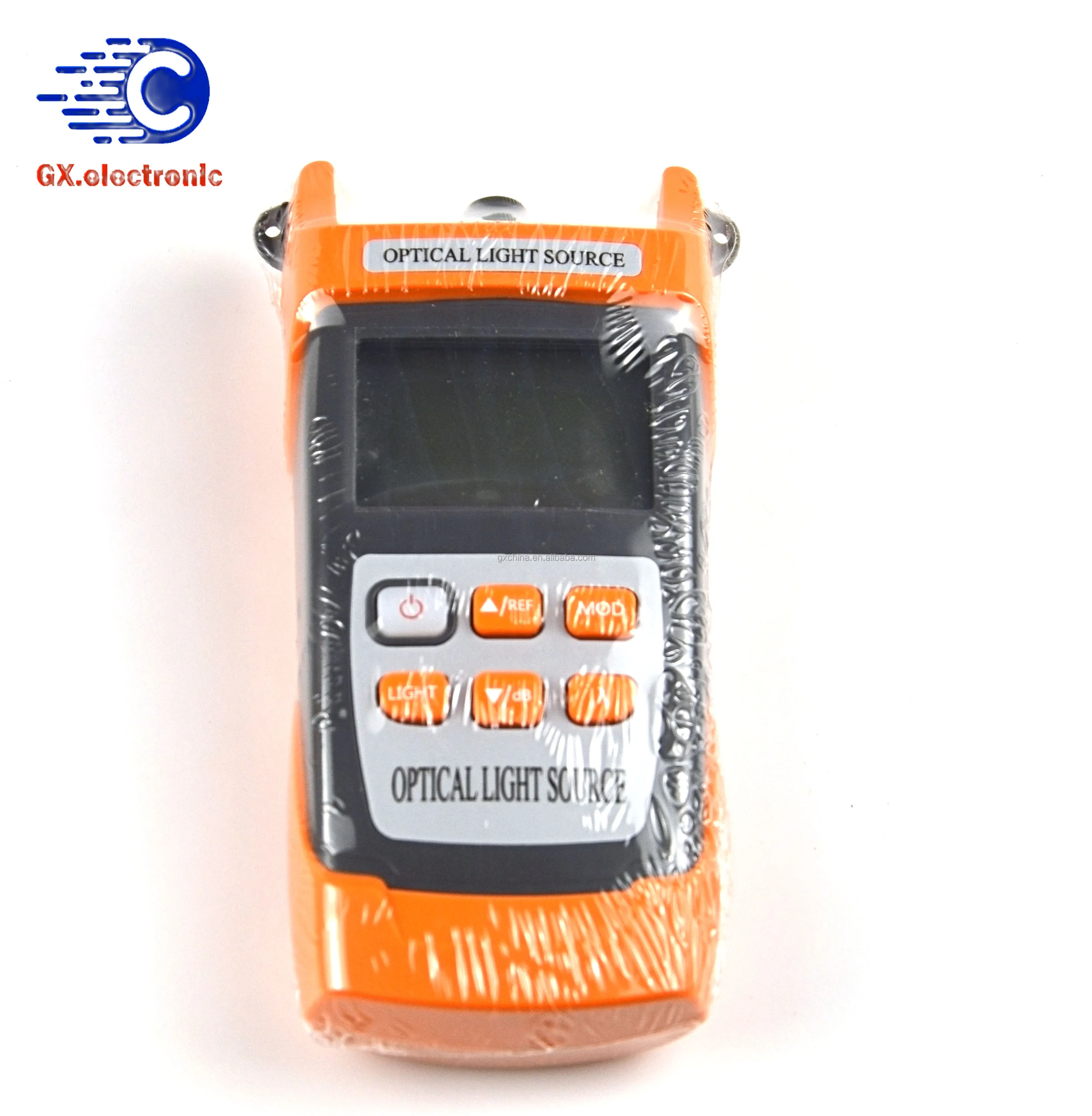

LS(options) | ||||
Wavelength | 850nm/1300nm±20nm | 1310nm/1490nm/1550nm±20nm | ||
Fiber Type | 62.5/125um | 9/125um | ||
Laser Type | FP-LD | FC/SC/ST | ||
Power | ≥-5dBm | -50dBm~+26dBm | ||
Stability | ±0.02dB/8h | |||
Mode | CW/270Hz/1000Hz/2000HZ | |||
Power Regulation | 0~6dB,1dB step | |||
Connector | FC/SC/ST | |||
VFL (options) | ||||
Wavelength | 650nm ±30nm | 1310nm/1490nm/1550nm±20nm | ||
Power | 2mW/10mW/20mW/30mW/50mW/ | -50dBm~+26dBm | ||
Mode | CW/1Hz/2Hz | |||
Connector | FC/SC/ST | |||
Others | ||||
Power Supply | Three Batteries No.5/ 1020mAH Rechargeable Lithium Battery(Options) | 1310nm/1490nm/1550nm±20nm | ||
Automatic Shutdown Time | 10mins | 9/125um | ||
Continuous Working Time | ≥120h(OPM Function) | FC/SC/ST | ||
Operating Temperature | -10℃~+50℃ | -50dBm~+26dBm | ||
Storage Temperature | -40℃~+70℃ | |||
Relative Humidity | 0~95% Non Condensing | |||
Size | 186mm X 100mm X50mm | |||
Weight | 140g/150g | |||

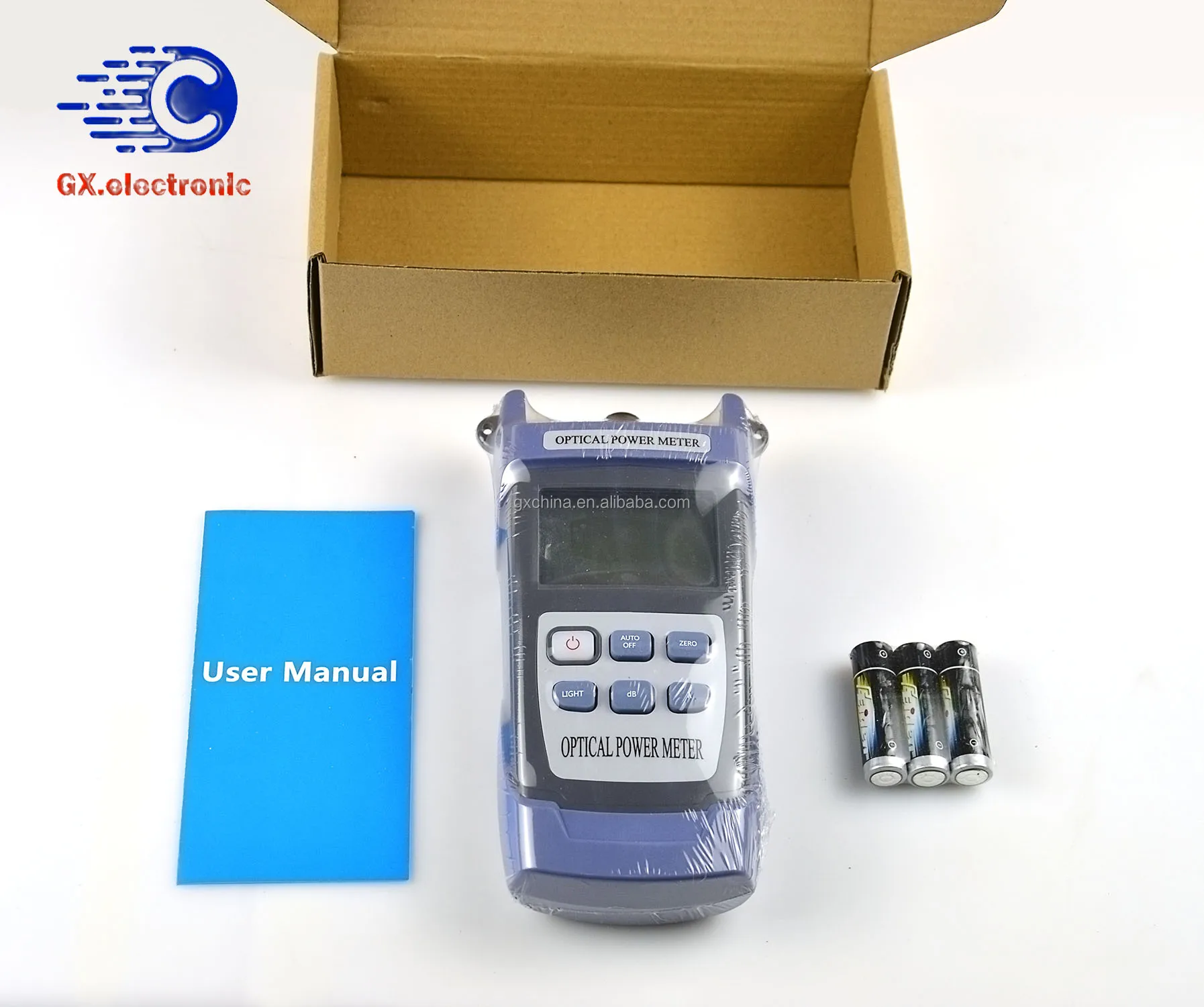

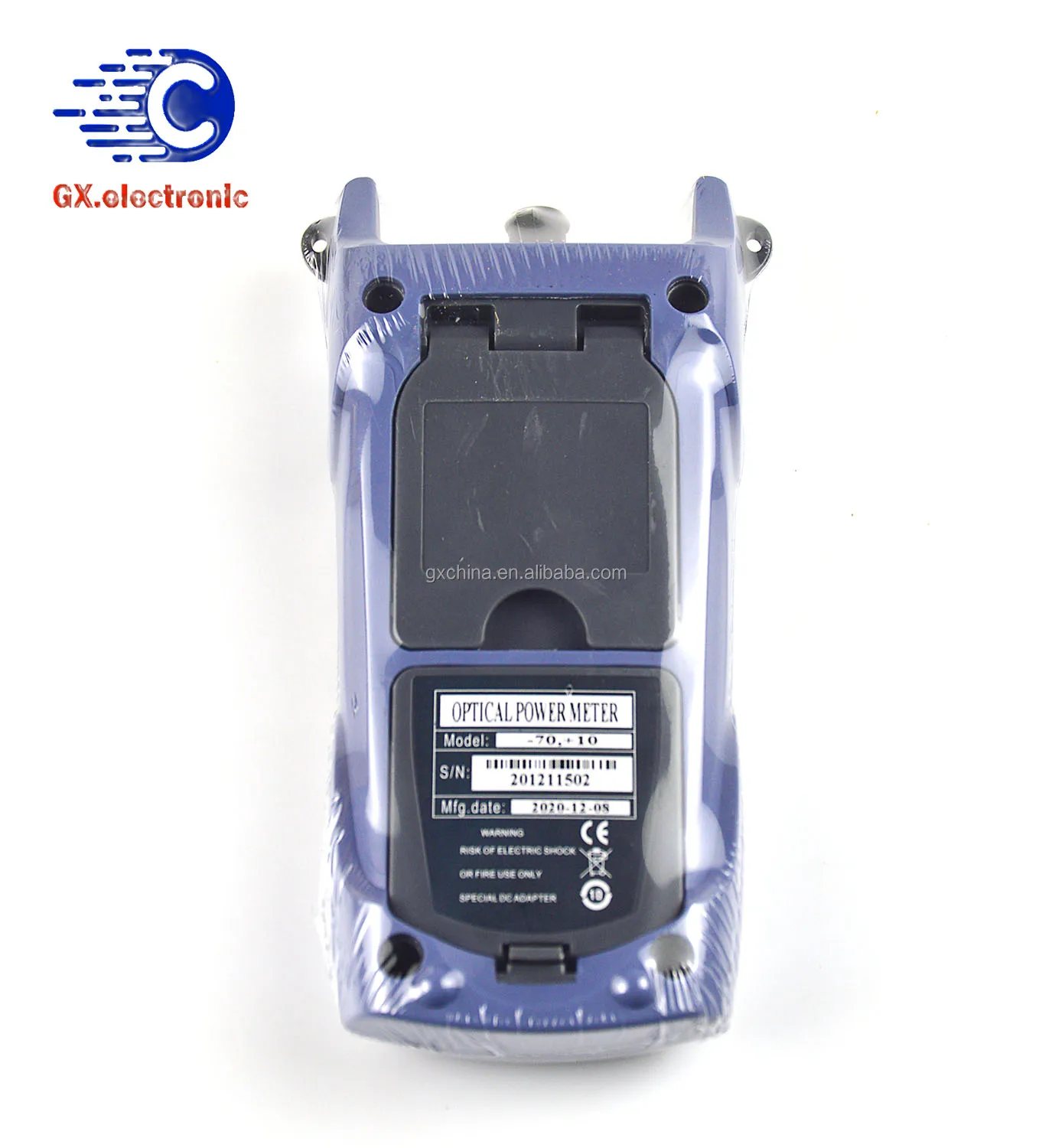

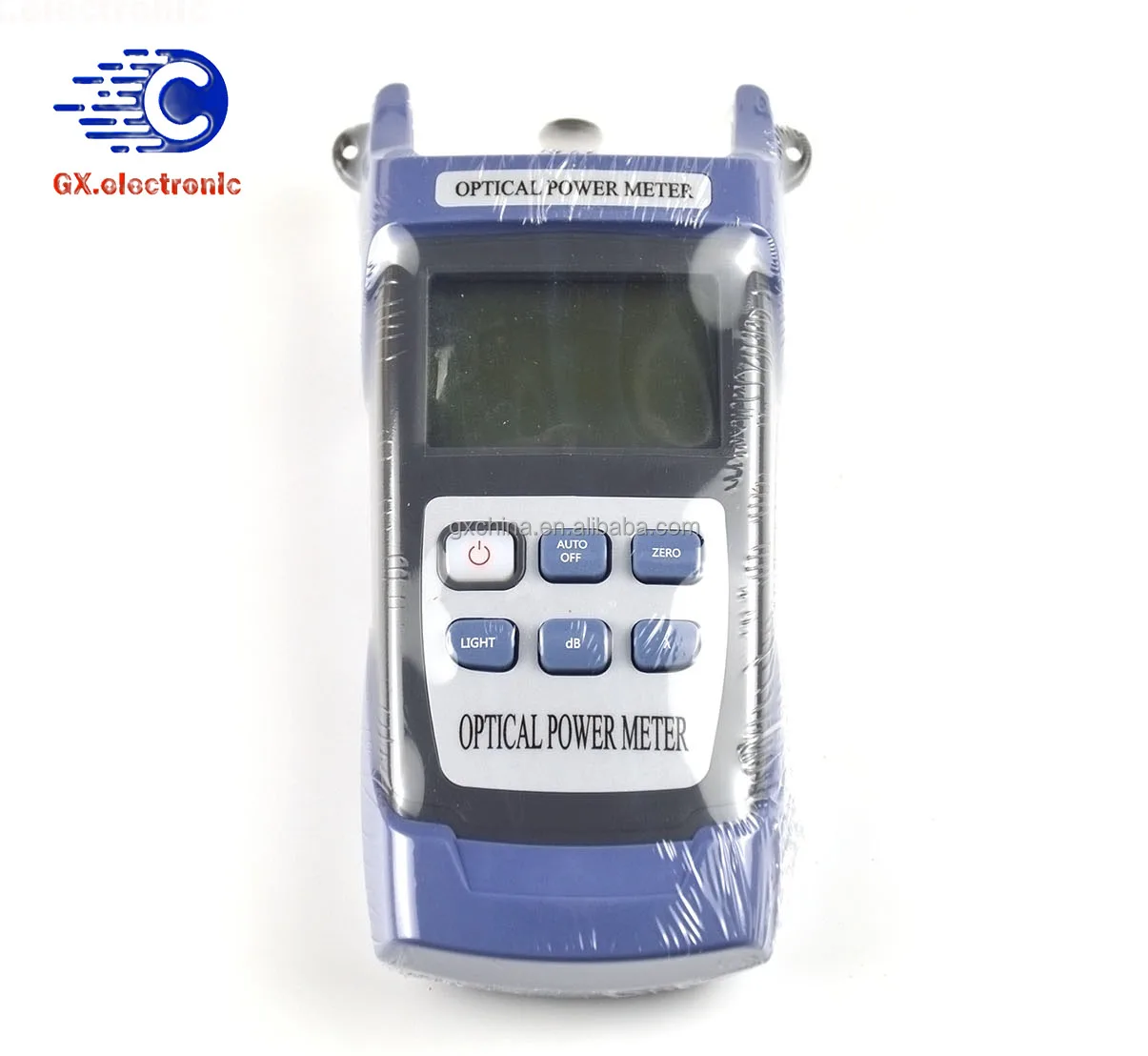

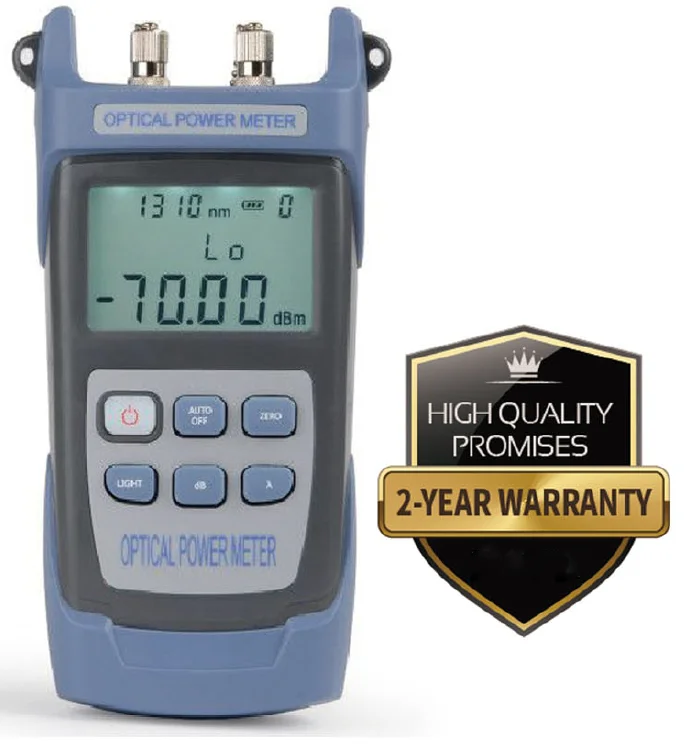

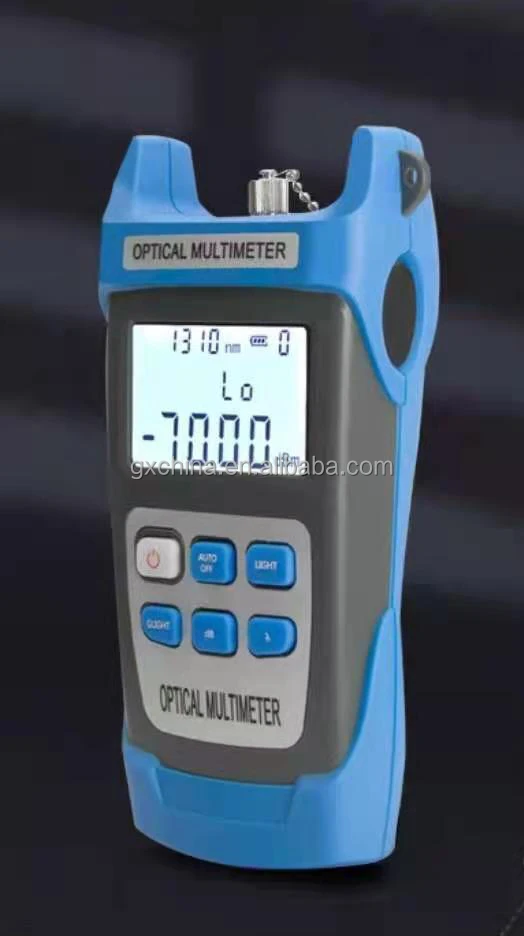

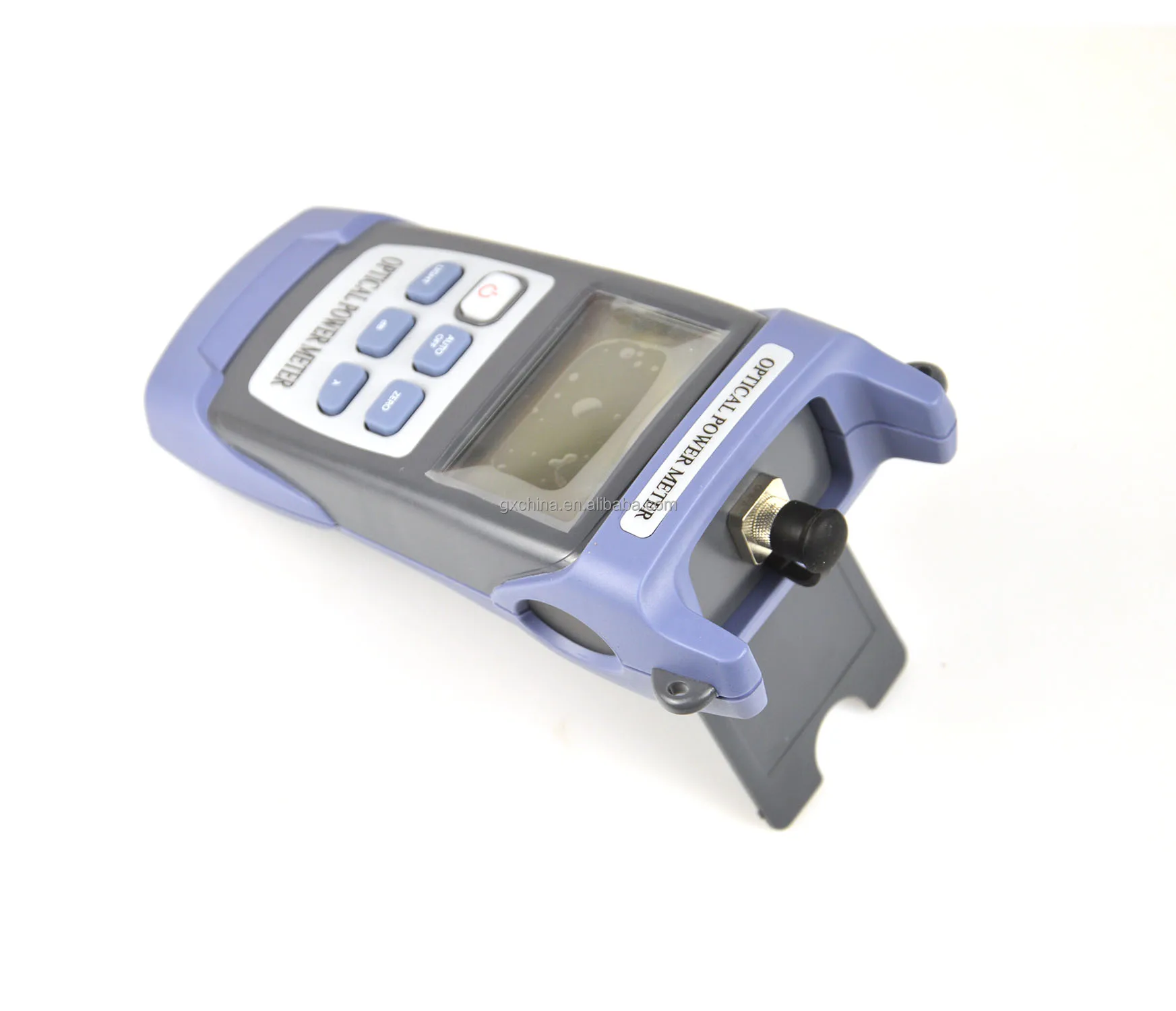

Details Images
