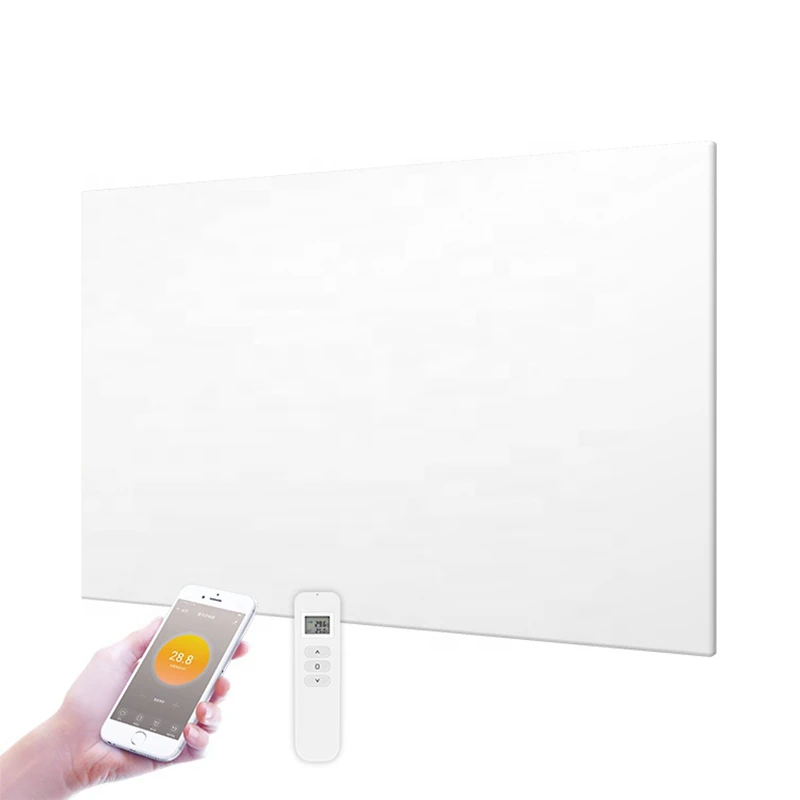

New style flat infrared heater panel radiator frameless infra red heating
- Category: >>>
- Supplier: Jiangsu Byecold Technology Co. Ltd.
Share on (1600712038655):
Product Overview
Description
Product Description
Product Name | New style flat infrared heater panel radiator frameless infra red heating |
Heating Elements | Carbon crystal |
Surface material | Powder coating Alu sheet |
Surface temperature | mainly 75-95℃ |
Electric conversion efficiency | 98% |
Ingress protection ration | IP54 |
Over heat protection | Yes |
Frame | Frameless |
Default cable length | 1.9m |
Control option | Built in wifi and remote thermostat |
Warranty | 5 years |
Certificate | CE,RoHS,SAA,TUV GS |
Installation | Wall mounted, ceiling mounted, floor standing |
The advantages of BYECOLD's Infrared heating panels
• Efficient——providing direct heat and saving energy costs.
• Comfort——providing gentle warm like sunshine.
• Healthy——no raising dust, no change of humidity in the air, and working silently.
• No maintenance, no service, no procurement of heating materials.
• Eco-friendly——emission free, 100% clean.
• Safe & Certified——TÜV and CE quality labels are evidence of the high quality, standard processing and safety standards of our infrared heaters.
• Unique carbon crystal heating core and IR ceramic coating technology.
Details Images

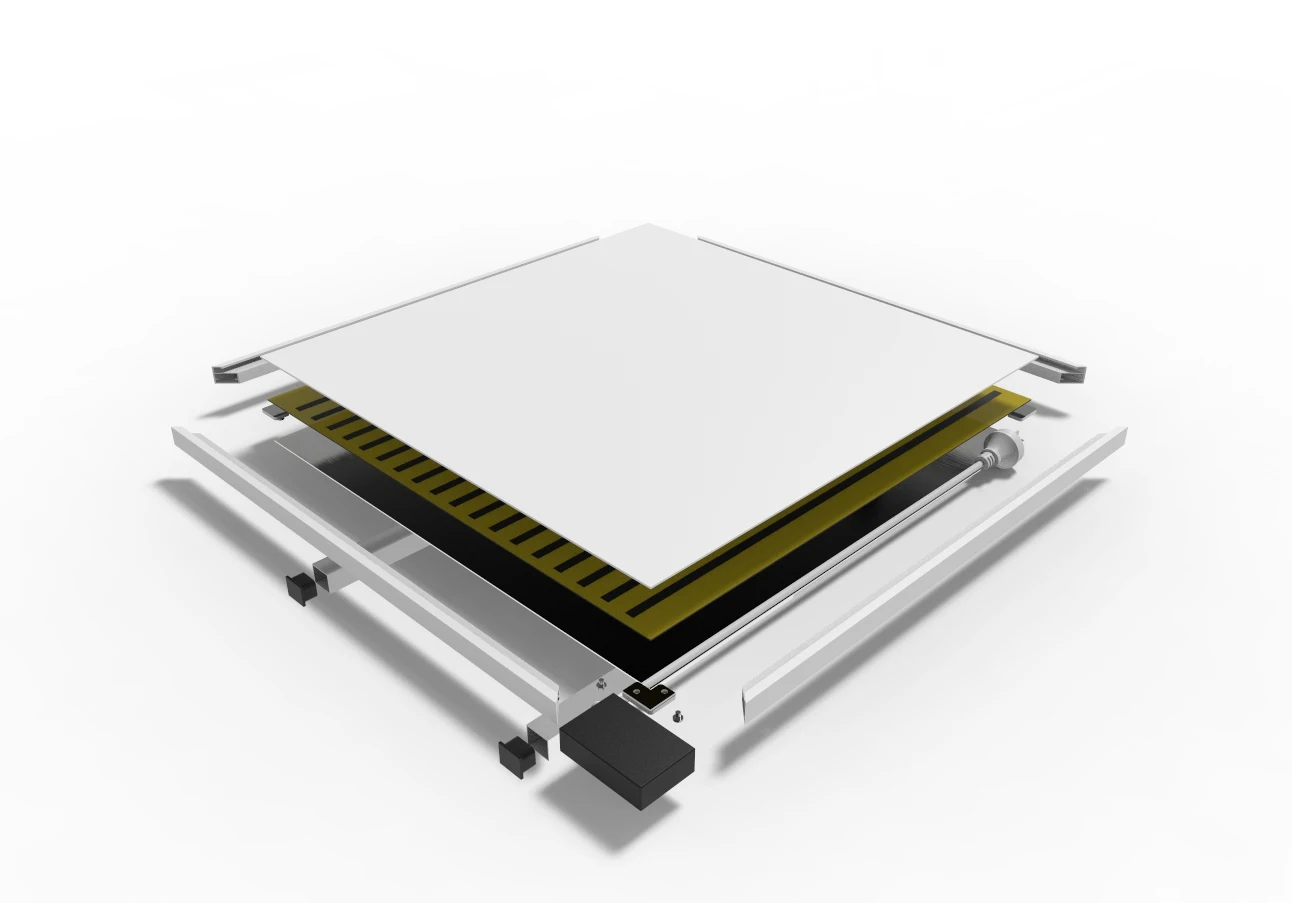

F series infrared heating panels consist of surface white aluminum sheet, heating element, back clad steel sheet,cable box and 1.9m default cable.

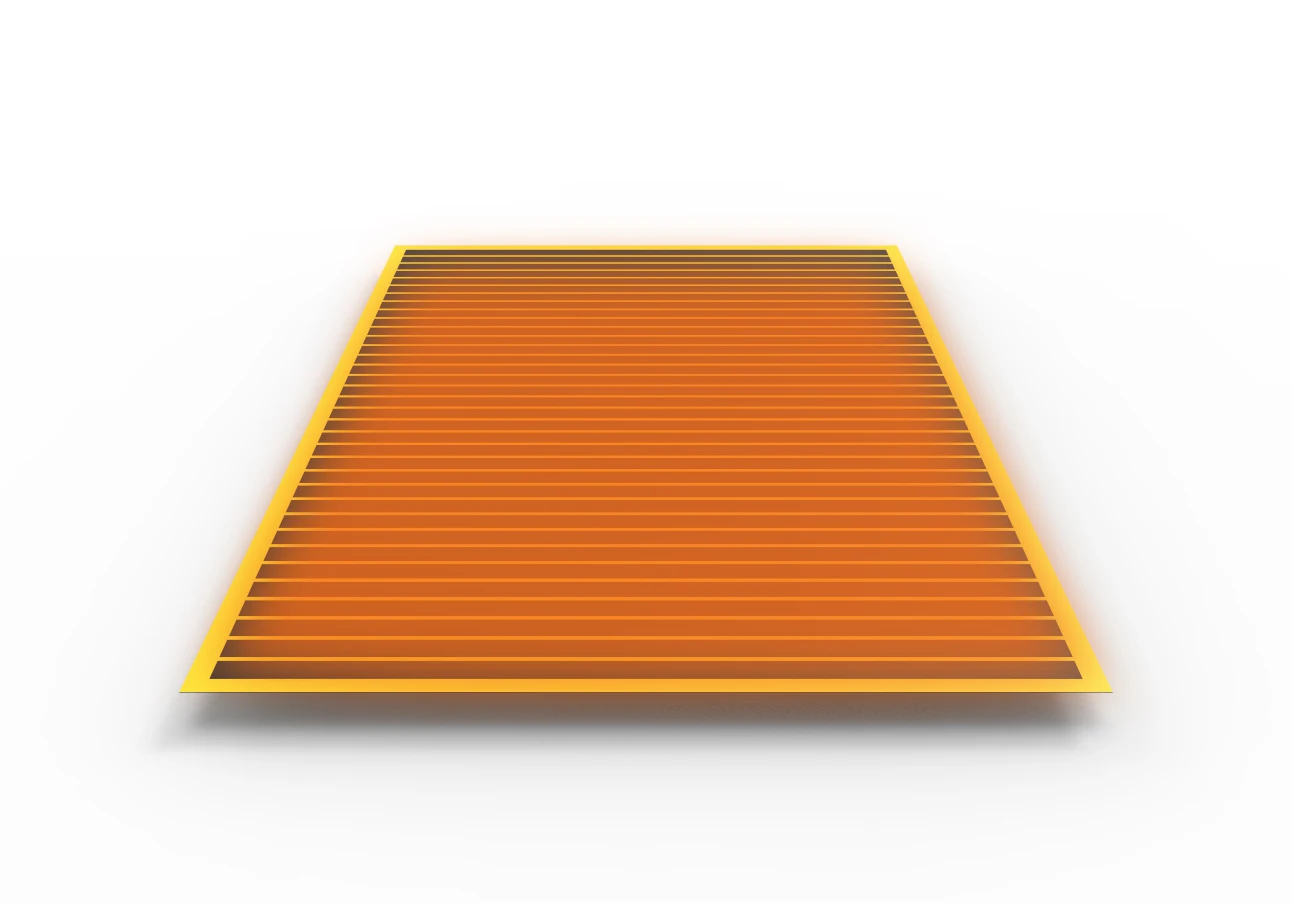

We use carbon crystal as heating element. Comparing with heating wire, the carbon crystal has higher radiation efficiency, which
means more heat radiation can be generated, and it works silently.
means more heat radiation can be generated, and it works silently.

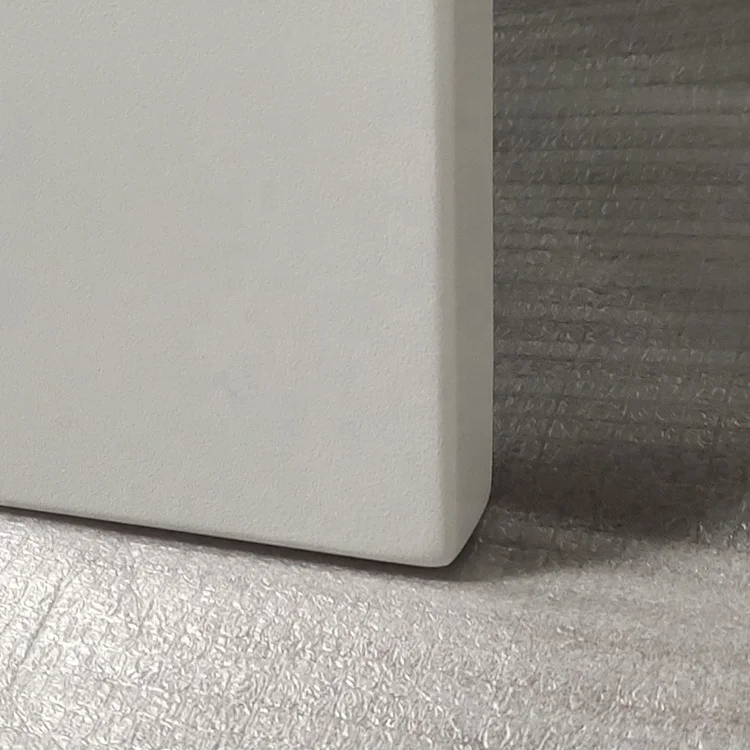

Frameless style makes the whole
infrared heating panel has a
premium looking.
White aluminum as surface material, having advantages
like fireproof, high temperature resistant, scratch-resistant
and it's surface won't turn yellow.
Clad steel sheet as back materials, dirt-resistant and scratch-resistant.
IP54 cable box and standard 1.9m default cable length bring higher safety performance and varied operation functions.
Specification
Model | Body size | Rated power (wall mounting) | Rated power (ceiling mounting) | Box size |
F0606 | 595*595*25mm | 350W | 270W | 70*68*6cm |
F0706 | 705*605*25mm | 450W | 320W | 80*68*6cm |
F1006 | 1005*605*25mm | 580W | 450W | 110*68*6cm |
F1206 | 1195*595*25mm | 700W | 550W | 130*68*6cm |
F1207 | 1205*755*25mm | 900W | 700W | 130*83*6cm |
F1209 | 1205*905*25mm | 1100W | 800W | 130*98*6cm |
Product Usage

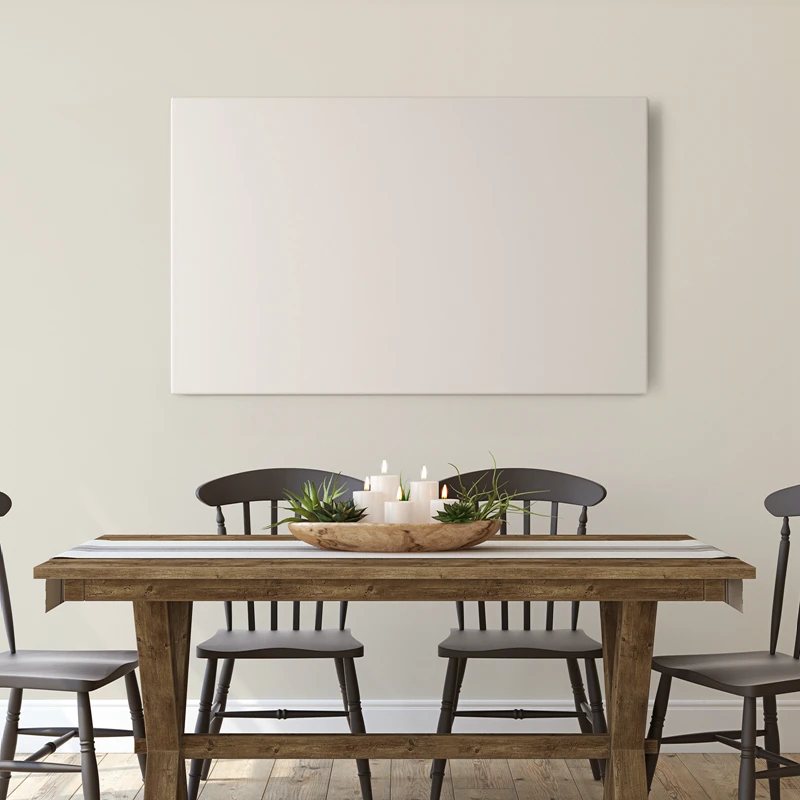

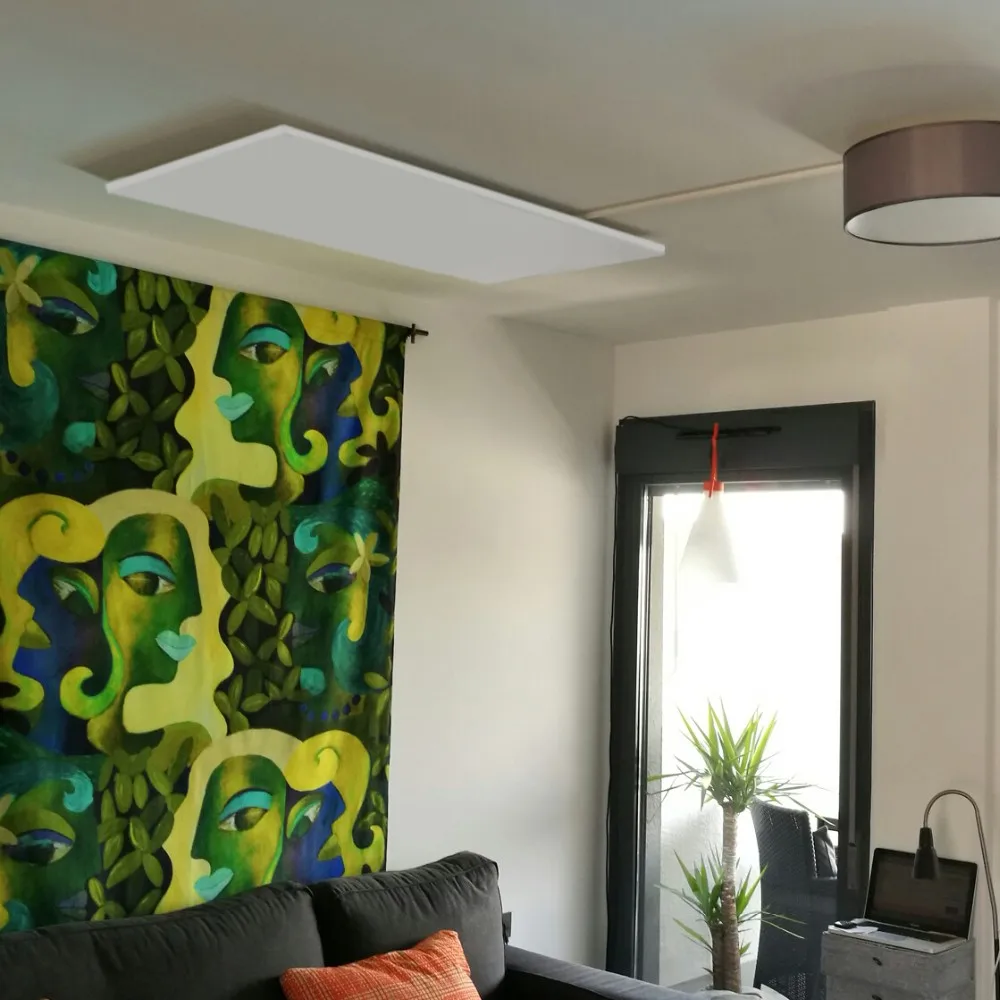

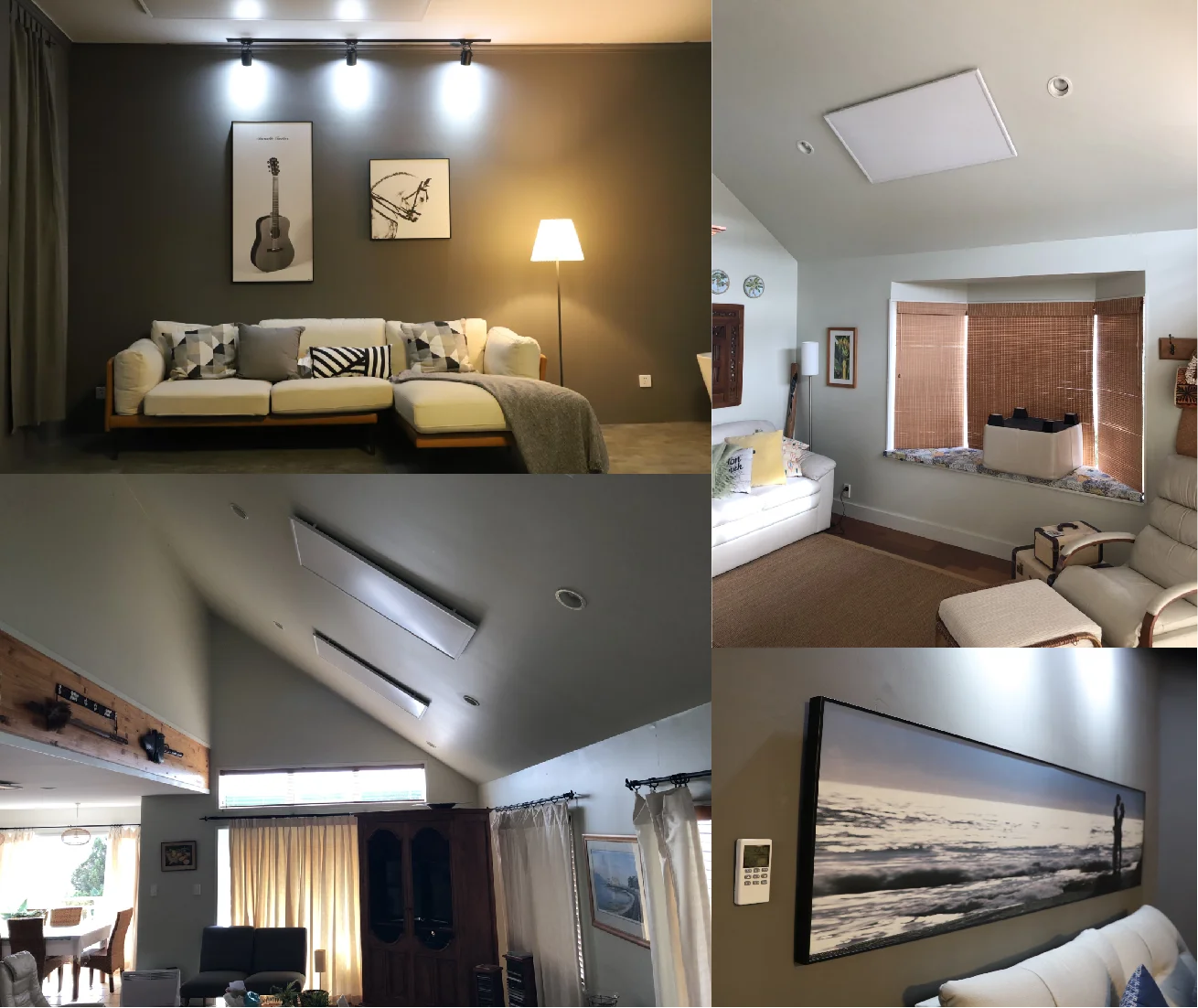

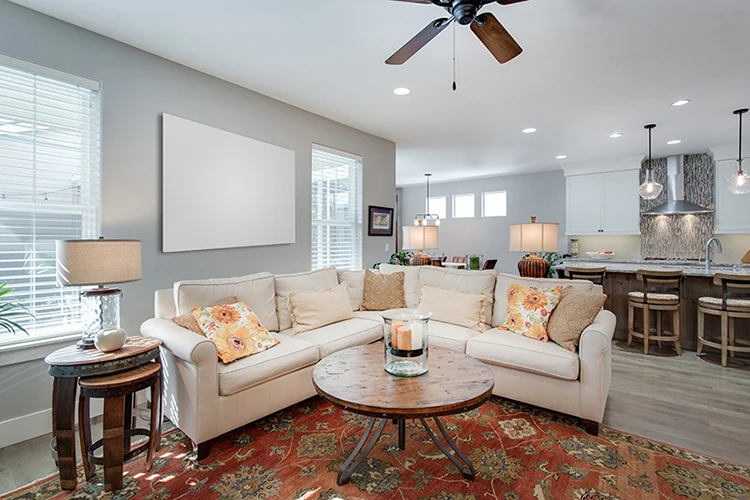

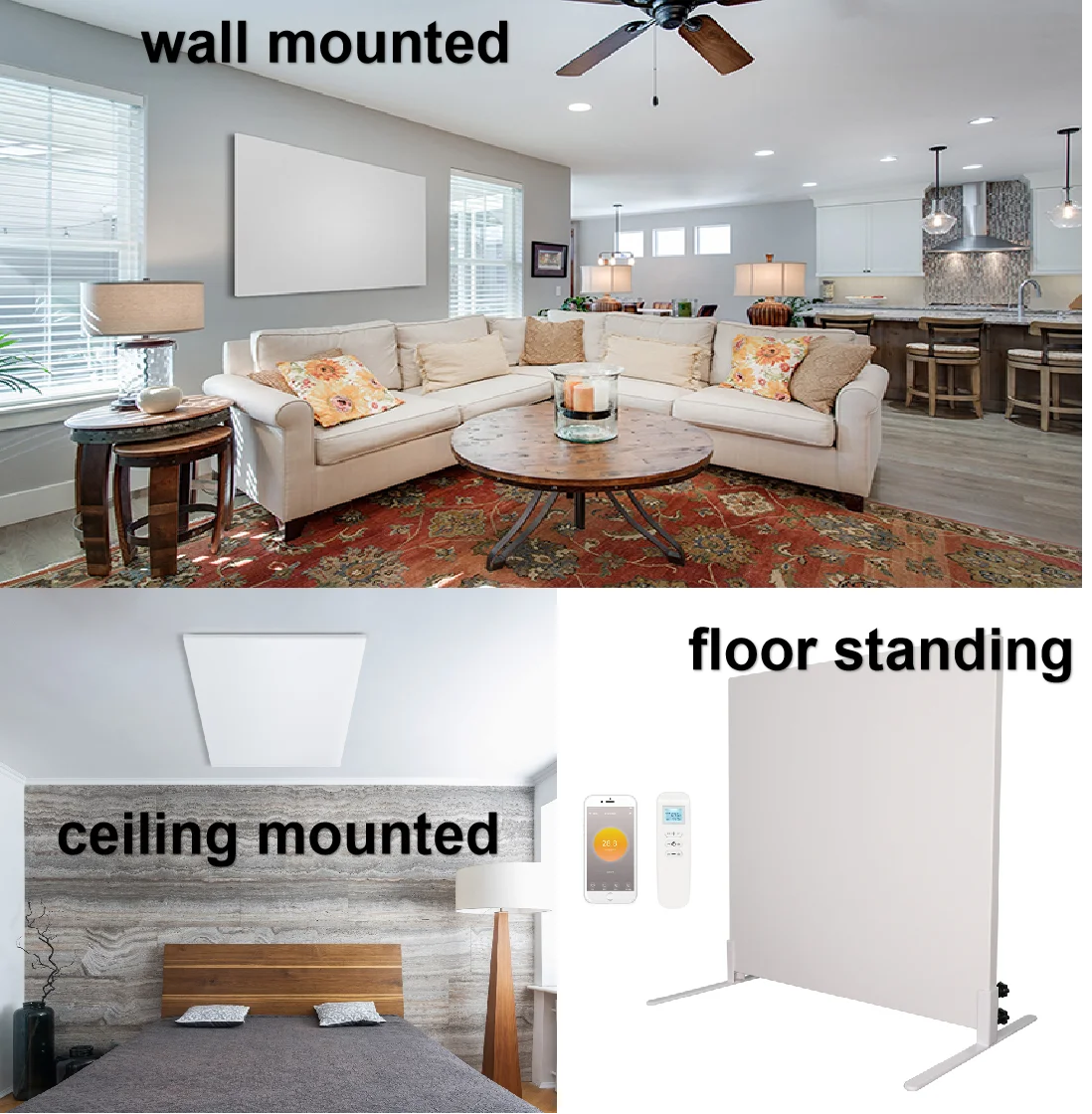

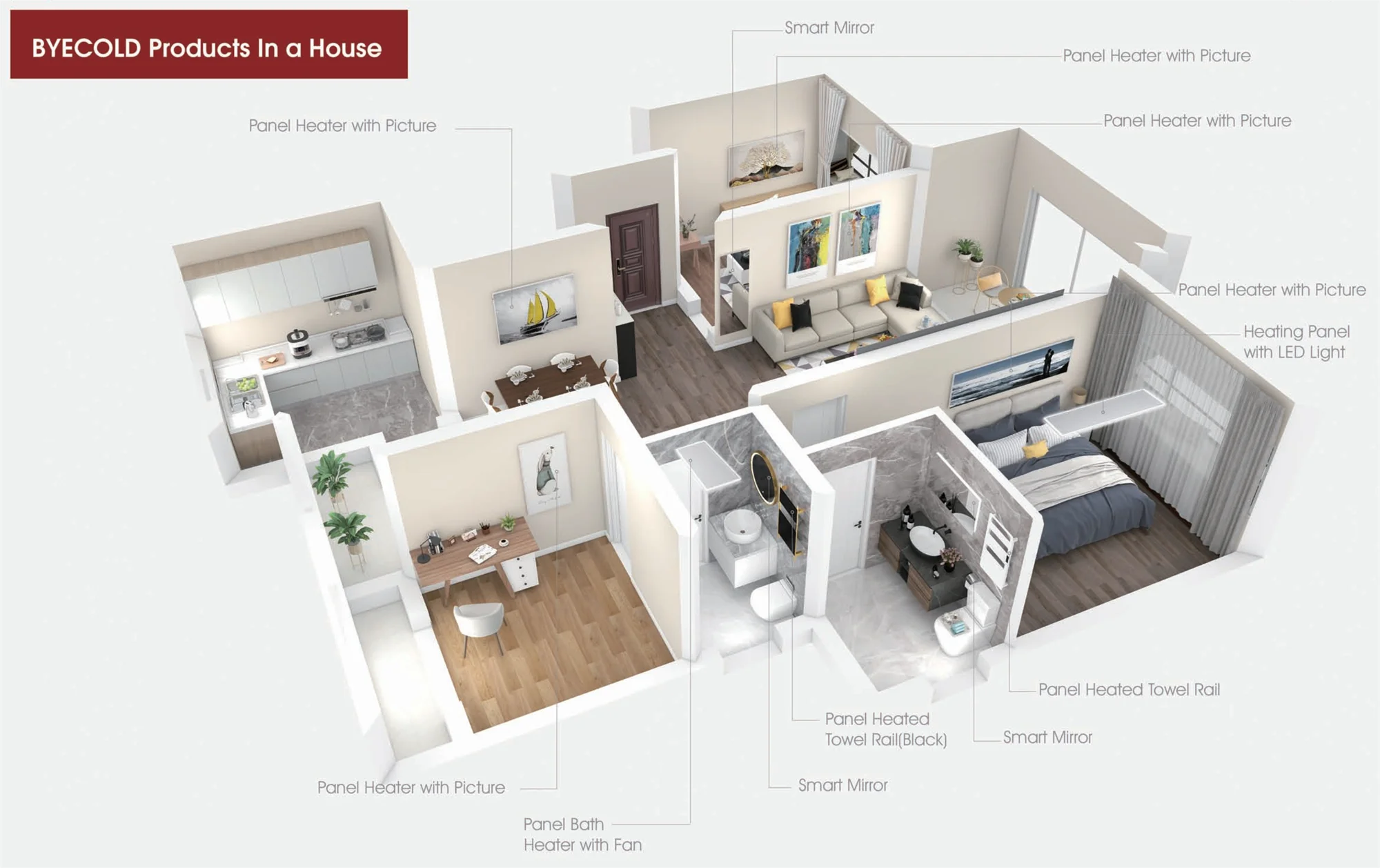

Our infrared heating panels can be wall mounted, ceiling mounted, and floor standing.
No usable space is taken up.
Can be elegant decorations in your house.

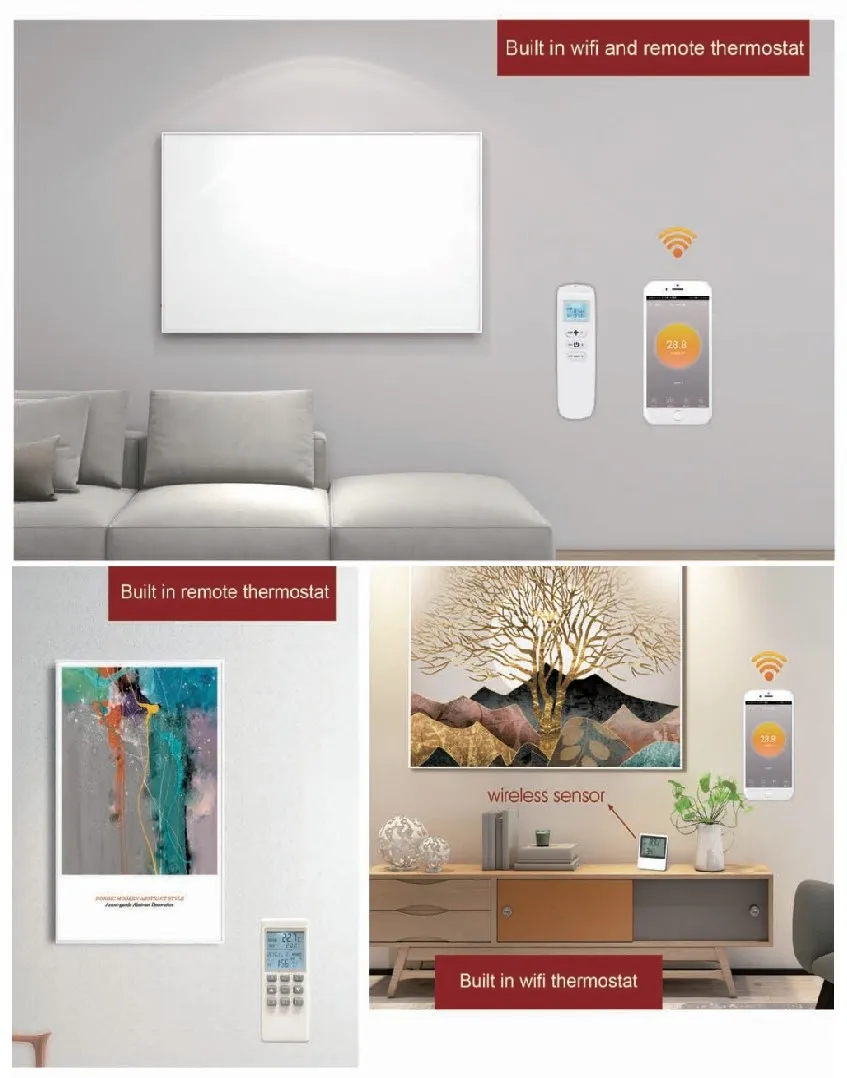

Thermostat solutions:
Related Products
Packing&Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Introduction

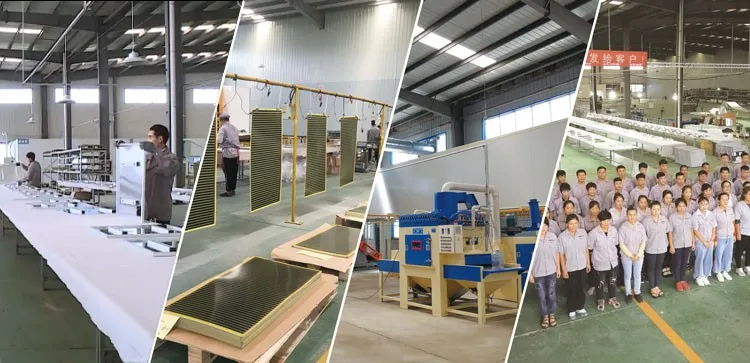

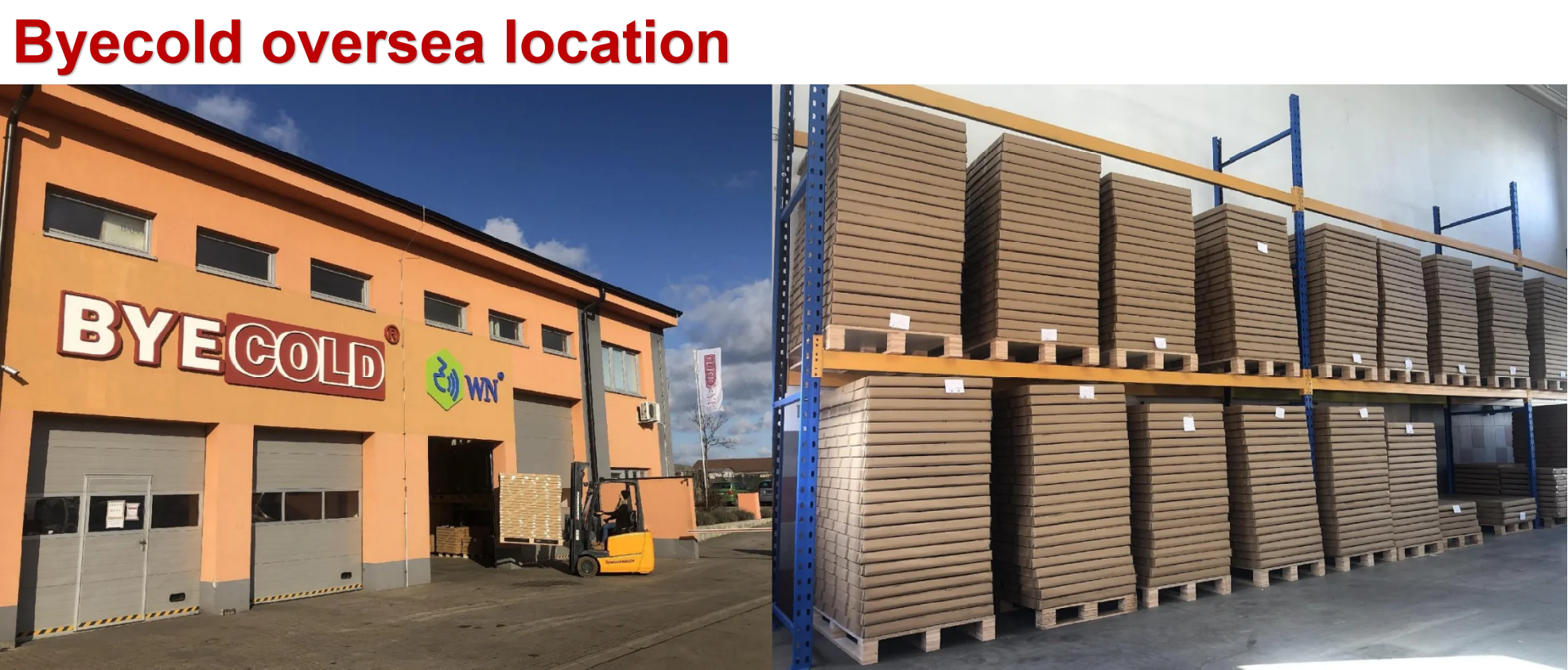

Founded in 2013, Jiangsu Byecold Technology Co., Ltd is a national high-tech enterprise, specializing in R&D, production and sales of infrared heating products and mirrors products, including carbon crystal heating film, infrared panel heater, glass and mirror panel heater, bathroom smart mirror, smart makeup mirror and smart thermostat etc. As a brand, Byecold has been registered in the EU and America. In the meanwhile, the company has got more than 20 patent techniques, certificates include CE, RoHS, RED, TUV GS, FCC, BSCI and ISO9001. After several years of development, Byecold has become a leading manufacturer in the field of infrared heating, our products have been exported to most of EU countries, including Germany, the UK, Austria, Switzerland, the Netherlands, Belgium, Slovenia, Poland, CZ etc.

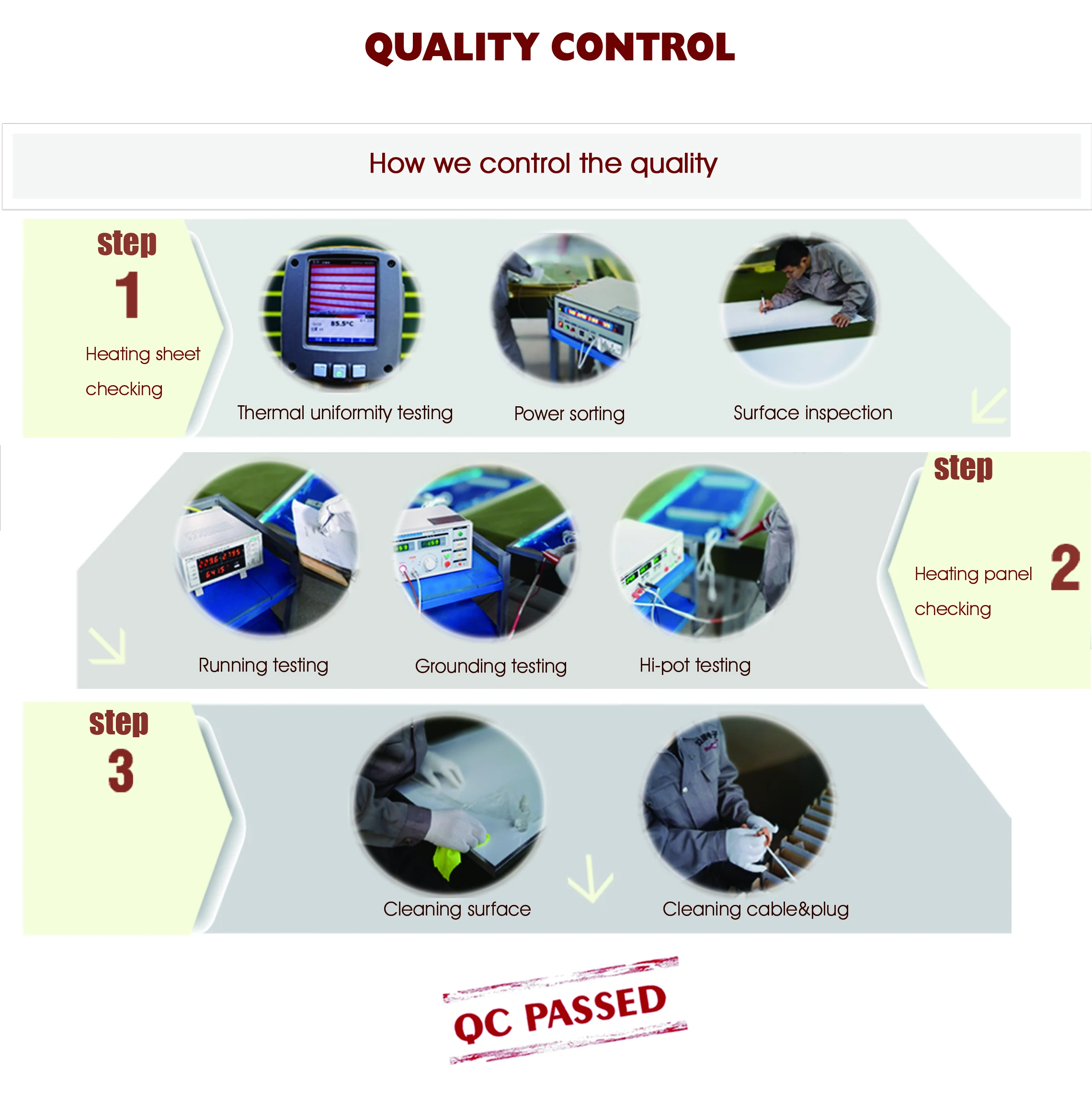

How we control quality:
