Industrial Brewing Equipment Turnkey Brewery System Complete 500L 5BBL Brewhouse Brewery Beer Making Machine
- Category: >>>
- Supplier: Shandong Carry Equipment Co. Ltd.
Share on (1600712154116):
Product Overview
Description
Industrial Brewing Equipment Turnkey Brewery System Complete 500L 5BBL Brewhouse Brewery Beer Making Machine

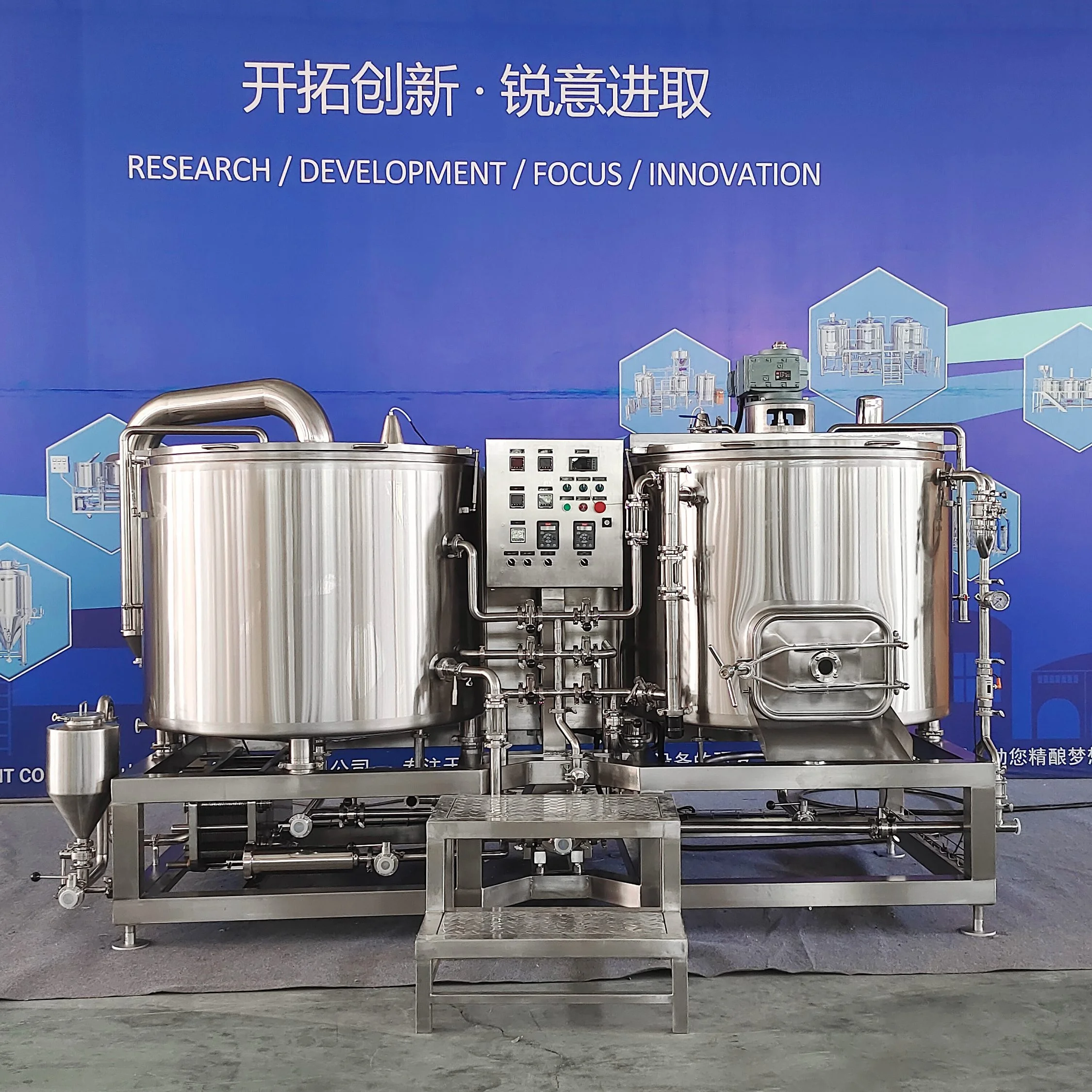

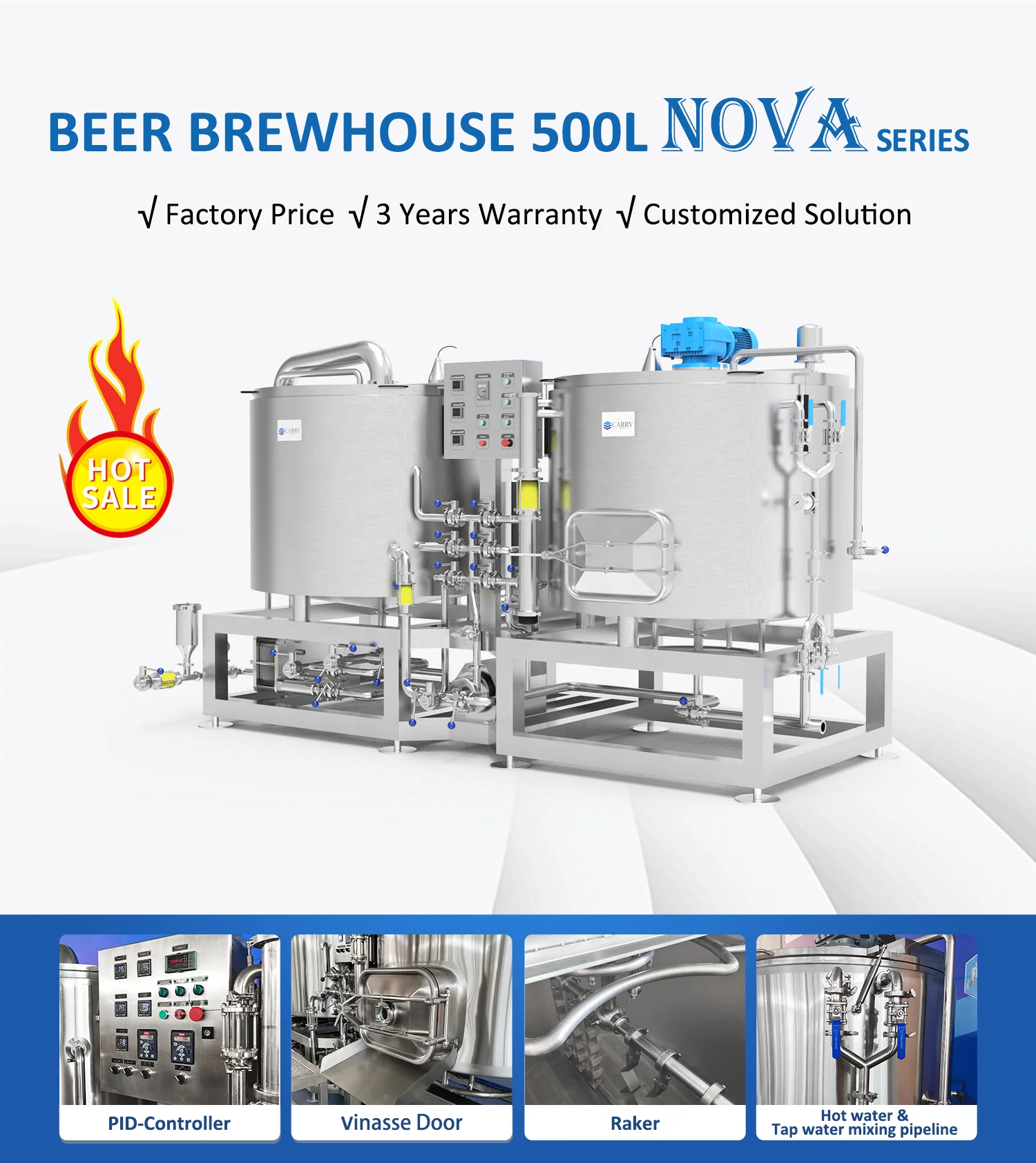

500l 2-vessel Brewhouse is one of the most popular brewing machine in brewing beer area.
When you want to expand your pub/micro brewery, 2 Vessel Brewing System is a good choice for brewers.
All tanks is made of stainless steel 304, our tank is 2-layer with PU insulation. The inner layer is 3 mm, packing and passivating treatment. Outer layer is 2 mm, ink wires drawing plate.
When you want to expand your pub/micro brewery, 2 Vessel Brewing System is a good choice for brewers.
All tanks is made of stainless steel 304, our tank is 2-layer with PU insulation. The inner layer is 3 mm, packing and passivating treatment. Outer layer is 2 mm, ink wires drawing plate.

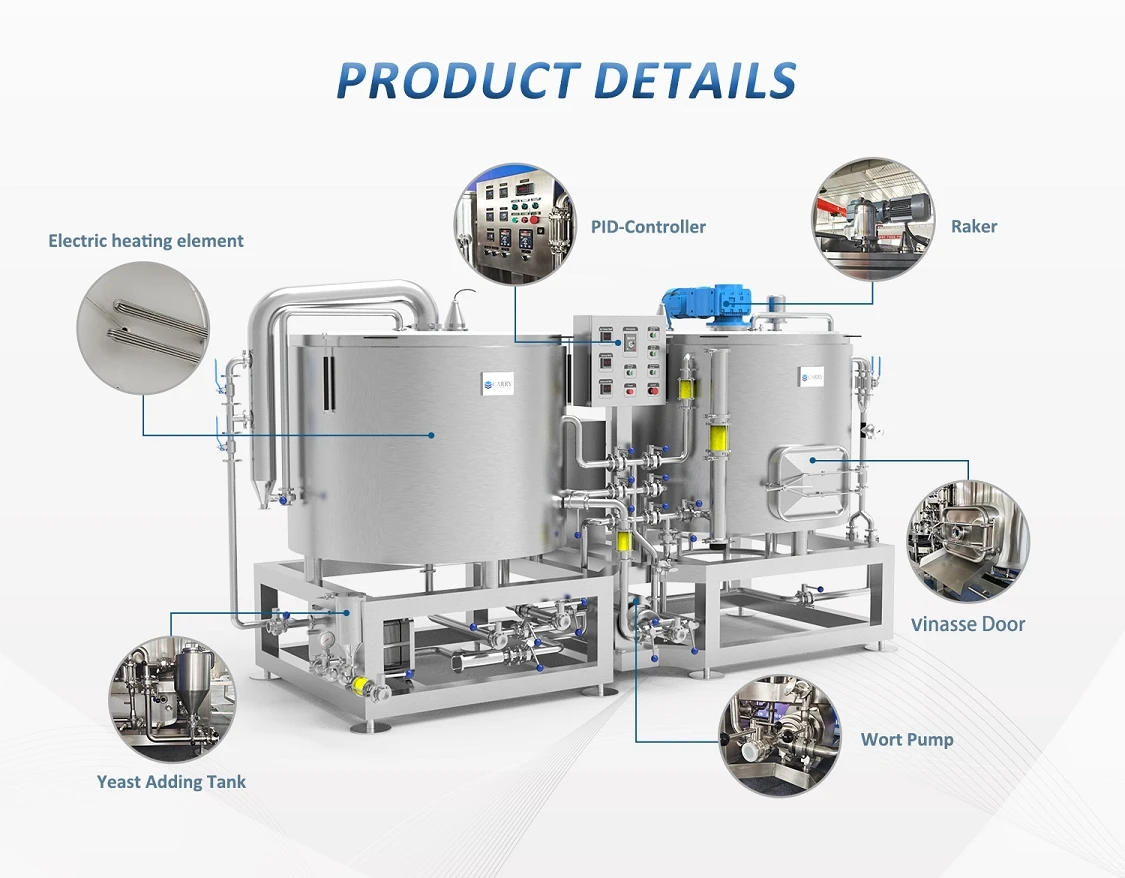

Mash/Lauter Tank(right)
1. Effective volume=500L, max volume=625L
2. Stainless Steel 304 Manway
2. Stainless Steel 304 Manway
3. Grain Raker with 0.75KW VFD Motor & Reducer & simple grain out device
4. Easy clean and detachable sparging spray ring
5. 360° coverage CIP spraying ball

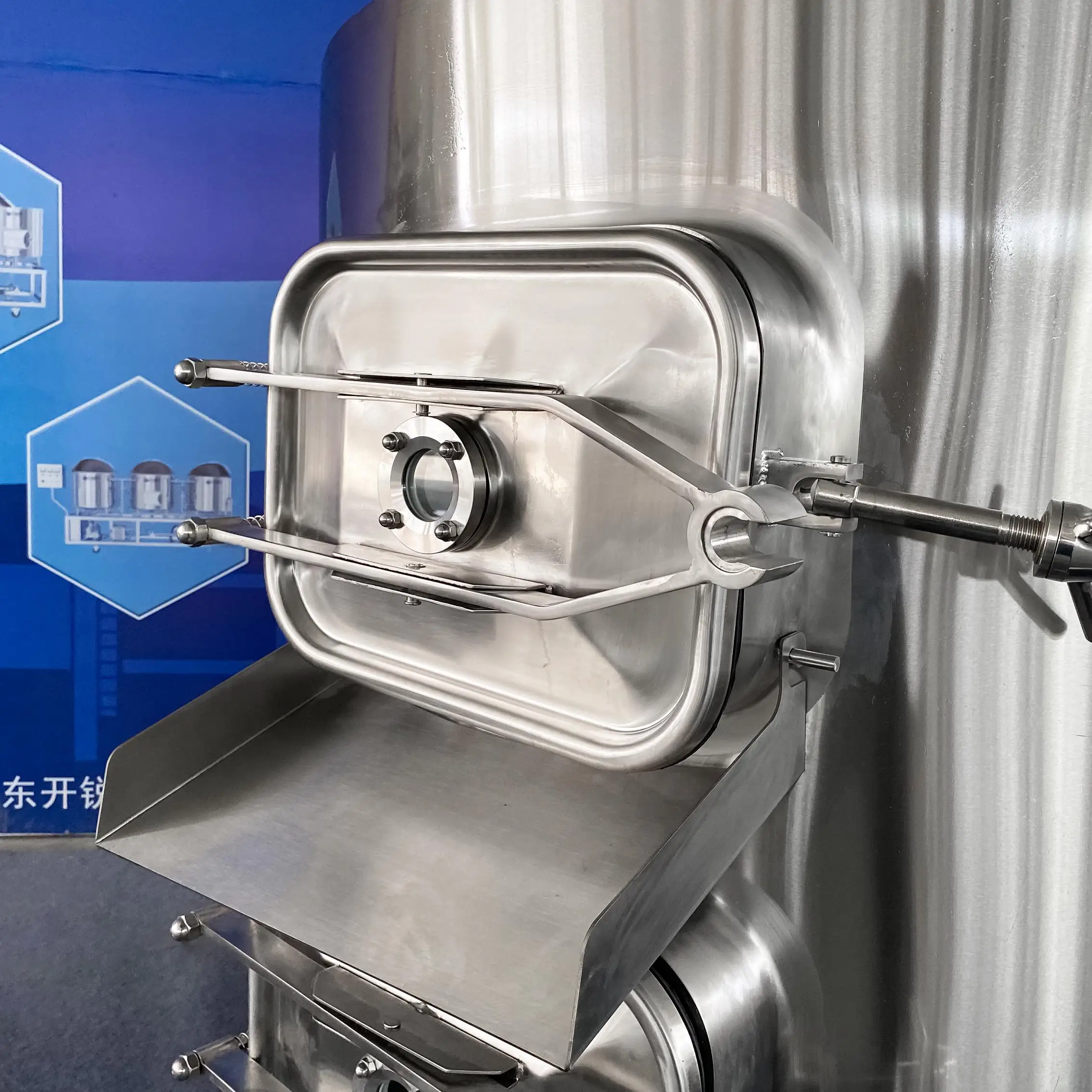

6. Side mounted grain outdoor&grain chute
7. Professional designed SUS304 false bottom
8. Temperature probe (PT-100)
9. With sight glass equipped on the wort back-flow pipeline

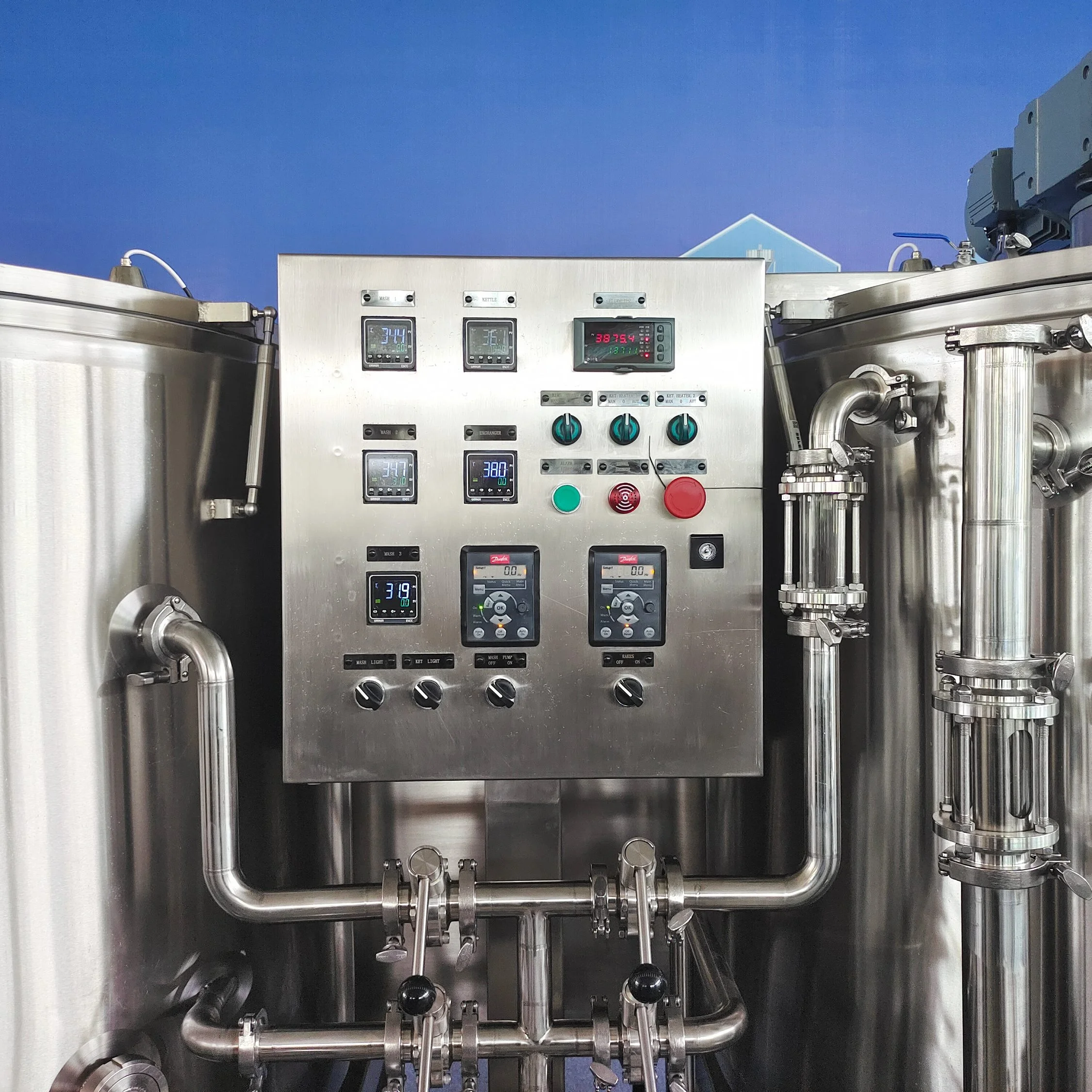

10. With VFD wort pump, VFD Control by PID control panel
11. With all according piping & fittings included
4. Easy clean and detachable sparging spray ring
5. 360° coverage CIP spraying ball
6. Side mounted grain outdoor&grain chute
7. Professional designed SUS304 false bottom
8. Temperature probe (PT-100)
9. With sight glass equipped on the wort back-flow pipeline
10. With VFD wort pump, VFD Control by PID control panel
11. With all according piping & fittings included
Kettle/Whirlpool Tank(Left)
1. Effective volume=500L, max volume=830L
2. Transparent glass manhole
3. Pre-installed with dimple steam jacket, or installed electric heating element
3. Pre-installed with dimple steam jacket, or installed electric heating element

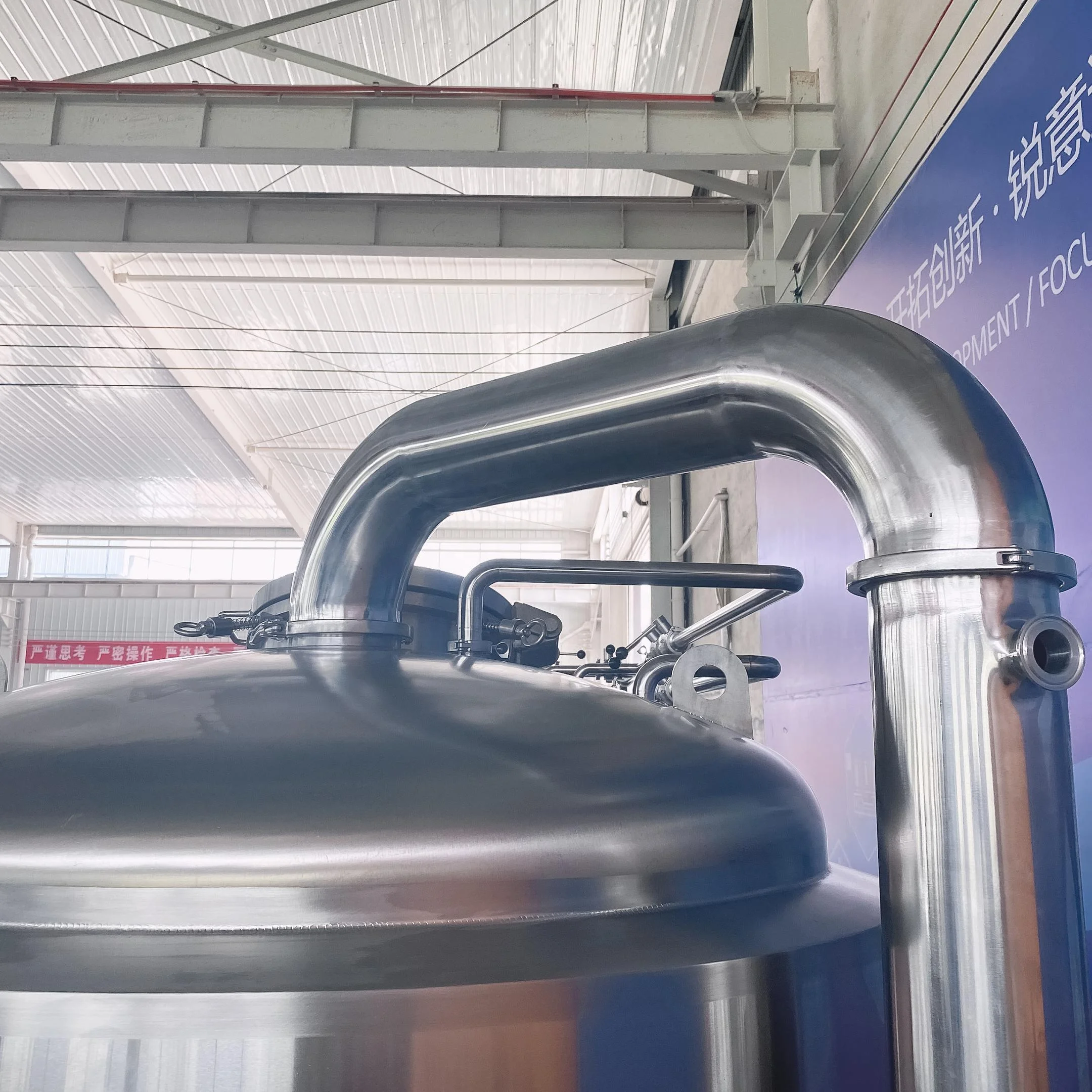

4. Outdoor or Indoor condensing pipe to prevent liquid back-flow
5. 360° coverage CIP spraying ball
6. Tangent whirlpool inlet
5. 360° coverage CIP spraying ball
6. Tangent whirlpool inlet
7. Temperature probe (PT-100)
8. With level tube outside of tank
9. 2nd wort outlet port on the bottom
10. With all according piping&fittings included
8. With level tube outside of tank
9. 2nd wort outlet port on the bottom
10. With all according piping&fittings included
Product features
1. Highly Competitive Price, More Than 10 Years Production And Manufacturing Experience
2. Iso9001, Ce ,TUV Certification
3. Strictly Quality Control, Meet The European Quality Standard, Take 3 Times Water Pressure Test During Production.
4. Accept Customized, Professional Engineers Will Provide Design Solutions For You
5.Use High-Quality 304 Stainless Steel, Ensure The Thickness Of The Material
6. Dimple Plate Cooling Jacket, Better Cooling Effect And Longer Service Life
7. Equipped With Safety Valve, Water-Sealed Pressure Valve, To Ensure The Safe Operation Of The Fermentation Tank
2. Iso9001, Ce ,TUV Certification
3. Strictly Quality Control, Meet The European Quality Standard, Take 3 Times Water Pressure Test During Production.
4. Accept Customized, Professional Engineers Will Provide Design Solutions For You
5.Use High-Quality 304 Stainless Steel, Ensure The Thickness Of The Material
6. Dimple Plate Cooling Jacket, Better Cooling Effect And Longer Service Life
7. Equipped With Safety Valve, Water-Sealed Pressure Valve, To Ensure The Safe Operation Of The Fermentation Tank
Effective volume | 100L | 200L | 300L | 500L | 800L | 1000L | 2000L | ||||||
Total volume | 143L | 286L | 430L | 650L | 1050L | 1250L | 2500L | ||||||
Size(mm) | 1750*770*1660 | 3100*900*1700 | 1060*1800 | 1160*2100 | 1360*2550 | 1460*2500 | 1860*2900 | ||||||
Material | SUS304/SUS316 | ||||||||||||
Heating method | Electric/Steam/Direct Fire Heating | ||||||||||||
Control system | PLC Simens or PID Schneider | ||||||||||||
Power | 12-70Kw Depends On The Size | ||||||||||||
Voltage | 3 Phase/380(220, 415,480…)v/50(60)Hz; Single Phase/220(110, 240…)v/50(60)Hz | ||||||||||||
Brewing batch | 7-14Brew/day | ||||||||||||
Thickness | Inner-Jacket (SUS304), TH=3.0mm, pickling&passivating treated; 2. External-Jacket(SUS 304), TH=2.0mm, ink wires drawing plate | ||||||||||||
Company Information
* 5 years factory production experience
* 3 years machine warranty
* 100 exported country experience
* 30000 square meters fiber laser cutting machine factory
* 100 exported country experience
* 30000 square meters fiber laser cutting machine factory
* About Shangdong Carry Laser Manufacture Co., Ltd
Founded in 2017, Carry Brewtech has been supplying all kinds of customized Brewhouse, Fermenter, Bright tank, brewery auxiliaries,and system turnkey solutions to more than 800 customers all over the world, industries including Beer, Kombucha, Wine, Gin, Rum,etc. With continuous R&D, innovation, value-driven, you'll be served by the most cost-effective and suitable custom solution fromour knowledgeable team. Carry Brewtech takes pride in supplying the right equipment, training, and service for your Industry. No matter how small or large your business is!
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba enterprise certification and design patents.
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.
* About beer brewing equipment Quality Control
About beer brewing equipment quality, every machine, including every machine parts, we must be tested carefully, and every machine machine before delivery.
We can promise: The whole beer brewing equipment can working well.
We can promise: The whole beer brewing equipment can working well.
* About beer brewing equipment After Sale Group - free after-sales service
We have a professional and experienced after-sales team. We support free after-sales service. You can call or E-mail to consult any relevant questions , we will conduct skill assessments on our after-sales team every year. To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
We have a professional and experienced after-sales team. We support free after-sales service. You can call or E-mail to consult any relevant questions , we will conduct skill assessments on our after-sales team every year. To improve the problem-solving level of the after-sales team. Improve their skills more comprehensively, to serve customers wholeheartedly.
If you have any after sale questions about cnc fiber laser metal cutting machine, please contact us, we are always here.
>>> Click here, Your 24x7 helper ^ ^
>>> Click here, Your 24x7 helper ^ ^
Packing & Delivery
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main beer brewing tanks,fermenting vessels and turnkey brewhouse system will be packaged with plastic film firstly, then with reinforced steel frames.
2.All beer brewing spare parts, accessories and fittings will be packaged with carton box and crated.
3. All items wrapped with soft package for protection.
4. Each parts of whole brewing system will be labeled.
5.All products will be packed up with foam and film. Assembles and fittings are carefully packed and boxed in crates
6.Detailed packing list will be emailed to you once the goods are loaded, which is much convenient for you to check and unload goods into position quickly.
6.Detailed packing list will be emailed to you once the goods are loaded, which is much convenient for you to check and unload goods into position quickly.
