item | value |
Model Number | SK608GHA01-15C-B50K±20% |

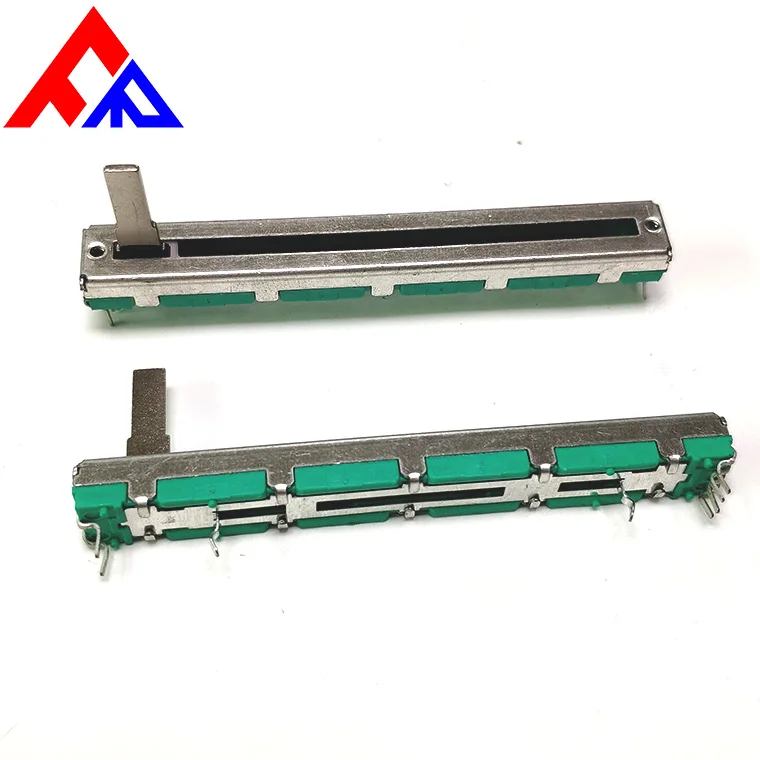

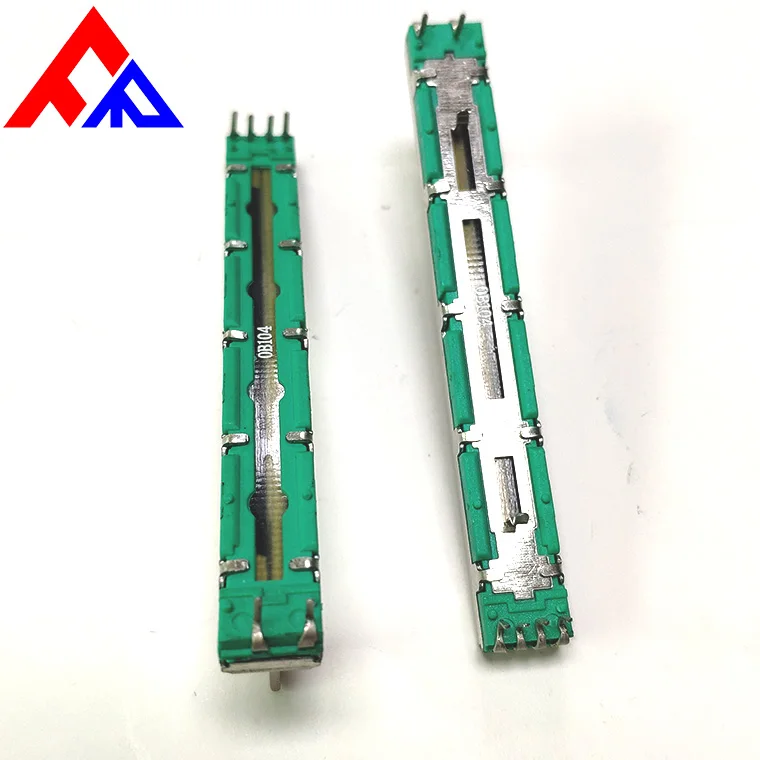

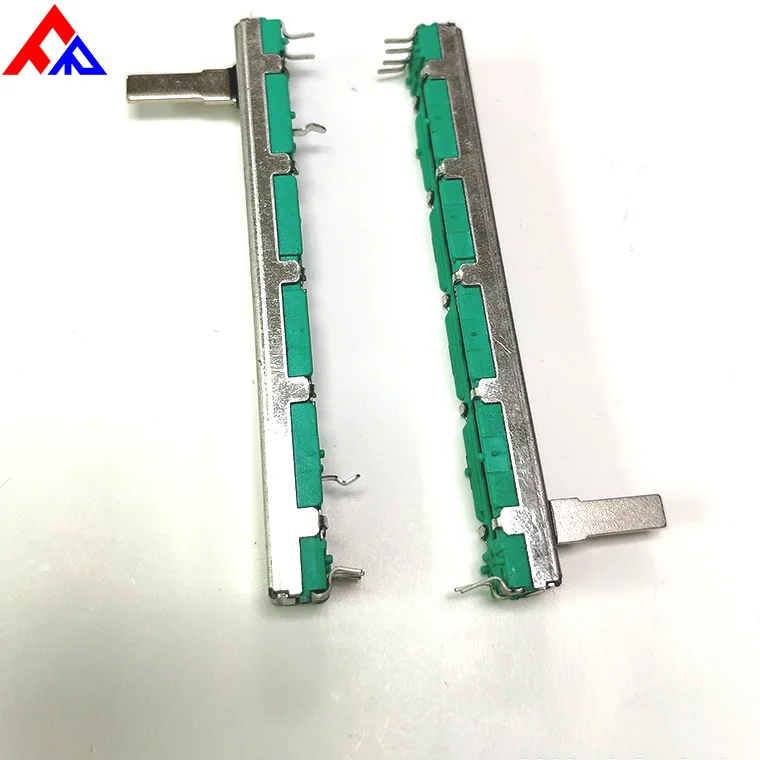

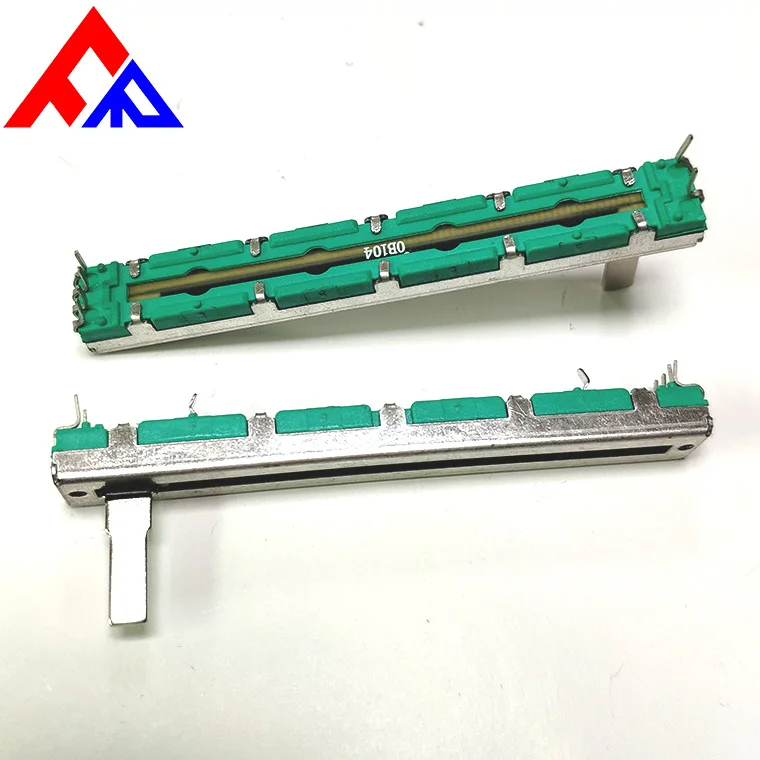

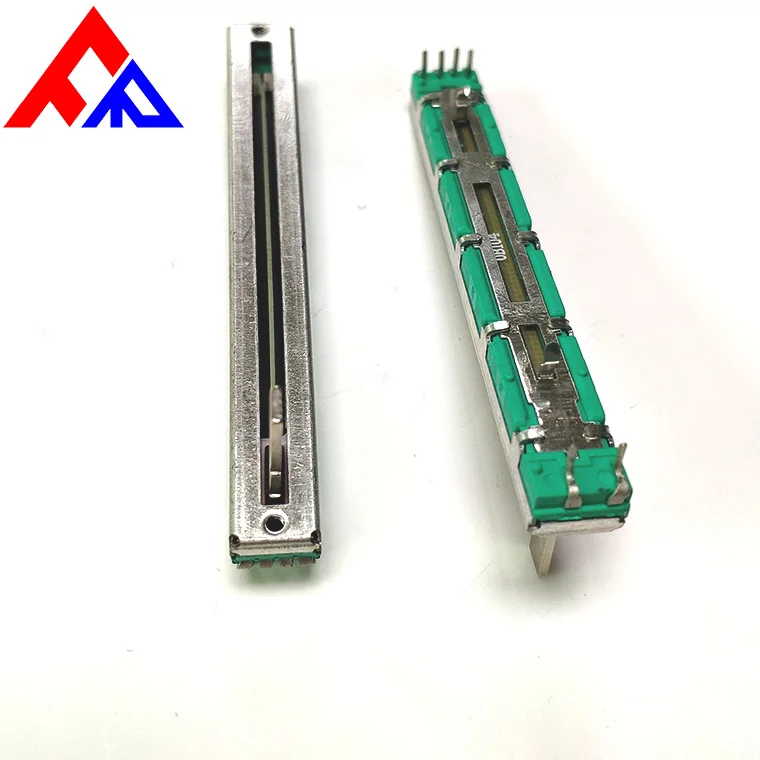

Type | Slide Potentiometer |
Place of Origin | China |
Guangdong | |
Brand Name | fanrui |
D/C | 12V |
Technology | Carbon Film |
Resistance | 1K-100K |
Resistance Tolerance | ±20% |
Rated Power | 0.25W |
Max. Operating Voltage | AC 150V |
Operating Temperature | -20 to +65 |
Brand | Sliding potentiometer |
Packaging | Plastic blister disc |
Power (Watts) | 0.25W |
Tolerance | ±20% |
Adjustment Type | Slide |
Diameter | 75mm |
Mounting Type | The plug-in |
Termination | PIN plug-in |
Package / Case | PIN plug-in welding |
Built in Switch | Not Applicable |
Temperature Coefficient | Not Applicable |
Rotation | Not Applicable |
Resistive Material | Carbon |
Termination Style | PC Pin |
Actuator Type | Not Applicable |
Actuator Length | 15mm |
Actuator Diameter | 1.2mm |
Shaft Size | 1.2mm |
Number of Turns | Not Applicable |
Product name | Slide potentiometer |
Material | Metal + Plastic |
Certification | ISO9001/ISO14001/ISO13485/IATF16949 |
Insulation Resistance | 100M Min.250V DC |
Advantage | Timely Delivery |
Application | Audio Tube Amplifier |
Withstand Voltage | 300V AC 1 Minute |
Voltage Proof | 300VAC |
Key words | Slide Potentiometer |
Package | Tray |
