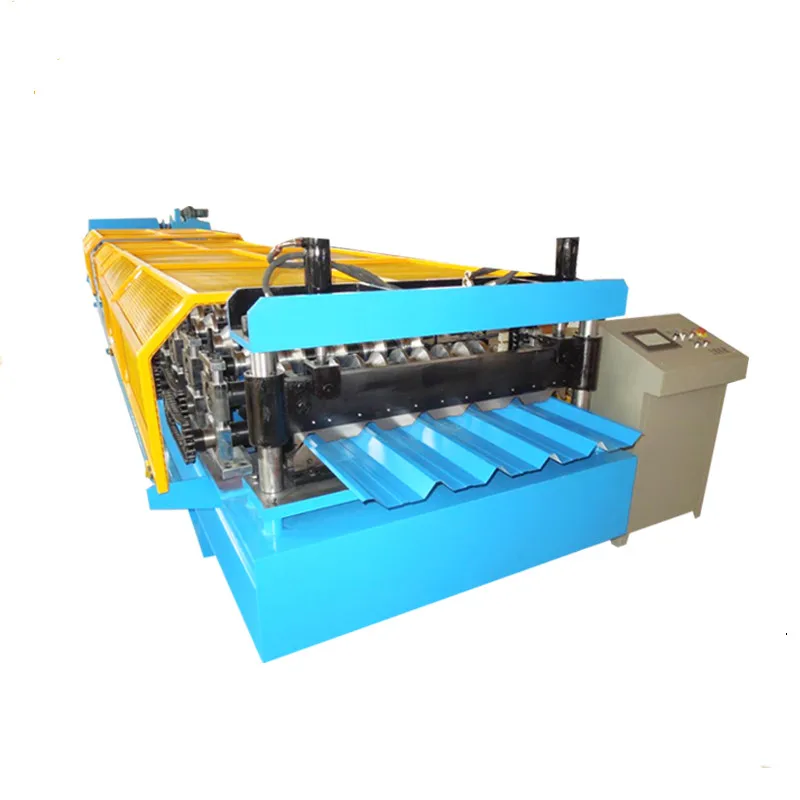

Factory experienced production high speed Roofing sheet roll forming machine production line

  Specification of roofing sheet roll forming machine(All the technical parameters are also made as per the customers' requirements.)

1. Dimension: 6500mm × 1300mm × 1500mm

2. Molding method: roll forming (pre-compression molding)

3. Number of rows: V900 roll 9 row pre-compression molding, V860 roll row 11 pre-compression molding

4. Feed width: 1000mm

5. Plate thickness: 0.2-0.8mm

6. Equipment shaft diameter: Φ70mm

7. Host power: 3KW

8. Rolling speed: 10m-12m / min or customized

9. Machine weight: 3900kg or so

10. Pump motor: 3KW

11. Equipment frame: 300H steel

12. Shear material: Cr12 (chrome 12)

13. Equipment drive: sprocket, chain

14. Automatic computer fixed length cut off system

Features of roofing sheet roll forming machine :

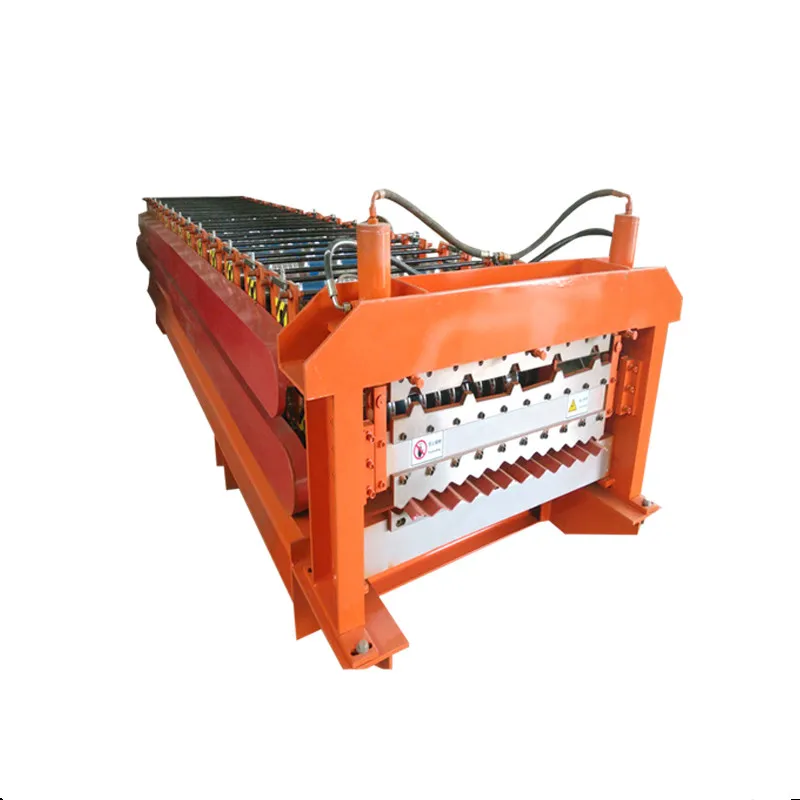

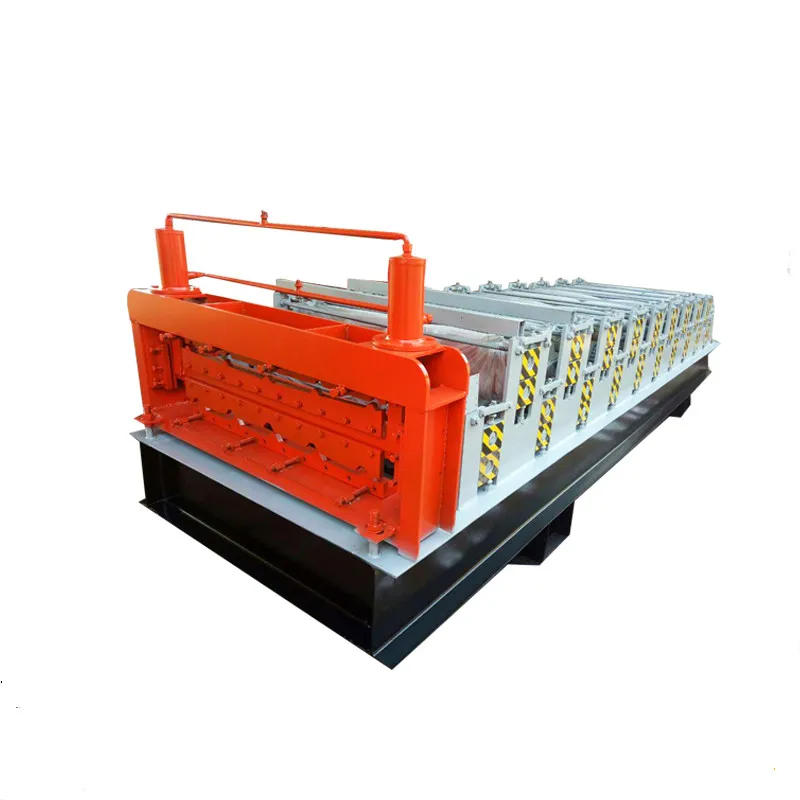

Double-color steel presses are converted between high or low racks, producing a contour of the color plate mounted on a low rack, producing another plate type roll mounted on a high rack , The production of a computer control system, a set of hydraulic shear system. The emergence of such equipment, greatly save the space, the time to replace the two plates have become shorter, but also improve the output rate, so as to meet the needs of many small and medium-sized color steel enterprises.

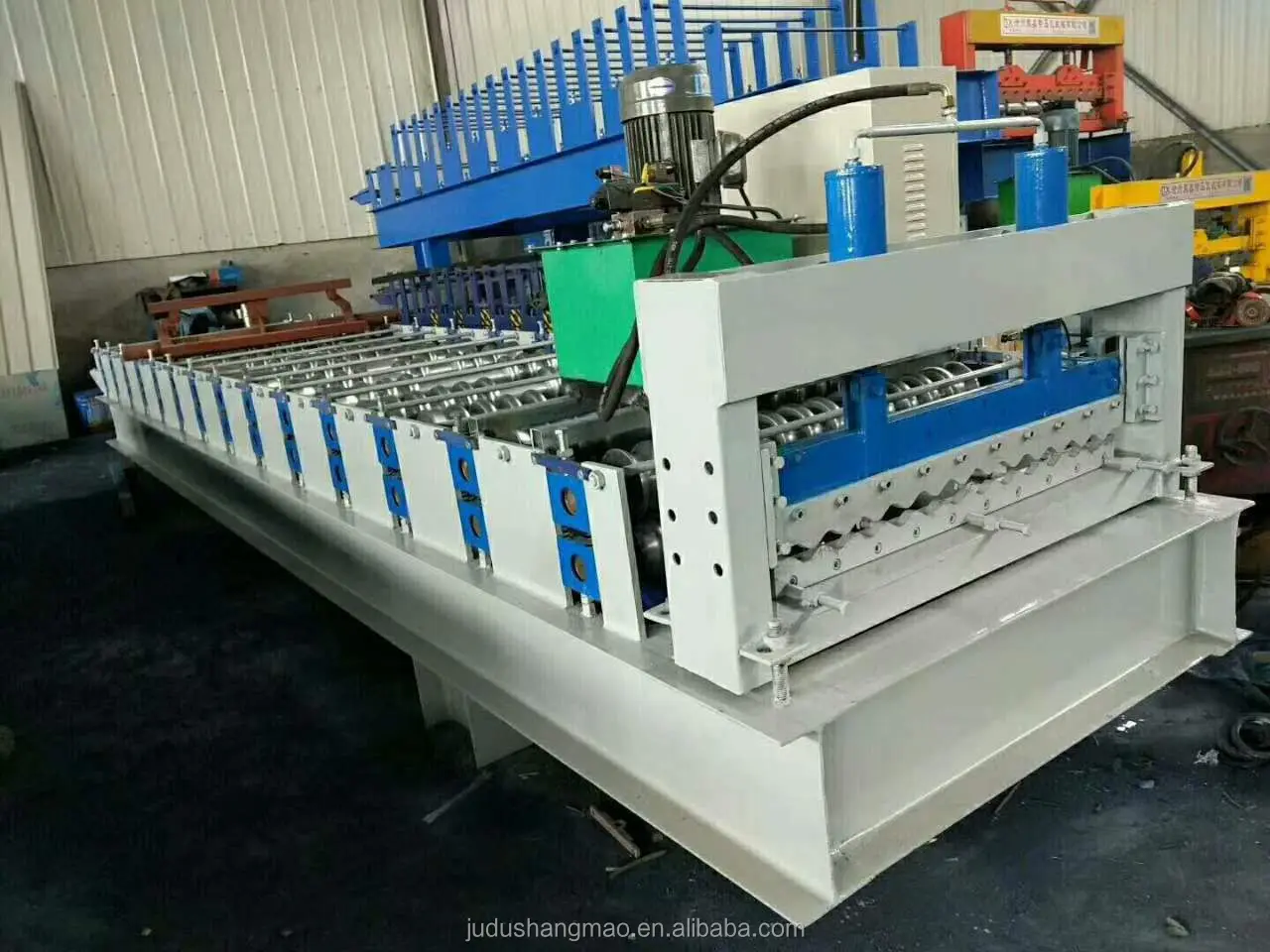

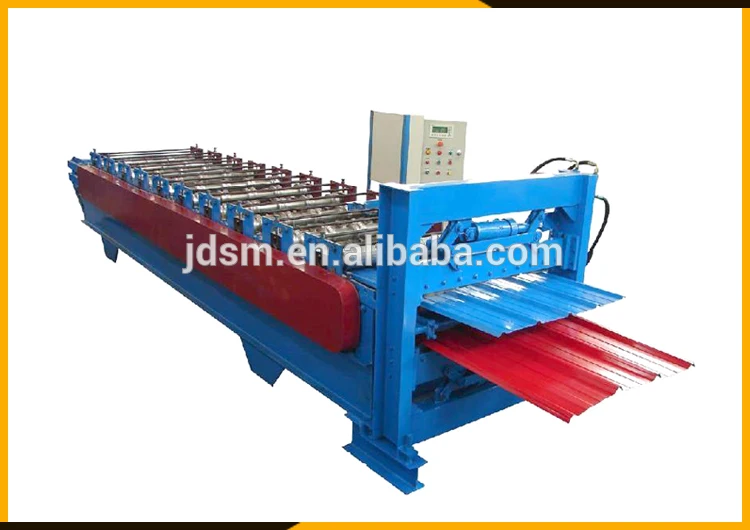

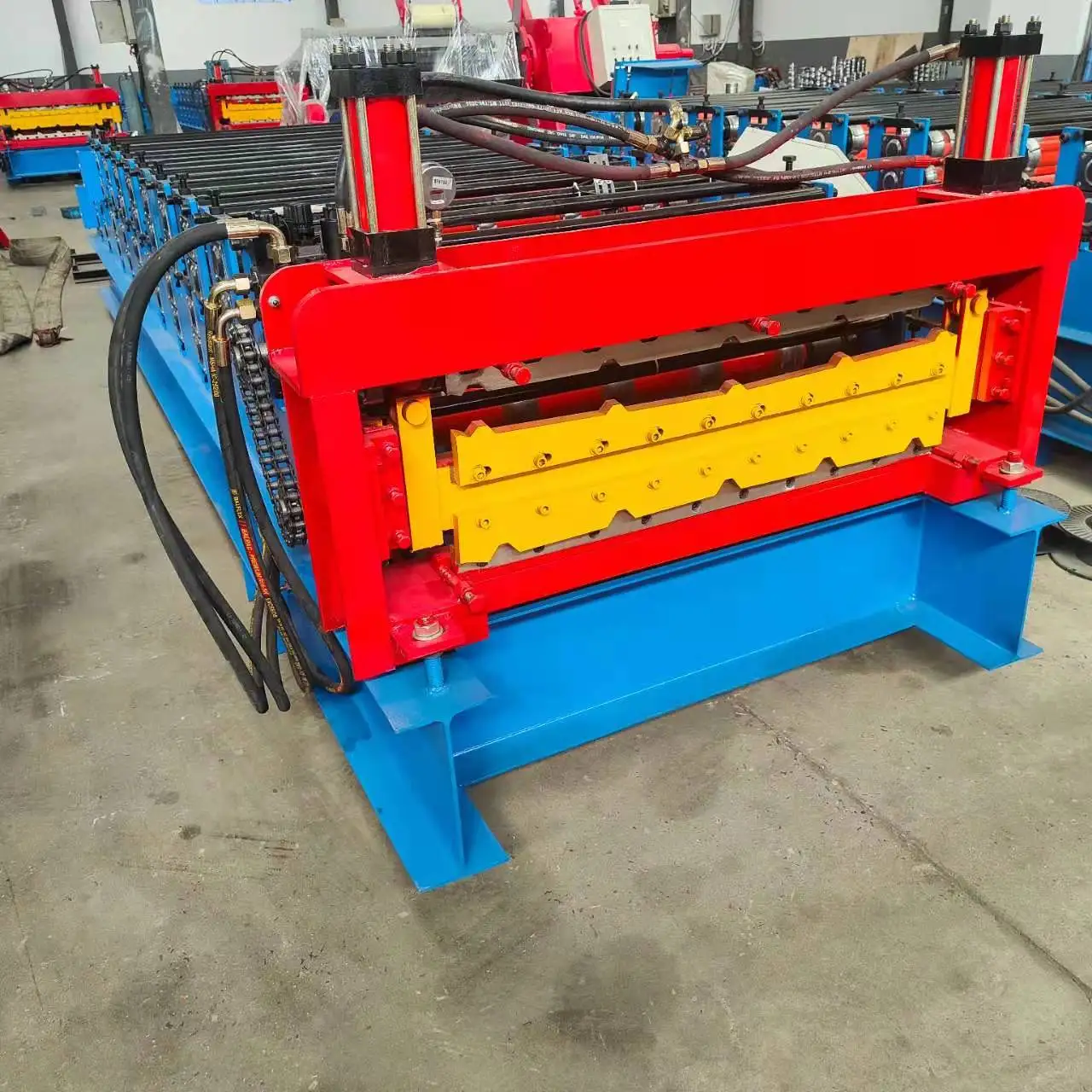

More detailed Photos show of roofing sheet roll forming machine

Decoiler→Flating→Feeding or punching→Forming→Cut to length→Colletion(finish goods)

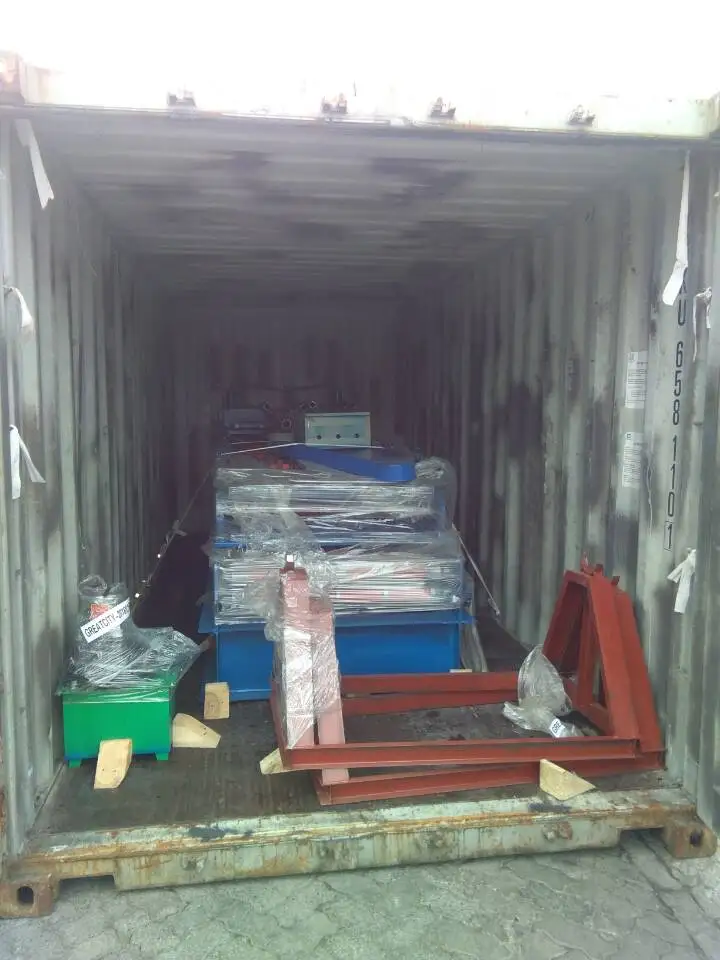

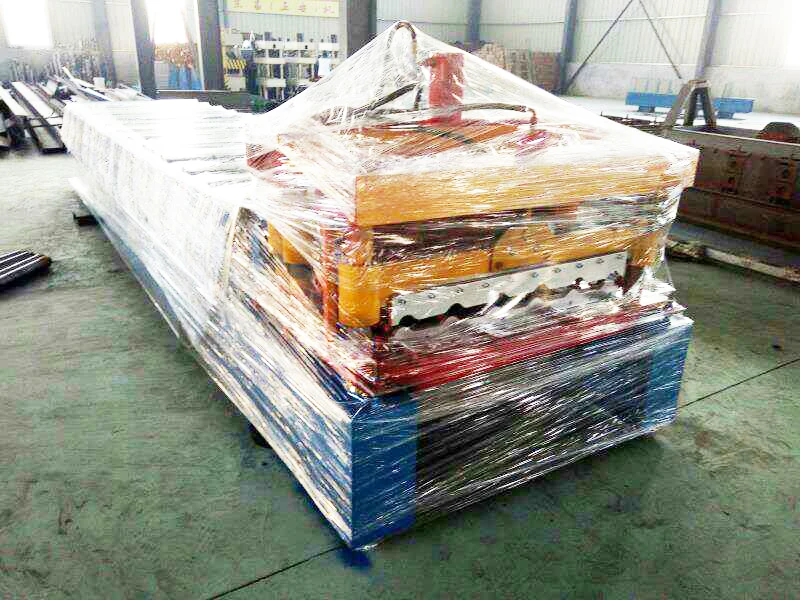

Package:Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board for roofing sheet roll forming machine.

Shipping: within 15 days after receipt of deposit.
