Product Overview
Description
illumination PIR sensor Security System Wireless Home Burglar Intruder motion alarm system Bluetooth PIR sensor beacon
Product Description
* S3 Light PIR Sensor
• High-precision light sensor and PIR sensor
• Magnetic base, 360° direction adjustable• 5 years lifetime and battery is replaceable
• With built-in temperature sensor
• Small size, compact design
• SDK or Library Provided
Magnetic base, can be placed flat, upside down, vertically, or at any angle according to the home environment using 3M adhesive.
BLE Version | BLE5.0 |

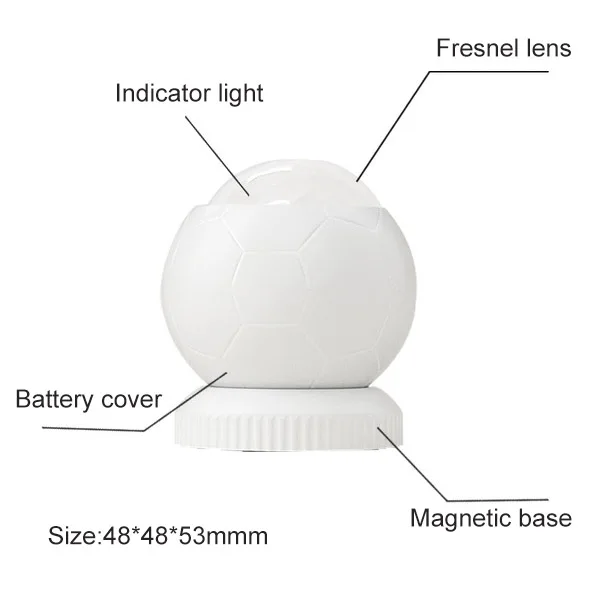

Size | 48×48x53mm |
Weight | 45g (with battery) |

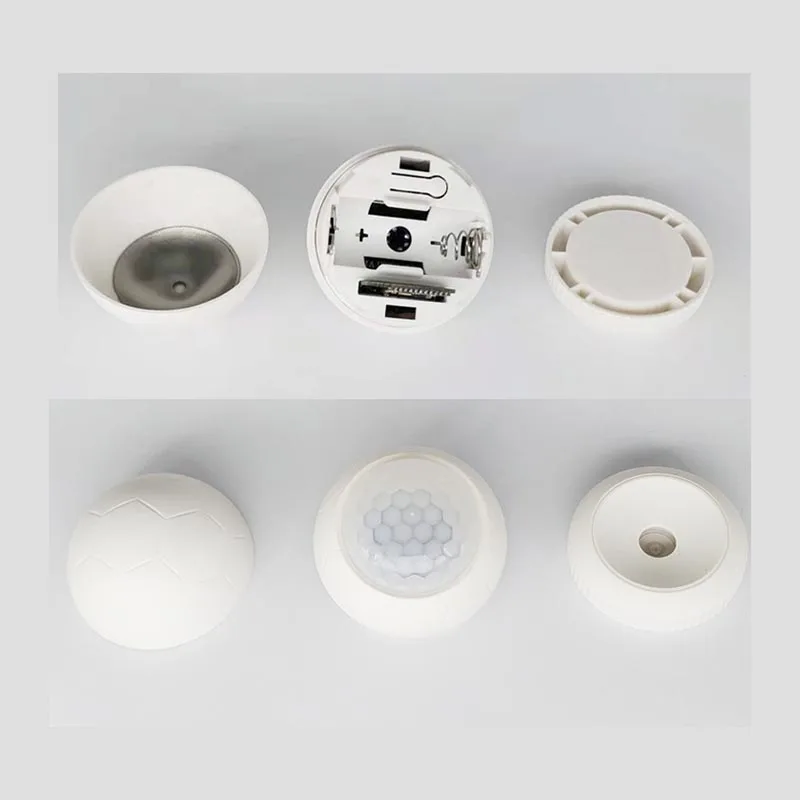

Battery | ER14335 battery 1600mAh(replaceable) |
Battery Life | 5 years (Base on Broadcast Interval 1 second and TX power 0dBm) |

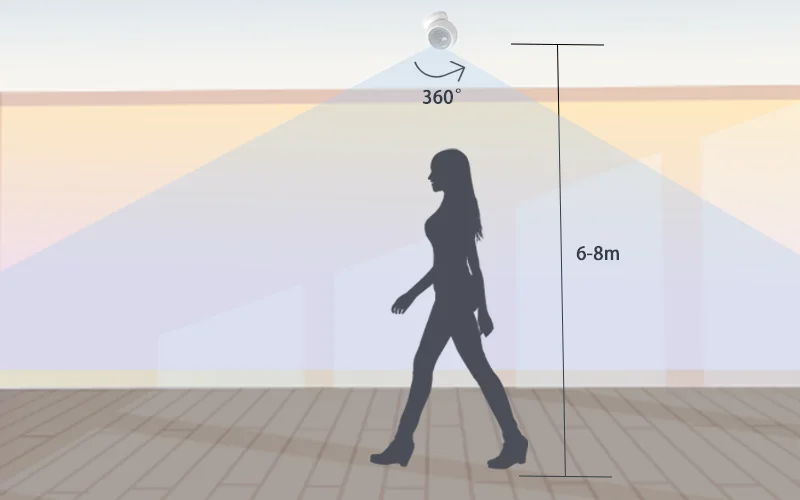

Range | 6-8m PIR detection range 100m BLE range in open space |
Chipset | Nordic nRF52 series |
Working Temperuature | -40°C ~+70°C |
Accessory | 3M adhesive tape or screws |
● S3 PIR light sensor beacon uses ultra low power consumption nRF52 series chipset and BLE 5.0 technology, as well as a energy
saving PIR sensor.

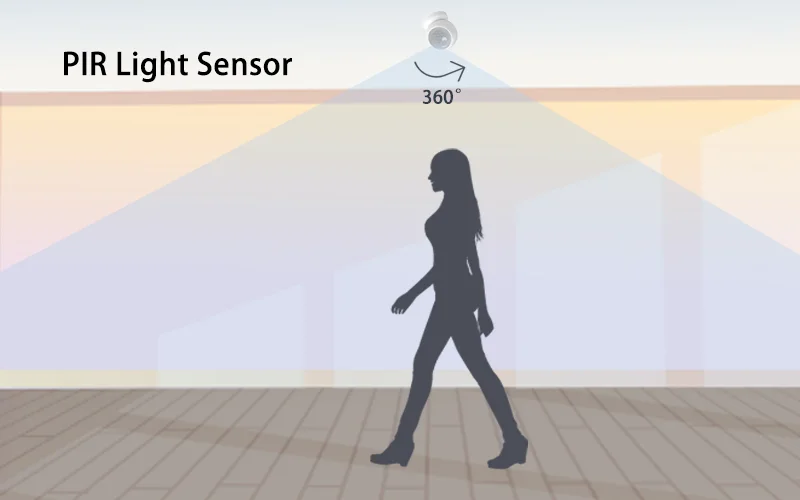

● S3 has built-in high-precision light sensor and PIR sensor, it is a magnetic compact design, can be rotated 360 degrees to
adjust the detection direction.
saving PIR sensor.
● S3 has built-in high-precision light sensor and PIR sensor, it is a magnetic compact design, can be rotated 360 degrees to
adjust the detection direction.
● S3 can be easily installed on wall or table or ceiling
● S3 Beacon can also detect light, and it can also be confifigured to trigger advertisement when the light intensity exceeds or
falls below s specifified threshold.
● We can also configure the parameter or customize the PIR sensor based on your need.
● S3 Beacon can also detect light, and it can also be confifigured to trigger advertisement when the light intensity exceeds or
falls below s specifified threshold.
● We can also configure the parameter or customize the PIR sensor based on your need.
