Algae Tubular Separator Centrifuge
US $6800
High Speed Batched Sugar Processing Top suspended centrifuge
- Category: Separation Equipment >>>
- Supplier: Jiangsu,Hanpu,Mechanical,Technology,Co.,Ltd
Share on:
Product Overview
Description
Product Description

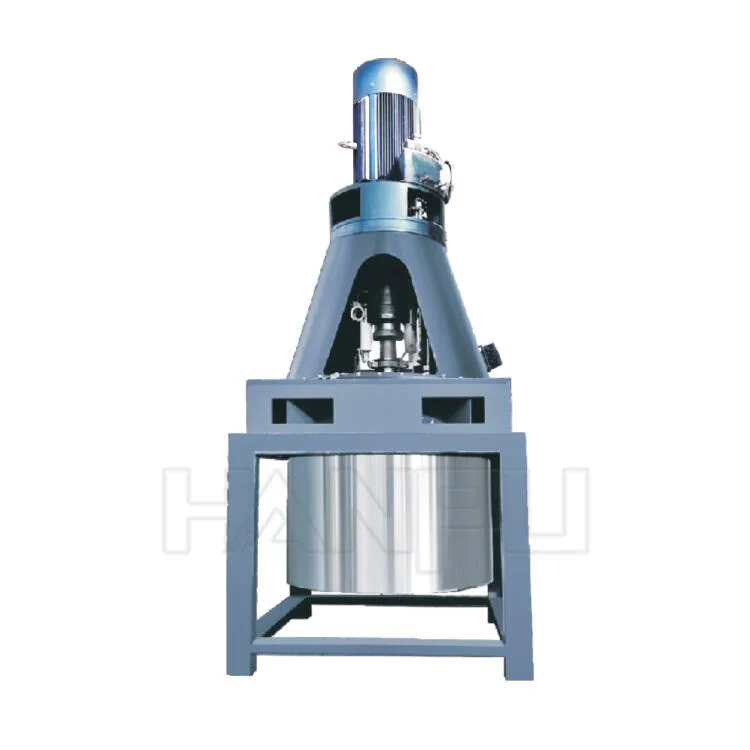

The top-suspended Motor Centrifuge is composed of drum, driving system, bearing seat, upper housing, out housing, lower shaft, scraper group and etc. Its structure adopts top located transmission system, vertical motor provide the driving of drum through the coupling directly and the drum is fixed on the lower end of the shaft.
Main Specification and parameters
If the solid grain is relatively fine with relatively dense texture. The drum can adopt cylindrical bucket structure. The products can be scraped off the drum wall through radial and axial movements of the scraper and discharged. It is "XJZ" model.
If the solid grain is relatively rough with relatively sparse texture. The rotary drum adopts conical structure. From the low speed to zero speed, the products can be loosened by inertia and discharged by gravity. It is “XZ” model.
If the solid grain is relatively rough with relatively sparse texture. The rotary drum adopts conical structure. From the low speed to zero speed, the products can be loosened by inertia and discharged by gravity. It is “XZ” model.
Model | Drum Inside Dia. (mm) | Speed (rpm) | Separating factor | ||
Scraper Discharge | XJZ1300 | 1300 | 1200 | 1090 | |
PP-40 | XJZ1320 | 1320 | 1300/1450 | 1240/1550 | |
PP-50 | XJZ1600 | 1600 | 1100 | 1085 | |
XJZ1700 | 1700 | 1100 | 1138 | ||
XJZ1800 | 1800 | 1000 | 1007 | ||
Gravity Discharge | XZ1250 | 1250 | 960 | 660 | |
PP-60 | XZ1320 | 1320 | 1300 | 1250 | |
Working Principle
The motor drives drum to turn. When drum reaches feeding speed, the suspension products to be separated will enter into the drum on a high speed from the feeding pipe. Feeding will stop when the preset volume is reached. Then the speed of the drum will be raised for separating. Under the centrifugal force, the products will be filtered by filter cloth(filter screen). The liquid phase will be thrown through the rotary drum hole to the empty chamber and discharged through the liquid discharging pipe. The solid phase will be retained on the drum and form cylindrical filter cakes which can be washed. After the requirements for separating is met, the speed will be lowered for discharging.
Housing of the drum moves downwards along the axial direction. The scraper device acts to scrape the filter cakes off the internal wall of the drum and discharge them from the discharging port on the bottom of the centrifuge.
Housing of the drum moves downwards along the axial direction. The scraper device acts to scrape the filter cakes off the internal wall of the drum and discharge them from the discharging port on the bottom of the centrifuge.
Feature
Main Characteristic
1. The centrifuge adopts frequency motor driving and full-automatic repetitive operation. During the automatic repetitive operations, the optimized operation is realized through frequency stepless speed control so that the requirements of low speed discharging are met.
2. The centrifuge adopts dynamic or regenerative breaking to achieve obvious efficiency effects.
3. The electric control is realized by PLC. Time setting can be carried out for all working procedures and the real-time working status of each procedure can be displayed on the operation screen.
4. Product contact parts of centrifuge are made of austenitic stainless steel(according to users' requirements) to ensure cleanliness and sanitation during the production process.
5. The structure of centrifuge adopts compact structure and stable running.
6. Higher production capacity, automation and speed, better separation efficiency, lower noise and labor intensity.
2. The centrifuge adopts dynamic or regenerative breaking to achieve obvious efficiency effects.
3. The electric control is realized by PLC. Time setting can be carried out for all working procedures and the real-time working status of each procedure can be displayed on the operation screen.
4. Product contact parts of centrifuge are made of austenitic stainless steel(according to users' requirements) to ensure cleanliness and sanitation during the production process.
5. The structure of centrifuge adopts compact structure and stable running.
6. Higher production capacity, automation and speed, better separation efficiency, lower noise and labor intensity.
Application
Application
The top-suspended centrifuge has a wide application range, like starch of fine granules and sugar of middle roughness granules. It is widely used for edible sugar, glucose, A-massecuite, dicalcium phosphate, monosodium glutamate, boric acid, borax, calcium carbonate, starch, potassium chlorate, gypsum and other materials in chemical industry, light industry, pharmacy, etc.
Company Profile
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
Certifications
Packing&Shipping
Film wrapping and standard wooden case fumigated for CBD Ethanol Hemp Extraction System, Air, land and sea transportation ensures the timely and safe arrival of cargo.
FAQ
1. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
3. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
4. What is your advantage compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.
5. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
6. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
