TBB Apollo Maxx3.0S Off Grid Solar System Inverter 5KW 10KW 15KW 20KW 30KW Solar Hybrid Inverter
- Category: >>>
- Supplier: Chengdu Langhe Technology Co. Ltd.
Share on (1600712371271):
Product Overview
Description
Product Paramenters
Model | Apollo Maxx 3.0M | Apollo Maxx 3.0S | Apollo Maxx 5.0S | |||
Input AC Range | 175~265VAC(45~65Hz) | |||||
Inventer | ||||||
Nominal battery voltage（v） | 24V | 48V | 48V | |||
Input voltage range | 21~34V | 42~68V | 42~68V | |||
AC output voltage(v) | 220/230/240 ± 2% | |||||
AC output frequency(Hz) | 50/60±0.1% | |||||
Harmonic distortion | <2% | |||||
Load power factor | 1.0 | |||||
Cont. output power at 25℃(VA) | 3000 | 3000 | 5000 | |||
Max output power at 25℃(VA) | 3000 | 3000 | 5000 | |||
Peak power (W) for 5 sec | 9000 | 9000 | 15000 | |||
Surge | 300% | |||||
Maximum efficiency | 94% | 95% | 96% | |||
Zero load power(W) | 14 | 14 | 21 | |||
Charger | ||||||||
Charge voltage'absorption(V) | 28.8v | 57.6v | 57.6v | 57.6v | ||||
Charge voltage'float(V) | 27.6v | 55.2v | 55.2v | 55.2v | ||||
Battery type | AGM/GEL/OPZV/Lead-Carbon/Li-ion/Flooded/Traction/TBB SUPER-L | |||||||
Max AC charger current (A) | 80 | 40 | 70 | 70 | ||||
Solar charge controller | ||||||||
Max output current(A) | 60 | 60 | 90 | 90 | ||||
Max PV power(W) | 2000 | 4000 | 6000 | 6000 | ||||
PV open circuit voltage(V) | 150 | 150 | 150 | 150 | ||||
MTTP voltage range(V) | 65~145 | 65~145 | 65~145 | 60~145 | ||||
MTTP efficiency | ≥99.5% | ≥99.5% | ≥99.5% | ≥99.5% | ||||
Protection | a) output short circuit; b) overload; c) battery voltage too high d) battery voltage too low, e) temperature too high; f) input voltage out of range | |||||||
General Data | ||||||||
Output (AC Out)Current(A) | 32 | 32 | 50 | 50 | ||||
Protection | a) output short circuit; b) overload; c) battery voltage too high; d) battery voltage too low; e) temperature too high; f) input voltage out of range; g) input voltage ripple too high; h) Fan block | |||||||
CAN BUS Communication port | For three phase operation, remote monitoring and system integration | |||||||
Size(mm) | 499x272x144 | 499x272x144 | 570x310x154 | |||||
Weight(kg) | 20 | 20 | 32 | 31 | ||||
Standards | ||||||||
Safety | EN-IEC 62477-1, EN-IEC 62109-1, EN-IEC 62109-2 | |||||||
EMC | EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-3-11,EN61000-3-12 | |||||||

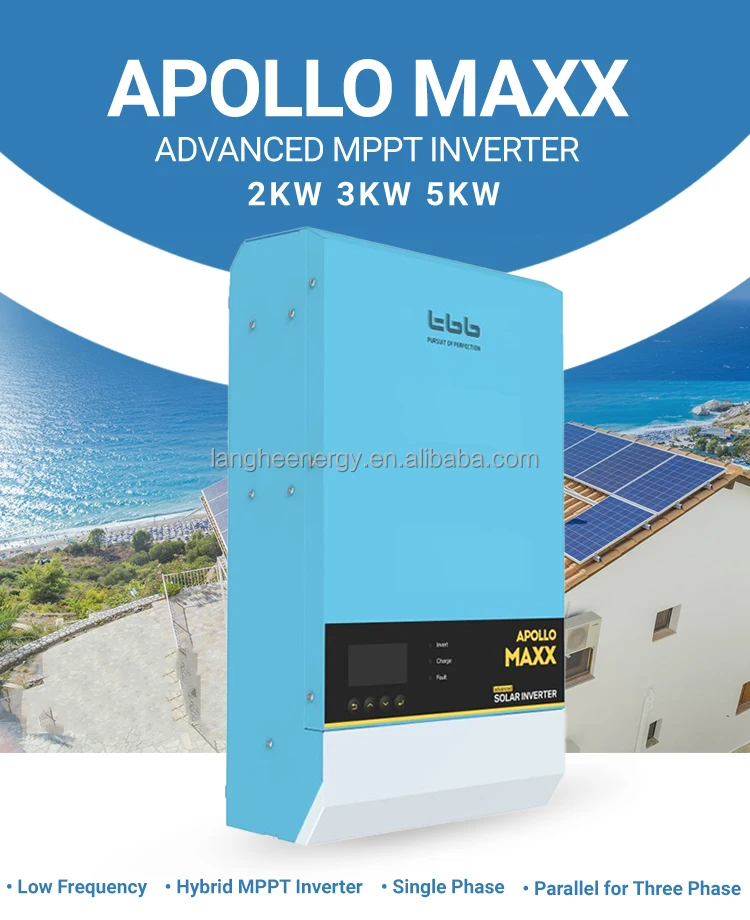

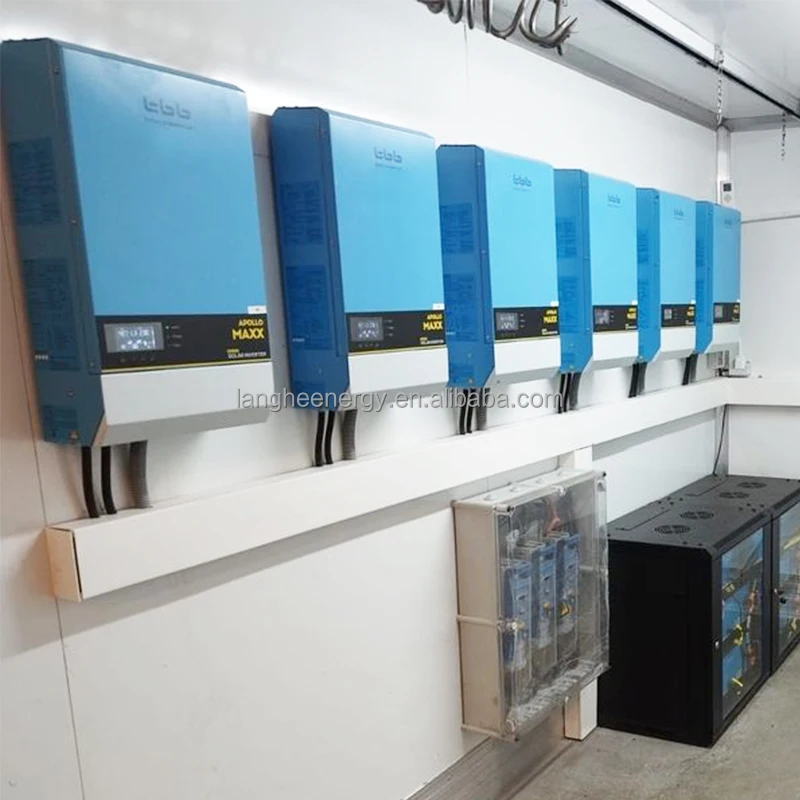

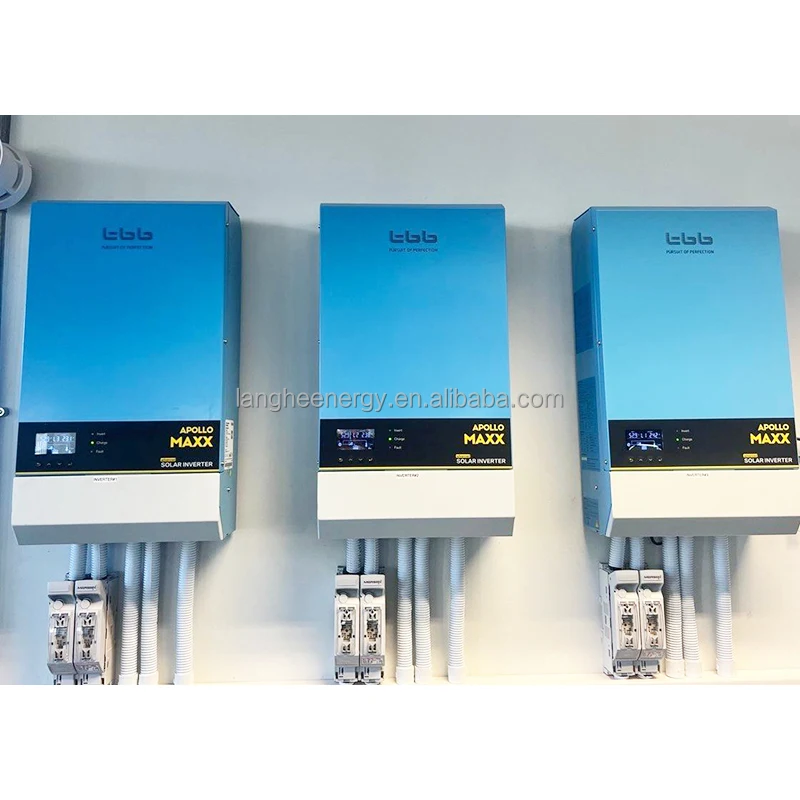

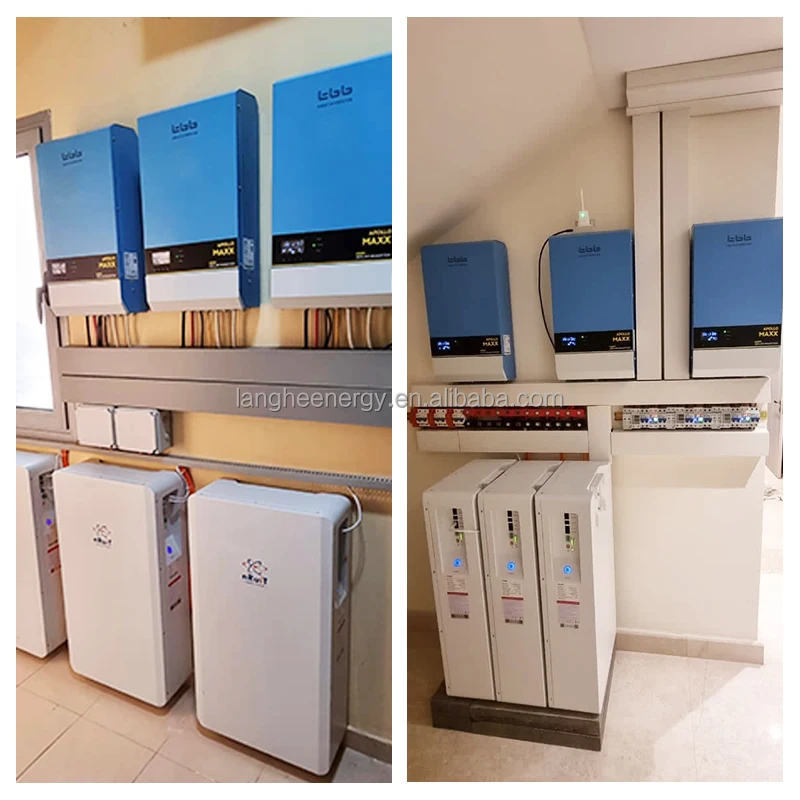

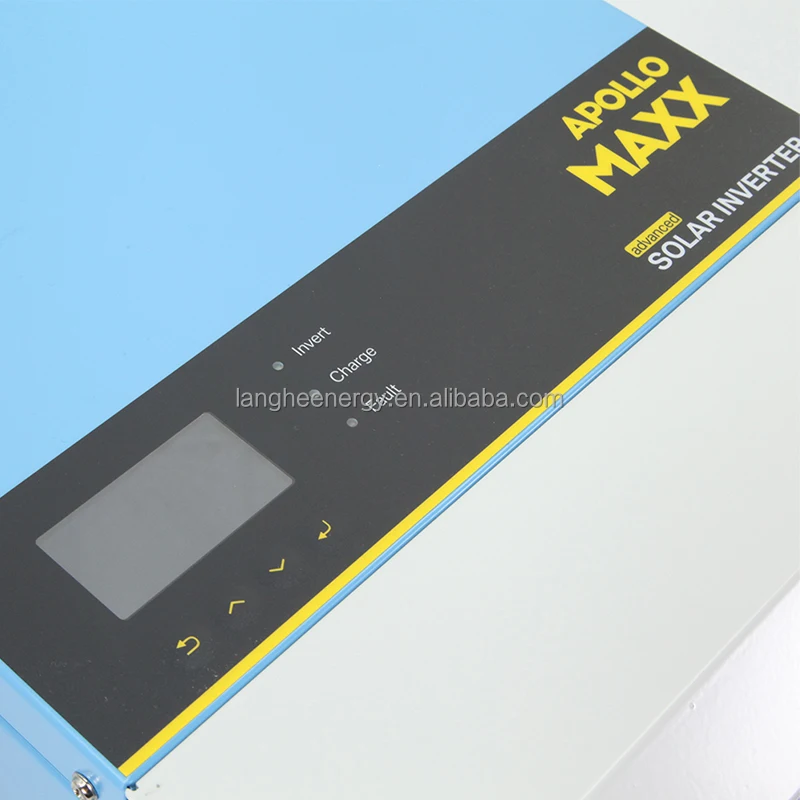

Products Show
Packaging & Delivery
Company Profile
Factory Display
Certifications
FAQ
1.Are you a trading company or a manufacturer?
--Our company is a manufacturer, founded in 2011, has been deeply involved in the field of industrial Internet for many years, and has rich experience in IoT system, software R&D and big data applications.
2.What is the renewable energy IOT system?
--The renewable energy IOT system is an open platform that connects the entire industry chain of the renewable energy field, providing data collection and data display for the industry, realizing equipment registration, access to management systems, equipment data models, communication protocols, equipment status and real-time monitoring of data. The displayed information of equipment, assets and energy data can be inquired anytime. Provide data statistics and reports on multi-dimensional customized data regularly.
3.What is the Purchase suggestions?
--a. To purchase a complete set of products, please install according to the installation manual or contact the local PV
installation company for installation.
--b. You can also only purchase the storage battery and inverter, and then contact the local photovoltaic installation to install the photovoltaic and connect the energy storage equipment, which has a high cost performance ratio.
4.What’s the lead time for mass production？
-- It depends on the actual situation. 48V100ah LFP battery pack,3-7 days with stock, if without stock, that will be depends on your order quantity, normally needs 20-25 days.
5. Do you accept ODM/OEM orders?
--Yes, we can accept OEM/ODM, you can change the logo and function as you want.
6. How's your quality control system?
-- 100% PCM test by IQC.
-- 100% Capacity test by OQC.
7. How's the lead time and services?
-- Fast Delivery in 10 days.
-- 8h response & 48h solution.
8. How's your R&D ability?
-- Comprehensive Battery Test Center (Safety and Reliable test).
-- Powerful ODM Ability to Afford Customized Design Requirement.
