Product Overview

Description

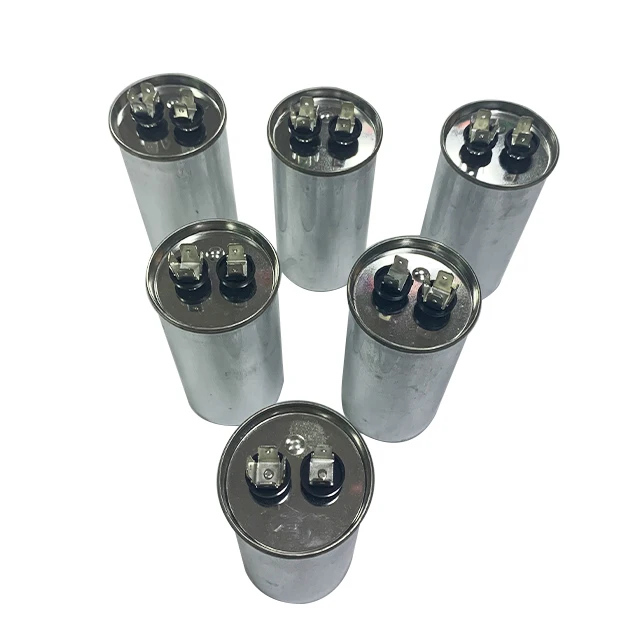

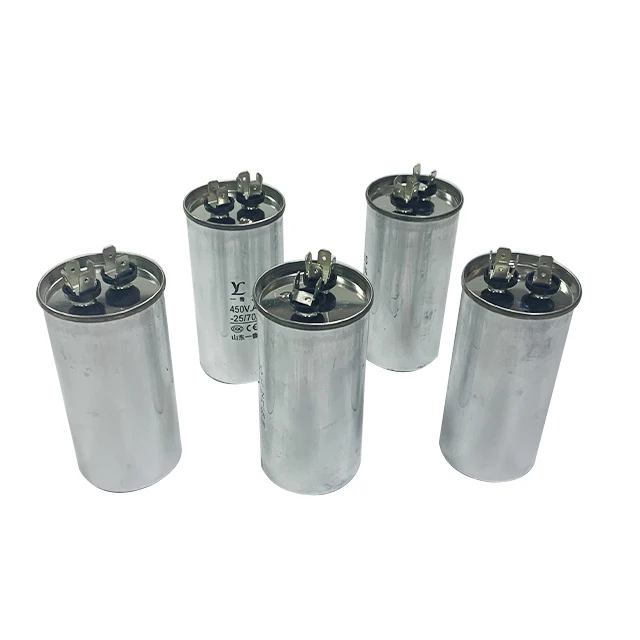

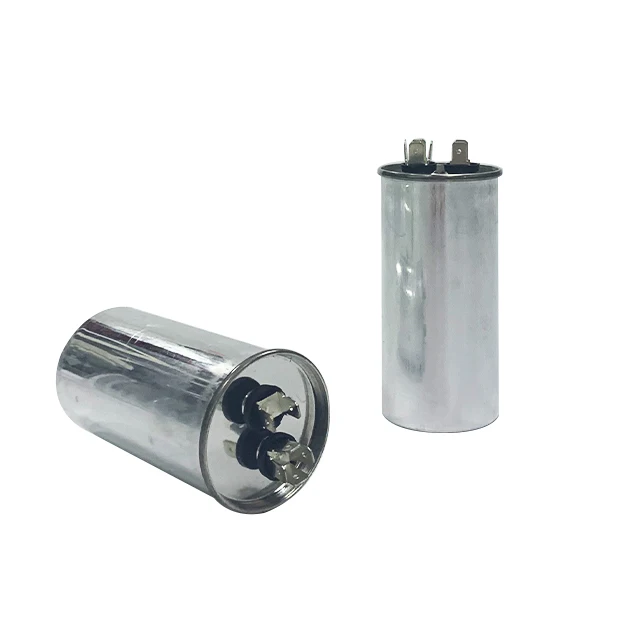

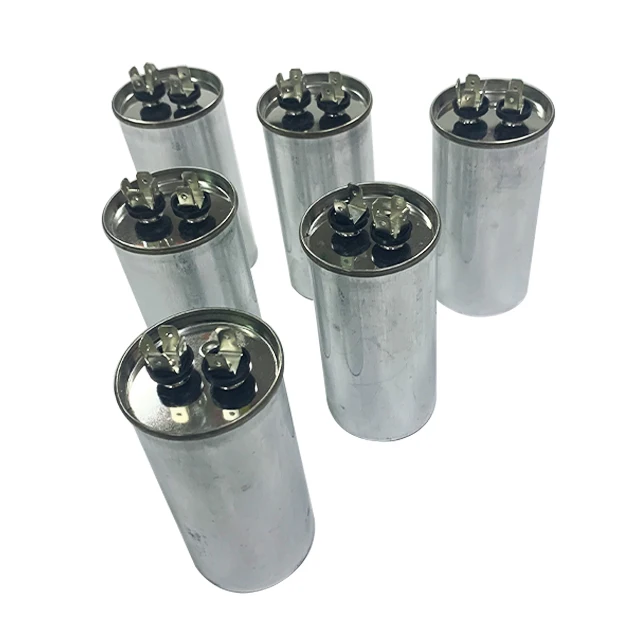

Ac Motor Start Capacitor
The capacitor has advantages of low dissipation,high insulation resistance, good self-healing character, anti-striking current, strong over-carrier capacity and steady electric performance, and reliable safety with inner anti-explosion device, etc. It is applied in air conditioning, refrigeration, it is helpful for motor's starting and running.


item
AC Capacitor
Model Number
CBB65
Type
Polypropylene Film Capacitor
D/C
AC
Supplier Type
Original manufacturer
Capacitance
2μF~100μF
Media Available
Other
Tolerance
±5%(J)
Package Type
Aluminum Case
Rated Voltage
110-450V
Operating Temperature
-40°C-85°C
Brand
CBB65
Specification
Not Applicable
Voltage - Rated
450V
Applications
Air Conditioner/Compressor/Dryer
Impedance
Cn×Rs≥3000S(23℃,100VDC,1min)
Circuit Type
Not Applicable
Temperature Coefficient
-40°C-85°C
Current - Leakage
Rated Current*1.3
Voltage - Breakdown
Rated Voltage*1.1
Capacitance Range
2μF~100μF
Application
General Purpose
Product name
Ac Motor Start Capacitor Dual Run Capacitor for Air Conditioner Parts
Model Number
CBB65
Material
Aluminum
Certificate
VDE0560-8
Color
Sliver
MOQ
100pcs
Logo
accept customization
Application of Capacitor
Electric Appliances
Capacitance tolerance
5%(J) 10(K)
Keywords
Poleyester Film Capacitor
