Broadcast Quality H265 H264 Single Channel SDI HD MI IP SRT RTMP RTSP Broadcast Decoder
- Category: >>>
- Supplier: Yukuan Technology Ltd.
Share on (1600712439229):
Product Overview
Description

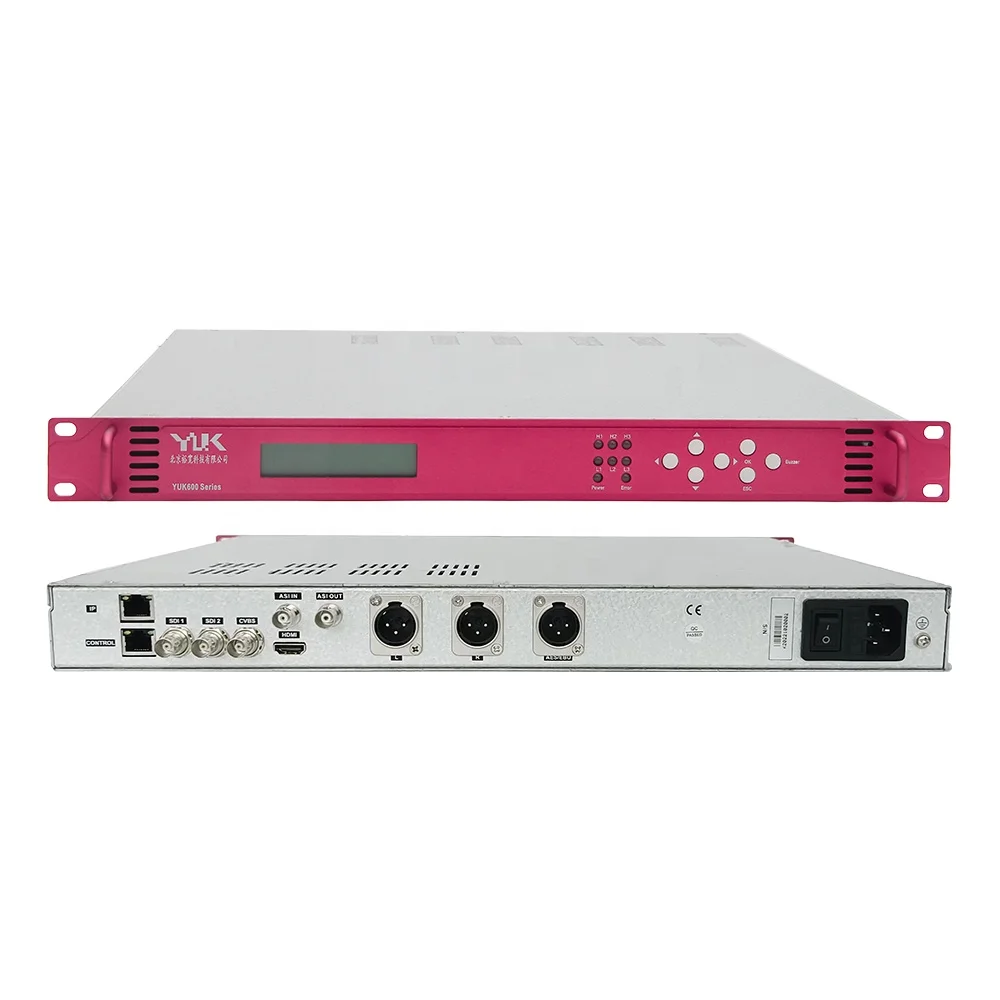

YUK600-IP
Broadcast Quality H265 H264 Single Channel SDI HD MI IP SRT RTMP RTSP Broadcast Decoder
Product Overview
YUK600-IP network media decoder supports IP and ASI input, decoding output single channel HDMI SD/HD-SDI AES/EBU and analog stereo. It supports IP protocol SRT RTMP RTSP UDP HLS (M3U8) HTTP.
Product Feature
* Support IP ASI input
* Multiple output, single channel HDMI, SD/HD-SDI, AES/EBU, analog stereo
* Support SRT, RTMP, RTSP, HLS (M3U8), HTTP,UDP
* Support video decoding H.265 H.264 MPEG4 MPEG2 AVS+
* Support audio decoding DRA AC3 EAC3 AACMPEG-1 Layer II
* Compatible with HD SD signals
* Resolution can be automatically identified or manually set
* Friendly user interface and easy-to-operate menu system
* Web network management based on B/S
* Multiple output, single channel HDMI, SD/HD-SDI, AES/EBU, analog stereo
* Support SRT, RTMP, RTSP, HLS (M3U8), HTTP,UDP
* Support video decoding H.265 H.264 MPEG4 MPEG2 AVS+
* Support audio decoding DRA AC3 EAC3 AACMPEG-1 Layer II
* Compatible with HD SD signals
* Resolution can be automatically identified or manually set
* Friendly user interface and easy-to-operate menu system
* Web network management based on B/S
Specification
IP Input | ||
Interface | 1×RJ45, 100 Base-T | |
Effective Bitrate | 30Mb/s (100 Base-T) | |
Frame Length | (1-7)×188 adjustable bytes | |
Transfer Protocol | SRT, RTMP, RTSP, UDP, HLS (M3U8), HTTP | |
ASI Input | ||
Interface | 1×ASI (BNC) input,1×ASI (BNC) loop out | |
Video Decoding | ||
Standard | MPEG-2 MPEG 4 H.264 AVC H.265(HEVC) AVS+ | |
Audio Decoding | ||
Standard | MPEG-1 layer I/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC LC, AC3/DRA/EAC3 | |
HDMI Output | ||
Executive Standard | 1×HDMI | |
Resolution and Frame Rate | 1080P60/1080P50/1080i60/1080i50/720p60/720p50/576P/576I/480P/480I | |
Embedded Audio | 1-ch stereo | |
HD/SD-SDI Output | ||
Interface | 2×BNC,75Ω | |
SD-SDI Output | SMPTE 259M, 270 Mb/s (10bit) | |
HD-SDI Output | SMPTE 292M, 1.485 Gbit/s (20bit) | |
Output Level | 800mV+-20 p-p | |
Analog Audio Output | ||
Interface | 2×XLR(left channel and right channel) | |
Digital Audio Output | ||
Interface | 1×XLR(AES/EBU) | |
Local and Remote Management | ||
Interface | 1×RJ45, 10/100/1000 Base-T, shared with data port | |
Remote Control | HTTP Web | |
Equipment Upgrade | IP | |
Physical Specifications | ||
Dimension(L×W×H) | 450mm×300mm×44mm | |
Weight | Net weight 4KG | |
Power | AC 90V～250V，50/60Hz | |
Power Consumption | 24W | |
Temperature Range | 0 ~ 45℃(operation), -10℃~ 60℃(storage) | |
Humidity | 10 ~ 90%(Non-condensing) | |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
