Factory price automatic galvanized twisted barbed wire making machine
- Category: >>>
- Supplier: Shandong Feihong Engineering Machinery Co. Ltd.
Share on (1600712459175):
Product Overview
Description
Introduction & Advantage:

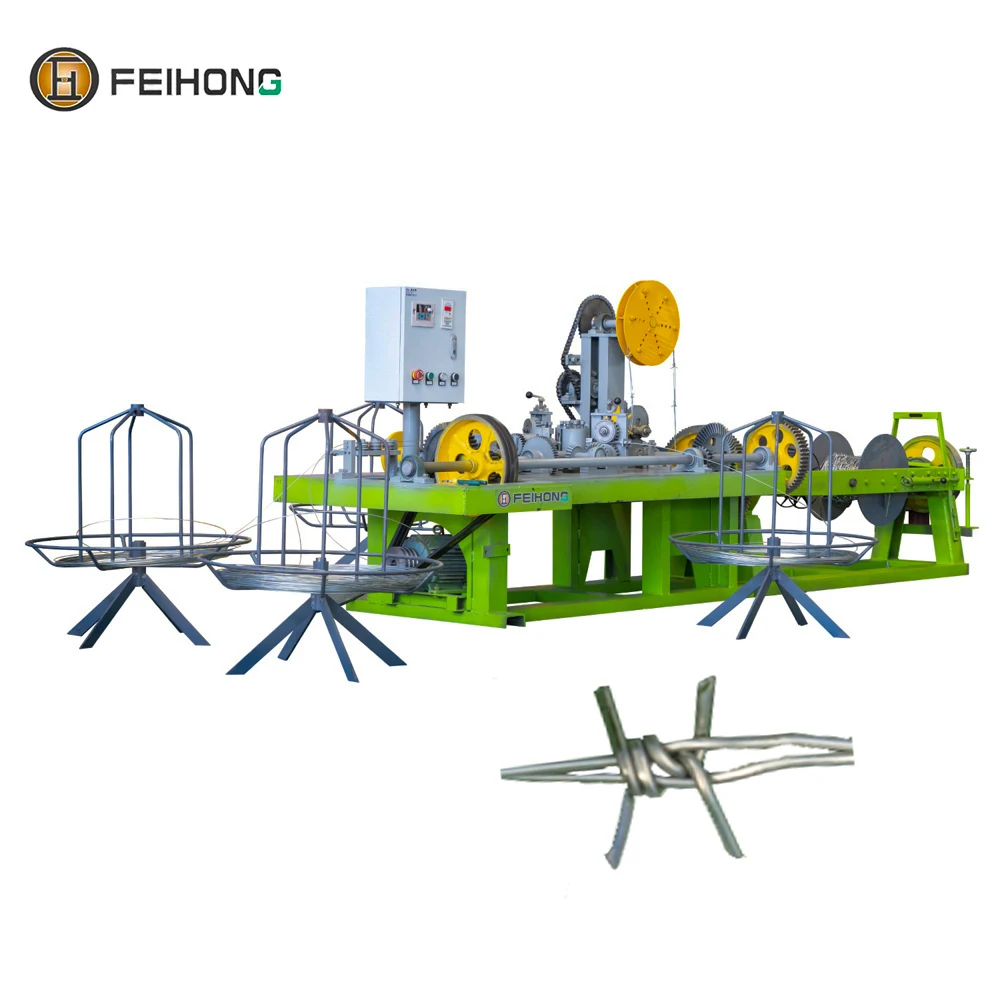

Barbed wire making machine
Blade barbed wire machine is a kind of machine to produce thorn steel wire.With advanced design and fully automatic, all parts work coordinately,move steadily,easy and safety to operate.Barbed wire is widely used for the protection of grassland boundary, railway andhighway, etc.
Features:
1.-Manually installation, Easy to set up;2.-Steel cover on driving shaft for safety operation;
3.-Saving materials and high capacity;
4.-Counter to count the number of barbs and calculate length of barbed wire;
5.-Button switches and leveler to start and stop machine easily;
6.-Quick and easy roll extraction from the machine;
7.-Guiding system to avoid wire snarls.
Technical Parameters
Model | CS-A | ||||||
Motor power | 3KW | ||||||
Voltage | 380V | ||||||
Dimension | Main :2000*1200*1400mm | ||||||
Auxiliary :2000*650*800mm | |||||||
Weight | 1000KG | ||||||
Line wire diameter | 1.6-3.0mm | ||||||
Barbed wire diameter | 1.6-2.4mm | ||||||
Wire tensile strength | 400-600N/mm² | ||||||
Barb space between | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) | |||
Theoretical output | 675m/h | 900m/h | 1125m/h | 1350m/h | |||
Outpot | 120kg/h（Line wire 2.8mm, barbed wire 2.2mm as an example） | ||||||

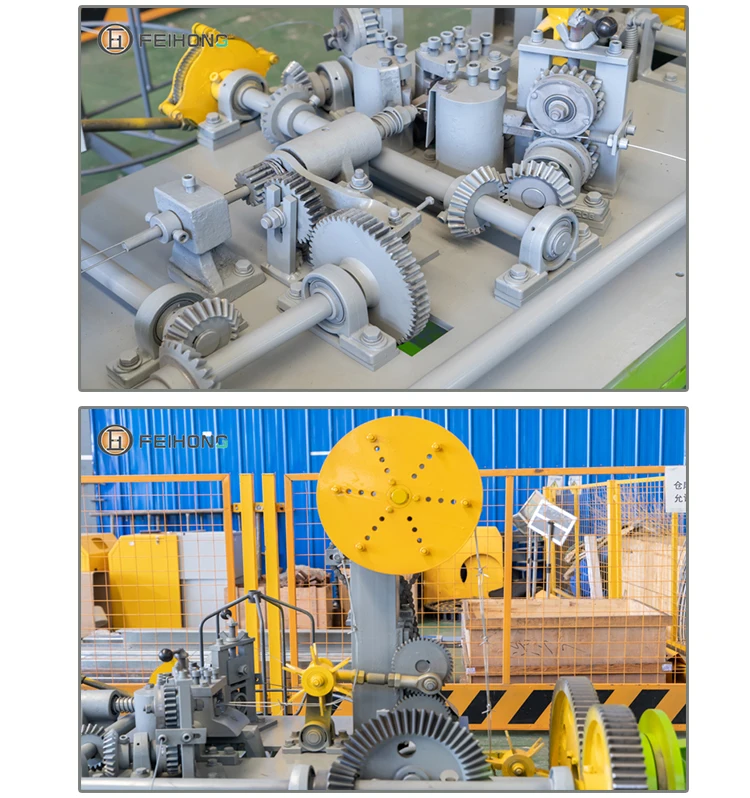

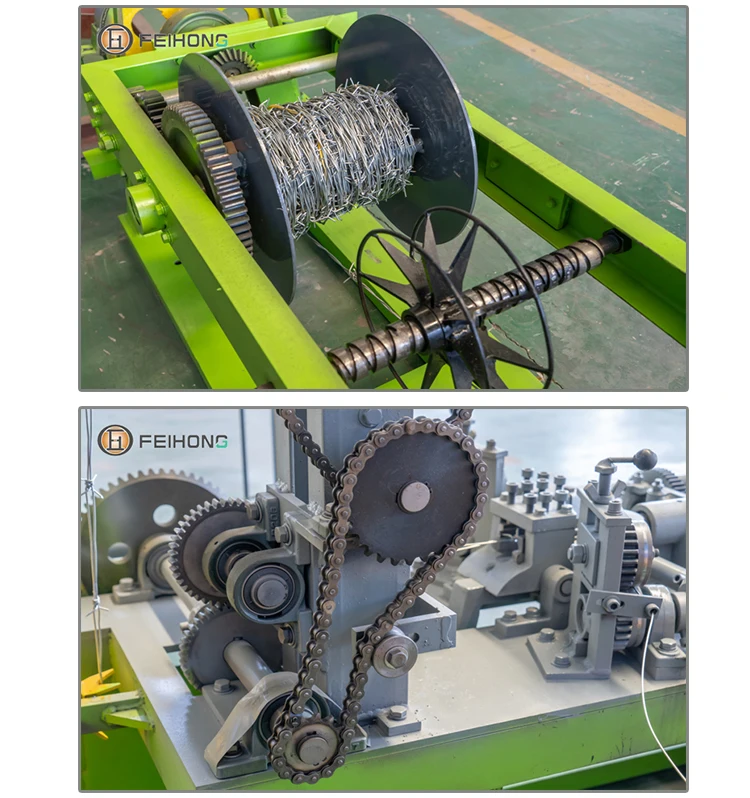

Details Display

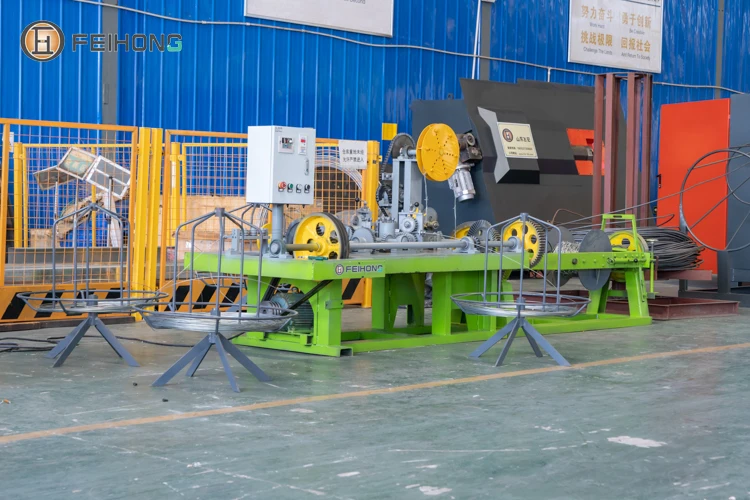

Overall Display

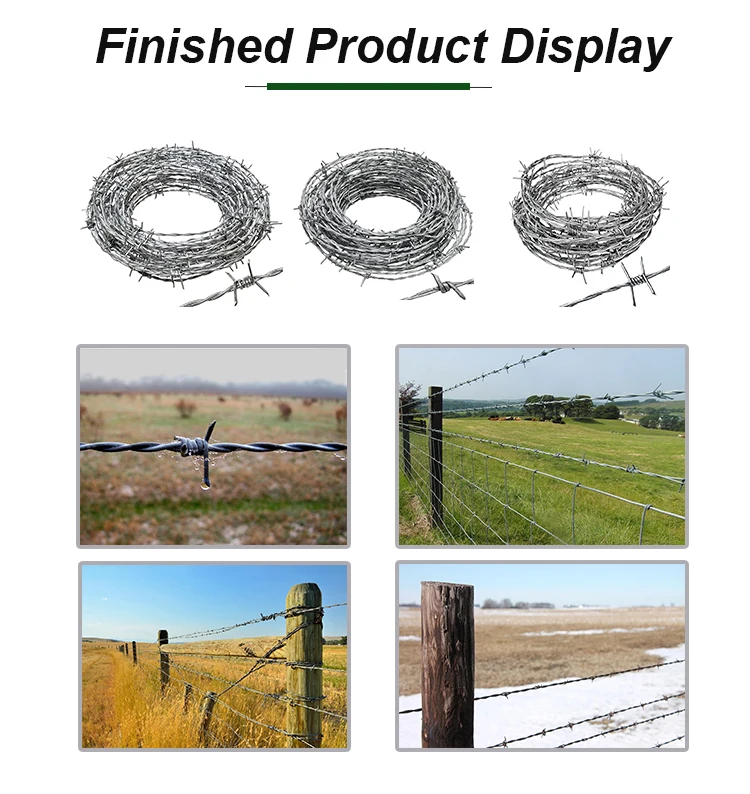

Finished Product
Package&Shipment
Company Profile:
Shandong Feihong has an advanced technology research and development center. It is composed of technical experts who have been engaged in the intelligent equipment industry for many years, and has a number of independent intellectual property rights such as technical inventions and utility model patents. It also passed ISO9001 quality management system certification and ISO14001 environmental management. International certifications such as system certification and EU CE certification. Main product: pile steel bar cage welding machine, rebar bender, stirrup bending machine, bar bender, rebar cutting machine, steel rebar shearing line, steel bar straightening and cutting machine ,ect.
