YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar
YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar

YEL Hastelloy c22 UNS N06022 Incoloy 718 825 901 Monel 400 K500 Nitronic 90 91 Nickel Alloy Steel Sheet/plate/pipe/tube/rod Bar

Share on:


Price:$55.00 - $65.00
Price in USD:Details

Quantity:


Product Overview

Description



Alloy C-22
Hastelloy C22, also known as Alloy C22, is a versatile austenitic nickel-chromium-molybdenum-tungsten alloy with enhanced
resistance to pitting, crevice corrosion and stress corrosion cracking. The high chromium content provides good resistance to
oxidizing media while the molybdenum and tungsten content give good resistance to reducing media. This nickel steel alloy also has
excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with
chlorine ions. Other corrosives Hastelloy C-22 has resistance to are oxidizing acid chlorides, wet chlorine, formic and acetic
acids, ferric and cupric chlorides, sea water, brine and many mixed or contaminated chemical solutions, both organic and
inorganic.


#1
Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative
finish is not required.
#2D
Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain
lubricants in the forming process.
#2B
Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished
rolls giving it a brighter finish than 2D.
#CBA
Course bright annealed cold rolled matte finish and bright anneal
#2
Cold Rolled
#2BA
Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A
2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part


Name
Int. standard
ASTM
Bristish Standard
DIN
UNS
Monel Alloy
Monel 30c
ASTM A494
Monel 400
ASTM B127/163/164/165
NA13
2.4360
N04400
Monel R405
ASTM B164
Monel K500
88651SAE AMS4676E
NA 18
2.4375
NO5500
lnconel
lnconel 600
ASTM B163/166/168
2.4816
NO6600
Inconel 625/625LCF
ASTM B443/444/446/564
2.4856
N06625
Inconel690
UNS NO6690
2.4642
N06690
lnconel 718
B637/AMS 5662/AMS5663
2.4668
N07718
Inconel X750
B637
2.4669
NO7750
6021
Incoloy
Incoloy 800
B163/8407/B408/B409
NA15
1.4876
NO8800
lncoloy 800H
B409/B407/B163/B408
1.4558
N08810
lncoloy 80OHT
N08811
Incoloy 825
B425/163/423/424
NA 16
2.4858
N08825
Carpenter20/20cb
B463/464
2.4660
N08020
Hastelloy
Hastelloy B
N10001
Hastelloy B-2
B333/622
2.4617
N10665
Hastelloy C-4
B575/622/574
2.4610
N06455

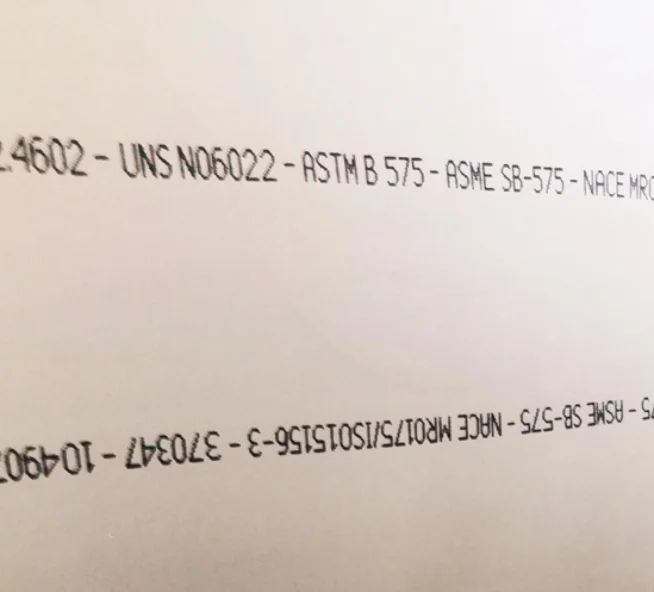

Hastelloy C-22
B575/B622/B574
2.4602
N06022

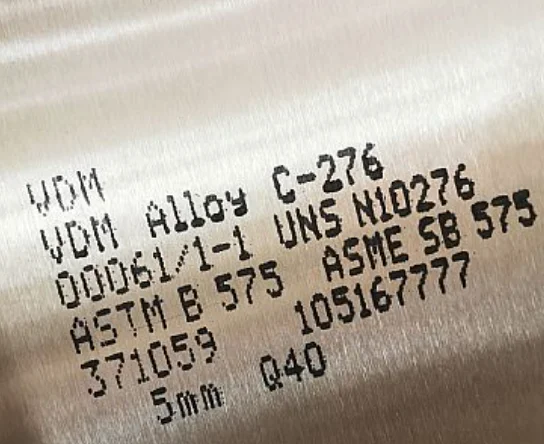

Hastelloy C-276
B619/622/575/574
2.4819
N10276
Hastelloy G-3
B582/622/581
Hastelloy G-30
N06030

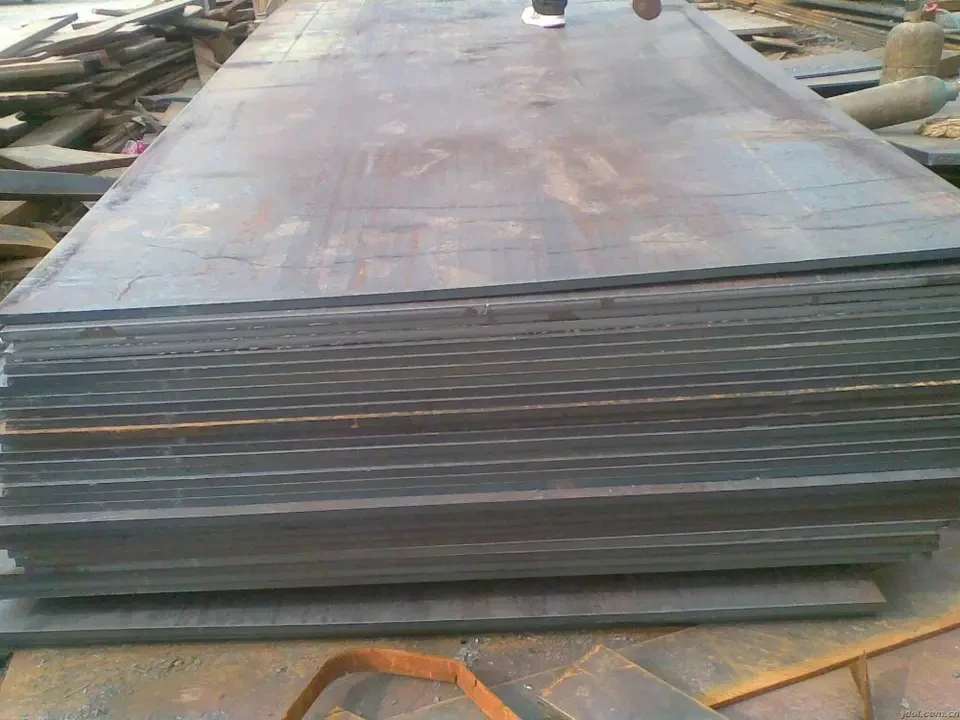

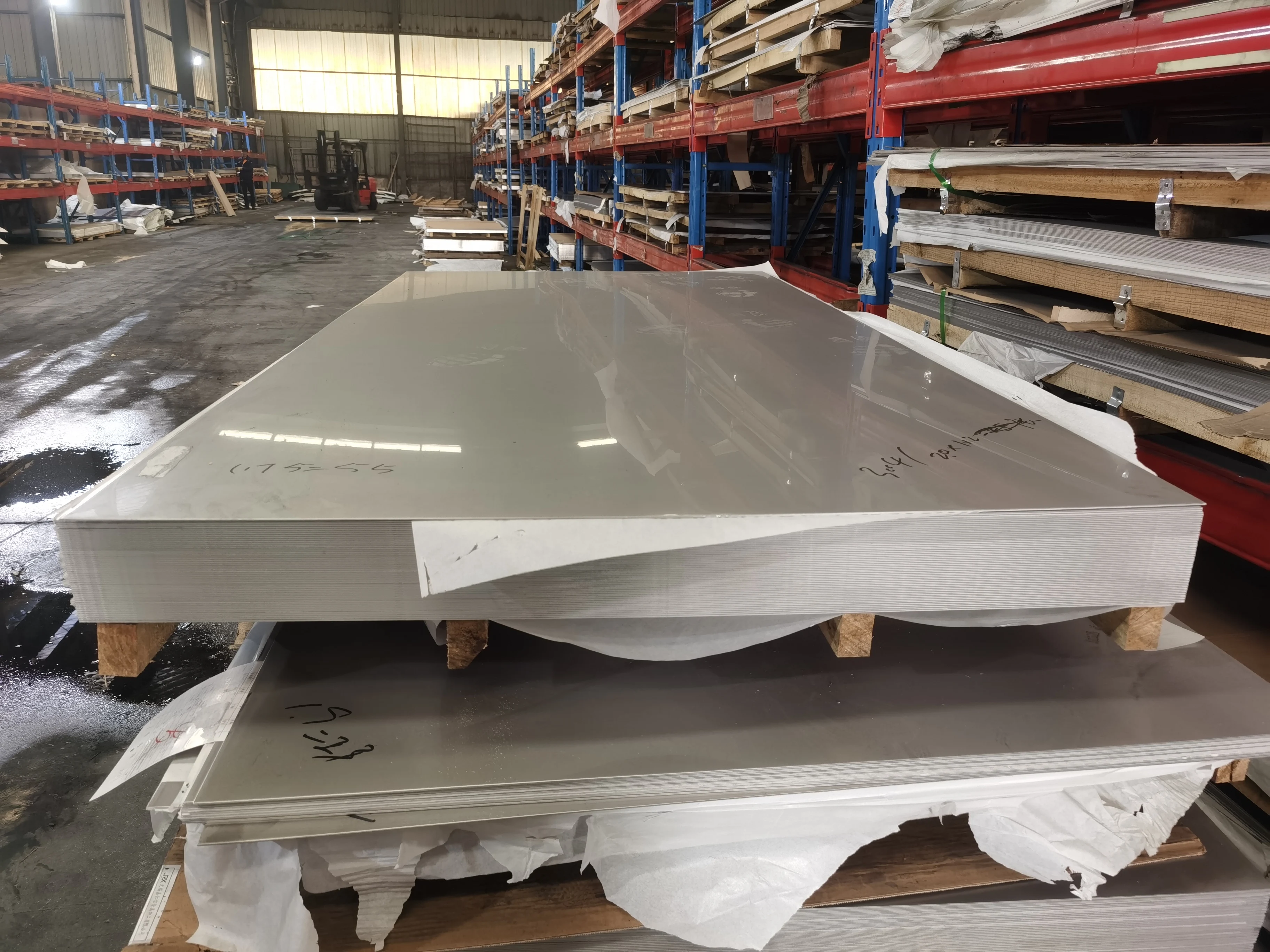

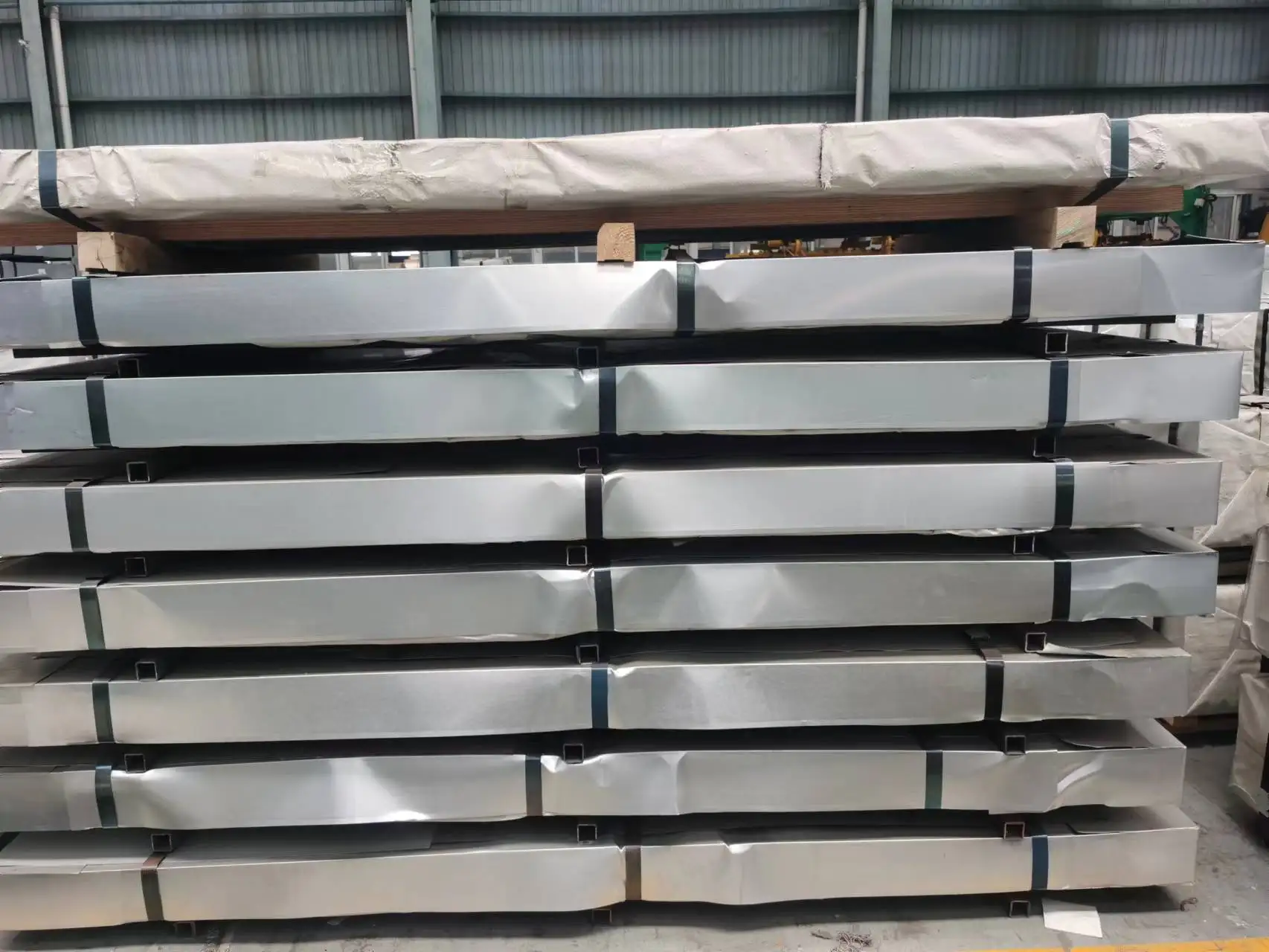

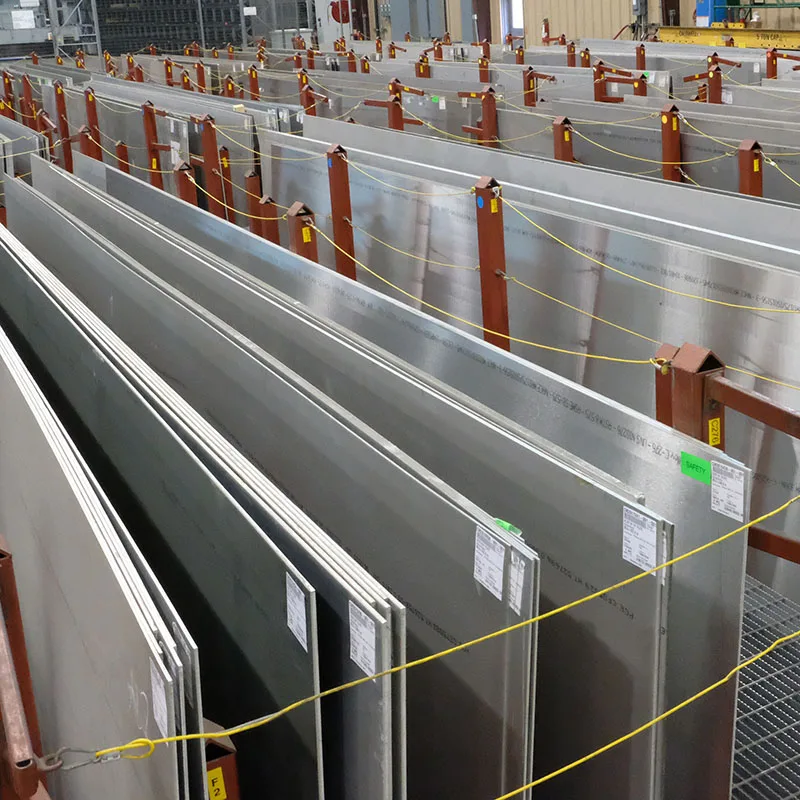

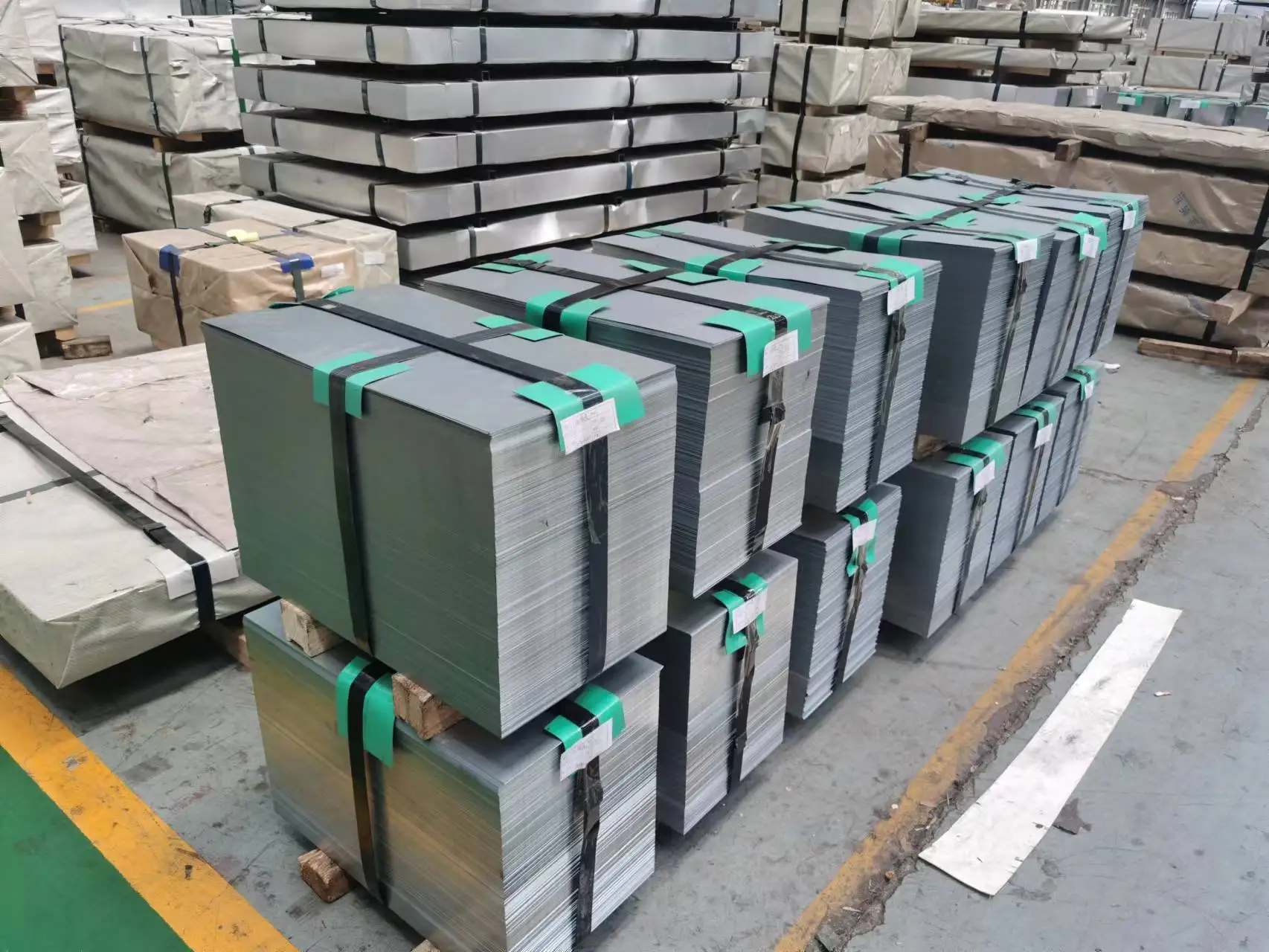

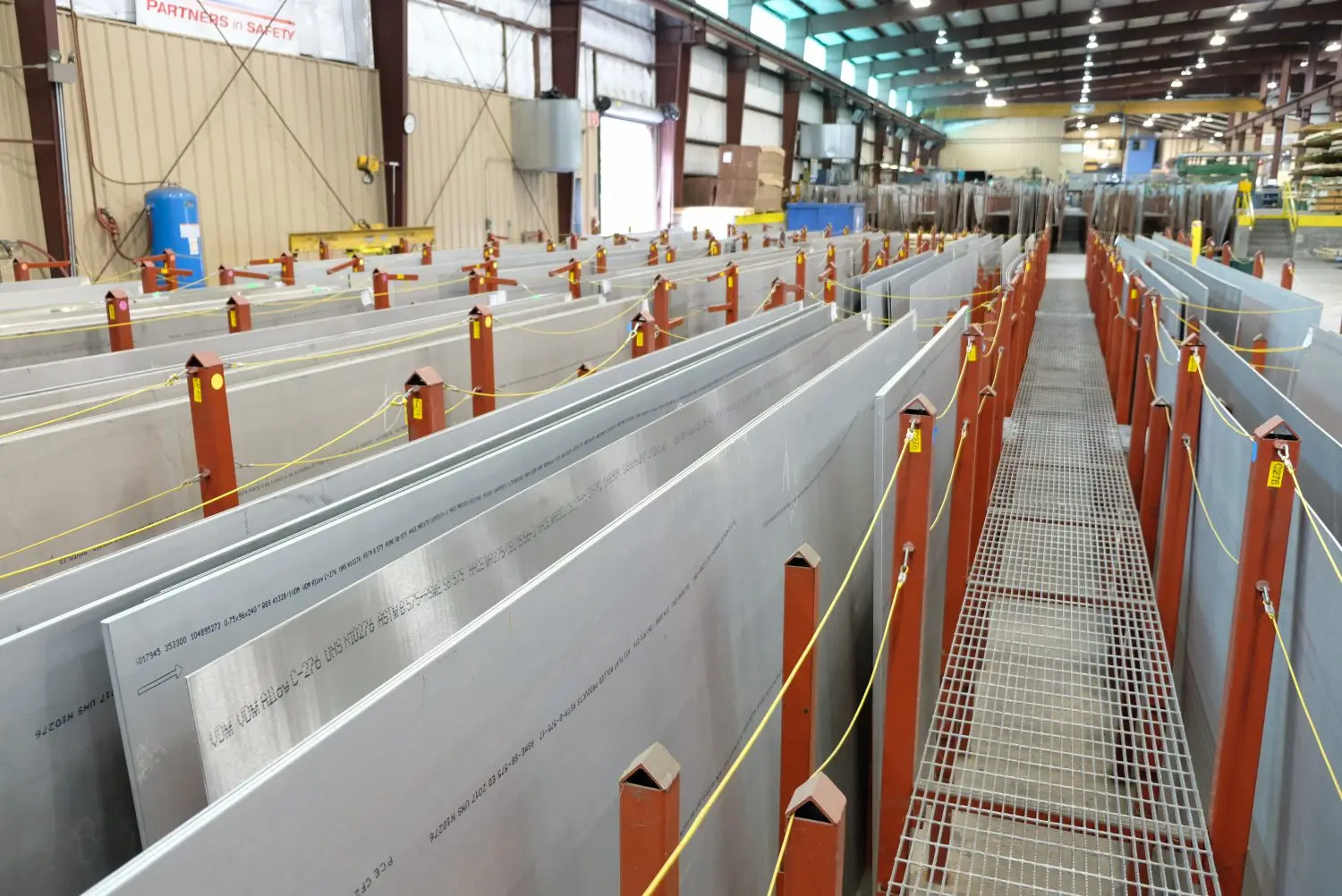

Stock

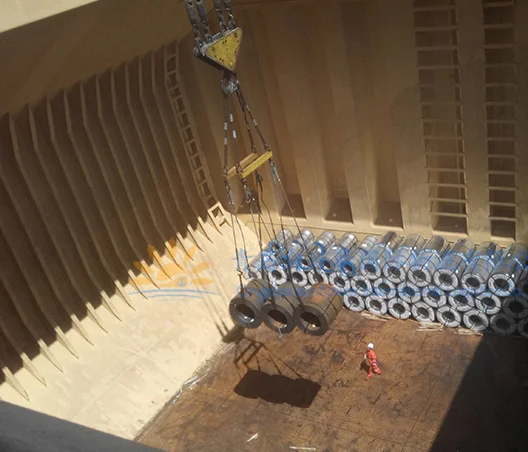

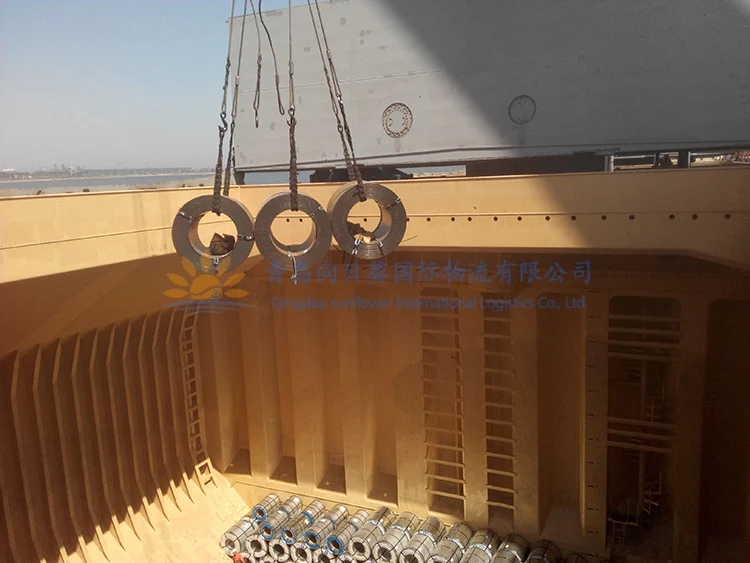

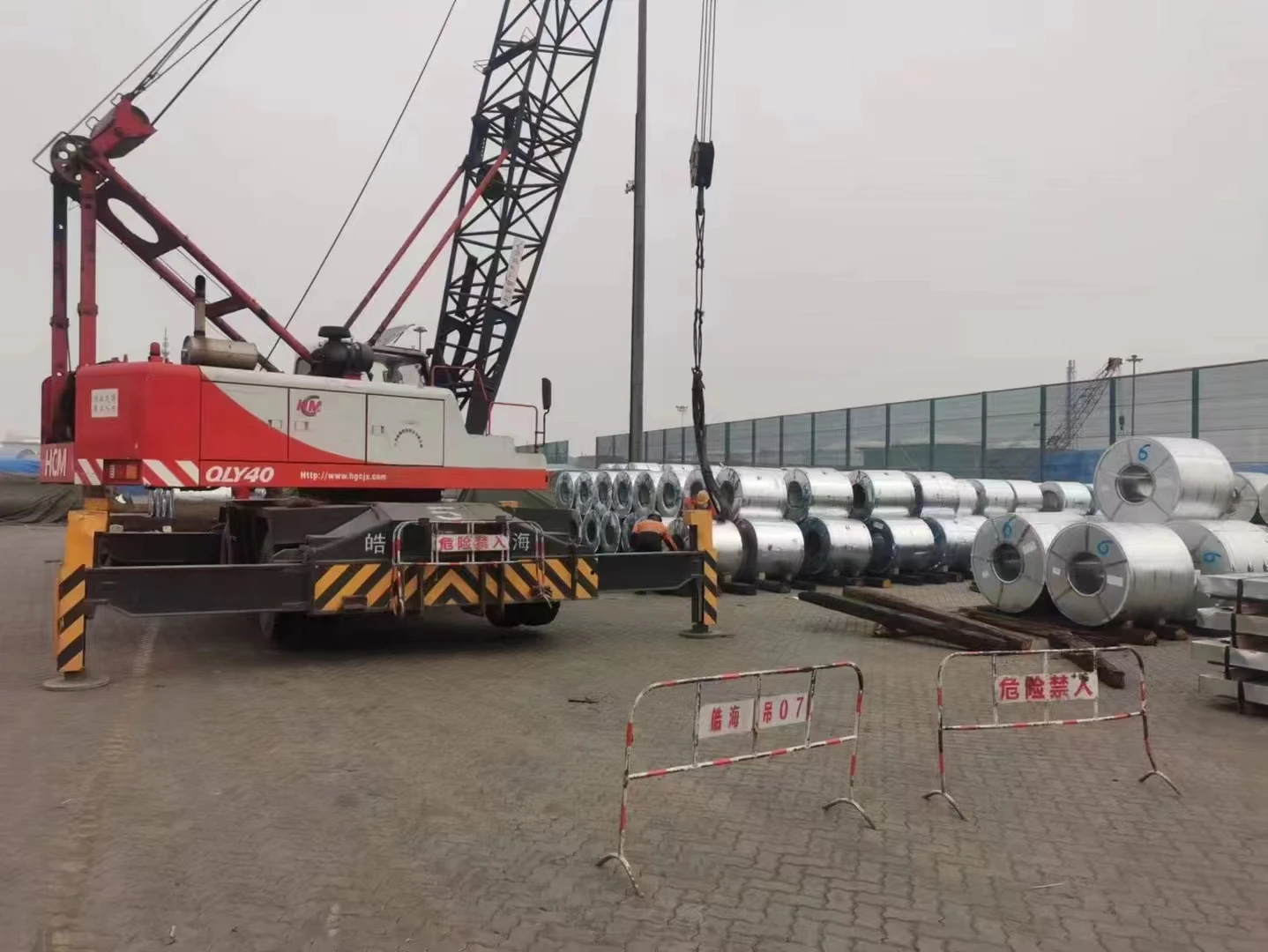

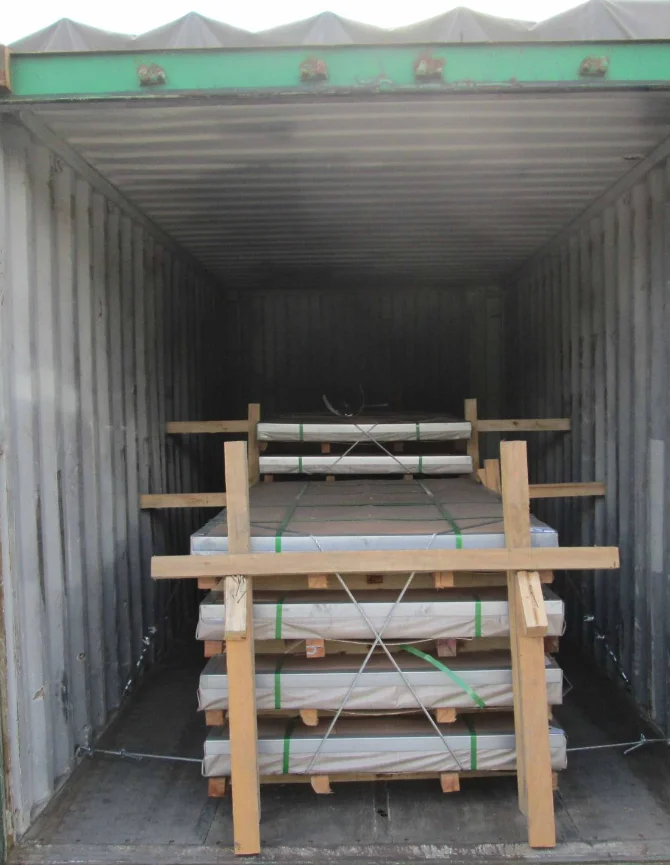

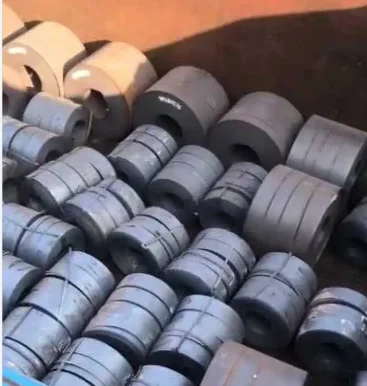

Loading

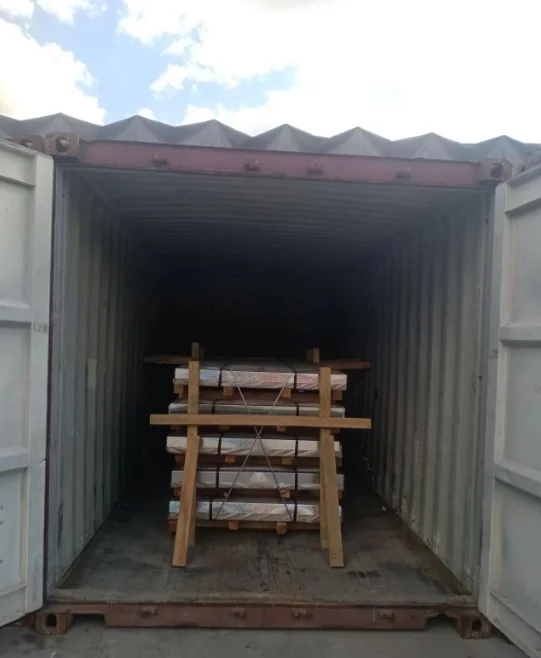

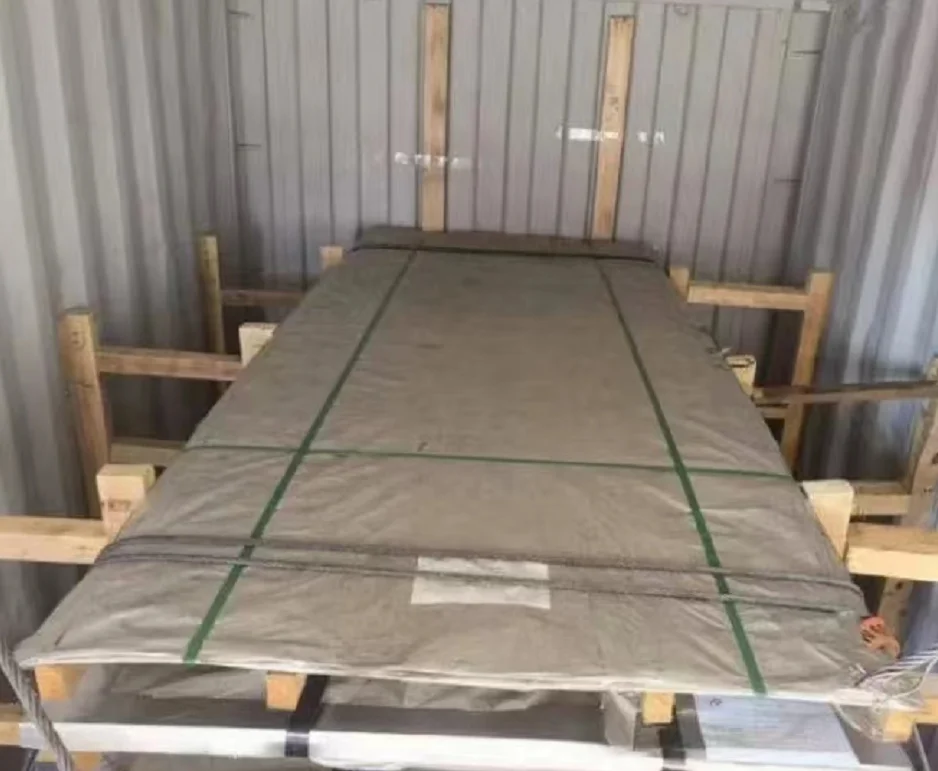

Shipping

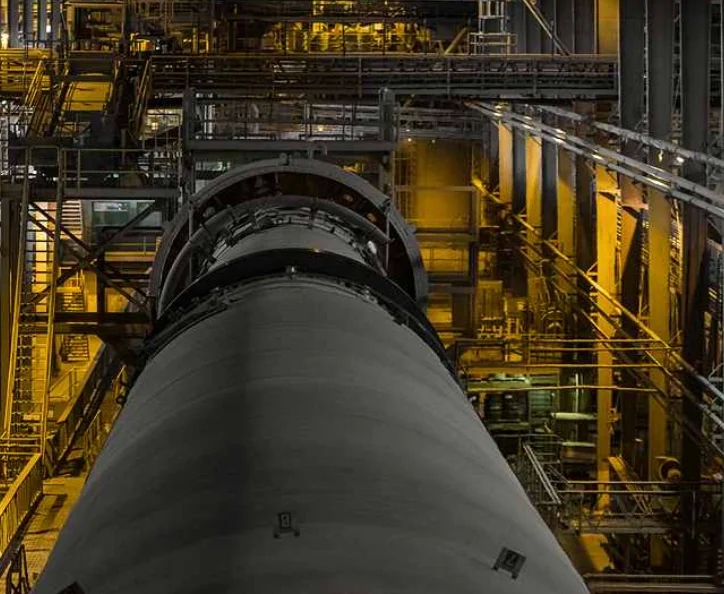

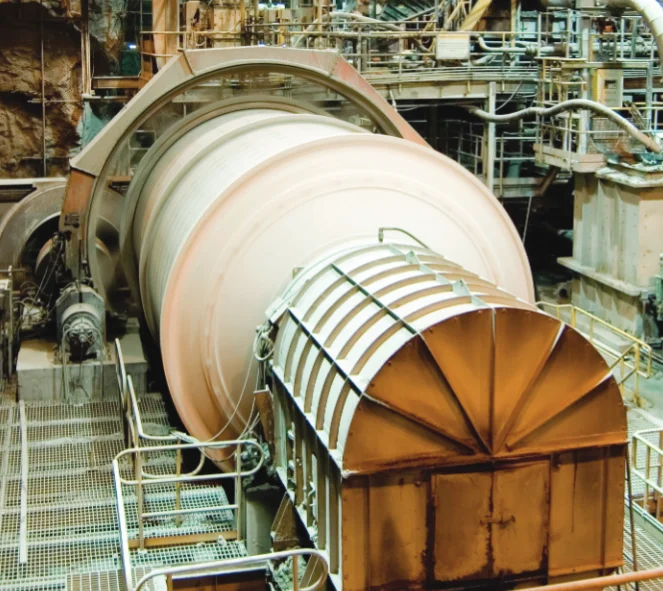

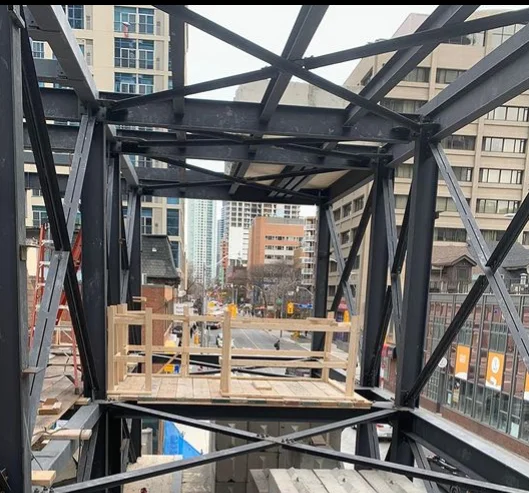

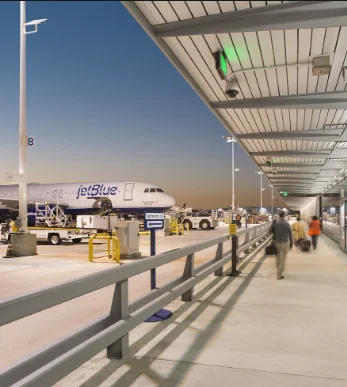

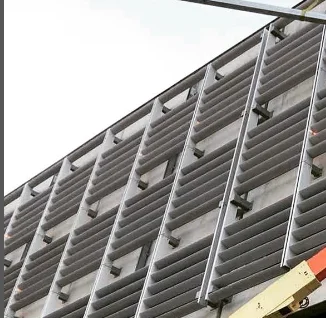

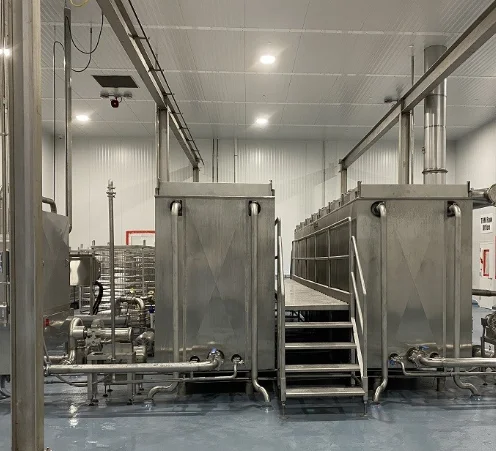

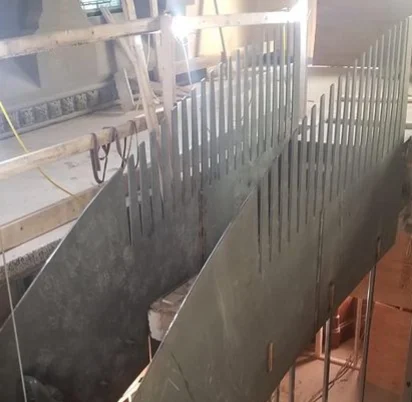

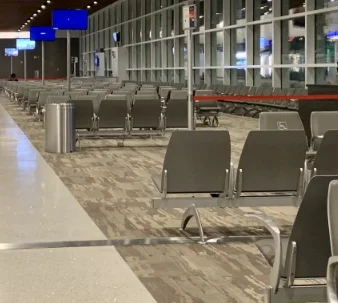

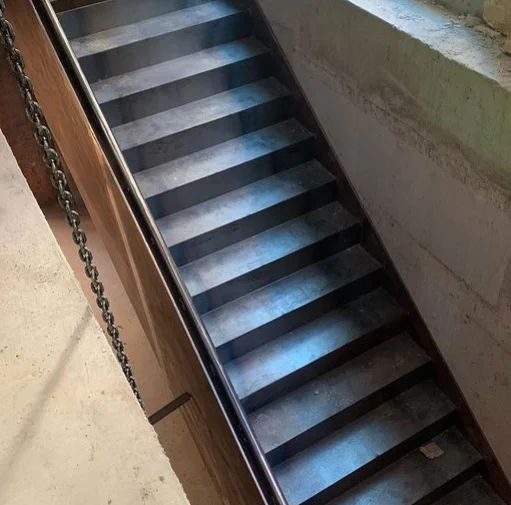

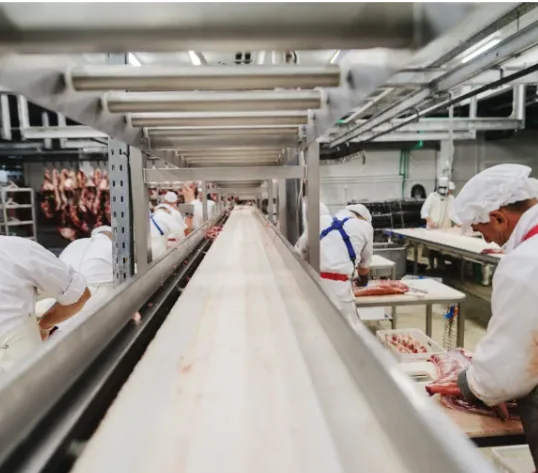

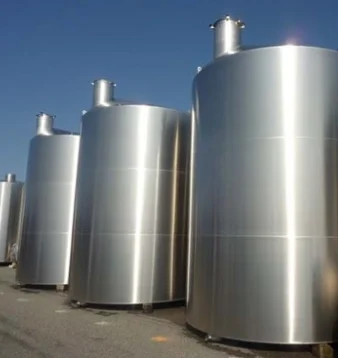

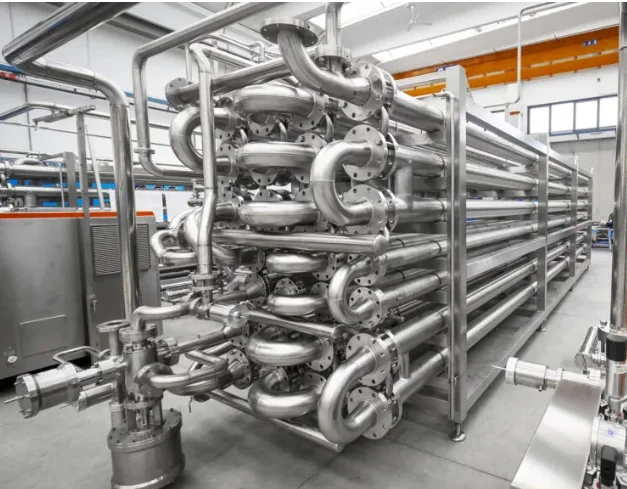

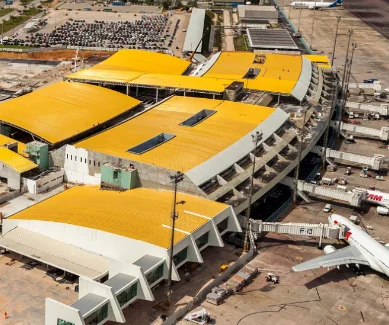

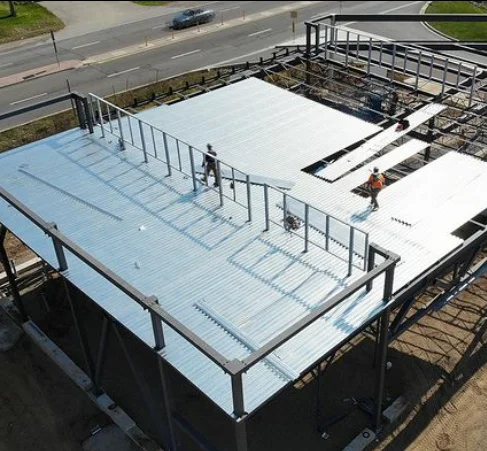

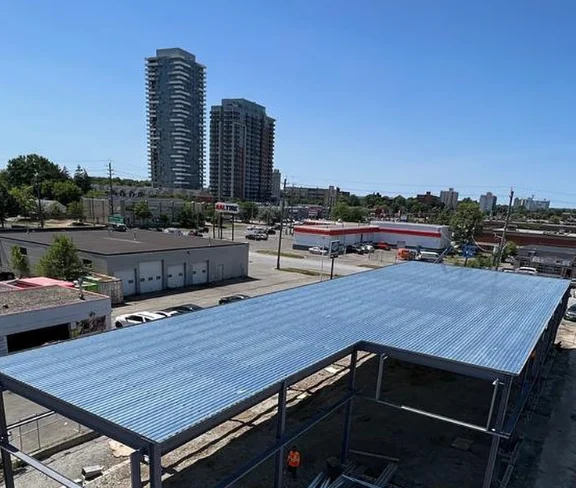

PROJECTS
