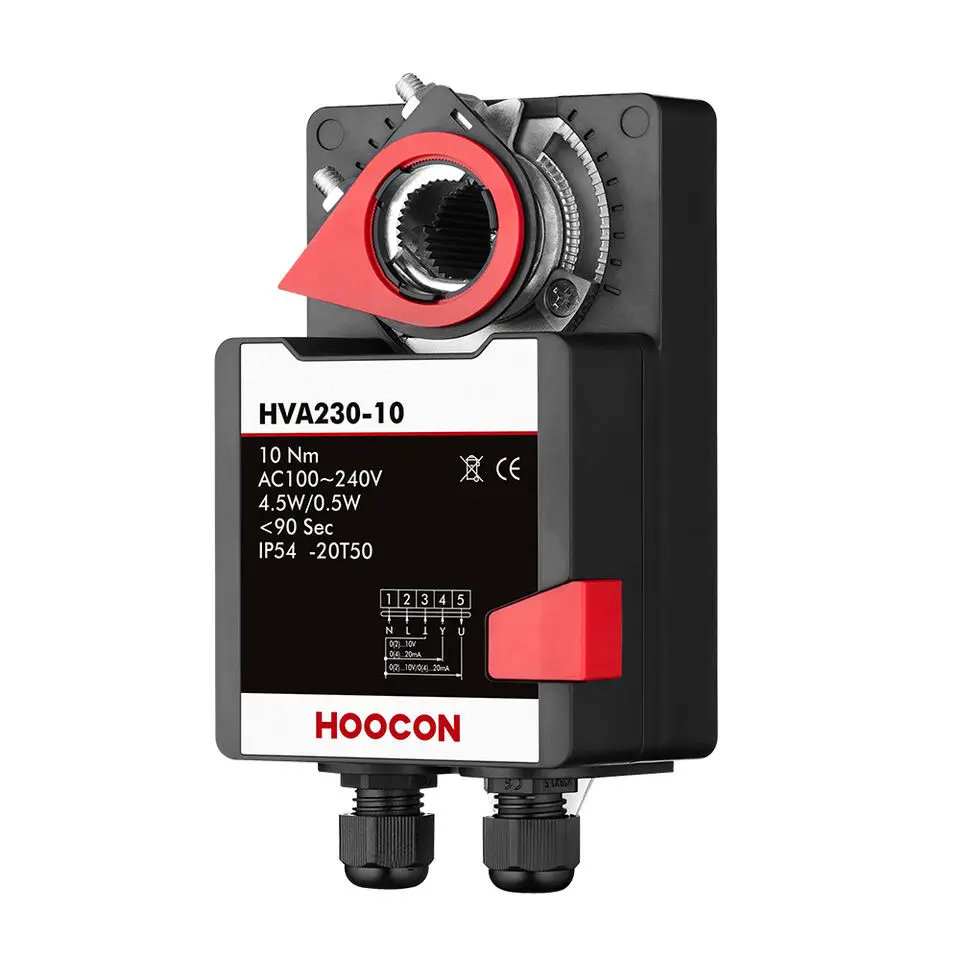

High Quality Modulating Control HVAC System 10NM General Damper Actuator
- Category: >>>
- Supplier: Ningbo Hoocon Automation Control Equipment Co. Ltd.
Share on (1600712690767):
Product Overview
Description
Products Description
Model Selection Table | ||||||||||||
Torque | Running time | Control | Feedback | Nominal voltage | Auxiliary Switch | Model/Type | ||||||
10Nm | <60s(90°) | 0(2)...10VDC/0(4)...20mA | 0(2)...10VDC/0(4)...20mA | AC/DC24V | None | HVA24-10 | ||||||

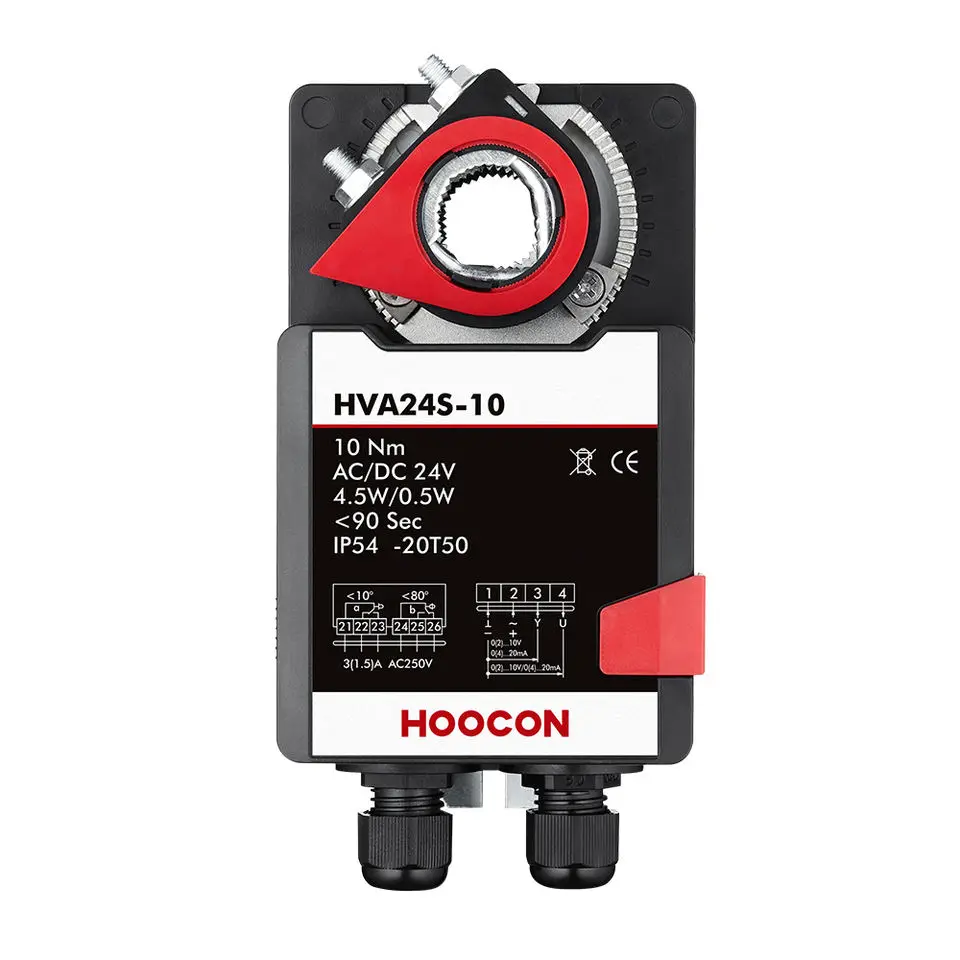

2-SPDT | HVA24S-10 | |||||||||||

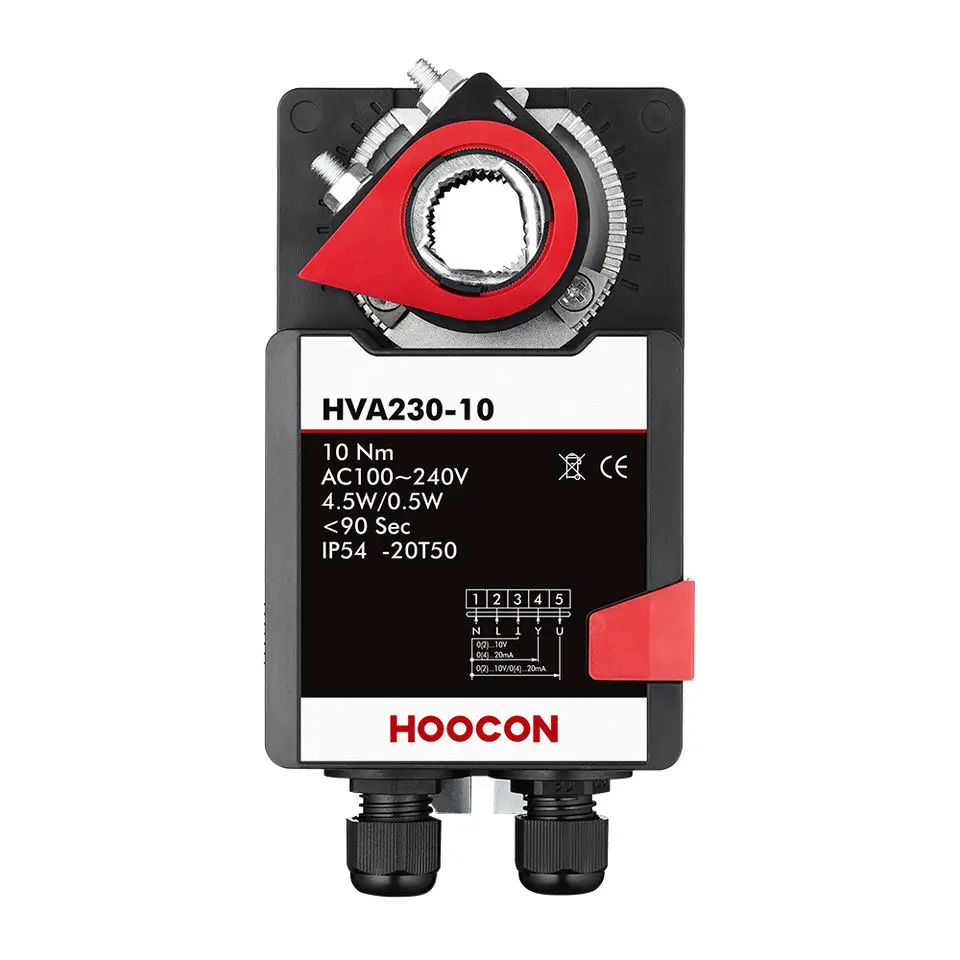

AC 100-240V | None | HVA230-10 | ||||||||||

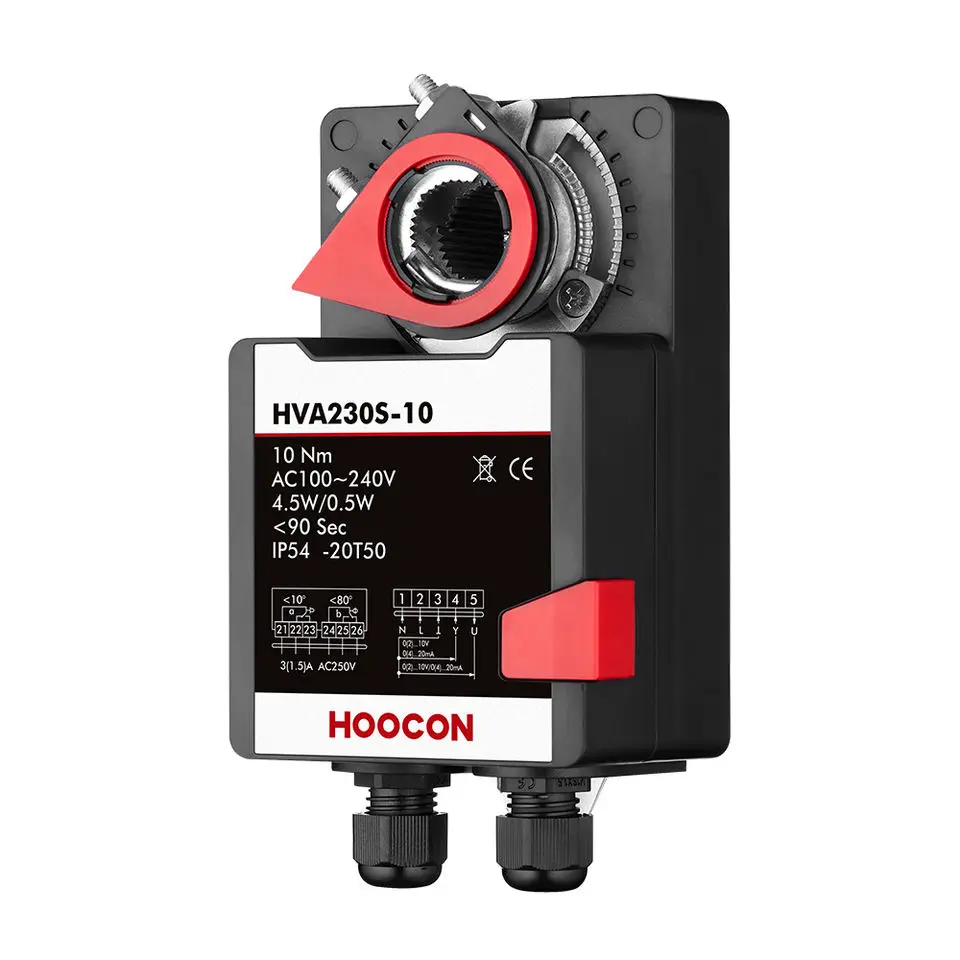

2-SPDT | HVA230S-10 | |||||||||||
Technical specification | ||||
HVA24-10/HVA24S-10 | HVA230-10/HVA230S-10 | |||
Electrical data | ||||
Nominal voltage | AC/DC24V 50/60Hz | AC100-240V 50/60Hz | ||
Nominal voltage range | AC/DC 19.2...28.8v | AC 85...265v | ||
Power consumption: | 4.5W@Nominal torque/0.5W@holding | 4.5W@Nominal torque/0.5W@holding | ||
Wire sizing | 0.5mm2 | |||
Function data | ||||
Damper size | 1m2 | |||
Direction of rotation | Manual regulation | |||
Manual override | Gearing latch disengaged by push button, self-resetting | |||
Angle of rotation | Max90° | |||
Sound power level | 45dB | |||
Position indication | Mechanical | |||
Working Conditions | ||||
Protection class | III(safety low voltage) | II(totally insulated) | ||
Protection level | IP54 | |||
Ambient temperature | -20...+50℃/IEC 721-3-3 | |||
Inventory temperature | -30...+80℃/IEC 721-3-2 | |||
Humidity test | 95%RH non condensing(EN60730-1) | |||
Dimensions/Weight | ||||
Dimensions: | See”Dimensions” | |||
Shaft length | >60mm | |||
Shaft diameter | ○10...20mm □10×10...14×14 | |||
Weight | <1.1kg | |||
Recommend Products
Why Choose Us
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
