Price:US$260.00 - US$360.00

Quantity:


Product Overview

Description





Banner




Products Description

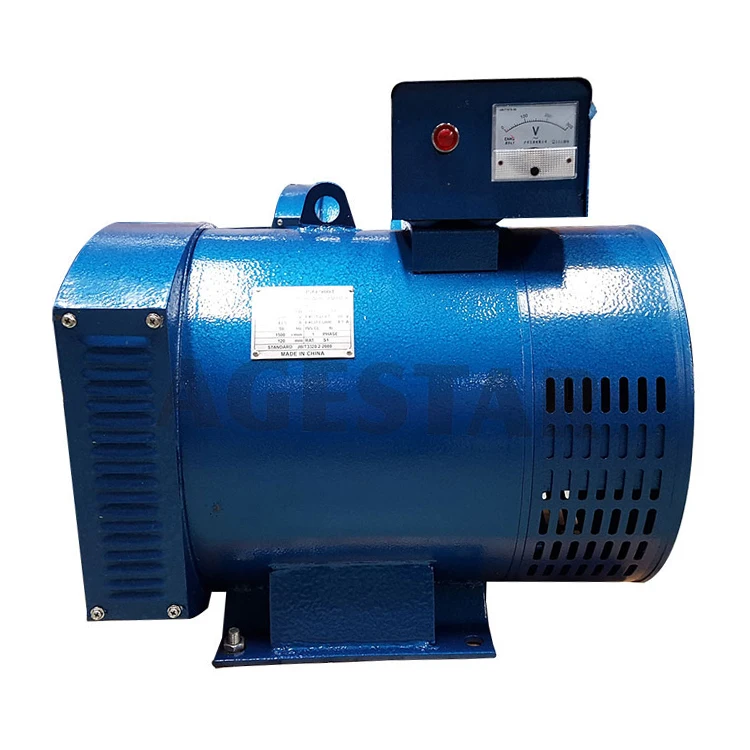

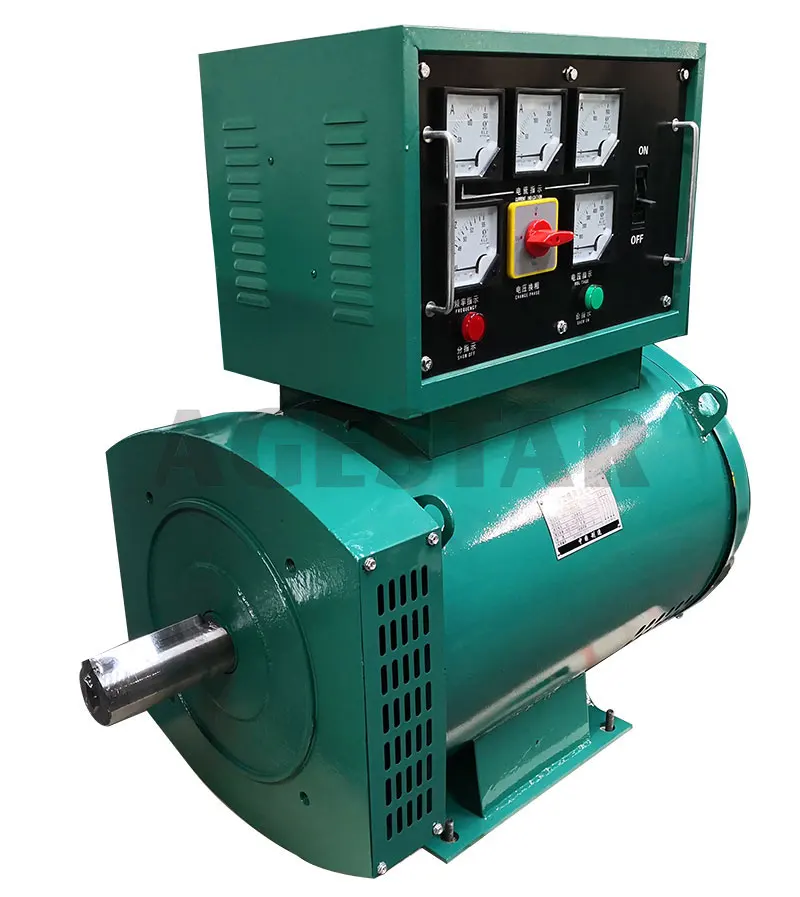

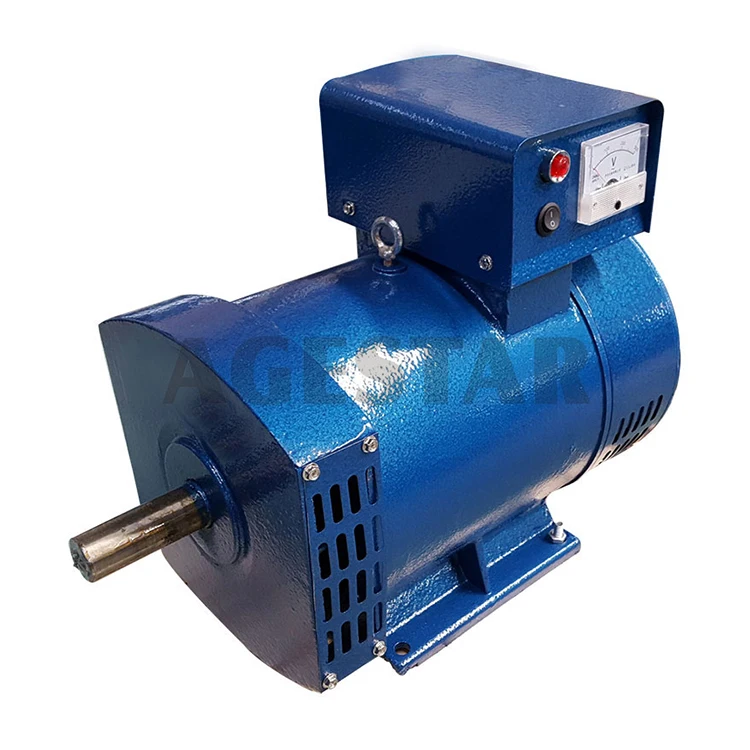

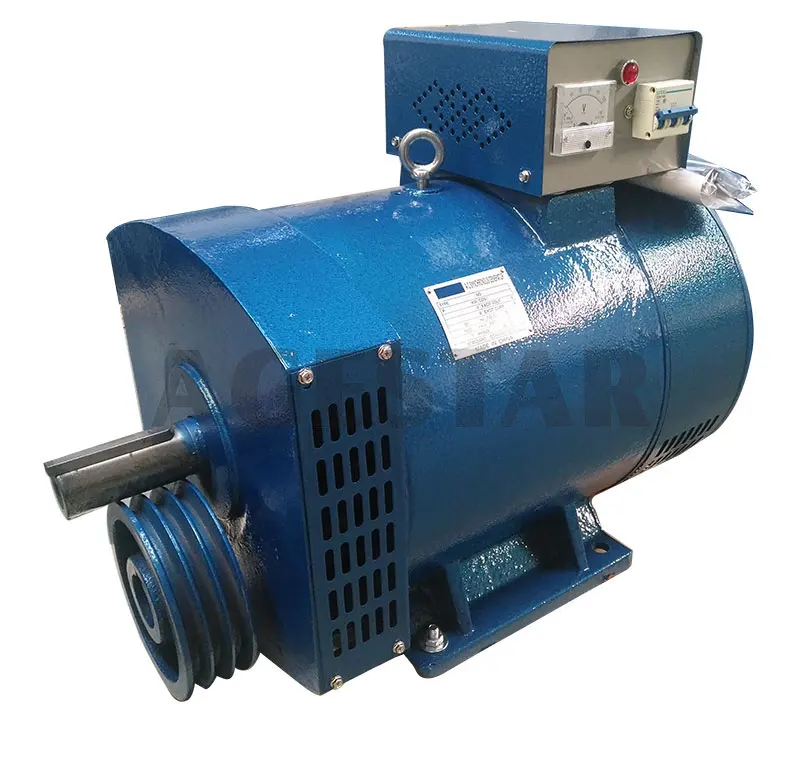

The generators adopt harmonic excitation system, easy operation and maintain.They are three-phase, adopting star connection with neutral point.Rated line voltage is 400V, single phase voltage 230V, frequency 50Hz.The 60Hz and other voltage's generator are also optional.They can be coupled with a prime mover or through v-belt making right or reverse continuous rotation at the rated speed.When the revolution slip of prime mover is 3% and load varies in the range of 0~100% cos j 0.8~1.0, they offer constant voltage, when sudden change of load, the generator will return to their normal working state,without any starting device the generator can directly start an unloaded squirrel cage induction motor.






low price power electric generator 2kw 3kw 5kw 7.5kw 10kw ac dynamo alternator prices for sale


Model
Output
Mounting Dimensions(mm)
kW
KVA
A
B
C
D
E
F
G
STC-3
3
3.8
216
178
89
Ø32
80
10
27
STC-5
5
6.3
254
254
108
Ø38
80
12
33
STC-7.5
7.5
9.4
254
254
108
Ø38
80
12
33
STC-10
10
12.5
279
203
121
Ø42
110
12
37
STC-12
12
15
279
203
121
Ø42
110
12
37
STC-15
15
18.8
318
228
133
Ø48
110
14
45
STC-20
20
25
318
228
133
Ø48
110
14
45
STC-24
24
30
318
228
133
Ø48
110
14
45
STC-30
30
37.5
356
286
149
Ø60
140
18
53
STC-40
40
50
356
286
149
Ø60
140
18
53
STC-50
50
62.5
356
311
149
Ø60
140
18
53


Model
Output
Current (A)
Pole number
Speed(r.p.m)
KW
KVA
STC-3
3
3.8
5.4
4
1500
STC-5
5
6.3
9
4
1500
STC-7.5
7.5
0
13.5
4
1500
STC-10
10
12.5
18.1
4
1500
STC-12
12
15
21.7
4
1500
STC-15
15
18.8
27.1
4
1500
STC-20
20
25
36.1
4
1500
STC-24
24
30
43.3
4
1500
STC-30
30
37.5
54.1
4
1500
STC-40
40
50
72.2
4
1500
STC-50
50
62.5
90.2
4
1500

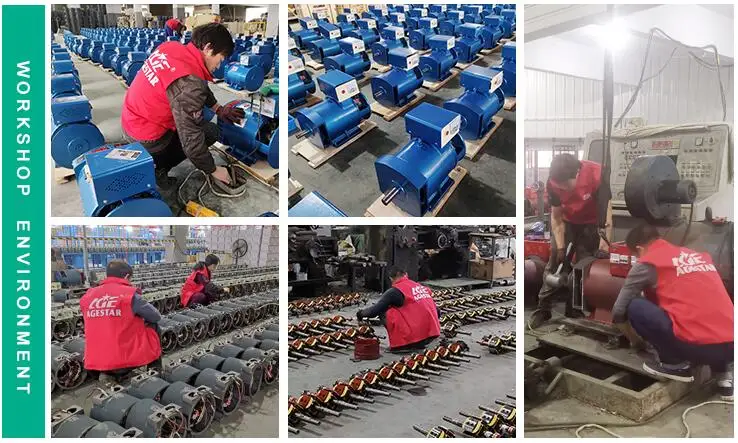

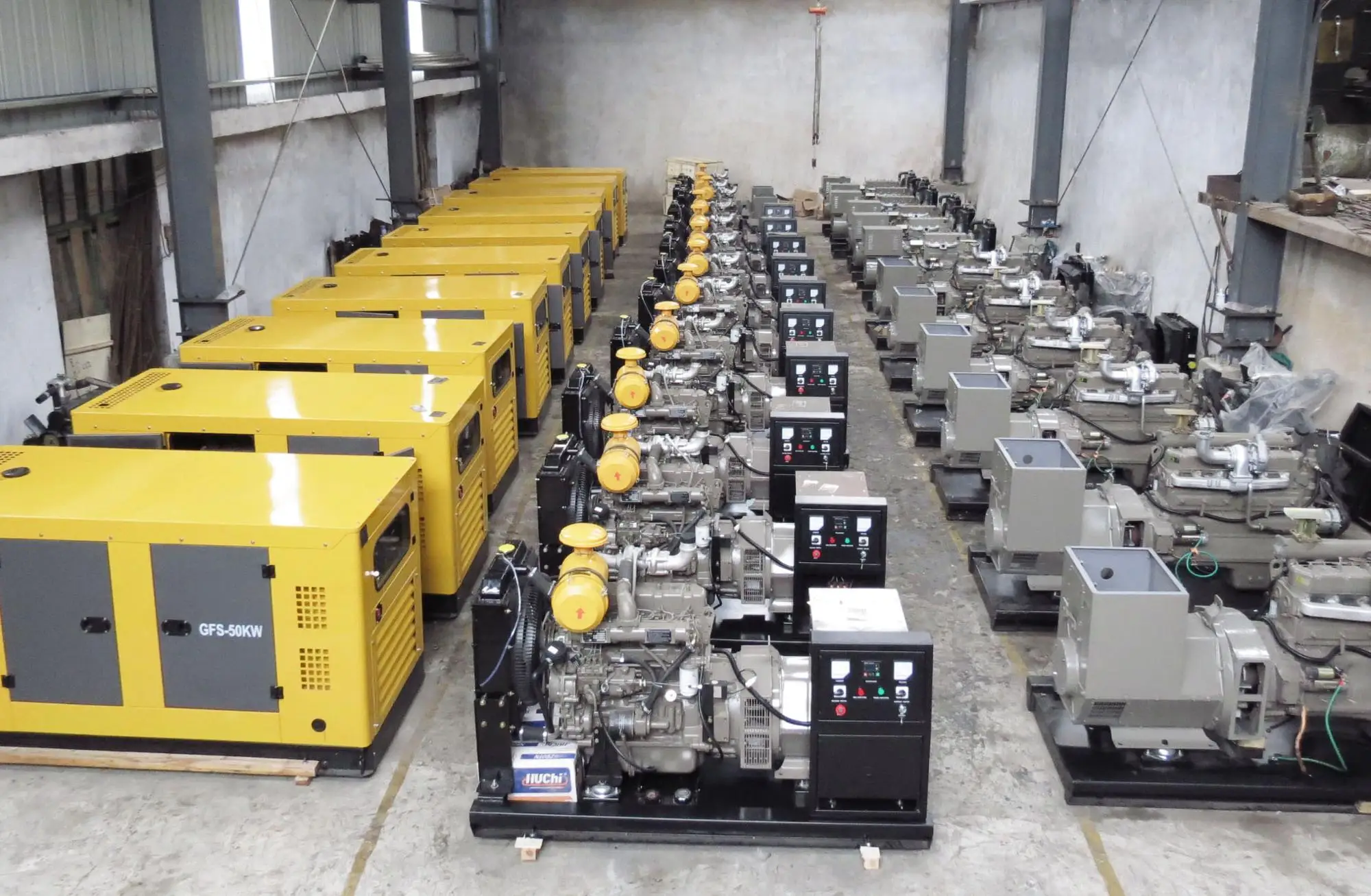

Company Information
















Packaging & Shipping




FAQ


Q: Can I use our own logo?
A: Yes, we can produce by using your own logo if you need.

Q: Do you have customized service for your standard goods?
A:Yes, customized service acceptable.

Q:How do you make sure alternator quality?
A:We have our own inspection procedures.Every model we have a standard design and test few models before mass production. Also the CE and ISO standard make production goes well. For production process, random inspection will be arranged and final test to make sure qualified products before shipping.

Q:What's your lead time?
A:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.

Q:When will you reply after got my inquiries?
A:We will response within 24 hours once get your inquires.

Q:What's the minimum order quantity?
A:Our minimum order quantity depends on different goods and model, please contact us to check details.

Q:Can I visit your company?
A:Yes, warmly welcome to visit our factory. We will assist you arrange the schedule.
