Auto Maintenance Paint Chamber Spray Camera Room Baking Booth
- Category: Car Care & Cleanings >>>
- Supplier: Jinan,Aos,International,Co.,Ltd.
Share on:
Product Overview
Description
Product Draft
Specification
Room outside size: | 6950*4000*3300mm | ||
Room inside size: | 6850*3900*2650mm | ||
Panels: | Wall panels:50mm thick antiflaming EPS panel,with0.4mm thick steel skin, with tongue & groove style, anti-flame and heat-insulation; Roof panel: galvanized steel panels. | ||
Main door: | 3-fold main doors,total 3000*2500mm(W*H),with safety glass, with handles and high-pressure safety lock, rubber strips. | ||
Side door: | 1 unit 700*1800mm(W*H), with safety glass windows, aluminum alloy frame, with handle,safety lock and rubber strips. | ||
Basement: | Total height is 300mm with grills,embossed plates, and bottom supports; Grills: 2 rows, material: 30*4mm thick; Embossed plate:2mm thick plate with supports, 3 rows on floor; Ramp:Two sets of hard strength ramps, size:1600*650*260mm; | ||
Air fans: | Intake Fan: | 2*3kw;double-inlet centrifugal fans; 20000m³/h. | |
Exhaust Fan: | 1*5.5kw; double-inlet centrifugal fan;18000m³/h. | ||
Cabinets: | Bottom cabinet for the fans, size:2700*1100*1290mm; Upper cabinet for heating exchanger, size:1700*1100*1290mm; | ||
Air ducts: | Exhaust air ducts: Trapezoidal duct: 1pc; Elbow 90°duct:1pc; Straight ducts:2pcs, size:700*700*900mm; Inlet air duct: upper bend air duct*1pc; All the material thickness is 0.8mm. | ||
Filtering system: | Pre-filter, filtering rate>83%,can capture granules larger than 10μm; Ceiling filter,filtering rate>97%, can capture granules bigger than 4μm; Fiberglass floor filter, filtering rate>70%. | ||
Heating System: | Electric infrared heating lamps,10sets *3kw, 30kw in total. Tube service time≧6000 hours. | ||
Lighting system: | Ceiling lights: 8units*3pcs=24pcs, powder-coated light box. Wall lights:6units*3pcs=18pcs,vertically set,powder-coated light box. | ||
Controlling system: | Intelligent control,power switch,spray/baking switch,light switch,emergency stop,etc. | ||
Power total: | About 42kw, voltage: 380V/50HZ/3P | ||
Product Description
Details Images
Intake and Exhaust Fan
Cabinets
Ceiling Lights Box
Infrared Heating Lamps
Filter
Controller
Side Doors
Floor Grills
Base Bottom Support Legs
Air Ducts
Side Lignts
Accessories
Customer Photos
Product Application

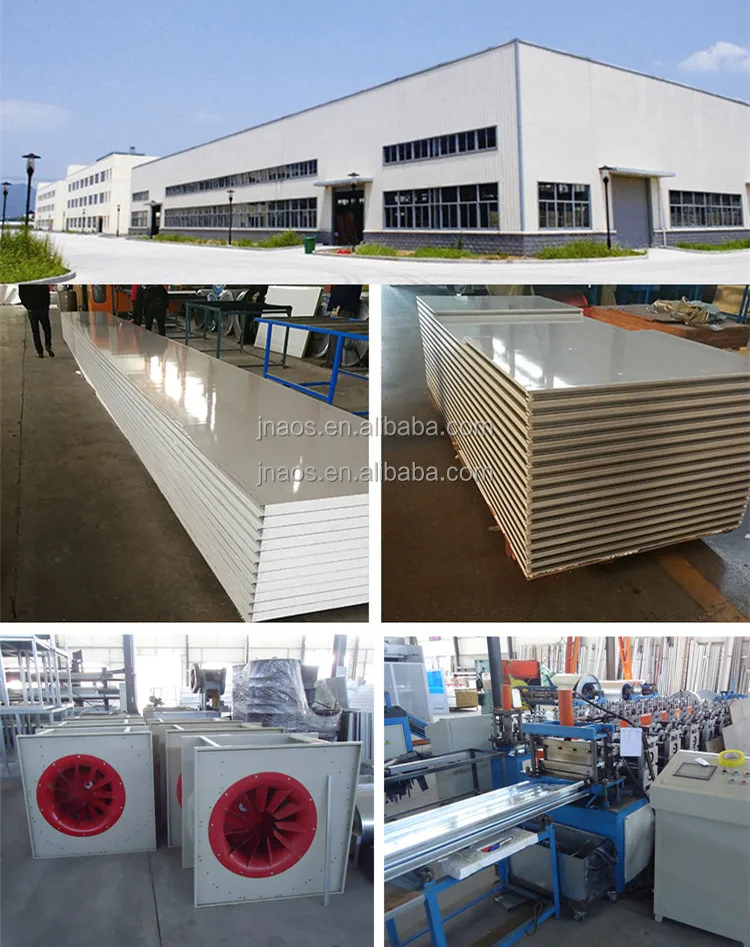

Company Profile
Jinan AOS International Co., Ltd is professional supplier of car repair and maintenance equipment and tools etc. We are specialized in researching, producing and distributing. We mainly supply the following products:
Our product range includes:
-- Auto frame repair bench for passenger cars to commercial vehicles;
-- Auto spray booth for passenger cars to commercial vehicles;
--Two/Four post car lift, Big, small, mid-rise scissor car lift etc;
-- Tire repair equipment, e.g. tire changer, wheel balancer etc.;
-- 3D alignment equipment;
-- other car repair tools;
We sincerely hope to cooperate with you in future.
Our product range includes:
-- Auto frame repair bench for passenger cars to commercial vehicles;
-- Auto spray booth for passenger cars to commercial vehicles;
--Two/Four post car lift, Big, small, mid-rise scissor car lift etc;
-- Tire repair equipment, e.g. tire changer, wheel balancer etc.;
-- 3D alignment equipment;
-- other car repair tools;
We sincerely hope to cooperate with you in future.
Packing & Delivery

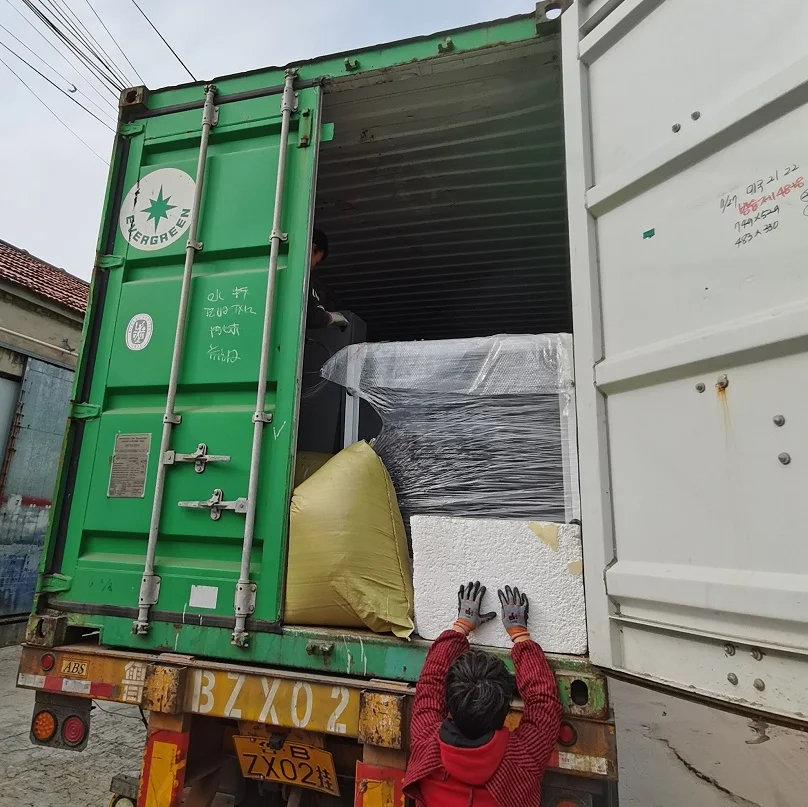

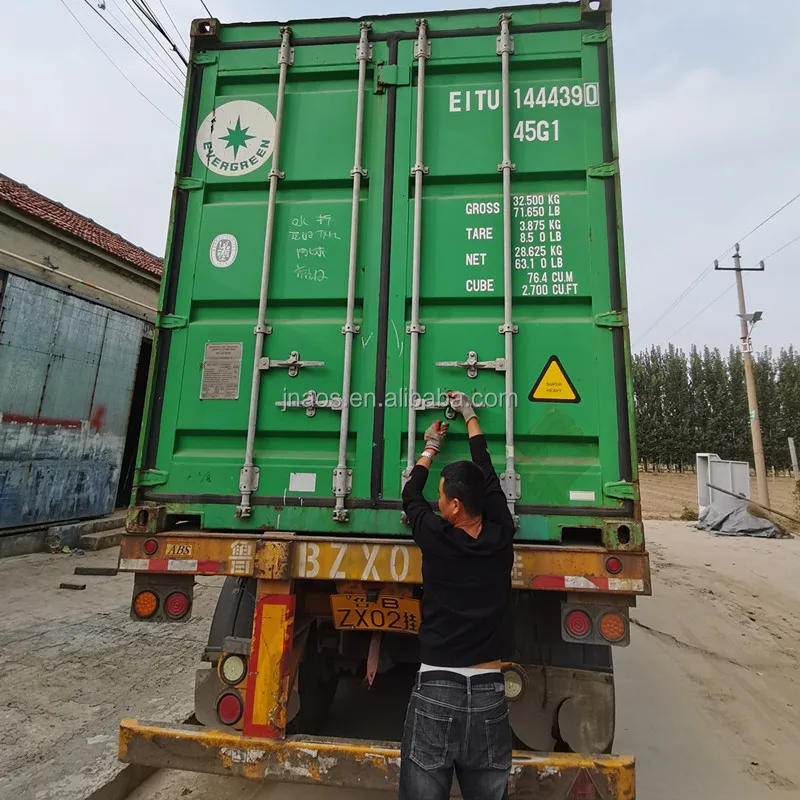

Our Company will pack spray booth by a whole container, Generally a 20ft container can put one set booth, while a 40 HQ container can put 3 sets booth.
