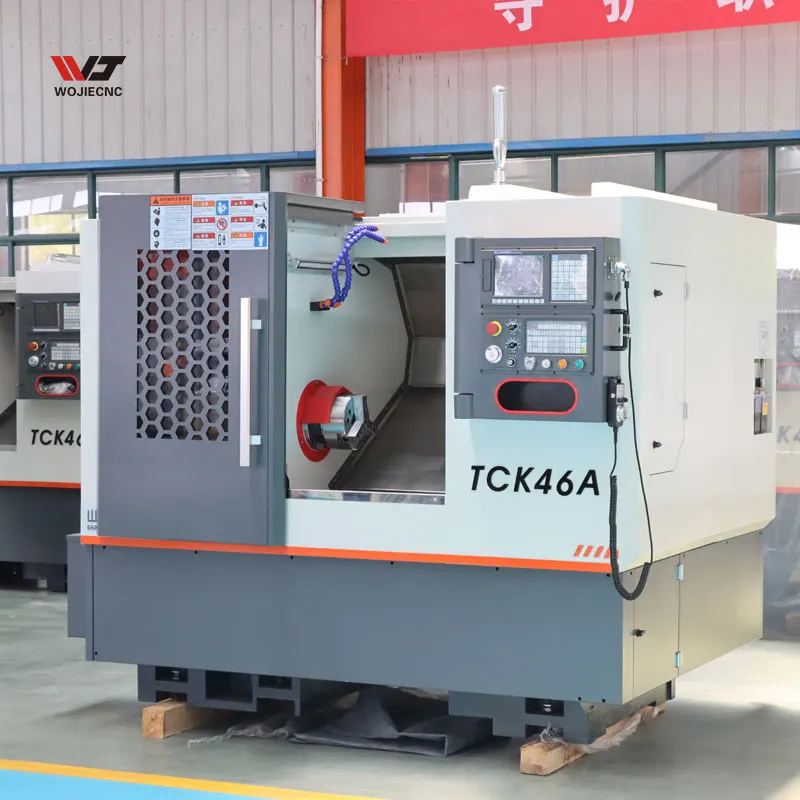

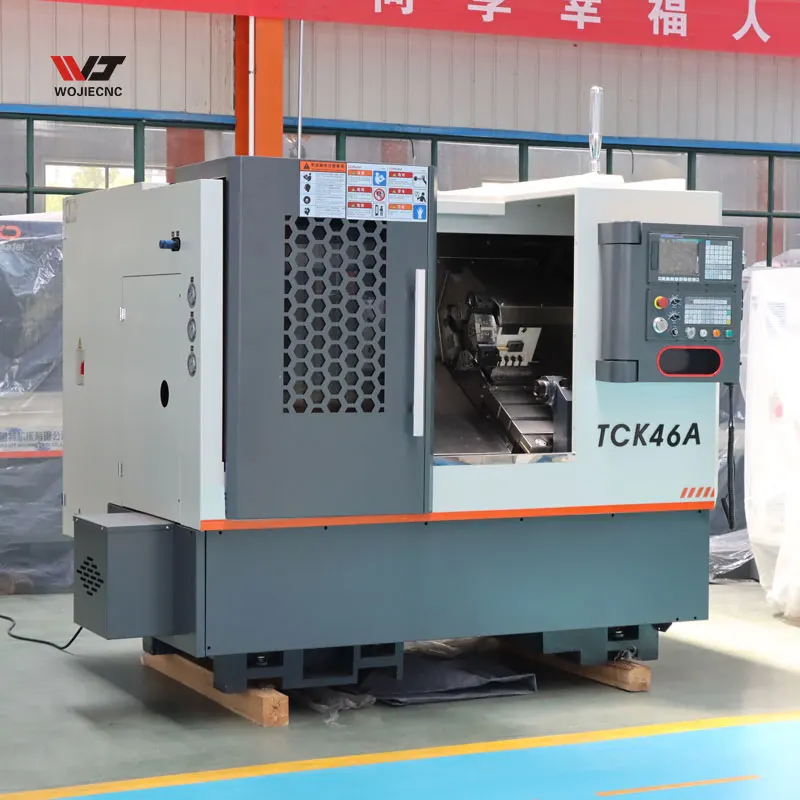

Токарный станок с ЧПУ TCK46A, токарный станок с ЧПУ
- Category: >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (1600712845802):
Product Overview
Description
Product Description
Product Application
TCK50A CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision, small friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving speed and
production efficiency.
Product main technical specifications:
TCK50A CNC lathe uses a 30° beveled overall bed for more stable force during cutting. The internal ribs are optimized with Ansys software to give the machine a high degree of rigidity. The bed material is made of high-density cast iron, which has high strength and good shock absorption. The increased chip evacuation design ensures smooth machine cutting. The guide rail adopts 35-standard precision linear ball guide rail, which has high feed precision, small friction resistance, good rigidity, high resistance to vibration and deformation, and enables users to obtain higher machining precision, faster moving speed and
production efficiency.
Product main technical specifications:
SPECIFICATIONS | Units | TCK36A | TCK46A | TCK50A |
Swing over bed | mm | 360 | 460 | 560 |
Swing over cross slide | mm | 170 | 170 | 260 |
Distance between centers | mm | 300 | 350 | 350/500 |
Spindle bore | mm | 48 | 56 | 66 |
Bar capacity | mm | 40 | 45 | 55 |
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle nose type | - | A2-5 | A2-5 | A2-6 |
Spindle speed | rpm | 4000 | 3500 | 3000 |
Turret/tool post | - | 63-8T/12T | 80-8T/12T | 100-8T/12T |
X axis travel | mm | 310 | 240 | 240 |
Z axis travel | mm | 350 | 400 | 400/450 |
X axis motor torque | N.m | 6 | 7.5 | 7.5/10 |
Z axis motor torque | N.m | 6 | 7.5 | 7.5/10 |
Main spindle motor | kw | 3.7 | 5.5 | 7.5/11 |
Hydraulic tailstock quill dia. | mm | 65 | 70 | 70 |
Hydraulic tailstock quill taper | - | MT4 | MT5 | MT5 |
Hydraulic tailstock travel | mm | 220 | 200 | 200/450 |
Hydraulic tailstock quill traverse | mm | 50 | 80 | 80 |
Guide rail type | - | Slant bed linear rail | Slant bed linear rail | Slant bed linear rail |
Machine weight | kg | 2100 | 2600 | 2800/3000 |
Overall dimension | mm | 2100*1450*1700 | 2500x1700x1890 | 2500x1700x1890 |
Standard Accessories:
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine

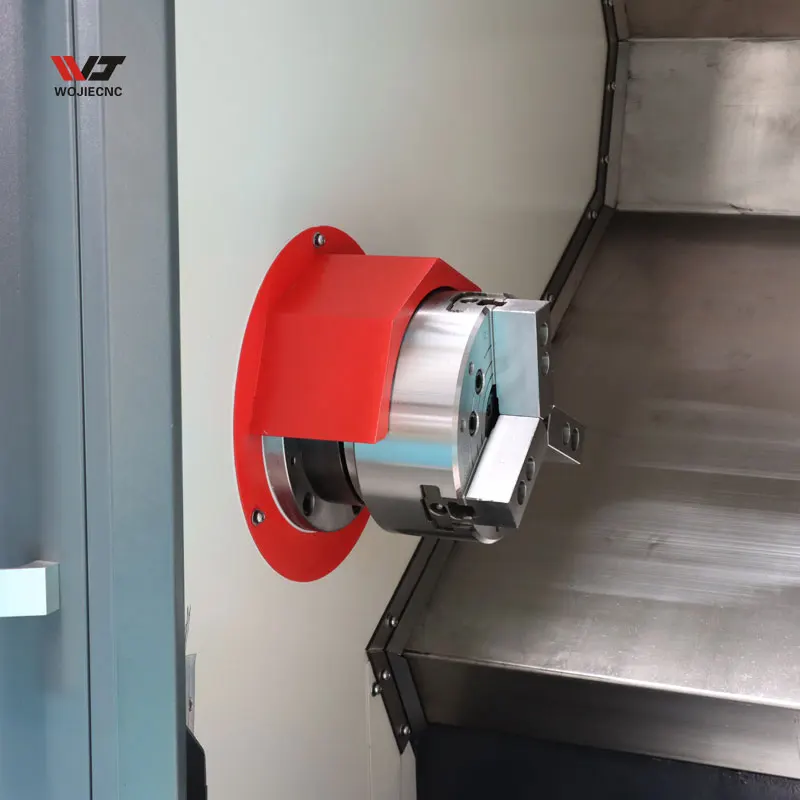

Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder

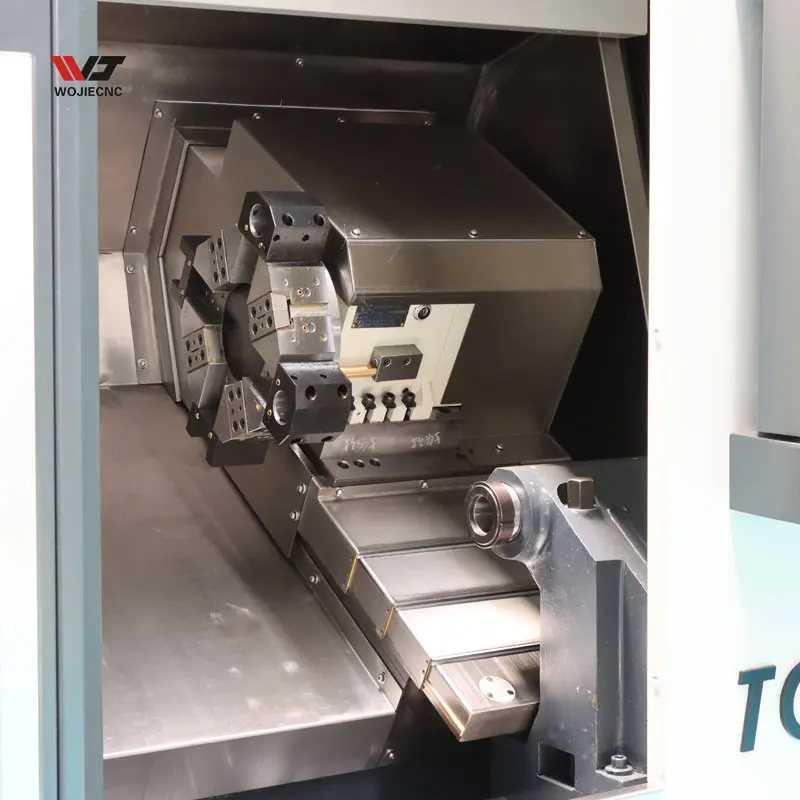

8 station hydraulic turret
Taiwan higher accuracy linear guide ways
Taiwan ball screw
Hydraulic magazine
Taiwan hydraulic chuck
Hydraulic tailstock
Taiwan hollowed rotary cylinder
8 station hydraulic turret
Optional Accessories:

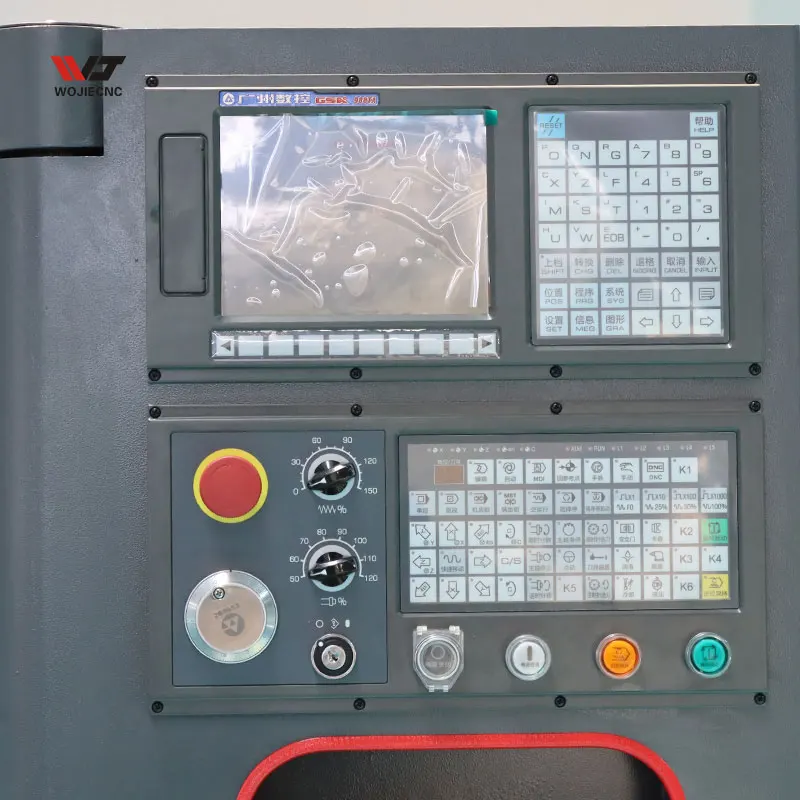

1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive theadvance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive theadvance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
