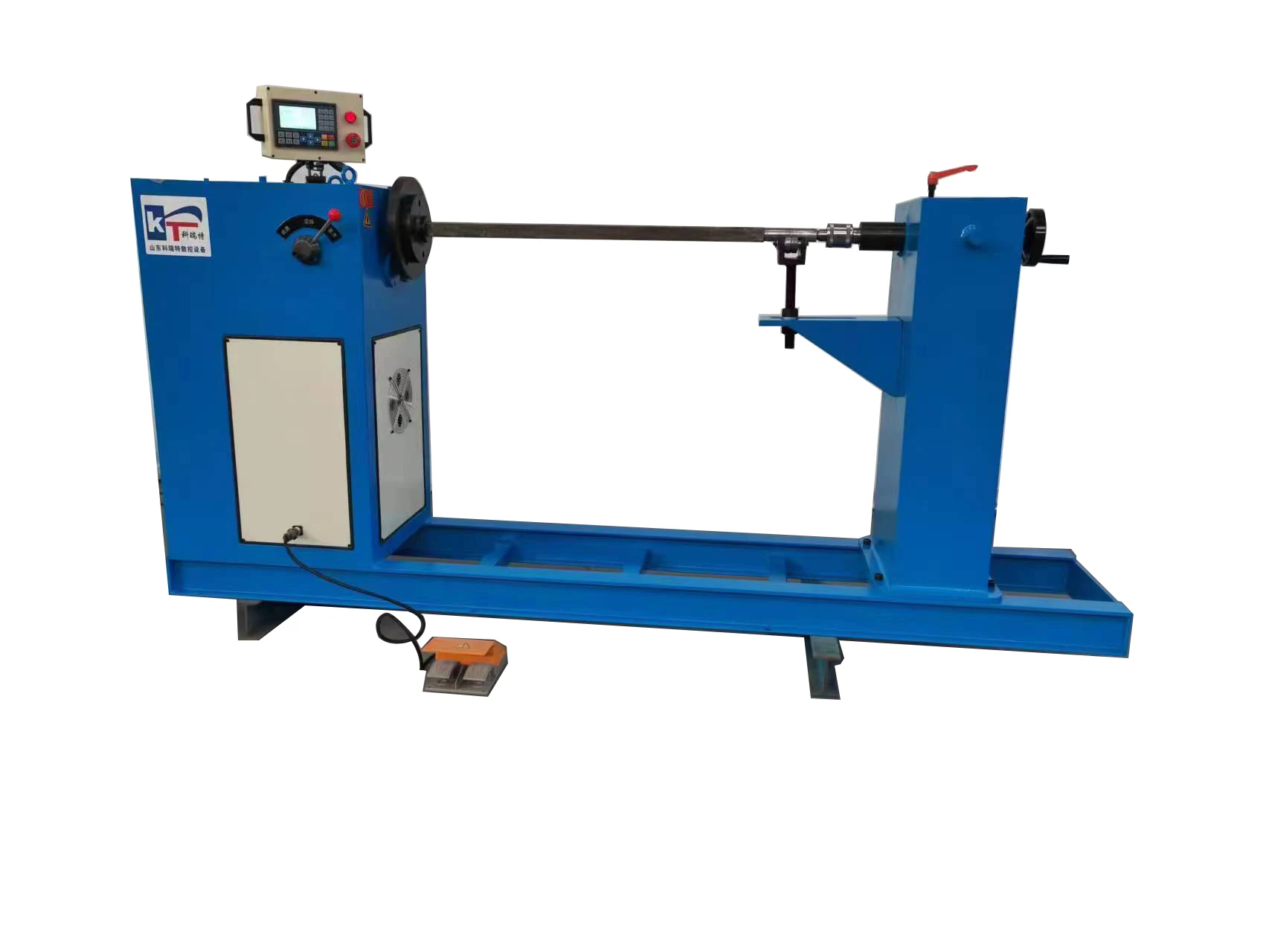

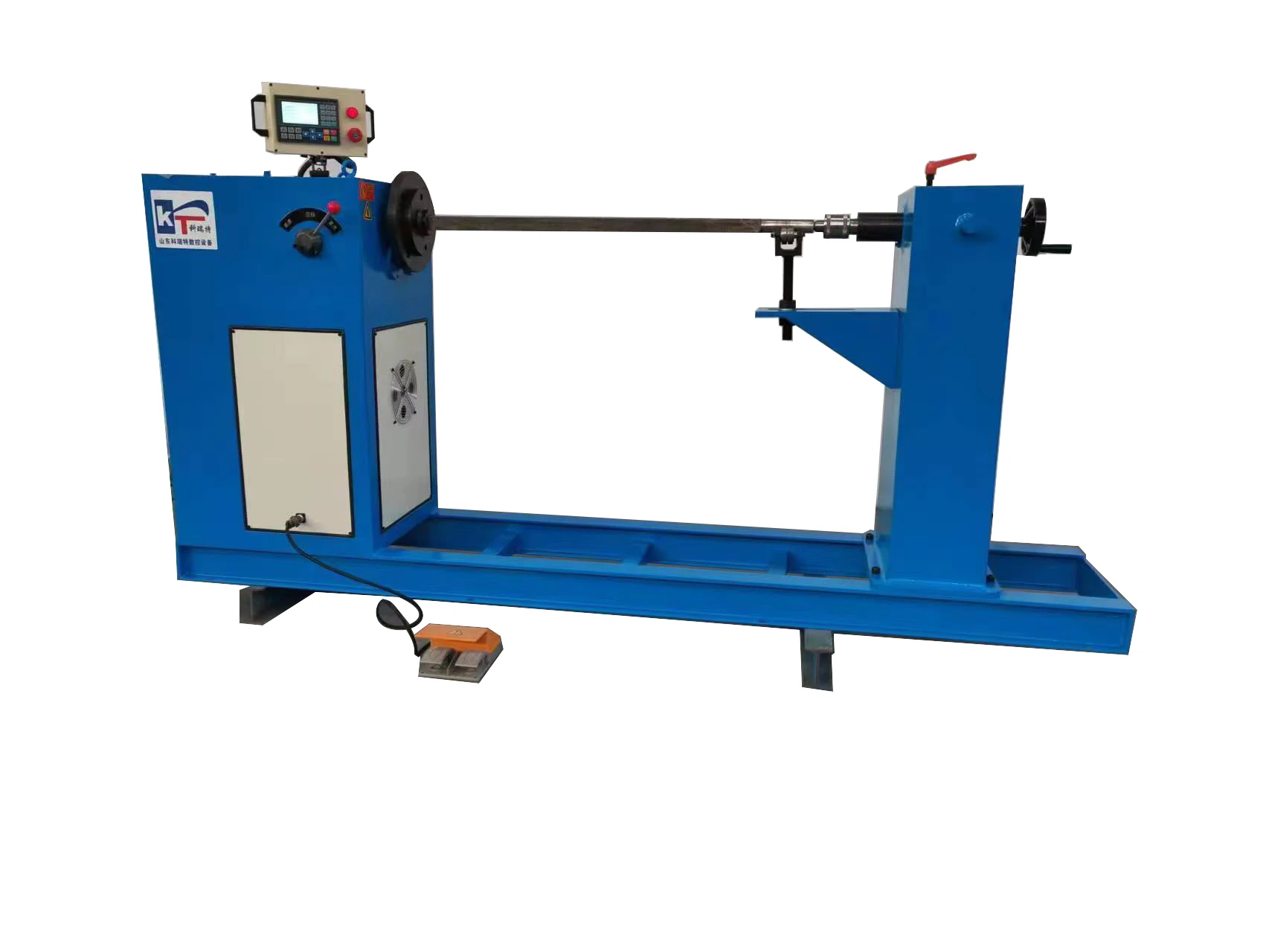

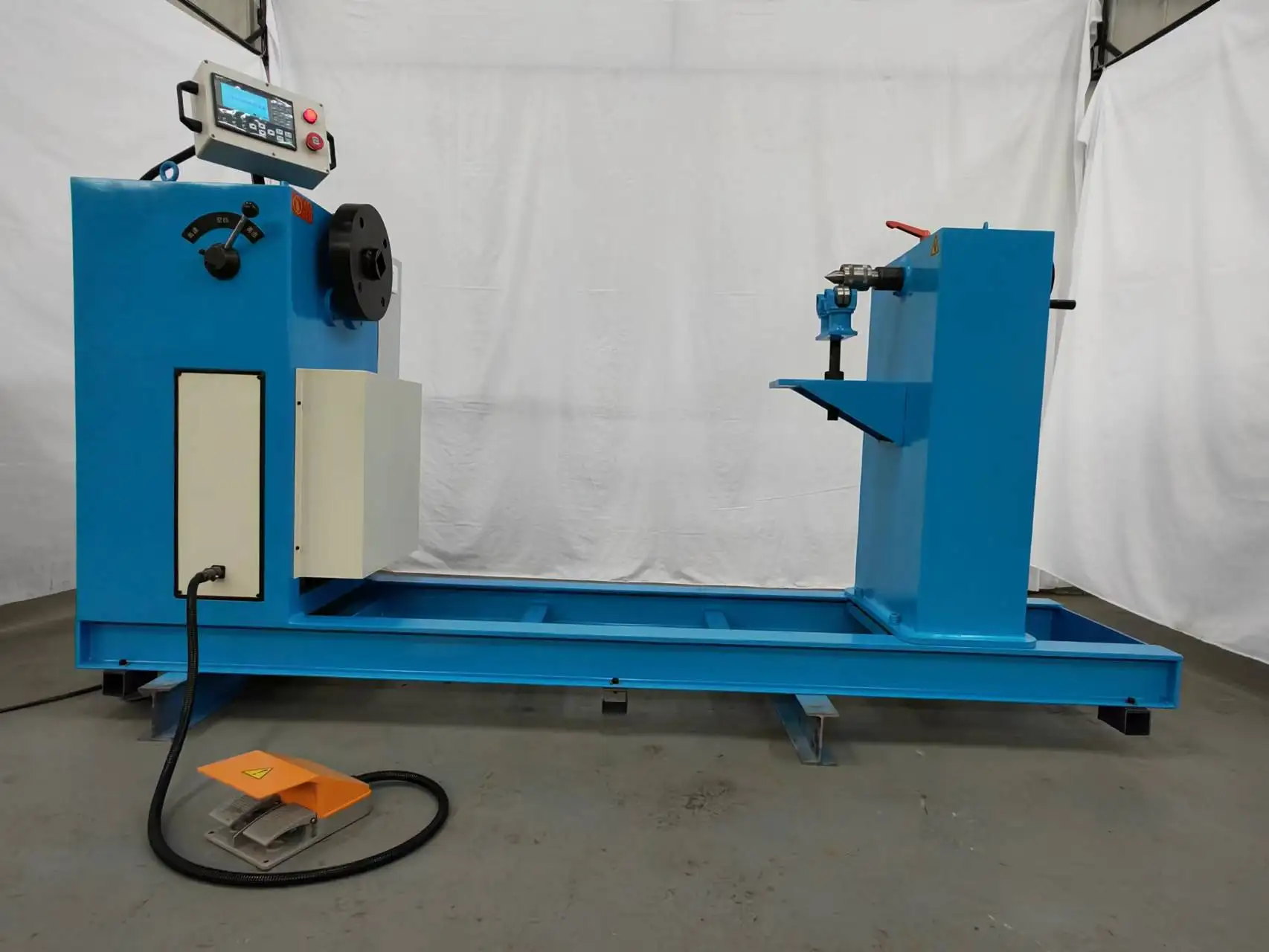

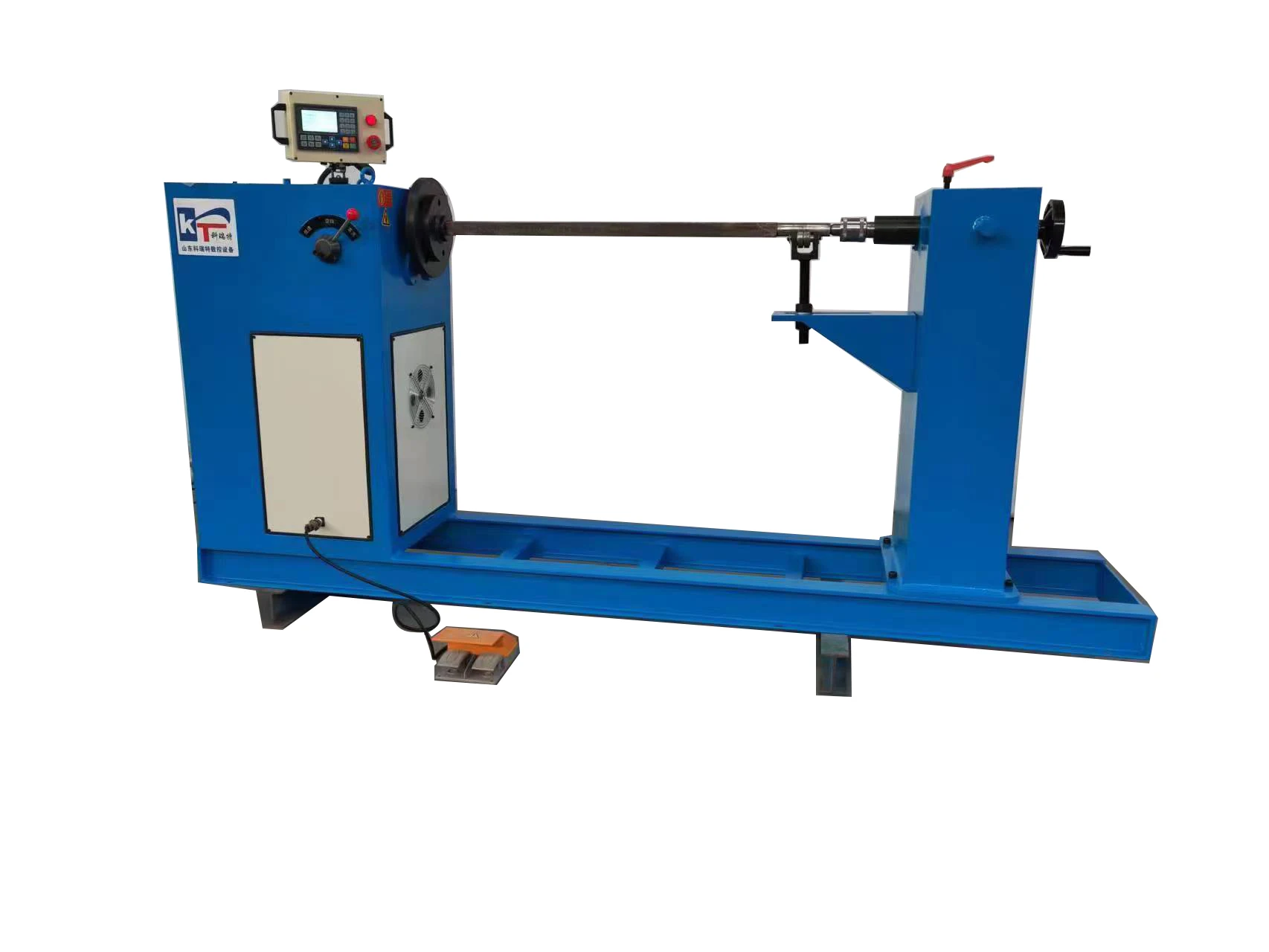

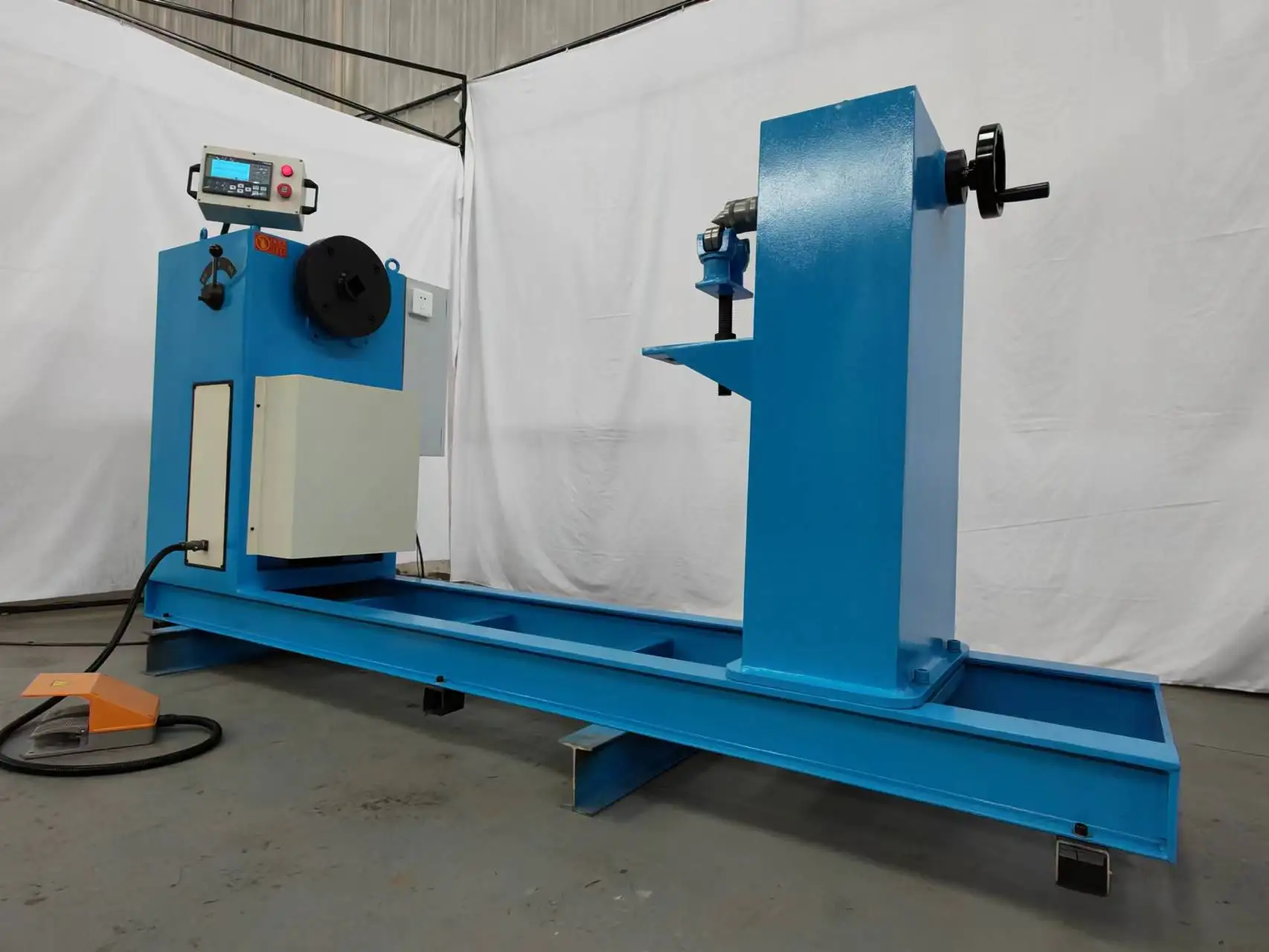

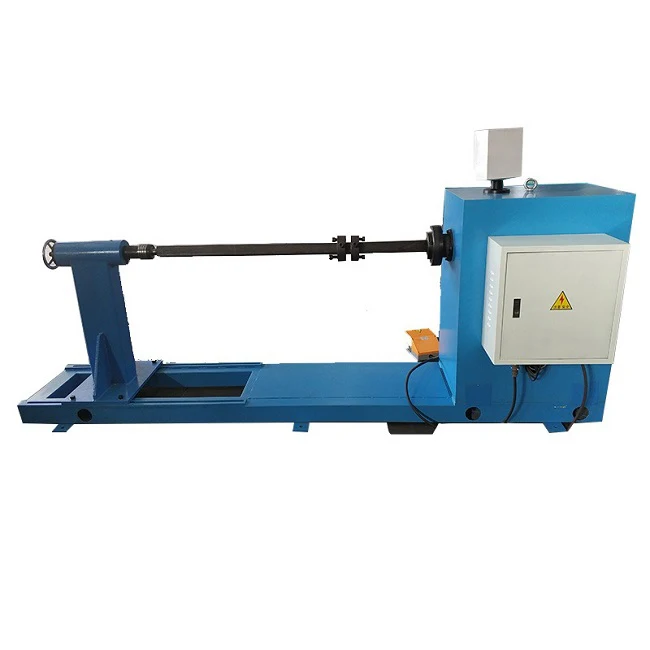

Customized Horizontal Winding Machine Equipment coil winding machine for transformer
- Category: >>>
- Supplier: Shandong Saber Tooth Tiger Cnc Equipment Co. Ltd.
Share on (1600712853554):
Product Overview
Description
Products Description
Product Paramenters
Item | RX-1T | RX-2T | RX-3T | ||
Central height | 850mm | 900mm | 1000mm | ||
Disc diameter | Φ200mm | Φ300mm | Φ400mm | ||
Tailstock adjustment range | 200-1600mm | 200-1600mm | 200-2000mm | ||
Max torque | High and low voltage model | 1300N.M | 1900N.M | 2500N.M | |
Ordinary model | 800N.M | 1500N.M | 1500N.M | ||
Speed range | High and loe voltage model | Low:0-30r/min High:0-180r/min | Low:0-30r/min High:0-120r/min | Low:0-30r/min High:0-180r/min | |
Oridinary model | 0-140r/min | 0-70r/min | 0-60r/min | ||
load capacity | 1000kg | 2000kg | 3000kg | ||
Motor power | 4kw | 5.5kw | 7.5kw | ||
Dimension | 2700x800x1300mm | 2850x1000x1400mm | 3250x1100x1500mm | ||
Structural features
1.The main machine of the winding machine is made of thick steel plate welding and aging treatment.
2.The machine is equipped with automatic brake device,which can brake smoothly and prevent reversing when winding stops.
3.The machine can preset the number of coil turns and control the positive inversion; the high precision encoder can count the
positive and negative,and has the function of power-off memory.
4 .Button station centralized control, foot switch or button control spindle start and stop.
2.The machine is equipped with automatic brake device,which can brake smoothly and prevent reversing when winding stops.
3.The machine can preset the number of coil turns and control the positive inversion; the high precision encoder can count the
positive and negative,and has the function of power-off memory.
4 .Button station centralized control, foot switch or button control spindle start and stop.

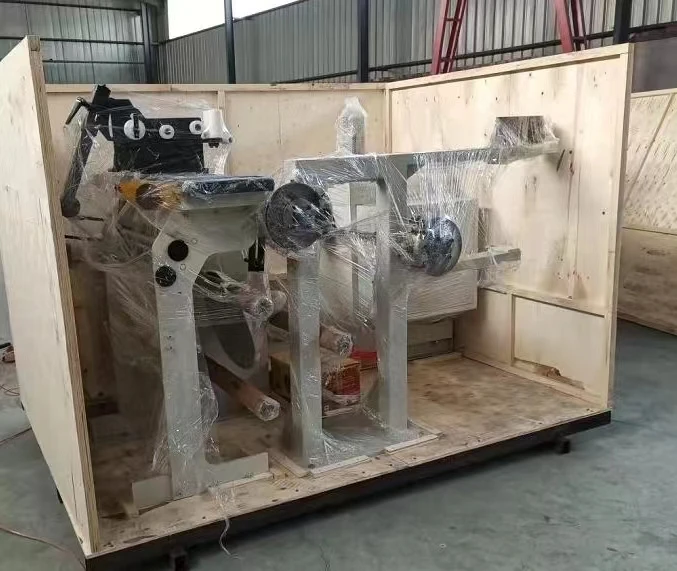

Product packaging
Our Service
1,before sales: Inquiry and consulting support. We will give you professional instruction and help you to buy the suitable
machine, after you choose our machine, let you take the biggest profit through using our machine.
2, in sales: we will give you feedback information about your order through some ways. let you put your heart into stomach.
3, after sales: The equipment be guaranteed for one year. For foreign users, our company provides free email,video, telephone and other technical support.If there is our local agent and office, we will let our local engineer to your factory and give you a training. We do our best to ensure that your interests are not prejudiced.
4, Quality assurance: All mold parts are guaranteed for three months. If quality problems occur within three months,they will be returned and replaced unconditionally.
machine, after you choose our machine, let you take the biggest profit through using our machine.
2, in sales: we will give you feedback information about your order through some ways. let you put your heart into stomach.
3, after sales: The equipment be guaranteed for one year. For foreign users, our company provides free email,video, telephone and other technical support.If there is our local agent and office, we will let our local engineer to your factory and give you a training. We do our best to ensure that your interests are not prejudiced.
4, Quality assurance: All mold parts are guaranteed for three months. If quality problems occur within three months,they will be returned and replaced unconditionally.
Company Profile
workplace
Shabdong Saber tooth tiger Equipment Co., Ltd. is a high-tech enterprise specializing in the research and development and manufacturing of power and electrical numerical control processing equipment for many years. The company's experts have been engaged in the R & D and manufacturing of industrial equipment for decades. They are proficient and experienced in R & D and production.They can provide high-quality and high-performance power and electrical processing equipment suitable for users' needs.
Manufacturing plant
FAQ
Q1: How is quality ensured about the busbar processing machine?
our factory Passed the ISO-9001 quality certificationp, we have one year's quality warranty..
Q2: Can customized machines be purchased?
Yes, it can be provided according to the drawings and customer requirements
Q3: How many years of production experience and customer market experience do you have?
We have more than 10 years of production experience, we are agents and end customers direct sales company
Q4: How about the payment term?
30% advance payment, final payment before delivery, full payment for delivery.
our factory Passed the ISO-9001 quality certificationp, we have one year's quality warranty..
Q2: Can customized machines be purchased?
Yes, it can be provided according to the drawings and customer requirements
Q3: How many years of production experience and customer market experience do you have?
We have more than 10 years of production experience, we are agents and end customers direct sales company
Q4: How about the payment term?
30% advance payment, final payment before delivery, full payment for delivery.
